Pyle Mobile Video System PLD41MUT User manual

+
-
PLD41MUT
OWNER'S MANUAL
Mobile Video System
www.pyleaudio.com
Motorized Slide Down And Detachable Panel
4 Inch Wide Color Digital Screen TFT
Car DVD/VCD/CD/MP3 Player/TV Tuner
MPEG4 Player
USB Connect
AM/FM Digital Pll Tuning Radio
Remote Control

CONTENTS
1
Safety Information......................................................................................
Disc Notes .................................................................................................
Installation .................................................................................................
Change Angle .............................................................................................
Electric Connection ....................................................................................
Remote Control ..........................................................................................
Basic Operation ........................................................................................
Setup .........................................................................................................
Specifications ...........................................................................................
Trouble Shooting ......................................................................................
MP3/WMA/JPEG Disc Play .....................................................................
AUX Operation .......................................................................................
TFT Monitor Operation ...........................................................................
Rear View Camera .................................................................................
MPEG4 Player ........................................................................................
USB Operation .......................................................................................
On-Screen Display Function ...................................................................
Multi-Audio Language Function ..............................................................
Multi-Subtitle Language Function ...........................................................
Multi-Angle Function .............................................................................
Title Menu Function ...............................................................................
TV Operation ..........................................................................................
General Setup ........................................................................................
Speaker Setup .......................................................................................
Dolby Digital Setup ................................................................................
Preferences Setup .................................................................................
Defaults Table ........................................................................................
Alternate Auido/video Source ...................................................................
15
15
15
16
16
16
17
17
18
18
18
18
18
19
21
21
22
23
2
3
4
7
8
9
11
19
24
25

2
SAFETY INFORMATION
CAUTION:
WARNING:
REGION MANAGEMENT INFORMATION:
THIS DVD PLAYER IS A CLASS I LASER PRODUCT. HOWEVER THIS DVD
PLAYER USES A VISIBLE/INVISIBLE LASER BEAM WHICH COULD CAUSE .
HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE
THE DVD PLAYER CORRECTLY AS INSTRUCTED.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.DO NOT OPEN COVERS AND DO NOT
REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
EQUIPMENT TO RAIN OR MOISTURE.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, AND ANNOYING
INTERFERENCE, USE ONLY THE RECOMMENDED ACCESSORIES.
THIS DEVICE IS INTENDED FOR CONTINUOUS OPERATION.
This product incorporates copyright protection technology that is protected
by method claims of certain U.S. Patents and other intellectual property rights
owned by Macrovision Corporation and other rights owners.Use of this
copyright protection technology must be authorized by Macro vision Corporation,
and is intended for home and other limited viewing uses only unless
otherwise authorized by Macrovision Corporation. Reverse engineering or
disassembly is prohibited.
This DVD Player is designed and manufactured to respond to the Region
Management Information that is recorded on a DVD disc. If the Region number
described on the DVD disc does not correspond to the Region number of this
DVD Player, this DVD Player cannot play this disc.
2

DISC NOTES
Preparing New Discs with
Spots
Rough
A new disc may have rough edges on
its inside and outside edges.If a disc
with rough edges is used, the proper
setting will not be performed and the
player will not play the disc.Therefore,
remove the rough edges in advance
by using a ball point pen or pencil as
shown on the right.To remove the
rough edges, press the side of the pen
or pencil against the inside and outside
edges of the disc.
Disc formats supported by this
player
DVD
12 cm disc
(Single-sided disc only)
Video CD
12 cm disc
CD
12 cm disc
MP3
12 cm disc
VIDEO
MP MP
3
CD-RW
Rough spots
on
outside edge
Ball point pen
or pencil
Rough spots
on inside
edge
Label side
up
Do not touch
the
underside
of the disc
Do not
bend
Wipe the disc from
center
toward the outside
edge
Disc Cleaning
Use a dry soft cloth to wipe the surface.
If the disc is quite dirty, use a soft cloth
slightly moistured with isopropyl (rubbing)
alcohol. Never use solvents such as
benzine, thinner or conventional record
cleaners as they may mar the surface of
the disc.
Handling and Cleaning
Dirt, dust, scratches and warping disc
will cause misoperation.
Do not place stickers or make
scratches on discs.
Do not warp discs.
A disc should always be kept in its
case when not in use to prevent from
damaging.
Do not place discs in the following
places:
1.Direct sunlight
2.Dirty, dusty and damp areas
3.Near car heaters
4.On the seats or dashboard
Discs which cannot be played
with this player
DVD-ROM
DVD-R/DVD-RAM
CDV
CD-G
Note:
A disc may become somewhat scratched
(although not enough to make it
unusable) depending on your handle it
and conditions in the usage environment.
Note these scratches are not an
indication of any problem with the player.
3

Choose the mounting location where the unit will not interfere with the normal
driving function of the driver.
Before finally installing the unit, connect the wiring temporarily and make sure
all connected up properly and the unit and the system work properly.
Use only the parts included with the unit to ensure proper installation. The use
unauthorized parts can cause malfunctions.
Consult with your nearest dealer if installation requires the drilling of holes or
modifications of the vehicle.
Install the unit where it does not get in the driver s way and cannot injure the
passenger if there is a sudden stop, like an emergency stop.

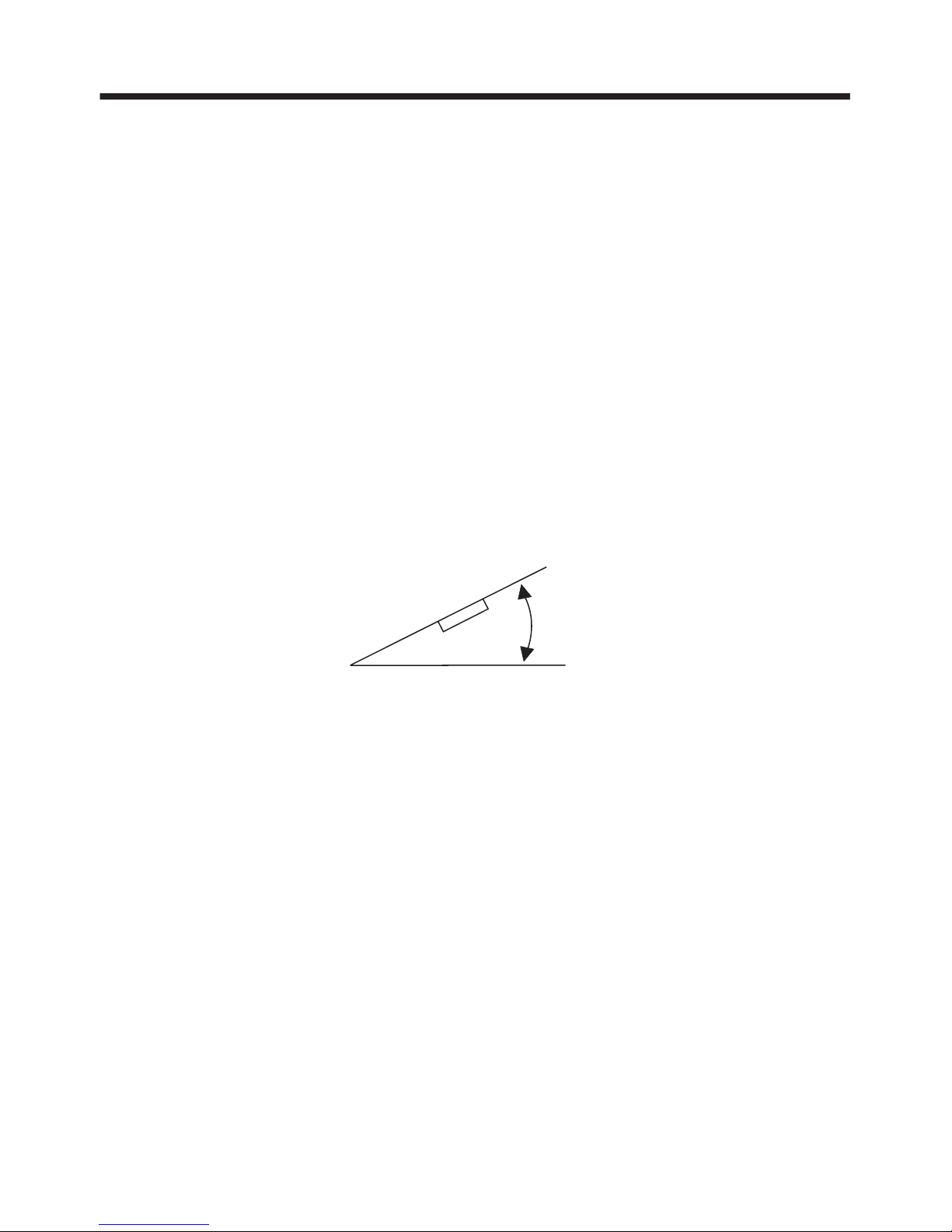

If installation angle exceeds 30 from horizontal, the unit might not give its
performance.
Avoid installing the unit where it would be subject to high temperature, such
direct sunlight, or from hot air, from the heater, or where it would be
dirt or excessive vibration.
This unit can be properly installed either from "Front"(conventional DIN
or "Rear"(DIN Rear-mount installation, utilizing threaded
the unit chassis). For details, refer to the following
illustrated installation methods.
NOTES:
DIN FRONT/REAR-MOUNT
it is
of
other
optimum
as from
subject to dust,
Front-mount)
screw holes at the sides of
'
30
INSTALLATION
4

INSTALLATION
5
If you want to take CHASSIS out of the SLIDE BRACKET HOUSING,
first remove the PLASTIC COVER of the both sides away, then insert
the two KEY PLATE into left and right side of chassis as above illustration.
DASH BOARD
METAL MOUNTING
STRAP
HEX NUT
SPRING WASHER
PLAIN WASHER
TAPPING SCREW
CONSOLE
SLIDE BRACKET
HOUSING
HEX BOLT
KEY PLATE
KEY PLATE
PLASTIC COVER

6
INSTALLATION
Installing The Front Panel
FIG.4
FIG.3
PROTECTIVE CASE
FRONT PANEL
FIG.2
FRONT PANEL
FIG.1
FRONT PANEL
RELEASE BUTTON

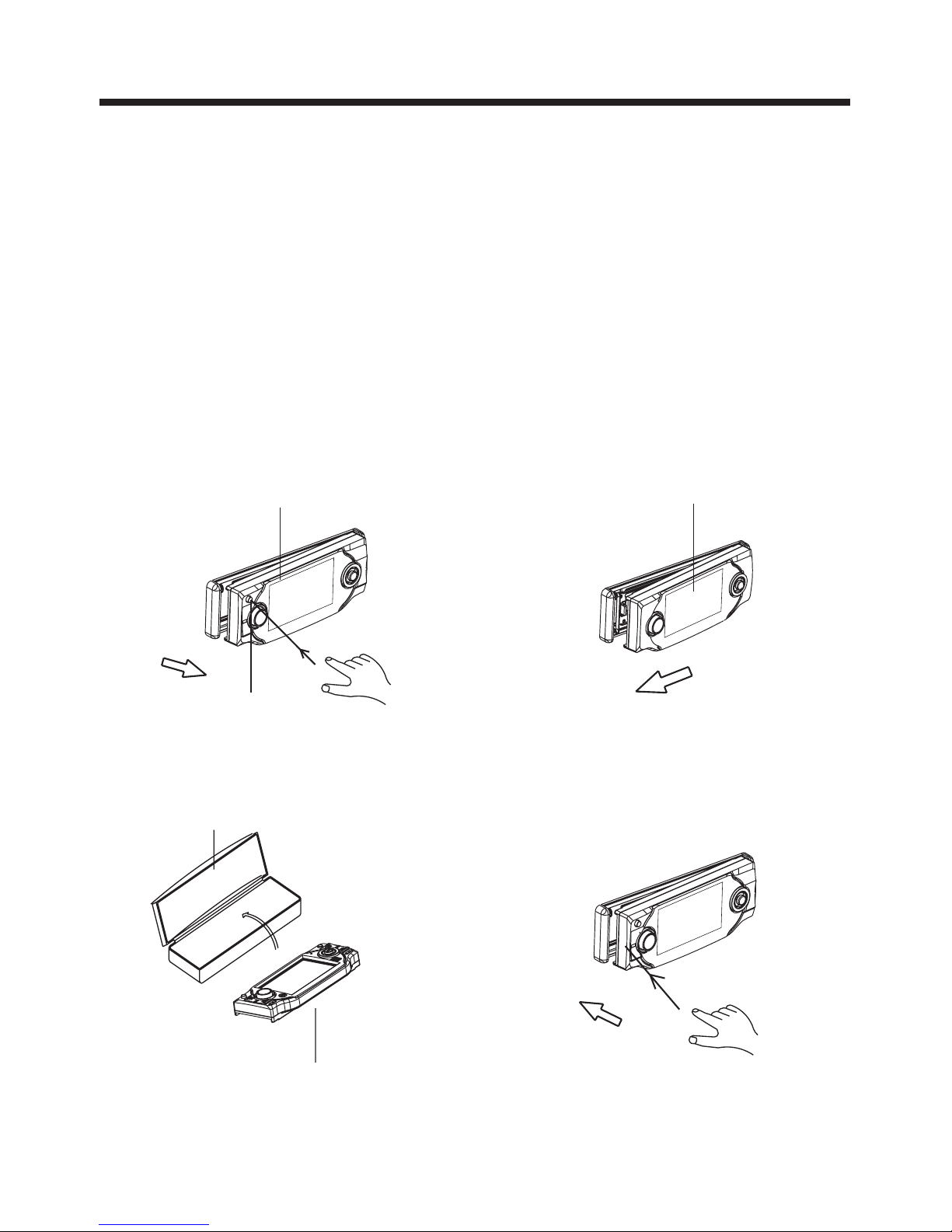

How To Remove And Install The Front Panel
When detaching or attaching the control panel, be careful not to damage the
connectors on the back of the control panel and on the panel holder.
Detaching The Front Panel
Install The Front Panel
Before detaching the control panel, be sure to turn off the power.
1.Press the release button and the left hand side of the front panel will release.
(FIG. 1)
2.Pull-off the front panel (FIG. 2) and keep the front panel into the case (FIG. 3)
First insert the right hand side of the front panel into the housing of the unit , then
push the left hand side of the front panel and make sure the panel is properly
installed(FIG.4),and then press the PWR button (2) briefly to switch the device ON.

CHAGNE ANGLE
7
Caution:
Do not insert your finger behind the control panel.
When you want to change the viewing angle of the operating unit to play,
you can press the (angle)button repeatedly to select the desired angle
as follows:
CHANGING THE CONTROL PANEL ANGLE
Angle 3
Angle 4
Angle 1 Angle 2

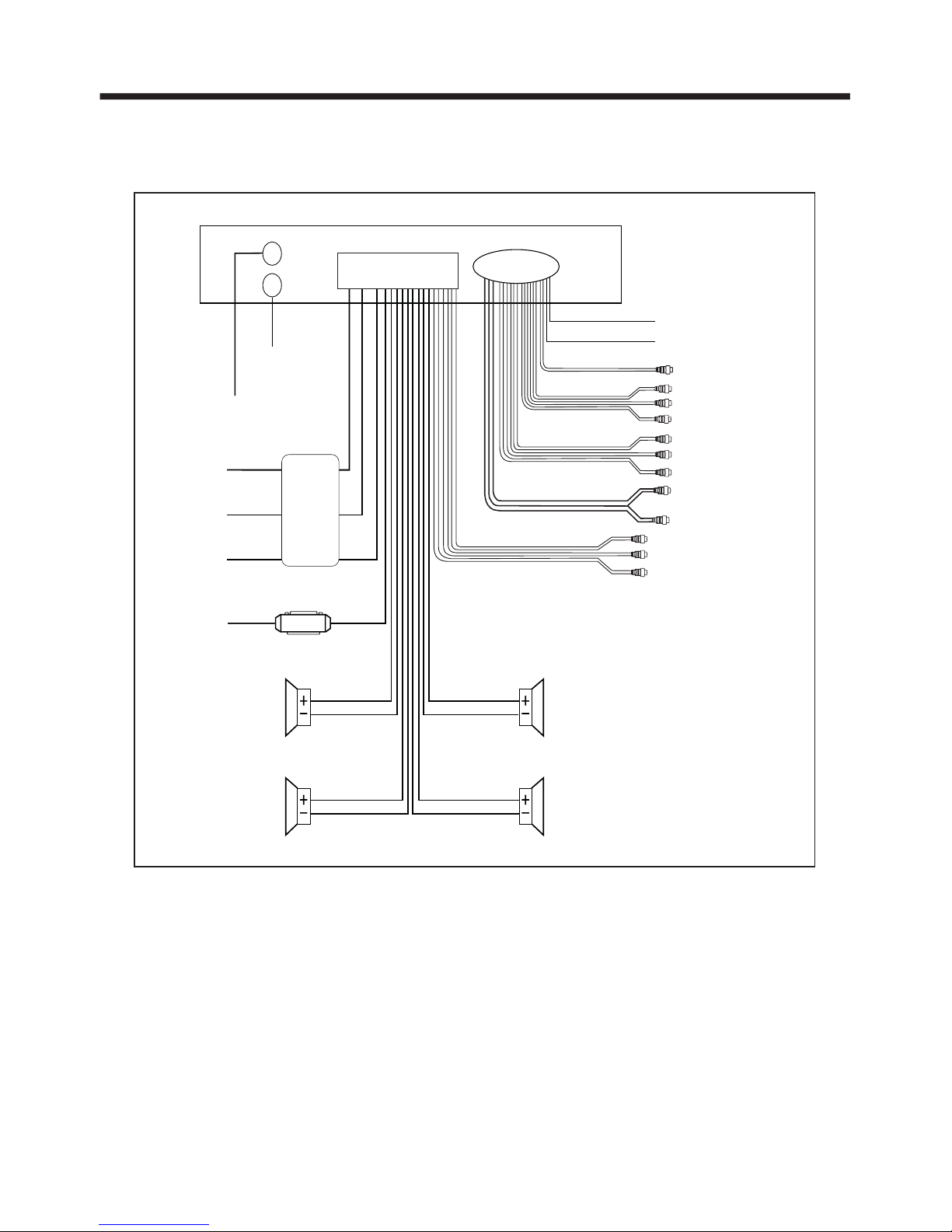

ELECTRIC CONNECTION
WIRING CONNECTION
8
Note:
the earth connection cable (parking brake B-) must be connected in order for DVD
pictures to be played back to the monitor. If the cable has not been correctly
connected, the message “PARKING BRAKE” appears on the monitor.
VIDEO IN YELLOW
RCH IN RED
LCHINWHITE
GREY SUBWOOFER
VIDEO OUT 2 YELLOW
COAXIAL OUT BROWN
WHITE (B+)12V
REAR CAMERA SWITCH
GREEN
YELLOW
AUX(optional)
RCA CABLE
REAR CAMERA INPUT
(B-)PARKING BRAKE
FRONT RCA WHITE L
RCH RED
LCH WHITE
FRONT RCA RED R
VIDEO OUT 1 YELLOW
REAR RCA OUTPUT
CABLE (optional)
FRONT RCA OUTPUT
CABLE
(FOR RCA LINE OUT VERSION ONLY)
GREY
GREY/BLACK
FRONT
Rch SPK.
VIOLET
VIOLET/BLACK
WHITE
WHITE/BLACK
GREEN
GREEN/BLACK
REAR
Lch SPK.
AUTO
ANTENNA BLUE
FUSE
GROUND(B-)
MEMORY
BACK-UP(B+)
IGNITION
SWITCH(B+)
ANTENNA CONNECTOR
RED
YELLOW
BLACK
MAIN UNIT
REAR
Rch SPK.
FRONT
Lch SPK.
CHOKE
BOX
TV ANT IN

REMOTE CONTROL
9
1.CLK
2.MODE
3.STOP
4.SETUP
5.MO/ST(AUDIO)
6. SUBTITLE
LO/DX
7.REPEAT
8.GOTO
9. /
10.SEL
11. VOL+/VOL-
12. / / /
13.MENU
SUB WOOFER
14.BAND(OSD)
15.POWER
16.PLAY/PAUSE
17.MUTE
18.TITLE/PBC
(A/P)
19.
20.ANGLE
21.EQ
22.SEARCH
23.ENTER
24.SKIP
25. 0 - 9
26.+10
Press it to change the display to clock display.
Press it to change between TV, RADIO ,DISC and AUX IN mode.
Press it to stop playback.
Display the SETUP menu.
In radio mode, press it to select STEREO or MONO mode (In disc
mode, press it to changing of the AUDIO soundtrack on multi-
audio soundtrack DVD disc. Changing of the sound mode of the
VCD/CD disc)
Changing of the SUBTITLE language on multi-subtitle language
DVD disc. In radio mode,.Press this button for distance reception
when you are located at weak signal location, depress it for
stronger signal.
Switch the Repeat mode of DVD/VCD/CD/MP3 disc.
Press to skip to the next track & press to skip back one track.
(Note:In DVD mode, press continually the twice to skip back one track.)
Press it repeatedly to change mode through volume , bass, treble,
balance , fader, color, bright, contrast and tint modes.
Press it to adjust volume level
Cursor buttons in MENU mode. Note: For models without built-in
FM Modulator, the / buttons can be used for volume up/down
control. In TV mode, press / to fine tune. Press the /
to select channel upward and downward.
Press it to display the root menu of the DVD disc. Press it long to switch
the Subwoofer ON and OFF.
Display statistical disc information during playback (To change
the band in radio stations)
Press it to turn on the unit ,press it again to turn off.
Press once to pause a play, press again to resume playback.
Press it to mute down sound.
Display the TITLE menu that is stored in DVD disc changing
between PBC ON and PBC OFF on the VCD disc.(Auto store
and preset scan function in radio stations .)
Press it to change the view angle.
Changing of the view angle on multi-angle DVD disc.
Press it to turn to equalization function.
In TV mode, Press it to search TV channel automatically.
In DISC mode, Press it to start forward rapidly.
Confirm the Track/Chapter selected with the number key or
selected with the cursor buttons on TV screen.
In TV mode, press it to ADD and DELETE channel .
In DISC mode, press it to reverse rapidly
Numeric buttons.
Tens digit select button, cooperatively used with numeric buttons.
Disc search button, cooperatively used with numeric buttons
15
17
19
13
14
7
2
6
24
18
3
16
5
20
1
21
25
12
10
4
8
26
23
22
9
11

REMOTE CONTROL
10
Using the Remote Control
Face the remote control towards the player front face IR mark (remote control signal
receiver).
Operation angle: About 30 degree in each the direction of the front of the IR mark.
Preparing the Remote Control
1.First push to inside as the direction indicated by the arrow (See )And then
Remove the battery holder as the direction indicated by the arrow (See ).
2.Replace the battery Set a new battery property with (+)side up as illustrated
(See ).
3.Insert the battery holder. Push in the holder to the original position(See ).
1
2
3
4
Inserting the Batteries

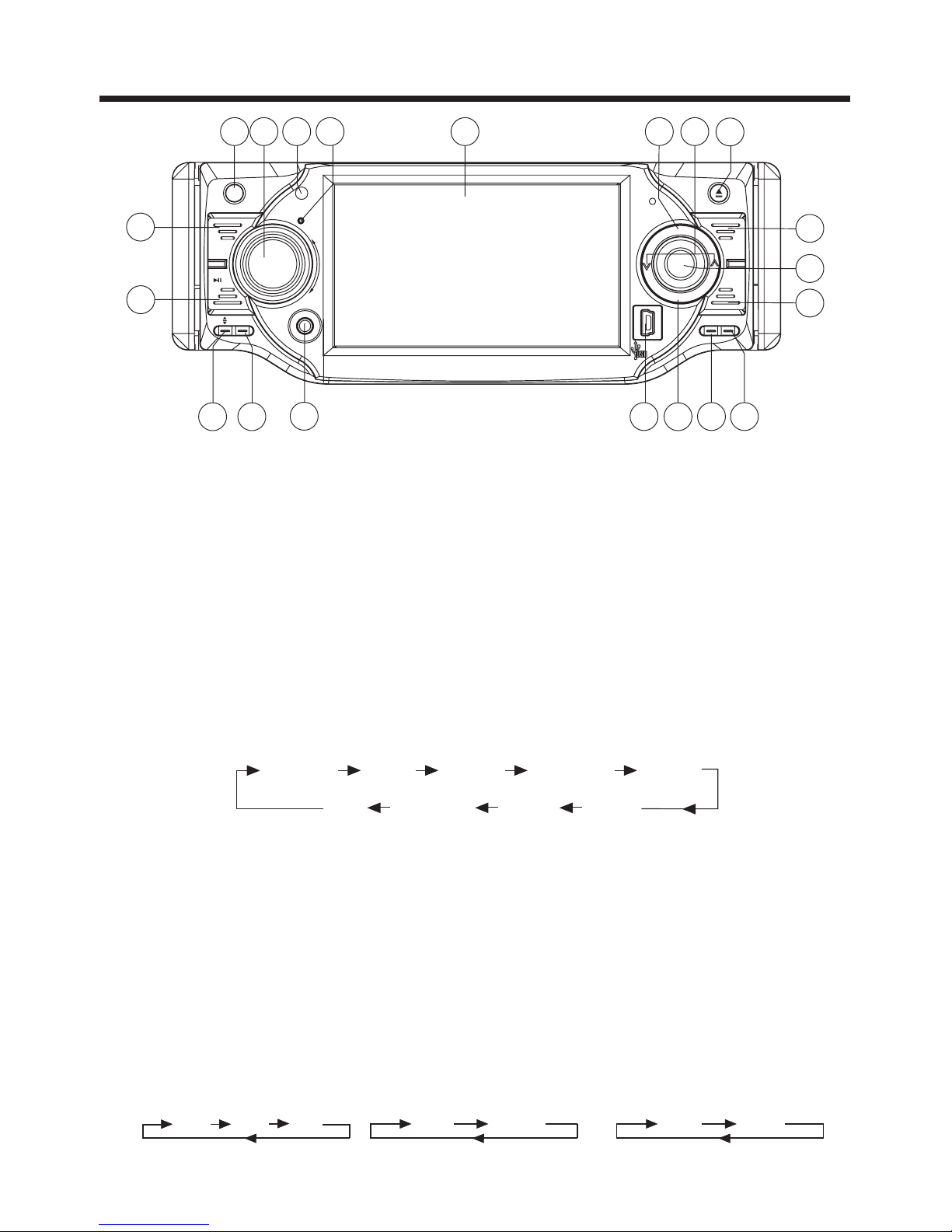

BASIC OPERATION
11
2.PWR On/Off BUTTON
Press this button to switch the device On, WELCOME appears in the display.
Press it again to switch the device Off, SEE YOU appears in the display.
1.REL BUTTON
Press the REL button to detach the removable front panel.
3-4.VOL+/VOL- & SEL BUTTON
Press SEL 4 button briefly to across the sound/picture mode selection menu
by repeatedly pressing the SEL button you can select the individual menu items
such as volume, bass, treble, balance, fader, color, bright, contrast and tint .
Then rotate the VOL + / - to adjust the selected mode.
(The corresponding value will show on the display.)
When mode has not been adjusted for several seconds, display returns to normal
radio or CD display.
()
Tint Contrast Bright Color
Volume Bass Treble Balance Fader
Adjust volume level by using VOL + / - button.
Note: The unit is initially set to volume mode.
Press SEL button one time. Adjust bass level by using VOL +/-button.
Press SEL button two times. Adjust treble level by using VOL + / -button.
Press SEL button three times. Adjust sound balance between left
and right speakers by using VOL + / VOL - button.
Press SEL button four times. Adjust sound balance between front and
rear speakers by using VOL + / VOL - button.
A.Volume:
B.Bass:
C.Treble:
D.Balance:
E.Fader:
( : the function of the Color, Bright, Contrast and Tint. Please see 16 page.)NOTE
In RADIO mode, press the BAND button on the front panel or on the remote
controller to select your desired radio band and word which band is selected
will be displayed in the TFT . Press it to change the bands as below :
5. BND BUTTON
FM MW LW
For 3 Bands (Europe)
FM MW
For 2 Bands (Europe)
FM AM
For 2 Bands (USA)
1
9
314
18 2
7
19
8
5
4
126
13
11
20
15
10
17 16
VOL+
VOL-
SEL

BASIC OPERATION
12
8. MU BUTTON
Press it button to switch of the loudspeakers for a short period. The word MUTE
flashes in the display. Press it again to cancel the mute function. This function
can also be cancelled by rotating the VOL multifunction button.
9. (ANGLE)BUTTON
you can change the viewing angle of the operating unit . Press this button up to
four times in order to select the desired position.
11. BUTTON
Press the button to interrupt playback of the CD (pause function). Press this
button again to cancel this function.
7. APS/DISP BUTTON
a) Memory function:
swing the SEL knob in the direction of APS/DISP for approximately 2 seconds
to active automatic station storage. The radio searches within the current
frequency band, e.g. FM1, for the strongest station are then allocated to the
corresponding storage locations. Then the station of the first storage location
is set. If you would like to search for more stations in the FM band, press the BND
button(5) in order to change to the FM2 or FM3 band. Swing the SEL button (4)
again in the APS/DISP direction for about 2 seconds to continue search.
b) Scan Function:
if the SEL knob is moved briefly in the direction of APS/DISP, the radio briefly
plays all the preset stations of the frequency band. (The scan function ends
automatically at the first storage location of frequency band FM1.)
swing the SEL knob briefly in the direction of the APS/DISP on the front panel ,
the playback picture (the monitor on the unit only) will not to be shown, only the
audio will be heard. (Swing it again to resume the playback picture mode.) You
can press SEL knob briefly to select the “BG COLOR” by repeatedly pressing the
SEL knob, then rotate the VOL+/- to select the background color among of the
“AUTO, BG COLOR: 01........BG COLOR: 11”, in “ AUTO” mode, the monitor of
unit will change the background color automatically
you can press SEL knob briefly to select the TV system by repeatedly pressing
the SEL knob, then rotate the vol+/- to select the TV type (only in EUR frequency
mode) among of the “PAL-BG”, “PAL-DK”, “PAL-I”,“PAL-MN” ..
In Radio Mode:
In Disc Mode:
In TV Mode
10.CLK BUTTON
Press it to change the display to clock display. Press it again to return to previous
display. In clock display, press and hold for about 2 seconds until the hour display
flashes. Rotate the VOL+/- to adjust hours , press CLK button to flash minute
then use VOL+ /VOL- to adjust minutes.
6. EQ BUTTON
Swing the SEL knob briefly in the EQ direction to turn to equalization function
and to select desired audio mode. There are five kinds of mode as below:
JAZZ CLAS POP ROCK FLAT

BASIC OPERATION
13
13. MOD BUTTON
Press it repeatedly to select TV, AUX IN , RADIO and DISC mode.
During the USB playback, you can press STOP button and then press GOTO
button to select the DISC mode.
14. (EJECT) BUTTON
Press this button to insert and eject the Disc . The operating unit swings down-
wards. Insert the Disc with the labelled side facing upwards gently into the CD
slot until the device draws in the CD/DVD automatically. The operating unit will
automatically swings back to the normal position.
16. RET(RESET) BUTTON
RESET button is placed on the housing and must be activated with either a
ballpoint pen or thin metal object. The RESET button is to be activated for the
following reasons:
A. Initial installation of the unit when all wiring is completed.
B. All the function buttons do not operate.
C. Error symbol on the display.
15.MENU BUTTON
Press it to display the root menu of the DVD/VCD(Only when PBC not in use) disc.
DVD/VCD/CD/MP3:
Normal Playback 2x 4x 8x 16x
b) In Radio Mode:
Move the SEL button in the direction of or in order to set a radio station
manually. Keep the SEL taste pressed down in the or direction in order to
start the search for a radio station automatically.
12. / BUTTONS (TUNE, SEEK, TRACK, SKIP UP/DOWN)
a) In DISC, USB mode:
if you wish to jump forwards or backwards press the SEL button (4) briefly in
the or direction. (Note: in DVD mode, press the SEL button continually
twice in direction to skip back one track during playback.)
Note:For some VCD 2.0 dics(PBC-playback control), and buttons may
be unavailable.
To wind through the tracks keep the SEL button pressed in the or direction
for about 2 seconds. FF X2 appears in the display. Operating the SEL button
again, the speed of rapid forward/reverse changes according to the disc
as follow:
17. IR (infrared)
Sensor for the remote control.
18. AUX IN SOCKET
The operation of the AUX , please see page 15.

BASIC OPERATION
14
TOP/RPT/INT/RDM FUNCTION (Only for the RC.)
a. Continuously repeat at the current chapter/track, when selected
REP-ONE mode.
b. Select REP-ALL mode to continuously repeat all chapter/track on the
current disc.
c. REPEAT feature does not support VCD2.0 (with PBC ON).
E.Long Press button to scan disc.
a. In the state of CD disc playing,press the 3/INT button to play the previous 6
seconds part of each track/chapter on disc.
b. In the state of Mp3 disc playing, the 3/INT button is not available.
c. In the state of VCD disc playing , long press the 3/INT button, the screen will
display as follow (long press it again will release this mode.):
3/INT
A.To memorize the current frequency, press any one of the six preset buttons[1-6]
on the remote controller hold for more than 2 seconds.
B.To recall the preset memory, press one of the preset buttons [1-6].
C.Press button to select the first track/chapter to play.
a. In the state of VCD/CD/MP3 disc playing, press the button to select the
first track/chapter to play.(depend on the disc used for VCD)
b. In the state of DVD disc playing, the 1TOP button is not available.
D.Press button briefly to select repeat mode as follow.
1/TOP
REPEAT
REPEAT ALL
CHAPTER REPEAT ON TITLE REPEAT ON
DVD:
REP-ONE REP-ALL
VCD/CD/MP3:
SELECT DIGEST TYPE:
TRACK DIGEST
DISC INTERVAL
TRACK INTERVAL
1). you can use the buttons on the remote control to select the item,
and then press the ENTER button to confirm .
2).
You can use the buttons to select the items ,and then press the
ENTERtoconfirm.
You can also select the items using the corresponding number buttons, and
then press the ENTER to confirm .
In Track Digest OR Disc/Track Interval MODE.
// /
// /
d. In the state of DVD disc playing , long press the 3/INT button, the screen will
display as follow (long press it again will release this mode.):
SELECT DIGEST TYPE:
TITLE DIGEST
CHAPTER DIGEST
TITLE INTERVAL
CHAPTER INTERVAL
F. Long Press to play disc in random.
In the DVD/VCD/CD/MP3 disc playing, press the 4/RDM button on the front
panel to play in random (depend on the disc used for VCD).
4/RDM
// /
// /
1). you can use the buttons on the remote control to select the item,
and then press the ENTER button to confirm .
2).
You can use the buttons to select the items ,and then press the
ENTERtoconfirm.
You can also select the items using the corresponding number buttons, and
then press the ENTER to confirm .
In Title/Chapter Digest OR Title/Chapter Interval MODE.

BASIC OPERATION

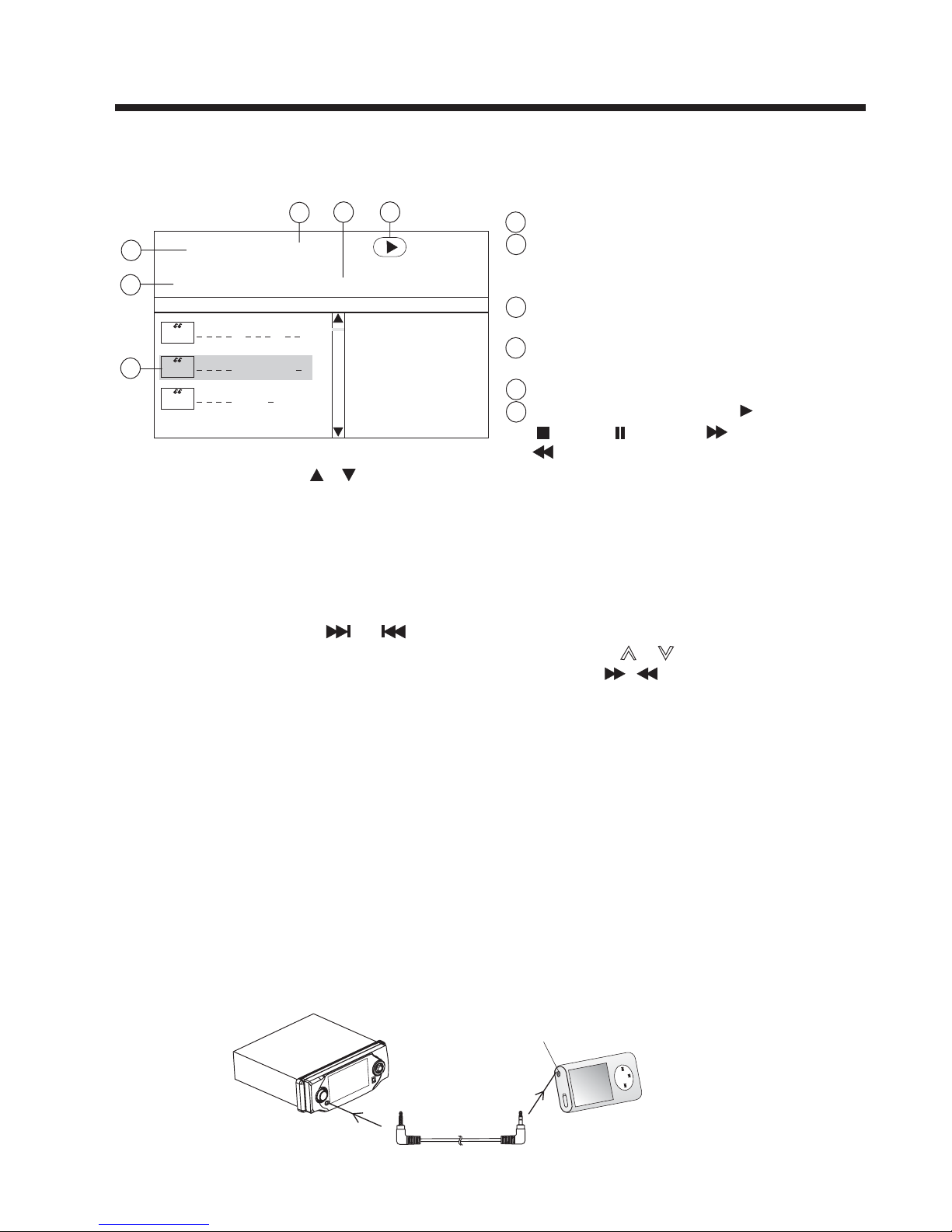

To connect analogue replay devices. Use this jack to replay sound of other replay
equipment such as DVD players, computers, etc. Via the loudspeakers.
1). Please connect the external device with stereo jack plug the AUX IN socket.
2). Press the MOD button(13) to select the AUX IN connection.
3). Rotate the VOL+/- button (3) you can change the volume level.
AUX IN Socket ( 18 )
15
/
3.REP ALL:
Play all songs in the discover and over again.
In the playback, use or to skip an item ahead or back.
In the playback, face right or left swing the SEL knob / button on the front
panel and keep more than 2 seconds or short press on the remote control
to rapid forward/reverse.
2.REP-ONE:
Play the same song over and over again.
In stop mode , use / on the remote control to select the item or folder,
then press ENTER button to confirm.
Pressing REPEAT button repeatedly can select two kinds of repeat play mode.
00:56 04:07
003/112 Repeat one
Mp3
Mp3
Mp3
..............
KP
woman 1
new ton
1
2
3
456 .Current track(file)(highlighted bar)
.Elapsed playing time of the current
track(
.total playing time.
.Selected playback mode
.Operation mode icon. (Play),
(stop), (pause), (forward)
(reverse).
.Current track (file) number/total
number of tracks(files) in the current
folder.
not available for JPEG disc)
( not available for
JPEG disc)
1
2
3
5
6
4
1.When inserting an MP3/WMA/JPEG disc. Ex: When Mp3 file is detected.
MP3/WMA/JPEG DISC PLAY
To connect analogue replay devices. Use this jack to replay sound of other replay
equipment such as DVD players, computers, etc. Via the loudspeakers. (See fig.1)
1).Please connect the external device with stereo jack plug the Aux In socket(18).
2).Press the MOD button to select the AUX IN connection.
3).With the buttons on the external device to operate the item of the playing.
ALTERNATE AUDIO/VIDEO SOURCE
MENU
Headphones port
( connect cable)
( fig.1)

16
BASIC OPERATION
REAR VIEW CAMERA
When connecting the rear view camera.the mirror image of the rear view through
the rear view camera is automatically displayed on the monitor when you change
the gear to the back position.(The monitor on the unit only.)
if the parking brake is not engaged,“parking brake” flashes on the monitor,
and no playback picture will be shown. Only the audio will be heard.
-This warning appears only when the parking brake wire is connected to the parking
brake system built in the car. (See page .8)
NOTE(for the brake function)
MPEG4DISCPLAY
MPEG4 disc is playing as the format
of FILE . For example:
/
In stop mode , use / on the
remote control to select the item ,
then press ENTER button to confirm.
Pressing REPEAT button repeatedly can
select three kinds of repeat play mode.
REP-ONE:
Play the same song over and over again.
REPEAT ALL:
Play all songs in the current directory in sequence, over and over again.
DISC REPEAT:
Play all songs in the discover and over again.
In the playback, use or to skip an item ahead or back.
In the playback, face right or left swing the SEL knob / button on the front panel
and keep more than 2 seconds or short press on the remote control to rapid
forward/reverse.
00:56 04:07
001/001 Repeat one
..............
MAY-AUG
C14-Long-fright
COLOR: 0 to 32
Adjust the color fo the picture-lighter or darker.
BRIGHT:0to32
Adjust if the picture is too bright or too dark.
CONTRAST: 0 to 32
Adjust the contrast of the bright ans dark portion.
TINT:0to32
Adjust the tint if the human skin color is unnatural.
-Adjustable when “NTSC is selected for NTSC/PAL“““.
(The function of the VOLUME, BASS, TREBLE, BALANCE and FADER, Please
see page 11.)
ADJUSTABLE ITEMS:
TFT MONITOR OPERATION
Tint Contrast Bright Color
Volume Bass Treble Balance Fader
Press SEL 4 button briefly to across the sound/picture mode selection menu
by repeatedly pressing the SEL button you can select the individual menu items
such as volume, bass, treble, balance, fader, color, bright, contrast and tint .
Then rotate the VOL + / - to adjust the selected mode.
(The corresponding value will show on the display.)
When mode has not been adjusted for several seconds, display returns to normal
radio or CD display.
()

BASIC OPERATION
17
Press the OSD button during playback
to display the contents of the current
disc on the screen.
A.Example for DVD:
a.Press OSD for the first time:
TITLE ELAPSED
TT 01/01 CH 01/38 0:02:06
e.Press OSD for the fifth time:
The message on the screen will be
cleared.
d.Press OSD for the fourth time:
c.Press OSD for the third time:
b.Press OSD for the second time:
TITLE REMAIN
TT 01/01 CH 01/38 3:24:36
CHAPTER ELAPSED
TT 01/01 CH 01/38 0:02:56
CHAPTER REMAIN
TT 01/01 CH 01/38 0:04:32
B.Example for VCD/SVCD/CD:
a.Press OSD for the first time:
b.Press OSD for the second time:
c.Press OSD for the third time:
d.Press OSD for the fourth time:
SINGLE ELAPSED
TRACK 01/16 00:49
SINGLE REMAIN
TRACK 01/16 02:45
TOTAL ELAPSED
TRACK 01/16 00:60
TOTAL REMAIN
TRACK 01/16 78:46
Title Number, Total Title Number,
Chapter Number, Total Chapter
Number of this Title of the disc
currently being played will be shown
on the screen,along with the elapsed
time.
On-Screen Display Function
A.Plug the USB connect line to the USB
socket (see number 19) of the unit
properly,(See fig.1) when the USB
appliance connect to the USB port of
the connect line, the system star
playing track of the USB appliance
automatically.
B. IN USB playing , you can press the
cursor button to select the item.Then
press ENTER button to playing.
also press numeric to play the
corresponding track directly. Press
the / buttontoskiptothenext
track or skip to the back one track
Press the / button to fast forward
or fast reverse.
Press the REPEAT button to select
repeat play mode.
You can press the EJECT button to
eject the disc or insert the disc into
the compartment.
When insert the disc, the unit will
play the disc automatically .
C.In USB mode(when the disc in the unit)
Press the STOP button once , and
then press the GOTO button, the unit
will change the DISC mode to play,
In DVD/VCD/CD mode,
Press the STOP button twice, and
then press the GOTO button, the unit
will change the USB mode to play
In MP3 mode,
press the STOP button once, and
then press the GOTO button, the unit
will change the USB mode to play.
Note:
a:To prevent damage to the USB ,
during the playback don`t pull out.
b:In the state of the DISC playing ,
Best to pull out the USB.
USB Operation
(Fig.1)
(USB connect line)
USB port

e.Press for the fifth time:
The message on the screen will be
cleared for SVCD and VCD.
C.Example for MP3:
Each time OSD is pressed, the
message displayed on screen changes
as follows:
OSD
SINGLE ELAPSED SINGLE REMAIN
BASIC OPERATION
18
Multi-audio Language Function
For DVD:
AUDIOPress during playback.
Each time the button is pressed,
number of the audio soundtrack
language changes on sequential order.
NOTES:
- The language number is different
according to the disc.
- Some disc only contain one language
soundtrack
- When no different language
soundtrack are recorded will be
display at screen left top corner.
MONO LEFT MONO RIGHT
STEREO
MIX-MONO
For VCD/CD:
AUDIOPress during playback. It is
possible to switch the sound between
monaural and stereo sound.
Title Menu Function
For DVD:
TITLE
If the DVD has multiple titles recorded
on the disc. It can select preferred title
from the title menu to start playback.
- Press during playback.The title
menu is display.
- Press the cursor button shown in TV
screen, select preferred title by the
cursor button and confirmed by
ENTER key.
For VCD:
TITLE/PBCPress button on the remote
control while the disc is playing, you can
switch between "PBC on"and "PBC off"
mode.
Press during playback.
Each time the button is pressed, number of
the subtitle language changes in
sequential order.
Multi-subtitle Language
(for DVD Only)
Function
SUBTITLE
1.Connect the TV antenna to the TV.IN
(from Ant) jack on the back of the unit.
2. Press the mode button on the remote
control to select the TV mode.
Press the SEARCH button on the remote
controller to star search channel
automatically.
- Press the / button to choose the
channel upward and downward.
- The numeric button (0-9) allow you to
select the corresponding channel directly.
Note:
In TV mode, the +10 button is not available.
You can press / button on the remote
controller to fine TV channel. It can be
improve the picture quality .
In TV mode ,after search channel
automatically, when you want delete the
no sign channel, press the SKIP button (the
screen display SKIP),the channel will be
deleted. Also, you can press numeric button
to select channel, then press SKIP to add
channel(the screen display SAVE).
TV Operation
Switching to TV mode
Auto searching TV channels
Selecting channel
Fine TV channel
Channel ADD/DEL
Multi-angle Function
(for DVD Only)
Press ANGLE during playback. Each
time the button is pressed, number of
the angle changes in sequential order.
Notes:
- The angle number is different
according to the disc.
- The function only work for disc having
scenes recorded at different angles.
- When no different angle are recorded,
will be displayed at screen left top
corner.
Notes:
- The language number is different
according to the disc.
- Some discs only contain one subtitle
language.
- When no different subtitle language
are recorded, will be displayed
at screen left top corner.

SETUP
19

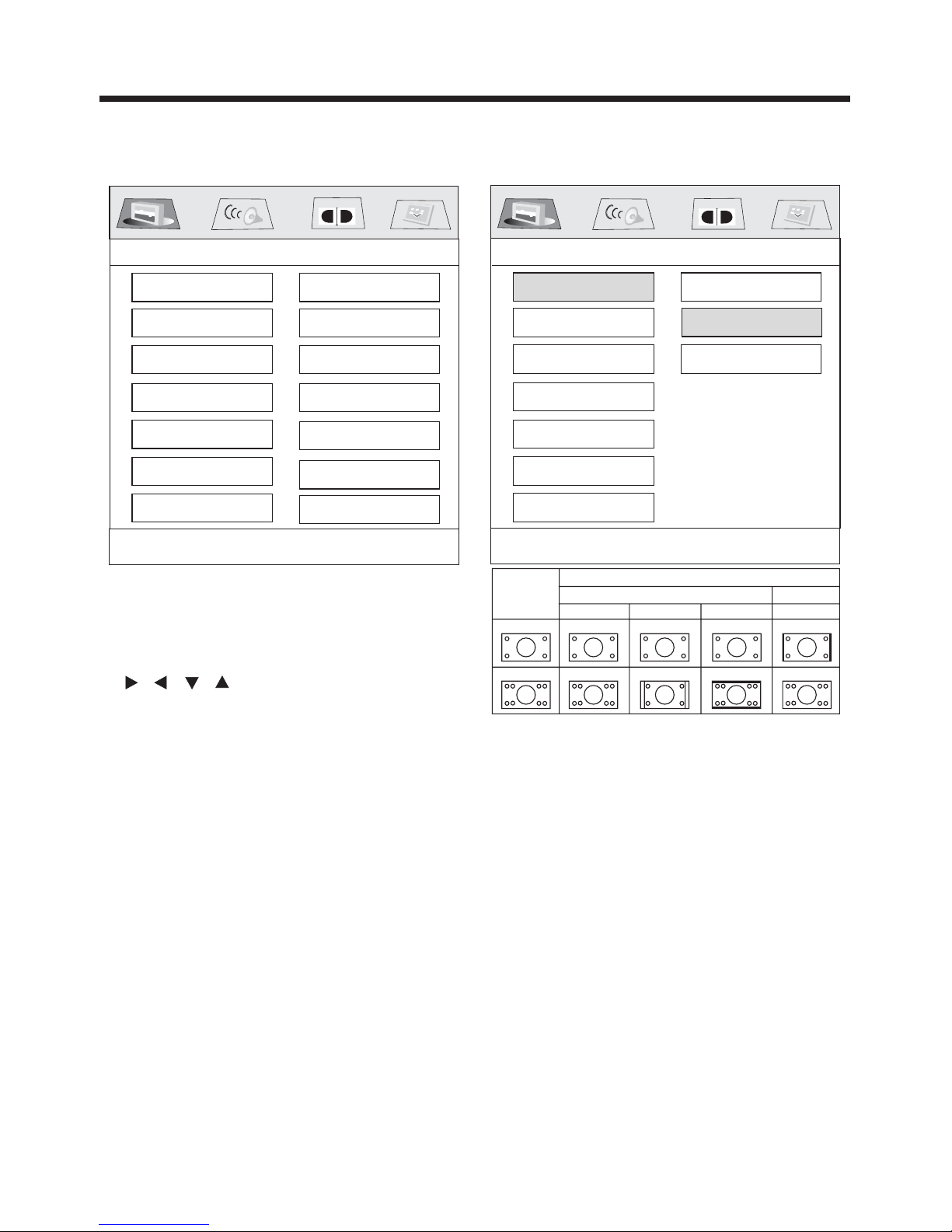

1.TV DISPLAY SETUP
This is to select the appropriate TV
aspect (4:3 or 16:9) according to the
connected TV set.
Played back in the PAN & SCAN style.
(If connected to wide-screen TV, the
left and right edges are cut off.)
Played back in letterbox style.
(If connected to wide-screen TV, black
bands appear at top and bottom of the
screen.)
Select when a wide-screen TV set is
connected.
Normal/PS (For 4:3 TV)
Normal/LB (For 4:3 TV)
Wide (For 16:9 TV)
GENERAL SETUP
--- GENERAL PAGE ---
1. Press button on the remote
control .
2.The SETUP menu is displayed.
3.Select the preferred item by using the
/ / / buttons
4.Press ENTER button.
a.GENERAL SETUP
This setup page includes the item
of TV display & audio output feature.
The detail please refer to
b.SPEAKER SETUP
This is to activate the audio output
from DOLBY AC3 5.1 DOWNMIX
to 2 channel mode. Please refer to
c.DOLBY DIGITAL SETUP
Please refer to
d.PREFERENCE SETUP
This setup page includes all the
configuration of support feature.
The detail please refer to
SETUP
GENERAL SETUP MENU.
SPEAKER SETUP MENU.
DOLBY DIGITAL
SETUP.
PREFERENCES SETUP MENU.
Go To General Setup Page
-----General setup page----
Angle Mark
Last Memory
TV Display
Screen Saver
Spdif Output
OSD Lang
Captions
LB
ON
ENG
ON
ON
ON
SPDIF/RAW
DOLBY
Video
Material
Normal Pan Scan
TV Screen
Letter-box
Wide(16:9)
4:3
Set TV Display Mode
-----General setup page----
Angle Mark
Last Memory
TV Display
Spdif Output
OSD Lang
Captions
Normal/PS
Normal/LB
Wide
Screen Saver
DOLBY
