Pyxis ST-772 User manual

Table of Contents
1 Introducon 2
1.1 Main Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2 Specicaons 4
3 Unpacking Instrument 4
3.1 Standard Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3.2 Oponal Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
4 Installaon 6
4.1 Submersed Floang Installaon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4.2 Submersed Fixed Installaon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4.3 Pipeline Installaon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
4.4 Wiring ................................................. 8
4.5 Connecng via Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
5 Setup and Calibraon with uPyxis® Mobile App 9
5.1 Download uPyxis® Mobile App . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5.2 Connecng to uPyxis® Mobile App . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5.3 Calibraon Screen and Reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
5.4 Diagnosis Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

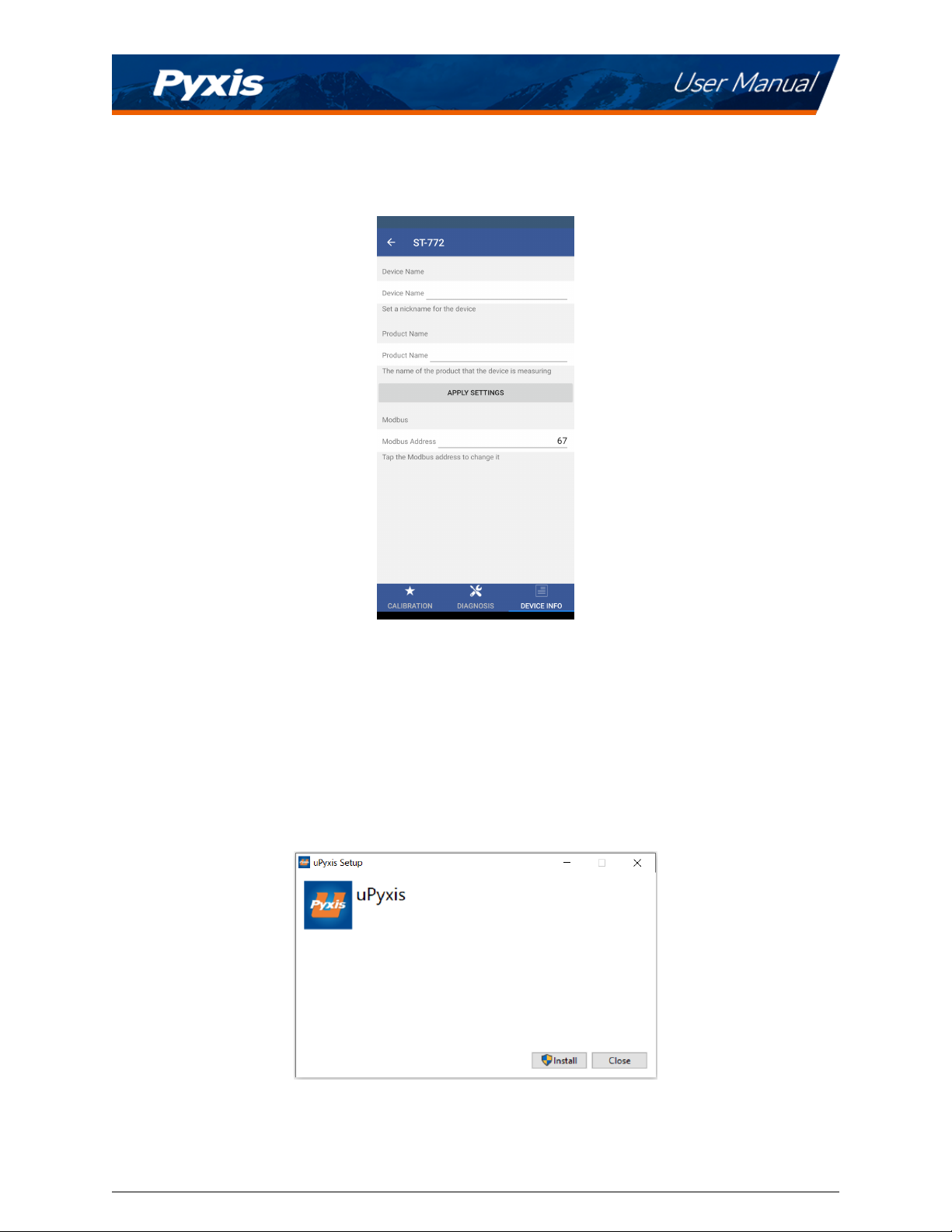

5.5 Device Info Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
6 Setup and Calibraon with uPyxis® Desktop App 13
6.1 Install uPyxis® Desktop App . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

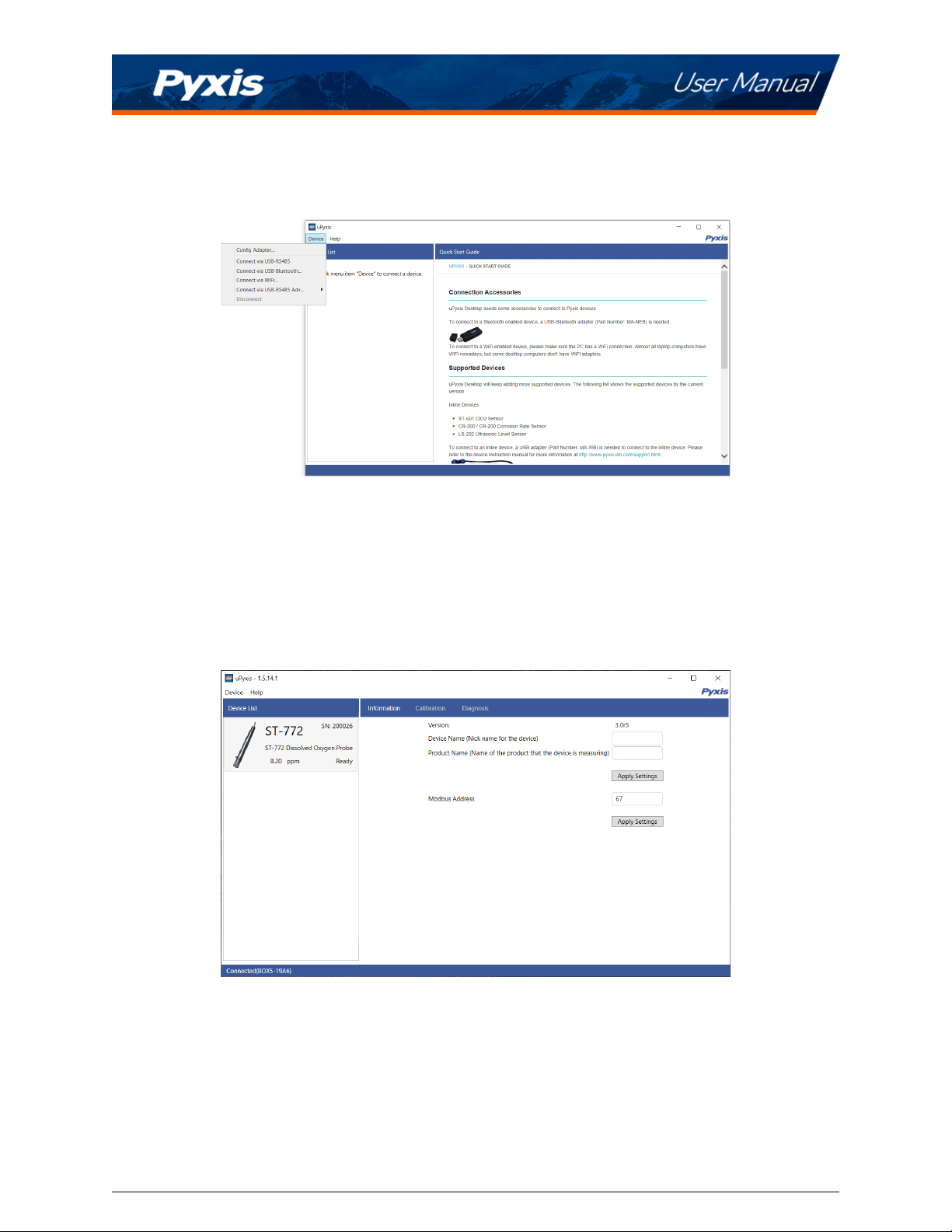

6.2 Connecng to uPyxis® Desktop App . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
6.3 Informaon Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

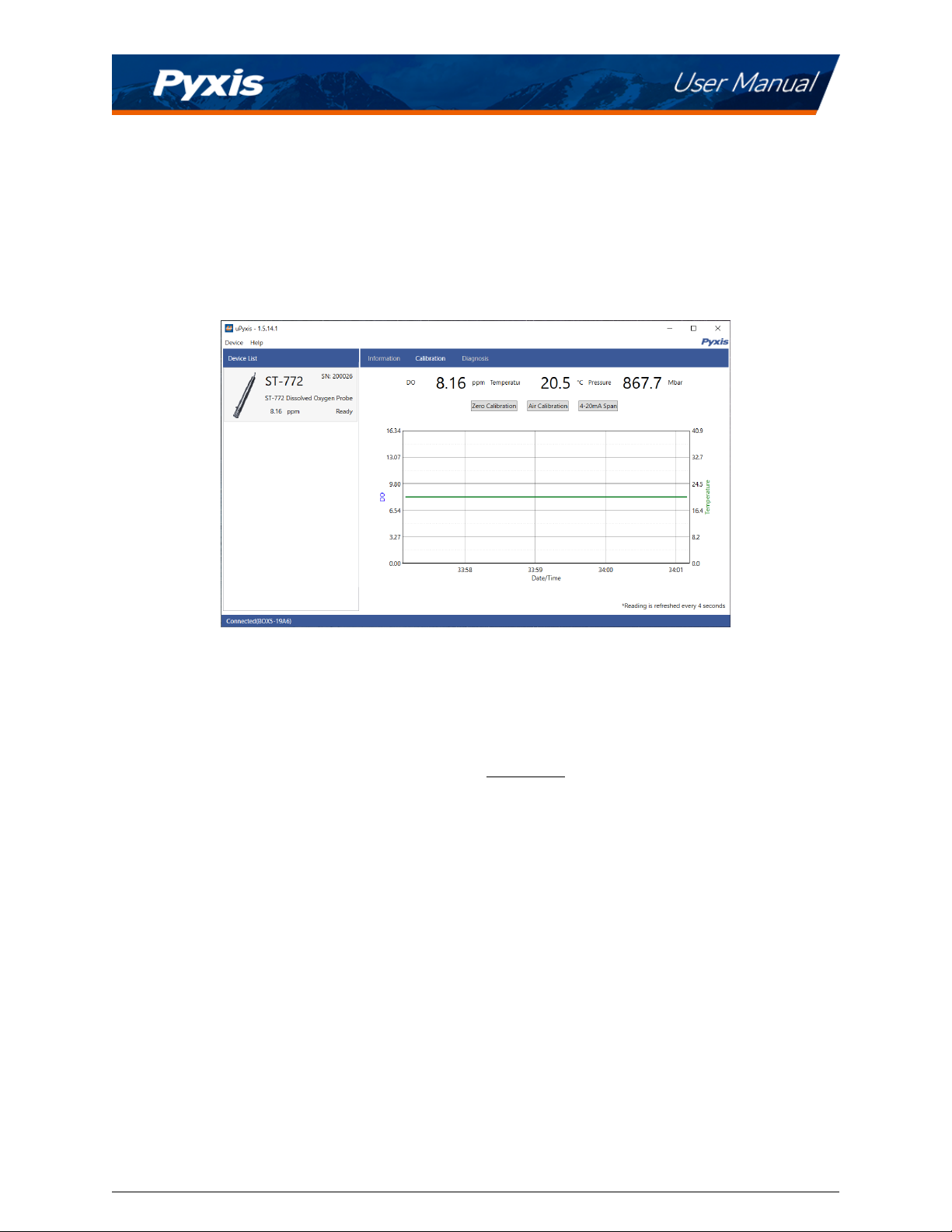

6.4 Calibraon Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

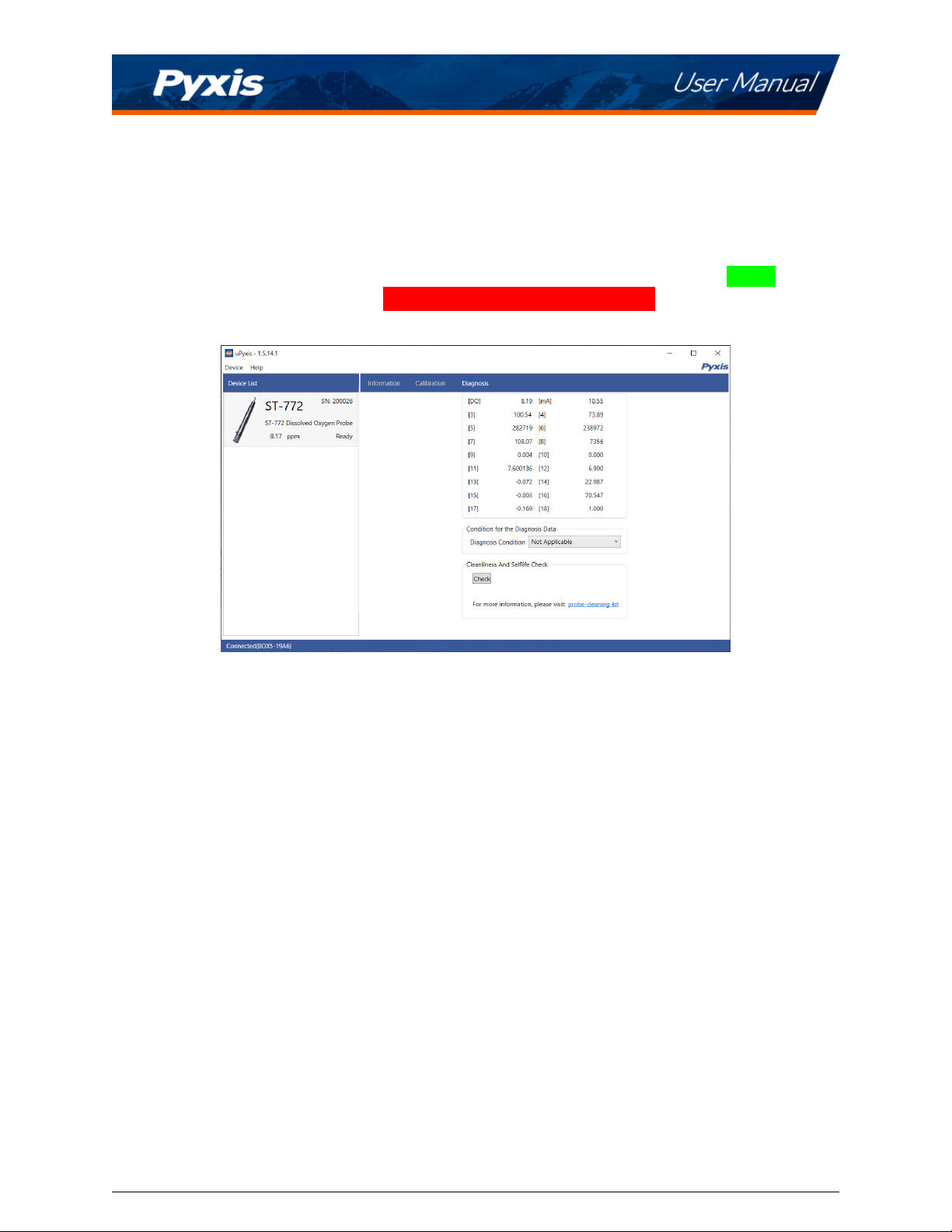

6.5 Diagnosis Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
7 Outputs 17
7.1 4–20mA Output Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
7.2 Communicaon using Modbus RTU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
8 Sensor Maintenance and Precauon 18
8.1 Methods to Cleaning the ST-772/T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
8.2 Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
9 Troubleshoong 19
10 Contact Us 19

Warranty Informaon
Condenality
The informaon contained in this manual may be condenal and proprietary and is the property of Pyxis
Lab, Inc. Informaon disclosed herein shall not be used to manufacture, construct, or otherwise reproduce
the goods described. Informaon disclosed herein shall not be disclosed to others or made public in any
manner without the express wrien consent of Pyxis Lab, Inc.
Standard Limited Warranty
Pyxis Lab warrants its products for defects in materials and workmanship. Pyxis Lab will, at its opon, repair
or replace instrument components that prove to be defecve with new or remanufactured components
(i.e., equivalent to new). The warranty set forth is exclusive and no other warranty, whether wrien or oral,
is expressed or implied.
Warranty Term
The Pyxis warranty term is thirteen (13) months ex-works. In no event shall the standard limited warranty
coverage extend beyond thirteen (13) months from original shipment date.
Warranty Service
Damaged or dysfunconal instruments may be returned to Pyxis for repair or replacement. In some in-
stances, replacement instruments may be available for short duraon loan or lease.
Pyxis warrants that any labor services provided shall conform to the reasonable standards of technical com-
petency and performance eecve at the me of delivery. All service intervenons are to be reviewed and
authorized as correct and complete at the compleon of the service by a customer representave, or des-
ignate. Pyxis warrants these services for 30 days aer the authorizaon and will correct any qualifying
deciency in labor provided that the labor service deciency is exactly related to the originang event. No
other remedy, other than the provision of labor services, may be applicable.
Repair components (parts and materials), but not consumables, provided during a repair, or purchased
individually, are warranted for 90 days ex-works for materials and workmanship. In no event will the in-
corporaon of a warranted repair component into an instrument extend the whole instrument’s warranty
beyond its original term.
Warranty Shipping
A Repair Authorizaon (RA) Number must be obtained from Pyxis Technical Support before any product can
be returned to the factory. Pyxis will pay freight charges to ship replacement or repaired products to the
customer. The customer shall pay freight charges for returning products to Pyxis. Any product returned to
the factory without an RA number will be returned to the customer. To receive an RMA you can generate a
request on our website at hps://pyxis-lab.com/request-tech-support/.
Pyxis Technical Support
Contact Pyxis Technical Support at +1 (866) 203-8397, [email protected], or by lling out a request for
support at hps://pyxis-lab.com/request-tech-support/.

1 Introducon
The Pyxis ST-772/T dissolved oxygen (DO) sensor is based on the principle of uorescence quenching to
determine the dissolved oxygen content in water. It incorporates Pyxis’ advanced technology in the eld
of uorescence detecon. The ST-772/T sensor uses dual light source detecon technology with excitaon
and reference light sources, oering a wide detecon range and low detecon limit. The sensor integrates
temperature and pressure sensors, which can perform temperature and pressure compensaon for the
measurement of dissolved oxygen based on ambient environmental condions present in the applicaon
of use.
The ST-772/T sensor oers an easily replaceable, front loading DO membrane cap that has been indepen-
dently developed by Pyxis Lab, with a typical service life of up to two years. This unique DO membrane cap
design incorporates a black microporous PTFE membrane material designed to provide extreme scratch
resistance, extended life span and simple replacement. The at front-end design of the ST-772/T sensor
makes this plaorm less prone to contaminaon or fouling and is easy to clean.
The sensor body is composed of 304 stainless steel and is well suited for aggressive industrial applicaon
use. The ST-772/T sensor may be ulized in a submersed oang or submersed xed installaon format
with the Pyxis installaon assembly opons. It may also be used in an inline pressurized Tee assembly for-
mat (ST-772T Sensor opon). All opons are discussed in the Installaon secon. The ST-772/T oers both
4–20mA and RS-485 Modbus outputs and is Bluetooth enabled when used in conjuncon with the MA-CR
Bluetooth Adapter.
The ST-772/T sensor measures the paral pressure of the dissolved oxygen (DO) in water. In most applica-
ons, the source of DO is oxygen in the air. In other applicaon such as in aquaculture, the source of DO is
photosynthesis. The concentraon of dissolved oxygen is a derived value from the measured oxygen par-
al pressure. The relaonship between the DO concentraon and the oxygen paral pressure is governed
by the law of thermodynamics. The ST-772/T sensor uses the latest USGS equaon to convert the oxygen
paral pressure to DO in units of ppm or mg/L. Through setup using the uPyxis® Mobile of Desktop App,
the ST-772/T sensor can output the measured oxygen paral pressure in other units such as percentage of
oxygen saturaon.

1.1 Main Features
The ST-772/T sensor includes the following features:
• 0.004–20 ppm measurement range
• Built-in temperature and pressure sensor with automac compensaon
• Accurate and stable measurement with ultra-low dri
• Built-in transmier without preamplier or meter head
• Dual Outputs both 4–20mA isolated signal or RS-485 Modbus
• Long-distance transmission with higher stability & accuracy
• Wireless calibraon, diagnoscs, and data trend via uPyxis® App when used with MA-CR Adapter
• The sensor can be Slope calibrated with air or air saturated water
• Zero-point calibraon with 5% Sodium Sulte soluon or Nitrogen gas
• Submersible (ST-772) or Inline (ST-772T) installaon versions
• Suitable for dissolved oxygen monitoring of:
–Acvated Sludge
–Aerated Basin
–Wastewater & Sewage Processing
–Chemical & Process Water
–Domesc Water Applicaons
–Filtraon Applicaons
–Aquaculture
–Agriculture

2 Specicaons
Table 1. ST-772/T Specicaons
Specicaon*ST-772 ST-772T
Part Number (P/N) 53703 53719
Dissolved Oxygen Range
0.004–20 ppm or
0–200% Saturaon or
0–500 mbar PO2
Dissolved Oxygen
Resoluon 0.01 ppm
Dissolved Oxygen
Accuracy ±1% of reading or ±0.1 ppm
Method Blue Light Irradiated Emission
Red Light Quenching Excitaon
Response Time <60 seconds
DO Membrane Cap Life 2 years
Calibraon Slope calibraon: Air or Air Saturated Water
Zero calibraon: 5% Sodium Sulte or Nitrogen Gas
Outputs 4–20mA Analog Output,
RS-485 Digital Output with Modbus protocol
Installaon Submersed Floang Installaon,
Submersed Fixed Installaon
Pipeline Installaon
Cable Length Aached 10 m/30 8-Pin cable,
MA-1.5CR Cable (1.5 m/4.9 8-Pin Female
Adapter/Flying Lead)
Aached 1.5 m/4.9 8-Pin cable,
MA-1.5CR Cable (1.5 m/4.9 8-Pin Female
Adapter/Flying Lead)
Power Supply 22–26 VDC, 0.6 W
Dimension (L ×Dia) 11.65 ×1.32 inch (296 ×33.6 mm)
Weight †1.67 lb (760 g)
Material 304 Stainless Steel
Operaonal
Temperature 32–113 °F (0–45 °C)
Pressure Up to 145 psi (1.0 MPa)
Enclosure Rang IP67/IP68
Regulaon CE
*With Pyxis’s connuous improvement policy, these specicaons are subject to change without noce.
†Cables excluded
3 Unpacking Instrument
Remove the instrument and accessories from the shipping container and inspect each item for any damage
that may have occurred during shipping. Verify that all accessory items are included. If any item is missing

3.1 Standard Accessories
3.1.1 ST-772 Standard Accessories (For Submersed Installaons)
The following accessories are included in the ST-772 sensor package for submersed installaons:
• DCC-1 Dissolved Oxygen Membrane Cap P/N: 53712
• MA-1.5CR Cable (1.5 m/4.9 8-Pin Female Adapter/Flying Lead) P/N: 50746
• MA-CR Bluetooth Adapter for 8-Pin Sensors P/N: MA-CR
• Bluetooth/USB Adapter for use with uPyxis® Desktop App P/N: MA-NEB
• User Manual available online at hps://pyxis-lab.com/support/
3.1.2 ST-772T Standard Accessories (For Pipeline Installaons)
The following accessories are included in the ST-772T sensor package for pipeline installaons:
• Tee Assembly 3/4” NPT (1x Tee, O-ring, and Nut) P/N: ST-001
• DCC-1 Dissolved Oxygen Membrane Cap P/N: 53712
• MA-1.5CR Cable (1.5 m/4.9 8-Pin Female Adapter/Flying Lead) P/N: 50746
• MA-CR Bluetooth Adapter for 8-Pin Sensors P/N: MA-CR
• Bluetooth/USB Adapter for use with uPyxis® Desktop App P/N: MA-NEB
• User Manual available online at hps://pyxis-lab.com/support/
3.2 Oponal Accessories
The following oponal accessories can be ordered at or[email protected] or the Pyxis E-Store at hps://pyxis-
lab.com/shop/
Table 2. Oponal Accessories
Accessory Name Part Number
(P/N)
MA-CR Bluetooth Adapter For 8-Pin Pyxis Sensors MA-CR
MA-150-1 Submersion Adapter Ball Float & Mounng Bracket for ST-772 Floang
Submersed Installaon
53705
MA-150-3 Floang Submersion Probe Adapter Assembly for ST-772
Floang/Submersed Installaon
50791
MA-150-4 Oponal Waterght Conduit for ST-772 — 8 /1” NPT
Floang/Submersed Installaon
50798
MA-120-B Submersion Pipe & Adapter Mounng Bracket for ST-772 Fixed Installaon 50783
ST-001 Inline Tee Assembly (3/4” FNPT, CPVC) 50704
DCC-1 Dissolved Oxygen Membrane Cap — Replacement 53712
MA-50CR Cable (15 m/50 8-Pin Male/Female Extension Cable) 50743
MA-100CR (30.5 m/100 8-Pin Male/Female Extension Cable) 50744
Pyxis Probe Cleaning Kit SER-01

4 Installaon
4.1 Submersed Floang Installaon
The ST-772 sensor may be installed in a submersed oang applicaon using the MA-150-1 Submersion
Adapter Mounng Bracket and Ball Float and the MA-150-3 Floang Submersion Pipe Assembly. The ST-
772 dissolved oxygen sensor needs to be installed as shown in Figure 1. For installaon, users need to keep
the MA-150-1 and MA-105-3 assemblies in place permanently. For sensor replacement and maintenance,
users only need to pull the MA-150-3 and ST-772 sensor from xing bracket vercally (upwards). Oponal
MA-150-4 water-ght conduit for sensor wiring may be purchased if desired.
Figure 1. ST-772 in a submersed oang installaon
4.2 Submersed Fixed Installaon
The ST-772 sensor may be installed in a submersed xed applicaon using the MA-120-B Submersion Adapter
Mounng Bracket. The ST-772 dissolved oxygen sensor needs to be installed as shown in Figure 2. For in-
stallaon, users need to keep the MA-120-B assembly in place permanently. For sensor replacement and
maintenance, users only need to pull the MA-120-B and ST-772 sensor from xing bracket vercally (up-
wards).

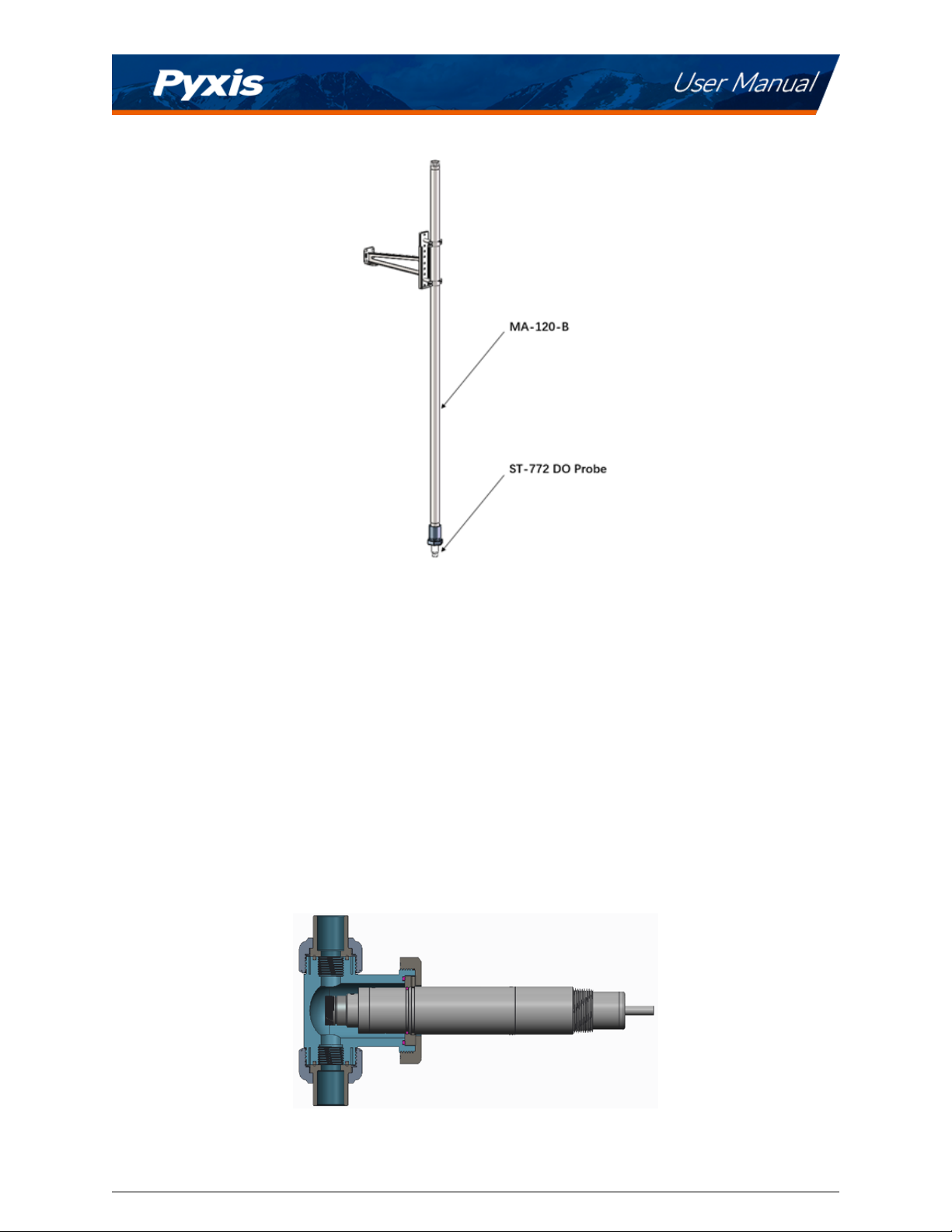

Figure 2. ST-772 in a submersed xed installaon
4.3 Pipeline Installaon
The ST-772T sensor may be installed in an inline ow applicaon using the Pyxis ST-001 Inline Tee Assembly.
The ST-001 oers 3/4” FNPT thread or socket weld adapters with unions for easy installaon and sensor
maintenance. Pyxis recommends installaon in a vercal ow format from boom up to reduce the impact
of water bubbles. To properly install the ST-772T sensor into the ST-001 Inline Tee Assembly, follow the
steps below:
1. Insert the provided O-ring into the O-ring groove on the tee.
2. Insert the ST-772T sensor into the tee.
3. Tighten the tee nut onto the tee to form a water-ght, compression seal.
Ensure the DCC-1 Dissolved Oxygen Membrane Cap is in the direcon of water ow as shown in Figure 3.
Figure 3. ST-772T in a pipeline installaon using ST-001 Inline Tee Assembly

4.4 Wiring
If the power ground terminal and the negave 4–20mA terminal in the controller are internally connected
(non-isolated 4–20mA input), it is unnecessary to connect the 4–20mA negave wire (gray) to the 4–20mA
negave terminal in the controller. If a separate DC power supply other than that from the controller is
used, make sure that the output from the power supply is rated for 22–26 VDC @ 65 mA.
*NOTE*The negave 24V power terminal (power ground) and the negave 4–20mA ter-
minal on the ST-772/T sensor are internally connected.
Follow the wiring table below to connect the ST-772/T sensor to a controller:
Table 3.
Wire Color Designaon
Red 24V +
Brown 24V Power ground
Gray*4–20mA -
White 4–20mA +
Pink RS-485 C
Blue RS-485 A
Yellow RS-485 B
Green Earth ground
Black Shield
*Internally connected to the power
ground
4.5 Connecng via Bluetooth
A Bluetooth adapter (P/N: MA-CR) can be used to connect a ST-772/T sensor to a smart phone with the
uPyxis® Mobile App or a computer with a Bluetooth/USB Adapter (P/N: MA-NEB) and the uPyxis® Desktop
App.
Figure 4. Bluetooth connecon to ST-772/T sensor

5 Setup and Calibraon with uPyxis® Mobile App
5.1 Download uPyxis® Mobile App
Download uPyxis® Mobile App from Apple App Store or Google Play.
Figure 5.
5.2 Connecng to uPyxis® Mobile App
Turn on Bluetooth on your mobile phone (Do not pair the phone Bluetooth to the ST-772/T sensor). Open
uPyxis® Mobile App. Once the app is open the app will start to search for the sensor. Once the uPyxis®
Mobile App connects to the sensor, press the ST-772/T sensor.
Figure 6.

5.3 Calibraon Screen and Reading
When connected, the uPyxis® Mobile App will default to the Calibraon screen. From the Calibraon
screen, you can perform calibraons by pressing on Zero Calibraon,Air Calibraon, and 4–20mA Span.
*NOTE*Before calibrang, remove the ST-772 dissolved oxygen sensor from the water
and wipe it with a damp cloth to remove debris and any biofouling. If there is water on the
membrane, dry it with a so cloth, taking special care not to damage the membrane.
Figure 7.
5.3.1 Zero Calibraon
1. Place the sensor in Nitrogen Gas or 5% Sodium Sulte soluon (anaerobic water).
2. Let the ST-772/T sensor stand for a minimum of 15 minutes. Observe the values being displayed on
the Calibraon screen.
3. Once the displayed oxygen and temperature values are stable, press Zero Calibraon to perform a
zero calibraon.
4. If the calibraon is successful, the interface will return a message ”Calibraon Succeeded”. If the
calibraon fails, press Zero Calibraon again and repeat.

5.3.2 Air (Slope) Calibraon
1. Place the ST-772/T sensor in the air with a stable temperature or in air-saturated water.
2. Let the ST-772/T sensor stand for a minimum of 6 minutes. Observe the values being displayed on
the Calibraon screen.
3. Once the displayed oxygen and temperature values are stable, press Air Calibraon to perform an air
(slope) calibraon.
4. Enter the humidity value:
• If you are using air for calibraon, you will need to enter the real-me (current) humidity value.
• If you are using air-saturated water for calibraon, you will need to enter a humidity value of
”1”.
5. If the air (slope) calibraon was successful, the interface will return a message ”Calibraon Suc-
ceeded”. If the calibraon fails, press Air Calibraon again and repeat.
5.3.3 4–20mA Span
The default 4–20mA span is 20 mA = maximum range (20 ppm) and 4 mA = 0 ppm dissolved oxygen in water.
Press 4–20mA Span to change the dissolved oxygen in water value corresponding to the 20 ppm (maximum
range) output.
*NOTE*The 4–20mA Span feature allows users to reduce the upper 20 mA output scale
only. It cannot increase the upper limit of the sensor.

5.4 Diagnosis Screen
From the Diagnosis screen, you can check the diagnosis condion as well as Export & Upload. This feature
To preform a Cleanliness and Selife Check, rst select the Diagnosis Condion which denes the uid type
that the ST-772/T sensor in currently measuring, then press Cleanliness and Selife Check. If the sensor is
clean, a Clean message will be shown. If the sensor is severely fouled, a Please replace the DO membrane
cap message will be shown. In this case, follow the procedure in the Methods to Cleaning the ST-772/T
secon of this manual.
Figure 8.

5.5 Device Info Screen
From the Device Info screen. You can name the Device or Product as well as set the Modbus address.
Figure 9.
6 Setup and Calibraon with uPyxis® Desktop App
6.1 Install uPyxis® Desktop App
Download the latest version of uPyxis® Desktop soware package from: hps://pyxis-lab.com/upyxis/ this
setup package will download and install the Microso.Net Framework 4.5 (if not previously installed on the
PC), the USB driver for the USB-Bluetooth adapter (MA-NEB), the USB-RS485 adapter (MA-485), and the
main uPyxis® Desktop applicaon. Double click the uPyxis.Setup.exe le to install.
Figure 10.
Click Install to start the installaon process. Follow the screen instrucons to complete the USB driver and
uPyxis® installaon.

6.2 Connecng to uPyxis® Desktop App
When the uPyxis® Desktop App opens, click on Device, then click Connect via USB-Bluetooth.
Figure 11.
6.3 Informaon Screen
Once connected to the device, a picture of the device will appear on the top le corner of the window and
the uPyxis® Desktop App will default to the Informaon screen. On the Informaon screen you can set the
informaon descripon for Device Name,Product Name, and Modbus Address, then click Apply Sengs
to save.
Figure 12.

6.4 Calibraon Screen
From the Calibraon screen, you can perform calibraons by pressing on Zero Calibraon,Air Calibraon,
and 4–20mA Span.
*NOTE*Before calibrang, remove the ST-772 dissolved oxygen sensor from the water
and wipe it with a damp cloth to remove debris and any biofouling. If there is water on the
membrane, dry it with a so cloth, taking special care not to damage the membrane.
Figure 13.
6.4.1 Zero Calibraon
1. Place the sensor in Nitrogen Gas or 5% Sodium Sulte soluon (anaerobic water).
2. Let the ST-772/T sensor stand for a minimum of 15 minutes. Observe the values being displayed on
the Calibraon screen.
3. Once the displayed oxygen and temperature values are stable, click Zero Calibraon to perform a
zero calibraon.
4. If the calibraon is successful, the interface will return a message ”Calibraon Succeeded”. If the
calibraon fails, click Zero Calibraon again and repeat.

6.4.2 Air (Slope) Calibraon
1. Place the ST-772/T sensor in the air with a stable temperature or in air-saturated water.
2. Let the ST-772/T sensor stand for a minimum of 6 minutes. Observe the values being displayed on
the Calibraon screen.
3. Once the displayed oxygen and temperature values are stable, click Air Calibraon to perform an air
(slope) calibraon.
4. Enter the humidity value:
• If you are using air for calibraon, you will need to enter the real-me (current) humidity value.
• If you are using air-saturated water for calibraon, you will need to enter a humidity value of
”1”.
5. If the air (slope) calibraon was successful, the interface will return a message ”Calibraon Suc-
ceeded”. If the calibraon fails, click Air Calibraon again and repeat.
6.4.3 4–20mA Span
The default 4–20mA span is 20 mA = maximum range (20 ppm) and 4 mA = 0 ppm dissolved oxygen in water.
Click 4–20mA Span to change the dissolved oxygen in water value corresponding to the 20 ppm (maximum
range) output.
*NOTE*The 4–20mA Span feature allows users to reduce the upper 20 mA output scale
only. It cannot increase the upper limit of the sensor.
Figure 14.

6.5 Diagnosis Screen
Aer the device has been calibrated and installaon has been completed, to check diagnosis, click on Diag-
nosis. When in the Diagnosis screen you can view the Diagnosis Condion of the device. This feature may
and Selife Check, rst select the Diagnosis Condion which denes the uid type that the ST-772/T sensor
is currently measuring, then click Cleanliness and Selife Check. If the sensor is clean, a Clean message
will be shown. If the sensor is fouled, a Please replace the DO membrane cap message will be shown. In
this case, follow the procedure in the Methods to Cleaning the ST-772/T secon of this manual.
Figure 15.
7 Outputs
7.1 4–20mA Output Setup
The 4–20mA output of the ST-772 sensor is scaled as:
• Dissolved Oxygen:
–4 mA = 0 ppm
–20 mA = 20 ppm
7.2 Communicaon using Modbus RTU
The ST-772/T sensor is congured as a Modbus slave device. In addion to the ppm dissolved oxygen value,
many operaonal parameters, including warning and error messages, are available via a Modbus RTU con-
Other manuals for ST-772
2
This manual suits for next models
3
Table of contents
Other Pyxis Accessories manuals

Pyxis
Pyxis ST-735 User manual

Pyxis
Pyxis ST-772 User manual

Pyxis
Pyxis ST-540 Series User manual

Pyxis
Pyxis ST-500W User manual

Pyxis
Pyxis LT-635 User manual

Pyxis
Pyxis ST-500 User manual

Pyxis
Pyxis LS-200 User manual

Pyxis
Pyxis ST-765SS-SO3 User manual

Pyxis
Pyxis LS-202 User manual

Pyxis
Pyxis LS-202 User manual

Pyxis
Pyxis ST-774 User manual

Pyxis
Pyxis ST-565 User manual

Pyxis
Pyxis ST-750 User manual

Pyxis
Pyxis ST-525 User manual

Pyxis
Pyxis ST-500 User manual

Pyxis
Pyxis ST-601 User manual

Pyxis
Pyxis ST-730 Series User manual

Pyxis
Pyxis ST-710 User manual

Pyxis
Pyxis LSP Series User manual

Pyxis
Pyxis ST-773 User manual
