Qleen PURASTART E Operation manual

User information
PURASTART E
72101
Version 02/2023

2 |
Introduction to the user information QLEEN PURASTART E
Thank you for choosing a QLEEN PURASTART E cleaning system from Lehmann.
Before you start with the cleaning work, here is some important user information.
Please read these carefully and be sure to observe them.
As the owner of a QLEEN PURASTART E cleaning system, please also make absolutely sure that your employees
have also read the „PURASTART E User Information“and follow the safety and warning instructions.
Please also observe and comply with the „General User and Safety Instructions“(separate publication of
Lehmann KG).
This document is the original user information. It is written in German. Copies in other languages are translations
of this original user information.
Manufacturer / Publisher
Address Karlhans Lehmann KG
Kranichstrasse 2a
D-17235 Neustrelitz
Phone [phone]
Fax [phone]
E-Mail [e-mail]
Internet www.qleen.de
Youtube www.youtube.com/@qleen
Facebook www.facebook.com/lehmannkg/
Copyright
This document is protected by copyright.
Copying, reproduction, translation or conversion into an electronic medium or into a machine-readable form, as
a whole document or in parts, is not permitted without the permission of Lehmann KG. Subject to change without
notice.
© Lehmann KG, Neustrelitz, 2023
Trademark
The names QLEEN, PURAQLEEN, ROTAQLEEN, CARBONPOLE, TITANPOLE are registered trademarks of Lehmann
KG, Neustrelitz.
Country of origin
Federal Republic of Germany
Introduction

| 3
We are pleased that you have chosen our QLEEN PURASTART E product.
Item number 72101
Type designation QLEEN PURASTART E
Serial number _________________
Year of manufacture _________________
Introduction

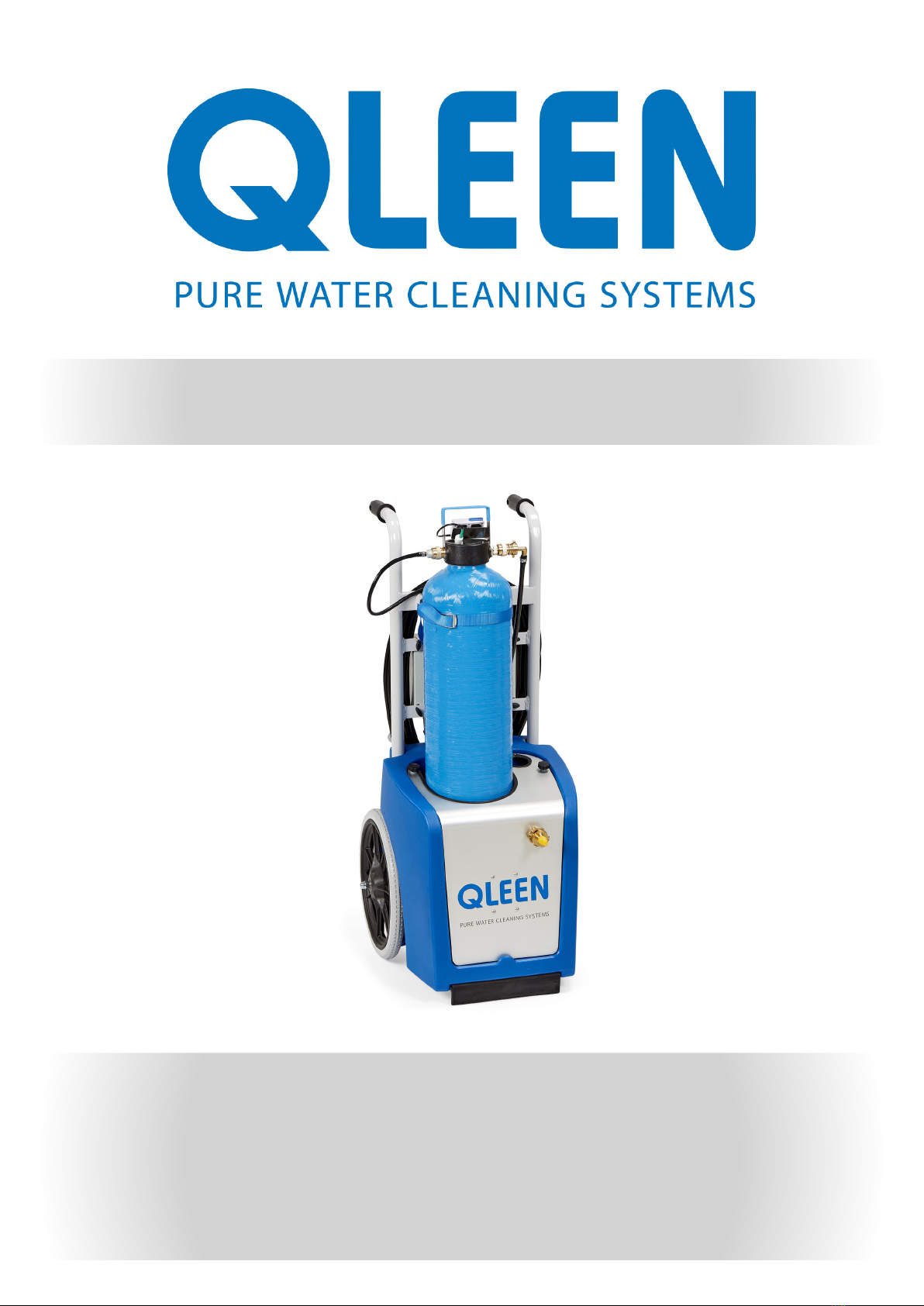

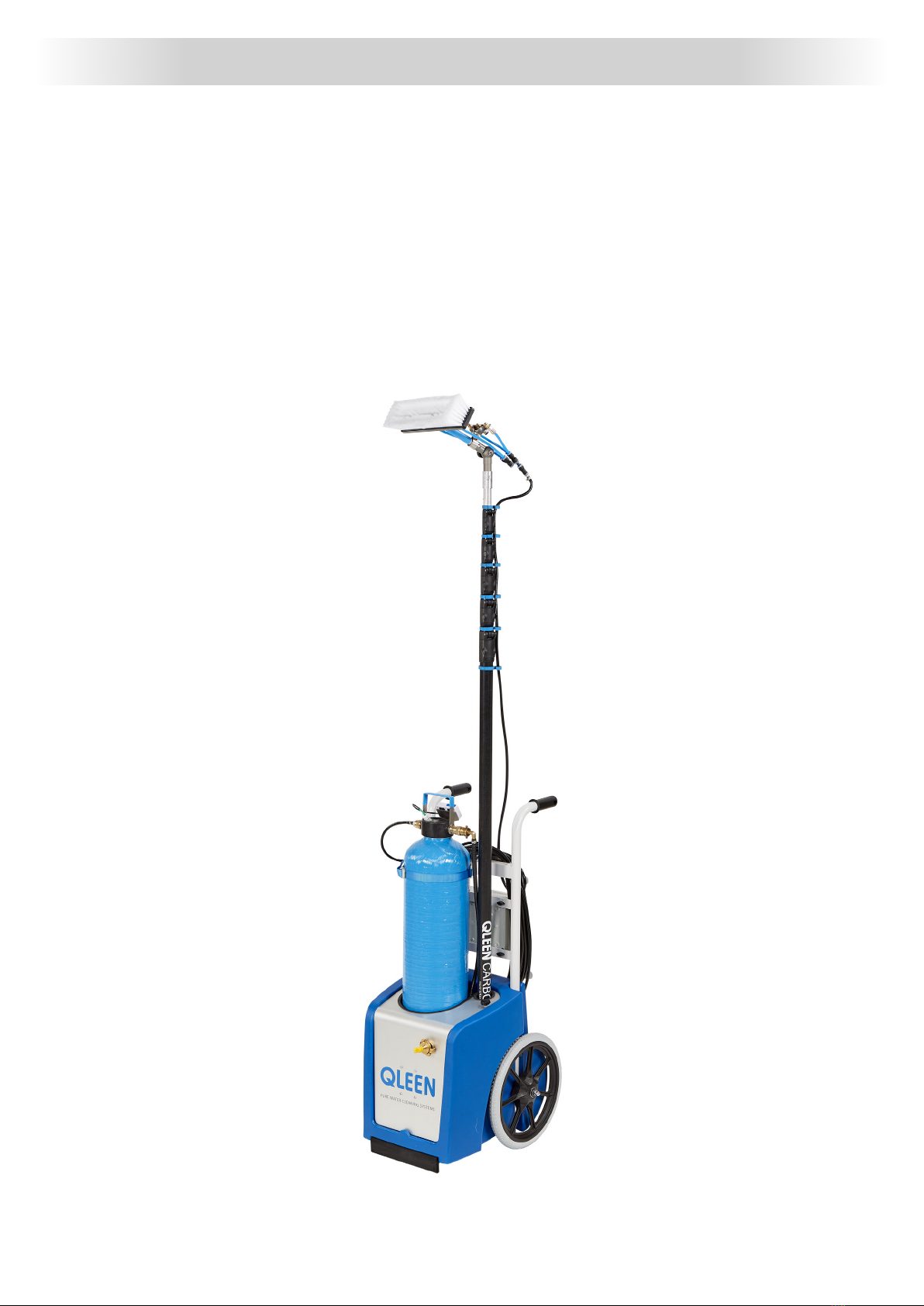

* Picture shows QLEEN PURASTART E (72101) with 9m telescopic CARBONPOLE (70518), brush bow Vario (71037) and
window brush 40 cm (71001)

4 | Table of contents
1 Table of contents
Topics Page
2. General notes and safety instructions 2.1 Instruction structure 6
2.2 Safety instructions 6
3. Description of the QLEEN PURASTART E
3.1 The PUREWATER principle - cleaning with pure water 7
3.2 Sustainability 7
3.3 Water hardness and productivity of the mixed bed resin 7
3.4 How the QLEEN PURASTART E works 8
3.5 Areas of application 8
3.6 Scope of delivery 8
3.7 Connections and controls 9
3.8 Water quality meter 10
4. Starting up
4.1 Transport and parking 10
4.2 Connection of the water supply 11
4.3 Water supply through the house water connection 11
4.4 Water supply through a water tank 12
4.5 Switching on the remote control and the battery 12
4.6 Connection of the telescopic pole and brush 13
4.7 Connecting a ROTAQLEEN 14
5. Cleaning
5 Cleaning 15
5.1 Cleaning with PUREWATER 16
5.2 Cleaning with ROTAQLEEN 16
6. Water quality meter 6.1 Operation 17
7. Aer cleaning 7.1 Dismantling 18
8. Additional information
8.1 Maintenance and cleaning of the device and accessories 19
8.2 Charging the battery 19
8.3 Replacement of the mixed bed resin 20
8.4 Clean/replace strainer at water inlet 21
8.5 Battery change remote control 21
8.6 Battery change meter 22
8.7 Storage 22
8.8 Repair and maintenance 22

| 5
Table of contents
Topics Page
8. Additional information
8.9 Troubleshooting 23
8.10 Recycling and disposal 24
8.11 Warranty and guarantee 24
8.12 Manufacturer information 24
9. Technical information
9.1 Supply connections 25
9.2 Climatic operating conditions 25
9.3 Technical data 25
9.4 CE Declaration of Conformity 26

6 |
Warning: Electric shock and fire hazard
• Before each starting up, check the power cable and the power plug for damage.
If any damage is detected, the machine must be shut down immediately and checked by a
checked by a specialist!
• When plugging in the charger, make sure that the power plug and your hands are not wet!
• Do not throw the battery into open fire!
• If the battery generates an unusually high level of heat or smoke during operation or charging
or smoke, switch o the battery immediately and disconnect the charger from the mains and
the battery and have the machine checked immediately by a specialist!
2 General notes and safety instructions
This manual will give you an overview of the functions, operation and proper use of our QLEEN PURASTART E
machine.
Certain symbols in these instructions indicate various information:
2.2 Safety instructions
The information sign indicates useful tips and information.
The exclamation mark warns of potential dangers and risks
Caution: Danger of accident
• The operating personnel must be adequately trained in the use of the machine.
• The machine must be in perfect condition.
• Only set up the machine on firm, straight surfaces.
• Wear sturdy, non-slip footwear with protective toecaps to protect yourself from being crushed
by the machine.
• Work on roofs only with appropriate safety equipment.
• Be careful not to get mixed bed resin in your eyes, for further safety instructions and handling
of mixed bed resin read the "User Information Mixed Bed Resin Systems".
• Do not work with the pole system under high voltage line
! DANGER OF ELECTRIC SHOCK !
2.1 Instruction structure
General notes and safety instructions
Warning: Risk of accidents and damage to the machine and equipment
• Use the machine only from +5 °C and higher, frost damage to the machine and equipment may
occur.
• Do not work with the pole system in wind forces above 2 (>3.3 m/s), the pole system may
buckle and fall o

| 7
Description of the QLEEN PURASTART E
3 Description of the QLEEN PURASTART E
3.1 The PUREWATER principle - cleaning with pure water
The high chemical-free cleaning power of PUREWATER is the basis on which the
PURAQLEEN principle for cleaning glass and solar surfaces.
In this process, tap water is passed through a granulate bottle. The minerals contained in the tap water
accumulate in the mixed bed resin and all salts are removed from the water.
The tap water is demineralized by pre-pressurization in the granulate bottle and reaches the cleaning head as
PUREWATER.
PUREWATER not only has a very good wetting capacity, but also dries without stains or streaks, even in strong
sunlight.
This means that in many cases the use of cleaning solutions can be dispensed with.
(Exception: greasy, oily or very heavy soiling).
3.2 Sustainability
Our system contributes to the careful and sustainable use of resources for cleaning in times of dwindling resources.
In contrast to the reverse osmosis process, our devices operate in the energy-saving low-pressure range; the
pressure of the domestic water supply is suicient to operate our devices.
In addition, our systems convert 100% of the supplied water into PUREWATER, which can be used for cleaning.
3.3 Water hardness and productivity of the mixed bed resin
The water hardness at the place of use can be obtained from the local water supplier.
This allows you to estimate how productive the granulate bottle is.
Depending on the measured value, the following values result for the maximum PUREWATER quantity and
cleaning time with one granulate bottle (with a maximum initial value of 50 µS, approximate data):
German hardness level Corresponds approximately to
conductance Estimated total quantity Estimated total cleaning
time*
2,8 °dH 100 µS 10200 l 85,0 h
5,6 °dH 200 µS 5100 l 42,0 h
8,4 °dH 300 µS 3400 l 28,0 h
11,2 °dH 400 µS 2500 l 21,0 h
14,0 °dH 500 µS 2000 l 17,0 h
16,8 °dH 600 µS 1700 l 14,0 h
19,7 °dH 700 µS 1650 l 12,0 h
22,5 °dH 800 µS 1200 l 10,0 h
25,3 °dH 900 µS 1100 l 9,0 h
28,0 °dH 1000 µS 1000 l 8,0 h
* Based on a flow rate of 120 l/h with the 10 mm hose and the brush bow aluminum joint.

8 |
3.4 How the QLEEN PURASTART E works
Aer switching on, the power button lights up green and the system is ready for operation.
The operating mode is selected via the remote control.
PUREWATER, direction change ROTAQLEEN.
Tap water is required for cleaning with PUREWATER.
For this purpose, tap water is passed through the mixed bed resin system in the granulate bottle and
demineralized in the process.
A pump transports the clean water via a hose attached to the telescopic pole* to the cleaning head* at the
upper end of the pole set*.
There it is distributed evenly and sparingly over the surfaces to be cleaned via fine nozzles*.
The telescopic CARBONPOLE* is made of a stable and light carbon material.
When retracted, it has a length of 2.04 m and can be extended to a length of 9.00 m. This results in variable
working lengths.
This results in variable working lengths between 3 m (minimum) and approximately 10 m (maximum).
The hose is 25 m long and made of a robust material.
The integrated water quality measuring device informs about the quality of the outgoing PUREWATER.
3.5 Areas of application
Typical applications for the QLEEN PURASTART E are:
• To restore and increase the energy yield of small solar and photovoltaic systems.
• Glass-clear and streak-free view for windows, window frames, conservatories, glass and greenhouses
• Oen diicult to access outdoor advertising spaces and lighting boxes
• Against the intensive pollution by insects on vehicles (train, ship, plane, truck, car).
* Accessories not included
3.6 Scope of delivery
QLEEN PURASTART E (72101)
• QLEEN PURASTART E base station with 25 l granulate bottle filled with mixed bed resin, compact pump for
sucking in water, integrated measuring device for water quality and 25 m hose coiled on hose holder
• 360 Wh Li-Ion battery to power the pump and an optional ROTAQLEEN
• Remote control for on/o and forward/reverse
• Charger
• Suction hose
• Instruction
Description of the QLEEN PURASTART E

| 9

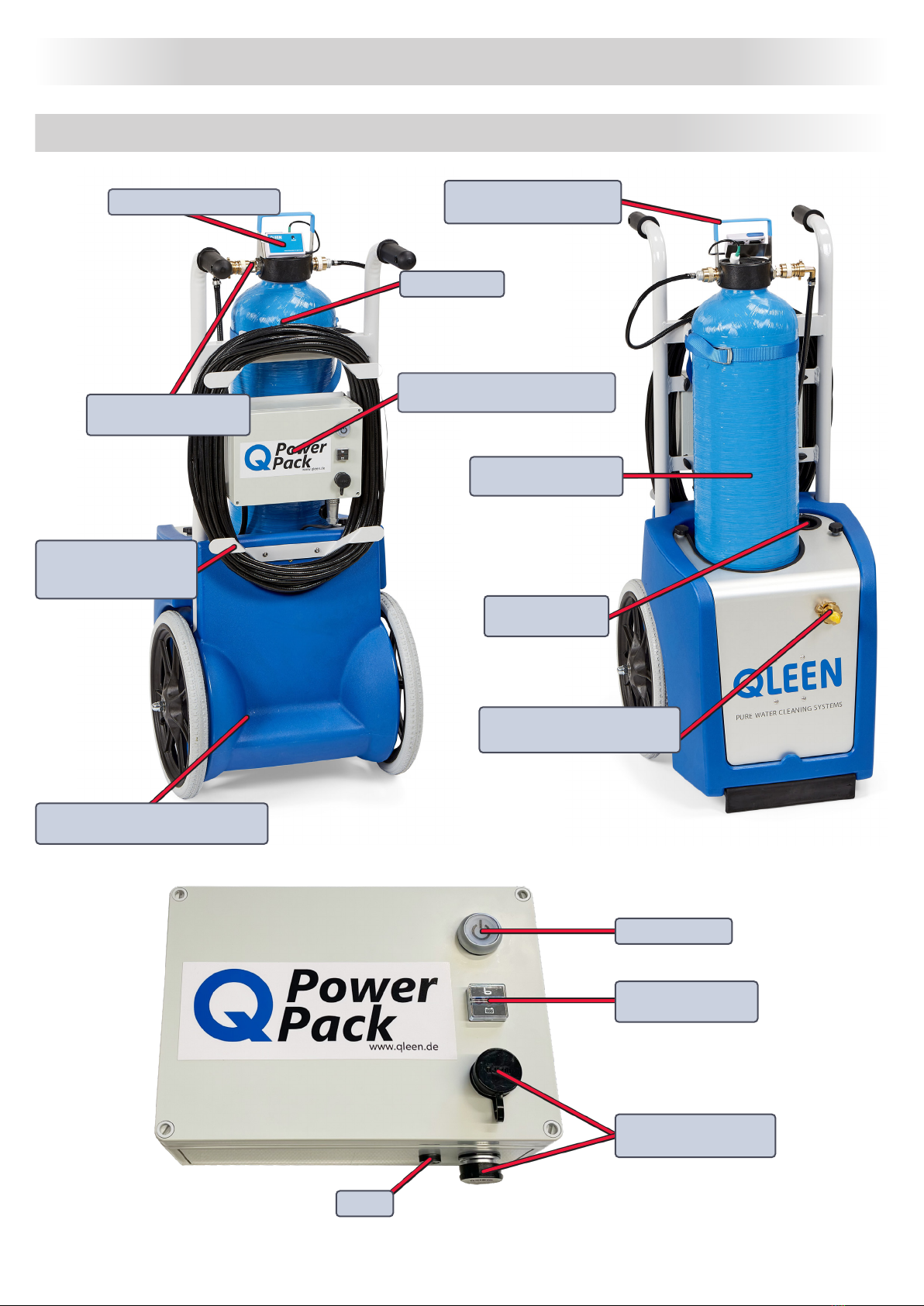

3.7 Connections and controls
Description of the QLEEN PURASTART E
Hose holder with 25
m flexible and robust
hose
Water inlet via Gardena or
claw coupling up to 15 bar
Handle for transporting
the bottle
Holder for
telescopic pole
Lightweight and maneuverable
trolley with large wheels
25 l granulate bottle
for mixed bed resin
Water quality meter
360 Wh Li-Ion battery for the
pump and ROTAQLEEN*.
Water inlet with
Gardena connection
Shut-o tap
* Accessories not included
Power switch
Battery state of
charge
Connection for pump
and ROTAQLEEN*.
Fuse

10 | Description of the QLEEN PURASTART E
• The QLEEN PURASTART E can be transported by trolley
• Only park the QLEEN PURASTART E on a straight, level and non-slip surface.
Caution Risk of injury
• Wear sturdy shoes with steel toe caps when transporting the unit, as this can cause bruising to
the foot when the unit is set down!
• Do not place on inclined, sloping and uneven surfaces, the QLEEN PURASTART E may fall over
and this may result in injury and damage!
• If there are obvious defects on the QLEEN PURASTART E, the battery or the telescopic pole
system, do not put it into operation!
Power button
Display
Pump and
ROTAQLEEN
switch on/o
ROTAQLEEN
forward/backward
Charging plug for the
battery
Mains connection
for 100-240V
Charge indicator

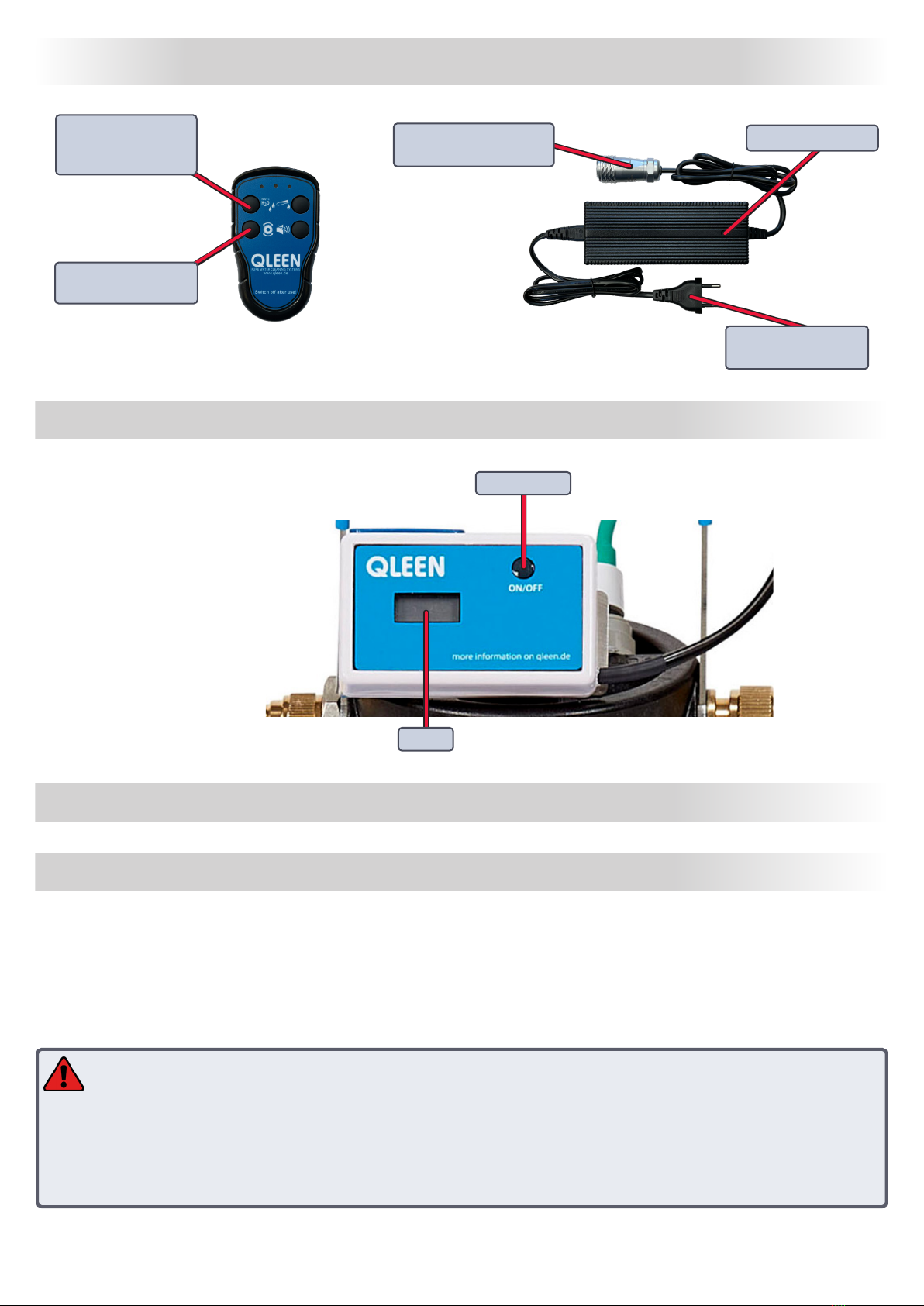

3.8 Water quality meter
4 Starting up
4.1 Transport and parking

| 11
Starting up

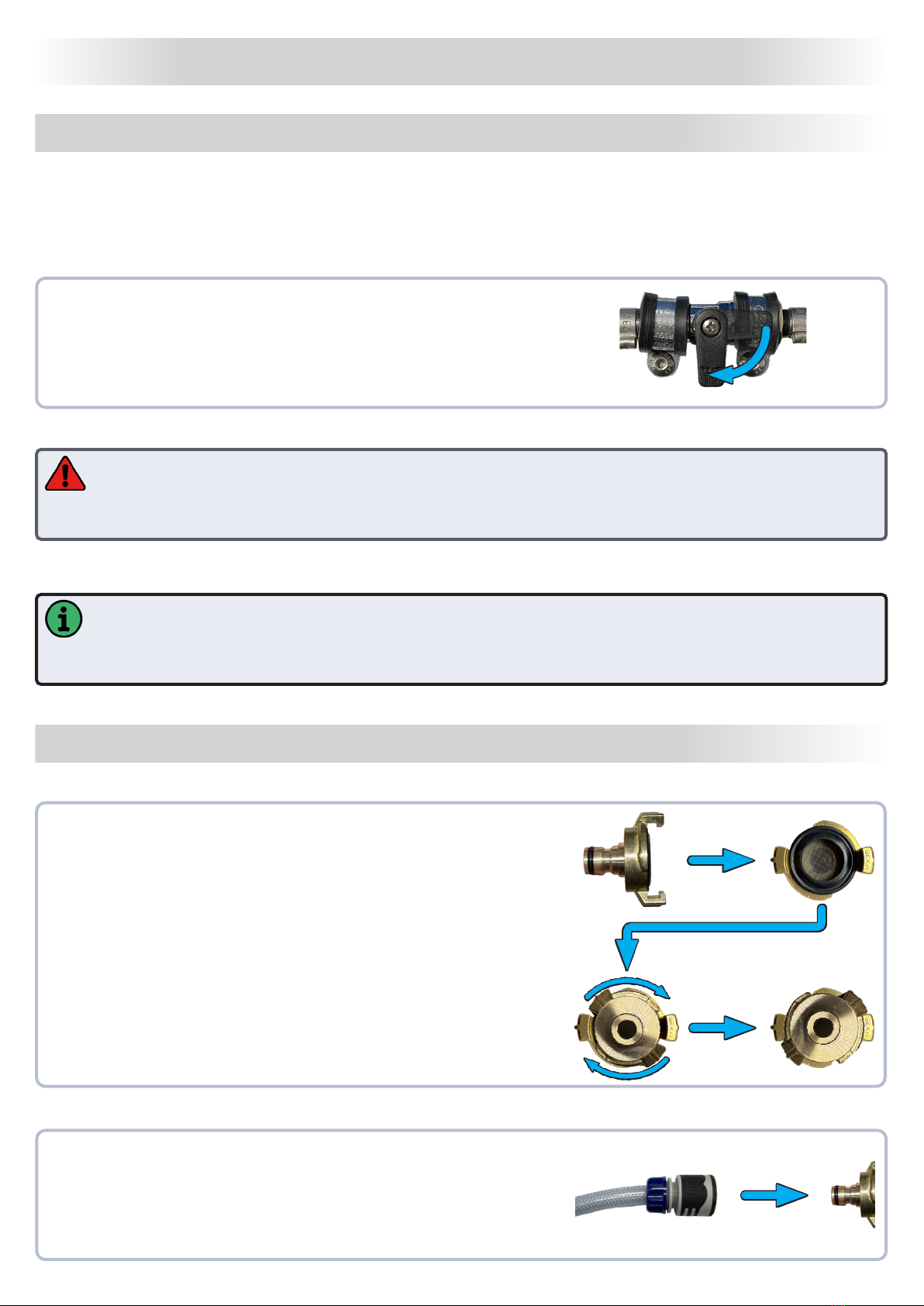

Water can be supplied directly to the house water connection via a Gardena hose or through a tank with the
suction hose.
Caution the device may be damaged:
Only use clean tap water with a maximum inlet pressure of 15 bar for the water supply!
It can otherwise lead to damage to the device.
4.2 Connection of the water supply
Before assembly, check the strainer and the seals in the quick coupling for contamination.
These can reduce the flow rate and lead to a drop in pressure at the nozzles, see
Page 21 (8.4 Cleaning/replacing the strainer at the water inlet)
4.3 Water supply through the house water connection
2. Connect the house water connection by means of Gardena
hose to the input of the QLEEN PURASTART E
3. Open the tap of the house water connection
⇒The water supply via the house water connection is
established
1. Attach the Gardena adapter to the water inlet and lock it in
place by turning it clockwise.
• Before connecting the tap water, make sure that the shut-o
tap is closed.

12 |
3. Sink the side with the filter in the tank to the bottom
⇒The water supply via the water tank is established

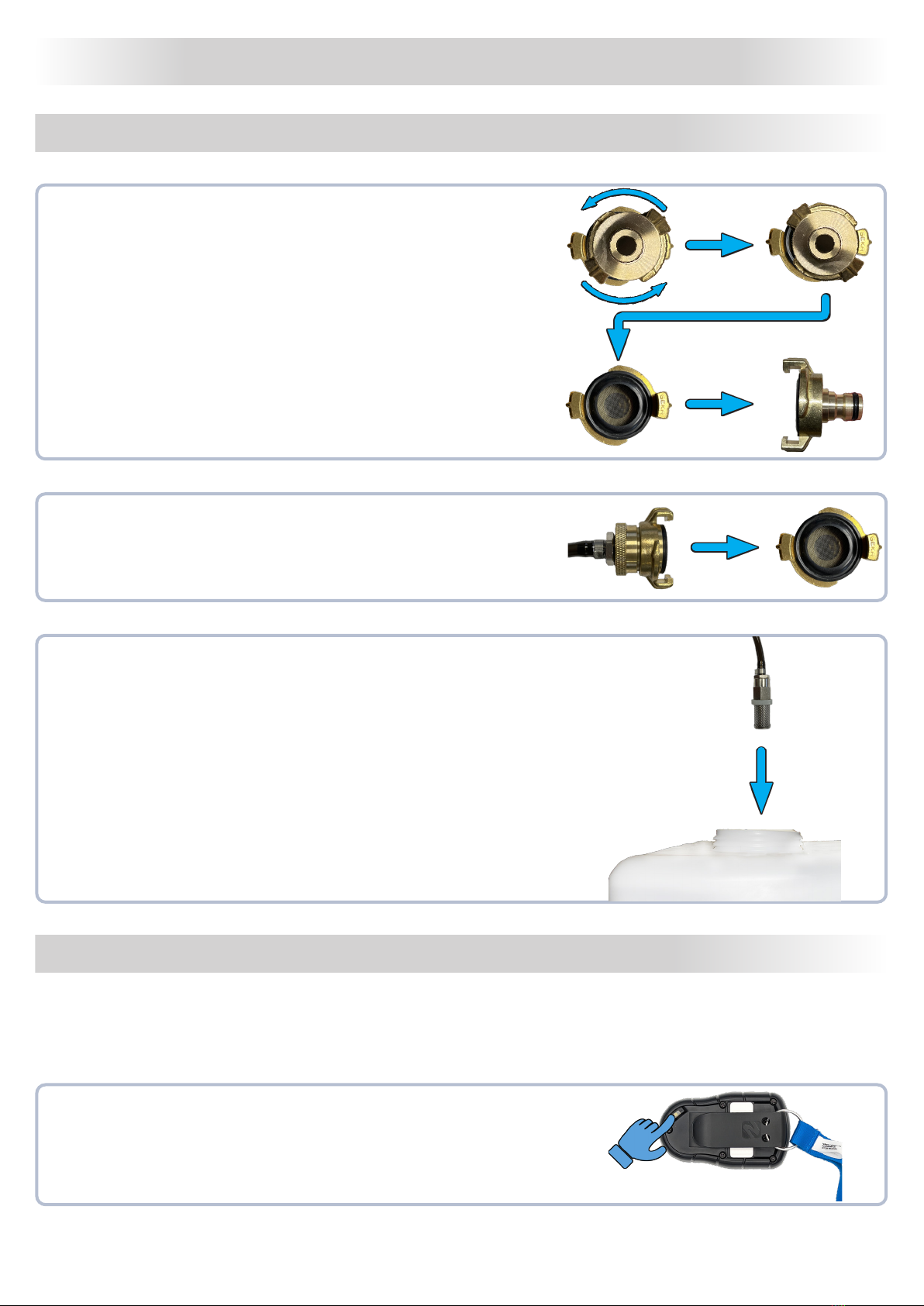

4.4 Water supply through a water tank
2. Attach the suction hose to the machine with the quick
coupling and screw it tight
1. Remove the Gardena adapter from the water inlet by turning
it counterclockwise.
Starting up

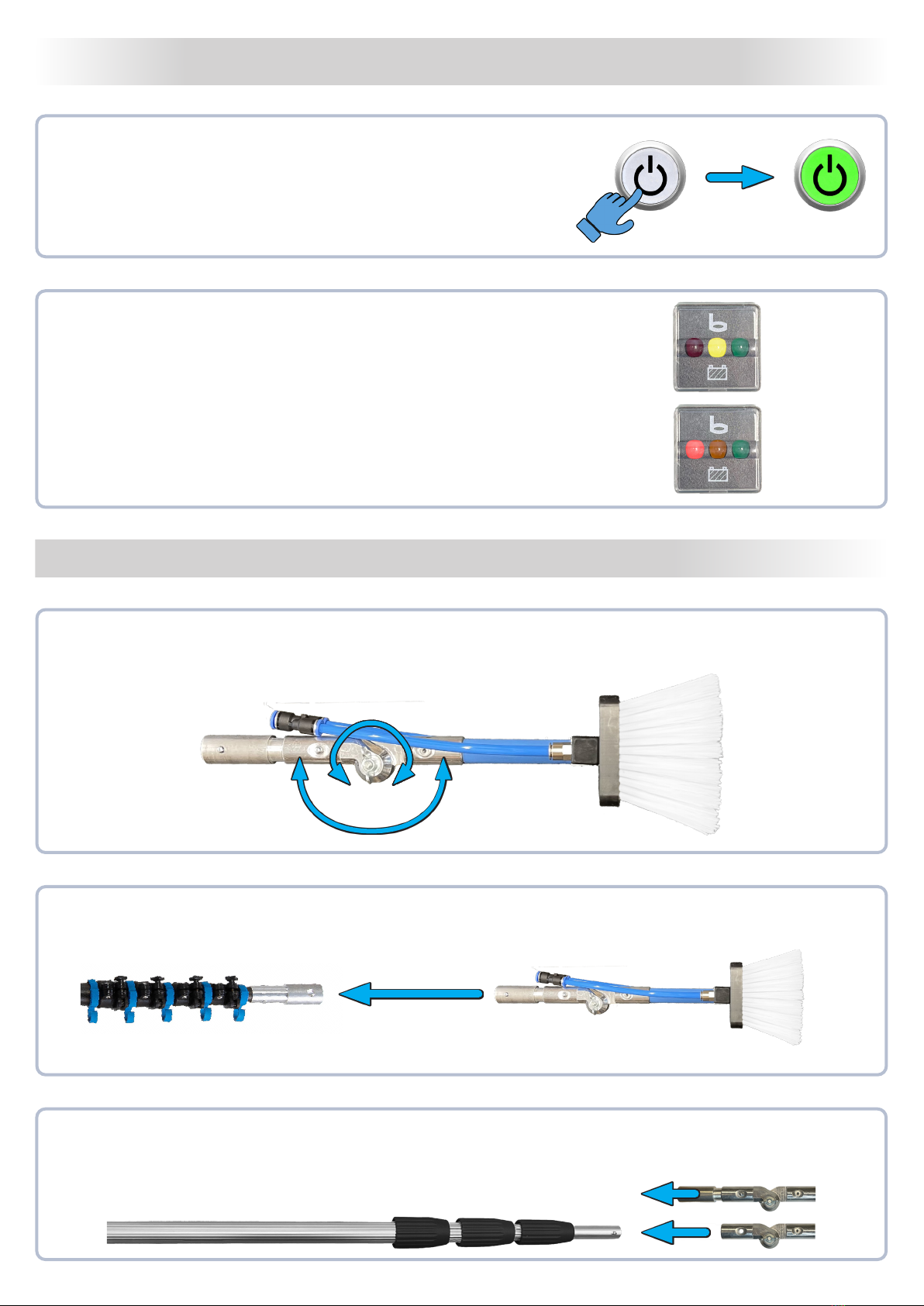

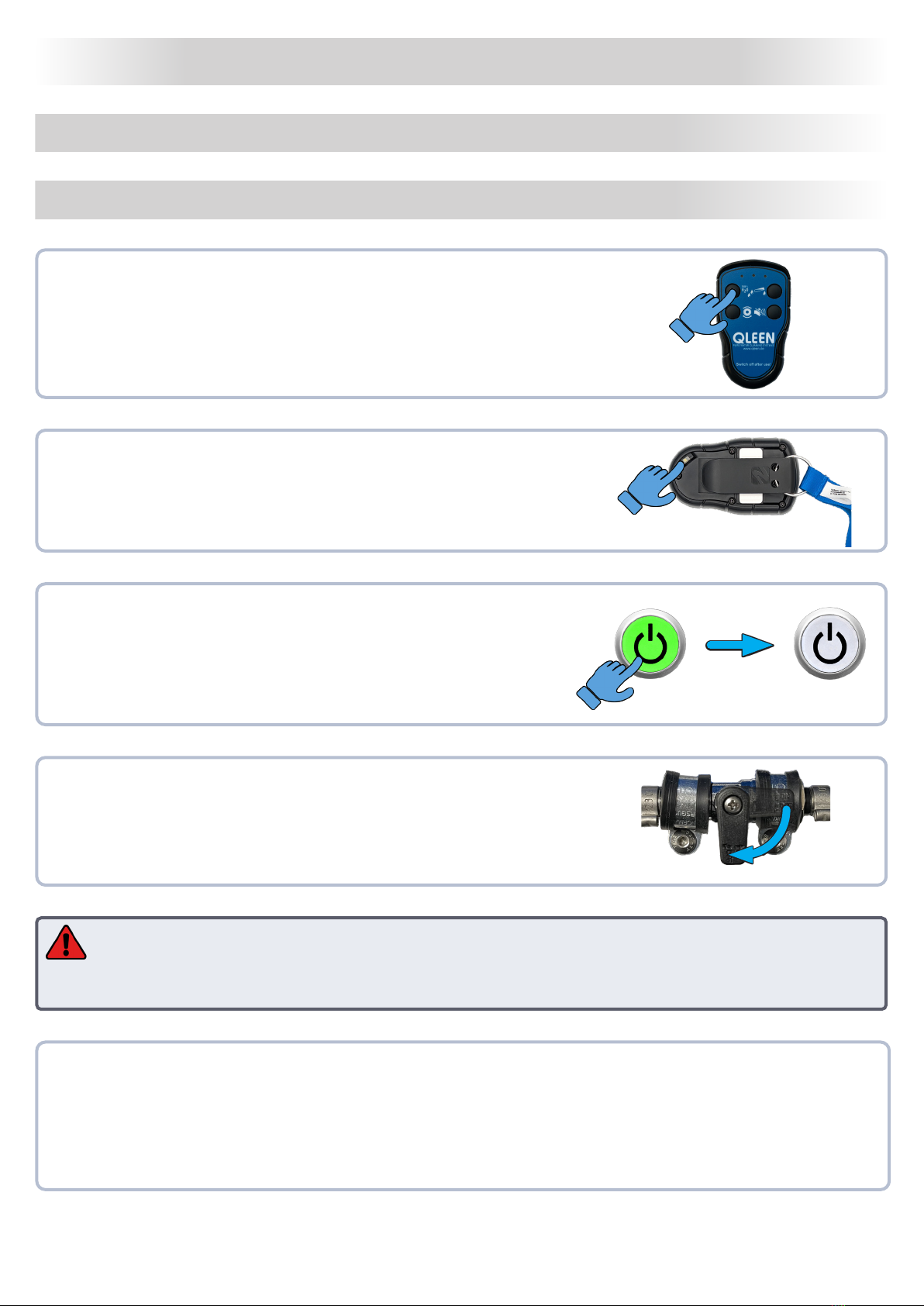

1. To switch on the remote control, set the power switch to »I«.
4.5 Switching on the remote control and the battery
The machine is controlled with the remote control.
The speaker key is without function.

| 13
3. To connect the LEWI telescopic rods to the joint, remove the QLEEN - LEWI adapter from the joint and
insert the telescopic rod directly into the joint
2. Put the joint with the window washing brush on the telescopic CARBONPOLE
4.6 Connection of the telescopic pole and brush*
2. Switch on the battery with the »Power« key,
the key lights up greengreen
⇒The machine is switched on
Starting up
180 Grad
1. Loosen the wing screw on the joint and set the desired working angle and tighten the wing screw again
• If the battery indicator shows yellowyellow the battery should be
charged
• If the battery indicator shows redred, the battery must be
charged immediately
⇒See page 19 (8.2 Charging the battery)

14 | Starting up
* Accessories not included

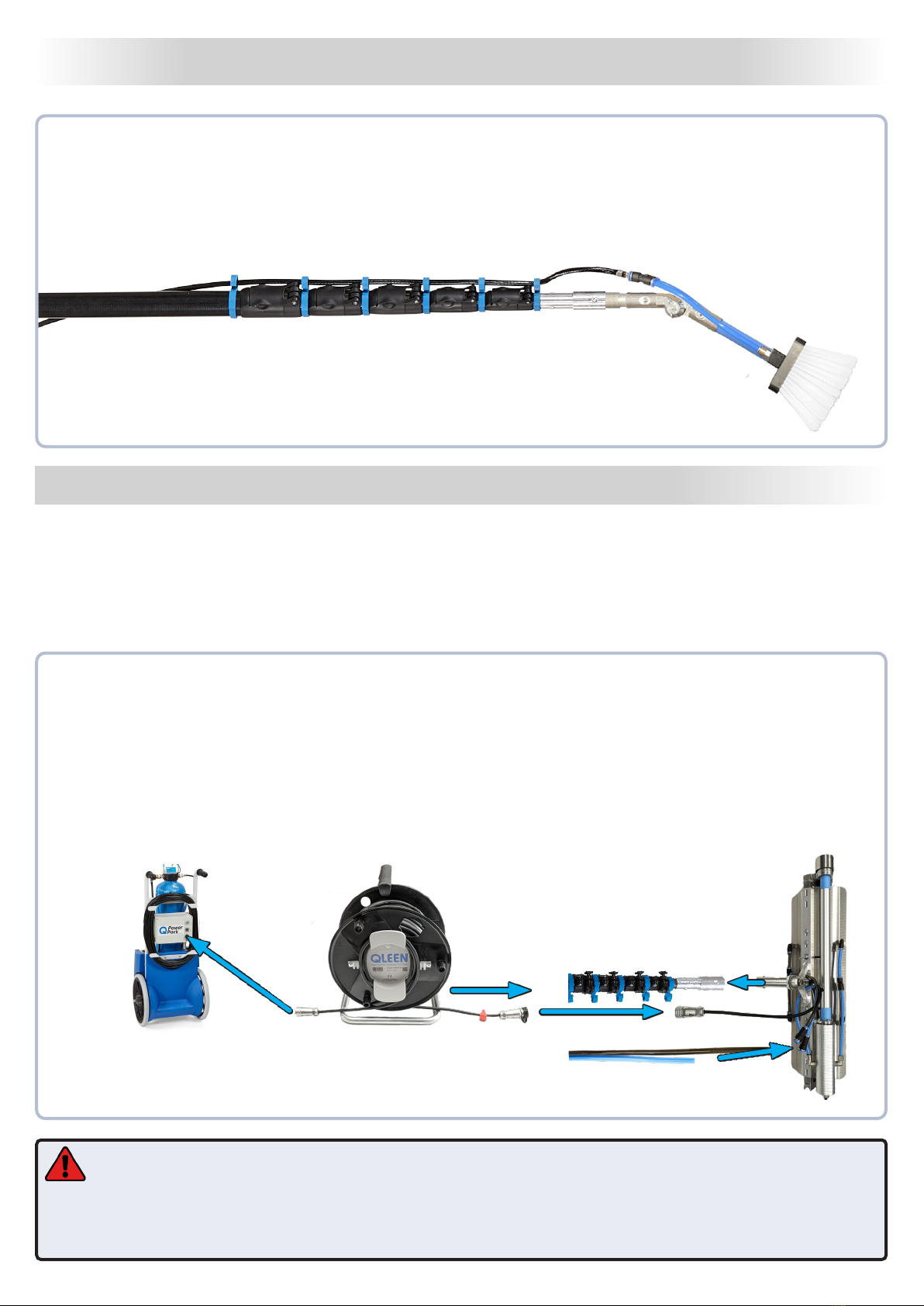

4.7 Connecting a ROTAQLEEN*
The ROTAQLEEN are electric rotating brushes for use with heavy soiling and/or large areas.
The QLEEN PROFI I is equipped with a connection and control for supply and return for all current
ROTAQLEEN
For further information read the „User information ROTAQLEEN“.
Beware of damage to the ROTAQLEEN:
• Always connect the blue input to the ROTAQLEEN and run water through it during operation,
this serves to cool the motor.
• Do not use a cleaning solution with the ROTAQLEEN
1. Insert the ROTAQLEEN into the brush adapter until the snap button clicks into place.
2. Roll out the cable to the required length
3. Connect the socket of the cable drum with the plug of the ROTAQLEEN
4. Connect the plug of the cable drum to the ROTAQLEEN socket on the machine.
5. Connect the hose to the nozzles on the ROTAQLEEN.
6. Attach the hose and cable to the telescopic rod with the clips
⇒The ROTAQLEEN is ready for operation
4. Unwind the hose from the hose holders to the required length
5. Attach the hose to the telescopic pole using the clips
6. Connect the plug nipple at the other end of the hose to the nozzle inlets on the angle washing brush
⇒The device is now ready for operation

| 15
Cleaning
5 Cleaning
For most soiling, the PUREWATER is completely suicient.
Only heavily soiled and oily or greasy surfaces must be pre-treated with a cleaning solution.
Dirt that can only be removed by intensive mechanical cleaning (e.g. glass plane) should also be pre-treated
accordingly.
The higher the level at which work is carried out, the greater the dirt load at the lower levels, because the
"foreign dirt" from the higher level is added to the "inherent dirt".
This should be taken into account when calculating the work and the order.
1. Set the shut-o tap to the "ON" position
2. Extend the telescopic rod to the maximum height of the cleaning surface
3. Place the brush in the upper area and activate the machine with the remote control
4. Move from one side to the other with even up and down movements over the surface to be cleaned
5. To increase the mechanical cleaning power, press the telescopic rod lightly against the surface to be
cleaned with the help of the guide hand
6. Proceed in the same way for the underlying surfaces until the entire surface is cleaned.
7. Adjust the telescopic rod according to the working height to ensure fatigue-free work
Caution Risk of injury
• Tripping hazard: Pay attention to the hose when working!
• Crash hazard: Place the poles on the floor during work interruptions! Do not lean against
vertical walls, this may cause them to fall over and result in injury or damage to the
equipment!
• Crash hazard: Do not work with the pole system above wind force 2 (>3,3 m/s)
• Risk of electric shock: Do not work with the pole system under high-voltage lines!

16 |
5.1 Cleaning with PUREWATER
Cleaning with PUREWATER is the most chemical-free and sustainable way of cleaning.
Surfaces dry streak-free and without wiping due to the good salt absorption capacity of the PUREWATER.
The cleaning mode is activated with the remote control.
Switching on the PUREWATER
1. Set the shut-o tap to the »ON« position
2. Briefly press the »PUREWATER« button on the remote control
⇒Aer a short time, the PUREWATER comes out of the
nozzles via the blue hose and the ROTAQLEEN starts up
Switching o the PUREWATER
2. Briefly press the »PUREWATER« button on the remote control
2. Set the shut-o tap to »OFF«
⇒Stop the PUREWATER and the ROTAQLEEN
5.2 Cleaning with ROTAQLEEN
Switching on the ROTAQLEEN
• Press the »PURWATER« key briefly
⇒The ROTAQLEEN starts in the last selected running direction
Cleaning

| 17
6 Water quality meter
With the integrated measuring device you can monitor the quality of the filtered water at any time.
We recommend for glass and solar systems from a value of 50 µS to replace the mixed bed resin.
If the values are above 50 µS it can not be guaranteed that the surface dries streak and stain free.
6.1. Operation
• Switch on the measuring device with the power button, aer 10 minutes the device switches o
automatically
• The display shows the salt concentration of the output water in µS
• From values above 50 µS we recommend replacing the mixed bed resin
Power button
Display
Switching the running direction
• The ROTAQLEEN runs forward
• Briefly press the »ROTAQLEEN« button on the remote control
⇒The ROTAQLEEN changes to reverse mode
• The ROTAQLEEN runs backwards
• Briefly press the »ROTAQLEEN« button on the remote control
⇒The ROTAQLEEN changes to forward running mode
Switching o the ROTAQLEEN
• Press the »PURWATER« key briefly
⇒The ROTAQLEEN stops
Cleaning

18 | Aer cleaning
7.1 Dismantling
7 Aer cleaning
Caution pressure on the granulate bottle
• Wait until the water has completely drained from the granulate bottle, there may still be high
pressure in the granulate bottle!
8. Retract the telescopic rod completely
9. Disconnect the hose from the brush, remove it from the telescopic rod and roll it up
10. Press the snap button on both sides and remove the aluminum joint with the brush
11. Disconnect the suction hose or water hose from the machine and from the house water connection
⇒The machine is transport ready
1. Switch o the machine with the »PUREWATER« button on the
remote control
2. Place the telescopic rod on the floor
5. Close the tap of the house water connection
6. Wait until the water from the bottle has run out
7. Set the shut-o tap to »OFF«
4. Switch o the battery with the »Power« key
3. Switch o the remote control with the power switch set to
»0«

| 19
8.1 Maintenance and cleaning of the device and accessories
Clean hose
• Carefully wash or wipe o any soiling
• Dry with a clean cloth
• Check for damage and leaks
• Roll up the hose onto the hose holders
⇒ The hose is cleaned, checked and ready for storage and transport
Clean telescopic rod
• Rinse the telescopic pole as well as all closures and contact surfaces with water.
• Clean the outside and inside with a so, clean cloth
• If necessary, lubricate with commercially available silicone spray
⇒The telescopic pole is cleaned, checked and ready for storage and transport
Clean washing brush
• Rinse brushes
• Let dry in the air
⇒The washing brush is cleaned, checked and ready for storage and transport
8 Additional information
8.2 Charging the battery
When the battery is empty, one charging cycle takes about 5 hours.
The battery can be switched on or o for charging. Intermediate charging is also possible.
The batteries are Li-Ion batteries. They should be fully charged regularly.
Warning: Electric shock and fire hazard
• Before each starting up, check the power cable and the power plug for damage.
If any damage is detected, the machine must be shut down immediately and checked by a
checked by a specialist!
• When plugging in the charger, make sure that the power plug and your hands are not wet!
• If the battery generates an unusually high heat or smoke during charging, switch o the
battery immediately and disconnect the charger from the mains and the battery and have the
machine checked immediately by a specialist!
Additional information

20 |
If the water quality measuring device indicates more than 50 µS, we recommend changing the mixed bed resin.
For the exchange of the mixed bed resin, please observe the instructions of the „User Information Mixed Bed
Resin Systems“ (separate publication of Lehmann KG).
8.3 Replacement of the mixed bed resin
Additional information
• If the battery indicator shows yellowyellow the battery should be
charged
• If the battery indicator shows redred, the battery must be
charged immediately
1. Insert the mains plug of the charger into the wall socket
2. Connect the charger plug to the battery, making sure that the
red dots on the plug and socket match.
⇒The status indicator on the charger changes from greengreen to
redred
If the status indicator on the charger is continuously greengreen, the plug is not properly connected to
the battery.
3. The status indicator lights up redred during charging
4. Aer the charging process is completed, the status indicator
lights up greengreen
⇒The charging process is completed
Status display
