QNAP ES NAS Series Specification sheet

© 2018 QNAP Systems, Inc. All Rights Reserved. 1
Quick Setup

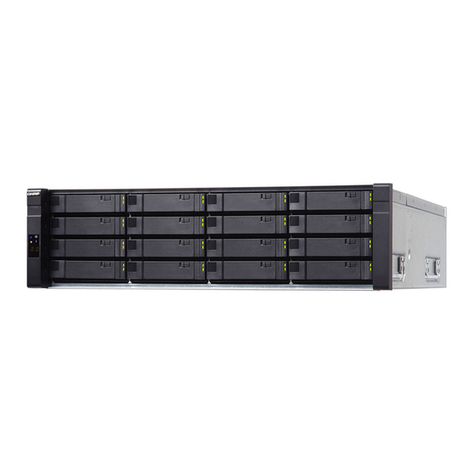

QNAP Enterprise-Class ES NAS Series
Models: ES1640dc v2

© 2018 QNAP Systems, Inc. All Rights Reserved. 2
Table of Content
Installation and Configuration ......................................................................................................................3
Basic Hardware Installation ......................................................................................................................3
Drive Compatibility ................................................................................................................................... 3
Drive Installation.......................................................................................................................................3
Connecting the ES NAS to a Network .......................................................................................................4
Powering on the NAS for the First Time .......................................................................................................6
Front panel LCD.........................................................................................................................................7
Rear panel LEDs......................................................................................................................................... 7
Connecting to the ES NAS with Qfinder Pro .................................................................................................8
Downloading and installing Qfinder Pro................................................................................................... 8
Setting up the ES NAS with a Static IP....................................................................................................... 9
Setting up the ES NAS using DHCP.......................................................................................................... 17
Check the Status of System and Hardware Components ...................................................................22
Next Article ............................................................................................................................................ 24

© 2018 QNAP Systems, Inc. All Rights Reserved. 3
Installation and Configuration
Basic Hardware Installation
Open the “Quick Installation Guide”link below and follow the steps to install the following basic
hardware:
Battery backup units (BBU)
Hard disk drives (HDD)
Power cables
Network cables
https://download.qnap.com/Storage/QIG/ES1640dc%20v2_QIG_51000-024427-RS_web.pdf
Drive Compatibility
The ES NAS series can accommodate solid-state drives (SSD), and traditional magnetic disk drives (HDD)
[Note 1]. Both 3.5 inch and 2.5 inch drives can be installed. The ES NAS natively supports Serial Attached
SCSI (SAS) drives.
Drive Installation
The ES NAS series supports the following disk drive configurations:
All SSD: SSDs are the best choice for I/O intensive workloads and business-critical storage.
Hybrid: The ES NAS allows you to mix SSDs and HDDs in one storage system, to help balance
cost and performance. In additional to high IOPs, the ES NAS also supports creating an SSD read
cache to further increase storage performance. This configuration is especially suitable for
virtual desktop infrastructure (VDI) and web servers.
All HDD: Using all hard disk drives offers the best price and capacity. This configuration is
suitable for storing cold data that is not accessed frequently, and for applications that require
sequential data access, such as video editing and surveillance.
The ES NAS will use drive bays 1 to 4 to store the system configuration, QNAP recommends drive bays 5
to 16 for data storage. This setup prevents data storage operations interfering with the basic operation
of the NAS system. It also means that the disks used for data storage can be easily migrated to another
NAS.
When using a mixture of SSDs and HDDs, installing the SSDs into drive bays 1 to 4 is recommended.

© 2018 QNAP Systems, Inc. All Rights Reserved. 4
[Note 1]: Check the compatibility link below for compatible disks. The System may have problems or
errors if disks not on the list are installed:
https://www.qnap.com/en/compatibility/index.php?model=263
Connecting the ES NAS to a Network
The ES NAS has two types of network ports:
Data ports (shown as blue in the diagram below) are used for accessing data stored on the NAS,
using protocols like iSCSI, NFS, and CIFS.
Management ports (shown as red in the diagram below) are for managing the NAS via QES
desktop.

© 2018 QNAP Systems, Inc. All Rights Reserved. 5
In an environment without DHCP, connect a PC directly to a NAS management port. Then open a web
browser and enter the default QES IP: 169.254.100.100.

© 2018 QNAP Systems, Inc. All Rights Reserved. 6
Powering on the NAS for the First Time
Power on the ES NAS by pressing the power-on button on the left front panel.
Note: To ensure power availability, installing two power supplies each connected with a separate power
cable is recommended.
System start-up will take from 10 to 15 minutes, depending on the number of disks and the devices
connected to the ES NAS.
The LEDs on the rear of the ES NAS and the LCD status display on the left front panel can both be used to
check the status of power on. All storage and management services are disabled while the ES NAS is
powering on.
Start-up is finished when the left three of the four LEDs on the rear of the ES NAS turn green. There are
two sets of LEDs, one for each storage controller.

© 2018 QNAP Systems, Inc. All Rights Reserved. 7
Front panel LCD
Graphical position
Position
Number
The two-digit number displays
the state of the ES NAS power
on process
The left and right digits
represent the left Storage
Controller (SCB) and the right
Storage Controller (SCA)
respectively.
No-Display：BIOS booting
1：Device detecting
2：Network settings
3：System settings
4：Services start
5：System self-testing
0：System ready
Rear panel LEDs
Graphical position
Description
LED color
Status
System
status
Green
Off = System is powered off
Green= System is operating
normally
Flashing green=System is
starting up
Fan
Green
Orange
Green= Fan is operating
normally
Orange= Fan error
Off = No fans detected
NVRAM
Green
Orange
Green= NVRAM enabling
Orange= executing data
protection
Off = One or more of the
following conditions exist:
•The storage controller is not
powered on.
•The system cannot detect
the BBU.

© 2018 QNAP Systems, Inc. All Rights Reserved. 8
High
Availability
Green
Orange
Green= Active
Flashing orange= Performing
takeover or undergoing
giveback
Orange= The storage
controller has taken over
from the other storage
controller
Off = One or more of the
following conditions exist:
•The storage controller has
failed over to the other
storage controller
•The storage controller is not
powered on
Connecting to the ES NAS with Qfinder Pro
Qfinder Pro is a QNAP utility that enables you to quickly search and manage your NAS. Using Qfinder Pro,
you don’t need to memorize the IP addresses of QNAP NAS in your LAN. NAS in the same subnet as the
client running Qfinder will be detected automatically.
Downloading and installing Qfinder Pro
Download Qfinder Pro for your operating system at https://www.qnap.com/i/en/utility. Download and
then install it:
1. Run the QNAP Qfinder. If the QNAP Qfinder is blocked by your firewall, unblock it first.
2. Select the installation language. It is recommended to close all other running programs before
you proceed.
3. Read the license agreement, check “I accept the terms of the License Agreement,” and click
“Next”.
4. Select if you would like to create Desktop Shortcuts or Quick Launch Shortcuts. Then click “Next”.
5. Choose the Installation location and click “Next”.
6. Click “Finish” to finish the installation.

© 2018 QNAP Systems, Inc. All Rights Reserved. 9
Setting up the ES NAS with a Static IP
1. Run Qfinder Pro.
Qfinder automatically searches for QNAP NAS on your local network.
Note: The Qfinder client and NAS must be on the same subnet.
2. Locate IP address 169.254.100.100 in the Qfinder device list. This device the new ES NAS. The
status shows “?”, meaning that the ES NAS hasn’t been configured before.
Note: If both management ports and the Qfinder client PC are connected using a switch, then
Qfinder will also show a second new device 169.254.100.101. This is the IP address of the
second management port and storage controller.

© 2018 QNAP Systems, Inc. All Rights Reserved. 10
3. Configure the PC network settings to be in the same range as the ES NAS. Using a PC with
Windows Server 2012 R2 as an example:
a. Go to “Control Panel”> “Network and Internet”:
b. Click “Network and Sharing Center”.
c. Select the network interface connected to the ES NAS Management port. In this
example it is called “Internal”.

© 2018 QNAP Systems, Inc. All Rights Reserved. 11
d. Click “Properties”.
e. Select “Internet Protocol Version 4 (TCP/IPv4)”, and click “Properties”.

© 2018 QNAP Systems, Inc. All Rights Reserved. 12
f. Enter the IP address “169.254.1.10”, and Subnet mask “255.255.0.0”. Click “OK”.
4. Open Qfinder, and double click on one of two uninitialized NAS.
5. Follow the on-screen instructions. The Qfinder Pro Setup Wizard will guide you through the
setup process. Click “Quick Setup” to initialize the NAS with common settings. Click “Manual
Setup” to configure the NAS with advanced settings.

© 2018 QNAP Systems, Inc. All Rights Reserved. 13
6. You can configure basic settings on this page, including IP address, username and password, and
NAS name.

© 2018 QNAP Systems, Inc. All Rights Reserved. 14
7. In this example the NAS is going to use a fixed IP, so click the IP address field to modify it:
8. Specify a static IP Address for the NAS. In our example, we have two management ports
connected and our LAN network is 192.168.x.x, so we use “192.168.1.107” and “192.168.1.108”.
Click “Proceed.”
9. A confirmation message appears. Click OK to confirm initializing the system disks.

© 2018 QNAP Systems, Inc. All Rights Reserved. 15
Warning: All data on the disks will be deleted
10. The NAS will restart.
11. Change the PC IP address and Subnet mask from the “169.254.X.X” range, back to its original
value.

© 2018 QNAP Systems, Inc. All Rights Reserved. 16
12. After the ES NAS has finished restarting, double click on your NAS in Qfinder Pro to go to the
login page. Log into QES with your username and password created during setup.
Note: The default username and password is admin/admin.
13. The system prompts you for confirmation of disk initialization, if any raw unused disks are found.
Click “Yes”to begin disk initialization or “No”cancel.

© 2018 QNAP Systems, Inc. All Rights Reserved. 17
The QES NAS management interface is now ready to use.
Setting up the ES NAS using DHCP
1. Run Qfinder Pro.
Qfinder automatically searches for QNAP NAS on your local network.
Note: The Qfinder client and NAS must be on the same subnet.
2. Locate the NAS with status “?”. This should be the new ES NAS. Confirm by checking the model
under “Device Type”.
Note: If both management ports and the Qfinder client PC are connected using a switch, then
Qfinder will also display a second device with status “?”. This is the IP of the second storage
controller and management port.

© 2018 QNAP Systems, Inc. All Rights Reserved. 18
3. Click “Quick Setup”.
4. Specify a name for the NAS.

© 2018 QNAP Systems, Inc. All Rights Reserved. 19
5. Configure the remaining settings and click “Proceed”.
6. A confirmation message appears. Click OK to confirm initializing the system disks.
Warning: All data on the disks will be deleted.

© 2018 QNAP Systems, Inc. All Rights Reserved. 20
7. The ES NAS will apply settings and then restart.
8. Log into QES with your username and password created during setup.
Note: The default username and password is admin/admin.
