Quadra-Fire 4300 Series User manual

1 7037-172G August 13, 2018
4300 WOOD APPLIANCE SERIES
AUTOMATIC COMBUSTION CONTROL
(ACC)
MODELS:
43M-ACC-MBK
43ST-ACC-B
Installation Manual
Installation & Appliance Set-Up
INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
NOTICE: DO NOT DISCARD THIS MANUAL
WARNING
Fire Risk.
For use with solid wood fuel only.
Other fuels may over re and generate
poisonous gases (i.e. carbon monoxide).
NOTE
To obtain a French translation of this manual, please contact
your dealer or visit www.quadrare.com
Pour obtenir une traduction française de ce manuel, s’il vous
plaît contacter votre revendeur ou visitez www.quadrare.com
If the information in these instructions is not
followed exactly, a re could result causing
property damage, personal injury, or death.
WARNING
• Do not store or use gasoline or other ammable
vapors and liquids in the vicinity of this or any other
appliance.
• Do not over re - If appliance or chimney connector
glows, you are over ring. Over ring will void your
warranty.
• Comply with all minimum clearances to combustibles
as specied. Failure to comply may cause house
re.
Installation and service of this appliance should be performed by
qualified personnel. Hearth & Home Technologies recommends
HHT Factory Trained or NFI certified professionals.
HOT SURFACES!
Glass and other surfaces are hot during
operation AND cool down.
WARNING
Hot glass and appliance will cause burns.
• Do not touch glass until it is cooled
• Use leather gloves when reloading fuel
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
appliance.
• Alert children and adults to hazards of high
temperatures
• High temperatures may ignite clothing or other
ammable materials.
• Keep clothing, furniture, draperies and other
ammable materials away.

2 7037-172G August 13, 2018
4300 Wood Appliance Series ACC
1 Important Safety Information.............3
A. Appliance Certication....................... 3
B. BTU & Efciency Specications ............... 3
C. Mobile Home Approved...................... 4
D. Glass Specications ........................ 4
E. Non-Combustible Materials ................... 4
F. Combustible Materials ....................... 4
G. Sleeping Room ............................ 4
H. California - Prop65 ......................... 4
2 Getting Started ....................................5
A. Design and Installation Considerations .......... 5
B. Fire Safety ................................ 5
C. Negative Pressure.......................... 5
D. Tools And Supplies Needed .................. 6
E. Inspection of Appliance and Components ........ 6
F. Removal of Appliance from Shipping Materials .... 6
G. Install Checklist ............................ 7
3 Dimensions and Clearances..............8
A. Appliance Dimensions ....................... 8
B. Hearth Protection Requirements .............. 12
C. Clearances to Combustibles ................. 14
4 Chimney Systems .............................15
A. Locating Your Appliance & Chimney ........... 15
B. Chimney Termination Requirements ........... 16
C. 2-10-3 Rule ............................. 16
D. Chimney Height / Rise and Run .............. 17
E. Venting Components ...................... 17
F. Chimney Systems ......................... 17
G. Installing Chimney Components .............. 19
H. Proper Draft.............................. 19
5 Appliance Set-Up ..............................20
A. Pedestal Assembly & ARS Installation ......... 20
C. Leg Kit & ARS Installation ................... 22
D. Traditional Leg Installation .................. 24
E. Door Handle Assembly ..................... 25
F. Outside Air Kit Installation ................... 25
G. Blower (Optional) ......................... 26
H. Adjusting The Blower Speed Control . . . . . . . . . . 26
6 Mobile Home Installation..................27
7 Reference Materials..........................28
A. Service & Maintenance Log ................. 28
B. 4300 Millennium Accessories ................ 30
C. 4300 Step Top Accessories .................. 31
TABLE OF CONTENTS
Safety Alert Key:
• DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.
• WARNING! Indicates a hazardous situation which, if not avoided may result in death or serious injury.
• CAUTION! Indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.
• NOTICE: Indicates practices which may cause damage to the appliance or to property.
Quadra-Fire is a registered trademark of Hearth & Home Technologies.

August 13, 2018 7037-172G 3
4300 Wood Appliance Series ACC
The Quadra-Fire 4300 Series Wood Appliance meets the U.S. Environmental Protection Agency’s crib wood emission
limits for wood appliances sold after May 15, 2015.
A. Appliance Certication B. BTU & Efciency Specications
Model: 4300 Millennium & Step Top (ACC)
Uni-Body
Laboratory: OMNI Test Laboratories, Inc.
Report No & Date: 0061WS067S
Type: Listed Room Appliance, Solid Fuel
Type
Standard:
UL1482-11 (R2015) and ULC S627-
00 and (UM) 84-HUD, Mobile Home
Approved.
EPA Certication #: 656
EPA Certied Emissions: 1.00 grams per hour
*LHV Tested Efciency: 80.2 %
**HHV Tested Efciency: 74.2 %
***EPA BTU Output: 11,800 to 38,300 / hr.
****Peak BTU/Hour
Output: 63,700
Vent Size: 6 inches
Firebox Size: 2.30 cubic feet
Recommended Wood
Length: 18 inches
Fuel Orientation: Front-to-Back
Fuel Seasoned Cord Wood
*Weighted average LHV (Low Heating Value) efciency
using Douglas Fir dimensional lumber and data collected
during EPA emission test.
**Weighted average HHV (High Heating Value) efciency
using Douglas Fir dimensional lumber and data collected
during EPA emission test.
***A range of BTU outputs based on EPA Default
Efciency and the burn rates from the low and high EPA
tests, using Douglas Fir dimensional lumber.
****A peak BTU out of the appliance calculated using the
maximum rst hour burn rate from the High EPA Test and
the BTU content of cord wood (8600) times the efciency.
This wood appliance needs periodic inspection and repair for proper operation. Consult the owner’s manual for further
information. It is against federal regulations to operate this wood heater in a manner inconsistent with the operating
instructions in the owner’s manual.
NOTE: This installation must conform with local codes. In the absence of local codes you must comply with (UM) 84-HUD and
NFPA211 in the U.S.A. and CAN/CSA-B365 Installation Codes in Canada.
1 Important Safety Information

4 7037-172G August 13, 2018
4300 Wood Appliance Series ACC
D. Glass Specications
This appliance is equipped with 5mm ceramic glass.
Replace glass only with 5mm ceramic glass. Please
contact your dealer for replacement glass.
C. Mobile Home Approved
G. Sleeping Room
H. California - Prop65
• This appliance is approved for mobile home installations;
when not installed in a sleeping room and when an outside
combustion air inlet is provided.
• The structural integrity of the mobile home oor, ceiling,
and walls must be maintained.
• The appliance must be properly grounded to the frame of
the mobile home with #8 copper ground wire.
• Outside Air Kit, part OAK-ACC must be installed in a
mobile home installation.
F. Combustible Materials
Material made of/or surfaced with any of the following
materials:
- Wood - Compressed Paper
- Plant Fibers - Plastic
- Plywood/OSB - Sheet Rock (drywall)
Any material that can ignite and burn: ame proofed or not,
plastered or non-plastered.
E. Non-Combustible Materials
Material which will not ignite and burn, composed of any
combination of the following:
- Steel - Plaster
- Brick - Iron
- Concrete - Tile
- Glass - Slate
Materials reported as passing ASTM E 136, Standard Test
Method for Behavior of Metals, in a Vertical Tube Furnace
of 750° C.
Hearth & Home Technologies WILL NOT warranty
appliances that exhibit evidence of over-ring. Evidence of
over-ring includes, but is not limited to:
• Warped air tube
• Deteriorated refractory brick retainers
• Deteriorated bafe and other interior components
NOTE: Hearth & Home Technologies, manufacturer
of this appliance, reserves the right to alter its
products, their specications and/or price without
notice.
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage.
For assistance or additional information, consult a qualied
installer, service agency or your dealer.
• Installation and use of any damaged appliance.
• Modication of the appliance.
• Installation other than as instructed by Hearth &
Home Technologies.
• Installation and/or use of any component part not
approved by Hearth & Home Technologies.
• Operating appliance without fully assembling all
components.
• Operating appliance without legs attached (if
supplied with appliance).
• Do NOT Over re - If appliance or chimney connector
glows, you are over ring.
Any such action that may cause a re hazard.
WARNING
Fire Risk
Hearth & Home Technologies disclaims any
responsibility for, and the warranty will be voided
by, the following actions:
WARNING
This product and the fuels used to operate this product (wood), and
the products of combustion of such fuels, can expose you to
chemicals including carbon black, which is known to the State of
California to cause cancer, and carbon monoxide, which is known to
the State of California to cause birth defects or other reproductive
harm. For more information go to: WWW.P65Warnings.ca.gov
When installed in a sleeping room it is recommended that
a smoke and/or CO alarm be installed in the bedroom. The
size of the room must be at least 50ft³ per 1,000 Btu/hr
stove input, if the stove exceeds the room size, out air must
be installed.

August 13, 2018 7037-172G 5
4300 Wood Appliance Series ACC
Install Guide
2 Getting Started
A. Design and Installation Considerations
Consideration must be given to:
• Safety
• Convenience
• Trafc ow
• Chimney and chimney connector required
It is a good idea to plan your installation on paper, using
exact measurements for clearances and oor protection,
before actually beginning the installation. If you are not
using an existing chimney, place the appliance where there
will be a clear passage for a factory-built listed chimney
through the ceiling and roof.
We recommend that a qualied building inspector and
your insurance company representative review your plans
before and after installation.
If this appliance is in an area where children may be near
it is recommended that you purchase a decorative barrier
to go in front of the appliance. Remember to always keep
children away while it is operating and do not let anyone
operate this appliance unless they are familiar with these
operating instructions.
Check building codes prior to installation.
• Installation MUST comply with local, regional, state
and national codes and regulations.
• Consult insurance carrier, local building, re ofcials
or authorities having jurisdiction about restrictions,
installation inspection, and permits.
CAUTION
NOTICE: HEARTH & HOME TECHNOLOGIES ASSUMES
NO RESPONSIBILITY FOR THE IMPROPER
PERFORMANCE OF THE APPLIANCE SYSTEM
CAUSED BY:
• Inadequate draft due to environmental conditions
• Down drafts
• Tight sealing construction of the structure
• Mechanical exhausting devices
• Over drafting caused by excessive chimney heights
• Ideal performance is with height of chimney between
14-16 feet (4.26-4.88m) measured from the base of
the appliance.
C. Negative Pressure
B. Fire Safety
To provide reasonable re safety, the following should be
given serious consideration:
1. Install at least one smoke detector on each oor of
your home to ensure your safety. They should be
located away from the heating appliance and close
to the sleeping areas. Follow the smoke detector
manufacturer’s placement and installation instructions,
and be sure to maintain regularly.
2. A conveniently located Class A re extinguisher to
contend with small res resulting from burning embers.
3. A CO detector should be installed in the room with the
appliance.
4. A practiced evacuation plan, consisting of at least two
escape routes.
5. A plan to deal with a chimney re as follows:
In the event of a chimney re:
a. Evacuate the house immediately
b. Notify re department.
WARNING
Asphyxiation Risk.
• Negative pressure can cause spillage
of combustion fumes, soot and carbon
monoxide.
• Appliance needs to draft properly for
safety.
WARNING
Asphyxiation Risk.
• Do NOT connect this appliance to a
chimney ue servicing another appliance.
• Do NOT connect to any air distribution duct
or system.
May allow ue gases to enter the house.
Negative pressure results from the imbalance of air
available for the appliance to operate properly. It can be
strongest in lower levels of the house.
Causes include:
• Exhaust fans (kitchen, bath, etc.)
• Range hoods
• Combustion air requirements for furnaces, water
appliances and other combustion appliances
• Clothes dryers
• Location of return-air vents to furnace or air
conditioning
• Imbalances of the HVAC air handling system
• Upper level air leaks such as:
- Recessed lighting
- Attic hatch
- Duct leaks

6 7037-172G August 13, 2018
4300 Wood Appliance Series ACC

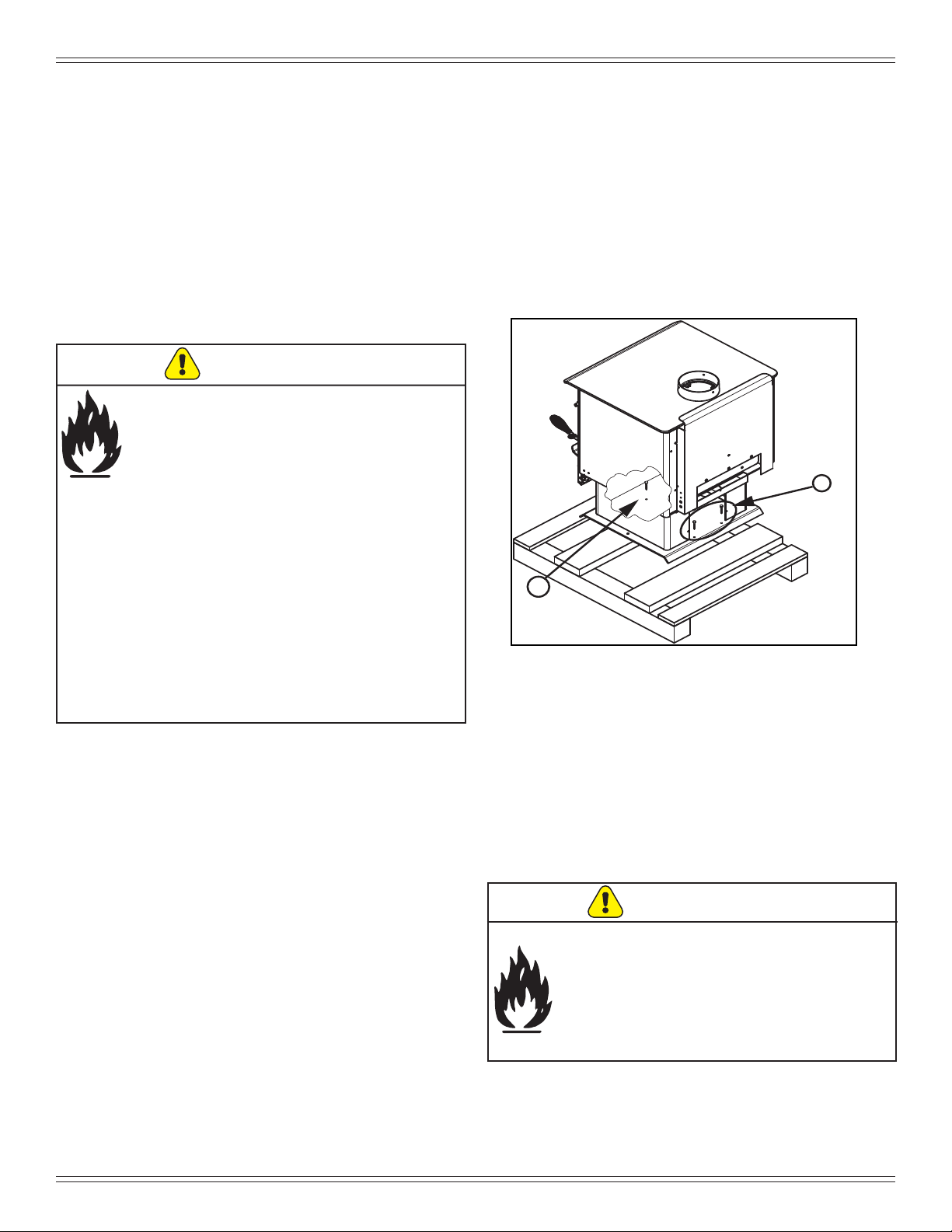

Figure 6.1 Millennium appliance
Millennium:
• Remove box and 2x4 structural boards being careful
not to damage product.
• Using 7/16 socket or wrench remove one bolt located
inside front part of appliance (Figure 6.1).
• Moving to the back of the appliance and using 7/16
socket or wrench remove two bolts (Figure 6.1).
• Carefully pull appliance off of pallet and put in desired
location following Hearth Pad and Clearance to
Combustibles on pages 8 and 9.
F. Removal of Appliance from Shipping
Materials
2
3
Step Top:
1. Remove box and 2x4 structural boards being careful
not to damage product.
2. Using 7/16 socket or wrench remove two bolted bands
that are located on each side of the appliance.
3. Carefully pull appliance off of pallet and lay appliance
on back side on a protective surface.
4. Reference Section 5 Appliance Set-Up on page 18
for ash removal system, leg or pedestal attachment
options.
To minimize the effects of negative air pressure:
• Install optional outside air kit with the intake facing
prevailing winds during the heating season
• Ensure adequate outdoor air for all combustion
appliances and exhaust equipment
• Ensure furnace and air conditioning return vents are not
located in the immediate vicinity of the appliance
• Avoid installing the appliance near doors, walkways or
small isolated spaces
• Recessed lighting should be a “sealed can” design
• Attic hatches weather stripped or sealed
• Attic mounted duct work and air handler joints and
seams taped or sealed
• Basement installations should be avoided
D. Tools And Supplies Needed
Before beginning the installation be sure the following tools
and building supplies are available:
Reciprocating saw
Framing material
Pliers
High temp caulking material
Hammer
Gloves
Phillips screwdriver
Framing square
WARNING
Fire Risk.
Hearth & Home Technologies disclaims any
responsibility for, and the warranty will be voided
by, the following actions:
• Installation and use of any damaged appliance.
• Modication of the appliance.
• Installation other than as instructed by Hearth &
Home Technologies.
• Installation and/or use of any component part not
approved by Hearth & Home Technologies.
• Operating appliance without fully assembling all
components.
• Operating appliance without legs attached (if supplied
with appliance).
• Do NOT Over re - If appliance or chimney connector
glows, you are over ring.
Any such action that may cause a re hazard.
Flat blade screwdriver
Electric drill and bits
Plumb line
Safety glasses
Level
Tape measure
Misc. screws and nails
7/16 socket or wrench
1/2-3/4 in. length, #6 or #8 self-drilling screws
• Remove appliance and components from packaging
and inspect for damage.
• Report to your dealer any parts damaged in shipment.
• Read all the instructions before starting the
installation. Follow these instructions carefully
during the installation to ensure maximum safety
and benet.
E. Inspection of Appliance and Components
Fire Risk.
Inspect appliance and components for damage.
Damaged parts may impair safe operation.
• Do NOT install damaged components.
• Do NOT install incomplete components.
• Do NOT install substitute components.
Report damaged parts to dealer.
WARNING

August 13, 2018 7037-172G 7
4300 Wood Appliance Series ACC
G. Install Checklist
ATTENTION INSTALLER:
Follow this Standard Work Checklist
This standard work checklist is to be used by the installer in conjuction with, not istead of, the instructions contained in this installation manual.
Customer:
Date Installe:
Lot / Address:
Location of Appliance:
Installer:
Dealer / Distributor Phone #:
Serial #:
Model:
WARNING! Risk of Fire or Exposion! Failure to install appliance according to these instruction can lead to a fire or explosion.
Appliance Install
Verified clearances to combustibles.
Appliance is leveled and connector is secured to appliance.
Hearth extension size/height decided.
Outside air kit installed.
Floor protection requirements have been met.
If appliance is connected to a masonry chimney, it should be cleaned and
inspected by a professional. If installed to a factory built metal chimney, the
chimney must be installed according to the manufacturer’s instructions and
clearances.
Chimney
Chimney configuration complies with diagrams.
Chimney installed, locked and secured in place with proper clearance.
Chimney meets recommended height requirements (14-16 feet).
Roof flashing installed and sealed.
Terminations installed and sealed.
Clearances
Combustible materials not installed in non-combustible areas.
Verified all clearances meet installation manual requirements.
Mantels and wall projections comply with installation manual requirements.
Protective hearth strips and hearth extension installed per manual requirements.
Appliance Setup
All packaging and protective materials removed.
Firebrick, baffle and ceramic blanket installed correctly.
All labels have been removed from the door.
All packaging materials are removed from inside/under the appliance.
Manual bag and all of its contents are removed from inside/under the appliance
and given to the party responsible for use and operation.
Hearth & Home Technologies recommends the following:
• Photographing the installation and copying this checklist for your file.
• That this checklist remain visible at all times on the appliance until the installtion is complete.
Comments: Further description of the issues, who is responsible (Installer/Builder/Other Trades, etc.) and corrective action needed:
Comments communicated to party responsible ____________________________ by _____________________ on ___________
(Builder / Gen. Contractor) (Installer) (Date)
_________________________________________________________________________________
______________________________________________________________________________
______________________________________________________________________________
________________________________________________________________________
___________________________________________________________________________________
___________________________________________________________________
___________________________________________________________________________________
____________________________________________________________________________________
YES IF NO, WHY?
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________

8 7037-172G August 13, 2018
4300 Wood Appliance Series ACC

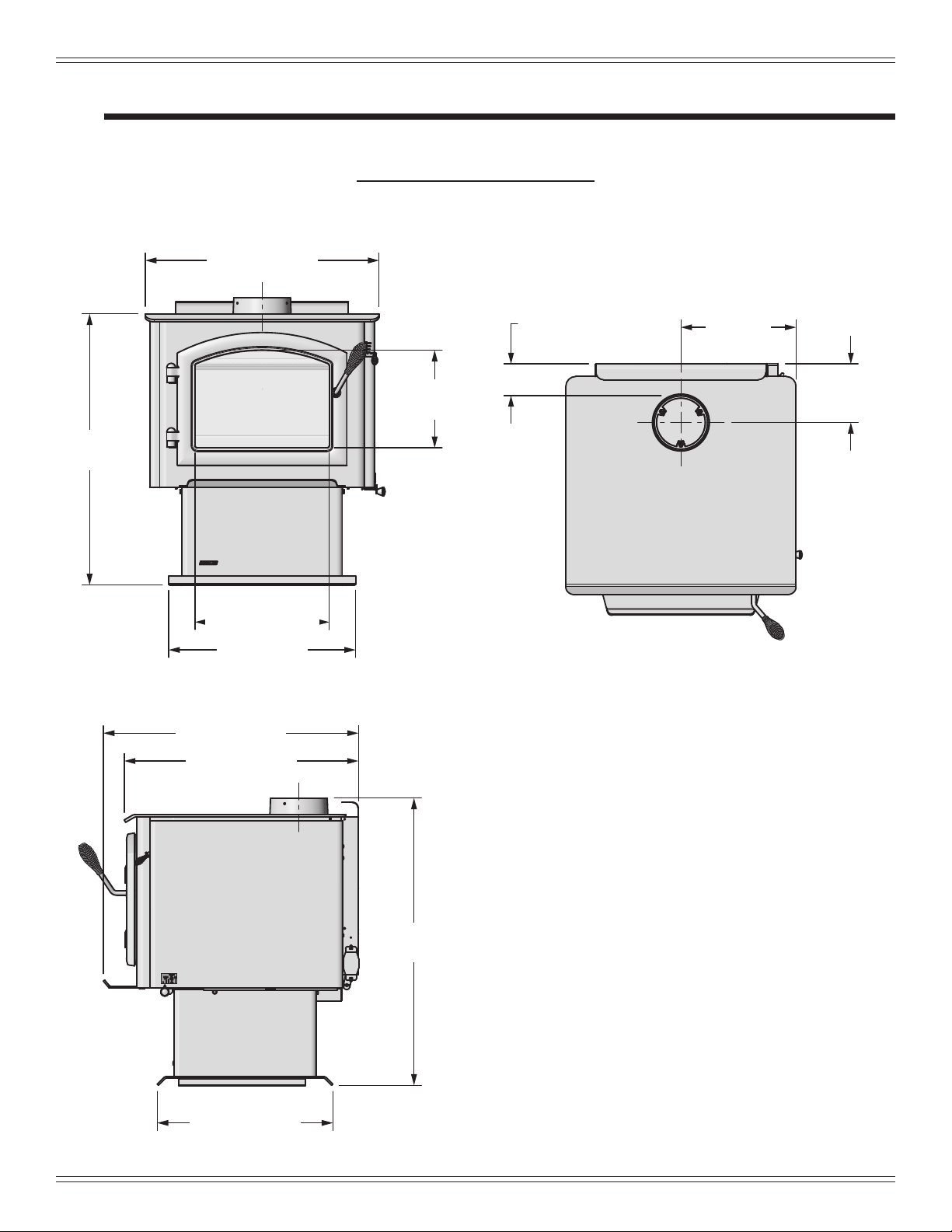

3 Dimensions and Clearances
A. Appliance Dimensions
32-1/4 in
[820mm]
26-3/8 in [668mm]
28-5/8 in [728mm]
19-3/4 in [501mm]
Figure 8.1 Front View
Figure 8.2 Side View
26-1/4 in [667mm]
30-1/2 in
[773mm]
15-1/8 in [ 383mm]
11 in
[278mm]
21 in [533mm]
NOTE: Flue Collar size is 6 inch (152mm) diameter (ID)
4300 Millennium Pedestal Model
Figure 8.3 Top View
6-3/4 in
[170mm]
13-1/8 in
[333mm]
3-5/8 in
[92mm]

August 13, 2018 7037-172G 9
4300 Wood Appliance Series ACC
Figure 9.1 Front View
15-1/8 in (383mm)15-1/8 in (383mm)
21 in (533mm)
21 in (533mm)
11 in
(278mm)
11 in
(278mm)
34-1/4 in
(868mm)
34-1/4 in
(868mm)
26 in (660mm)
26 in (660mm)
4300 Step Top Pedestal Model
Figure 9.2 Side View
26-3/8 in [668mm]
28-5/8 in [728mm]
19-3/4 in [501mm]
35-1/2 in
[900mm]
Figure 9.3 Top View
13 in
[330mm]
3-1/2 in
[87mm]
6-3/4 in
[170mm]

10 7037-172G August 13, 2018
4300 Wood Appliance Series ACC
11 in
[278mm]
26 in [660mm]
32-7/8 in
[834mm]
25 in [636mm]
15-1/8 in [383mm]
Figure 10.1 - Front View
4300 Step Top Q Anne Leg Model
Figure 10.2 - Side View
34-1/8 in
[866mm]
26-3/8 in [668mm]
28-5/8 in [728mm]
23-1/4 in [592mm]
Figure 10.3 - Top View
13 in
[330mm]
3-1/2 in
[87mm]
6-3/4 in
[170mm]

August 13, 2018 7037-172G 11
4300 Wood Appliance Series ACC
Figure 11.2 - Side View
Figure 11.1 - Front View
4300 Step Top Traditional Leg Model
26 in [660mm]
11 in
[278mm]
32-7/8 in
[834mm]
15-1/8 in [383mm]
23-3/8 in [595mm]
34-1/8 in
[866mm]
28-5/8 in [728mm]
26-3/8 in [668mm]
21-5/8 in [550mm]
Figure 11.3 Top View
13 in
[330mm]
3-1/2 in
[87mm]
6-3/4 in
[170mm]

12 7037-172G August 13, 2018
4300 Wood Appliance Series ACC
Figure 12.1

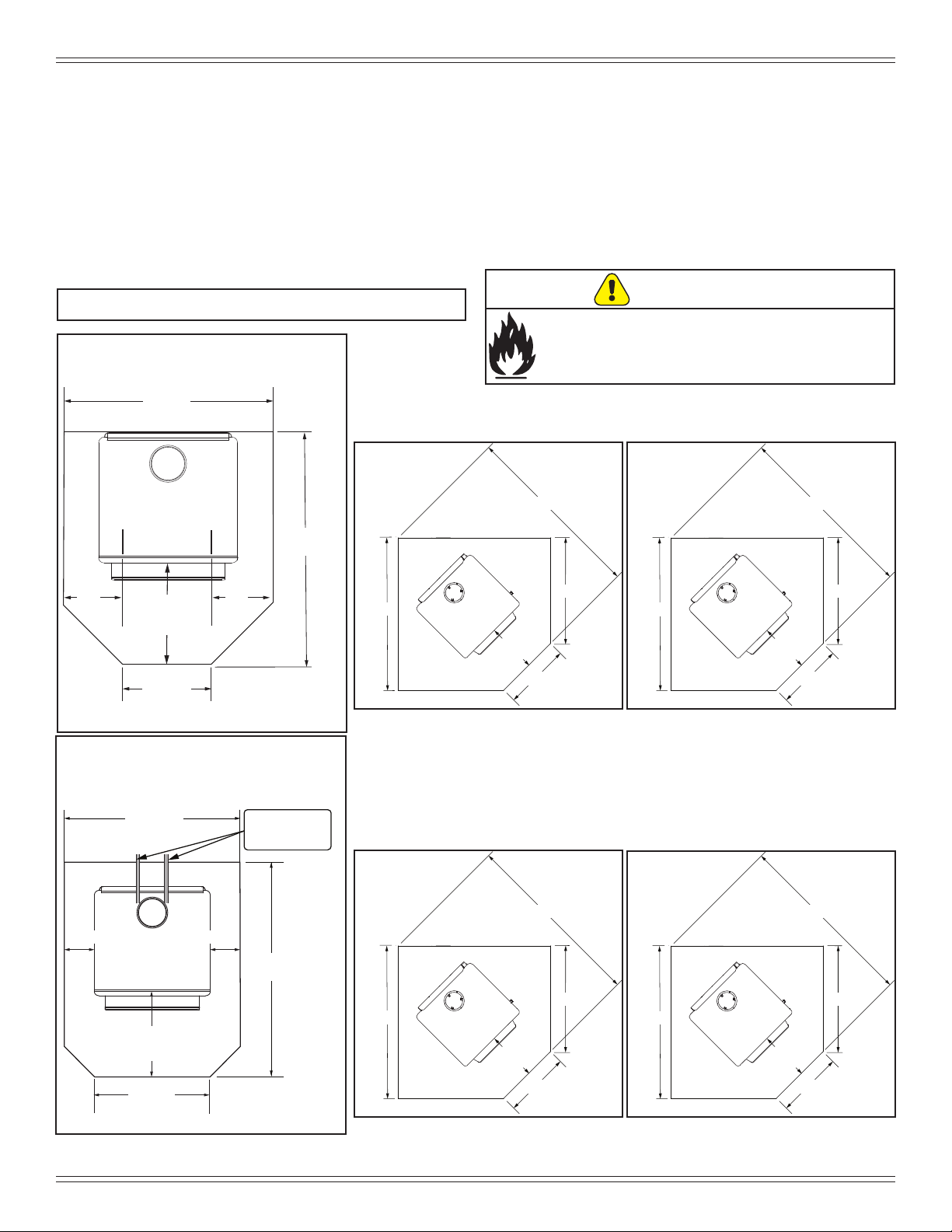

B. Hearth Protection Requirements In Canada, similar oor protection must be provided 18
inches (457mm) in front and 8 inches (203mm) from the
sides and rear of the appliance unless the hearth pad is
placed against the wall (Figure 12.2 or 13.2). Then the
clearance may be reduced using double wall pipe and the
Clearance to Combustibles table listed on page 14.
*Exception: Non-combustible oor protector must extend
beneath the ue pipe when installed with horizontal venting
and extend 2 inches (51mm) beyond each side; See
Figure 12.2 or 13.2.
Figure 12.4
Figure 12.3
Figure 12.2
Figure 12.5
Figure 12.6
EMBER PROTECTION: It is necessary to install a Type I
oor protector.
Floor protector must be non-combustible material,
extending beneath appliance with a minimum of 16 inches
(406mm) in front of glass and 8 inches (203mm) to both
sides of the fuel loading door. Open the door and measure
8 inches (203mm) from the side edge of the opening in the
face of the appliance. *See exception.
WARNING
Fire Risk.
Hearth pads must be installed exactly as specied.
High temperatures or hot embers may ignite
concealed combustibles.
Corner hearth pad dimensions with single wall pipe
Corner hearth pad dimensions with double wall pipe
USA, minimum at wall hearth
pad dimensions
*Canada, at wall hearth pad
dimensions with double wall
horizontal venting
**this dimension will vary depending
installation.
16 in
from fuel
loading door
16 in
from fuel
loading door
8 in8 in
31-5/8 in
minimum
31-5/8 in
minimum
41 in
minimum
41 in
minimum
8 in8 in
Fuel loading door
Fuel loading door
15-5/8 po
minimum
USA
16 in.
from the fuel door
opening
52-1/4 in
66-1/8 in
41-1/4 in
15-5/8 in
USA
16 in.
from the fuel door
opening
52-1/4 in
66-1/8 in
41-1/4 in
15-5/8 in
CANADA
457mm
from the fuel door
opening
1453mm
1727mm
988mm
660mm
CANADA
457mm
from the fuel door
opening
1453mm
1727mm
988mm
660mm
203mm203mm
457mm
from fuel door
opening
1067mm
minimum
1243mm
minimum
660mm
minimum
660mm
minimum
Must extend 51mm
beyond each side of
pipe (shaded area) to
the wall thimble.
Must extend 51mm
beyond each side of
pipe (shaded area) to
the wall thimble.
MILLENNIUM MODEL

August 13, 2018 7037-172G 13
4300 Wood Appliance Series ACC
STEP-TOP UNI-BODY MODEL
Figure 13.1
Figure 13.4
Figure 13.3
Figure 13.2
Figure 13.5
Figure 13.6
Corner hearth pad dimensions with single wall pipe
Corner hearth pad dimensions with double wall pipe
USA, minimum at wall hearth
pad dimensions
*Canada, at wall hearth pad
dimensions with double wall
horizontal venting
**this dimension will vary depending
installation.
31-5/8 in
minimum
41 in
minimum
8 in 8 in
15-5/8 in
minimum
16 in
from fuel door
opening
16 in
from fuel door
opening
Fuel loading door
USA
54-3/4 in
44-1/4 in
33-1/8 in
15-5/8 in
16 inches
from the fuel
door opening
CANADA
1440mm
1252mm
785mm
660mm
457mm
from the fuel
door opening
USA
54-3/4 in
44-1/4 in
33-1/8 in
15-5/8 in
16 inches
from the fuel
door opening
CANADA
1440mm
1252mm
785mm
660mm
457mm
from the fuel
door opening
1006mm
minimum
1192mm**
minimum
203mm 203mm
660mm
minimum
Must extend 51mm
beyond each side of
pipe (shaded area)
to the wall thimble.
Must extend 51mm
beyond each side of
pipe (shaded area)
to the wall thimble.
457mm
from fuel door
opening
457mm
from fuel door
opening

14 7037-172G August 13, 2018
4300 Wood Appliance Series ACC
C. Clearances to Combustibles
BACKWALL / SIDEWALL
A B
D
C
F
E
E
F
CORNER INSTALLATION
C
ALCOVE TOP VIEW
G
A
ALCOVE SIDE VIEW
G
H
APPLIANCE
TO CEILING
CLEARANCE
* If H = N/A, follow Pipe
Manufacturer’s clearances
MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS in inches (Millimeters)
Note: A, C, and F Dimensions are to the center of the flue collar
4300 WOOD APPLIANCE
INSTALLATION: FULL VERTICAL
A
B
C
D
E
F
G
H
SINGLE WALL PIPE
MILLENNIUM 18-1/2 (470) 11-3/4 (298) 27-1/2 (699) 14-1/2 (368) 10 (254) 20-1/2 (521) 53-1/2 (1359) 12 (305)
STEP TOP 18-1/2 (470) 11-3/4 (298) 27-1/2 (699) 14-1/2 (368) 2 (51) 15 (381) 49-1/2 (1283) 12 (305)
DOUBLE WALL PIPE
MILLENNIUM 12 (305) 5-1/4 (133) 27-1/2 (699) 14-1/2 (368) 10 (254) 20-1/2 (521) 53-1/2 (1359) 12 (305)
STEP TOP 10-1/2 (267) 3-3/4 (95) 25 (635) 11-3/4 (298) 2 (51) 15 (381) 49-1/2 (1283) 5 (127)
INSTALLATION: 90 DEGREE ELBOW OFF TOP OF APPLIANCE THROUGH BACKWALL
DOUBLE WALL PIPE
MILLENNIUM 11-1/2 (292) 6 (152) 27-1/2 (699) 15 (381) 10 (254) 20-1/2 (521) 53-1/2 (1359) N/A
STEP TOP 10-1/2 (267) 4 (102) 22 (559) 9 (229) 2 (51) 15 (381) 49-1/2 (1283) N/A
INSTALLATION: ALCOVE
DOUBLE WALL PIPE
MILLENNIUM 16 (406) 10 (254) 27 (686) 14-1/2 (368) N/A N/A 53-1/2 (1359) 12 (305)
STEP TOP 10-1/2 (267) 3-3/4 (95) 25 (635) 11-3/4 (298) N/A N/A 49-1/2 (1283) 5 (127)
For alcove only: Six inch diameter listed Double wall air insulated connector pipe with UL103 HT listed factory built Class A chimney or masonry
chimney. Maximum depth of Alcove shall be no more than 48 inches (1219mm) and the referenced alcove clearances. Canada must comply with
CAN/ULC-S269 M87 for the 650° factory built chimney.
* FOLLOW PIPE MANUFACTURES CLEARANCES AS REQUIRED
NOTE: Clearances may only be reduced by means approved by the regulatory authority having jurisdiction
NOTE: Service Space
In order to replace the tube channel assembly a clearance
of 19 inches (483mm) is required on the right side of
appliance in order to remove the tubes with the appliance
in place.
If space is not available, the appliance will have to be
disconnected from the chimney to proceed with the tube
replacement.
Fire Risk.
• Comply with all minimum clearances to
combustibles as specied.
• Failure to comply may cause house re.
WARNING

August 13, 2018 7037-172G 15
4300 Wood Appliance Series ACC
Recommended
Location
Marginal
Location
Location
Not
Recommended
Recommended
Location
Location NOT
Recommended
Multi-level Roofs
Windward
Leeward
Outside Air Kit Termination Cap
Figure 15.1
4 Chimney Systems
A. Locating Your Appliance & Chimney
Location of the appliance and chimney will affect
performance. As shown in Figure 15.1 the chimney
should:
• Install through the warm space enclosed by the building
envelope. This helps to produce more draft, especially
during lighting and die down of the re.
• Penetrate the highest part of the roof. This minimizes
the affects of wind turbulence and down drafts.
• Consider the appliance location in order to avoid oor
and ceiling attic joists and rafters.
• Locate termination cap away from trees, adjacent
structures, uneven roof lines and other obstructions.
Your local dealer is the expert in your geographic area and
can usually make suggestions or discover solutions that will
easily correct your ue problem.

16 7037-172G August 13, 2018
4300 Wood Appliance Series ACC
3 ft (91 cm)
Minimum
Less than 10 ft (305 cm)
2 ft (61 cm) 3 ft (91 cm)
Minimum
10 ft (305 cm) To Nearest Roofline
2 ft (61 cm)
Pitched Roof
10 ft. (305cm) or more
3 ft. (91cm) Minimum
Less than 10 ft. (305cm)
2 ft. (61cm) Minimum
3 ft. (91cm) Minimum
Wall or Parapet
Flat Roof

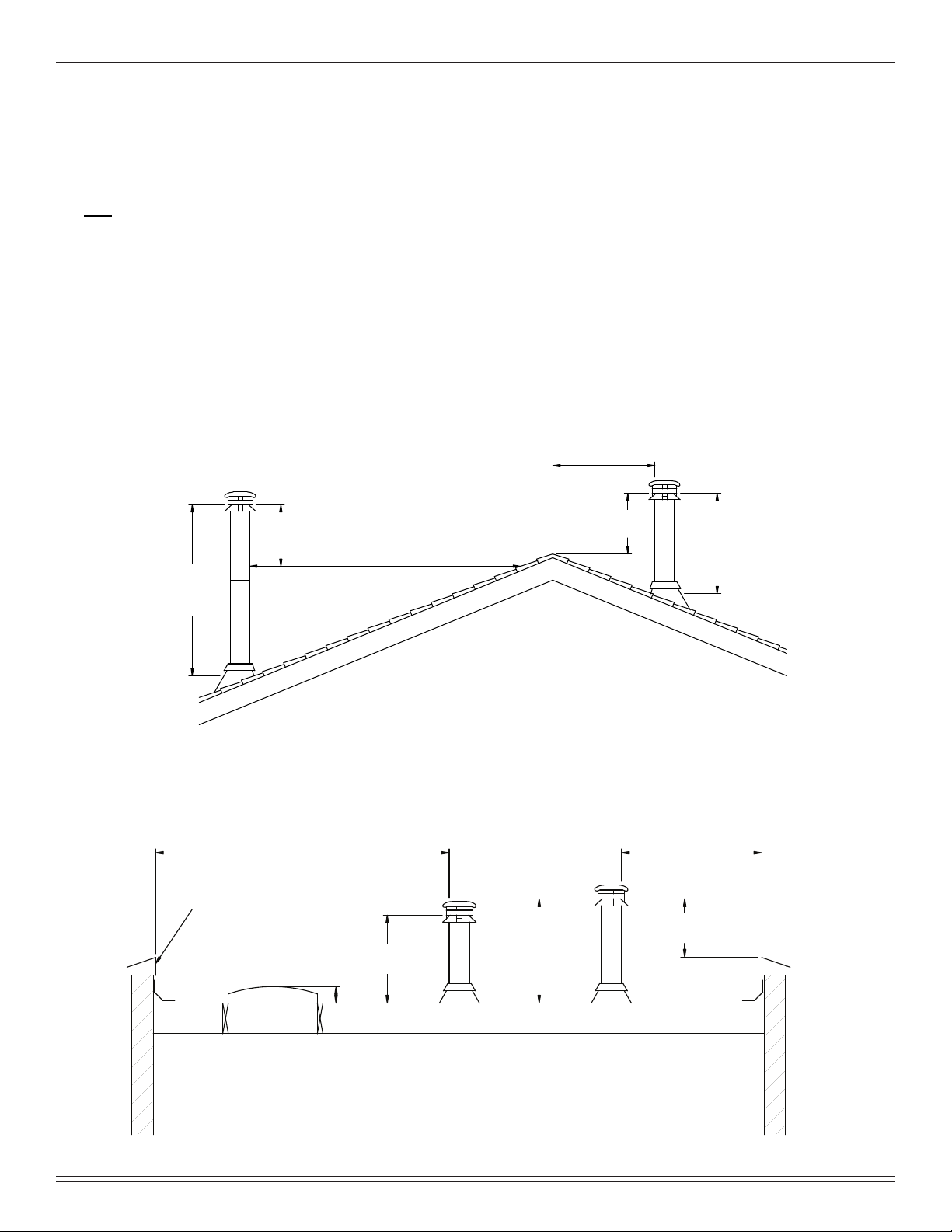

Figure 16.1
Figure 16.2
C. 2-10-3 Rule
These are safety requirements and are not meant to
assure proper ue draft.
This appliance is made with a 6 inch (152mm) diameter
chimney connector as the ue collar on the appliance.
• Changing the diameter of the chimney can affect draft
and cause poor performance.
• It is not recommended to use offsets and elbows at
altitudes above 4000 feet above sea level and or when
there are other factors that affect ue draft.
B. Chimney Termination Requirements
Follow manufacturer’s instructions for clearance, securing
ashing and terminating the chimney (Figure 16.1 & 16.2).
• Must have an approved and Listed cap
• Must not be located where it will become plugged by
snow or other material
• Must terminate at least 3 feet (91cm) above the roof
and at least 2 feet (61cm) above any portion of the roof
within 10 feet (305cm).
• Must be located away from trees or other structures
NOTICE:
• Chimney performance may vary.
• Trees, buildings, roof lines and wind conditions affect
performance.
• Chimney height may need adjustment if smoking or
overdraft occurs.
NOTICE: LOCATING THE APPLIANCE IN A BASEMENT
OR IN A LOCATION OF CONSIDERABLE AIR
MOVEMENT CAN CAUSE INTERMITTENT
SMOKE SPILLAGE FROM APPLIANCE. DO NOT
LOCATE APPLIANCE NEAR
• Frequently open doors
• Central heat outlets or returns

August 13, 2018 7037-172G 17
4300 Wood Appliance Series ACC
NOTE: In Canada when using a factory-built chimney it
must be safety listed, Type UL103 HT (2100
o
F)
CLASS “A” or conforming to CAN/ULC-S629M,
STANDARD FOR 650oC FACTORY-BUILT
CHIMNEYS.
F
loor
Pr
otector
Chimney
Connector
Insulated "T "
Flashing
Listed Termination Cap
Trim Collar on
Inside Wall Listed Chimney
Storm Collar
Wall Support
Roof Brace (if required)
Thimble
Figure 17.1 Prefabricated Exterior Chimney
E. Venting Components
Chimney Connector:
It is also known as ue pipe or appliance pipe. The
chimney connector joins the appliance to the chimney. It
must be a 6 inch (152mm) minimum diameter 24 gauge
mild steel black or 26 gauge blued steel, or an approved
air-insulated double wall venting pipe.
Thimble:
A manufactured or site-constructed device installed in
combustible walls through which the chimney connector
passes to the chimney. It is intended to keep the walls
from igniting. Site constructed thimbles must meet NFPA
211 Standards. Prefabricated must be suitable for use with
selected chimney and meet UL103 Type HT Standards.
Follow instructions provided by the manufacturer for
manufactured thimbles for masonry chimney and
prefabricated chimneys.
F. Chimney Systems
Prefabricated Metal Chimney
• Must be minimum 6 inch (152mm) diameter (ID) high
temperature chimney listed to UL 103 HT (2100oF) or
ULC S629M.
• Must use components required by the manufacturer for
installation.
• Must maintain clearances required by the manufacturer
for installation.
• Refer to manufacturers instructions for installation.
D. Chimney Height / Rise and Run
This product was designed for and tested on a 6 inch
(152mm) chimney, 14 to 16 feet (420-480cm) high,
(includes appliance height) measured from the base of the
appliance. The further your stack height or diameter varies
from this conguration, the greater the likelihood it may
affect performance.
Chimney height may need to be increased by 2 - 3% per
each 1000 feet above sea level. It is not recommended to
use offsets or elbows at altitudes above 4000 feet above
sea level or when there are other factors that affect ue
draft.
Chimney:
The chimney can be new or existing, masonry or
prefabricated and must meet the following minimum
requirements and as specied in Section 4F.
Fire Risk.
Inspection of Chimney:
• Chimney must be in good condition.
• Meets minimum standard of NFPA 211
• Factory-built chimney must be 6 inch
(152mm) UL103 HT.
WARNING
WARNING
Asphyxiation Risk.
• DO NOT CONNECT THIS Appliance TO A
CHIMNEY FLUE SERVICING ANOTHER
APPLIANCE.
• DO NOT CONNECT TO ANY AIR
DISTRIBUTION DUCT OR SYSTEM.
May allow ue gases to enter the house.
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage. Refer
to the owner’s information manual provided with this
appliance. For assistance or additional information consult
a qualied installer, service agency or your dealer.
WARNING

18 7037-172G August 13, 2018
4300 Wood Appliance Series ACC
Floor
Protector
Chi
mney
Conne
ctor
Ceiling Support
Listed Chimney
Listed Termination Cap
Storm Collar
Flashing
Figure 18.1 - Prefabricated Interior Chimney
Thimble
Site constructed for masonry chimney installation:
Components
A minimum length of 12 inches [305mm] (longer for thicker
walls) of solid insulated factory-built chimney length
constructed to UL 103 Type HT 6 inch (152mm) inside
diameter. Chimney needs to extend a minimum of 2 inches
(51mm) from the interior wall and a minimum of 1 inch
(25mm) from the exterior wall.
Wall spacer, trim collar and wall band to t solid pack
chimney selected.
Minimum 8 inch (203mm) diameter clay liner section (if not
already present in chimney) and refractory mortar.
When jurisdiction requires install approved chimney liner in
masonry chimney.
Air Clearances
• Masonry chimney clearance must meet NFPA 211
minimum requirement of 2 inches (51mm) to sheet
metal supports and combustibles.
• Minimum of 1 inch (25mm) clearance around the
chimney connector.
• Top of wall opening is a minimum of 13-1/2 inches
(343mm) from ceiling or 4-1/2 inches (114mm) below
minimum clearance specied by chimney connector
manufacturer. NFPA 211 minimum vertical clearance of
18 inches (457mm) from chimney connector and ceiling
or minimum recommended by chimney connector
manufacturer (Figure 18.2).
Instructions:
1. Open inside wall at proper height for the chimney
connector to entry the masonry chimney (Figure 18.2).
2. Entry hole to masonry chimney must be lined with
an 8 inch (203mm) minimum diameter clay liner, or
equivalent, secured with refractory mortar.
3. Construct a 17 inch x 17 inch (432mm x 432mm)
outside dimension frame from 2 x 2 framing lumber to
t into wall opening. Inside opening of frame should
be no less than 14 inch x 14 inch (356mm x 356mm)
(Figure 18.2).
4. Attach the wall spacer to the chimney side of the frame.
5. Nail the frame into the wall opening. The spacer
should be on the chimney side.
6. Insert the section of the solid insulated chimney into the
outer wall of the masonry chimney.
7. Tightly secure the length of the solid insulated chimney
with the wall band to the masonry chimney.
8. Insert a section of chimney connector into the chimney.
Make sure it does not protrude past the edge of the
clay chimney liner inside the chimney.
9. Seal the end of the chimney connector to the clay liner
with refractory mortar.
10. Install trim collar around the sold pack chimney section .Figure 18.2
1.5”
1.0”
2.0”
2.0”
1.5”
14.0” ID
17.0” OD
ceiling
Minimum18.0”
NFPA 211
13.5” below ceiling to top
of opening
1.0”
8.0”
1.5 2x2 framing stud
2.0 min air clearance
1.0 min air clearance
4.5
or top of opening is a min.of
4.5” below min.clearance
specified by connector mfg.
Center of Hole
Thimble
C
L
C
L
Wall
Include depth
of hearth pad

August 13, 2018 7037-172G 19
4300 Wood Appliance Series ACC
Trim Collar
Chimney Section
with 2 inch
(51mm)
Clearance to
Combustibles
Chimney
Connector
Fire Clay Flue
Liner
with Airspace
Masonry
Chimney
Wall Band to
Secure Chimney
Section
Wood Studs Used
for Framing - Spaced
2 inch (51mm)
clearance from
Masonry Chimney
Wall Spacer
Solid Pack Chimney with Metal Supports as a Thimble
Figure 19.1
Fire Risk.
Do NOT pack insulation or other combustibles
between spacers.
• ALWAYS maintain specied clearances around
venting and spacers.
• Install spacers as specied.
Failure to keep insulation or other material away
from vent pipe may cause re.
WARNING
Flue Gas
Direction
Crimped
End
Toward
Appliance
Secure pipe sections with a
minimum of 3 screws
Figure 19.3 Chimney Connector (Appliance Pipe)
Chimney Flue
Liner
Fireclay
Liner or
Equivalent
Masonry Chimney
Constructed to NFPA 211
Wall Spacer
Wall Band
Trim Collar
Chimney
Connector
1 inch (25mm) Air
Space to Chimney
Section
Min. Clearance
2 inch (51mm)
Min. Chimney Clearance to
Wall Spacer and
Combustibles - 2 inch (51mm)
Chimney Section
Figure 19.2
Solid Pack Chimney with Metal Supports as a Thimble
(Cont’d)
G. Installing Chimney Components
Chimney Connector
Single wall connector or appliance pipe.
This must be at least 24 gauge mild steel or 26 gauge blue
steel. The sections must be attached to the appliance and
to each other with the crimped (male) end pointing toward
the appliance. All joints, including the connection at the ue
collar, should be secured with 3 sheet metal screws. Make
sure to follow the minimum clearances to combustibles.
Where passage through the wall, or partition of combustible
construction is desired in Canada, the installation shall
conform to CAN/CSA-B365.
Factory-built listed chimney connector (vented).
A listed connector (vented) must be used when installing
this appliance in a mobile home. The listed connectors
must conform to each other to ensure a proper t and seal.
H. Proper Draft
To be sure that your Quadra-Fire insert burns properly, the
chimney draft (static pressure) should be approximately
-0.10 inches water column (W.C.) during a high burn and
-0.04 inches W.C. during a low burn, measured 6 inches
(152mm) above the top of the insert after one hour of
operation at each burn setting.
WARNING
Fire Risk.
Follow Chimney Connector Manufacturer’s
Instructions for Proper Installation.
ONLY use connector:
• Within the room, between appliance and ceiling or
wall.
Connector shall NOT pass through:
• Attic or roof space
• Closet or similar concealed space
• Floor or ceiling
Maintain minimum clearances to combustibles

20 7037-172G August 13, 2018
4300 Wood Appliance Series ACC
Included in Kit: ARS door assembly, ARS latch assembly,
Pedestal, Ash Pedestal Drawer, ARS Channel, ARS Cover,
and fastener package.
Tools Required: 7/16 socket wrench, 3/8 open end
wrench, Phillips screw driver, and hammer.
Begin installing the ARS System:
1. Remove leg mount brackets packaged inside of rebox
and discard.
2. Remove the 2 bricks in the front most part of the rebox
(Figure 20.1).
3. Lay appliance on its back on a protective pad or pallet
(Figure 20.2).
4. Remove heat shield by loosening the four bolts using
3/8 open end wrench (Figure 20.2).
5. Remove 8 nuts that hold the cover plate on using a
7/16 socket wrench; discard cover plate (Figure 20.2).
Loosen
X4
Remove
X8
Remove
& discard
Gasket
Knock out
& discard
X
5
3
4
4
6
NOTE: The Ash Removal System, must be installed rst
before installing the pedestal.
A. Pedestal Assembly & ARS Installation
Slot to slide rod of Ash
Door Assembly through
8 threaded
studs
Ash Door
Assembly
6. Remove knock out from bottom of rebox by using a
hammer (Figure 20.2).
7. Install ash door assembly by sliding the rod at an angle
into the slot on the left side (Figure 20.3).
8. Slide the ash door over the 8 screws protruding from
the bottom of the appliance. Secure with nuts and
washers using 7/16 socket wrench (Figure 20.3) .
9. Install ARS latch by sliding latch assembly over 2
threaded studs protruding from the bottom on the left
hand side of the appliance. Secure by using two nuts
use 7/16 socket wrench (Figure 21.1 on page 21).
10. Add knob to handle rod (Figure 21.2 on page 21).
11. Using two bolts and two ange nuts to secure ARS
channel using 3/8 open end wrench and 7/16 socket
wrench (Figure 21.3 on page 21).
CHECK GASKET!
• Verify that the gasket is present and that the glossy
side is away from rebox bottom.
• It is important that the gasket is put in correctly for
sealing capabilities.
WARNING!
Do NOT operate before fully assembling
components.
Burning your appliance without a pedestal or leg
kit attached:
• Will void your warranty.
• May result in property damage or personal
injury.
WARNING
5 Appliance Set-Up
2 2
Remove 2 bricks for
installation and then re-install
Remove
and discard
Figure 20.3
Figure 20.1
Figure 20.2
