Quadra-Fire 57ST-ACC-B User manual

1 7038-206F September 27, 2016
5700 STEP TOP WOOD STOVE SERIES
Automatic Combustion Control (ACC)
Model(s):
57ST-ACC-B
HOT SURFACES!
Glass and other surfaces are hot
during operation AND cool down.
Hot glass will cause burns.
• Do not touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
appliance.
• Alert children and adults to hazards of high temperatures
• High temperatures may ignite clothing or other
ammable materials.
• Keep clothing, furniture, draperies and other ammable
materials away.
WARNING
If the information in these instruc-
tions is not followed exactly, a
re could result causing property
damage, personal injury, or death.
• Do not store or use gasoline or other am-
mable vapors and liquids in the vicinity of
this or any other appliance.
• Do not over re - If appliance or chimney
connector glows, you are over ring. Over
ring will void your warranty.
• Comply with all minimum clearances to
combustibles as specied. Failure to
comply may cause a house re.
WARNING
WARNING
Fire Risk.
For use with solid wood fuel only.
Other fuels may over re and generate
poisonous gases (i.e. carbon monoxide).
Installation Manual
Installation & Appliance Set-Up
INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
NOTICE: DO NOT DISCARD THIS MANUAL
NOTE
To obtain a French translation of this manual, please contact
your dealer or visit www.quadrare.com
Pour obtenir une traduction française de ce manuel, s’il vous
plaît contacter votre revendeur ou visitez www.quadrare.com
O-T L
Tested and
Listed by
Portland
Oregon USA
OMNI-Test Laboratories, Inc.
CUS
Installation and service of this
appliance should be performed by
quali ed personnel. Hearth & Home
Technologies recommends HHT
Factory Trained or NFI certified
professionals.

2 7038-206F September 27, 2016
5700 STEP TOP ACC
NOTE: Hearth & Home Technologies, manufacturer of
this appliance, reserves the right to alter its products, their
specications and/or price without notice.
TABLE OF CONTENTS
Safety Alert Key:
• DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.
• WARNING! Indicates a hazardous situation which, if not avoided may result in death or serious injury.
• CAUTION! Indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.
• NOTICE: Indicates practices which may cause damage to the appliance or to property.
Quadra-Fire is a registered trademark of Hearth & Home Technologies.
1Important Safety Information...........3
A. Appliance Certication.............................................3
B. BTU & Efciency Specications ..............................3
C. Mobile Home Approved........................................... 3
D. Glass Specications................................................3
E. Non-Combustible Materials......................................3
F. Combustible Materials ..............................................3
2Getting Started ..................................4
A . Design and Installation Considerations ....................... 4
B. Fire Safety................................................................4
C. Negative Pressure .................................................5
D. Tools And Supplies Needed ....................................5
E. Inspect Appliance and Components........................5
F. Install Checklist.........................................................6

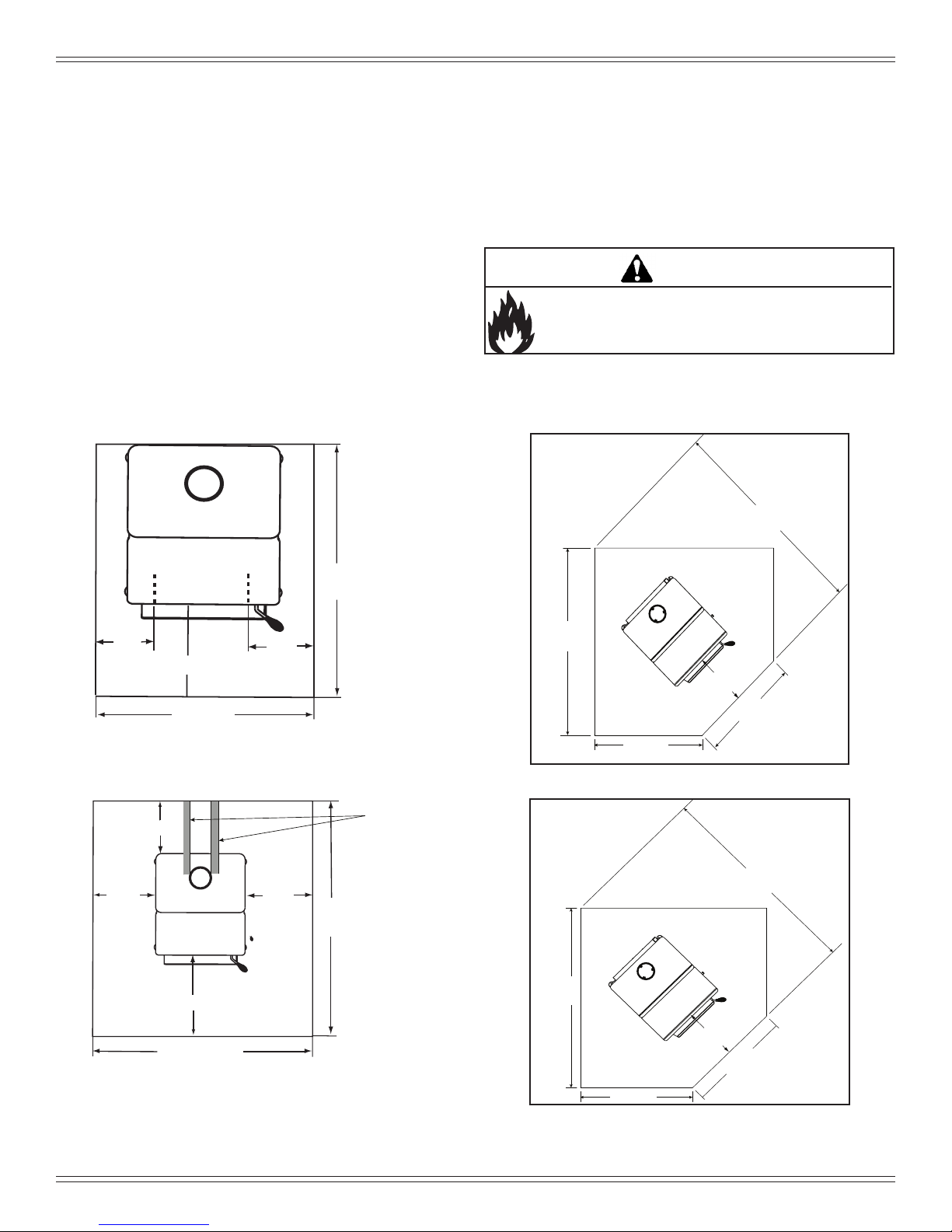

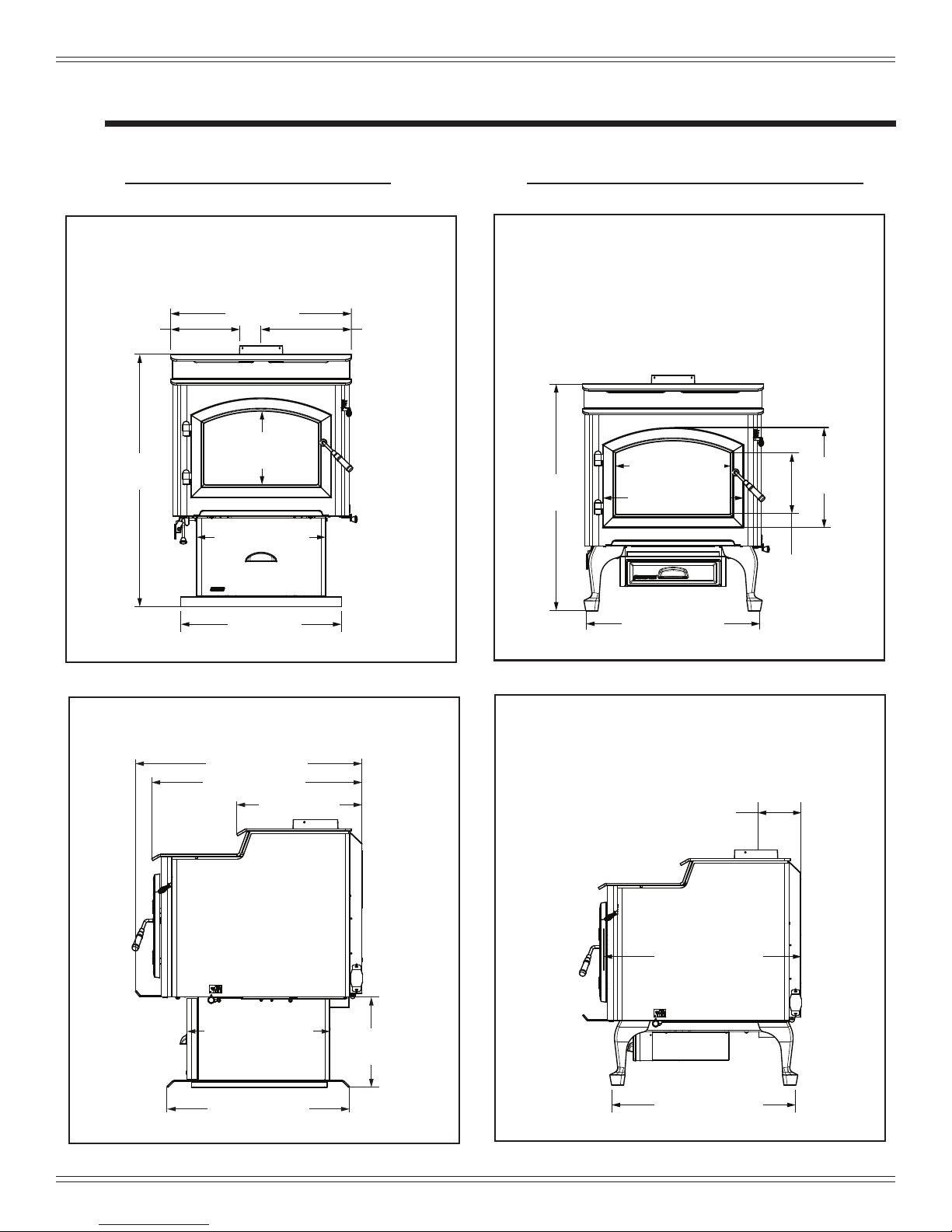

3Dimensions and Clearances ............7
A. Appliance Dimensions.............................................7
B. Hearth Protection Requirements.............................9
C. Clearances to Combustibles ...................................10
4Chimney Systems ...........................11
A. Locating Your Appliance & Chimney .......................11
B. Chimney Termination Requirements .......................12
C. 2-10-3 Rule ............................................................12
D. Chimney Height/Rise and Run ...............................13
E. Venting Components ..............................................13
F. Chimney Systems....................................................13
G. Installing Chimney Components ..............................15
H. Proper Draft ...........................................................15
5Appliance Set-Up ............................16
A. Pedestal Assembly and
Ash Removal System (ARS) Installation .................16
B. Access Cover Handle..............................................18
C. Leg Kit and Ash Removal
System (ARS) Installation........................................18
D. Traditional Leg Installation ......................................20
E. Door Handle Assembly............................................21
F. Outside Air Kit Installation........................................21
G. Blower (Optional) ....................................................23
H. Adjusting the Blower Speed Control .......................23
6Mobile Home Installation................23
7Reference Materials ........................24
8Accessory List ................................27

September 27, 2016 7038-206F 3
5700 STEP TOP ACC
The Quadra-Fire 5700 Series Wood Appliance meets the
U.S. Environmental Protection Agency’s crib wood emission
limits for wood appliances sold after May 15, 2015.
A. Appliance Certication
B. BTU & Efciency Specications
EPA Certication #: 714
EPA Certied Emissions: 2.3 grams per hour
*LHV Tested Efciency: 77.9 %
**HHV Tested Efciency: 72.1 %
***EPA BTU Output: 11,100 to 40,400 / hr.
****Peak BTU/Hour Output: 76,200
Vent Size: 6 inches
Firebox Size: 2.90 cubic feet
Recommended Wood Length: 22 inches
Fuel Orientation: Front-to-Back
Fuel Seasoned Cord Wood
*Weighted average LHV efciency using Douglas Fir dimension-
al lumber and data collected during EPA emission test.
**Weighted average HHV efciency using Douglas Fir dimen-
sional lumber and data collected during EPA emission test.
***A range of BTU outputs based on EPA Default Efciency and
the burn rates from the low and high EPA tests, using Douglas
Fir dimensional lumber.
****A peak BTU out of the appliance calculated using the max-
imum rst hour burn rate from the High EPA Test and the BTU
content of cord wood (8600) times the efciency.
NOTE: Hearth & Home Technologies, manufacturer of
this appliance, reserves the right to alter its products, their
specications and/or price without notice.
C. Mobile Home Approved
• This appliance is approved for mobile home installa-
tions; when not installed in a sleeping room and when
an outside combustion air inlet is provided.
• The structural integrity of the mobile home oor, ceil-
ing, and walls must be maintained.
• The appliance must be properly grounded to the frame
of the mobile home with #8 copper ground wire.
• Outside Air Kit, part OAK-ACC must be installed in a
mobile home installation.
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage.
For assistance or additional information, consult a qualied
installer, service agency or your dealer.
Hearth & Home Technologies WILL NOT warranty appli-
ances that exhibit evidence of over-ring. Evidence of
over-ring includes, but is not limited to:
• Warped air tube
• Deteriorated refractory brick retainers
• Deteriorated bafe and other interior components
D. Glass Specications
This appliance is equipped with 5mm ceramic glass.
Replace glass only with 5mm ceramic glass. Please con-
tact your dealer for replacement glass.
NOTE: This installation must conform with local codes.
In the absence of local codes you must comply with the
UL1482-07, (UM) 84-HUD and NFPA211 in the U.S.A. and
the ULC S627-00 and CAN/CSA-B365 Installation Codes
in Canada.
F. Combustible Materials
Material made of/or surfaced with any of the following ma-
terials:
- Wood - Compressed Paper
- Plant Fibers - Plastic
- Plywood/OSB - Sheet Rock (drywall)
Any material that can ignite and burn: ame proofed or not,
plastered or non-plastered.
E. Non-Combustible Materials
Material which will not ignite and burn, composed of any
combination of the following:
- Steel - Plaster
- Brick - Iron
- Concrete - Tile
- Glass - Slate
Materials reported as passing ASTM E 136, Standard
Test Method for Behavior of Metals, in a Vertical Tube
Furnace of 750° C.
Model: 5700 Step Top Uni-Body (ACC)
Laboratory: OMNI Test Laboratories, Inc.
Report No: 061-S-73-6.2
Type: Listed Room Appliance, Solid Fuel
Type
Standard: UL1482-96 and ULC S627-00 and (UM)
84-HUD, Mobile Home Approved.
1 Important Safety Information

4 7038-206F September 27, 2016
5700 STEP TOP ACC
Install Guide
2 Getting Started
A. Design and Installation Considerations
Consideration must be given to:
• Safety
• Convenience
• Trafc ow
• Chimney and chimney connector required
It is a good idea to plan your installation on paper, using exact
measurements for clearances and oor protection, before
actually beginning the installation. If you are not using an
existing chimney, place the appliance where there will be a
clear passage for a factory-built listed chimney through the
ceiling and roof.
We recommend that a qualied building inspector and your
insurance company representative review your plans before
and after installation.
If this appliance is in an area where children may be near it is
recommended that you purchase a decorative barrier to go
in front of the appliance. Remember to always keep children
away while it is operating and do not let anyone operate
this appliance unless they are familiar with these operating
instructions.
WARNING
• DO NOT CONNECT THIS APPLIANCE TO A CHIM-
NEY FLUE SERVICING ANOTHER APPLIANCE.
• DO NOT CONNECT TO ANY AIR DISTRIBUTION
DUCT OR SYSTEM.
May allow ue gases to enter the house.
Asphyxiation Risk.
Check building codes prior to installation.
• Installation MUST comply with local, regional, state and
national codes and regulations.
• Consult insurance carrier, local building, re ofcials or authori-
ties having jurisdiction about restrictions, installation inspection,
and permits.
CAUTION
NOTICE: HEARTH & HOME TECHNOLOGIES ASSUMES NO
RESPONSIBILITY FOR THE IMPROPER PERFORMANCE
OF THE APPLIANCE SYSTEM CAUSED BY:

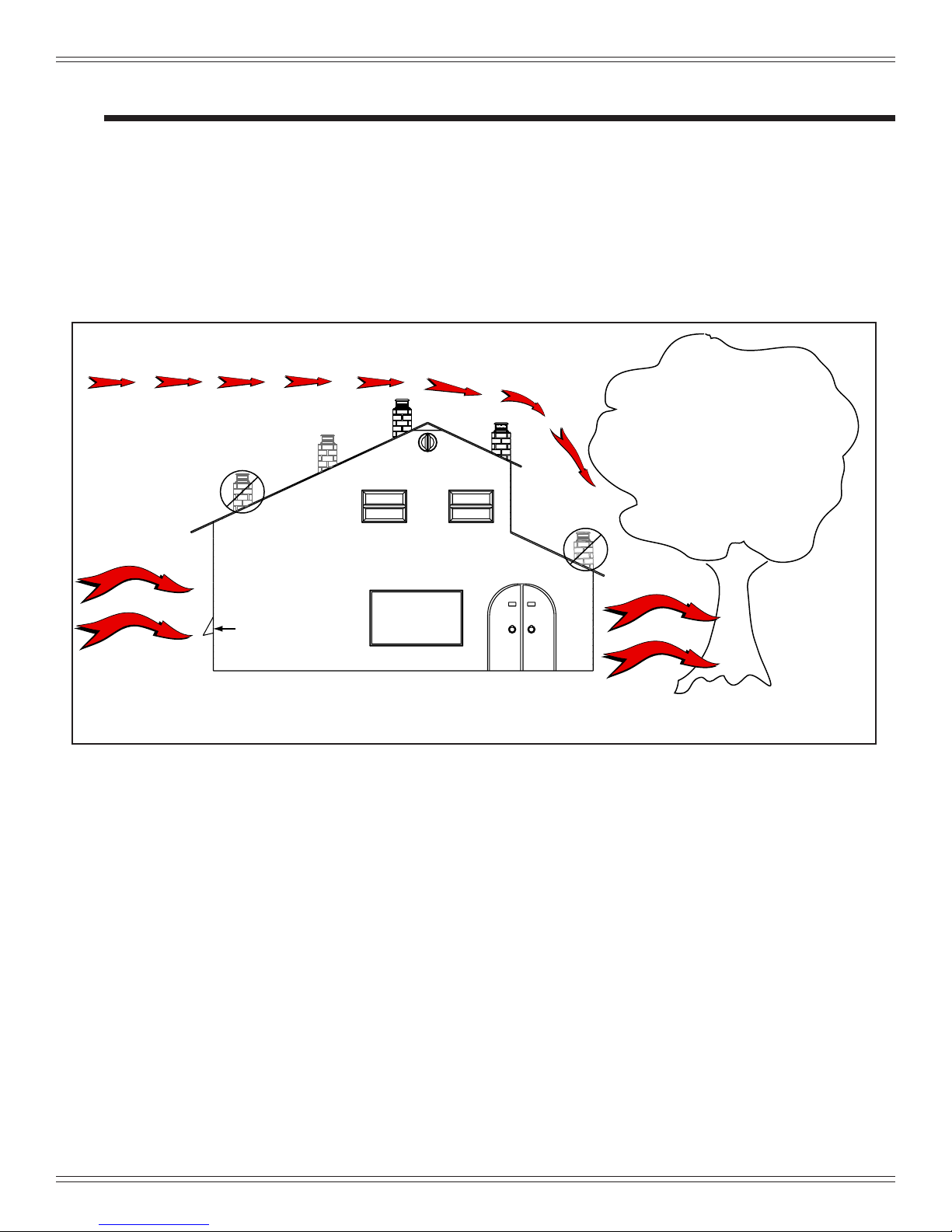

• Inadequate draft due to environmental conditions
• Down drafts
• Tight sealing construction of the structure
• Mechanical exhausting devices
• Over drafting caused by excessive chimney heights
• Ideal performance is with height of chimney between 14-16
feet (4.26-4.88m) measured from the base of the appliance.
B. Fire Safety
To provide reasonable re safety, the following should be
given serious consideration:
1. Install at least one smoke detector on each oor of
your home to ensure your safety. They should be
located away from the heating appliance and close
to the sleeping areas. Follow the smoke detector
manufacturer’s placement and installation instructions,
and be sure to maintain regularly.
2. A conveniently located Class A fire extinguisher to
contend with small res resulting from burning embers.
3. A CO detector should be installed in the room with the
appliance.
4. A practiced evacuation plan, consisting of at least two
escape routes.
5. A plan to deal with a chimney re as follows:
In the event of a chimney re:
a Evacuate the house immediately
b. Notify re department.

September 27, 2016 7038-206F 5
5700 STEP TOP ACC
• Installation and use of any damaged appliance.
• Modication of the appliance.
• Installation other than as instructed by Hearth & Home
Technologies.
• Installation and/or use of any component part not approved
by Hearth & Home Technologies.
• Operating appliance without fully assembling all components.
• Operating appliance without legs or pedestal attached.
• Do NOT Over re - If appliance or chimney connector glows,
you are over ring.
Any such action that may cause a re hazard.
WARNING
Fire Risk.
Hearth & Home Technologies disclaims any
responsibility for, and the warranty will be
voided by, the following actions:
C. Negative Pressure
Negative pressure results from the imbalance of air avail-
able for the appliance to operate properly. It can be stron-
gest in lower levels of the house.
Causes include:
• Exhaust fans (kitchen, bath, etc.)
• Range hoods
• Combustion air requirements for furnaces, water
appliances and other combustion appliances
• Clothes dryers
• Location of return-air vents to furnace or air conditioning
• Imbalances of the HVAC air handling system
• Upper level air leaks such as:
- Recessed lighting
- Attic hatch
- Duct leaks
To minimize the effects of negative air pressure:
• Install optional outside air kit with the intake facing
prevailing winds during the heating season
• Ensure adequate outdoor air for all combustion appliances
and exhaust equipment
• Ensure furnace and air conditioning return vents are not
located in the immediate vicinity of the appliance
• Avoid installing the appliance near doors, walkways or
small isolated spaces
• Recessed lighting should be a “sealed can” design
• Attic hatches weather stripped or sealed
• Attic mounted duct work and air handler joints and seams
taped or sealed
• Basement installations should be avoided
WARNING
• Negative pressure can cause spillage of com-
bustion fumes, soot and carbon monoxide.
• Appliance needs to draft properly for safety.
Asphyxiation Risk.
D. Tools And Supplies Needed
Before beginning the installation be sure the following tools
and building supplies are available:
Reciprocating saw Framing material
Pliers High temp caulking material
Hammer Gloves
Phillips screwdriver Framing square
Flat blade screwdriver Electric drill and bits
Plumb line Safety glasses
Level Tape measure
Misc. screws and nails
1/2-3/4 in. length, #6 or #8 self-drilling screws
• Remove appliance and components from packaging and
inspect for damage.
• Report to your dealer any parts damaged in shipment.
• Read all the instructions before starting the installation.
Follow these instructions carefully during the
installation to ensure maximum safety and benet.
E. Inspect Appliance and Components
Inspect appliance and components for damage.
Damaged parts may impair safe operation.
WARNING
• Do NOT install damaged components.
• Do NOT install incomplete components.
• Do NOT install substitute components.
Report damaged parts to dealer.
Fire Risk.

6 7038-206F September 27, 2016
5700 STEP TOP ACC
F. Install Checklist
Appliance Install
Appliance is leveled and connector is secured to appliance.
Hearth extension size/height decided.
Outside air kit installed.
Floor protection requirements have been met.
If appliance is connected to a masonry chimney, it should be cleaned and
inspected by a professional. If installed to a factory built metal chimney, the
chimney must be installed according to the manufacturer’s instructions and
clearances.
Chimney
Chimney installed, locked and secured in place with proper clearance.
Chimney meets recommended height requirements (14-16 feet).
Terminations installed and sealed.
Clearances
Combustible materials not installed in non-combustible areas.
Mantels and wall projections comply with installation manual requirements.
Protective hearth strips and hearth extension installed per manual requirements.
Appliance Setup
All packaging and protective materials removed.
All labels have been removed from the door.
All packaging materials are removed from inside/under the appliance.
Manual bag and all of its contents are removed from inside/under the appliance
and given to the party responsible for use and operation.
ATTENTION INSTALLER:
Follow this Standard Work Checklist
This standard work checklist is to be used by the installer in conjunction with, not instead of, the instructions contained in this installation manual.
Customer: __________________________________________________________________________
Date Installed: __________________________________________________________________________
Lot/Address: __________________________________________________________________________
Location of Appliance: ______________________________________________________________
Installer: __________________________________________________________________________
Dealer/ Distributor Phone #: ______________________________________________________________
Serial #: __________________________________________________________________________
Model : __________________________________________________________________________
WARNING! Risk of Fire or Explosion!
Hearth & Home Technologies recommends the following:
• That this checklist remain visible at all times on the appliance until the installation is complete.
Comments: Further description of the issues, who is responsible (Installer/Builder/Other Trades, etc.) and corrective action needed:
Comments communicated to party responsible by on
(Builder/Gen. Contractor) (Installer) (Date)
YES IF NO, WHY?

September 27, 2016 7038-206F 7
5700 STEP TOP ACC
Figure 7.1 Front View
3 Dimensions and Clearances
A. Appliance Dimensions NOTE: Flue Collar size is 6 inch (152mm) diameter (ID)
10-1/4
(260mm)
27 (686mm)
13-1/2
(343mm)
37-11/16
(686mm)
9-1/8
(232mm)
19-1/4 (489mm)
24 (610mm)
5700 Step Top Pedestal Model
14-15/16
(380mm)
9-3/16
(233mm)
17-1/8 (435mm)
21-1/16 (535mm)
26-1/16 (662mm)
33-7/8
(861mm)
Figure 7.3 - Front View
5700 Step Top Queen Anne Leg Model
Figure 7.2 Side View
32-3/8 (822mm)
30-1/4 (768mm)
18 (458mm)
20-9/16 (522mm)
27-1/8 (689mm)
13-1/2
(343mm)
6-11/16
(170mm)
6-11/16
(170mm)
27-9/16 (700mm)
Back of Stove
to Glass
27-9/16 (700mm)
Figure 7.4 - Side View

8 7038-206F September 27, 2016
5700 STEP TOP ACC
A. Appliance Dimensions (continued) NOTE: Flue Collar size is 6 inch (152mm) diameter (ID)
Figure 8.2 - Side View
Figure 8.1 - Front View
5700 Step Top Traditional
Leg Model
33-7/8
(860mm)
24-7/16
(620mm)
25-15/16 (658mm)

September 27, 2016 7038-206F 9
5700 STEP TOP ACC
Figure 9.1
B. Hearth Protection Requirements
FLOOR PROTECTION: Floor protector must be non-combus-
tible material, extending beneath appliance and to the front,
sides and rear as indicated. The oor must be non-combusti-
ble or otherwise adequately protected from radiant heat given
off by the appliance and from sparks and falling embers. A
layer of thin brick or ceramic tile over a combustible oor is
not sufcient.
I t is necessary to install a Type II oor protector with a minimum
R value=2.04, 16 inches (406mm) in front of glass and 8
inches (203mm) to both sides of the fuel loading door. Open
the door and measure 8 inches (203mm) from the side edge
of the opening in the face of the appliance.
In Canada, similar oor protection must be provided 18 inches
(457mm) in front and 8 inches (203mm) from the sides and
rear of the appliance. Figure 9.2 *See exception.
*EXCEPTION: Non-combustible oor protector must extend
beneath the ue pipe when installed with horizontal venting
and extend 2 inches (51mm) beyond each side. See Figure
9.2
WARNING
Fire Risk.
Hearth pads must be installed exactly as specied.
High temperatures or hot embers may ignite concealed
combustibles.
Figure 9.4
Corner hearth pad dimensions with single
and double wall pipe
30-1/8 in.
(765mm)
59-1/2 in.
(1511mm)
53-7/8 in.
(1368mm)
33-5/8 in.
(851mm)
USA
16
(FRONT DOOR OPENING)
16 in. from glass
8 in.
Fuel loading door
34-1/4 in.
minimum
45 in .
minimum
8 in.
USA
203mm (8 in.)
203mm
(8 in.)
203m
m
(8 in.)
457mm (18 in.)
1397mm
(55 in.)
minimum
1092mm (43 in.)
minimum
Must extend 2 in.
(51mm) beyond
each side of pipe
(shaded area)
CANADA
765mm
1368mm
854mm
CANADA
457MM
(FRONT DOOR OPENING)
1511mm
Figure 9.3
Figure 9.2

10 7038-206F September 27, 2016
5700 STEP TOP ACC
C. Clearances to Combustibles
NOTE: Clearances may only be reduced by means approved by the regulatory authority having jurisdiction
Fire Risk.
• Comply with all minimum clearances to
combustibles as specied.
• Failure to comply may cause house re.
WARNING
BACKWALL / SIDEWALL
A B
D
C
F
E
E
F
CORNER INSTALLATION
C
ALCOVE TOP VIEW
G
A
ALCOVE SIDE VIEW
G
H
STOVE TO
CEILING
CLEARANCE
*
MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS in inches (Millimeters)
Note: A, C, and F Dimensions are to the center of the flue collar
5700 WOOD APPLIANCE
INSTALLATION: FULL VERTICAL
A B C D E F G H*
SINGLE WALL PIPE 15-1/2 (394) 10-1/2 (267) 28-1/2 (724) 15 (381) 2 (51) 15 (381) 45 (1143) N/A
DOUBLE WALL PIPE 12-1/2 (318) 7-1/2 (191) 28-1/2 (724) 15 (381) 2 (51) 15 (381) 45 (1143) N/A
INSTALLATION: HORIZONTAL WITH MINIMUM 2 FOOT VERTICAL OFF STOVE TOP
SINGLE WALL PIPE 12-1/2 (318) 7-1/2 (191) 28-1/2 (724) 15 (381) 2 (51) 15 (381) 45 (1143) 18 (457)
DOUBLE WALL PIPE 12-1/2 (318) 7-1/2 (191) 15 (381) 2 (51) 15 (381) 45 (1143) 13 (330)
INSTALLATION: 90 DEGREE ELBOW OFF TOP OF STOVE THROUGH BACKWALL
SINGLE WALL PIPE 12-1/2 (318) 7-1/2 (191) 28-1/2 (724) 15 (381) 2 (51) 15 (381) 45 (1143) 18 (457)
DOUBLE WALL PIPE 12-1/2 (318) 7-1/2 (191) 28-1/2 (724) 15 (381) 2 (51) 15 (381) 45 (1143) 13 (330)
INSTALLATION: ALCOVE
DOUBLE WALL PIPE 13-1/2 (343) 8-1/2 (216) 28-1/2 (724) 15 (381) N/A N/A 45 (1153) 13 (330)
For alcove only: Six inch diameter listed Double wall air insulated connector pipe with UL103 HT listed factory built Class A chimney or masonry
chimney. Maximum depth of Alcove shall be no more than 48 inches (1219mm) and the referenced alcove clearances. Canada must comply with
CAN/ULC-S269 M87 for the 650° factory built chimney.
* FOLLOW PIPE MANUFACTURES CLEARANCES AS REQUIRED
28-1/2 (724)
NOTE: Service Space
In order to replace the tube channel assembly a clearance
of 19 inches (483mm) is required on the right side of stove in
order to remove the tubes with the stove in place.
If space is not available, the stove will have to be discon-
nected from the chimney to proceed with the tube replace-
ment.

September 27, 2016 7038-206F 11
5700 STEP TOP ACC
Recommended
Location
Marginal
Location
Location
Not
Recommended
Recommended
Location
Location NOT
Recommended
Multi-level Roofs
Windward
Leeward
Outside Air Kit Termination Cap
Figure 11.1
A. Locating Your Appliance & Chimney
Location of the appliance and chimney will affect perfor-
mance. As shown in Figure 11.1 the chimney should:
• Install through the warm space enclosed by the build-
ing envelope. This helps to produce more draft, espe-
cially during lighting and die down of the re.
• Penetrate the highest part of the roof. This minimizes
the affects of wind turbulence and down drafts.
• Consider the appliance location in order to avoid oor
and ceiling attic joists and rafters.
• Locate termination cap away from trees, adjacent
structures, uneven roof lines and other obstructions.
Your local dealer is the expert in your geographic area and
can usually make suggestions or discover solutions that will
easily correct your ue problem.
4 Chimney Systems

12 7038-206F September 27, 2016
5700 STEP TOP ACC
3 ft (91 cm)
Minimum
Less than 10 ft (305 cm)
2 ft (61 cm) 3 ft (91 cm)
Minimum
10 ft (305 cm) To Nearest Roofline
2 ft (61 cm)
Pitched Roof
Figure 12.1
Figure 12.2
10 ft. (305cm) or more
3 ft. (91cm) Minimum
Less than 10 ft. (305cm)
2 ft. (61cm) Minimum
3 ft. (91cm) Minimum
Wall or Parapet
Flat Roof
C. 2-10-3 Rule
These are safety requirements and are not meant to
assure proper ue draft.
This appliance is made with a 6 inch (152mm) diameter
chimney connector as the ue collar on the appli-
ance.
• Changing the diameter of the chimney can affect draft
and cause poor performance.
• It is not recommended to use offsets and elbows at
altitudes above 4000 feet above sea level and or when
there are other factors that affect ue draft.
B. Chimney Termination Requirements
Follow manufacturer’s instructions for clearance, securing
ashing and terminating the chimney. Fig. 12.1 & 12.2
•Must have an approved and Listed cap
•Must not be located where it will become plugged by
snow or other material
• Must terminate at least 3 feet (91cm) above the roof
and at least 2 feet (61cm) above any portion of the
roof within 10 feet (305cm).
• Must be located away from trees or other structures
NOTICE:
• Chimney performance may vary.
• Trees, buildings, roof lines and wind conditions affect
performance.
• Chimney height may need adjustment if smoking or
overdraft occurs.
NOTICE: Locating the appliance in a basement or in a
location of considerable air movement can cause intermittent
smoke spillage from appliance. Do not locate appliance near
• Frequently open doors
• Central heat outlets or returns

September 27, 2016 7038-206F 13
5700 STEP TOP ACC
NOTE: In Canada when using a factory-built chimney it must
be safety listed, Type UL103 HT (2100
o
F) CLASS “A” or
conforming to CAN/ULC-S629M, STANDARD FOR 650oC
FACTORY-BUILT CHIMNEYS.
F
loor
Pr
otector
Chimney
Connector
Insulated "T "
Flashing
Listed Termination Cap
Trim Collar on
Inside Wall Listed Chimney
Storm Collar
Wall Support
Roof Brace (if required)
Thimble
Figure 13.1 Prefabricated Exterior Chimney
E. Venting Components
Chimney Connector:
It is also known as ue pipe or appliance pipe. The chimney
connector joins the appliance to the chimney. It must be a 6
inch (152mm) minimum diameter 24 gauge mild steel black
or 26 gauge blued steel, or an approved air-insulated double
wall venting pipe.
Thimble:
A manufactured or site-constructed device installed in
combustible walls through which the chimney connector
passes to the chimney. It is intended to keep the walls
from igniting. Site constructed thimbles must meet NFPA
211 Standards. Prefabricated must be suitable for use with
selected chimney and meet UL103 Type HT Standards. Follow
instructions provided by the manufacturer for manufactured
thimbles for masonry chimney and prefabricated chimneys.
F. Chimney Systems
Prefabricated Metal Chimney
• Must be minimum 6 inch (152mm) diameter (ID) high
temperature chimney listed to UL 103 HT (2100oF) or
ULC S629M.
• Must use components required by the manufacturer
for installation.
• Must maintain clearances required by the manufacturer
for installation.
• Refer to manufacturers instructions for installation.
D. Chimney Height / Rise and Run
This product was designed for and tested on a 6 inch (152mm)
chimney, 14 to 16 feet (420-480cm) high, (includes appliance
height) measured from the base of the appliance. The further
your stack height or diameter varies from this conguration,
the greater the likelihood it may affect performance.
Chimney height may need to be increased by 2 - 3% per
each 1000 feet above sea level. It is not recommended to
use offsets or elbows at altitudes above 4000 feet above sea
level or when there are other factors that affect ue draft.
WARNING
Asphyxiation Risk.
• DO NOT CONNECT THIS Appliance TO A CHIM-
NEY FLUE SERVICING ANOTHER APPLIANCE.
• DO NOT CONNECT TO ANY AIR DISTRIBUTION
DUCT OR SYSTEM.
May allow ue gases to enter the house.
Improper installation, adjustment, alteration, service or main-
tenance can cause injury or property damage. Refer to the
owner’s information manual provided with this appliance. For
assistance or additional information consult a qualied installer,
service agency or your dealer.
WARNING
Fire Risk.
Inspection of Chimney:
• Chimney must be in good condition.
• Meets minimum standard of NFPA 211
• Factory-built chimney must be 6 inch (152mm) UL103 HT.
WARNING
Chimney:
The chimney can be new or existing, masonry or prefabricated
and must meet the following minimum requirements and as
specied in Section 4F.

14 7038-206F September 27, 2016
5700 STEP TOP ACC
Floor
Protector
Chi
mney
Conne
ctor
Ceiling Support
Listed Chimney
Listed Termination Cap
Storm Collar
Flashing
Figure 14.1 - Prefabricated Interior Chimney
Thimble
Site constructed for masonry chimney installation:
Components
• A minimum length of 12 inches [305mm] (longer for
thicker walls) of solid insulated factory-built chimney
length constructed to UL 103 Type HT 6 inch (152mm)
inside diameter. Chimney needs to extend a minimum
of 2 inches (51mm) from the interior wall and a minimum
of 1 inch (25mm) from the exterior wall.
• Wall spacer, trim collar and wall band to t solid pack
chimney selected.
• Minimum 8 inch (203mm) diameter clay liner section (if
not already present in chimney) and refractory mortar.
• When jurisdiction requires install approved chimney
liner in masonry chimney.
Air Clearances
• Masonry chimney clearance must meet NFPA 211 mini-
mum requirement of 2 inches (51mm) to sheet metal sup-
ports and combustibles.
• Minimum of 1 inch (25mm) clearance around the chim-
ney connector.
• Top of wall opening is a minimum of 13-1/2 inches
(343mm) from ceiling or 4-1/2 inches (114mm) below
minimum clearance specied by chimney connector
manufacturer. NFPA 211 minimum vertical clearance of
18 inches (457mm) from chimney connector and ceiling
or minimum recommended by chimney connector manu-
facturer. Figure 14.2
Instructions:
1. Open inside wall at proper height for the chimney con-
nector to entry the masonry chimney. Figure 14.2
2. Entry hole to masonry chimney must be lined with an 8
inch (203mm) minimum diameter clay liner, or equiva-
lent, secured with refractory mortar.
3. Construct a 17 inch x 17 inch (432mm x 432mm) outside
dimension frame from 2 x 2 framing lumber to t into wall
opening. Inside opening of frame should be no less than
14 inch x 14 inch (356mm x 356mm). Figure 14.2
4. Attach the wall spacer to the chimney side of the frame.
5. Nail the frame into the wall opening. The spacer should
be on the chimney side.
6. Insert the section of the solid insulated chimney into the
outer wall of the masonry chimney.
7. Tightly secure the length of the solid insulated chimney
with the wall band to the masonry chimney.
8. Insert a section of chimney connector into the chimney.
Make sure it does not protrude past the edge of the clay
chimney liner inside the chimney.
9. Seal the end of the chimney connector to the clay liner
with refractory mortar.
10. Install trim collar around the sold pack chimney section .
Figure 14.2
1.5”
1.0”
2.0”
2.0”
1.5”
14.0” ID
17.0” OD
ceiling
Minimum18.0”
NFPA 211
13.5” below ceiling to top
of opening
1.0”
8.0”
1.5 2x2 framing stud
2.0 min air clearance
1.0 min air clearance
4.5
or top of opening is a min.of
4.5” below min.clearance
specified by connector mfg.
Center of Hole
Thimble
C
L
C
L
Wall
Include depth
of hearth pad

September 27, 2016 7038-206F 15
5700 STEP TOP ACC

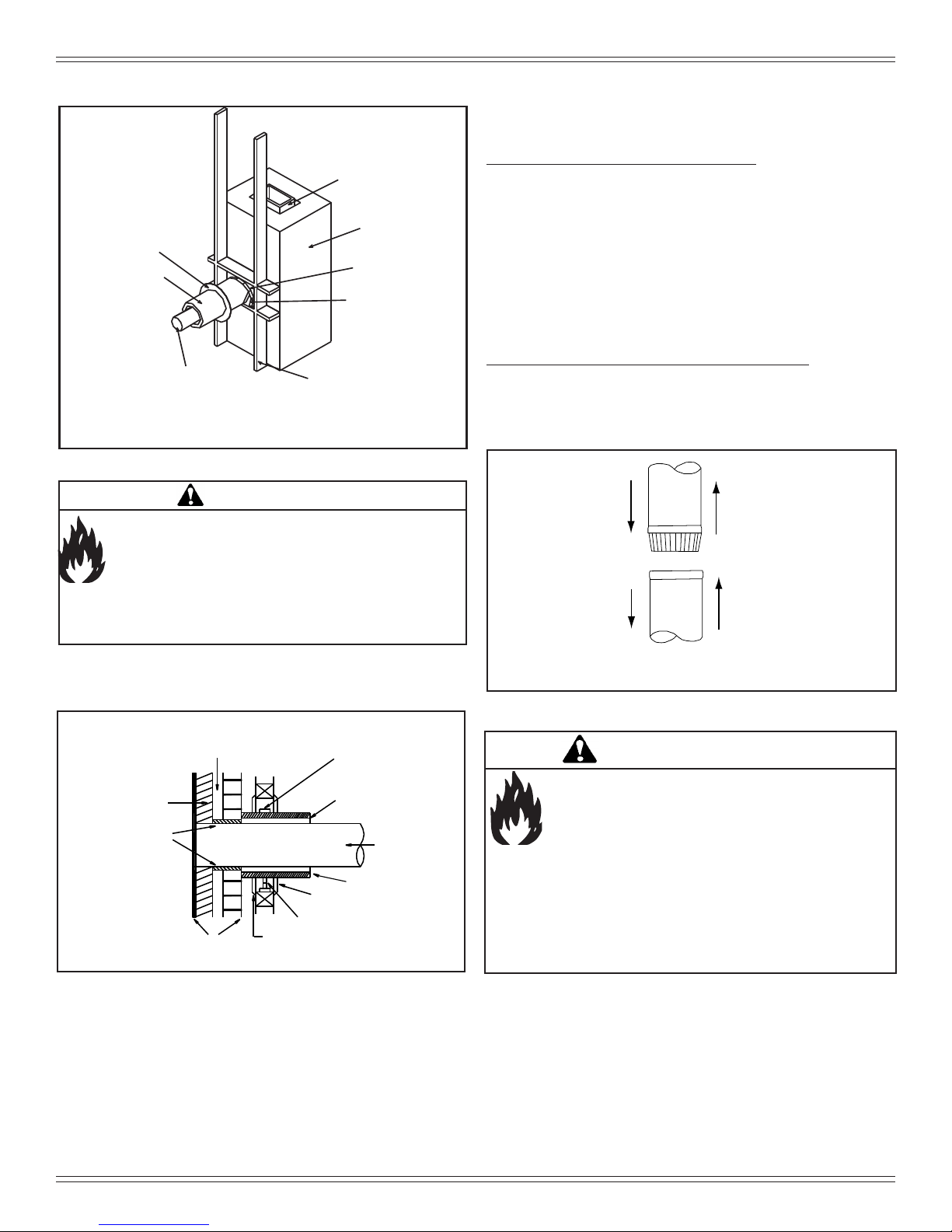

Trim Collar
Chimney Section
with 2 inch
(51mm)
Clearance to
Combustibles
Chimney
Connector
Fire Clay Flue
Liner
with Airspace
Masonry
Chimney
Wall Band to
Secure Chimney
Section
Wood Studs Used
for Framing - Spaced
2 inch (51mm)
clearance from
Masonry Chimney
Wall Spacer
Solid Pack Chimney with Metal Supports as a Thimble
Figure 15.1
Fire Risk.
Do NOT pack insulation or other combustibles between
spacers.
• ALWAYS maintain specied clearances around vent-
ing and spacers.
• Install spacers as specied.
Failure to keep insulation or other material away from vent pipe
may cause re.
WARNING
Flue Gas
Direction
Crimped
End
Toward
Appliance
Secure pipe sections with a
minimum of 3 screws
Figure 15.3 Chimney Connector (Appliance Pipe)
WARNING
ONLY use connector:
• Within the room, between appliance and ceiling or wall.
Connector shall NOT pass through:
• Attic or roof space
• Closet or similar concealed space
• Floor or ceiling
Maintain minimum clearances to combustibles
Fire Risk.
Follow Chimney Connector Manufacturer’s
Instructions for Proper Installation.
Chimney Flue
Liner
Fireclay
Liner or
Equivalent
Masonry Chimney
Constructed to NFPA 211
Wall Spacer
Wall Band
Trim Collar
Chimney
Connector
1 inch (25mm) Air
Space to Chimney
Section
Min. Clearance
2 inch (51mm)
Min. Chimney Clearance to
Wall Spacer and
Combustibles - 2 inch (51mm)
Chimney Section
Figure 15.2
Solid Pack Chimney with Metal Supports as a Thimble
(Cont’d)
G. Installing Chimney Components
Chimney Connector
Single wall connector or appliance pipe.
This must be at least 24 gauge mild steel or 26 gauge blue
steel. The sections must be attached to the appliance and
to each other with the crimped (male) end pointing toward
the appliance. All joints, including the connection at the ue
collar, should be secured with 3 sheet metal screws. Make
sure to follow the minimum clearances to combustibles.
Where passage through the wall, or partition of combustible
construction is desired in Canada, the installation shall con-
form to CAN/CSA-B365.
Factory-built listed chimney connector (vented).
A listed connector (vented) must be used when installing
this appliance in a mobile home. The listed connectors must
conform to each other to ensure a proper t and seal.
H. Proper Draft
To be sure that your Quadra-Fire insert burns properly, the
chimney draft (static pressure) should be approximately -0.10
inches water column (W.C.) during a high burn and -0.04
inches W.C. during a low burn, measured 6 inches (152mm)
above the top of the insert after one hour of operation at each
burn setting.

16 7038-206F September 27, 2016
5700 STEP TOP ACC
Included in Kit: ARS door assembly, ARS latch assembly,
Pedestal, Ash Pedestal Drawer, ARS Channel, ARS Cover,
and fastener package.
Tools Required: 7/16 socket wrench, 3/8 open end wrench,
phillips screw driver, and hammer.
Begin installing the ARS System.
1. Remove leg mount brackets packaged inside of rebox
and discard.
2. Remove the 3 bricks in the front most part of the rebox
(Figure 16.1).
3. Lay appliance on its back on a protective pad or pallet
(Figure 16.2).
4. Remove heat shield by loosening the four bolts using 3/8
open end wrench (Figure 16.2).
5. Remove 8 nuts that hold the cover plate on using a 7/16
socket wrench; discard cover plate (Figure 16.2).
6. Remove knock out from bottom of rebox by using a
hammer (Figure 16.2).
7. Install ash door assembly by sliding the rod at an angle
into the slot on the left side (Figure 16.3).
8. Slide the ash door over the 8 screws protruding from the
bottom of the appliance. Secure with nuts and washers
using 7/16 socket wrench (Figure 16.3) .
9. Install ARS latch by sliding latch assembly over 2 threaded
studs protruding from the bottom on the left hand side of
the appliance. Secure by using two nuts use 7/16 socket
wrench (Figure 17.1 on page 17).
10. Add knob to handle rod (Figure 17.2 on page 17).
11.Using two bolts and two ange nuts to secure ARS chan-
nel using 3/8 open end wrench and 7/16 socket wrench
(Figure 17.3 on page 17).
CHECK GASKET!
• Verify that the gasket is present and that the glossy
side is away from rebox bottom.
• It is important that the gasket is put in correctly for
sealing capabilities.
Warning!
5 Appliance Set-Up
Do NOT operate before fully assembling components.
Burning your stove without a pedestal or leg kit
attached:
• Will void your warranty.
• May result in property damage or personal injury.
WARNING
NOTE: The Ash Removal System, must be
installed rst before installing the pedestal.
A. Pedestal Assembly and Ash Removal
System (ARS) Installation

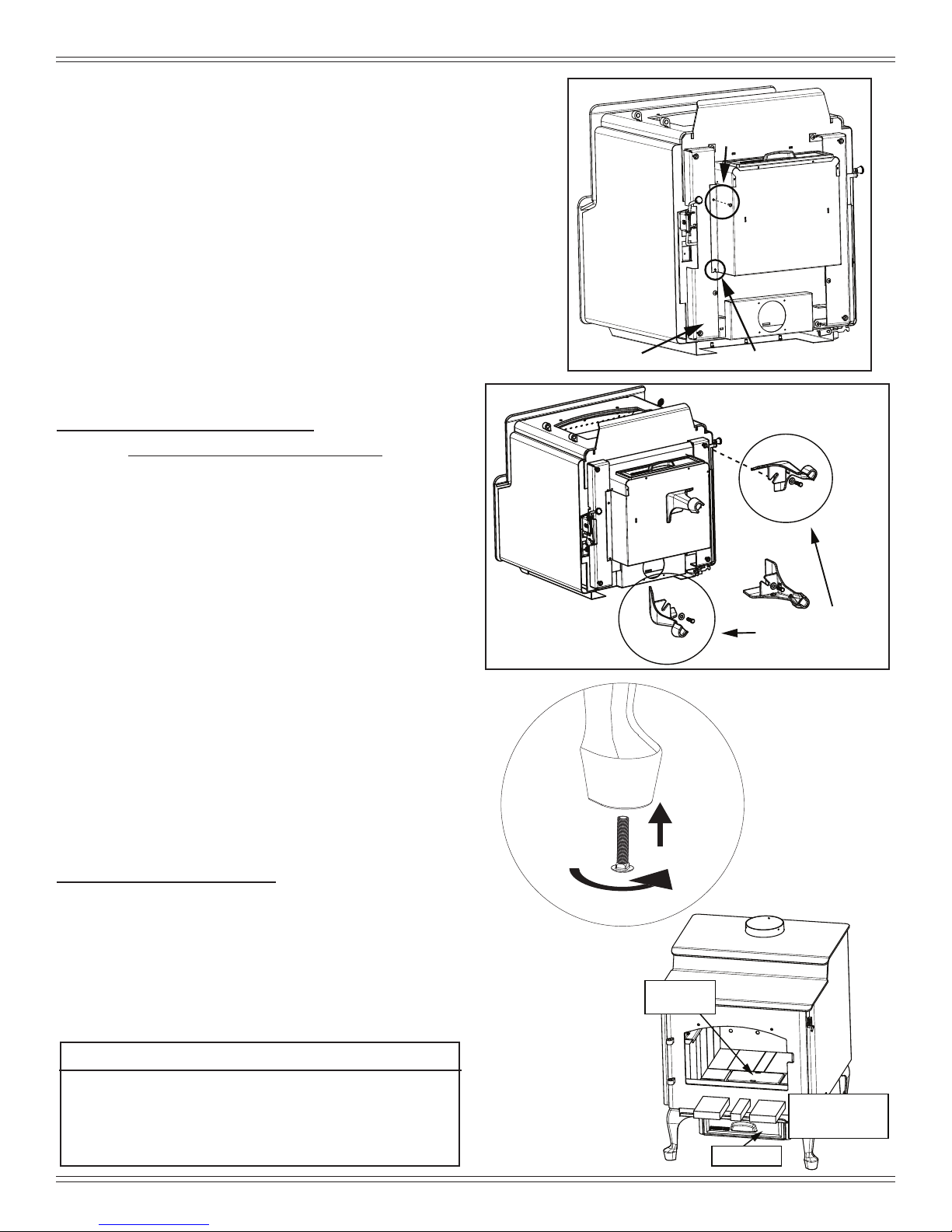

Remove 3 bricks for
installation and then re-install
Figure 16.1
Remove
X4
Remove
X8
Cover Plate -
Remove
& discard
Gasket
Knock out
& discard
X
6
4
5
5
7
Heat Shield -
Remove
& discard
4
Figure 16.2
Slot to slide rod of Ash
Door Assembly through
8 threaded
studs
Ash Door
Assembly
Figure 16.3

September 27, 2016 7038-206F 17
5700 STEP TOP ACC
Ash Removal
Spacer
Ped Kit and Ash Removal System (Cont’d)
Installing Ped Kit
1. Follow Beginning installing the ARS system instructions provided
on page 16.
2. Slide pedestal over adapter on bottom of appliance and secure
with four screws using phillips head screwdriver (Figure 18.1 on
page 18) .
3. Install ARS Spacer on left hand side with one bolt using phillips
head screwdriver (Figure 17.4) .
4. Carefully stand stove up and place in desired location.
Finishing the ARS Installation
1. Replace front 3 bricks that were removed in step 1 (Figure
18.2).
2. Install the ash drawer to pedestal base.
3. Install ARS access cover inside of ARS Channel that is located
inside the rebox (Figure 18.2).
NOTE: If installing a oor installation of an outside air kit on a Step
Top model with a pedestal assembly you must attach the enclosed
cover plate with 4 screw to the back of the stove. Other wise you
may discard this piece (Figure 18.3).
CHECK BAFFLE BOARDS & CERAMIC BLANKET!
• Verify that the bafe boards and ceramic blanket are
in their proper locations.
• It is important that the bafe boards and ceramic
blanket are correctly installed for proper burn safety.
Caution!
Insert two bolts through ARS
Channel, Appliance, Gasket, and
ARS Door Assembly; secure with
two nuts.
Figure 17.3
Figure 17.2
Ash Door Rod shown
in installed position
Door latch with the
ash door rod locked
in place
Knob
Figure 17.1 Figure 17.4

18 7038-206F September 27, 2016
5700 STEP TOP ACC

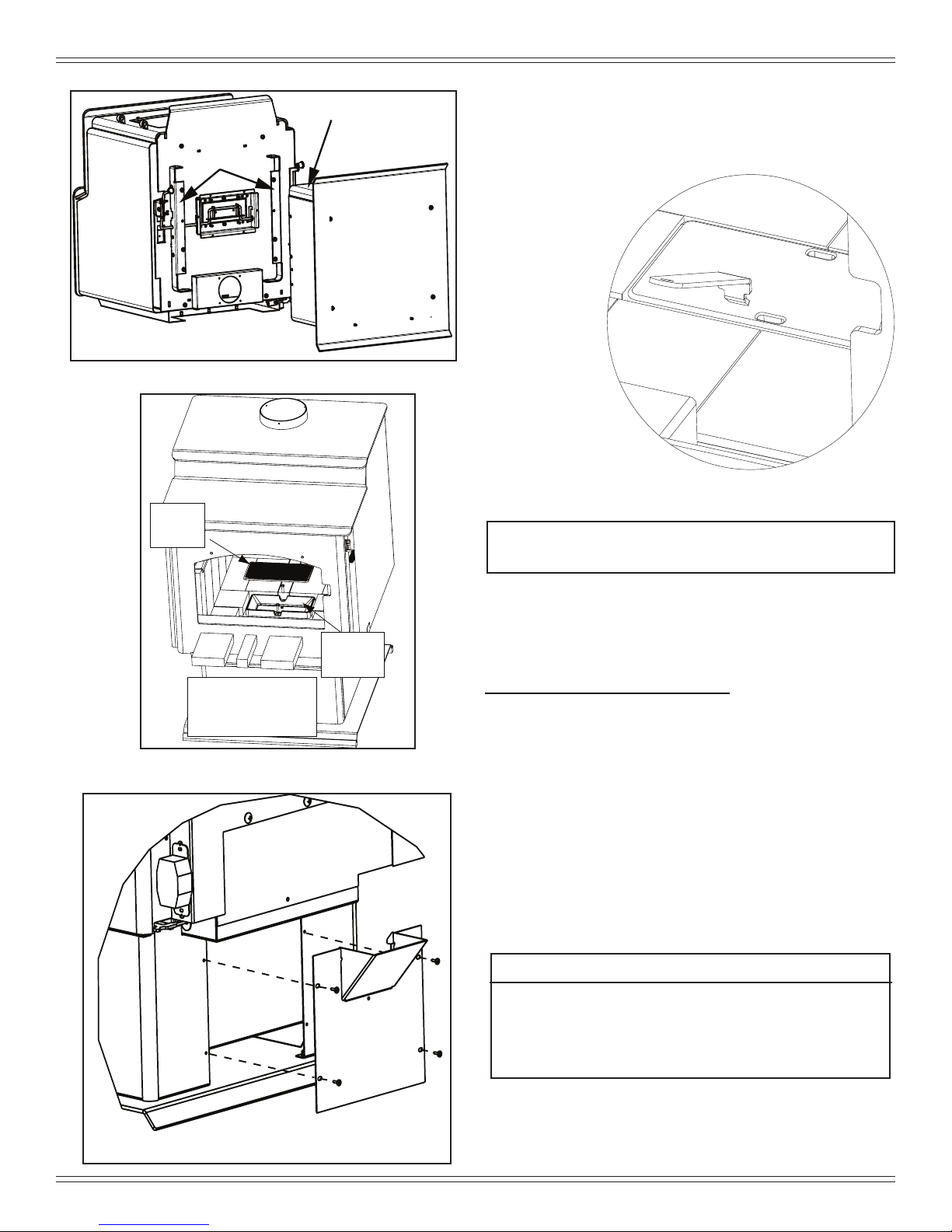

Figure 18.2
Figure 18.1
NOTE: The Ash Removal System, must be
installed rst before installing the legs.
Included in Kit: ARS door assembly, ARS latch assembly, Ash
Removal Box, Ash Removal Drawer, ARS Channel, ARS Cover,
and fastener package.
Tools Required: 7/16 socket wrench, 9/16 socket wrench, 3/8
open end wrench, phillips screw driver, and hammer.
C. Leg Kit and Ash Removal System (ARS)
Installation
Figure 18.3
ARS
Channel
ARS
Cover
Reinstall 3 front
bricks back into
firebox
Begin installing the ARS System.
1. Remove leg mount brackets packaged inside of rebox
and set aside.
2. Remove the 3 bricks in the front most part of the rebox
(Figure 16.1 on page 16).
3. Lay appliance on its back on a protective pad or pallet
(Figure 16.2 on page 16).
4. Remove heat shield by loosening the four bolts using 3/8
open end wrench (Figure 16.2 on page 16).
5. Remove 8 nuts that hold the cover plate on using a 7/16
socket wrench; discard cover plate (Figure 16.2 on page
16).
CHECK GASKET!
• Verify that the gasket is present and that the glossy
side is away from rebox bottom.
• It is important that the gasket is put in correctly for
sealing capabilities.
Warning!
Figure 18.4
B. Access Cover Handle
Insert Access Cover Handle handle into slot of ARS Cover to
remove ARS Cover for cleaning ash out of rebox (Figure 18.4).
Ash Removel
Drawer
Adapters
Cover
Plate

September 27, 2016 7038-206F 19
5700 STEP TOP ACC
Figure 19.1
Figure 19.2
6. Remove knock out from bottom of rebox by using a
hammer (Figure 16.2 on page 16).
7. Install ash door assembly by sliding the rod at an angle
into the slot on the left side (Figure 16.3 on page 16).
8. Slide the ash door over the 8 screws protruding from the
bottom of the appliance. Secure with nuts and washers
using 7/16 socket wrench (Figure 16.3 on page 16) .
9. Install ARS latch by sliding latch assembly over 2 threaded
studs protruding from the bottom on the left hand side of
the appliance. Secure by using two nuts use 7/16 socket
wrench (Figure 17.1 on page 17).
10. Add knob to handle rod (Figure 17.2 on page 17).
11.Use 2 bolts and 2 ange nuts to secure ARS channel
using 3/8 open end wrench and 7/16 socket wrench
(Figure 17.3 on page 17).
Installing Queen Anne Leg ARS Kit
1. Follow Beginning installing the ARS system instructions
provided on page 18.
2. Install ARS Spacer on left hand side with one bolt using
phillips head screwdriver (Figure 17.4 on page 17) .
3. Install leg brackets and ash drawer using four screws and
phillips head screwdriver .
• Start bottom two bolts through ash drawer, leg mount and
into the bottom of the appliance (Figure 19.1).
•Align top holes and repeat; secure all four bolts.
4. Install legs onto mounting brackets making sure the legs
are up against the bracket and secure with bolts and
washers using a 3/8 open end wrench (Figure 19.2).
5. Install leveling bolts into 2 legs; these leveling legs should
be in opposite corners (Figure 19.2).
6. Carefully stand stove up and place in desired location.
7. Use leveling bolts on legs to stabilize and level stove
(Figure 19.3).
Finishing the ARS Installation
1. Replace front 3 bricks that were removed (Figure 19.4).
2. Install the ash drawer to ASH Removal.
3. Install ARS access cover inside of ARS Channel that is
located inside the rebox (Figure 19.4).
CHECK BAFFLE BOARDS & CERAMIC BLANKET!
• Verify that the bafe boards and ceramic blanket are
in their proper locations.
• It is important that the bafe boards and ceramic blan-
ket are in correctly installed for proper burn safety.
Caution!
Lay appliance flat on
its back on protective
padding or pallet
Ash Removal Box
Leg Brackets Insert 2 bottom screws loosely
Align top holes
and repeat; secure
Leveling Legs at
Opposite Corners
Ash Drawer
ARS Access
Cover
Reinstall 3
Front Bricks
Back into Firebox
Figure 19.3
Figure 19.4

20 7038-206F September 27, 2016
5700 STEP TOP ACC
D. Traditional Leg Installation
Do NOT tilt the appliance on the cast iron legs.
• Tilting could lead to property damage.
• Lift the appliance upright and place it into position on the
oor protector.
CAUTION
Included with Appliance: Leg brackets; inside rebox.
Tools Required: 9/16 socket wrench and phillips screw driver.
Installing your traditional legs to your appliance.
1. Remove leg brackets from inside of rebox of appliance.
2. Lay body of stove on its back on a protective pad or pallet.
3. Remove four screws from bottom of appliance (Figure 20.1).
4. Install leg brackets to bottom of appliance using the four just
removed screws in step 3.
NOTE: There is a right and a left of the leg brackets (Figure 20.1).
5. Install six screws to the bottom of the leg brackets (Figure
20.1).
6. Attach legs onto leg brackets and secure with bolts and wash-
ers.
7. Carefully stand stove up and place in desired location.
8. Thread allen bolts through nuts until ush (Figure 20.2)
9. Slide allen bolt/nut assemblies into slots of two of the legs with
the nuts on the bottom (Figure 20.3).
Note: Legs with leveling bolts need to be on opposite sides of the
appliance - one in the front and one in the back (Figure 20.1)
10.Use allen wrench to adjust legs up and down to desired level
(Figure 20.4).
3
4
2
6
9
5
CHECK BAFFLE BOARDS & CERAMIC BLANKET!
• Verify that the bafe boards and ceramic blanket are
in their proper locations.
• It is important that the bafe boards and ceramic blan-
ket are in correctly installed for proper burn safety.
Caution!
Figure 20.1
Figure 20.2
Figure 20.3
Figure 20.4
