QualGear QG-PRO-PM-VCA-B User manual

CAUTION!
Do not exceed the maximum rated weight
specified. Otherwise, serious injury or
property damage may occur.
136kg
(300lbs)
RATED
Version November 2015
5 Year Limited Warranty
Version November 2015
5 Year Limited Warranty
QG-PRO-PM-VCA-B
QG-PRO-PM-VCA-W
Joining the Pipe to the Ceiling Adapter
3
IMPORTANT! Do not loosen screws all the way when making adjustments, this
may disconnect the parts and may cause injury or property damage.
Allen Key
(G)
Using allen key (G), tighten screws (D or E)
onto the pipe and secure the position.
2
To connect a 1.5" NPT pipe to the
ceiling adapter, twist the male
threaded end of the pipe into the
female thread on the adapter.
Ceiling
1
±45°
OR
(D) x 2
(E) x 2
Adjustment to the vaulted
ceiling adapter can be
made at an angle of ±45°.
1.5" NPT Pipe
(not included)

1 2
y.Please read the entire installation manual before you start installation and assembly.
NOTE
IMPORTANT: Installers must verify that the supporting surface will safely
support the combined weight of the equipment and all attached hardware
and components.
Do not begin to install your QualGear
product until you have read and understood
all the instructions and warnings contained
in this installation manual. If you have
any questions regarding the instructions,
for US customers please contact
QualGear customer support via email at
[e-mail]. For all international
customers, please contact your local
distributor.
This product should only be installed by
someone of good mechanical aptitude, has
experience with basic building construction,
and fully understands these instructions.
This product was designed to be installed
and utilized only as specified in this manual.
Improper installation of this product may
cause damage or serious injury. QualGear is
not liable for the improper use or installation
of its products.
Make sure that the supporting surface
will safely support the combined load of the
equipment and all attached hardware and
components.
Always use an assistant or mechanical
lifting equipment to safely lift and position the
equipment.
Tighten screws firmly, but do not over
tighten. Over tightening can damage the
items, greatly reducing their holding power.
ALL QUALGEAR products are intended
for indoor use only and any outdoor use voids
the limited warranty. For warranty information,
please visit:
http://www.qualgear.com/warranty.php
Never exceed the maximum rated weight
specified in this manual.
All hardware must be used at the
designated points in the installation
instructions to prevent property damage
and/or personal injury.
This product was designed to be
compatible with all standard 1.5" NPT
pipes.
WARNING
Maintenance
Please check that the ceiling adapter is secure and safe to use at regular intervals. If you have any
questions regarding any of the instructions or warnings, please contact your local distributor (OR)
contact QualGear technical support via email at [e-mail].
IMPORTANT: Before starting installation, please check that all parts shown in this checklist
are included. If any parts are missing or damaged, contact your local distributor or
[email protected] for replacement parts and do not start assembly and installation
until you receive all the parts.

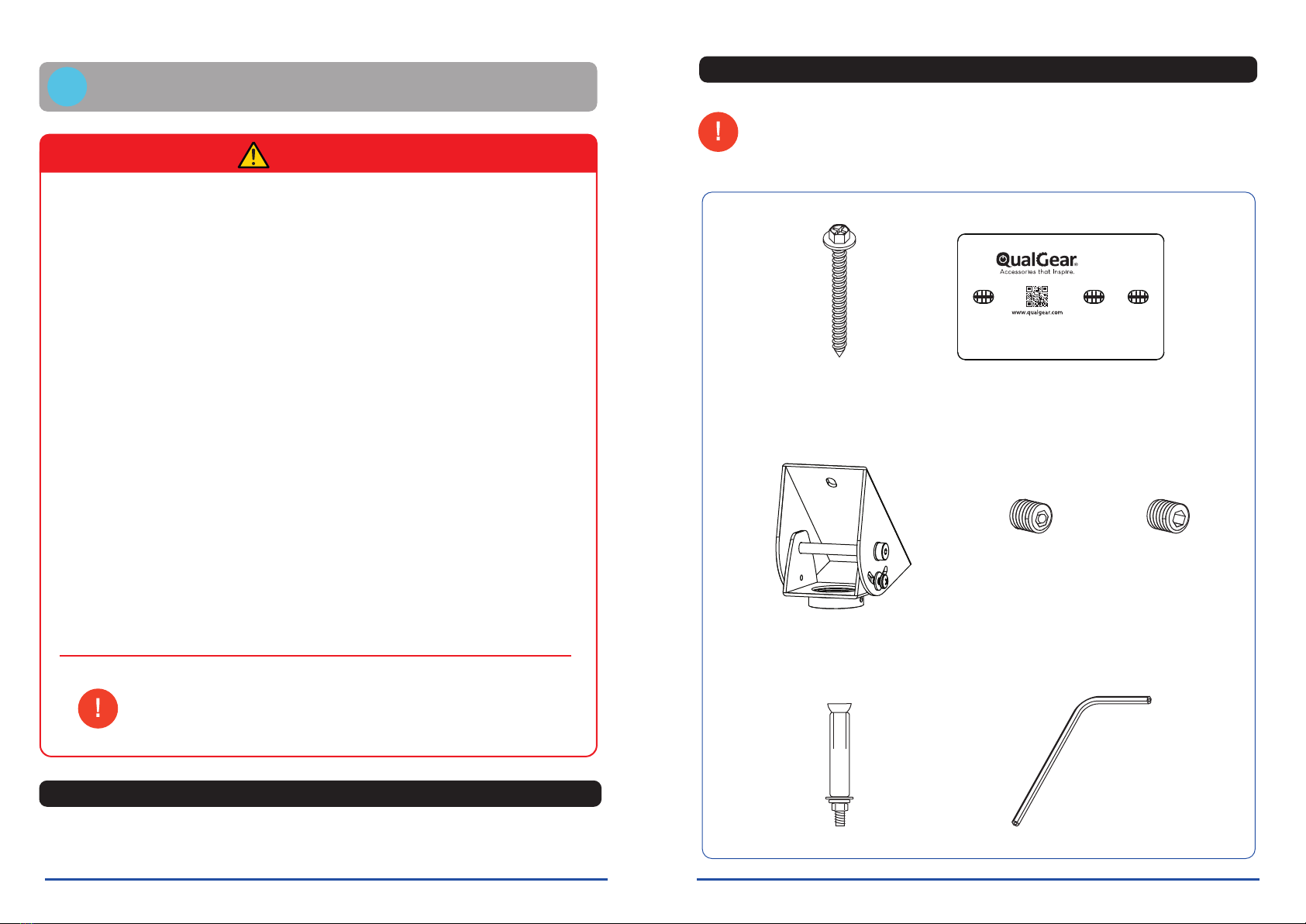

Parts & Hardware Checklist
Vaulted Ceiling Adapter
C (x1)
Screws
A (x3)
M5 x 5mm
Screws
E (x2)
M5 x 5mm
Security Screws
D (x2)
Allen Key
G (x1)
QG-PRO-PM-VCA-B or
QG-PRO-PM-VCA-W
WALL MARKING TEMPLATE
Wall Marking Template
B (x1)
Metal Expansion
Anchors
F (x3)

3 4
4
Using a power drill and a 5/32" wood drill bit, drill holes of 5/32" (4mm) diameter, and 2.5" (65mm)
depth at the marked locations.
drill depth
65mm
(2.5")
drill diameter
ø 4.0mm
(ø 5/32")
Mounting to a Vaulted Concrete Ceiling
1b
1
Using wall marking template (B), mark on the concrete the locations of where you want to mount
the ceiling adapter.
QG-PRO-PM-VCA-B or
QG-PRO-PM-VCA-W
WALL MARKING TEMPLATE
Make sure drilled holes are
free of dust so the anchors will
be set properly.
TIP
1 2
QG-PRO-PM-VCA-B or
QG-PRO-PM-VCA-W
WALL MARKING TEMPLATE
3
Using wall marking template (B), mark on the center of the stud the locations of where you want to
mount the ceiling adapter.
Mounting to a Vaulted Wooden Joist or Wooden Stud Ceiling
1a
For concrete ceiling mounting,
follow step 1b.
NOTE
Using a straight edge, mark the centerline
of the stud.
Using an edge-to-edge stud finder, find the
edges of the stud.
SKIP TO STEP 2
Stud Finder
Mark the drill locations on the center of the studs
for security.

5 6
2
Using a power drill and a 3/8" masonry drill bit, drill mounting holes of 3/8" (10mm) diameter
and 1.8" (45mm) depth at the marked locations in the previous step.
drill depth
45mm
(1.8")
drill diameter
ø 10mm
(ø 3/8")
2
Insert the metal expansion anchors (F) and hammer them into the drilled holes. Make sure to leave
a portion of the anchors outside of the concrete. Once the anchors are set, take off the washers
and the nuts on the anchors by using a socket wrench.
Metal Expansion
Anchor (F)
3Metal Expansion
Anchors (F)
Screws (A)
Align the mounting holes on the vaulted ceiling
adapter with the drilled holes on the ceiling,
insert screws (A) into the mounting holes and
tighten with a socket wrench.
After setting the metal expansion anchors (F)
into the drilled holes, align them with the mounting
holes on the vaulted ceiling adapter. Then place
the washers and the nuts at the end of the anchors
and tighten with a socket wrench.
WOODEN JOIST CEILING
CONCRETE CEILING
Installing the Vaulted Ceiling Adapter to the Ceiling
2
