Quivogne TINEMASTER Guide

TINEMASTER
Operating, Maintenance
& Spare Parts Book
Tel: [phone]
Fax: [phone]
e-mail: [email protected]
web: www.quivogne.co.uk
Quivogne UK Ltd.
Fen Farm,
Washbrook,
Ipswich,
Suffolk.
IP8 3HE

MACHINE DETAILS
Model
Serial Number
Date Of Manufacture

OPERATING INSTRUCTIONS
Care should be taken to follow the procedure below; failure to do so may
result in personal injury and or damage to the machine.
Larger Tinemaster Disc Harrows fold hydraulically for road transport.
NEVER TOW DISCS IN THE TRANSPORT POSITION WITHOUT
THE LOCKING PINS IN PLACE.
Tractor Linkage To The Machine
Ensure that the height of the tractor drawbar is approximately the same
height as the drawbar of the machine when the machine is standing on the
ground with the frame and drawbar parallel to the ground.
The height of the drawbar of the machine may be adjusted by using the
holes provided in the frame. This will mean that when in work, the
height of the tractor drawbar is approximately 100mm higher than the
machines drawbar.
Adjustment For Levelling The Frame
The level of the frame of the machine may be adjusted by means of the
spring loaded telescopic screw. The frame should be approximately
parallel to the ground when the machine is in work.
When in work the screw allows balanced compressions of the springs on
each side of the articulating block.

TO UNFOLD THE HARROW
ENSURE THE MACHINE IS PARKED ON FIRM LEVEL
GROUND
1. Fully raise the machine.
2. Remove all four locking pins.
3. Ensure hydraulic changeover valve is in the fold position.
4. Release hydraulic safety latches
5. With tractor engine at idle speed unfold wings of harrow.
TO FOLD THE HARROW .
Ensure the machine is in the fully raised position and then reverse the
unfold procedure.
NEVER LOWER THE HARROW WHILST IN THE TRANSPORT
POSITION, WITHOUT THE STANDS FITTED.
TRANSPORTING THE TINEMASTER.
Always transport with the harrow in the folded position, with the
transport pins fitted and the hydraulic safety latches down.
Customers that have the larger 445/45 19.5 wheels fitted should be aware
that the transport width of the Tinemaster is now over 3.00m
DO NOT TRANSPORT THE TINEMASTER IN THE FULLY
RAISED POSITION. LOWER HALF WAY FOR
TRANSPORTATION OTHERWISE SWAYING MAY OCCUR
AND THE MACHINE MAY BECOME UNSTABLE.

Setting The Angles Of The Disc Gangs
When setting into work we suggest that the angle of the discs is initially
set as follows:
Front Discs: Set to the 3rd hole from the front
Rear Discs: Set to the 3rd hole from the rear
From this position ‘opening’ the discs (moving the front discs further
forward and the rear discs further back) will increase the cutting action.
‘Closing’ the discs (moving the front discs backwards and the rear discs
forwards) will reduce the cutting action.
If the discs leave a ridge or depression in the middle, carry out the
following minor adjustments.
To remove a ridge:
OPEN up the front set of discs by 1 or 2 holes.
To remove a depression:
CLOSE up the front set of discs by 1 or 2 holes.

Adjusting The Discing Depth
On the hydraulic folding machines, the discing depth is adjusted by
moving the depth stop on the slide which is situated on the rearmost
wheel lift cylinder.
On machines over 3.60m wide an additional depth wheel is fitted to the
outside of the frame. The height of these wheels should be adjusted to
match the main depth wheels, by use of the pin and screw adjusters.
On the rigid frame machines, the discing depth is adjusted by attaching or
removing the mechanical clips onto or off the piston of each of the wheel
lift cylinders

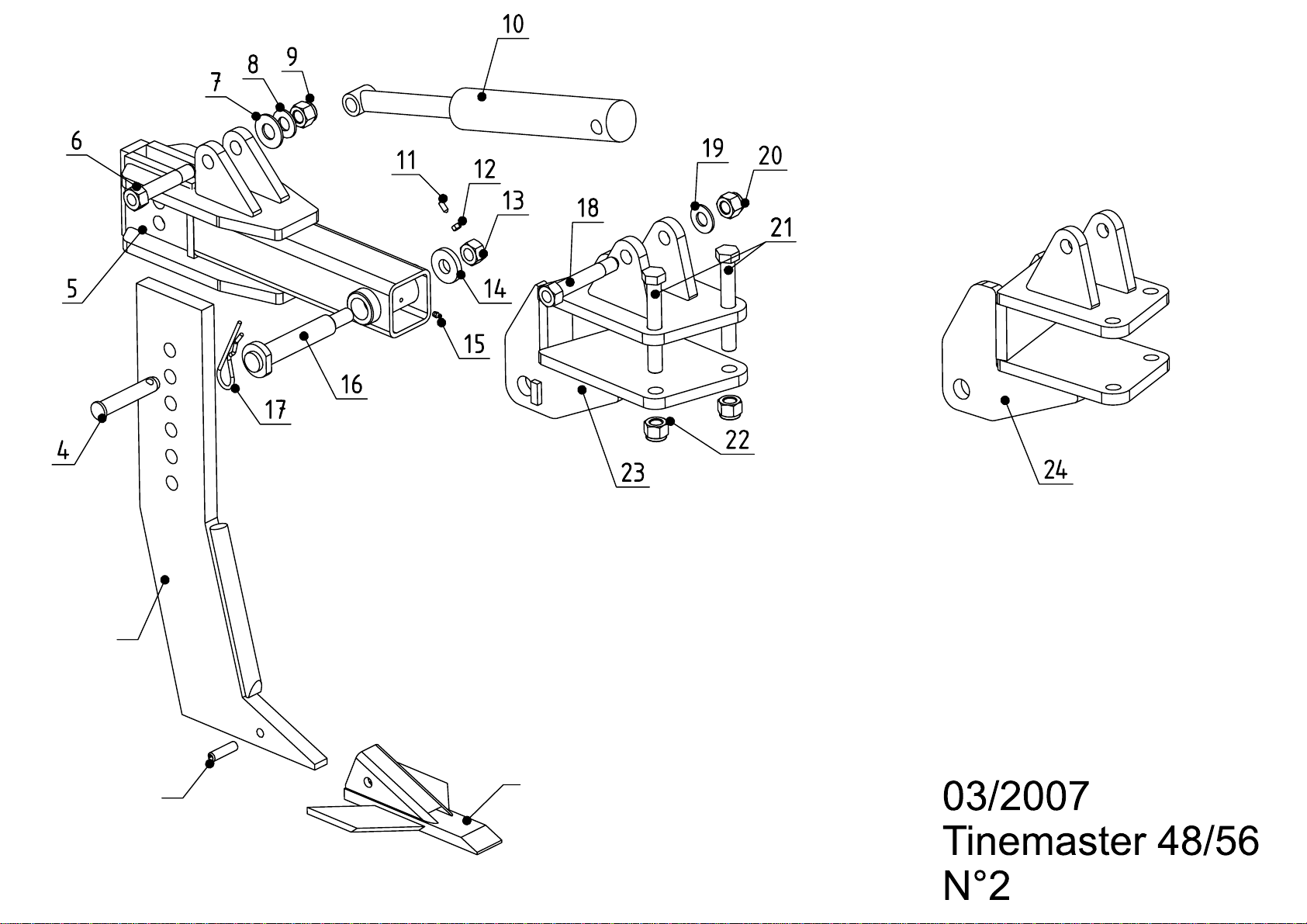

To Operate The Tines
The tines are lifted and lowered hydraulically, they are all linked together
and when in work are connected to a large capacity accumulator, giving
the tines and auto-reset break-back effect.
The pressure in the hydraulic circuit is factory set and must only be
adjusted by a Quivogne engineer.
On hydraulic folding machines the tines must be fully raised before
folding of the wings takes place.
The depth of each tine is adjusted by means of the pin on the tine leg. It is
recommended that the tines are set approximately 100mm below the disc
depth.

Operating Guide for Rear Mounted Press
The rear mounted press hydraulic system is pre-set. DO NOT
ADJUST.
! WARNING ! Before disconnecting any pipes from the presses
manifold or accumulator, ensure that the systems pressure has been
fully released.
Transport / Working
lever. When the lever is
in this position, the
s
y
stem is in work mode.
Pressure
relief valve
for in work
This valve is only to be used
to de-pressurise the system for
maintenance. When this screw
is turned the system releases
the pressure
Relief
valve for
total
systems
maximum
p
ressure

Maintenance
Tighten All Bolts & Check Regularly
It is important that all bolts are checked for tightness after each days work
(8 hours) and again at the end of the season before putting into storage.
Regularly check that the disc gang pivot bolt to the main frame is tight.
The nut is retained in position by a grub screw which must be loosened
before tightening the nut. Ensure that the grub screw is retightened after
adjustment of the pivot bolt has been made.
Each gang of discs is fitted with a shaft nut and locking plate.
Regularly check these shaft nuts and make sure they are kept very tight-
use the special spanner supplied with the machine. This spanner also fits
the pivot bolt nut.
Lubrication
Grease with:SHELL RETINAX A
Or equivalent product
TOTAL MULTIS EP
Grease all nipples before starting work with the machine and every 8
hours thereafter.
It is important not to over grease the shaft bearing assemblies and ‘blow
the seals’. These bearing assemblies are triple sealed conical bearings and
as such do not need excess greasing. Excess greasing of these assemblies,
and the resulting ‘blowing of the seals’ will encourage dirt into the
housing. This will eventually result in the failure and collapse of the
bearing unit.
The undercarriage linkage assembly requires the most frequent amounts
of greasing.

Tyre Pressure
Regularly check all tyre pressures to maintain the correct pressure
445/45 R19.5 Tyres – 116 psi (8 bar)
295/60 R22.5 Tyres – 116 psi (8 bar)
Hydraulics
Keep all hydraulic connections clean.
When leaving the discs for any length of time, ensure that the wheels are
fully raised allowing the hydraulic cylinder piston to be fully housed.
Check the operating bar on the hydraulic depth stop and maintain a
minimum 2mm gap between the rod end and plunger when the rod is
clear of the wheels.
Lateral Wheel Clearance.
Check regularly for the lateral wheel clearance and to adjust, take off the
hub cap at the end of the axle, remove the split pin, adjust the nut lightly
until clearance has been eliminated. Replace the split pin and cap. Take
this opportunity to grease the hub.
FOR TROUBLE FREE USE – KEEP ALL BOLTS TIGHT AND
ALL LINKAGES GREASED!

TECHNICAL ADVICE FOR SAFETY
MACHINE DESIGNED FOR AGRICULTURAL USE
Please read the advice given below before starting to operate. This machine is designed
for agricultural use only. If used in a different capacity we will not be held responsible
and the user will be responsible for his own actions.
People using the machine must be advised of the dangers. Comply with accidental
protection notices, with work medical regulations with the road traffic regulations with the
European Community regulations "Agricultural Machine Instructions". Any technical
modification will be without the agreement of the manufacturer and we will not be held
liable for the risks.
GENERAL BASIC RULES - SAFETY INSTRUCTIONS - ACCIDENT PROTECTION
Before each working session please ensure that the machine and tractor are in good
working order.
1. Comply with the advice and safety instructions described in the operating book.
2. Read the stickers on the machine as they give important information.
3. Comply with safety instructions and the Road Traffic Regulations at the time of each
use.
4. Read the operating book carefully before using the machine.
5. Avoid wearing loose clothing near the machine as it could be caught on the PTO
shaft, rotors etc.
6. To avoid all risks of fire and premature corrosion keep the machine clean.
7. Make sure that no person stands near the machine before driving and working.
8. Never carry people on the machine. Do not stay on the machine in transport
position or when in working position.
9. Only use the equipment provided by the manufacturer to couple the machine.
10. Couple the machine on the tractor, raise the machine carefully to avoid risks of
accidents.
11. Always take into consideration the weight and width of the machine on the road.
12. Always set the lighting system, signal system and transport locks for road
transportation.
13. Leave the semi-automatic coupling ropes loose so as to avoid the release of the
locking system during transport.
14. Do not leave a moving tractor unattended. Stop the engine, disengage the PTO
shaft and put on the handbrake.
15. When you steer to couple the machine make sure the braking capacity is sufficient –
the braking is influenced by the weight of the machine coupled on the tractor.
16. In transport pay attention to the weight transfer when turning sharp corners and
other road obstacles.
17. Only use the machine when all the safety and protection requirements have been
followed.
18. Stop the machine immediately when someone arrives on or near the work area.
19. Put the machine on the ground, stop the engine, put the handbrake on and take the
key out of the tractor before leaving it.
20. Do not stand between the tractor and the machine if they are not completely
stabilized.
21. Do not use the machine if tired, under the influence of alcohol or on drugs.
22. Keep the reflective apparatus clean on the front and rear of machine.

MOUNTED MACHINE:
1. Make sure that the lifting system is working smoothly before coupling the machine
on the tractor linkage.
2. Make sure the linkage category of the machine is the same as that of the tractor.
3. Be careful when standing near the linkage system area. There are risks of crushing
and cutting.
4. Do not stand between the machine and the tractor during the coupling and when
you fit the top link.
5. Adjust the check chains of the linkage of the tractor to avoid excessive sway.
6. In transport lock the operating lever of the linkage.
7. Set the lighting apparatus, signal system and required precautions for transport on
the road.
8. Put on the safety pin and release the locking system in transport position.
9. Check the following regularly: axles, lynch pins, articulation pins, linkage bar.
SEMI MOUNTED & TRAILED MACHINES:
1. Make sure that the drawbar, turning link, fix link and hook is in good working order.
2. Check the connection to the tractor: linkage pins, hook, axles, pins etc.
3. Do not stand between the tractor and the machine at the time of coupling.
4. Never attach a trailed machine to the top link hitch point of the tractor
-SERIOUS RISK OF OVERTURNING
5. Regularly check and clean the hydraulic pipe connection, rams safety valves on the
road etc.
6. In transport put on the safety pins and release the locking system.
7. In transport close the safety valves of the lifting rams of the machine.
8. When transporting drive carefully on the road especially on sharp curves and on
bridges etc.
9. Set up lights, signal systems and transport locks for road transportation.
10. Do not uncouple the machine when on sloping ground. If necessary place a
securing block behind the wheel.
11. Before leaving the tractor uncouple the machine. Lay the machine on the ground or
on the support stand.
12. Open and close on a flat area with the tractor running at low revs.
MACHINE WITH HYDRAULIC EQUIPMENT:
1. Check the hydraulic kit, pipes, connections and valves are all in smooth working
order before use.
2. Read the setting up procedure before use as shown herewith.
3. Before use fill up the hydraulic circuit by moving the spool valve of the tractor.
4. Keep people away from the driving area and be careful with large unfolding
machines.
5. IMPORTANT - In transport close the safety valves of the rams.
6. On vertical and lateral folding machines put all release pins on.
7. Do not attempt to execute more than one operation at a time. Wait for one to finish
before starting another.
8. Carry out all the operations on a flat surface with the tractor running at low revs.
Leave the machine on a flat area.

PTO SHAFT:
1. Use the PTO shaft recommended by the manufacturer, which has a CE Mark.
2. Keep the guards and covers on the PTO Shaft.
3. At all times be careful with the PTO Shaft.
4. Never attach the PTO when the machine is lifted.
5. Lift the PTO Shaft to check that the guards move freely and cover the shaft.
6. IMPORTANT - Secure the chains of the PTO Shaft to ensure protection.
7. Before connecting the PTO Shaft make sure the RPM is the same as the machine.
8. When engaging the PTO Shaft ensure that no person is standing near the machine.
9. Never engage the PTO when the engine is a stopped or running at high rev.
10. Ensure that no person stands near the moving parts of the machine.
11. Do not allow hands, feet or any other part of the body near the moving parts of the
machine.
12 Disengage the PTO Shaft if the work becomes too much for the machine -
DO NOT OVERSTRAIN THE PTO.
13. Do not stand near the working machine even if the tractor PTO is disengaged
WAIT FOR ALL MOVING PARTS TO STOP.
14. Carry out maintenance, greasing, cleaning and all other necessary work when the
PTO Shaft is disconnected, the engine is stopped, the key away and the machine is
stabilized.
15. Position the disconnected PTO Shaft on supports in order to avoid damage when in
transport.
16. IMPORTANT - Always replace a broken or defective part by an original part, which
has a CE Mark.
MAINTENANCE:
1. Carry out all maintenance, greasing, cleaning and any other work on the machine
ONLY when the machine is stopped, stabilized, engine stopped, handbrake on and
key out.
2. Regularly check the bolts, linkage, link pin, articulation axles, wearing parts often.
Tighten them regularly and if necessary replace them with original parts.
3. For all work that needs to be carried out under the machine make sure the unit is
wedged and supported carefully to avoid the risk of crushing. Take care with all
parts that could fall or uncouple from the machine when this maintenance is being
carried out.
4. Wear gloves for all work that needs to be carried out on the machine. Be careful on
sharp edges.
5. Before undertaking greasing clean carefully the surplus grease and oil.
6. Before all welding operations on the machine when it is coupled with the tractor
disconnect the cables of the battery.
7. Always replace the wearing parts or damaged parts with original ones.

WARNING & INFORMATION STICKERS ON THE MACHINE
Before leaving the tractor for any operation on the machine, stop the engine and
wait for the complete stop of any moving parts
Before starting to operate the machine read the advice and safety instructions
given in the handbook. Before each use, check all the protection devices and
tightness of bolts.
Outlines the greasing instructions and frequency for tightening
bolts.
Indicates where grease nipples are located that need greasing.

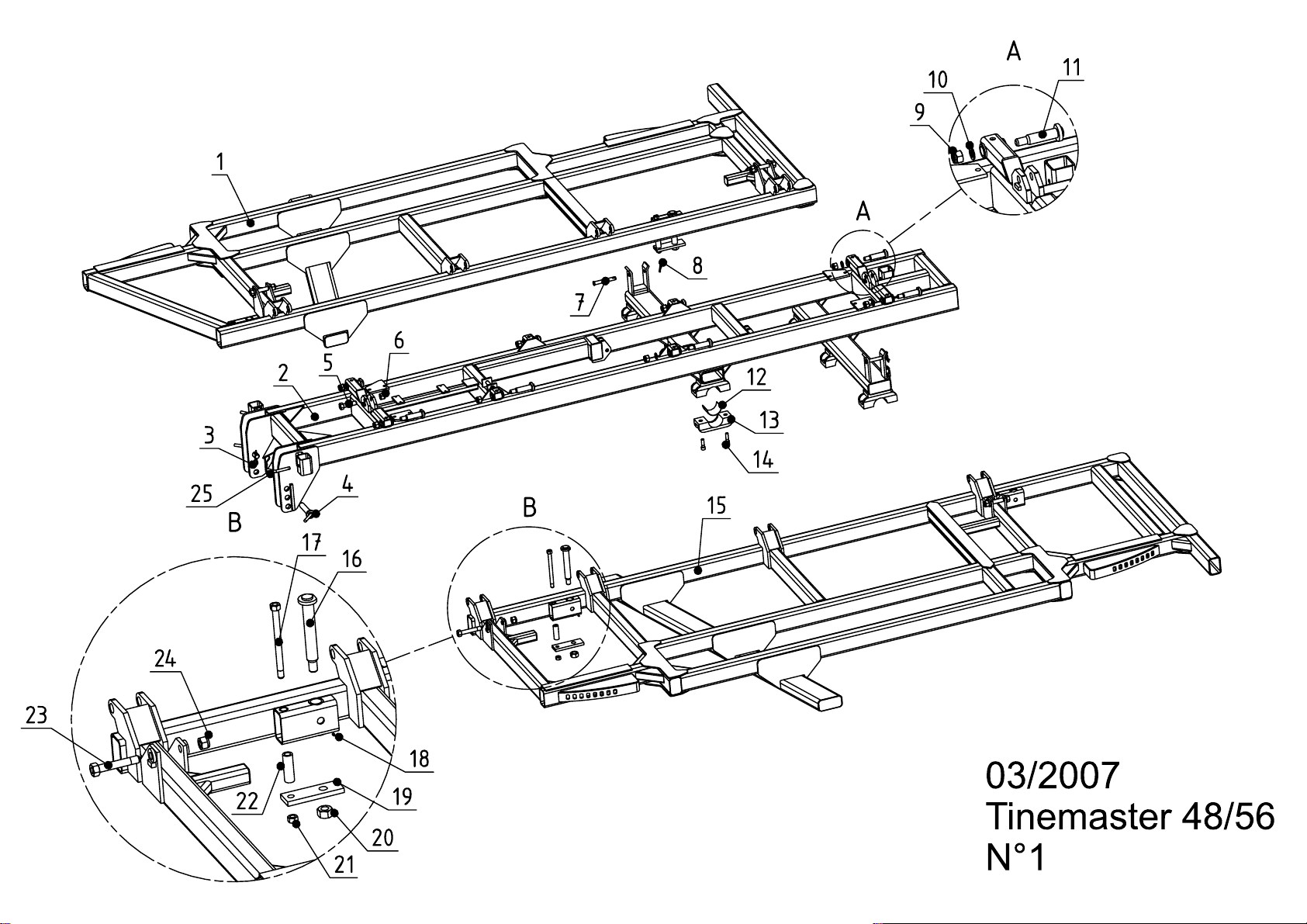

TINEMASTER 48/56
Code
Nom du produit
Rep.
Beschreibung
BeschreibungBeschreibung
Beschreibung Description
DescriptionDescription
Description Designacion
DesignacionDesignacion
Designacion Íàèìåíîâàíèå
ÍàèìåíîâàíèåÍàèìåíîâàíèå
Íàèìåíîâàíèå
APX00603
Section droite nue TINEMASTERREPLIABLE GR Ø121 Rahmen Frame Bastidor Ïðàâàÿñåê÷èÿ
APX00600
Chassis central nu TINEMASTER REPLIABLE GR Ø122 Rahmen Main frame Cajonera åíòðàëüíàÿðàìà
GOU06000
Goupille beta Ø63 Stift beta Ø6 Pin beta Ø6 Pasador beta Ø6 ØòèôòbetaØ6
BRO04000
Broche d'attelage Ø40x1754 Spindel Pin Pasador
Ïðè÷åëíîéøòûðüØ40x17
AXE30027
Axe Ø 30x140 M30 (acier) (sous tête)5 Achse Axle Eje Ïàëå÷Ø30x140
ECR30002
Ecrou nylstop M30 Zn6 Mutter M30 Nut M30 Tuerca M30 ÃàéêànylstopM30Zn
AXE25036
Axe Ø 25x180 3ème point7 Achse Ø25X180 Axle Ø25X180 Eje Ø25X180 Îñü3-éòî÷êèØ25x180
GOU06000
Goupille beta Ø68 Stift beta Ø6 Pin beta Ø6 Pasador beta Ø6 ØòèôòbetaØ6
ECR30002
Ecrou nylstop M30 Zn9 Mutter M30 Nut M30 Tuerca M30 ÃàéêànylstopM30Zn
RON03001
Rondelle plate 31x50x510 Scheibe Washer Arandela Ïëîñêàÿøàéáà31x50x5
AXE40002
Axe Ø 40x170 M30 (acier) (sous tête)11 Achse Axle Eje Ïàëå÷Ø40x170M30
BAG12500
Bague bronze Ø125/120 autoporteur12 Büchse Bushing Casquillo ÂòóëêàØ125/120
PAL00031
Palier 1/2 gros rond usiné alésage Ø 125 (bague bronz13 Lager Bearing Cojinete 1/2êîðëóñàëîäøèëíèêîâ
VIS24020
Vis T.H.24x 80 8,8 brut14 Schraube 24x80 Screw 24x80 Tornillo 24x80 ÁîëòT.H.24x808,8
APX00604
Section gauche nue TINEMASTERREPLIABLE GR Ø115 Rahmen Frame Bastidor Ëåâàÿñåê÷èÿ
AXE45009
Axe Ø 45x345 M33x20016 Achse Axle Eje ÎñüØ45x345M33x200
BLS24034
Boulon T.H.25x330 M24 (acier)(sous tête)17 Bolzen Bolt Perno ÁîëòT.H.25x330M24
GRA08001
Graisseur M 8 droit18 Schmiernippel Grease nipple Engrasador ÌàñëåíêàM8ëðÿìàÿ
APX00064
Plaque de fixation de traverseTM-APXRS-APVRS19 Platte Plate Placa Êðåëåæíàÿëëàñòèíà
ECR33002
Ecrou H. M33x200 percé M820 Mutter M33x200 Nut M33x200 Tuerca M33x200 ÃàéêàH.M33x200ëðîñâåð
ECR24002
Ecrou H. M24 brut21 Mutter M24 Nut M24 Tuerca M24 ÃàéêàH.M24brut
BAG02518
Douille Ø 25.5x40 lg12122 Büchse Bush Casquillo ÂòóëêàØ25.5x40äë.121
BLS24012
Boulon T.H.25x180 M24 (acier)(sous tête)23 Bolzen Bolt Bùlon ÁîëòT.H.25x180M24(ñò
ECR24003
Ecrou nylstop M24 Zn24 Mutter M24 Nut M24 Tuerca M24 ÃàéêànylstopM24Zn
CLE02007
Clé Ø20x20025 Achse Axle Eje Êëþ÷Ø20x200
N°1

TINEMASTER 48/56
Code
Nom du produit
Rep.
Beschreibung
BeschreibungBeschreibung
Beschreibung Description
DescriptionDescription
Description Designacion
DesignacionDesignacion
Designacion Íàèìåíîâàíèå
ÍàèìåíîâàíèåÍàèìåíîâàíèå
Íàèìåíîâàíèå
TMA00001
Axe Ø 25x135 de 3 point4 Achse Ø25x135 Axle Ø25x135 Eje Ø25x135 ÎñüØ25x1353-éòî÷êè
SSO00501
Tube support de dent de TM5 Tube Tube Tubo Îëîðàçóáà
BLS24008
Boulon T.H.25x150 M24 (acier) (sous tête)6 Bolzen Bolt Perno ÁîëòT.H.25x150M24(ñò
RON02800
Rondelle plate 28x60x47 Scheibe Washer Arandela Ïëîñêàÿøàéáà28x60x4
RON02502
Rondelle plate 25x50x48 Scheibe 25x50x4 Washer 25x50x4 Arandela 25x50x4 Ïëîñêàÿøàéáà25x50x4
ECR24003
Ecrou nylstop M24 Zn9 Mutter M24 Nut M24 Tuerca M24 ÃàéêànylstopM24Zn
VER04017
Vérin DE: 40x 70 C: 200 EAF:410 (réf:4072)10 Zylinder Cylinder Cilindro hidraulico Ãèäðî÷èëèíäð
PJT04007
Pochette de joints pour vérin DE: 40x 7010 Dichtungen Seal kit Juntas
Êîìëëåêòëðîêëàäîêäëÿã
VIS08015
Vis T.H.C. 8x20 8.8 brut b.poi11 Schraube M8x20 Screw M8x20 Tornillo M8x20 ÁîëòT.H.C.8x208.8
ECR12001
Ecrou H. M12 Zn12 Mutter M12 Nut M12 Tuerca M12 ÃàéêàH.M12Zn
ECR33002
Ecrou H. M33x200 percé M813 Mutter M33x200 Nut M33x200 Tuerca M33x200 ÃàéêàH.M33x200ëðîñâåð
RON02510
Rondelle plate 25x60x1014 Scheibe Washer Arandela Ïëîñêàÿøàéáà
GRA08001
Graisseur M 8 droit15 Schmiernippel Grease nipple Engrasador ÌàñëåíêàM8ëðÿìàÿ
AXE35029
Axe Ø 35x225 M33x200(sous tête)16 Achse Axle Eje Ïàëå÷
GOU06000
Goupille beta Ø617 Stift beta Ø6 Pin beta Ø6 Pasador beta Ø6 ØòèôòbetaØ6
BLS24008
Boulon T.H.25x150 M24 (acier) (sous tête)18 Bolzen Bolt Perno ÁîëòT.H.25x150M24(ñò
RON02400
Rondelle grower WL Ø2419 Scheibe WL Ø24 Washer WL Ø24 Arandela WL Ø24 ÃðîâåðíàÿøàéáàWLØ24
ECR24003
Ecrou nylstop M24 Zn20 Mutter M24 Nut M24 Tuerca M24 ÃàéêànylstopM24Zn
BLS24012
Boulon T.H.25x180 M24 (acier)(sous tête)21 Bolzen Bolt Bùlon ÁîëòT.H.25x180M24(ñò
ECR24003
Ecrou nylstop M24 Zn22 Mutter M24 Nut M24 Tuerca M24 ÃàéêànylstopM24Zn
SSO00500
Support de dent de TM gauche23 Halter Bracket Soporte Îëîðàçóáà
SSO00503
Support de dent de TM droit24 Halter Bracket Soporte Îëîðàçóáà
N°2

TINEMASTER 48/56
Code
Nom du produit
Rep.
Beschreibung
BeschreibungBeschreibung
Beschreibung Description
DescriptionDescription
Description Designacion
DesignacionDesignacion
Designacion Íàèìåíîâàíèå
ÍàèìåíîâàíèåÍàèìåíîâàíèå
Íàèìåíîâàíèå

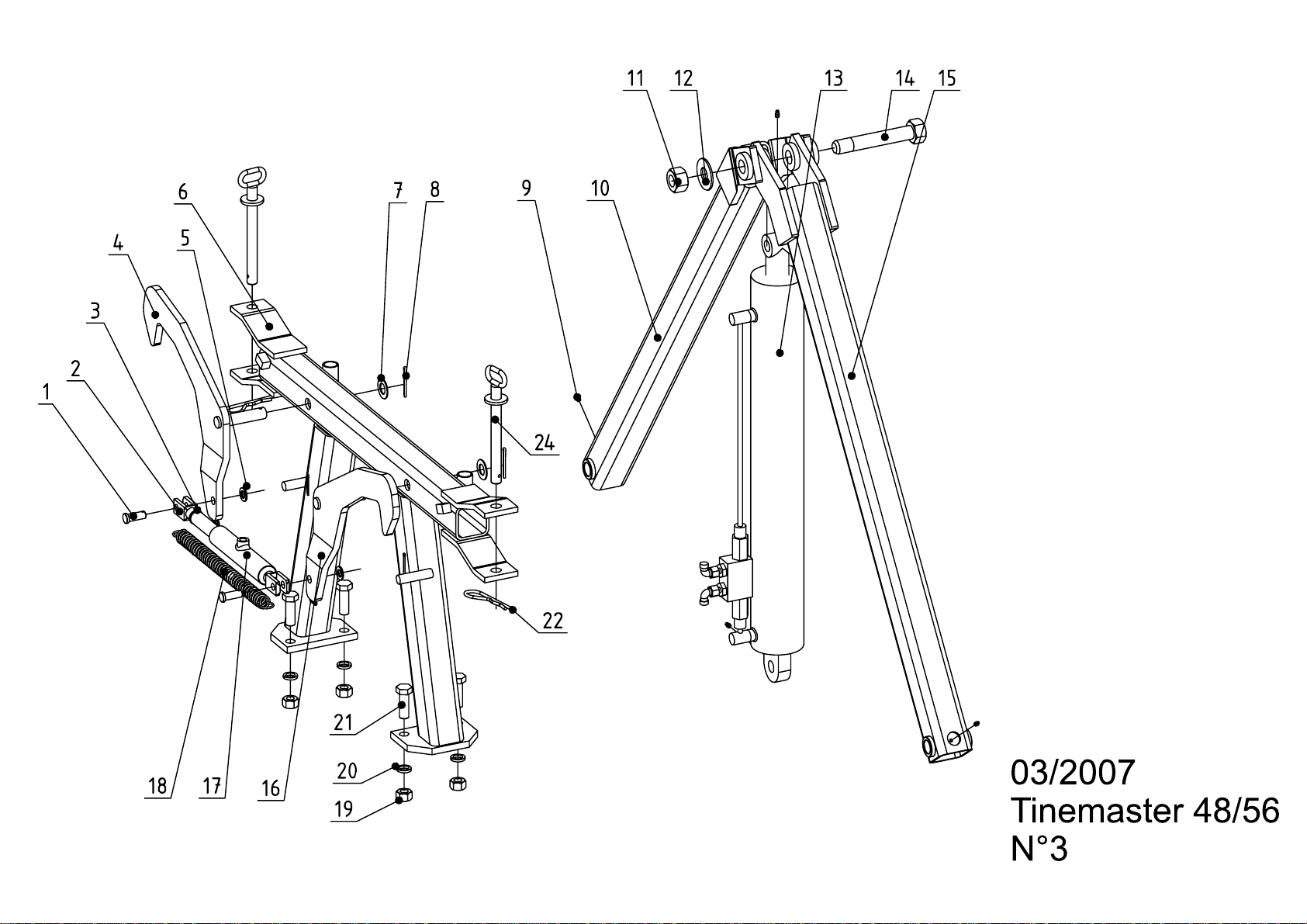

AXE16001
Axe Ø 16x43 (sous tête)1 Achse Axle Eje ÎñüØ16x43
VER00002
Chape de vérin de verrouillage2 Gabel Yoke Horquilla Ñêîáàãèäðî÷èëèíäðàáëîê
RON01602
Rondelle plate 16x35x33 Scheibe Washer Arandela Ïëîñêàÿøàéáà16x35x3
APX00032
Crochet de blocage gauche autoporteur4 Haken Hook Gancho Êðþêáëîêèðîâêè,ëåâûé
RON01704
Rondelle plate 17x30x35 Scheibe Washer Arandela Ïëîñêàÿøàéáà17x30x3
APX00206
Support avant autoporteur repliable (EAX fixation 550)6 Halter Bracket Soporte ÎëîðàëåðåäíÿÿTINEMAS
RON02501
Rondelle plate 25x45x27 Scheibe Ø25x45x2 Washer Ø25x45x2 Arandela Ø25x45x2 Ïëîñêàÿøàéáà25x45x
GOU05002
Goupille fendue 5x 60 Zn (DIN94 5x45 Zn)8 Stift 5x60 Pin 5x60 Pasador 5x60
Ðàçâîäíîéøëëèíò5x60
GRA08001
Graisseur M 8 droit9 Schmiernippel Grease nipple Engrasador ÌàñëåíêàM8ëðÿìàÿ
APX00201
Tube de repliage chassis large(plat plié)10 Tube Tube Tubo òðóáàëåðåâîäàâòðàíñë.ë
ECR30001
Ecrou H. M30 brut11 Mutter M30 Nut M30 Tuerca M30 ÃàéêàH.M30brut
RON03000
Rondelle grower WL Ø3012 Scheibe Ø30 Washer Ø30 Arandela Ø30 ØàéáàgrowerWLØ30
VER05030
Vérin DE: 50x100 C: 700 EF:1000 A1244113 Zylinder Cylinder Cilindro hidraulico
Ãèäðî÷èëèíäðDE:50x100
PJT05001
Pochette de joints pour vérin DE: 50x100 (après 1985)14 Dichtungen Seal kit Juntas
Êîìëëåêòëðîêëàäîêäëÿã
BLS30002
Boulon T.H.30x190 M30 (acier) (sous tête)14 Bolzen Bolt Bùlon ÁîëòT.H.30x190M30(ñò
APX00200
Tube de repliage chassis large15 Tube Tube Tubo Òðóáàëåðåâîäàâòðàñíñëî
APX00033
Crochet de blocage droit autoporteur16 Haken Hook Gancho Ïðàâûéáëîêèðîâî÷íûéêð
VER03003
Vérin SE: 30 C: 110 débrayage réf:A1062417 Zylinder Cylinder Cilindro hidraulico Ãèäðî÷èëèíäðSE:30
PJT03000
Pochette de joints pour vérin SE: 3017 Dichtungen Seal kit Juntas
Êîìëëåêòëðîêëàäîêäëÿã
RES03003
Ressort tract.Ø 30 lg180 (débrayage)18 Feder Spring Muelle ÏðóæèíàØ30äë.180
ECR20001
Ecrou H. M20 brut DIN 93419 Mutter M20 Nut M20 Tuerca M20 ÃàéêàH.M20brut
RON02000
Rondelle grower WL Ø2020 Scheibe WL Ø20 Washer WL Ø20 Arandela WL Ø20 ØàéáàgrowerWLØ20
VIS20005
Vis T.H.20x 60 8.8 brut21 Schraube 20x60 Screw 20x60 Tornillo 20x60 ÁîëòT.H.20x608.8brut
GOU06000
Goupille beta Ø622 Stift beta Ø6 Pin beta Ø6 Pasador beta Ø6 ØòèôòbetaØ6
BRO02203
Broche Ø22x170 utile avec maillon de chaine24 Spindel Pin Pasador ØòûðüØ22x170
N°3
