Qvis LED-HDMI1906-PA User manual

19” LED SECURITY
MONITOR
LED-HDMI1906-PA
User’s Manual
V1.0 01 / 2014

© Copyright Qvis ®. All documentation rights reserved. 1
Welcome
Thank you for purchasing the 19” LED Security Monitor.
This user’s manual is designed to be a reference tool for the
installation and operation of the device.
Here you can find information about the corresponding model’s
features and functions, as well as detailed instructions on how
to operate the device.
Before you operate the device please read the following
safeguards and warnings carefully!

© Copyright Qvis ®. All documentation rights reserved. 2
Table of Contents
1General information.....................................................................................................3
1.1 Product description and type of use........................................................................3
1.2 General features.....................................................................................................3
1.3 Opening the box .....................................................................................................3
1.4 Contents of the box.................................................................................................3
2Warnings ......................................................................................................................4
2.1 Power .....................................................................................................................4
2.2 Safety precautions..................................................................................................4
2.3 Installation precautions...........................................................................................4
2.4 Cleaning the device ................................................................................................5
2.5 Privacy and copyright..............................................................................................5
3Controls & Settings .....................................................................................................6
3.1 Controls:.................................................................................................................6
3.1.1 Control key board: ...........................................................................................6
3.1.2 Power connector (DC) .....................................................................................6
3.1.3 Power BUTTON...............................................................................................6
3.1.4 Volume buttons [“+””-”] and confirm [menu]......................................................6
3.1.5 Menu button [menu] and confirm......................................................................7
3.1.6 Video input selection button [1]........................................................................7
3.1.7 HDMI input.......................................................................................................7
3.1.8 PC signal input (VGA)......................................................................................7
3.1.9 Audio input/output (VGA).................................................................................7
3.1.10 BNC1 - BNC2 video inputs...............................................................................7
3.1.11 BNC1 - BNC2 video output..............................................................................7
3.2 OSD CCTV menu controls......................................................................................8
3.2.1 Picture .............................................................................................................9
3.2.2 OSD...............................................................................................................12
3.2.3 Functions.......................................................................................................14
3.2.4 GEOMETRY (Only available for VGA version)...............................................16

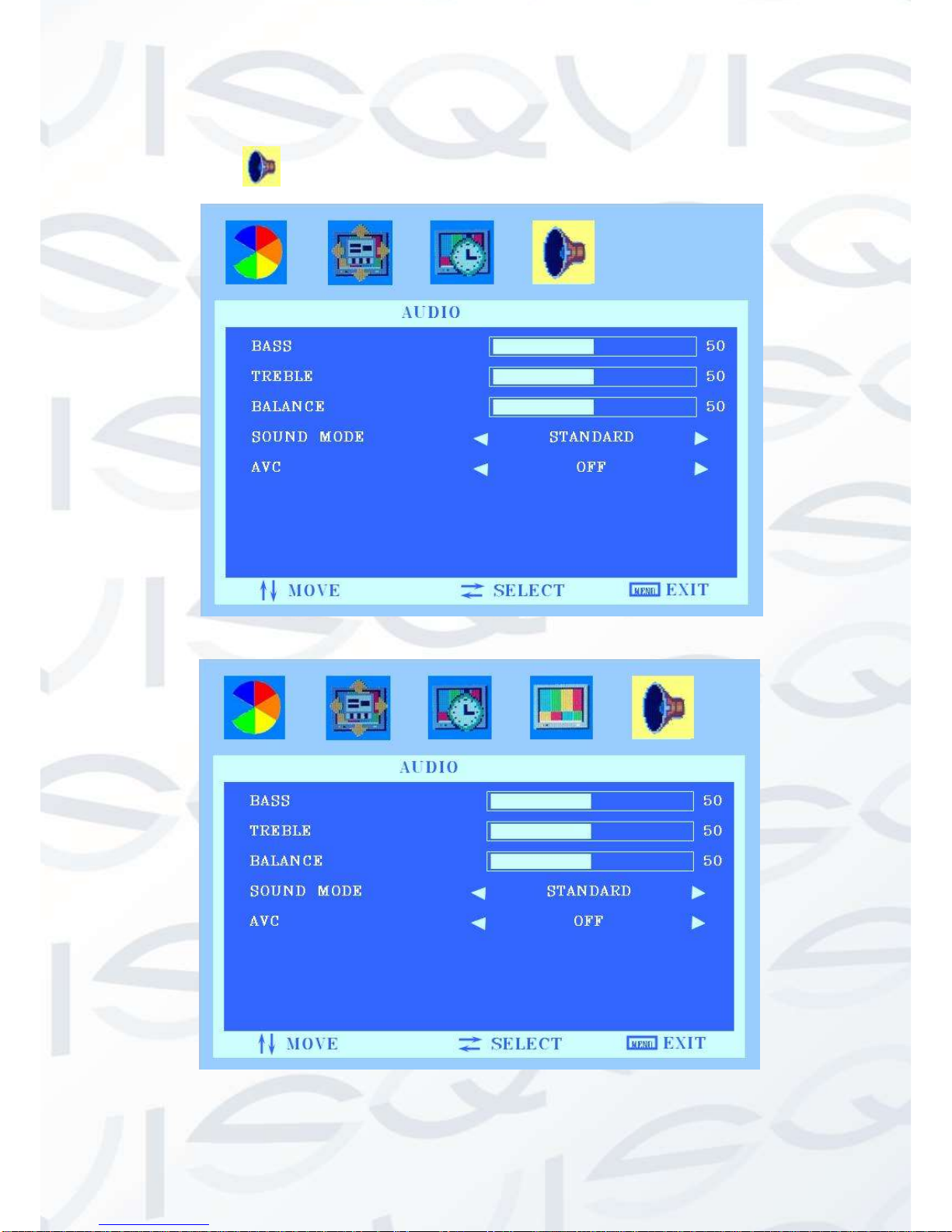

3.2.5 Audio .............................................................................................................17
4LED monitor quality and pixel................................................................................... 19
5. Product Specifications..............................................................................................20

© Copyright Qvis ®. All documentation rights reserved. 3
1 General information
1.1 Product description and type of use
The LED color monitor is designed to be very durable and comes with a hardwearing
case structure. It is also ideal for continuous operation and can be used in closed
circuit TV systems without risks of excessive operational degradation. The Flat Panel
Display has an active matrix, thin-film transistor (TFT) and a Light Emitting Diode
(LED) display.
1.2 General features
Display area
Wall mounting (bracket not included)
Audio input/output sockets
HDMI video input
Two composite video input channels (BNC) & one composite video output
channels (BNC).
Wide inclination/viewing angle to allow you to view either from a seated position,
when standing up or when moving from one position to the other.
Multilingual OSD menu for easy setup and optimisation of the display.
1.3 Opening the box
Check that the packing and the contents are not visibly damaged. Contact the
retailer immediately if parts are either missing or damaged. Do not attempt to use the
device if you do find that there are parts missing or the device is damaged. Send the
product back in its original packing, if it is damaged, to the supplier.
1.4 Contents of the box
LED monitor
Remote Control (Optional)
Power unit 12VDC 3A
Power cable
VGA cable
Instruction manual

© Copyright Qvis ®. All documentation rights reserved. 4
2 Warnings
2.1 Power
Only use the power unit provided to power the device. Check the mains voltage
rating before plugging the power unit in.
Do not pull the cable to unplug the device. Grip the plug end firmly and slowly
pull out of the monitor.
2.2 Safety precautions
Keep the device away from rain and atmospheres with a high humidity, to
prevent risk of fire and electrocution. Do not introduce material (either solid or
liquid) to the interior of the device. If this should accidentally occur, disconnect
the device from the mains IMMEDIATELY and have it inspected by qualified
personnel.
Never open the device. In all cases, contact the qualified personnel or authorised
service center for repairs.
Keep the device away from children, to prevent accidental damage.
Do not touch the device with wet hands so to prevent electrical shock or
mechanical damage.
Do not use the device if the external casing is damaged from a fall or impact
from a heavy/forceful object. There is a risk of electrocution if the device is
continued to be used when the casing has been compromised. In all cases,
contact the qualified personnel or authorised service center for repairs.
It is advisable to disconnect the power wire if the monitor is not used for a certain
time.
2.3 Installation precautions
To prevent the device from overheating, locate it in a position where there is an
allowance of air flow through the slots in the casing. Ensure at least 5 cm of free
space when installing inside a rack. For the same reason, do not install near
sources of heat, such as radiators or hot air ducts. Keep away from direct
sunlight. Do not install in areas subject to excessive dust, mechanical vibrations
or shocks.
Do not arrange this device on an unstable surface, such as a unbalanced or
slanted table. The device could fall causing injury or mechanical failures.
Do not install the device in a place where it could be exposed to humidity or
water. Do not direct a jet of water onto the device: risk of fire, electrocution or
even mechanical failure.
Stop using the device if water or other material should penetrate inside; risk of
fire and electrocution. Contact the retailer or authorized installer.
Slots and openings in the cabinet are provided for ventilation. These openings

© Copyright Qvis ®. All documentation rights reserved. 5
must not be blocked or covered.
Do not place heavy or heat generating objects on top of the device: this could
damage the casing and/or increase internal temperature causing faults.
Do not cover the device with a cloth while it is running to prevent deforming the
external casing and overheating the internal parts. This could raise the risk of
fire, electrocution and mechanical failure.
Keep magnets and magnetised objects away from the device to prevent faults.
Do not use the device in the presence of smoke, vapor or dust.
Wait for a while before operating a device immediately after transporting it from a
cold place to a warm place and vice versa. Wait on average for three hours: this
will allow the device to adapt to the new ambient (temperature, humidity, etc.).
The monitor is provided with a plastic base and rubber feet. It can be positioned
on a horizontal surface, such as a desk or a table. Make sure that the device is
fastened firmly and that it is not resting on unstable supports or surfaces.
Remember to adjust the brightness and contrast to obtain a perfect image.
The monitor can also be installed on the wall by means of a bracket (not
provided).
2.4 Cleaning the device
Rub delicately with a dry cloth to remove dust and dirt.
Dip the cloth in neutral detergent if dirt cannot be eliminated with a dry cloth
alone.
Do not use volatile liquids (such a petrol, alcohol, solvents, etc.) or chemically
treated clothes to clean the device to prevent deformation, deterioration or
scratches to the paint finish.
2.5 Privacy and copyright
The LED security monitor is a device for CCTV systems. Recording of images is
subject to the laws in force in your country. Recording of images that are
protected by copyright is forbidden.
Product users shall be responsible for checking and respecting all local rules and
regulations concerning monitoring and recording video signals. The
manufacturing SHALL NOT MADE BE LIABLE for use of this product not in
compliance with the laws in force.

© Copyright Qvis ®. All documentation rights reserved. 6
3 Controls & Settings
3.1 Controls:
3.1.1 Control key board:
Control Key
Function
AUTO
Use this to select the video input source and
confirm your choice in an on-screen menu.
MENU
Use this to display the main on-screen menu.
“-“
Use this to select a menu or an item.
“+”
Use this to select a menu or an item.
Power
Use this switch to turn on the monitor. Press
this button again to turn off the monitor.
NO SIGNAL means that there is no connected video signal being detected from the input port.
The indicators display the status of the power:
Indicator
Status
Lit (Red)
Power off
Lit (Green)
Power on
Blinking (Red):
Power saving mode
3.1.2 Power connector (DC)
Plug the power wire of the adapter provided into the respective DC power port.
3.1.3 Power BUTTON
This is used to switch the monitor on and off. The blue LED lights up when the monitor is on,
when it is in red it means that it is in standby mode.
3.1.4 Volume buttons [“+””-”] and confirm [menu]
These keys allow you to change the volume (”+”button increases the volume, “-”button
decreases the volume).The “Menu” button also allows you to confirm each setting.

© Copyright Qvis ®. All documentation rights reserved. 7
3.1.5 Menu button [menu] and confirm
This is used to access and quit the OSD (On-Screen Display) Menu and to confirm the selected
settings
3.1.6 Video input selection button [1]
To select the desired signal (”PC”, “HDMI”, “BNC1” or “BNC2”) press the button [AUTO] to select
the desired item. Press the button + / -“DOWN” or “UP” to confirm.
3.1.7 HDMI input
This HDMI port (High Definition Media Interface) allows the connection of a HDMI signal and
an audio signal, coming from an external source provided with an HDMI output
3.1.8 PC signal input (VGA)
PC input.
3.1.9 Audio input/output (VGA & BNC)
Jack plugs audio input/output.
3.1.10 BNC1 - BNC2 video inputs
These inputs allow the connection of video signals coming from external sources.
3.1.11 BNC1 - BNC2 video output
This BNC output allows the repeating of the BNC1-BNC2 video signals to another video
input (another monitor or DVR).

© Copyright Qvis ®. All documentation rights reserved. 8
3.2 OSD CCTV menu controls
Open the menu interface using the [Menu] button in order to access the menus, submenus and
their functions
Selection of the video input
In order to show the possible video inputs, press the [Auto] button.
In order to scroll through the options, use [Auto] buttons.
In order to confirm the selection press the [“+” or “-”]button.
Selection of the Menus
In order to show the main Menu, press the [Menu] button.
In order to select the Menus of the horizontal bar, press the [Auto] buttons.
In order to select each single Menu, press the [“+” or “-”]button.
In order to change a value (once the option is selected), press the [“+” or “-”]buttons.
In order to confirm the selection, press the [Menu] button.
In order to exit from menus and submenus, press the [Menu] button.
Volume adjustment
In order to vary the volume without entering the OSD Menu please use the [“+” or “-”]buttons.

© Copyright Qvis ®. All documentation rights reserved. 9
3.2.1 Picture
When selecting the icon, the following screen will appear (this will depend on the signal
type):
AV (Pic1)
HDMI (Pic 2)
