RAIS VISIO 3-1 NS User manual

BRUGERMANUAL
BEDIENUNGSANLEITUNG
USER MANUAL
MANUEL D’UTILISATEUR
BRUKERVEILEDNING
BRUKSANVISNING
KÄYTTÖOHJE
GEBRUIKERSHANDLEIDING
VISIO
3-1

RAIS/attika VISIO 3-1 (NS)
EN 13229:2001+A1:2003+A2:2004 Raumheizer für feste Brennstoffe
Appliance fired by wood
Poêle pour combustibles solides
Produced at:
RAIS A/S, Industrivej 20, 9900 Frederikshavn, Danmark
EC.NO: 123
Anordningen må kun installeres i forbindelse med ubrændbart materiale.
AFSTAND TIL BRÆNDBART, BAGVÆG
ABSTAND ZU BRENNBAREN BAUTEILEN, HINTEN
DISTANCE TO COMBUSTIBLE BACK WALL
DIST. ENTRE COMPOSANTS COMBUSTIBLES, ARRIÈRE
AFSTAND TIL BRÆNDBART, SIDEVÆG
ABSTAND ZU BRENNBAREN BAUTEILEN, SEITE
DISTANCE TO COMBUSTIBLE SIDE WALL
DISTANCE ENTRE COMPOSANTS COMBUSTIBLES, COTÉ
AFSTAND TIL BRÆNDBART, MØBLERING
ABSTAND VORNE ZU BRENNBAREN MÖBELN
DISTANCE TO FURNITURE AT THE FRONT
DISTANCE ENTRE COMPOSANTS COMBUSTIBLES, DEVANT
CO EMISSION
CO EMISSION IN DEN VERBRENNUNGSPRODUKTEN
EMISSION OF CO IN COMBUSTION PRODUCTS
EMISSION CO DANS LES PRODUITS COMBUSTIBLES
NOMINEL EFFEKT / HEIZLEISTUNG /
THERMAL OUTPUT / PUISSANCE CALORIFIQUE:
RØGGASTEMPERATUR / ABGASTEMPERATUR /
FLUE GAS TEMPERATURE / TEMPÉRATURE DES GAZ DE FUMÉE:
VIRKNINGSGRAD / ENERGIEEFFIZIENZ /
ENERGY EFFIENCY /EFFICACITÉ ÉNERGÉTIQUE:
DK: Brug kun anbefalede brændsler. Følg instrukserne i bruger-
manualen. Anordningen er egnet til røggassamleledning og intervalfyring.
DE: Lesen und befolgen Sie die Bedienungsanleitung.
Zeitbrandfeuerstätte. Nur empfohlene Brennstoffe einsetzen.
UK: Fuel types (only recommended). Follow the installation and
operating instruction manual. Intermittent operation.
F: Veuillez lire et observer les instructions du mode d'emploi.
Foyer à durèe de combustion limitèe, homologué pour cheminée à
connexions multiples. Utiliser seulement les combustibles recommandés.
Hergestellt für /Produced for:
ATTIKA FEUER AG, Brunnmatt 16, CH-6330 Cham / RAIS A/S, Industrivej 20, DK-9900 Frederikshavn
Partikler / Partikeln /
Particles / Particules : DK: 5,79 g/kg / DE: 5,79 g/kg UK: 5,79 g/kg / FR: 5,79 g/kg
DK: 229°C / DE: 229°C
UK: 229°C / FR: 229°C
DK: 8,3 kW / DE: 8,3 kW
UK: 8,3 kW / FR: 8,3 kW
DK: 77% / DE: 77%
UK: 77% / FR: 77%
DK: BRÆNDE
DE: HOLZ
UK: WOOD
FR: BOIS
DK: SE BRUGERVEJLEDNING
DE: SIEHE BEDIENUNGSANLEITUNG
UK: SEE USER MANUAL
FR: CONSULTEZ LE GUIDE DE L'UTILISATEUR
DK: SE BRUGERVEJLEDNING
DE: SIEHE BEDIENUNGSANLEITUNG
UK: SEE USER MANUAL
FR: CONSULTEZ LE GUIDE DE L'UTILISATEUR
DK: 700mm
DE: 700mm
UK: 700mm
FR: 700mm
DK: 0,1718%
DE: 0,1718% / 2147 mg/Nm3
UK: 0,1718%
FR: 0,1718%
17
VISIO 3-1 NS
CE LABEL
VISIO 3-1 (Norway)
NS3058
NS3059
Norsk Brandmur
Reference / DTI test report:
Mærkeplade/CE Zeichen/Manufacturer’s plate/Plaque signalétique/Merkeplate/Märkplät
Norge

EN 13229:2001+A1:2003+A2:2004 Raumheizer für feste Brennstoffe
Appliance fired by wood
Poêle pour combustibles solides
Produced at:
RAIS A/S, Industrivej 20, 9900 Frederikshavn, Danmark
15a B-VG
EC.NO: 223
Anordningen må kun installeres i forbindelse med ubrændbart materiale.
Typ FCXXxFCXXx
AFSTAND TIL BRÆNDBART, BAGVÆG
ABSTAND ZU BRENNBAREN BAUTEILEN, HINTEN
DISTANCE TO COMBUSTIBLE BACK WALL
DIST. ENTRE COMPOSANTS COMBUSTIBLES, ARRIÈRE
AFSTAND TIL BRÆNDBART, SIDEVÆG
ABSTAND ZU BRENNBAREN BAUTEILEN, SEITE
DISTANCE TO COMBUSTIBLE SIDE WALL
DISTANCE ENTRE COMPOSANTS COMBUSTIBLES, COTÉ
AFSTAND TIL BRÆNDBART, MØBLERING
ABSTAND VORNE ZU BRENNBAREN MÖBELN
DISTANCE TO FURNITURE AT THE FRONT
DISTANCE ENTRE COMPOSANTS COMBUSTIBLES, DEVANT
CO EMISSION
CO EMISSION IN DEN VERBRENNUNGSPRODUKTEN
EMISSION OF CO IN COMBUSTION PRODUCTS
EMISSION CO DANS LES PRODUITS COMBUSTIBLES
NOMINEL EFFEKT / HEIZLEISTUNG /
THERMAL OUTPUT / PUISSANCE CALORIFIQUE:
RØGGASTEMPERATUR / ABGASTEMPERATUR /
FLUE GAS TEMPERATURE / TEMPÉRATURE DES GAZ DE FUMÉE:
VIRKNINGSGRAD / ENERGIEEFFIZIENZ /
ENERGY EFFIENCY /EFFICACITÉ ÉNERGÉTIQUE:
DK: Brug kun anbefalede brændsler. Følg instrukserne i bruger-
manualen. Anordningen er egnet til røggassamleledning og intervalfyring.
DE: Lesen und befolgen Sie die Bedienungsanleitung.
Zeitbrandfeuerstätte. Nur empfohlene Brennstoffe einsetzen.
UK: Fuel types (only recommended). Follow the installation and
operating instruction manual. Intermittent operation.
F: Veuillez lire et observer les instructions du mode d'emploi.
Foyer à durèe de combustion limitèe, homologué pour cheminée à
connexions multiples. Utiliser seulement les combustibles recommandés.
Hergestellt für /Produced for:
ATTIKA FEUER AG, Brunnmatt 16, CH-6330 Cham / RAIS A/S, Industrivej 20, DK-9900 Frederikshavn
STØV / STAUB /
DUST / POUSSIÈRES:
DK: 18 mg/Nm3 / DE: 18 mg/Nm3
UK: 18 mg/Nm3 / FR: 18 mg/Nm3
DK: 238°C / DE: 238°C
UK: 238°C / FR: 238°C
DK: 10 kW / DE: 10 kW (AUSTRIA 7,8 kW)
UK: 10 kW / FR: 10 kW
DK:80% / DE: 80%
UK: 80% / FR: 80%
DK: BRÆNDE
DE: HOLZ
UK: WOOD
FR: BOIS
DK: SE BRUGERVEJLEDNING
DE: SIEHE BEDIENUNGSANLEITUNG
UK: SEE USER MANUAL
FR: CONSULTEZ LE GUIDE DE L'UTILISATEUR
DK: SE BRUGERVEJLEDNING
DE: SIEHE BEDIENUNGSANLEITUNG
UK: SEE USER MANUAL
FR: CONSULTEZ LE GUIDE DE L'UTILISATEUR
DK: 700mm
DE: 700mm
UK: 700mm
FR: 700mm
DK: 0,0744%
DE: 0,0744% / 930 mg/Nm3
UK: 0,0744%
FR: 0,0744%
17
VISIO 3-1 DIN +
CE LABEL
VISIO 3-1 (Denmark, England,
Germany, Sweitzerland,
Austria)
EN13240
AEA for England
DIN +
Austria
Reference / DTI test report:
300-ELAB-2287-EN, 300-ELAB-2287-EN-Norway
300-ELAB-2287-NS, 300-ELAB-2287-WALL
300-ELAB-2287-AUS, 300-ELAB-2287-AEA
RAIS/attika VISIO 3-1 (DIN+)
Mærkeplade/CE Zeichen/Manufacturer’s plate/Plaque signalétique/Merkeplate/Märkplät
Danmark, Deutschland, England, France

VISIO 3-1 NS Model
12 34
5-6
7-8
914
13
16
17
11-12
9-10
15
Visio 3-1 NS
19
18
Reservedelstegning / Ersatzteilzeichnung / Spare parts drawing /
Dessin des pièces de rechange / Reservdelsritning

VISIO 3-1 DIN+ Model
Reservedelstegning / Ersatzteilzeichnung / Spare parts drawing /
Dessin des pièces de rechange / Reservdelsritning
12 34
5-6
7-8
914
13
16
17
11-12
9-10
15
Visio 3-1 DIN +

6
34
5 6
7 8
21
Indstilling af spjæld / Einstellung der Luftklappe / Adjustment of the air damper /
Réglage du volet d’air / Innstilling av spjeldet / Inställning av spjället
Position 1 - Posisjion 1
CC
D
E
F
VISIO
3 positioner af spjældhåndtag
Position 2 - Posisjion 2
CC
D
E
F
VISIO
3 positioner af spjældhåndtag
Position 3 - Posisjion 3
CC
D
E
F
VISIO
3 positioner af spjældhåndtag
Optænding og påfyldning / Anzünden und Nachlegen / Lighting and fuelling /
Allumage et remplissage / Opptenning og påfylling / Upptänding och påfyllning
6

We cannot be held responsible for any misprints.
RECYCLING:
The oven is wrapped in packaging that is recyclable. This
must be disposed of according to national rules regard-
ing the disposal of waste.
The glass can not be reused.
The glass should be discarded along with the residual
waste from ceramics and porcelain.
Pyrex glass has a higher melting temperature and there-
fore can not be reused.
If discarded you make an important positive contribution
to the environment.
FIRE ENVIRONMENTALLY FRIENDLY!
5 Eco-friendly advices for sensible heating
- common sense both environmentally and economically.
1. Effective lighting. Use small pieces of wood (fir tree) and a
suitable fire lighter, for example paraffined wood wool/saw-
dust. Open the air damper, so plenty of air is fed to the stove
and the gases from the heated wood can burn rapidly.
2. Light the fire with only little wood at a time - this gives the
best combustion. Remember plenty of air for every time new
wood is added.
3. When the flames are diminished, adjust the air damper so that
the air supply is reduced.
4. When only glowing embers remain, air flow can be reduced
further, so heating demand is just covered. With a lower air
supply the charcoal will burn slower and the heat loss through
the chimney is reduced.
5. Use only dry wood - ie. wood with a humidity of 15 to 20%.

8
VISIO 3-1
0
12-09-2017
8
English RAIS/ attika - U ser manual for VISIO 3-1
Revision:
Date:
INTRODUCTION........................................................................................................................ 10
WARRANTY.............................................................................................................................. 11
TRANSPORT SAFETY ................................................................................................................. 11
SPECIFICATIONS ....................................................................................................................... 12
DISTANCES/MEASUREMENTS.................................................................................................... 13

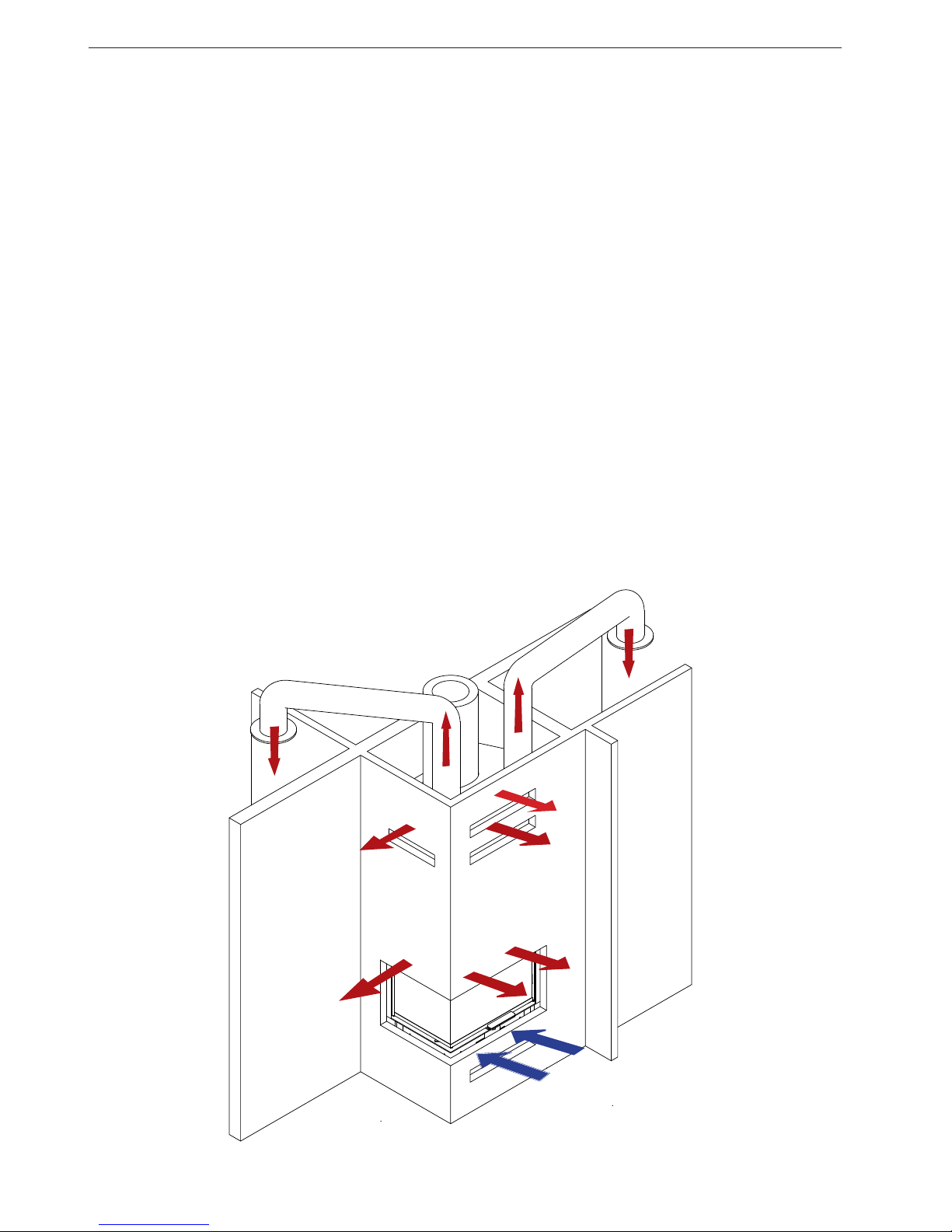

CONVECTION........................................................................................................................... 14
INSTALLATION .......................................................................................................................... 15
CHIMNEY ................................................................................................................................. 16
CHOICE OF INSTALLATION MATERIALS ..................................................................................... 17
INSTALLATION MEASUREMENTS ............................................................................................... 17
MINIMUM DISTANCES TO FLAMMABLE MATERIALS ................................................................. 19
CONVECTION........................................................................................................................... 21
AIR SYSTEM ............................................................................................................................. 22
FUEL......................................................................................................................................... 22
DRYING AND STORAGE............................................................................................................ 23
REGULATION OF THE COMBUSTION AIR................................................................................... 23
VENTILATION............................................................................................................................ 24
USE OF STOVE.......................................................................................................................... 24
FIRST USAGE ............................................................................................................................ 25
LIGHTING AND FUELLING ......................................................................................................... 25
CONTROL................................................................................................................................. 26
WARNING ................................................................................................................................ 27
CLEANING AND CARE .............................................................................................................. 28
MAINTENANCE / REPLACEMENT PARTS.................................................................................... 28
CLEANING THE GLASS DOOR PANELS....................................................................................... 29
CLEANING THE COMBUSTION CHAMBER................................................................................. 30
CLEANING OF THE FLUE ........................................................................................................... 31
INTERRUPTION OF OPERATIONS................................................................................................ 32
CONVERSION OF SELF CLOSING DOOR..................................................................................... 34
ACCESSORIES........................................................................................................................... 36
SPARE PARTS VISIO 3-1 NS MODEL ........................................................................................... 37
SPARE PARTS VISIO 3-1 DIN+ MODEL ....................................................................................... 38

99
English RAIS/ attika - U ser manual for VISIO 3-1
N.B. The stove is always delivered as an NS model. (Norwegian model)
To change the stove into a DIN + model, two things needs to be done.
• Remove the rubber Air restrictor in the Primary airdamper. by pulling it out.
• Remove the Air consentrator plate laying under the grill.
Rubber Air restrictor
Rubber Air restrictor
Air concentrator plate

1010
Introduction
Congratulations on your new RAIS / attika stove.
A RAIS / attika wood burning stove is more than just a heat source: it also shows that
you care about design and quality in your home.
To get the most pleasure and benefit from your new stove, it is important that the
manual is read through carefully before the stove is installed up and used.
For warranty and all inquiries regarding the stove, it is also important that you know
the stove production number. We recommend therefore that you note down the num-
ber in the table below.
The production number is at the bottom of the stove side.
Especially for Denmark - New rules for installation of wood burning stoves
On 1 January 2008 a new regulation for stoves came into force. The regulations intro-
duced new requirements for the installation of stoves concerning emission levels and
documentation. The consequence is that from 1 June 2008, all newly installed stoves
must have an EN approval together with a Norwegian or German approval.
It also introduces a test certificate to ensure that the requirement for emissions are met.
This certificate can be found at the back in this user manual, and must be signed by the
chimney sweep after installation. Please note, that the certificate must be signed prior
to the stove's first use, and should follow the stove throughout its lifetime.
Date: Dealer:
English RAIS/ attika - U ser manual for VISIO 3-1

1111
Warranty
RAIS/ attika stoves have been repeatedly tested in terms of the safety and the quality
of materials and manufacturing. All models are guaranteed from the date of installa-
tion.
The warranty covers:
• documented malfunction due to faulty processing
• proven material defects
The warranty does not cover:
• door and glass gaskets
• ceramic glass
• chamber lining
• appearance of the surface structure or natural stone texture
• appearance or changes of colour of the stainless steel or patina surfaces
• expansion sounds
The warranty becomes void in cases of:
• damage due to overfiring
• damage due to external influences and use of unsuitable fuels
• failure to comply with statutory or recommended installation requirements, and in
the case of modifications to the stove.
• lack of service and care
Please contact your dealer in the event of damage. In case of warranty claims, we will
determine the most appropriate damage repair procedure. In case of repair, we provide
professional implementation.
For warranty claims on supplied or repaired parts refer to national/ EU laws/regulations
in connection with renewed warranty periods.
The current warranty conditions can be obtained from RAIS A/S.
Transport safety
Before you install the stove remove the transport
safety. There are two screws on the back of the
stove.
English RAIS/ attika - U ser manual for VISIO 3-1

12
DTI
Danish Technological Institute
Teknologiparken Kongsvang Allé 29, DK-8000 Aarhus C
Danmark
www.dti.dk
Telefon: [phone]
Fax: [phone]
12
DTI ref .: 300-ELAB-2241-EN / 300-ELAB-
2241-NS / 300-ELAB-2241/300-
ELAB-2241- DIN+
123
VISIO 3-1 (NS) 223 VISIO 3-1 (DIN+)
Rated power (kW): 8,3 10*
*(Austria 7,8kW)
Min./Max. output (kW): 7,2 - 8,3 8,7 - 10
Heating area (m2): 125 150
Stove width/depth/height (mm): 628,2-929,3*-1368
*including frame
628,2-929,3*-1368
*including frame
Combustion chamber width/depth/
height (mm): 210-499-230 *
*MAX LOAD
210-499-230 *
*MAX LOAD
Recommended amount of wood when
fuelling (kg):
(Distributed between 2-4 logs of
wood of approx. 30 cm)
2.3 2.3
Min. uptake (Pascal): -11 -11
Weight (kg): 260 260
Efficiency (%): 77 80
CO-emission at 13% O2(%) 0.1718 0.0744
NOx-emission at 13% O2(mg/Nm³): 99 87
Particles emission acc. to
NS3058/3059 (g/kg): 5.79 -
Dust measured acc. to Din+ (mg/Nm³): 30 18
Flue gas mass flow (g/sec): 9.9 9.6
Flue gas temperature (° C): 229 238
Flue gas temperature (° C) at flue col-
lar 275 285
Intermittent operation: yes yes
Specifications
VISIO 3-1 is an inset stove with vertically operated door.
English RAIS/ attika - U ser manual for VISIO 3-1

13
A-A
B-B
A
A
B
B
45
1368
369
859,1
514,2
628,2
875,5
755,3
1319
628 1024
929,3
924
Areal top 700cm²
Areal bund 530cm²
13
Distances/Measurements
Note that the exhaust branch can rotate continuously.
I: Distance from floor to centre smoke top outlet
K: Distance from back side to air intake bottom (Air System)
N: Distance from side to air intake bottom (Air System)
English RAIS/ attika - U ser manual for VISIO 3-1

1414
Convection
RAIS/ attika stoves are convection stoves. Convection means that the air is circulated
so the heat is more evenly distributed throughout the entire room.
The cold air is sucked in at the base of the stove, and runs along the stove's combus-
tion chamber, whereby air is heated.
The heated air flows out along the sides and out of the top ensuring air circulation
Note that all outer surfaces become hot during the stove's use - extreme care needs to
be taken.
Use the insert optimally
By mounting the hot air nozzles and flexible hoses (or similar) on top of the stove, it is
possible to "move" the heat to other rooms.
Decisions must be made concerning the positioning of the inlets and outlets of the
convection system.
Make sure that the area requirements are respected, and that holes are not blocked
from the outside.
Discolouration of the stove walls, doors and convection outlets may occur. This is cau-
sed by the rising hot air.
RAIS assumes no responsibility for any installation or consequential damages.
English RAIS/ attika - U ser manual for VISIO 3-1

1515
Installation
It is important that the stove is installed properly for the sake of both the environment
and safety.
When installing the stove, all local rules and regulations, including those referring to
national and European standards must be respected. Local authorities and a chimney
specialist should be consulted before installation.
The stove may only be installed by a qualified / competent RAIS dealer / installer or the
warranty will be invalid.
It is prohibited to carry out unauthorised alterations to the stove
NOTE!
Before the stove can be used, the local chimney sweep must be notified.
There should be an ample supply of fresh air in the installation room to ensure good
combustion- if necessary through an airbox connection . Note that any mechanical ex-
haust ventilation e.g. an extraction hood may reduce the air supply. Any air vents must
be placed in such a manner that the air supply is not blocked.
Alternatively, the stove can be supplied with fresh air directly from the outside through
a flexible piping fitted to the damper (see Air system section).
The stove consumes 10 to 20 m³of air per hour.
The floor must be able to carry the weight of the stove and the chimney. If the existing
floor construction doesn’t meet this requirement, suitable measures (e.g. load distribut-
ing plate) shall be taken to achieve it.
Consult with a construction expert.
The stove should be placed on non-flammable material.
The stove must be placed at a safe distance from flammable materials.
It must be ensured that flammable objects (e.g. furniture) are not placed closer than the
distances indicated in the following section concerning installation (fire risk).
If the stove is installed on a flammable floor, the size of the non-flammable surface
underneath the stove must be in accordance with national / local regulations.
When you choose where you want to place your RAIS / attika stove, you should think
of the heat distribution to other rooms. Then you will get the most pleasure from your
stove.
See the manufacturer's plate on the stove.
Upon receiving, the stove must be inspected for defects.
NB!!
The stove may only be installed by a qualified/competent RAIS dealer/installer.
See www.rais.com for list of dealers
English RAIS/ attika - U ser manual for VISIO 3-1

1616
Chimney
The chimney is the driving force which makes the stove function. In order for the stove
to perform satisfactorily the chimney height must be sufficient to ensure the correct
draught of 14 to 18 Pa so as to clear the products of combustion and prevent problems
of smoke emanating into the room when firing.
NOTE: A chimney height of not less than 4.5 metres measured vertically from the outlet
of the stove to the top of the chimney should be satisfactory. Alternatively the calcula-
tion procedure given in BS 5854:1980 may be used as the basis for deciding whether a
particular chimney design will provide sufficient draught.
The outlet from the chimney should be above the roof of the building in accordance
with the provisions of Building Regulations Approved Document J.
If installation is into an existing chimney then it must be sound and have no cracks or
other faults which might allow fumes into the house. Older properties, especially, may
have chimney faults or the cross section may be too large i.e. more than 230 mm x 230
mm. Remedial action should be taken, if required, seeking expert advice, if necessary. If
it is found necessary to line the chimney then a flue liner suitable for solid fuel must be
used in accordance with Building Regulations Approved Document J.
Any existing chimney must be clear of obstruction and have been swept clean immedi-
ately before installation of the stove. If the stove is fitted in place of an open fire then
the chimney should be swept one month after installation to clear any soot falls which
may have occurred due to the difference in combustion between the stove and the
open fire.
If there is no existing chimney then either a prefabricated block chimney in accordance
with Building Regulations Approved Document J or a twin walled insulated stainless
steel flue to BS 1856-1 can be used. These chimneys must be fitted in accordance with
the manufacturer’s instructions and Building Regulations.
A single wall metal fluepipe is suitable for connecting the stove to the chimney but is
not suitable for using for the complete chimney. The chimney and connecting fluepipe
must have a minimum diameter of 180 mm. Any bend in the chimney or connecting
fluepipe should not exceed 45°. 90°bends should not be used.
Combustible material should not be located where the heat dissipating through the
walls of fireplaces or flues could ignite it. Therefore when installing the stove in the
presence of combustible materials due account must be taken of the guidance on the
separation of combustible material given in Building Regulations Approved Document J
and also in these stove instructions.
If it is found that there is excessive draught in the chimney then either an adjustable
flue damper or alternatively a draught stabiliser should be fitted. The adjustable flue
damper should not close off the flue entirely but should in its closed position leave a
minimum continuous opening free area of at least 20 % of the total cross sectional
area of the flue or fluepipe.
Adequate provision e.g. easily accessible soot door or doors must be provided for
sweeping the chimney and connecting fluepipe.
You should also familiarise yourself with the draught conditions for chimneys with 2
flues.
The stove is supplied with a ø200 mm flue outlet spigot.
The stove is approved with a ø180 mm flue outlet spigot, which can be retrofitted.
English RAIS/ attika - U ser manual for VISIO 3-1

1717
Installation measurements
Valid for installation in non-flammable panels, or in brick.
If other materials are used, they must have the same or better properties.
To obtain the necessary distances from the stove to the panel/brickwork, the interior
measurements of should be min. 528,2mm X 924,3mm If these are observed, the exte-
rior can be adjacent to a flammable wall. There must be a top plate in the cabinet just
above the convection outlet.
A fireplace insert must never be installed too tightly as steel expands during heating.
Choice of installation materials
For non-flammable materials select panels/brick with a thermal resistance greater than
0.03 m2xK/W. Thermal resistance is defined as the wall thickness (in m) divided by the
wall lambda value.
Consult your installer/chimney sweep.
During the test the stove was installed in a cabinet made of non-flammable building
panels 50 mm Calcium silicate (Skamotec 225).
English RAIS/ attika - U ser manual for VISIO 3-1

1818
Hole measurements (height x width x depth) min. 490,1mm x 528,2mm x 705,3mm
(int. measurement). Hole measurements are for stove with inset frame.
English RAIS/ attika - U ser manual for VISIO 3-1

19
A
B
C
E E
C
G
H
O
O
H
> 1425mm
> 50mm
A A
19
A - Distance to furniture 700mm
B - Distance to ammable oor in front of the oven 150mm
C - Distance to ammable oor next to the oven 150mm
E - Distance to ammable side wall 0mm
G - Distance to the oor 375mm
H - Distance to ceiling 420mm
Minimum distance to ammable materials
O - Distance to rewall next to stove 500mm
Minimum distance to rewall
English RAIS/ attika - U ser manual for VISIO 3-1
(H) In case of convec-
tion outlet in the top
of the box

2020
PLEASE NOTE!
The insulated part of the chimney
must go all the way down to the
flue collar.
To get the most out of your stove
and the best possible flow of warm
air out of the convection grilles,
place the grates just below the non-
flammable top plate.
English RAIS/ attika - U ser manual for VISIO 3-1
