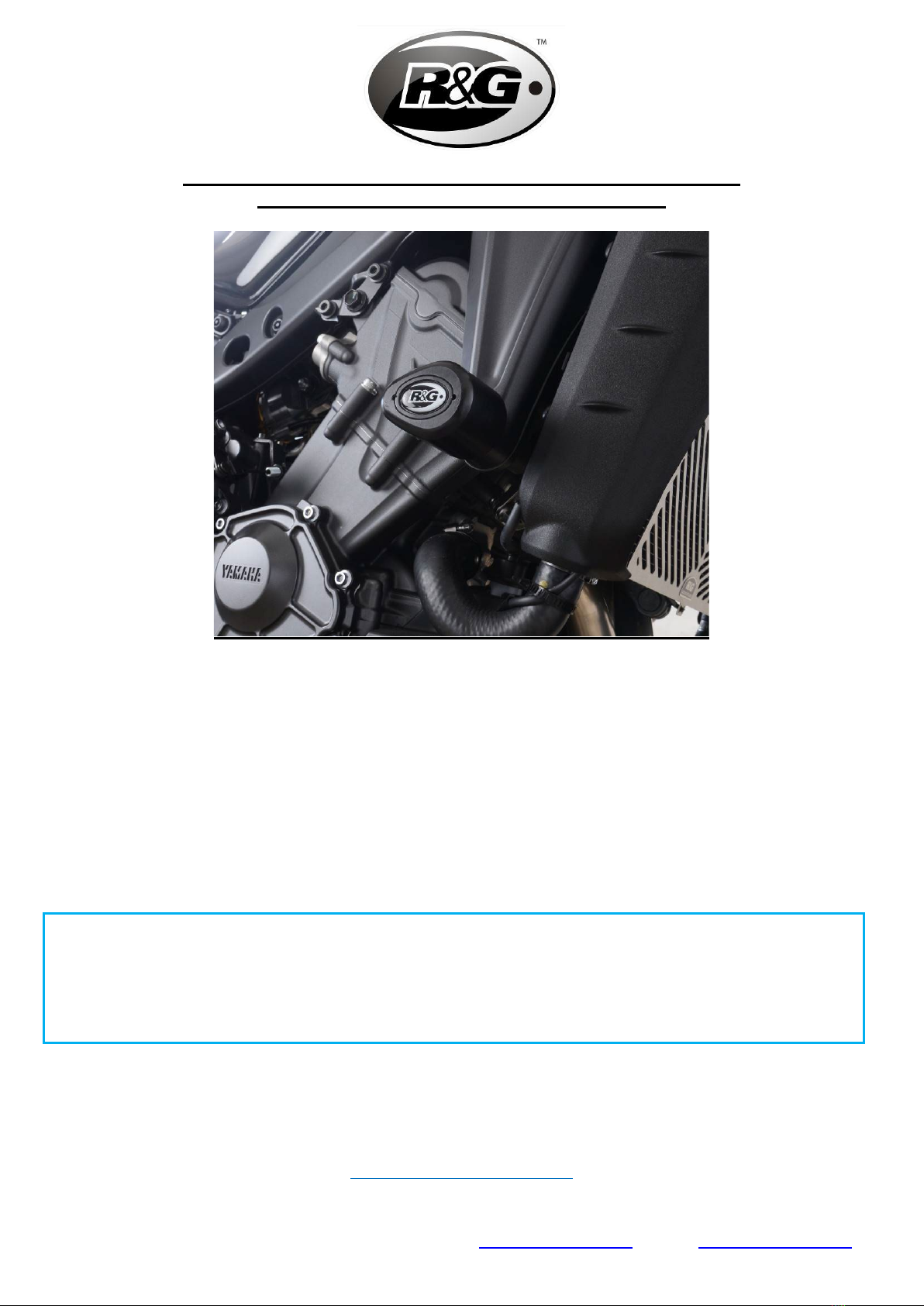

FITTING INSTRUCTIONS
CP0523BK AERO CRASH PROTECTORS
THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED OVER PAGE.
SOME PARTS MAY BE SHOWN FOR CLARITY OF INSTRUCTIONS ONLY.
DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT.
PLEASE READ ALL INSTRUCTIONS BEFORE PROCEEDING.
IF IN ANY DOUBT WHEN FITTING OUR PRODUCTS, CONSULT ONE OF OUR DEALERS
OR HAVE FITTED BY A QUALIFIED TECHNICIAN.
PLEASE NOTE THAT THE WAY THE KIT IS PACKED DOES NOT NECESSARILY REPRESENT THE WAY OF
MOUNTING TO THE BIKE.
IN THE EVENT OF RUBBER WASHERS BEING USED TO HOLD COMPONENTS ONTO BOLTS,
THESE RUBBER WASHERS CAN BE THROWN AWAY.
DIGITAL COPIES OF THESE INSTRUCTIONS ARE AVAILABLE FROM:
WWW.RG-RACING.COM

Page 2of 18 CP0523
R&G Racing
Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: [phone] Fax: [phone] www.rg-racing.com Email: [e-mail]
TOOLS REQUIRED
•3/8” or ½” HEX KEY BIT SET
•17mm A/F SOCKET & WRENCH
•TORQUE WRENCH (UP TO 50Nm)
•SUITABLE SUPPORT JACK
GENERAL TORQUE SETTINGS
M4 BOLT = 8Nm
M5 BOLT = 12Nm
M6 BOLT = 15Nm
M8 BOLT = 20Nm
M10 BOLT = 40Nm
M12 BOLT = 40Nm
LEGEND
ITEM NO. DESCRIPTION QTY
ITEM 1
B0061
70mm LONG AERO BOBBINS (LHS)
1
ITEM 2
B0063
55mm LONG AERO BOBBINS (RHS)
1
ITEM 3
BC0002
BOBBIN CAPS (BOTH SIDES)
2
ITEM 4
S0366
TWO Ø SPACER 33mm LONG (BLACK) (LHS)
1
ITEM 5
S0033
SINGLE Ø SPACER 15mm LONG (BLACK) (RHS)
1
ITEM 6
M10x1.25x120
HEX HEAD BOLT (LHS)
1
ITEM 7
M10x1.25x85
HEX HEAD BOLT (RHS)
1
ITEM 8
M10x19mm O/D
PENNY WASHER (BOTH SIDES)
2
ITEM 9
LW0001
LOCKING WASHERS (BOTH SIDES)
2

Page 3of 18 CP0523
R&G Racing
Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: [phone] Fax: [phone] www.rg-racing.com Email: [e-mail]
AERO-STYLE CRASH PROTECTOR ORIENTATION
LHS & RHS EXPLODED ASSEMBLY VIEW
LHS
RHS
LHS
RHS

Page 4of 18 CP0523
R&G Racing
Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: [phone] Fax: [phone] www.rg-racing.com Email: [e-mail]
FITTING PICTURES
Picture 1
Picture 2
Picture 3
Picture 4
Picture 5
Picture 6

Page 5of 18 CP0523
R&G Racing
Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: [phone] Fax: [phone] www.rg-racing.com Email: [e-mail]
FITTING INSTRUCTIONS
Before removing engine bolts, ensure the bike is upright and supported by a suitable engine
stand or jack placed under the sump of the motorbike to support the partial weight of the
engine, this will prevent the engine from moving during fitting. DO NOT REMOVE MORE THAN
1 ENGINE BOLT AT ANY TIME.
PREPARATION:
•Place a suitable jack beneath the engine in a central position using a piece of wood between the
jack and engine.
•Apply very light pressure to the underside of the engine to support the engine during the
fitment process.
Assemble the crash protectors before removing the engine bolts to limit the amount
of time the engine is partially un-supported.
•Following the diagrams in Pictures: 1 & 4, place one of the penny washers (ITEM 8) over the
bolts (ITEMS 6 & 7) followed by the shake proof washer (ITEM 9).
•Insert the 120mm bolt (ITEM 6) with washers into the 70mm long bobbin (ITEM 1) followed
by the 33mm long spacer (ITEM 4).
•Then insert the 85mm bolt (ITEM 7) with washers into the 55mm long bobbin (ITEM 2)
followed by the 15mm long spacer (ITEM 5).
INSTALLATION:
•Use a ½” or 3/8” hex key bit & wrench to remove the RHS engine bolt. (Picture 2)
•Leaving the OEM spacers in place, push the RHS bolt/assembly (Picture 4) you prepared earlier
into the engine mount hole and thread by hand to avoid cross threading.
NOTE: To avoid cross threading apply forward pressure to the bolt and rotate counter-
clockwise until a click is heard then begin to turn clockwise & tighten.
•Rotate the bobbin a few degrees counter-clockwise and hold in place while tightening to stop
the bobbin rotating too far while tightening.
•Using a torque wrench with 17mm socket fitted, tighten the bolt to 45 Nm.
•Repeat the process for the other side referring to Pictures 1, 5 & 6.
•Once completed, double check torque settings & the position/orientation of the bobbins then
push the bobbin caps (ITEM 3) into place and remove the jack.
Please note: Torque of the engine/bobbin bolts should be checked at regular intervals when doing
routine maintenance/servicing.
See more R&G products for your Motorcycle in the link below:
R&G Racing | All Products for Yamaha - MT-09 (FZ-09) (rg-racing.com)
ISS 3 - 05/12/2022 (TB)
