FITTING INSTRUCTIONS FOR MBP0029BK MIRROR BLANKING PLATE
YAMAHA T-MAX 530 ’12- ’16 & ’17-
Please note that the way the kit is packed does not necessarily represent the way of mounting to the bike
THE PARTS SHOWN MAY BE REPRESENTATIVE ONLY (FOR CLARITY OF INSTRUCTIONS ONLY)
Please note that in cases where kits are packed with rubber washers holding the components onto the bolt –the rubber
washers should be thrown away!
LEGEND
ITEM 1 = BLANKING PLATE LEFT (BLP0076) (x1).
ITEM 2 = BLANKING PLATE RIGHT (BLP0077) (x1).
ITEM 3 = MOUNTING BLOCK (M0536) (x2).
ITEM 4 = M5 x 16mm LONG COUNTERSUNK BOLTS (x4).

MBP0029
R&G
Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: [phone] Fax: [phone] www.rg-racing.com Email: [e-mail]
- 2 -
Page | 2

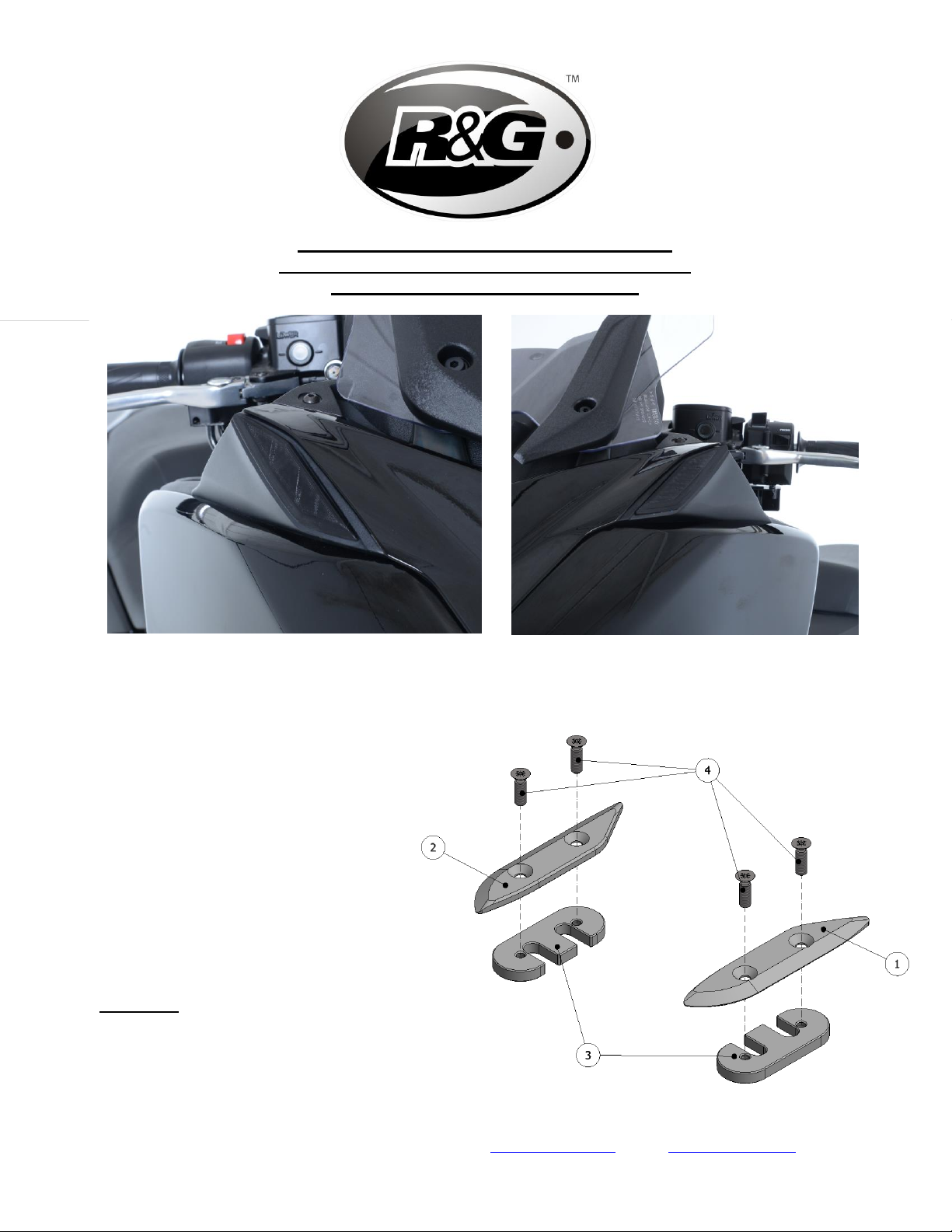

Picture 1 Picture 2
Picture 3 Picture 4
Picture 5 Picture 6

MBP0029
R&G
Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: [phone] Fax: [phone] www.rg-racing.com Email: [e-mail]
- 3 -
Page | 3
TOOLS REQUIRED
4mm Allen Key.
Socket set & wrench.
Phillips screwdriver.
FITTING INSTRUCTIONS
If fitting to ‘17- models
Remove the bolt that secures the front of the nose bodywork in place that is shown in picture 1 along with the bolt
in the top corner on both sides of the bike. The top left bolt is arrowed in picture 2.
With the three bolts removed, the panel can be slid forwards and removed from the bike, as shown in picture 3.
Remove the two bolts that secure the OEM mirror in place on both sides of the bike, as shown in picture 4.
When the mirrors are removed, a rubber insert will remain on the bodywork, as shown in picture 5.
This needs to be re-used, with the mounting block position on the reverse side of the rubber behind the bodywork
as shown in picture 6.
Position the R&G blanking plate into position within the rubber insert, before fitting the two countersunk bolts
through the face with countersunk holes on the blanking and tighten into the threaded holes on the mounting block
on the underside, sandwiching the rubber in place. Do not overtighten as the bolts and blanking plates are made of
plastic.
Repeat this procedure to fit the blanking plate on the other side of the bike.
Re-fit the nose panel by sliding rearwards to mount that locating tabs before re-fitting the three bolts and tighten.
If fitting to ’12-‘18 models
Remove the front nose panel and then fit the blanking plates using the same procedure as above.
ISSUE 1 21/11/2017 (AR)
Digital copies of these instructions are available to download from www.rg-racing.com
CONSUMER NOTICE
The catalogue description and any exhibition of samples are only broad indications of the Products and R&G may make design changes which do not
diminish their performance or visual appeal and supplying them in such state shall conform to the order. The Buyer acknowledges no representation or
warranty (other than as to title) has been given or will apply to the Products other than those in R&G’s order or confirmation and the Buyer confirms it has
chosen the Products as being of merchantable quality and suitable for its particular purposes. Where R&G fits the Products or undertakes other services it
shall exercise reasonable skill and care and rectify any fault free of charge unless the workmanship has been disturbed. The Buyer is responsible for
ensuring that the warranty on the motorcycle is not affected by the fitting of the Products. On return of any defective Products R&G shall at its option
either supply a replacement or refund the purchase money but shall not be liable if the Products have been modified or used or maintained otherwise than
in accordance with R&G’s or manufacturer’s instructions and good engineering practice or if the defect arises from accident or neglect. Other than
identified above and subject to R&G not limiting its liability for causing death and personal injury, it shall not be liable for indirect or consequential loss
and otherwise its liability shall be limited to the amounts paid by the Buyer for the Products or the fitting or service concerned. These terms do not affect
the Buyer’s statutory rights.
R&G RETURNS POLICY (NON-FAULTY GOODS)
Returns must be pre-authorised (if not pre-authorised the return will be rejected). Goods may only be returned direct to us if they were purchased direct
from us (customer must prove if necessary). Otherwise to be returned to original vendor. Goods must be in re-sellable condition, in the opinion of R&G.
All returns are subject to a 25% restocking and handling fee (25% of the gross value exc. P&P –at the prevailing price at time of purchase). The customer
must pay any and all carriage charges. No returns of discontinued products, unless within 14 days of purchase. This policy does not affect your statutory
rights and does not refer to faulty goods.

MBP0029
R&G
Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: [phone] Fax: [phone] www.rg-racing.com Email: [e-mail]
- 4 -
Page | 4
NOTICE DE MONTAGE POUR MBP0029BK
PLAQUE D’OBTURATION DE RÉTROVISEURS
YAMAHA T-MAX 530 ’12- ’16 & ’17-
La façon dont le kit est emballé ne correspond pas forcément à la façon de monter les pièces sur la moto.
LES PARTIES PRESENTEES PEUVENT ETRE UNIQUEMENT REPRESENTATIVES (POUR LA
CLARTE DES INSTRUCTIONS UNIQUEMENT)
Notez que si les kits sont emballés avec des rondelles en caoutchouc servant à tenir les composants, ces
rondelles doivent être jetées !
LÉGENDE
ARTICLE 1 = PLAQUE D’OBTURATION CÔTÉ GAUCHE (BLP0076) (x1).
ARTICLE 2 = PLAQUE D’OBTURATION CÔTÉ DROIT (BLP0077) (x1).
ARTICLE 3 = BLOC DE MONTAGE (M0536) (x2).
ARTICLE 4 = M5 x 16mm BOULONS (x4).

MBP0029
R&G
Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: [phone] Fax: [phone] www.rg-racing.com Email: [e-mail]
- 5 -
Page | 5
Photo 1 Photo 2
Photo 3 Photo 4
Photo 5 Photo 6

MBP0029
R&G
Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: [phone] Fax: [phone] www.rg-racing.com Email: [e-mail]
- 6 -
Page | 6
OUTILS REQUIS
Clé Allen 4mm.
Clé à cliquet + douille
Tournevis cruciforme
NOTICE DE MONTAGE
Si l’installation se fait sur un modèle ‘17
Enlever le boulon qui fixe l’avant du nez de carénage en place (voir photo 1) avec le boulon dans le coin supérieur
des 2 côtés de la moto. Le boulon gauche supérieur est indiqué sur la photo 2.
Une fois les 3 boulons enlevés, le panneau peut être glissé vers l’avant et enlevé de la moto (voir photo 3).
Enlever les rétroviseurs d’origine en place des 2 côtés de la moto (voir photo 4).
Une fois les rétroviseurs enlevés, un insert en caoutchouc restera sur le carénage (voir photo 5).
Il doit être réutilisé, avec le bloc de montage en position du côté opposé du caoutchouc derrière le carénage (voir
photo 6).
Positionner la plaque d’obturation R&G en position dans l’insert en caoutchouc, avant d’insérer les 2 boulons à
travers la face possédant les trous fraisés sur l’obturation puis serrer dans les trous filetés sur le bloc de montage
au-dessous, prenant en sandwich le caoutchouc en place. Ne pas trop serrer car les boulons et plaques d’obturation
sont faits de plastique.
Répéter cette procédure pour monter la plaque d’obturation de l’autre côté de la moto.
Remonter le nez du panneau en le glissant vers l’arrière pour monter les onglets de fixation avant de réinsérer les 3
boulons puis serrer.
Si l’installation se fait sur un modèle ’12-‘18
Enlever le nez de panneau avant puis monter les plaques d’obturation en utilisant la même procédure que ci-
dessus. ISSUE 1 21/11/2017 (AR)
Notice disponible au téléchargement sur www.rg-racing.com
CONSUMER NOTICE
The catalogue description and any exhibition of samples are only broad indications of the Products and R&G may make design changes which do not
diminish their performance or visual appeal and supplying them in such state shall conform to the order. The Buyer acknowledges no representation or
warranty (other than as to title) has been given or will apply to the Products other than those in R&G’s order or confirmation and the Buyer confirms it has
chosen the Products as being of merchantable quality and suitable for its particular purposes. Where R&G fits the Products or undertakes other services it
shall exercise reasonable skill and care and rectify any fault free of charge unless the workmanship has been disturbed. The Buyer is responsible for
ensuring that the warranty on the motorcycle is not affected by the fitting of the Products. On return of any defective Products R&G shall at its option
either supply a replacement or refund the purchase money but shall not be liable if the Products have been modified or used or maintained otherwise than
in accordance with R&G’s or manufacturer’s instructions and good engineering practice or if the defect arises from accident or neglect. Other than
identified above and subject to R&G not limiting its liability for causing death and personal injury, it shall not be liable for indirect or consequential loss
and otherwise its liability shall be limited to the amounts paid by the Buyer for the Products or the fitting or service concerned. These terms do not affect
the Buyer’s statutory rights.
R&G RETURNS POLICY (NON-FAULTY GOODS)
Returns must be pre-authorised (if not pre-authorised the return will be rejected). Goods may only be returned direct to us if they were purchased direct
from us (customer must prove if necessary). Otherwise to be returned to original vendor. Goods must be in re-sellable condition, in the opinion of R&G.
All returns are subject to a 25% restocking and handling fee (25% of the gross value exc. P&P –at the prevailing price at time of purchase). The customer
must pay any and all carriage charges. No returns of discontinued products, unless within 14 days of purchase. This policy does not affect your statutory
rights and does not refer to faulty goods.

MBP0029
R&G
Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: [phone] Fax: [phone] www.rg-racing.com Email: [e-mail]
- 7 -
Page | 7
MONTAGEANLEITUNG FÜR MBP0029BK SPIEGEL-VERSCHLUSSPLATTEN
YAMAHA T-MAX 530 ’12- ’16 & ’17-
Hinweis: Die Verpackung der Teile stellt nicht die Reihenfolge der Montage dar.
DIE ABGEBILDETEN TEILE DIENEN LEDIGLICH ZUR ERKLÄRUNG.
Hinweis für Kits mit Plastikunterlegscheiben an den Schrauben –Diese Plastikunterlegscheiben werden nicht für den
Einbau benötigt!
LIEFERUMFANG
ARTIKEL 1 = VERSCHLUSSPLATTE LINKS (BLP0076) (x1)
ARTIKEL 2 = VERSCHLUSSPLATTE RECHTS (BLP0077) (x1)
ARTIKEL 3 = AUFNAHMEPLATTE (M0536) (x2)
ARTIKEL 4 = M5 x 16mm SENKSCHRAUBEN (x4)

MBP0029
R&G
Unit 1, Shelley’s Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: [phone] Fax: [phone] www.rg-racing.com Email: [e-mail]
- 8 -
Page | 8

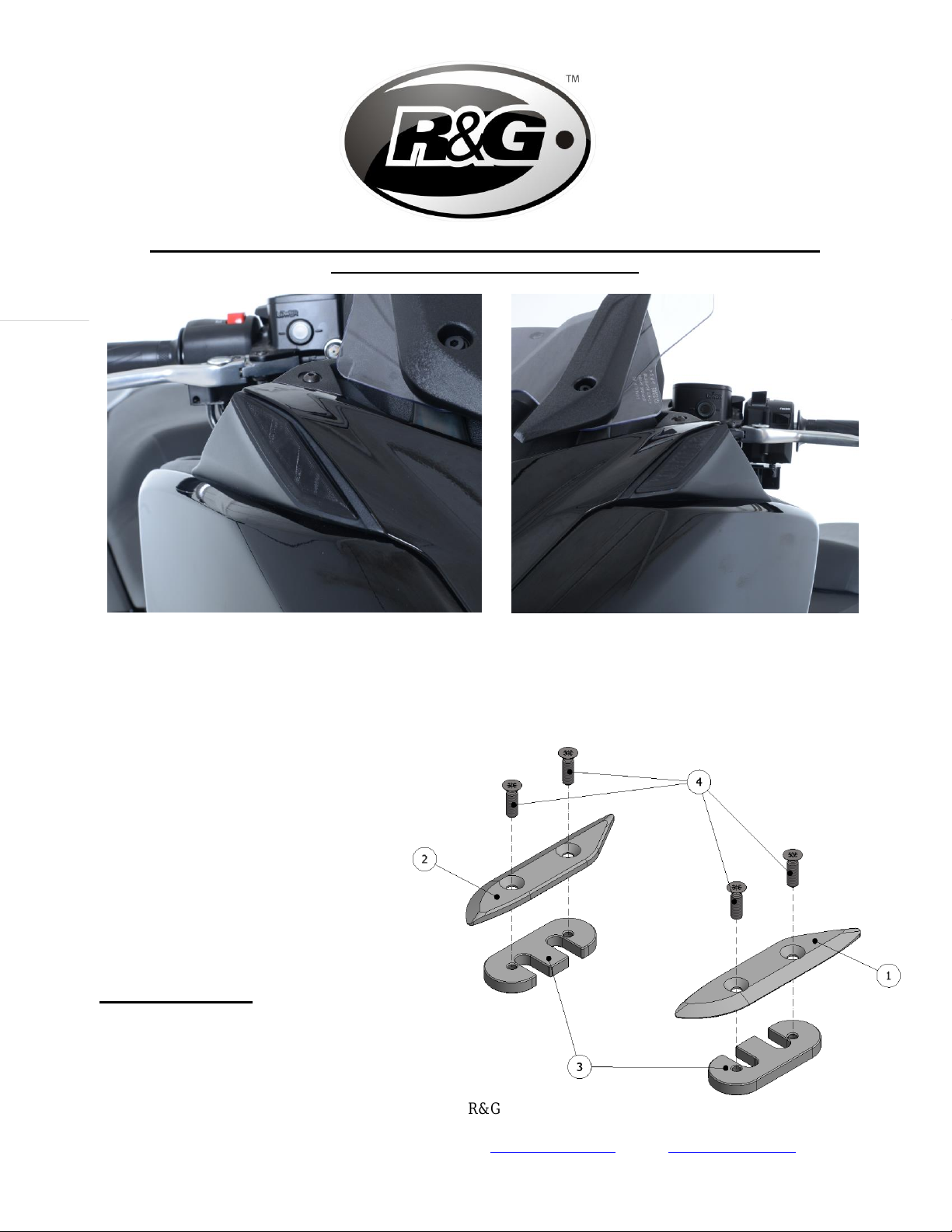

Abbildung 1 Abbildung 2
