R&S TSMA-BP User manual

R&S®TSMA-BP
Battery Pack Unit
Getting Started
Getting Started
Version 05
1177588502
(;ÛÈã2)

This manual describes the following R&S®TSMA accessory:
●R&S®TSMA-BP Battery Pack Unit (1523.8009.02)
© 2019 Rohde & Schwarz GmbH & Co. KG
Mühldorfstr. 15, 81671 München, Germany
Phone: [phone] - 0
Fax: [phone]
Email: [email protected]
Internet: www.rohde-schwarz.com
Subject to change – Data without tolerance limits is not binding.
R&S® is a registered trademark of Rohde & Schwarz GmbH & Co. KG.
Trade names are trademarks of the owners.
1177.5885.02 | Version 05 | R&S®TSMA-BP
The following abbreviations are used throughout this manual: R&S®TSMA-BP Battery Pack Unit is abbre-
viated as R&S TSMA-BP Battery Pack Unit.

Contents
R&S®TSMA-BP
3Getting Started 1177.5885.02 ─ 05
Contents
1 Safety Information................................................................. 5
2 Documentation Overview......................................................6
2.1 Getting Started Manual.........................................................................6
2.2 User Manuals and Help........................................................................ 6
2.3 Basic Safety Instructions..................................................................... 6
2.4 Data Sheets and Brochures................................................................. 6
2.5 Release Notes and Open Source Acknowledgment (OSA)...............7
3 Key Features.......................................................................... 8
4 Preparing for Use...................................................................9
4.1 Unpacking and Setting Up the Instrument......................................... 9
4.2 Inserting a Battery in the R&S TSMA-BP Battery Pack Unit........... 10
4.3 Connecting the R&S TSMA-BP Battery Pack Unit with R&S TSMA
.............................................................................................................. 11
4.4 Connecting the R&S TSMA-BP Battery Pack Unit with External
Power Supply...................................................................................... 15
5 Operation..............................................................................17
Index..................................................................................... 20

Contents
R&S®TSMA-BP
4Getting Started 1177.5885.02 ─ 05

Safety Information
R&S®TSMA-BP
5Getting Started 1177.5885.02 ─ 05
1 Safety Information
The product documentation helps you use the R&S TSMA-BP Battery Pack Unit
safely and efficiently. Follow the instructions provided here and in the printed
"Basic Safety Instructions". Keep the product documentation nearby and offer it to
other users.
Intended use
The R&S TSMA-BP Battery Pack Unit is intended for the development, produc-
tion and verification of electronic components and devices in industrial, adminis-
trative, and laboratory environments. Use the R&S TSMA-BP Battery Pack Unit
only for its designated purpose. Observe the operating conditions and perform-
ance limits stated in the data sheet.
Where do I find safety information?
Safety information is part of the product documentation. It warns you about the
potential dangers and gives instructions how to prevent personal injuries or dam-
age caused by dangerous situations. Safety information is provided as follows:
●The printed "Basic Safety Instructions" provide safety information in many lan-
guages and are delivered with the R&S TSMA-BP Battery Pack Unit.
●Throughout the documentation, safety instructions are provided when you
need to take care during setup or operation.

Documentation Overview
R&S®TSMA-BP
6Getting Started 1177.5885.02 ─ 05
2 Documentation Overview
This section provides an overview of the R&S TSMA-BP Battery Pack Unit user
documentation. Unless specified otherwise, you find the documents on the R&S
TSMA-BP Battery Pack Unit product page at:
www.rohde-schwarz.com/manual/tsmx
2.1 Getting Started Manual
Introduces the R&S TSMA-BP Battery Pack Unit and describes how to set up and
start working with the product. Includes basic operations, typical measurement
examples, and general information, e.g. safety instructions, etc. A printed version
is delivered with the instrument.
2.2 User Manuals and Help
Contains the description of all instrument modes and functions. Includes the con-
tents of the getting started manual .
2.3 Basic Safety Instructions
Contains safety instructions, operating conditions and further important informa-
tion. The printed document is delivered with the instrument.
2.4 Data Sheets and Brochures
The data sheet contains the technical specifications of the R&S TSMA-BP Battery
Pack Unit. It also lists the firmware applications and their order numbers, and
optional accessories.
The brochure provides an overview of the instrument and deals with the specific
characteristics.
Data Sheets and Brochures

Documentation Overview
R&S®TSMA-BP
7Getting Started 1177.5885.02 ─ 05
See www.rohde-schwarz.com/brochure-datasheet/tsmx
2.5 Release Notes and Open Source Acknowledg-
ment (OSA)
The release notes list new features, improvements and known issues of the cur-
rent firmware version, and describe the firmware installation.
The open source acknowledgment document provides verbatim license texts of
the used open source software.
See www.rohde-schwarz.com/firmware/tsmx
Release Notes and Open Source Acknowledgment (OSA)

Key Features
R&S®TSMA-BP
8Getting Started 1177.5885.02 ─ 05
3 Key Features
The R&S TSMA-BP Battery Pack Unit allows to enhance the R&S TSMA instru-
ment to a portable measurement solution based on a battery powered system.
Key Features
●Power Supply for R&S TSMA in portable applications
●Hot-swap support for endless portable mode
●In-bay charging feature with smart battery controller
●Charging display via LED and monitoring window

Preparing for Use
R&S®TSMA-BP
9Getting Started 1177.5885.02 ─ 05
4 Preparing for Use
Risk of injury due to disregarding safety information
Observe the information on appropriate operating conditions provided in the
data sheet to prevent personal injury or damage to the instrument. Read
and observe the basic safety instructions provided with the instrument, in
addition to the safety instructions in the following sections. In particular:
●Do not open the instrument casing.
Risk of instrument damage during operation
An unsuitable operating site or test setup can cause damage to the instru-
ment and to connected devices. Ensure the following operating conditions
before you switch on the instrument:
●The instrument is dry and shows no sign of condensation.
●The instrument is positioned as described in the following sections.
●Signal levels at the input connectors are all within the specified ranges.
4.1 Unpacking and Setting Up the Instrument
The following section describes how to set up the instrument.
Risk of instrument damage
Note that the general safety instructions also contain information on operat-
ing conditions that prevent damage to the instrument. The instrument's data
sheet can contain additional operating conditions.
Unpacking and Setting Up the Instrument

Preparing for Use
R&S®TSMA-BP
10Getting Started 1177.5885.02 ─ 05
Check the equipment for completeness using the delivery note and the accessory
lists for the various items. Check the instrument for any damage. If there is dam-
age, immediately contact the carrier who delivered the instrument. Make sure not
to discard the box and packing material.
Packing material
Retain the original packing material. If the instrument needs to be transpor-
ted or shipped at a later date, you can use the material to protect the control
elements and connectors.
Accessory list
The following items are included with shipment of the R&S TSMA-BP Battery
Pack Unit:
●R&S TSMA-BP Battery Pack Unit (R&S TSMA-BP, R&S No. 1523.8009.02)
The following items are optional and must be ordered separately:
●Battery for R&S TSMA-BP Battery Pack Unit (R&S TSMA-BAT, R&S
No. 1523.8021.03)
Li-ion battery RRC2054 (15.0 V / 3200 mAh, 48.0 Wh)
●Charger for batteries (R&S TSMA-BC2, R&S No. 1523.8015.02)
Dual charger for batteries including country specific power cord
Model: RRC PMC02A
Uin = 100-240 V AC, max. 65 W
Only Li-ion battery of the type RRC2054 may be used!
4.2 Inserting a Battery in the R&S TSMA-BP Battery
Pack Unit
In order to run the R&S TSMA via battery pack, insert the batteries into the R&S
TSMA-BP Battery Pack Unit.
Inserting a Battery in the R&S TSMA-BP Battery Pack Unit

Preparing for Use
R&S®TSMA-BP
11Getting Started 1177.5885.02 ─ 05
Make sure, that the batteries are inserted in the correct orientation.

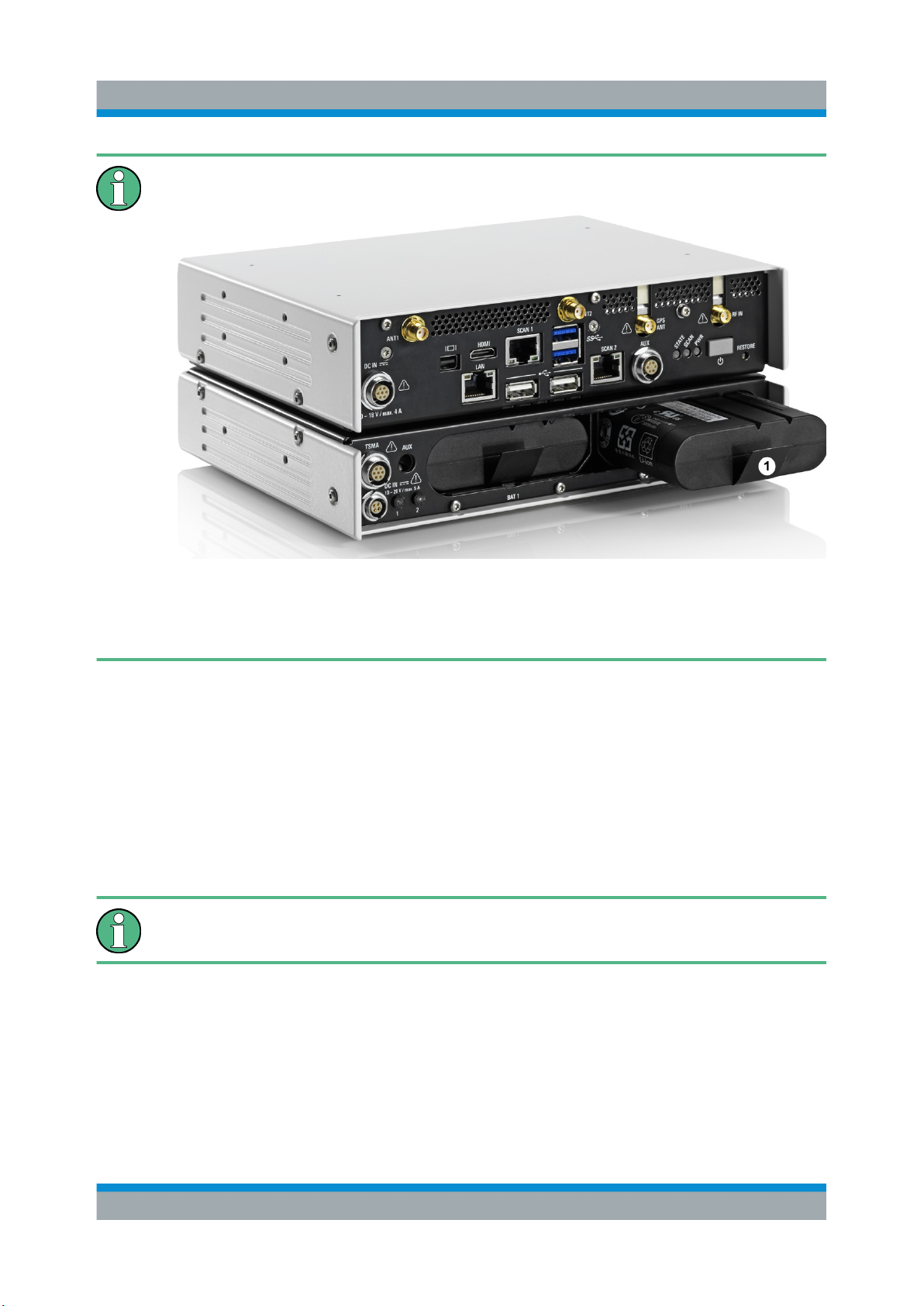

Figure 4-1: R&S TSMA-BP Battery Pack Unit - Battery Orientation
1 = Battery insert orientation
4.3 Connecting the R&S TSMA-BP Battery Pack
Unit with R&S TSMA
In order to use the R&S TSMA with the R&S TSMA-BP Battery Pack Unit, the fol-
lowing steps must be performed.
The R&S TSMA-BP Battery Pack Unit may be used only with closed battery
cover.
1. Attach the R&S TSMA base unit with the bottom side (see Figure 4-3) on top
of the R&S TSMA-BP (see Figure 4-2).
Connecting the R&S TSMA-BP Battery Pack Unit with R&S TSMA

Preparing for Use
R&S®TSMA-BP
12Getting Started 1177.5885.02 ─ 05

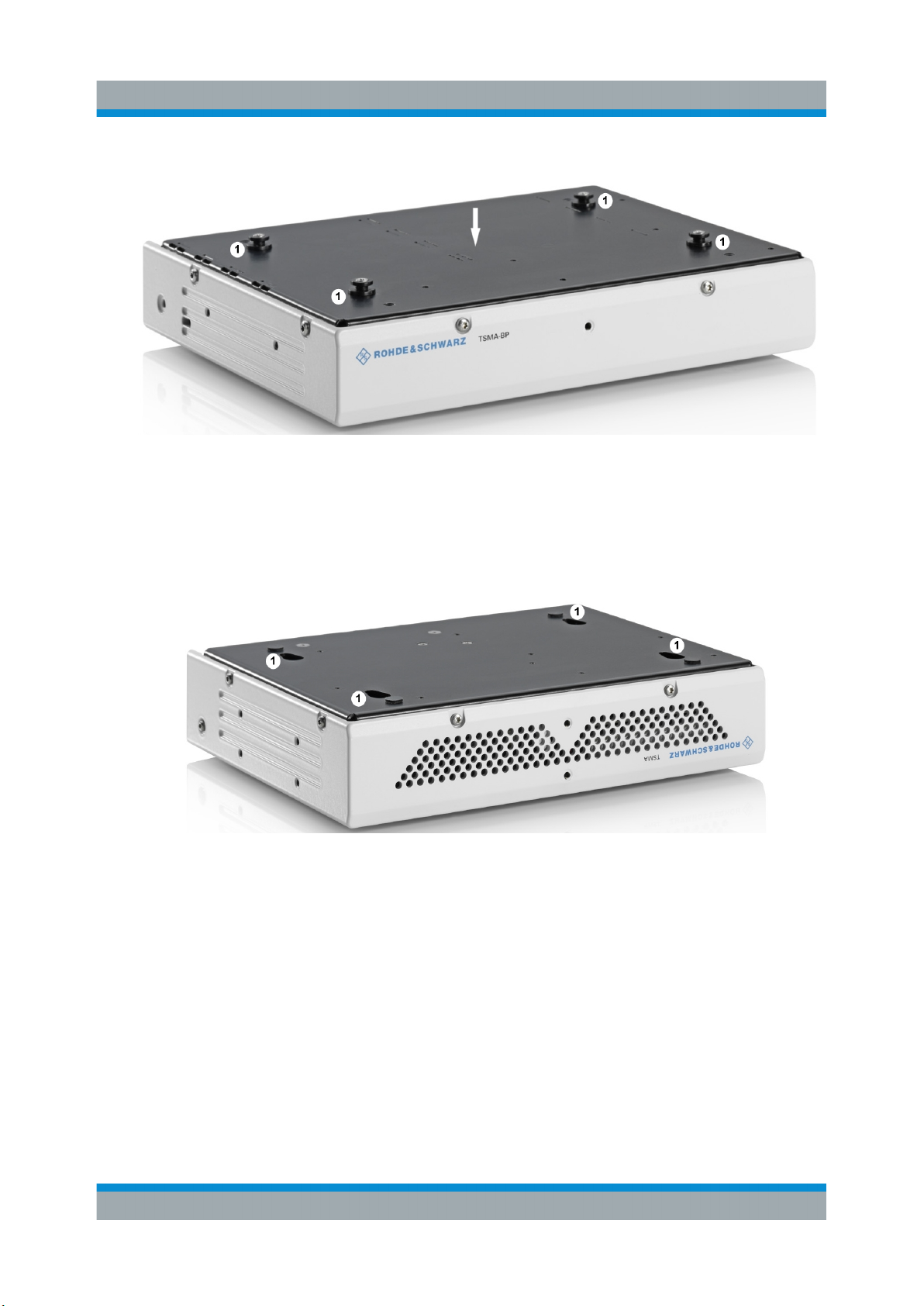

Figure 4-2: R&S TSMA-BP
1 = Connectors for R&S TSMA base unit
Figure 4-3: R&S TSMA Base Unit (bottom side)
1 = Connectors for R&S TSMA-BP
2. Move the R&S TSMA base unit to the front side (2) until the connectors are
locked.
Connecting the R&S TSMA-BP Battery Pack Unit with R&S TSMA

Preparing for Use
R&S®TSMA-BP
13Getting Started 1177.5885.02 ─ 05

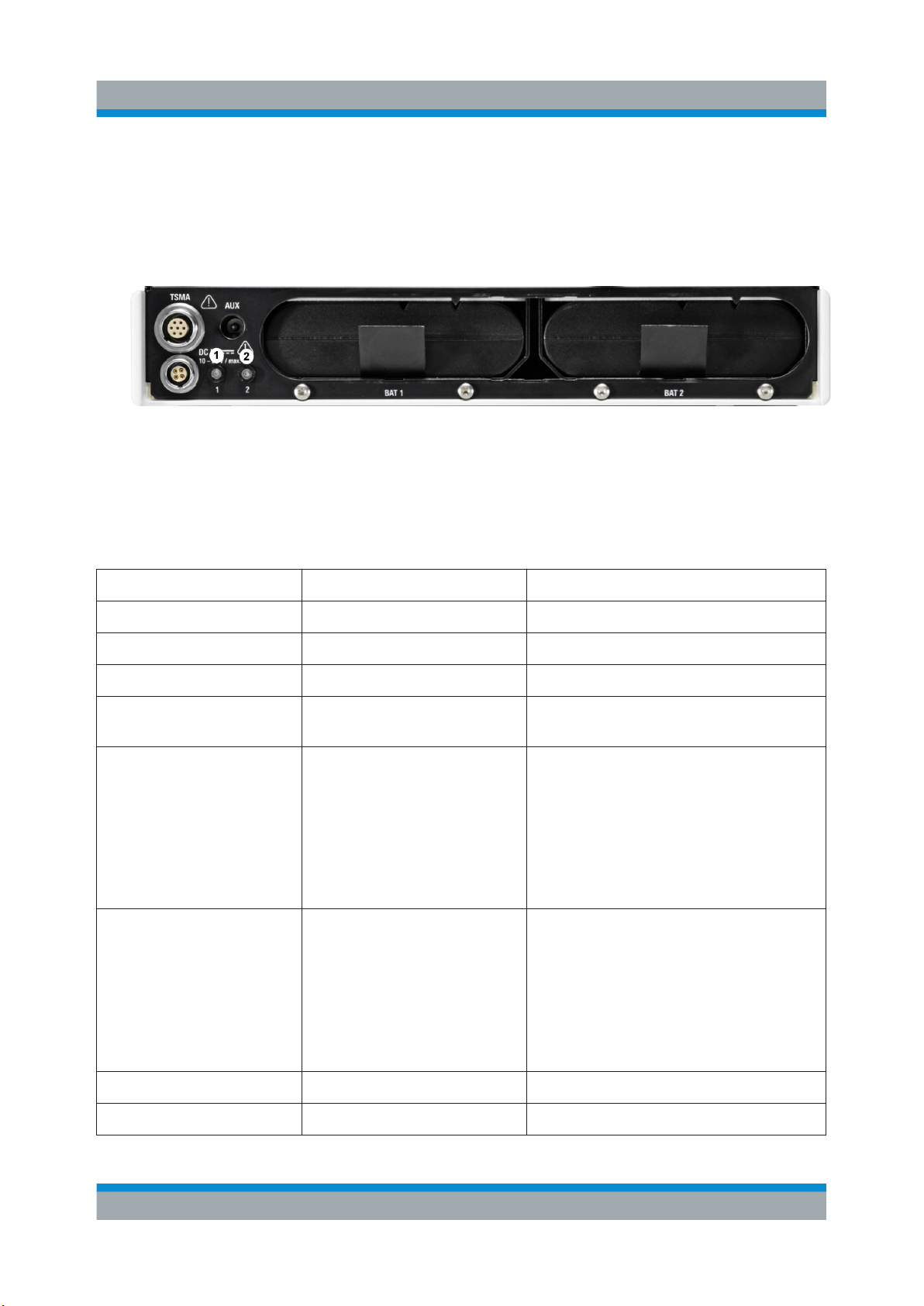

Figure 4-4: Connected R&S TSMA Base Unit and R&S TSMA-BP
1 = Vertical attachment of R&S TSMA base unit (bottom) with R&S TSMA BP (top)
2 = Move T&S TSMA base unit to the front side
3. Lock the interconnection using the lock (3).
Figure 4-5: Connection of R&S TSMA with R&S TSMA-BP Battery Pack Unit
Connecting the R&S TSMA-BP Battery Pack Unit with R&S TSMA

Preparing for Use
R&S®TSMA-BP
14Getting Started 1177.5885.02 ─ 05
1 = R&S TSMA Base Unit
2 = R&S TSMA-BP Battery Pack Unit
3 = Lock (front side)
4. Via the cable (3), you have to connect the DC IN connector on the R&S TSMA
(1) with the TSMA connector (7 pins) on the R&S TSMA-BP Battery Pack Unit
(2).
Figure 4-6: Cabling of R&S TSMA with R&S TSMA-BP Battery Pack Unit
1 = DC IN Connector of R&S TSMA Base Unit
2 = TSMA Connector R&S TSMA-BP Battery Pack Unit
3 = Interconnection Cable (R&S TSMA Base Unit <-> R&S TSMA-BP Battery Pack Unit)
Note: The Interconnection cable (3) is included in the delivery package.
The cable plugs are marked at both sides with a red spot.
Figure 4-7: Cable
Connected at the DC IN (1) of the R&S TSMA, this red spot must face
upwards, at the TSMA connector (2) of the R&S TSMA-BP Battery Pack Unit
it must face downwards.
Connecting the R&S TSMA-BP Battery Pack Unit with R&S TSMA

Preparing for Use
R&S®TSMA-BP
15Getting Started 1177.5885.02 ─ 05
The R&S TSMA Base Unit boots as soon as the R&S TSMA-BP Battery Pack
Unit (including charged batteries) is connected with the R&S TSMA via the con-
nection cable (3).
4.4 Connecting the R&S TSMA-BP Battery Pack
Unit with External Power Supply
The connection of an external DC power supply offers the following possibilities:
●Operating the R&S TSMA Base Unit via the power supply
●Recharging the batteries in case the R&S TSMA Base Unit is switched off
In order to recharge the batteries of the R&S TSMA-BP Battery Pack Unit without
a separate charger, connect the R&S TSMA-BP Battery Pack Unit with an exter-
nal power supply.
The external recharging of the batteries is only allowed via the separate
charger (R&S TSMA-BC2, R&S No. 1523.8015.02).
The following steps must be performed.
1. Connect the R&S TSMA Base Unit (1) with the R&S TSMA-BP Battery Pack
Unit (2) using the connection cable (3).
Note: In this case, the R&S TSMA Base Unit will boot immediately.
2. Connect the DC OUT of the AC power supply (R&S TSMA-Z1, R&S
No. 1523.8450.02) with the R&S TSMA-BP Battery Pack Unit (4) with the
adapter cable (5).
3. Connect the adapter cable (5) with the AC power supply (R&S TSMA-Z1).
In this case, the TSMA is supplied via the AC power supply and the batteries
will be recharged slowly. If the R&S TSMA is switched off, the batteries will be
recharged.
Connecting the R&S TSMA-BP Battery Pack Unit with External Power Supply

Preparing for Use
R&S®TSMA-BP
16Getting Started 1177.5885.02 ─ 05
Figure 4-8: Connecting the R&S TSMA-BP Battery Pack Unit with a AC power supply
1 = DC IN Connector R&S TSMA Base Unit
2 = TSMA Connector R&S TSMA-BP Battery Pack Unit
3 = Interconnection Cable (R&S TSMA Base Unit <-> R&S TSMA-BP Battery Pack Unit
4 = External DC Connector R&S TSMA-BP Battery Pack Unit
5 = Adapter cable (TSMA-Z1 <-> Battery Pack DC IN)
6 = DC OUT (AC Power Supply TSMA-Z1)
Connecting the R&S TSMA-BP Battery Pack Unit with External Power Supply

Operation
R&S®TSMA-BP
17Getting Started 1177.5885.02 ─ 05
5 Operation
The R&S TSMA-BP Battery Pack Unit allows to enhance the R&S TSMA instru-
ment to a portable measurement solution based on a battery powered system.
The R&S TSMA-BP Battery Pack Unit contains two rechargeable batteries (not
included in the delivery), which can be charged directly in case the R&S TSMA-
BP Battery Pack Unit is connected to power (via cigarette lighter in a vehicle or an
external power supply). Alternatively, a separate battery charger (not included)
can be used for recharging the batteries.
In the standard operation mode, it is recommended to use always two bat-
teries with a comparable charging state. (The batteries will be discharged
always in parallel.)
The charging state of the battery is visible on the display (1).
Figure 5-1: R&S TSMA-BAT (R&S No. 1523.8021.03)
1 = Charging state display
The batteries can be exchanged during operation (hot-swap mode). In this case,
at least one battery must be always in the R&S TSMA-BP Battery Pack Unit.
Do not remove both batteries at the same time.
When inserted in the bay of the R&S TSMA-BP Battery Pack Unit, the battery
state can be displayed via the following possibilities:

Operation
R&S®TSMA-BP
18Getting Started 1177.5885.02 ─ 05
●The battery state is displayed in the web interface of the R&S TSMA. For
details, refer to "R&S TSMA Autonomous Mobile Network Scanner - User
Manual" (R&S No. 1177.5610.02).
●The battery status is displayed via the two LEDs on the rear side of the R&S
TSMA-BP Battery Pack Unit.
Figure 5-2: R&S TSMA-BP Battery Pack Unit - Status LEDs
1 (P501) = Status LED for battery 1
2 (P500) = Status LED for battery 2
Table 5-1: R&S TSMA-BP Battery Pack Unit LED states and their meaning (LED 1 and LED
2)
Color State Comment
--- OFF BAT 1/2 not present
blue ON battery charge 100 - 50 %
orange ON battery charge 10 - 50
red ON battery charge < 10 %, buzzer alarm
on mainboard
green ON For R&S TSMA Firmware <
03.00.11.00
battery charged
For R&S TSMA Firmware ≥
03.00.11.00
battery charging / external DC con-
nected
green BLINKING (0,5 Hz) For R&S TSMA Firmware <
03.00.11.00
battery charging / external DC con-
nected
For R&S TSMA Firmware ≥
03.00.11.00
battery charged
red BLINKING (0,5 Hz) battery error
white (RGB) BLINKING (0,5 Hz) Busy (Initialization / communication)

Operation
R&S®TSMA-BP
19Getting Started 1177.5885.02 ─ 05
The LEDs of the R&S TSMA-BP Battery Pack Unit are controlled by the
R&S TSMA instrument. The R&S TSMA-BP Battery Pack Unit without con-
nected R&S TSMA instrument does not display the charging status via the
LEDs.
In order to check the charging status of the batteries without connected
R&S TSMA, remove the batteries from the R&S TSMA-BP Battery Pack
Unit and check the battery internal display.

Index
R&S®TSMA-BP
20Getting Started 1177.5885.02 ─ 05
Index
B
Brochures .................................................. 6
D
Data sheets ............................................... 6
G
Getting started ...........................................6
H
Help ........................................................... 6
O
Open source acknowledgment (OSA) .......7
R
Release notes ........................................... 7
S
Safety instructions ..................................... 6
U
User manual .............................................. 6
