Dominion KX II-101-V2 Quick Setup Guide 1
QSG-KX2101V2-v3.6.0-0E-E 255-62-3058-00-RoHS
Dominion® KX II-101-V2
Quick Setup Guide
Thank you for your purchase of Dominion®KX II-101-V2, the economical, full-featured, single-port digital KVM-over-IP device.
For details on using KX II-101-V2, access online help from the application or the Support page on the Raritan website. Online help is
your primary resource but a PDF version of the help is also available on the Support page.
Package Contents
Each KX II-101-V2 device ships with:
1 - KX II-101-V2 KVM over IP
1 - KVM cable
1 - Power adapter (AC/DC 5VDC with universal adapter)
1 - Mounting bracket kit
1 - Quick Setup Guide
1 - Release notes (if applicable)
QSR ule
Step 1: Configure the Target Server
Target Server Video Resolutions
For optimal bandwidth efficiency and video performance, a
target server running a graphical user interface such as
Windows, X-Windows, Solaris, and KDE should be configured
with desktop backgrounds set to a predominantly solid, light-
colored graphic.
Backgrounds featuring photos or complex gradients should be
avoided.
Ensure that the server's video resolution and refresh rate are
supported by the KX II-101-V2, and that the signal is non-
interlaced.
See KX II-101-V2 online help for a list of support target server
resolutions.
Mouse Modes
The KX II-101-V2 operates in several mouse modes: Absolute
Mouse Synchronization™, Intelligent Mouse mode and
Standard Mouse mode.
Note: Do not use an animated mouse while using Intelligent
Mouse mode.
Mouse parameters do not have to be altered for Absolute
Mouse Synchronization.
For both the Standard and Intelligent Mouse modes, mouse
parameters must be set to specific values, which are
described in this section.
Mouse configurations will vary on different target operating
systems. Consult your OS documentation for additional
details.
Following are the mouse settings for various operating
systems.
These settings are configured on your target operating system
unless otherwise indicated.
See the KX II-101-V2 online help for details on configuring
these mouse settings.
Windows 7 and Windows Vista Mouse Settings
Configure these mouse settings in Windows 7®and
Windows Vista®:
Configure the motion settings:
Set the mouse motion speed setting to exactly the middle
speed
Disable the "Enhanced pointer precision" option
Disable animation and fade effects:
Animate controls and elements inside windows
Animate windows when minimizing and maximizing
Fade or slide menus into view
Fade or slide ToolTips into view
Fade out menu items after clicking
Windows XP, Windows 2003, Windows 2008 Mouse
Settings
Configure these mouse settings in Windows XP®,
Windows 2003®and Windows 2008®:
Configure the Motion settings:

Dominion KX II-101-V2 Quick Setup Guide 2
QSG-KX2101V2-v3.6.0-0E-E 255-62-3058-00-RoHS
Set the mouse motion speed setting to exactly the middle
speed
Disable the "Enhance pointer precision" option
Disable the Snap To option
Disable transition effects:
Deselect the "Use the following transition effect for menus
and tooltips" option
Windows 2000 Mouse Settings
Configure these Windows 2000®mouse settings:
Configure the Motion settings:
Set the acceleration to None
Set the mouse motion speed setting to exactly the middle
speed
Disable transition effects:
Deselect the "Use the following transition effect for menus
and tooltips" option
Apple Mac Mouse Settings
Absolute Mouse Synchronization is required for proper mouse
synchronization on KVM target servers running a Mac®
operating system.
To enter Absolute Mouse Synchronization:
Choose Mouse > Absolute in the KVM client.
Linux Mouse Settings
Configure these Linux®mouse settings:
(Standard Mouse Mode only) Set the mouse acceleration
to exactly 1 and set the threshold to exactly 1. Enter the
following command: xset mouse 1 1. This should be
set for execution upon login.
Sun Solaris Mouse Settings
Configure these Sun®Solaris™mouse settings:
Set the mouse acceleration value to exactly 1 and the
threshold to exactly 1
Ensure that your video card is set to a supported
resolution and that its output is VGA, not composite sync
IBM AIX Mouse Settings
Configure these IBM AIX®mouse settings:
Go to the Style Manager, click on Mouse Settings and set
Mouse Acceleration to 1.0 and Threshold to 3.0
QSR ule
Step 2: Configure Network Firewall Settings
TCP Port 5000
Allow network and firewall communication on TCP Port 5000
to enable remote access to KX II-101-V2.
Alternatively, configure KX II-101-V2 to use a different TCP
port, then allow communication on that port.
TCP Port 443
Allow access to TCP Port 443 (Standard HTTPS) so you can
access KX II-101-V2 via a web browser.
TCP Port 80
Allow access to TCP Port 80 (Standard HTTP) to enable
automatic redirection of HTTP requests to HTTPS.
QSR ule
Step 3: Connect the Equipment
Power
The KX II-101-V2 is powered by a 100-240V AC input and
5VDC output power adaptor that is included with the device.
For standard AC power, plug the included AC power adaptor
into the Power port and plug the other end into a nearby AC
power outlet.
Network
Connect a standard Ethernet cable from the network port
labeled LAN to an Ethernet switch, hub or router.
The LAN LEDs that appear above the Ethernet connection
indicate Ethernet activity.
The yellow one blinks while KX II-101-V2 is in use, indicating
IP traffic at 10 Mbps.
The green light indicates a 100 Mbps connection speed.
Target Server
Use either the PS/2 or USB to connect to the target.

Dominion KX II-101-V2 Quick Setup Guide 3
QSG-KX2101V2-v3.6.0-0E-E 255-62-3058-00-RoHS
Before connecting, configure your target server's video to a
supported resolution.
Use the USB connection if you are using virtual media or
Absolute Mouse Mode.

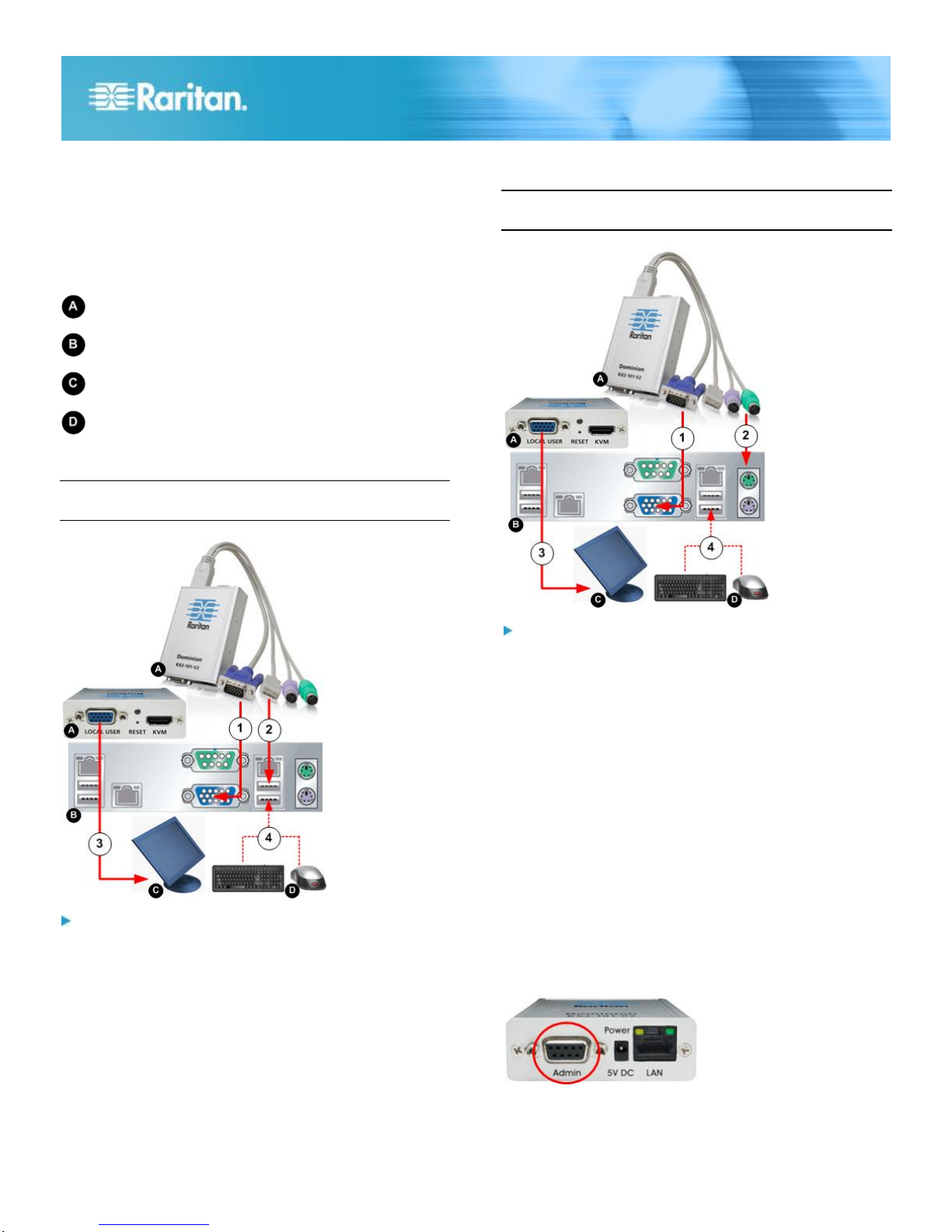

The following items are in each of the connection diagrams
that follow:
- KX II-101-V2
- Target server
- Local monitor Optional
- Local mouse and keyboard Optional
USB Configuration
Note: If you are using virtual media, you must use the USB
connection.
To configure KX II-101-V2 for use with a USB target
server:
1. Use the attached video cable to connect the KX II-101-V2
to the target video port.
2. Connect the USB connector of the KVM cable to the KX II-
101-V2 and to a USB port on the target server.
3. Connect a monitor to the KX II-101-V2 Local User Port if
you need to use the local video. Optional
4. Connect the USB keyboard and mouse directly to the
target. Optional
PS/2 Configuration
Note: If you are using virtual media, you must use the USB
connection.
To configure the KX II-101-V2 for use with a PS/2
target server:
1. Use the attached video cable to connect the KX II-101-V2
to the target video port.
2. Connect the PS/2 connector of the KVM cable to a PS/2
port on the target.
3. Connect a monitor to the KX II-101-V2 Local User Port if
you need to use the local video. Optional
If you have a PS/2 keyboard and mouse, use a PS/2 to USB
adapter (not included) to connect to the USB port of the target
directly. Optional
Admin Port
Use the Admin port to do the following:
Configure and manage the device with a terminal
emulation such as HyperTerminal program on your PC.
Configure and manage a power strip (requires an adapter,
not included).
Connect an external modem to dial into the device.
Use one DB9M to DB9F straight serial cable to connect from
the KX II-101-V2 to the serial port on your PC or laptop.

Dominion KX II-101-V2 Quick Setup Guide 4
QSG-KX2101V2-v3.6.0-0E-E 255-62-3058-00-RoHS
The serial port communication settings should be configured
as follows:
115,200 Baud
8 data bits
1 stop bit
No parity
No flow control
Local User Port
The Local User port serves as a pass-through to the target
server video so that it connects directly to the monitor.
The local keyboard and mouse must be connected to target
server directly.
For USB configurations, only the local video connects to the
target server at the Local User port.
The keyboard and mouse connect directly to the target server
using USB ports.
QSR ule
Step 4: Configure KX II-101-V2
Note: You must use a crossover cable between the KX II-101-
V2 and client if you are configuring KX II-101-V2 through a
web browser.
For the following steps, you must change the default
password and assign KX II-101-V2 its IP address at the Local
Console.
All other steps can be performed either from the Local
Console, or the KX II-101-V2 Remote Console via a
supported web browser using KX II-101-V2's default IP
address.
Java 1.7™is required to use the Java-based Java-based KX
II-101-V2 Virtual KVM Client and Multi-Platform Client (MPC)..
You can also use a terminal emulation program to configure
KX II-101-V2. See Configure the KX II-101-V2 Using a
Terminal Emulation Program (Optional) (on page 7).
Change the Default Password
The first time you start the KX II-101-V2 device, you are
required to change the default password.
1. Once the unit has booted, enter the default username
admin and password raritan. Click Login.
2. Enter the old password raritan, then enter and reenter a
new password.
Passwords can be up to 64 characters in length consisting
of English alphanumeric characters and special
characters.
3. Click Apply. Click OK on the Confirmation page.
Assign the KX II-101-V2 a Device Name

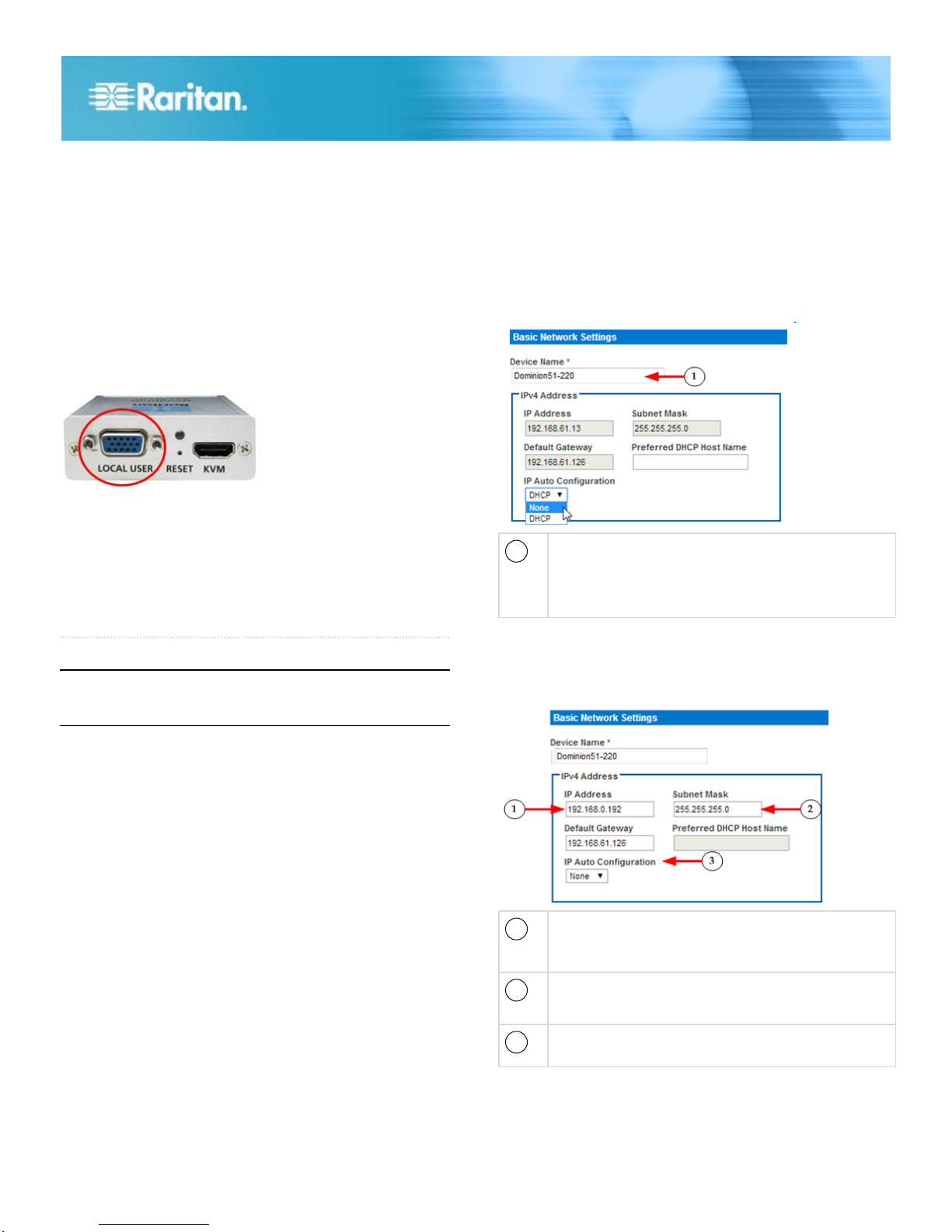

Choose Device Settings > Network. The Basic Network
Settings page opens.
1
Specify a meaningful Device Name for your KX II-101-
V2 device.
Up to 32 alphanumeric and valid special characters,
no spaces between characters.
Configure the IPv4 Settings
In the IPv4 section, enter or select the appropriate IPv4-
specific network settings.
1
Enter the IP Address, if needed.
The default IP address is 192.168.0.192.
2
Enter the Subnet Mask.
The default subnet mask is 255.255.255.0.
3

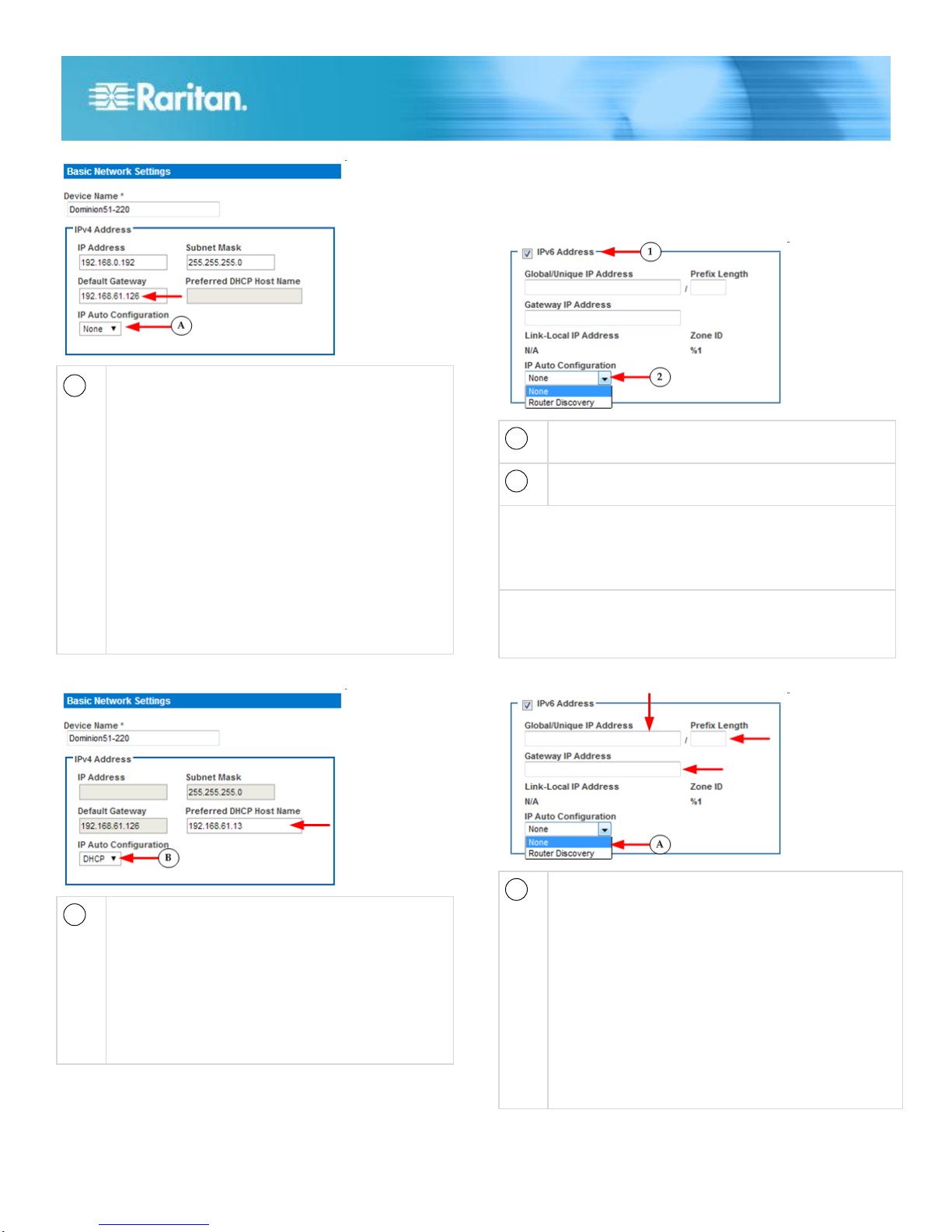

Set up your IP Auto Configuration by selecting - None
or DHCP

Dominion KX II-101-V2 Quick Setup Guide 5
QSG-KX2101V2-v3.6.0-0E-E 255-62-3058-00-RoHS
A
None - for a static IP. Default selection.
Recommended option.
If None is selected, you must manually specify the
network parameters by entering the Default Gateway.
Leaving the selection set to None -
Lets you set the network parameters since KX II-
101-V2 is part of your network infrastructure and
you most likely do not want its IP address to
change frequently.
Ensure redundant failover capabilities should the
primary Ethernet port or the switch/router to which
it is connected fail.
If a failure occurs, KX II-101-V2 fails over to the
secondary network port with the same IP address
so there is no interruption.
B
DHCP - with this option, the IP address is
automatically assigned by a DHCP server.
Dynamic Host Configuration Protocol is used by
networked computers (clients) to obtain unique IP
addresses and other parameters from a DHCP server.
Enter the Preferred DHCP Host Name if DHCP is
selected from the IP Auto Configuration drop-down.
Up to 63 characters.
Next, configure IPv6 and/or DNS settings.
Configure the IPv6 Settings
If using IPv6, enter or select the appropriate IPv6-specific
network settings in the IPv6 section.
1
Select the IPv6 checkbox to activate the fields in the
section and enable IPv6 on the device.
2
Select an IP Auto Configuration option - None or
Router Discovery.
Link-Local IP Address
This address is automatically assigned to the device. The
address is used for neighbor discovery or when no routers are
present. Read-Only
Zone ID
Identifies the device the address is associated with. Read-
Only
A
None - for a static IP.
Default selection.
Recommended option.
If None is selected, you must manually specify -
Global/Unique IP Address - this is the IP address
assigned to KX II-101-V2
Prefix Length - this is the number of bits used in
the IPv6 address
Gateway IP Address
See IPv4 for details on leaving the selection set to
None

Dominion KX II-101-V2 Quick Setup Guide 6
QSG-KX2101V2-v3.6.0-0E-E 255-62-3058-00-RoHS
B
Router Discovery
Select this option to locate a Global or Unique IPv6
address instead of a Link-Local subnet.
Once located, the address is automatically applied.
Configure the DNS Settings
1
Do one of the following to configure DNS -
"Obtain DNS Server Address Automatically"
"Use the Following DNS Server Addresses"
A
Select "Obtain DNS Server Address Automatically" if
DHCP is selected.
The DNS information is then provided by the DHCP
server that is used.
When finished, click OK. Your KX II-101-V2 device is
now network accessible.
B
Enter the following information if the "Use the
Following DNS Server Addresses" is selected -
Primary DNS Server IP Address
Secondary DNS Server IP Address
These addresses are the primary and secondary
DNS addresses used if the primary DNS server
connection is lost due to an outage.
Even if DHCP is selected in the IPv4 section, enter
the primary and secondary addresses since these
addresses are used to connect to the DNS server.
When finished, click OK. Your KX II-101-V2 device is
now network accessible.
Next, configure LAN interface settings as needed.
See LAN Interface Settings
Connect to a Switch
Once KX II-101-V2 is network accessible, remove the
crossover cable and connect the KX II-101-V2 to the switch
using a Cat5 cable.
Configure Date/Time Settings (Optional)
Optionally, configure the date and time settings.
The date and time settings impact SSL certificate validation if
LDAPS is enabled.
Use the Date/Time Settings page to specify the date and time
for KX II-101-V2.
There are two ways to do this:
Manually set the date and time.
Synchronize the date and time with a Network Time
Protocol (NTP) server.

Dominion KX II-101-V2 Quick Setup Guide 7
QSG-KX2101V2-v3.6.0-0E-E 255-62-3058-00-RoHS
Choose Device Settings > Date/Time to open the Date/Time
Settings page.
1
Choose your time zone from the Time Zone drop-
down list.
2
Adjust for daylight savings time by checking the
"Adjust for daylight savings time" checkbox.
3
Choose the method to use to set the date and time:
User Specified Time - use this option to input the date
and time manually. For the User Specified Time
option, enter the date and time. For the time, use the
hh:mm format (using a 24-hour clock).
Synchronize with NTP Server - use this option to
synchronize the date and time with the Network Time
Protocol (NTP) Server.
4
For the Synchronize with NTP Server option:
Enter the IP address of the Primary Time server.
Enter the IP address of the Secondary Time server.
Optional
Note: If DHCP is selected for the Network Settings on
the Network page, the NTP server IP address is
automatically retrieved from the DHCP server by
default. Manually enter the NTP server IP address by
selecting the Override DHCP checkbox.
Click OK.
Configure the KX II-101-V2 Using a Terminal
Emulation Program (Optional)
You can use the Admin serial console with a terminal
emulation program like HyperTerminal to set the following
configuration parameters for KX II-101-V2:
IP address
Subnet mask address
Gateway address
IP autoconfiguration
LAN speed
LAN interface mode
To use a terminal emulation program with KX II-101-V2, you
must first connect the included RS-232 serial cable from the
Admin port on the KX II-101-V2 to a COM port on your PC.
For demonstration purposes, the terminal emulation program
described in this section is HyperTerminal. You can use any
terminal emulation program.
To use a terminal emulation program to configure KX
II-101-V2:
1. Connect to the Admin port on the KX II-101-V2 and the
COM1 port on the PC.
2. Launch the terminal emulation program you want to use to
configure KX II-101-V2.
3. Set the following port settings in the terminal emulation
program:
Bits per second - 115200
Data bits - 8
Parity - None
Stop bits - 1
Flow control - None
4. Connect to the KX II-101-V2. The login page opens.
5. Type the administrator username and press Enter. You
are prompted to enter your password.
6. Type the default administrator name admin and press
Enter. You are promoted to enter your password.
7. At the Admin Port > prompt, type config and press Enter.
8. At the Config > prompt, type network and press Enter.
9. To configure new network settings, at the Network prompt,
type interface followed by one of the following commands
and its appropriate argument (option), then press Enter.
Command
Argument
Options
ipauto
none|dhcp
none - Enables you to
manually specify an IP
address for the device. You
must follow this option with
the ip command and the IP
address, as shown in the
following example:
interface ipauto none

Dominion KX II-101-V2 Quick Setup Guide 8
QSG-KX2101V2-v3.6.0-0E-E 255-62-3058-00-RoHS
Command
Argument
Options
ip 192.168.50.12
dhcp - Automatically assign
an IP address to the device
on startup.
interface ipauto dhcp
ip
IP address
The IP address to assign to
the device. To manually set
an IP address for the first
time, this command must be
used with the ipauto
command and the none
option. See ipauto for
information. After you have
manually assigned an IP
address once, you can use
the ip command alone to
change the IP address.
mask
subnet mask
Command column should
be "interface"
interface | ip | ...
interface | mask | The
subnet mask IP address
interface | gw | The
gateway IP address
interface | mode |
....
gw
IP address
The gateway IP address
mode
mode
The Ethernet mode. You
have the following choices:
auto - Automatically sets
speed and interface mode
based on the network.
10hdx - 10 MB/s, half
duplex.
10fdx - 10 MB/s, full duplex
100hdx - 100 MB/s, half
duplex
100fdx - 100 MB/s, full
duplex
When you have successfully changed a setting, you see a
confirmation message like the following:
Admin Port > config
Admin Port > Config > network
Admin Port > Config > Network > interface
ipauto none ip 192.168.50.126
Network interface configuration
successful.
When you are finished configuring KX II-101-V2, type logout
at the command prompt and press Enter. You are logged out
of the command line interface.
QSR ule
Step 5: Create and Install an SSL Certificate
Raritan strongly recommends you install your own SSL
Certificate in each KX II-101-V2 device.
This security best practice reduces the number of Java™
warning messages, and avoids man-in-the-middle attacks.
It also prevents future Java versions and browser versions
from blocking access to your KX II-101-V2 device.
For information creating and installing SSL certificates, see
KX II-101-V2 online help.
Converting a Binary Certificate to a Base64-
Encoded DER Certificate (Optional)
KX II-101-V2 requires an SSL certificate in either Base64-
Encoded DER format or PEM format.
If you are using an SSL certificate in binary format, you cannot
install it.
However, you can convert your binary SSL certificate.
1
Locate the DEGHKVM0001.cer binary file on your
Windows machine.
Double-click on the DEGHKVM0001.cer file to open
its Certificate dialog.

Dominion KX II-101-V2 Quick Setup Guide 9
QSG-KX2101V2-v3.6.0-0E-E 255-62-3058-00-RoHS

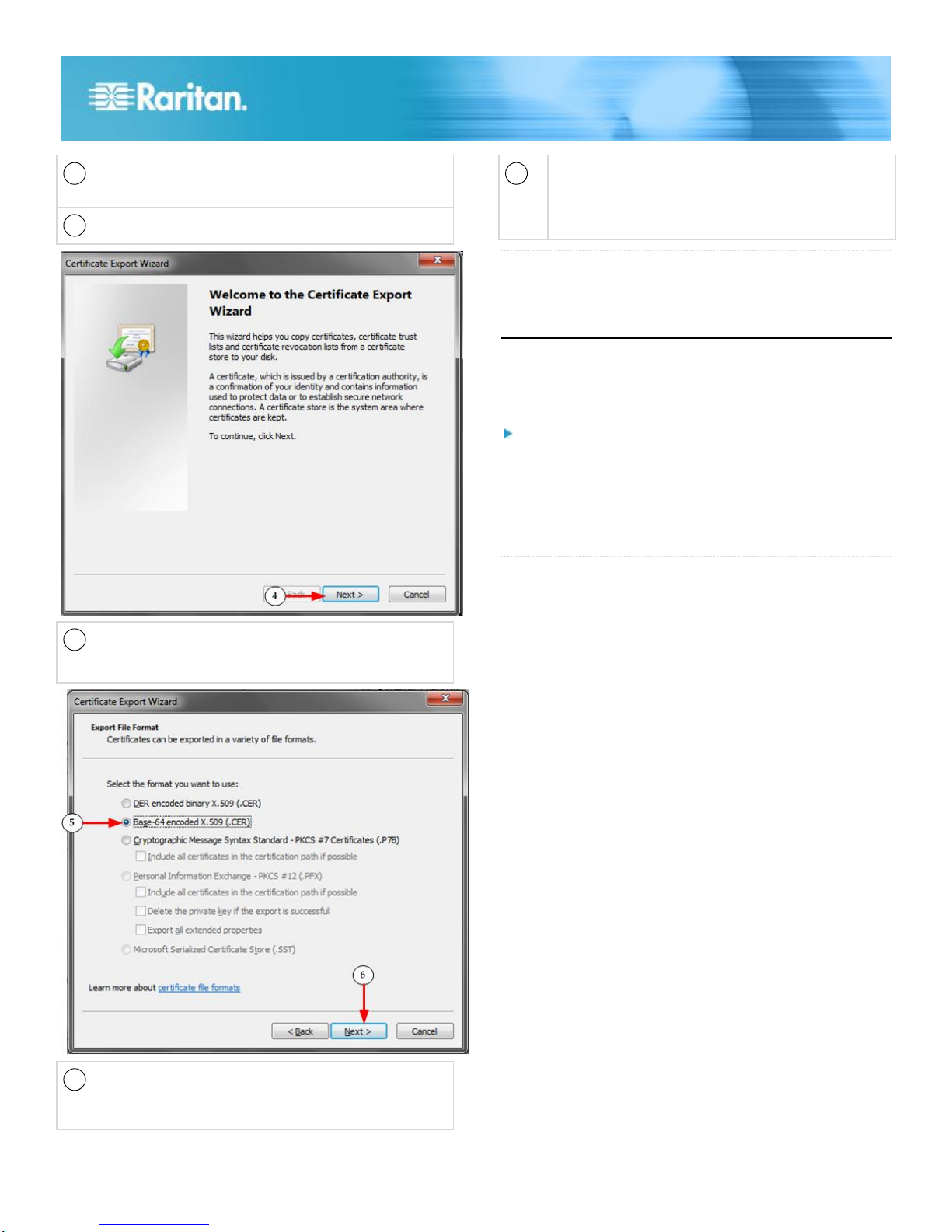

2
Click the Detail tab.
3
Click "Copy to File...".
4
The Certificate Export Wizard opens. Click Next to
start the Wizard.
5
Select "Base-64 encoded X.509" in the second Wizard
dialog.
6
Click Next to save the file as a Base-64 encoded
X.509.
You can now install the certificate on your KX II-101-
V2.
QSR ule
Resetting the Device (Optional)
Use the reset feature only if you want to reset the device to its
original factory settings.
Note: It is recommended that you save the audit log prior to
performing a factory reset. The audit log is deleted when a
factory reset is performed and the reset event is not logged on
the audit log.
To reset the device:
1. Power off the KX II-101-V2.
2. Use a pointed object to press and hold the Reset button.
3. While continuing to hold the Reset button, power the KX II-
101-V2 device back on.
4. Continue holding the Reset button for 10 seconds.
QSR ule
Additional Information
For more information about KX II-101-V2 and the entire
Raritan product line, see Raritan's website (www.raritan.com).
For technical issues, contact Raritan Technical Support. See
the Contact Support page in the Support section on Raritan's
website for technical support contact information worldwide.
Raritan's products use code licensed under the GPL and LGPL. You can
request a copy of the open source code. For details, see the Open Source
Software Statement at (http://www.raritan.com/about/legal-statements/open-
source-software-statement/) on Raritan's website.
