RATTAN LF User manual

USER MANUAL
www.rattanebike.com
LF LM
丨

Thanks for your LM/LF Ebike purchase
We really appreciate your business cooperation
with us and we wish you a good time with the
ebike.
Please feel free to contact us if thers is any
questions about the bike.
Contact details
E-mail: [e-mail]
Website: rattanebike.com
Phone: [phone]

Rattan E-bike assumes no liability for any harm,
injury, or death of the rider.
do not modify or disassemble the original electrical
components of the bike.
WARNINGS
Congratulations on your purchase of a new Rattan
E-bike! The bike comes 95% assembled and here is
the guide helps you get familiar with your new bike
in unboxing.
The bike may need adjustments in this process as
shipping can sometimes be bumpy.
We recommend an adjustment and inspection by a
reputable, certified bicycle mechanic before the first
riding.
Please read the whole manual patiently before you
use the new electric bike
Any of the above will invalidate the warranty and
even bring hurt to you.There will be some risks during
the process of experiencing the bike.
For technical assistance or warranty claims contact
Rattan Ebike at
E-mail: [e-mail]
Phone: [phone]

MAIN PARTS INTRODUCTION
DISPLAY FEATURES
Rattan E-bike Power adapter
Key
Tools User manual
Charger cable
Battery Level Indicator
①
Speed
②
ODO Mileage
③Pas level
④
①
②
③
④
POWER
km/h
W
km
SPEED
ODO
49.7
0000
00 10
1
1
PAS

Unfold the bike
ASSEMBLY INSTRUCTIONS
Step2:
unfold the bike and press the quick release according the
direction
Step1:
The bike comes being folded as the picture one shown.
Step3:
turn the buckle into the hole of the quick release to lock it.
1

Step1:
insert the stem of the handlebar into the top tube along
the groovet
Step2:
Adjust the height of the handlebar then tighten the screw
and lock the release.
①②
③④
Handlebar
2

①②
③ ④
Stem
3

①②
③④
Step1:
please unscrew the screw on the picture and connect the
cushion with the rear seat.
Step2:
push the cushion according the direction the picture shown,
then tighten the screw.
Rear seat
4

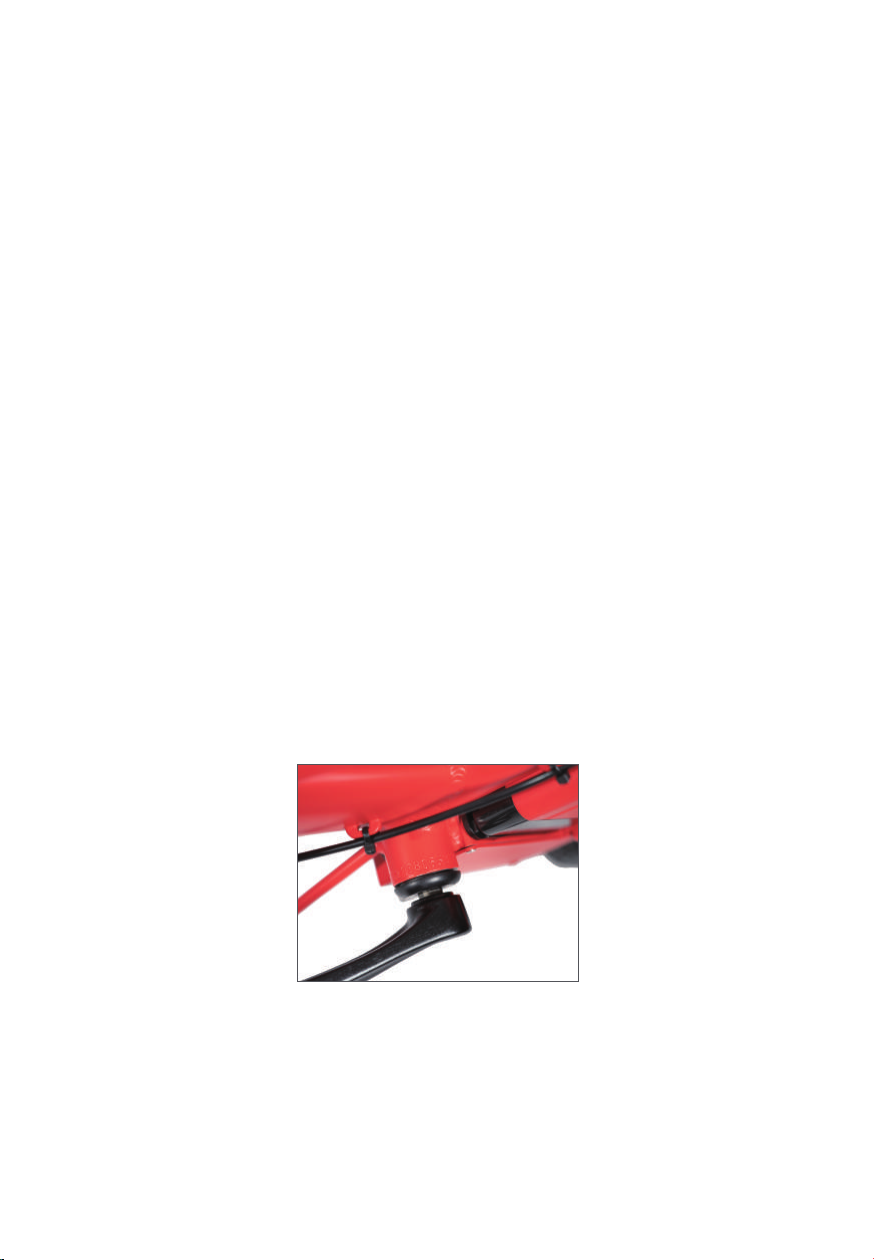

Unfold the pedals as the picture shown.
Search a comfortable height of saddle by sitting on the saddle with
your feet on the ground.
The height of the Saddle should not be pulled higher than the
safety tick marks on the Saddle Post.
Then please lock the seat post clamp tightly.
Pedals
5
Seat post
6

Lock on the battery
Turn the key to ‘ON’ position, and you could see the battery power
by pressing the button on the battery.
The picture 3 shows the charging port of the battery.
• Battery
ADJUSTMENT

Poor connection well connection
You could adjust the battery track by unscrewing the screws on the
bottom to better connect the battery and the bike.
Make sure the brake rotor is in the middle of two brake pads.
Adjust the brake tension according toyour riding habits.
Loosen the screw and adjust the brake wire to the suitable brake
tightness. Loosen the screwsto adjust the (abnormal
noise or brake stuck when braking).
Adjust the brake pad to keep the rotor in the middle position.
Tighten the screws after each adjustment.
• Brake
①
②
③
① Adjust brake rotor ③ Adjust brake rotor
② Adjust the brake

• Check
PREPARING TO RIDE
Make sure all components are tightened. Adjust the height of
the handlebar and the seat post. DO NOT raise it above the
safety line.
Make sure the brakes can cut off the power supply to the motor,
and whether it is sensitive and reliable.
Make sure the front and rear axle nuts are
tightened.
Make sure the display, brakes and lights can work properly.
Make sure the chain is tight.
Make sure the pedals and all the connectio parts are firm and
would not loose, and
whether the crank is flexible without jamming.
Make sure the front and rear tire pressure and tire wear are
suitable for your journey ahead.
Make sure the throttle works well without
jamming, and whether it feels tight or loose when pressing the
throttle.
Make sure the battery has been locked.

Three modes
RIDING GUIDANCE
SERIAL NUMBER
You may be asked for a picture of your bike’s serial number as a
part of warranty requests and may also be asked to provide this
number to law enforcement provided that your bike is stolen.
There is a serial number attached on head-tube or on the bottom
axis connecting the pedals as shown in the fol lowing picture.
Please take a picture ahead once you received the bike.
• Pedal Mode
This mode does not require any power. It allows the E-bike to
work as other regular bike. You will be automatically switched to
this mode when the battery dies while riding.
• Electric Mode
Turn on the display and press the throttle slowly to get started.
When release the throttle slowly, the riding speed will gradually
drop until power off.
• Pedal Assist Mode
Accelerate slowly and use the pedal assist in the beginning of
riding. When riding against the wind or climbing the hill,avoid
using the pedal assist to protect the battery.

DISPLAY
Caser and Cover and Press button: ABS,
LCD window: PMMA
• Material
Outside and mounting dimensions(mm)
• Dimension
Press button outside and mounting dimensions (mm)

• Installation
• Overview of GD06
Install the display in the middle of handlebar, then adjust to
suitable angle, install the press button to left side of handlebar.
●
Power off the device, connect the device to
controller.
●
Power on
●
1) UART protocol:
Equipped with independent press buttons
2) Speed：
Real-time SPEED
3) kmh/mile：
Kmh/MPH according to habit
4) Battery level：
Indicates the battery level in real time
5) Head light control：
Press button to power on/off
6) Back light adjustment：3-level adjustment
7) Assist level：
From 0 to 5, press button to change assist level, 0-no assist,
5-default value
8) Distance：
ODO/Trip/Driving duration
9)Error code：
Please refer to appendix table 1 for definition

1) Battery level: 5 levels, voltage interval could be customized
2) Speed: Real-time SPEED
3) Speed unit: Kmh/MPH
4) 6km mode
5) Assist level: actual assist level 0~5
6) Head light icon: indicates when head light and back light are
on
7) Distance ： Trip/ODO
8) Driving Duration
9) Error code ： “ERROR” and code when there is error
10) 6km mode：
In this mode, it will display “WALK” on the screen
11)Parameter setting：
Set parameters, such as: wheel size, speed limit etc
• Presentation of screen
Battery Level Indicator
①
Speed
②
ODO Mileage
③Pas level
④
①
②
③
④
POWER
km/h
W
km
SPEED
ODO
49.7
0000
00 10
1
1
PAS

① Power ON/OFF
When the power is off, Long press during 3seconds, screen
will display all contents and start to normal working mode, and
controller will be turned on When the power is on.
Long press during 3 seconds,screen will be powered off, and
controller will be turned off. If no any operation both on bike and
display during 10minutes(time could be set), the display will turn
off automatically, in this case, no power consumption for both
display and controller.
② ODO/TRIP
Long press and switch different speed information,Real
time speed（ SPEED）→ Max speed（ MAX SPEED）→Average
speed (AVGSPEED)
③ ODO/TRIP/ Driving Time/Error Code
Short press to switch ODO/TRIP/ Driving Time/Error Code
Trip(Single trip distance)→ODO(Accumulated distance) →TM
(Driving Time)→REE(Error Code).
④ Assist level
Short press or to change assist level,
default value is level 1
• Press button definition
• Operation instructions
GD06 uses independent press button, in total three buttons:
DOWNUP MODE

• Parameter setting
1.When the display is powered on,long press and ,will
enter parameter setting mode,in this mode, can change parameter
values, long press again and will quit parameter setting mode or
no operation during 10s will also quit this mode.
2.In parameter setting mode, short press / will change
parameter value,short press will save current value and switch
to next parameter.
( 2 ) P02-kmh/MPH ：
Short press / to Switch kmh/MPH.
( 3 ) P03-Working voltage ：
short press / to switch 24V,36V,48V.
( 4 ) P04-Auto shutdown time:
short press / to switch from 0 to 60, it is the time(in
minutes) to shut down the screen automatically if no operation 0
means never shut down, Default value is 10 minutes
⑤Head light control
Long press for 3 seconds turn on/off the head light。
⑥ 6km mode
When the bike is stopped, long press and , will enter
6km/h mode, the speed will be 4.5~7.5km/h according to different
road conditions, “WALK” will show up on screen, long press
again or short press ,will quit 6km/h mode. Long press or short
press could be customized by clients.
( 1 ) P01-back light lightness ：
short press / will switch from 1 to 3, Level 3 is lightest.
Level 2 is default value.

( 5 ) P05-Number of Assist levels:
Short press / to change level 3->5->9.
3： 3 assist levels
5： 5 assist levels
9： 9 assist levelst
( 6 ) P06-Wheel size selection:
short press / to switch wheel size,step：
16 inch,20 inch, 22 inch, 24 inch, 26 inch, 700C, 28 inch.
( 07 ) P07-Number of magnets for speed sensor ：
short press / to switch from 1 to 15 .
( 08 ) P08-speed limit ：
short press / to set the speed limit from 10 to 41km/h.
( 09 )This feature is reserved:
display P09, invalid.
( 10 )This feature is reserved:
display,invalid .
( 11 )P11-assist sensitivity setting ：
short press / to switch from 1 to 24.
( 12 )P12-assist starting power setting:
short press / to switch from 0 to 3.
( 13 )P13-Assist magnetic disc types:
short press / to switch from
6->6->8->10->12 ,different numbers of magnets.

( 14 ) P14-Current limit for the controller:
short press / to switch from 1 to 20A
( 15 )This feature is reserved:
display P15,invaild.
( 16 )P16-Reset ODO distance:
long press during 5 seconds.
( 17 )P17-The signal direction of the booster
sensor:
short press / to switch from 0 to 1;
0: Booster signal；
1: Power signal negative.
( 18 ) P18-Shift gears with gear ：
short press / to switch from 0 to 1;
0：Don't shift gears
1: Shift gears.
( 19 )P19- Throttle the 6KM function ：
short press / to switch from 0 to 1;
0：Turn to the normal
1：Throttle 6Km.
