Introduction
Thank you for purchasing a Raymarine product. We are sure your
ST60 instrument will give you many years of trouble-free operation.
This handbook describes how to install and use the Raymarine ST60
Depth instrument. This instrument provides accurate depth
information in either feet, metres or fathoms, on a high quality Liquid
Crystal Display (LCD). The instrument is constructed in a rugged
weather-proofed case to provide reliable performance, even under the
most demanding conditions.

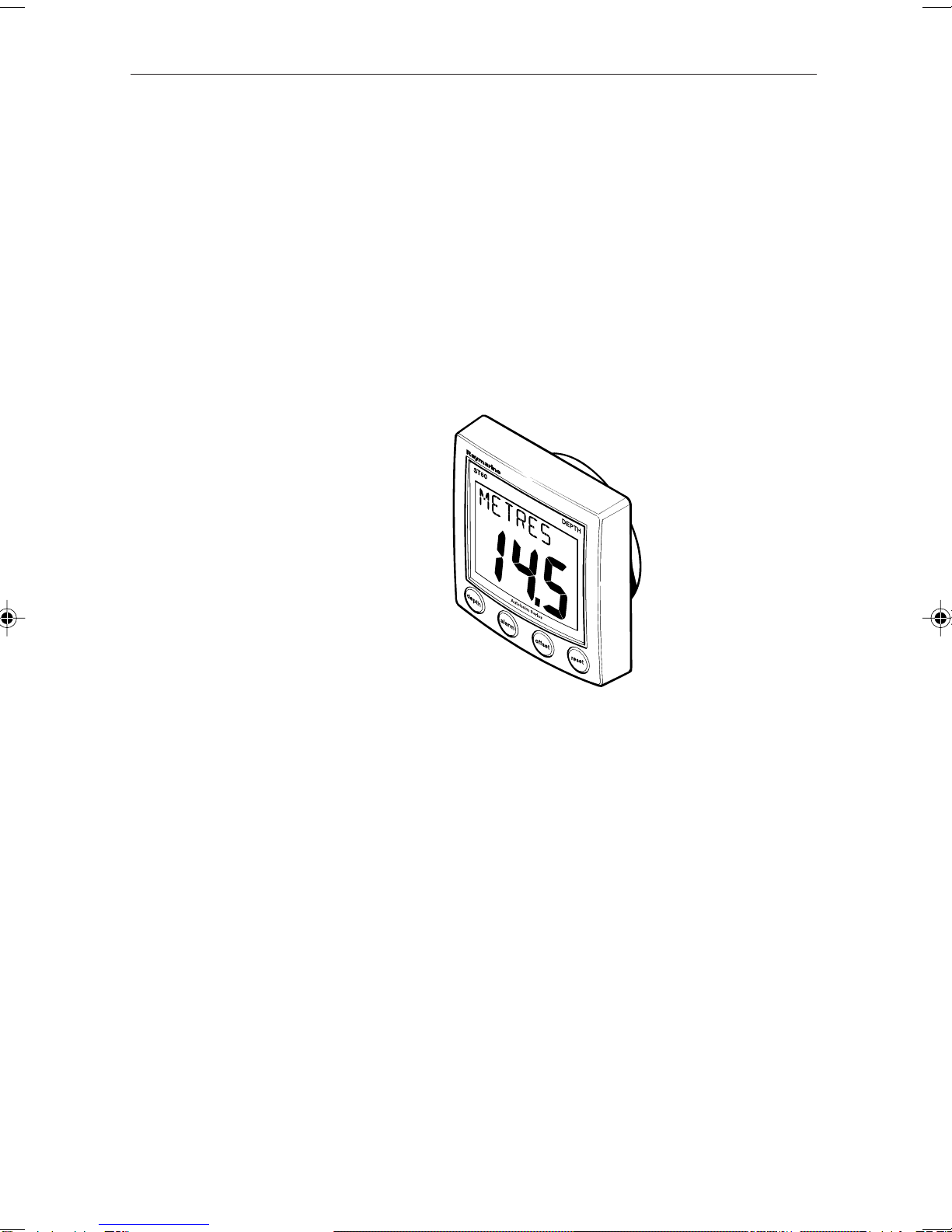

D4321_2
WARNING
Although the ST60 Depth instrument is designed to give accurate
and reliable performance, it should serve only as an aid to
navigation and should never lead to the erosion of good
seamanship. If a fault occurs that results in inaccurate depth
readings or a loss of depth information, the vessel could run
aground if undue reliance has been placed on the instrument.
Always maintain a permanent watch and be aware of depth-
change trends.
EMC conformance
All Raymarine equipment and accessories are designed to the best
industry standards for use in the leisure marine environment.
Their design and manufacture conforms to the appropriate
Electromagnetic Compatibility (EMC) standards, but correct
installation is required to ensure that performance is not compromised.
038_3int.p65 06/04/01, 08:345

vi ST60 Depth Instrument Owner’s Handbook
Data inputs
The ST60 Depth instrument receives data from an appropriate depth
transducer and/or a SeaTalk instrumentation system.
SeaTalk
SeaTalk enables a number of compatible instruments to operate as a
single, integrated navigational system. Instruments in a SeaTalk
system are linked by means of a single cable, which carries both power
and data. Instruments can therefore be added to the system by plugging
them into the network. SeaTalk is flexible enough to adapt to any
number of compatible instruments without requiring a central
processor. SeaTalk can also communicate via an appropriate interface,
with non-SeaTalk equipment using the internationally-accepted
National Marine Electronics Association (NMEA) protocol.
In a SeaTalk system, each instrument can be either a master or
dedicated repeater unit. A master instrument is directly connected to a
transducer (the device that provides the raw data), and provides data
and control for the service it is providing to all other equipment on the
SeaTalk network. A slave instrument is not directly connected to a
transducer but repeats information provided by other masters in the
SeaTalk network.
The ST60 Depth instrument can fulfil both master and repeater roles.
Stand alone operation
In Stand alone operation, the ST60 Depth instrument is connected only
to the relevant transducer and does not display information from, or
provide information to, any other instruments.
Remote control
When connected to SeaTalk, the ST60 Depth instrument can be
controlled remotely by a SeaTalk Remote Keypad Unit, to provide
instant remote access to the various display readouts.
038_3int.p65 06/04/01, 08:346

Introduction vii
Options
Mounting options
If you do not want to surface mount your ST60 instrument, options are
available for:
• Flush mounting. If you have ordered the flush mounting option a
low-profile bezel and four fixing screws are also provided.
• Bracket mounting.
Depth transducers
Various optional transducer types are available to suit different hull
types and situations. Refer to Chapter 3, Installation for details.
038_3int.p65 06/04/01, 08:347

viii ST60 Depth Instrument Owner’s Handbook
Parts supplied

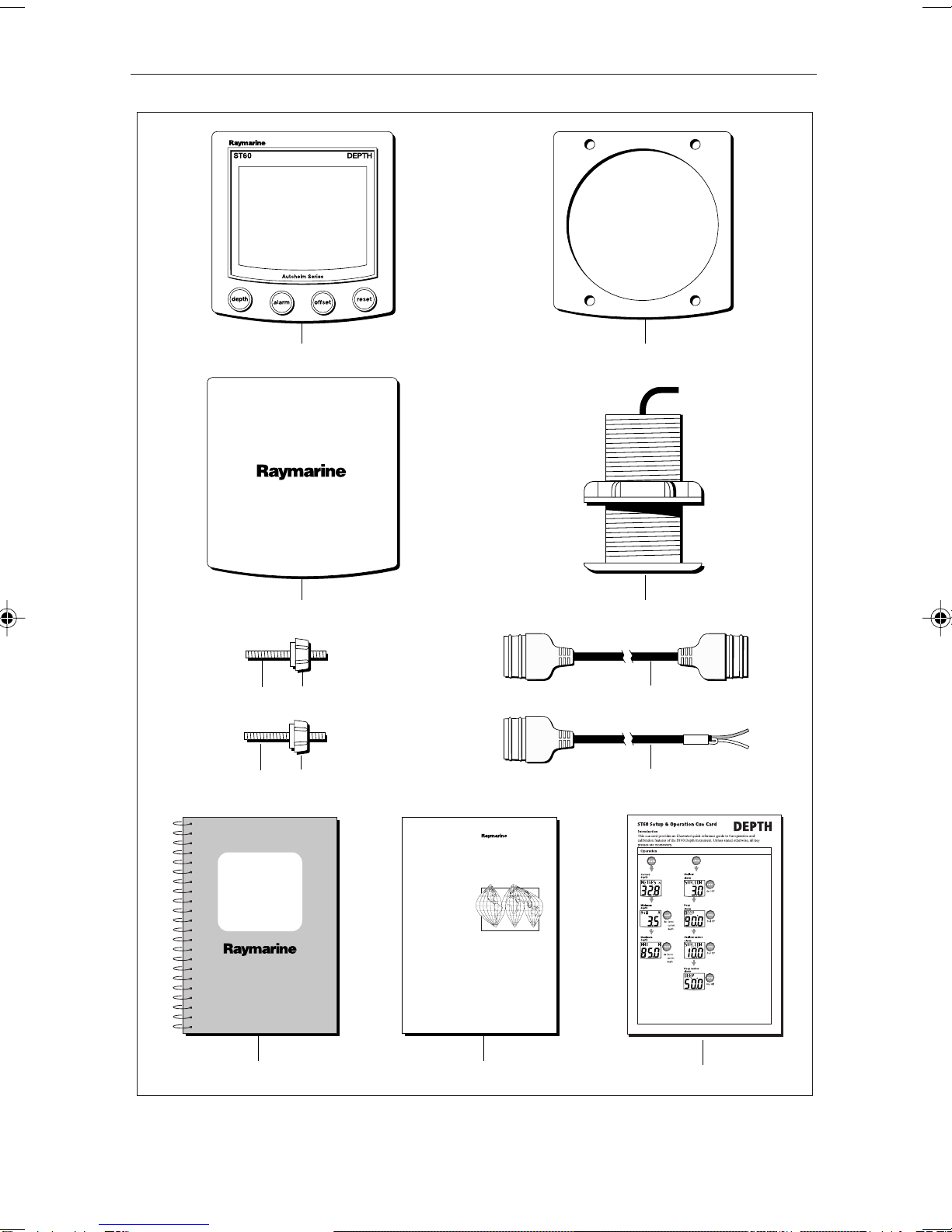

Unpack your ST60 instrument and check that the following items are
present:
• Item 1, ST60 Depth instrument fitted with standard bezel for
surface mounting.
• Item 2, Fixing studs (2).
• Item 3, Thumb nuts (2).
• Item 4, Gasket.
• Item 5, Depth transducer.
• Item 6, SeaTalk interconnection cable.
• Item 7, Power cable.
• Item 8, Instrument Cover.
• Item 9, Owner’s Handbook. A Warranty document and fitting
templates are included in this Handbook.
• Item 10, Worldwide Service Centre Handbook.
• Item 11, Cue Card.
Spare spade terminals are also provided, to re-terminate the transducer
cable if it has to be cut to facilitate installation.
Note: The above packing list is for an ST60 Depth system. Where an
instrument is purchased separately, a transducer is not included.
038_3int.p65 06/04/01, 08:348

Introduction ix
D4438-2
ST60
Depth
Instrument
Owner's
Handbook
Worldwide
Distributors
1 4
8
32
32
5
6
7
10911
038_3int.p65 06/04/01, 08:349

xST60 Depth Instrument Owner’s Handbook
038_3int.p65 06/04/01, 08:3410

Chapter 1: Operation 1
Chapter 1: Operation
1.1 Getting started
This handbook describes how to operate, maintain and install the
Raymarine ST60 Depth instrument.
Calibration requirement
The instrument is calibrated to factory (default) settings when first
installed, and must therefore be calibrated before use, in accordance
with the procedures in Chapter 4, Calibration, to ensure optimum
performance on your vessel.
Do NOT use the instrument until the calibration procedures have
been satisfactorily completed.
1.2 Normal operation

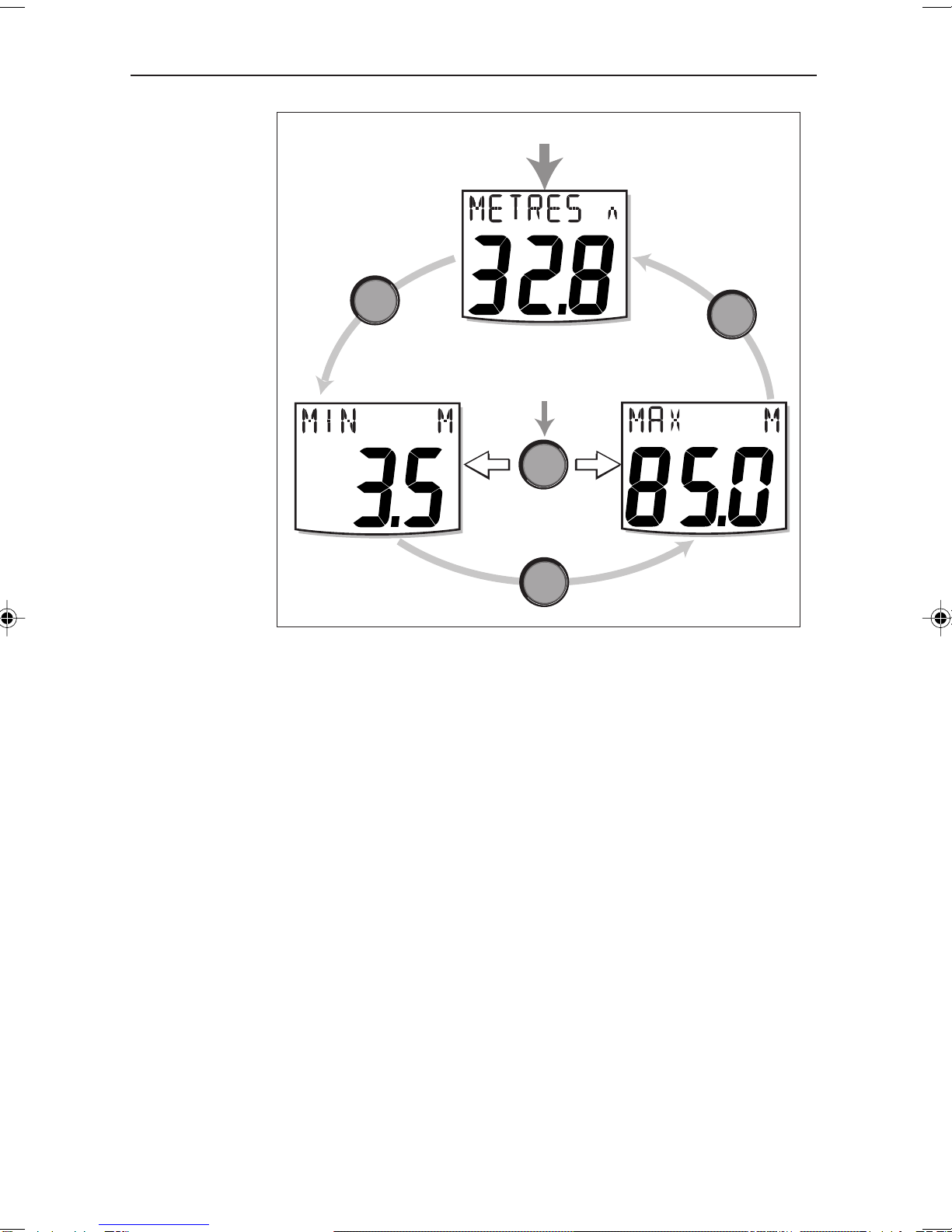

Use the flow charts in this Chapter to operate your ST60 Depth
instrument. The flow charts show the sequence of key presses and
displays for the various operating tasks. All key presses are momentary
unless otherwise stated.
Depth measurement units
The depth measurement units can be either feet, metres or fathoms.
The required units are selected during user calibration (see Chapter 4,
Calibration).
Displayed information
When first switched on, your ST60 Depth instrument shows the
current depth. The instrument memorises the minimum and maximum
depth values encountered during the period it is switched on, and these
can be recalled at any time (see the Reading depth values flow chart).
The display will always revert to the current depth display after 8
seconds.
You can reset the MIN and MAX values by pressing the resetreset
resetreset
reset key for
three seconds.
038_3c01.p65 06/04/01, 08:341

2ST60 Depth Instrument Owner’s Handbook
Switch on
Current
depth
Minimum depth Maximum depth
Reading depth values
Press
for 3 s to reset
MIN or MAX display
D4347-1
depth
reset
depth
depth
The current depth display provides depth-trend indicator arrows to
show whether the depth is increasing or decreasing. A rising sea-bed is
shown by an up arrow and a lowering sea-bed by a down arrow.
If there is no depth signal from the transducer for more than 30
seconds, the last known depth is displayed and LAST flashes at the top
of the screen. If depth information is not received from the transducer
or from SeaTalk, then dashes are displayed.
Alarms
An alarm condition occurs if:
•The depth is less than the SHALLOW or SHALLOW anchor threshold.
•The depth is more than the DEEP anchor threshold.
•The DEEP threshold value is crossed, with the seabed rising or
falling.
An alarm condition is indicated by an audible beep and a flashing
alarm symbol on the display. The display will also show the relevant
caption, either SHALLOW or DEEP, and for anchor alarms an anchor
symbol.
038_3c01.p65 06/04/01, 08:342

Chapter 1: Operation 3
alarm
Shallow alarm
Deep alarm
Shallow anchor
alarm
Deep anchor
alarm
alarm
alarm
alarm
reset
To enable/disable any alarm
Press
(toggle action)
offset reset
offset reset
To enter/exit adjust mode
Press and together
In adjust mode, use
to decrease, or to increase
Alarm thresholds
D4348-1
for 1 second
038_3c01.p65 06/04/01, 08:343

4ST60 Depth Instrument Owner’s Handbook
When the instrument is operating as a master, you can check the alarm
thresholds and if necessary set them up (see Alarm thresholds flow
chart). To do this, use the alarm key to select the required alarm
threshold, then:
•To enable or disable the alarm, press the reset key for 1 second. If
an alarm is disabled, the associated screen shows an OFF legend.
•To change the value of the alarm threshold, press the offset and
reset keys together to enter adjust mode, then use these keys
individually to set the required value.
Offsets
Depths are measured from the transducer to the sea bed. However,
offsets to the actual distances measured can be applied during
calibration (see Chapter 4, Calibration), so that the displayed depth
reading represents either the depth from the keel or the depth from the
waterline (W/L).
To see the offsets applied on your vessel, press the offset key. If the
instrument is operating as a master, the display will show the size of the
offset (either positive or negative) and the appropriate legend:
•When the offset is a positive value, the legend W/L is displayed.
•When the offset is a negative value, the legend KEEL is displayed.
•When the offset is zero, the legend OFFSET is displayed. With zero
offset applied, the displayed depth reading is measured from the
transducer.
1.3 Display settings
Illumination
When the instrument is first powered up, the display illumination is set
to its lowest (courtesy) level, to facilitate initial access to the keys. To
adjust the level of illumination:
1. Hold down the depth key for approximately one second, to enter
the illumination-adjust mode.
2. There are four preset illumination levels. Momentarily press the
depth key to cycle through the these levels until you reach the
level you want.
038_3c01.p65 06/04/01, 08:344

Chapter 1: Operation 5
3. Press any other key to leave the illumination-adjust mode.
Note: The display will time out to normal operation 7 seconds after the
last key press.
Contrast
To adjust the display contrast:
1. Enter the illumination-adjust mode as described above.
2. Hold down the depth key for a further two seconds
approximately, to enter the contrast-adjust mode.
3. There are four preset contrast settings. Momentarily press the
depth key to cycle through the these settings until you achieve
optimum display quality.
4. Press any other key to leave the contrast-adjust mode.
Note: The display will time out to normal operation 7 seconds after the
last key press.
1.4 Pop-up Pilot
A Pop-up Pilot facility enables instruments connected to SeaTalk to
constantly monitor any changes to the autopilot mode and to the course
settings. If one of these parameters changes, the new value is
immediately displayed on the ST60 instrument for 5 seconds, after
which time the display reverts to the previous display.
This facility can be enabled or disabled during User calibration (see
Chapter 4, Calibration).
1.5 Remote control
When it is connected to SeaTalk, the ST60 Depth instrument can be
controlled remotely with a SeaTalk Remote Keypad Unit. Remote
control of an instrument is indicated by a REMOTE legend on the
display, to indicate that the keypad has control.
Details on how to use the remote control facility can be found in the
SeaTalk Remote Keypad Owner’s Handbook.
038_3c01.p65 06/04/01, 08:345

6ST60 Depth Instrument Owner’s Handbook
038_3c01.p65 06/04/01, 08:346

Chapter 2: Maintenance and Fault Finding 7
Chapter 2: Maintenance and Fault Finding
2.1 Maintenance
Servicing and safety
•Raymarine equipment should be serviced only by authorised
Raymarine service engineers. There are no user-serviceable parts in
any Raymarine product.
•Some products generate high voltages, and so never handle the
cables/connectors when power is being applied to the equipment.
•Always report any EMC related problem to your nearest
Raymarine dealer. We will use any such information to improve
our quality standards.
When requesting service, please quote equipment Type, Model
Number and, if possible, Software Release Issue. The Software
Release Issue can be ascertained by means of the Intermediate
Calibration facility, see Chapter 4, Calibration.
Instrument
Certain atmospheric conditions may cause condensation to form on
the instrument window. This will not harm the instrument and can be
cleared by increasing the illumination setting to Level 3.
Periodically clean your ST60 instrument with a soft damp cloth. Do
NOT use chemical and abrasive materials to clean the instrument.
Transducer
Refer to the Installation and Maintenance instructions supplied with
the transducer.
Cabling
Examine all cables for chafing or other damage to the outer shield and,
where necessary, replace and re-secure.
038_3c02.p65 06/04/01, 08:347
