Rayovac Multi-System Charger 3-1 User manual

1
GD
ENGLAND
Rayovac Europe Ltd.,
Stephenson Estate,
District 12, Washington,
Tyne & Wear, NE37 3HW.
0
I
DEUTSCHLAND
RAYOVAC EUROPE B.V.
Deutsche Zweigniederlassung
StepgesstraRe 23
D-41061 Mijnchengladbach
Q)
FRANCE
RAYOVAC FRANCE
122 Rue Marcel Hartmann, Z.I. Leapark
94853 lvry sur Seine Cedex

-
GD
.
Congratulations!
You are about to experience the power and cost savings
of a revolutionary battery charging system. The Rayovac
Multi-System Charger allows you to recharge the most
common rechargeable AA or AAA batteries:
f Rayovac Rechargeable Alkaline
f Nickel Metal Hydride (NiMH)
i Nickel Cadmium (Ni-Cd)
The Rayovac Multi-System Charger identifies the
battery system you want to recharge and recharges at
the required rate and time - ensuring that you have
batteries ready for use with just one charger!
This manual contains important safety and operating
instructions for the Rayovac Rechargeable Multi-System
Charger (Model PSl), which should be read thoroughly
before using.
Remember to complete the warranty card at the back
of this manual. To validate your warranty please send it
to: Rayovac Europe Ltd, Stephenson Estate, District 12,
Washington, Tyne&Wear, NE37 3HW.
Rayovac Rechargeable
Alkaline Batteries
For greatest savings and performance we recommend
RAYOVAC RECHARGEABLE ALKALINE BATTERIES.
Rechargeable Alkaline batteries are ideal for high drain
devices such as:
f Personal Stereos
f Electronic Games
f Personal CD Players
f Portable Stereos
f Toys
f and many more
And, Rayovac Rechargeable Alkaline batteries do not
suffer from the problems of traditional Nickel Cadmium
batteries -as shown in Battery Comparison Chart on the
next page.
For added convenience, Rayovac Rechargeable
Alkaline batteries come fully charged and ready to use.

m
a3
I)
NEW! Rayovac Nickel Metal
Hydride Batteries
For digital cameras, cellular phones and camcorders we
advise you to use Rayovac Nickel Metal Hydride
batteries. From our own extensive testing, we have
concluded that NiMH batteries will deliver the optimum
performance in these devices.
I
HIGH TECH.
<o Rechargeable Alkaline
($0 Accu Oplaadbare Alkaline
@> ACCU Aufladbare Afkalische
GI ACCU Alcaline Rechargeable
0 Alcalina Recargable
cz> Alcalina Ricaricabile
RAhl
WARNING: Never charge regular, single-use alkaline
batteries in the Rayovac Multi-System Charger. Charging
single use batteries may cause them to become hot, leak or
rupture causing personal injury or property damage.
Never stack batteries on top of each other in a
compartment. DO NOT MIX DIFFERENT BATTERY
SYSTEMS TOGETHER WHEN CHARGING E.G. DO NOT
MIX RAYOVAC RECHARGEABLE ALKALINE BA-TTERIES
WITH RAYOVAC NICKEL METAL HYDRIDE BATTERIES -
EACH BATTERY TYPE MUST BE CHARGED SEPARATELY.
5 Easy Steps Tii Battery Charging
Note: Rayovac Rechargeable Alkaline Batteries
come charged, ready to use. Nickel
Cadmium and Nickel Metal Hydride
batteries must be charged prior to
initial use.
1. Open the cover to load your
batteries into the battery charger
(Figure 1).
2. To load, batteries must be inserted
first at the positive (+) or nubbin end
and then snap the negative (-) or flat
end into place (Figure 2). Make sure
the batteries are fitted securely.
Figure 1
Figure 2

w
GD
.

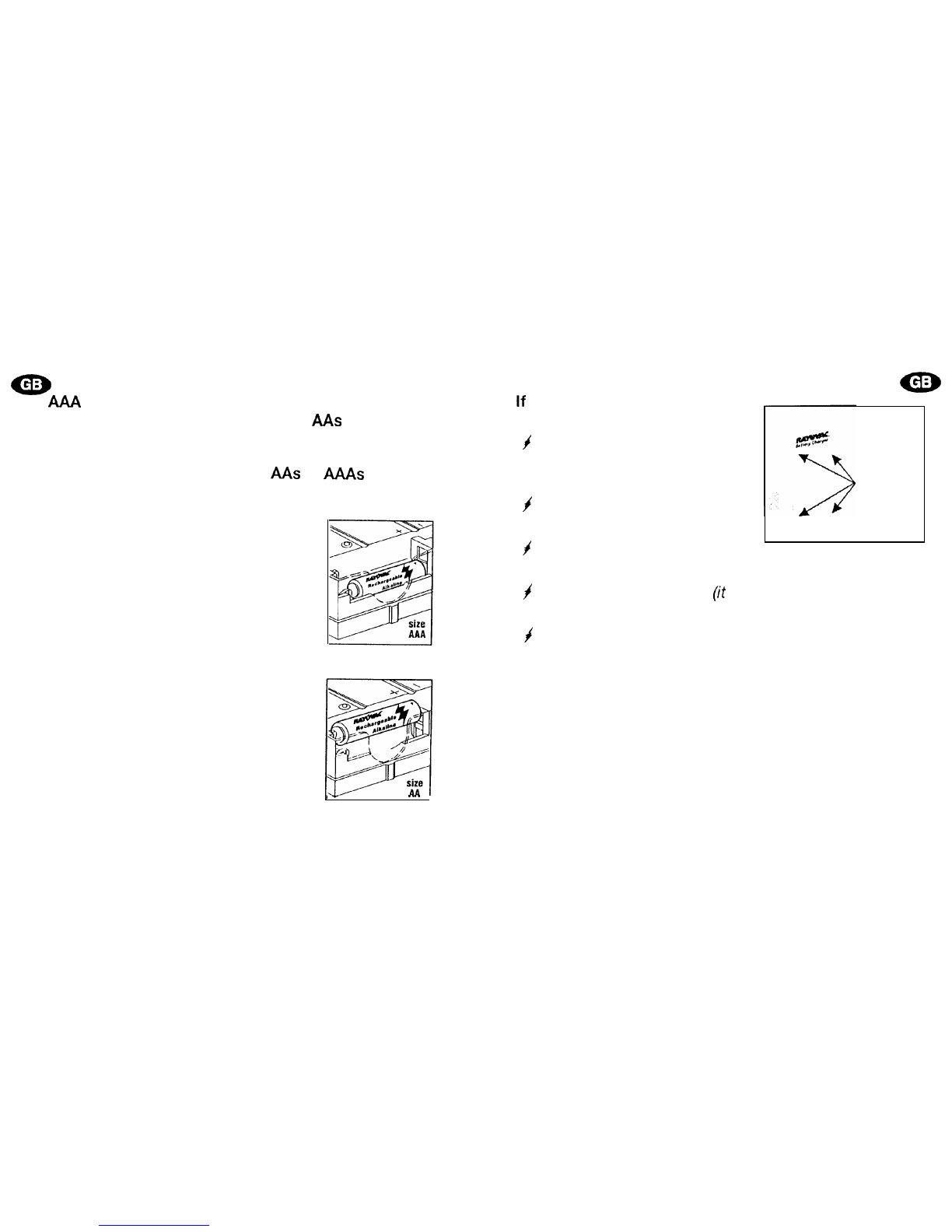

AU size batteries fit into the bottom portion of each
battery compartment (Figure 3) and AAs (due to their
If the light does not go on,
check to ensure:
larger size) fit into the upper portion of the
compartment. (Figure 4). Your Rayovac Multi-System
Charger will charge up to four Ms or AAAsat a time.
Each of the four battery compartments only holds one
battery at a time.
f
f
3. Close the charge cover.
4. Plug the Charger directly into any
wall socket (standard 220-240 volt
AC outlet).
5. Look for the green LED light to go
on (Figure 5). The light indicates
the battery in that compartment
is inserted correctly and taking a
charge.
Figure 3
f
f
f
Positive(+) sign on battery
matches (+) sign on the
Charger.
Battery is properly seated in
the compartment.
Charger is fully plugged into
electrical wall outlet.
1
GD
Green
Lights
Figure 5
Battery needs charging (it may already be
fully charged).
The compartment is not empty (empty
compartments will not light green LED).
Occasionally, a Rayovac Rechargeable Alkaline Battery
inserted correctly may not cause the charging light to go
on. Leave it in the Charger, and check it in one hour.
If the light still does not go on, discard the battery.
The green LED lights will go out when batteries are
fully charged. Unplug the Charger before removing
batteries. Batteries will charge overnight.
I
__._
- Figure 4

a3
:
- _
.
a3
.
For further advice or information about your Rayovac
Multi-System Charger and Rechargeable Alkaline
Recommended Charging Routine
Batteries, please call Rayovac’s Free Customer Care
Line on [phone].
Number of
Device
Batteries Charge
Rechargeables
after Approximately
Recharging Tips
Rayovac Rechargeable Alkaline
Performance and savings are maximised if you charge
batteries frequently. For best results, do not wait until
batteries are completely drained before charging.
We recommend,that you have a spare set of Rayovac
Rechargeable Alkaline batteries. Keep the sets together,
one in use and the other charged and ready to use
-
meaning that you will have maximum battery power
whenever you need it!
Rayovac Rechargeable Alkaline Batteries are
available in AA, AAA, C and D sizes. Also available in the
Rayovac Rechargeable range is the PS3 Multi-System
Charger which charges 1
- 8 AA’s or AAA’s or I-4 C or D
size rechargeable batteries.
Portable
CD Player
Handheld
Game
Toy Car
Portable
Stereo
4AA’s 4 Hours of Use
6AA’s 2 Hours of Use
6AA’s 2 Hours of Use
8D’s
4 Hours of Use -
OR Follow
Weekly Charge
Routine
2 Times per wk.
4 Times per wk.
-1 Times per wk.
2 Times per wk.
Caution
If your batteries stop operating your device, TURN IT
OFF AND TAKE YOUR BATTERIES OUT! This will
prevent damaging your batteries.
For indoor use only &3 Class II Construction
m Read
User Manual before charging
A.
Children using this multi-system charger or any
rechargeable batteries should be supervised at all times.

I
aB
.
Nickel Metal
Hydride (NiMH)
NiMH batteries should not be stored for long periods as
they lose approximately 43% of their power daily in
storage.
Nickel Cadmium (Ni-Cd)
Ni-Cd batteries should be completely drained before
recharging to avoid any “memory problem.”
Ni-Cd batteries should not be stored for long periods
as they lose approximately i-2% of their power daily in
storage.
FOR OPTIMAL CHARGING PERFORMANCE IN ALL
SYSTEMS,LEAVEBATTERIESINYOURCHARGER
UNTIL GREEN CHARGING LIGHTS GO OUT. THIS
WILL ENSURE A FULL CHARGE.
WARNING: Rayovac Rechargeable Alkaline Batteries are
designed to charge only with a Rayovac Multi-System
Charger. If used in any other battery charger, batteries may
become hot, explode, leak or rupture, causing personal
injury or property damage.
.
The Rayovac Multi-System PSI Charger is designed to
recharge Rayovac Rechargeable Alkaline, Nickel Cadmium
(Ni-Cd) and Nickel Metal Hydride (NiMH) AA or AAA size
batteries. DO NOT MIX DIFFERENT BATTERY SYSTEMS
TOGETHER WHEN CHARGING E.G. DO NOT MIX
RAYOVAC RECHARGEABLE ALKALINE BAT-i-ERIES WITH
RAYOVAC NICKEL METAL HYDRIDE BATTERIES - EACH
BATTERY TYPE MUST BE CHARGED SEPARATELY.
Never charge regular, single-use alkaline batteries in the
Rayovac Multi-System Charger. Charging single use
batteries may cause them to become hot, leak or rupture
causing personal injury or property damage.
NOTE: The Multi-System Charger will become warm when
batteries are charging- this is normal. As with all electric
appliances to reduce the risk of electric shock, unplug your
Charger from the outlet before cleaning. Never immerse
Charger in water or any other liquid. Do not expose the
Charger to rain or snow. Shock hazards may result.
;;
_

Warranty
Rayovac Multi-System PSl Chargers are warranted to
be free of manufacturing defects for one full year from
the date of original consumer purchase. The warranty
does not cover physical damage from accident, misuse
or modification of the Rayovac Multi-System PSI
Charger. Your statutory rights are not affected.
If the product should become defective during the
warranty period, we will replace it free of charge if sent
to: Rayovac Europe Ltd, Stephenson Estate, District 12,
Washington, Tyne &Wear, NE37 3HW. For the attention
of the Technical Director.
