RCA DRC608N User manual

DVD Player
User's Guide
Changing entertainment. Again.

WARNING
RISKOFELECTRICSHOCK.
DONOTOPEN.
To reduce risk of electrical shock, do not
remove cover or back/no user
serviceable paris inside). Refbr servicing
to qualified personnel.
This symbol indicates
"dangerous voltage" inside the
product that presenls a risk of'
electlic shock or personal il!iur>
This symbol indicates
important instructions
accompanying the product
FCCINFORMATION
This equipment has been tested and fuund to comply with the limits for a Class
B digital device, pmtsuant to Part 15 of the FCt"rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy an& if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. [f this
equipment does cause hanrfful interference to radio or television reception,
which can be determined hy turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures.
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect this equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician fur help.
This class B digital apparatus meets all requirements of the Canadian
Interference--Causing Equipment Regulations.
Refer to the identification/rating label located on the hack
panel of your product for its proper operating voltage.
Caution: To prevent electric shock, match wide blade of plug
to wide slot, fully insert.
Attention: Pour _viter les chocs dlectriques, introduire la
lame la plus large de la fiche dans la borne correspondante
de la prise et pousser jusq6 au fund.
Product Registration: Please fill out the product registration card {packed
separately) and return it immediately. For IJ.S. customel:s: Your Rt'A Consumer
Electronics product may also be registered at www.rca.com/pmductregistration
Registering this product allows us to contact you if necessary.
Keep your sales receipt to obtain warranty parts and service and for proof of
purchase. Attach it here and record the serial and model numhelts in case you
need them. The numbelts are located on the back of the player.
Model number: Serial Number:.
Purchase date:
Dealer address and phone:
WARNINGTo reduce the risk of fire
or shock hazard, do not expose this
DVD player to rain or moisture. No
objects filled wilh liquids, such as
vases, shall be placed on the
apparatus.
CAUTION
THIS PRODUCTUTILIZESA LASER.
USE OF CONTROLSORADJUST-
MENTS OR PERFORMANCEOF
PROCEDURESOTHERTHAN THOSE
SPECIFIED HEREINMAYRESULTIN
HAZARDOUSRADIATION
EXPOSURE. DO NOTOPEN COVERS
AND DO NOT REPAIRYOURSELF.
REFER SERVICINGTO QUALIFIED
PERSONNEL.
CAUTION
FCCRegulations state that
unauthorized changes or modifi-
cations to this equipment may void
the user's authority lo operate it.
Note:
This device is prolected by U.S.
paieni numbers 4,631,603 and
4,577,216 and 4,819,098 and other
intellectual properly rights. The use
of Macrovision's copy protection
lechnology in the device must be
authorized by Macrovision and is
intended for home and other limited
pay-per-view uses only, unless
otherwise authorized in writing by
Macrovision. Reverse engineering or
disassembly is prohibited
This DVD player is designed and
manufactured to respond to the
Region Management InlPrmation. If
lhe Region number of a DVD disc
does not correspond to lhe Region
number of this DVD player, this
DVD player cannot play the disc.
The Region number for this DVD
player is Region No 1.
Apparatus shall not be exposed to
dripping or splashing and thai no
ol_iects filled wilh liquids, such as
vases, shall be placed on the
apparatus.
CLASSl
LASER |
PRODUCT_.,,]

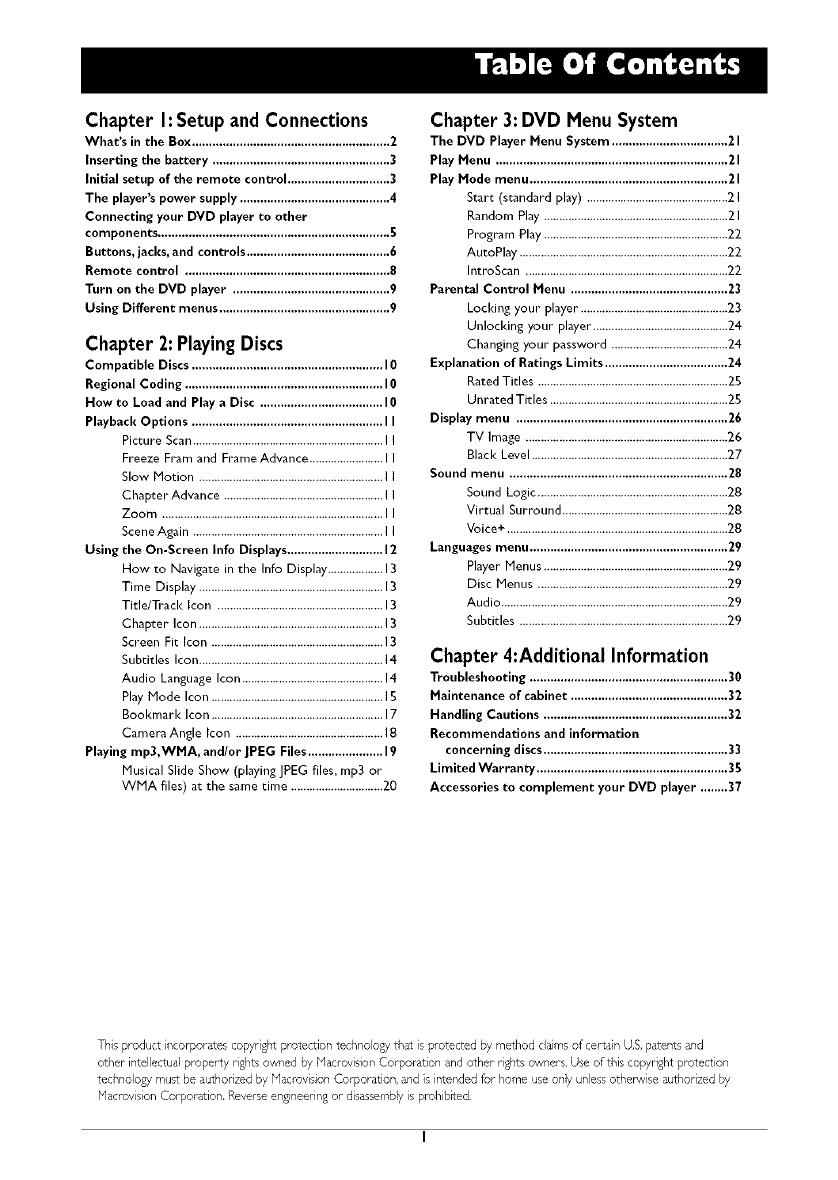

Chapter I: Setup andConnections
What's in the Box .......................................................... 2
Inserting the battery .................................................... 3
Initial setup of the remote control .............................. 3
The player's power supply ............................................ 4
Connecting your DVD player to other
components .................................................................... 5
Buttons, jacks, and controls .......................................... 6
Remote control ............................................................ 8

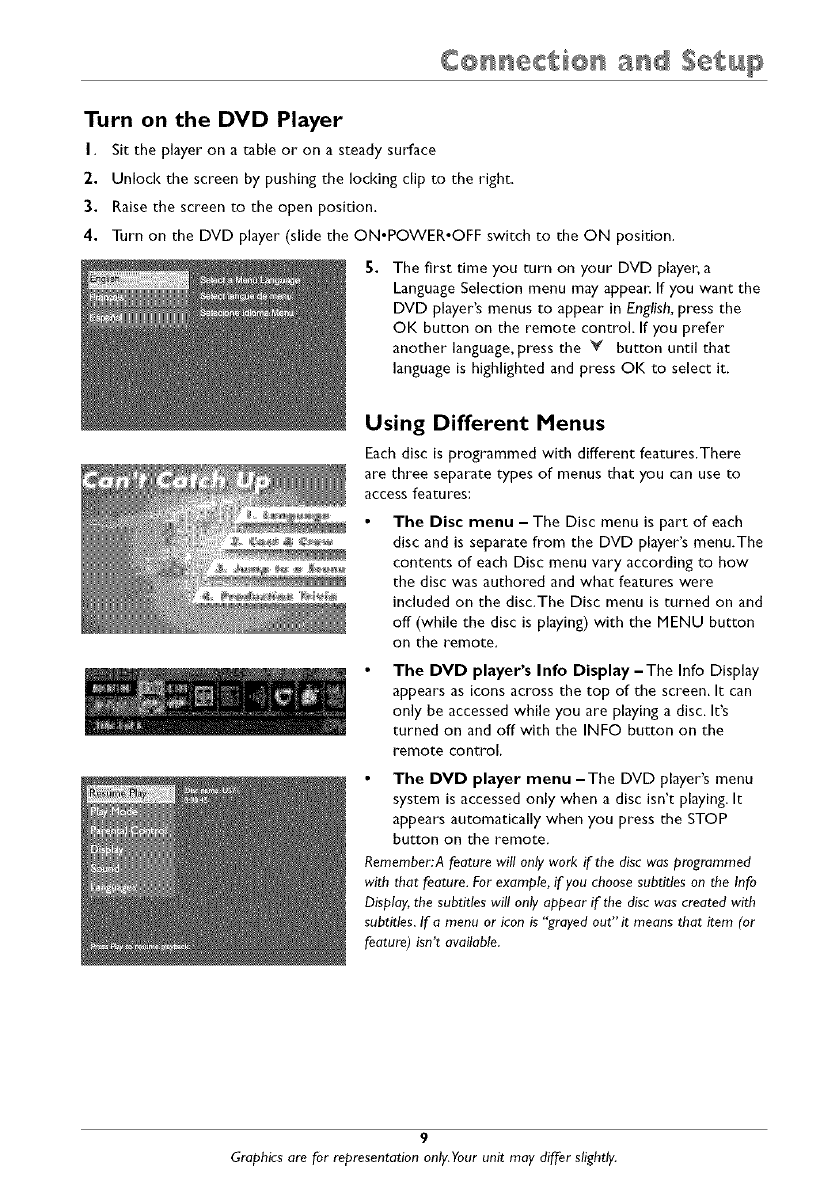

Turn on the DVD player .............................................. 9
Using Different menus .................................................. 9
Chapter 2:PlayingDiscs
Compatible Discs ........................................................ I 0
Regional Coding .......................................................... I 0
How to Load and Play a Disc .................................... I 0

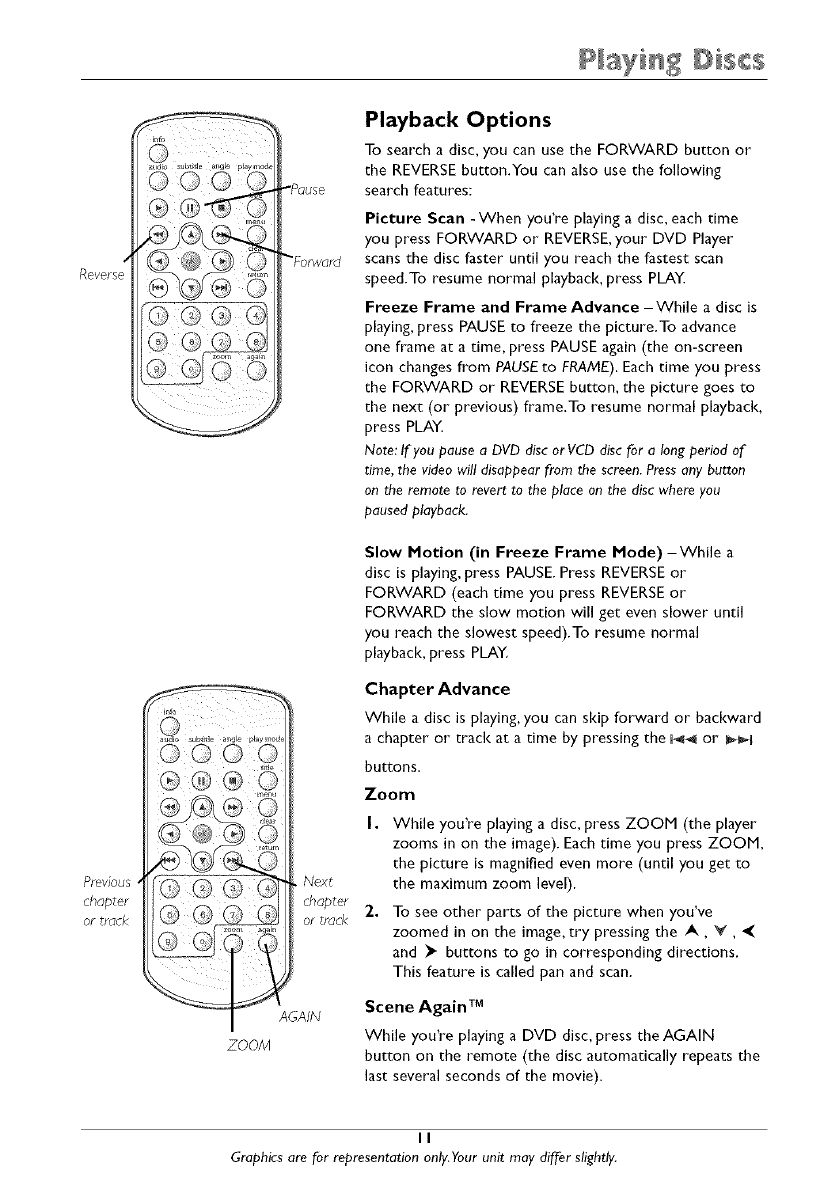

Playback Options ........................................................ I I
Picture Scan .............................................................. I I
Freeze Fram and Frame Advance ........................ II
Slow Motion ............................................................ II
Chapter Advance .................................................... I I
Zoom ........................................................................ I I
Scene Again .............................................................. I I
Using the On-Screen Info Displays ............................ 12

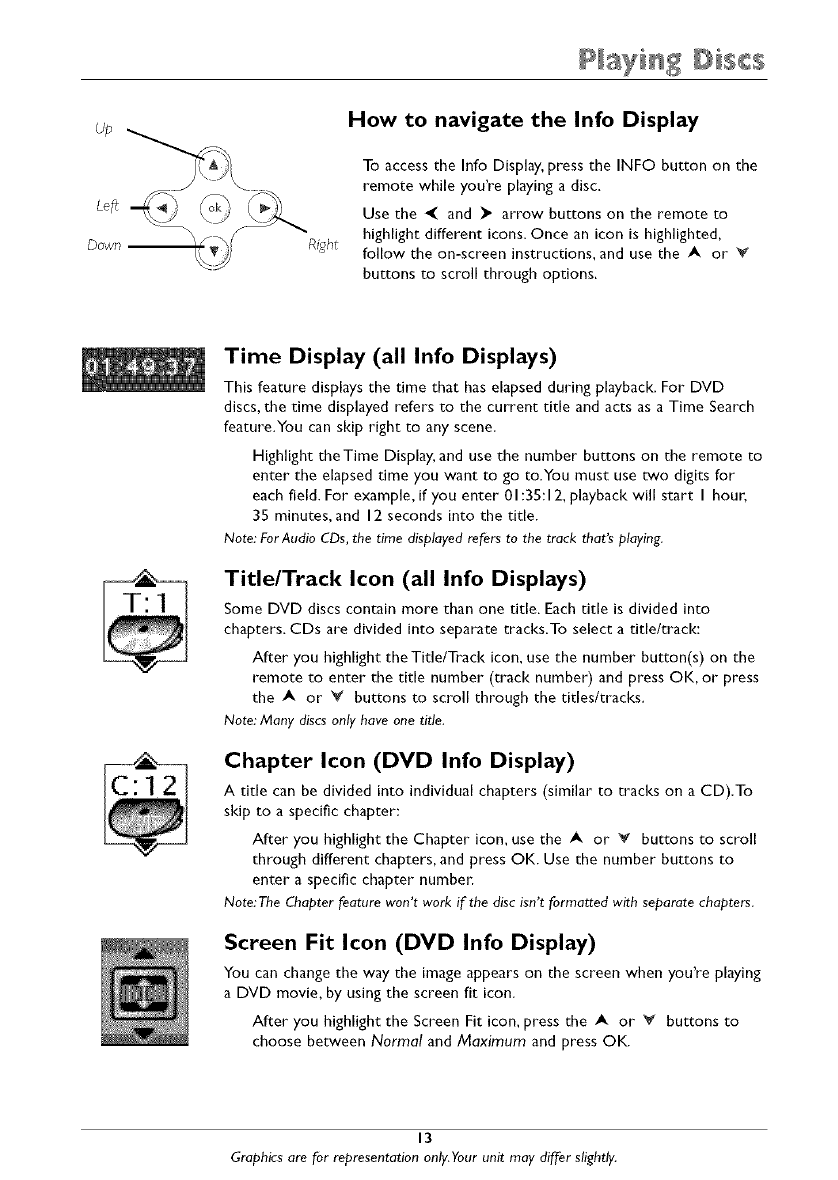

How to Navigate in the Info Display .................. 13
Time Display ............................................................ 13
Title/Track Icon ...................................................... 13
Chapter Icon ............................................................ 13
Screen Fit Icon ........................................................ 13
Subtitles Icon ............................................................ 14
Audio Language Icon .............................................. 14

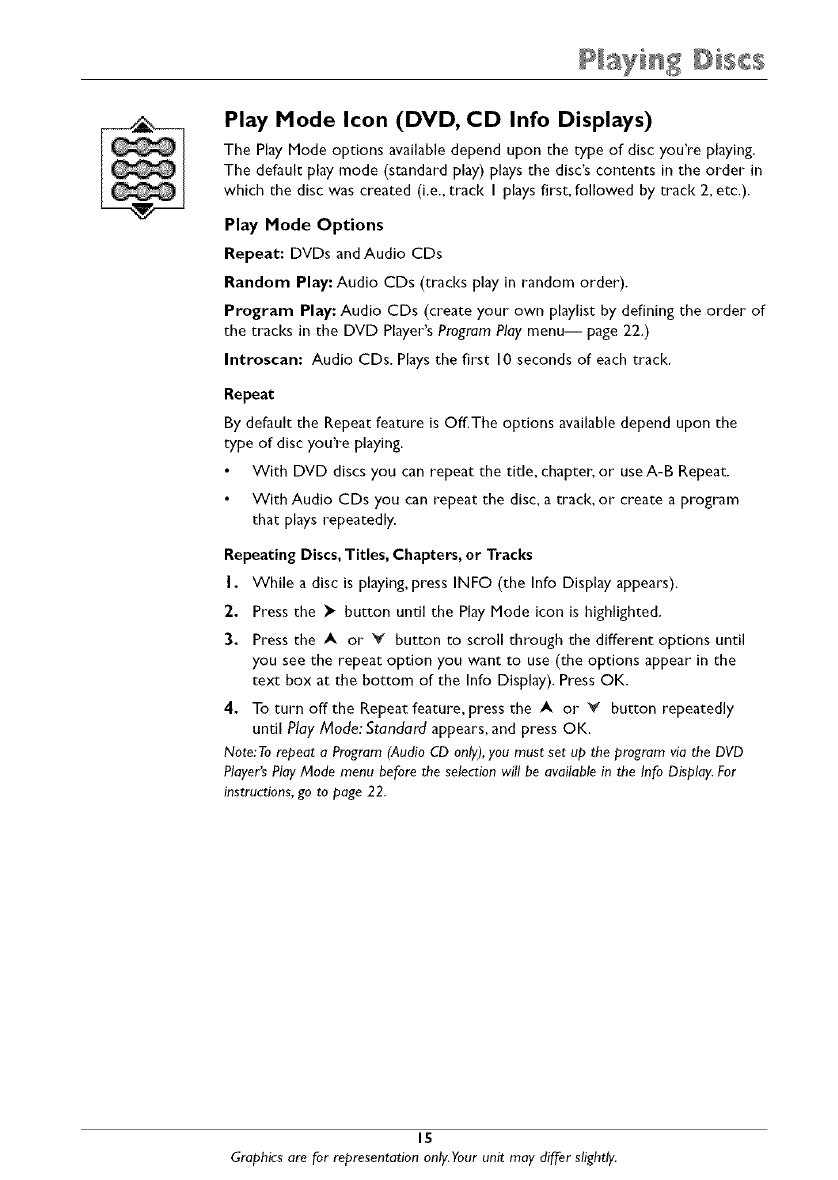

Play Mode Icon ........................................................ I S
Bookmark Icon ........................................................ 17

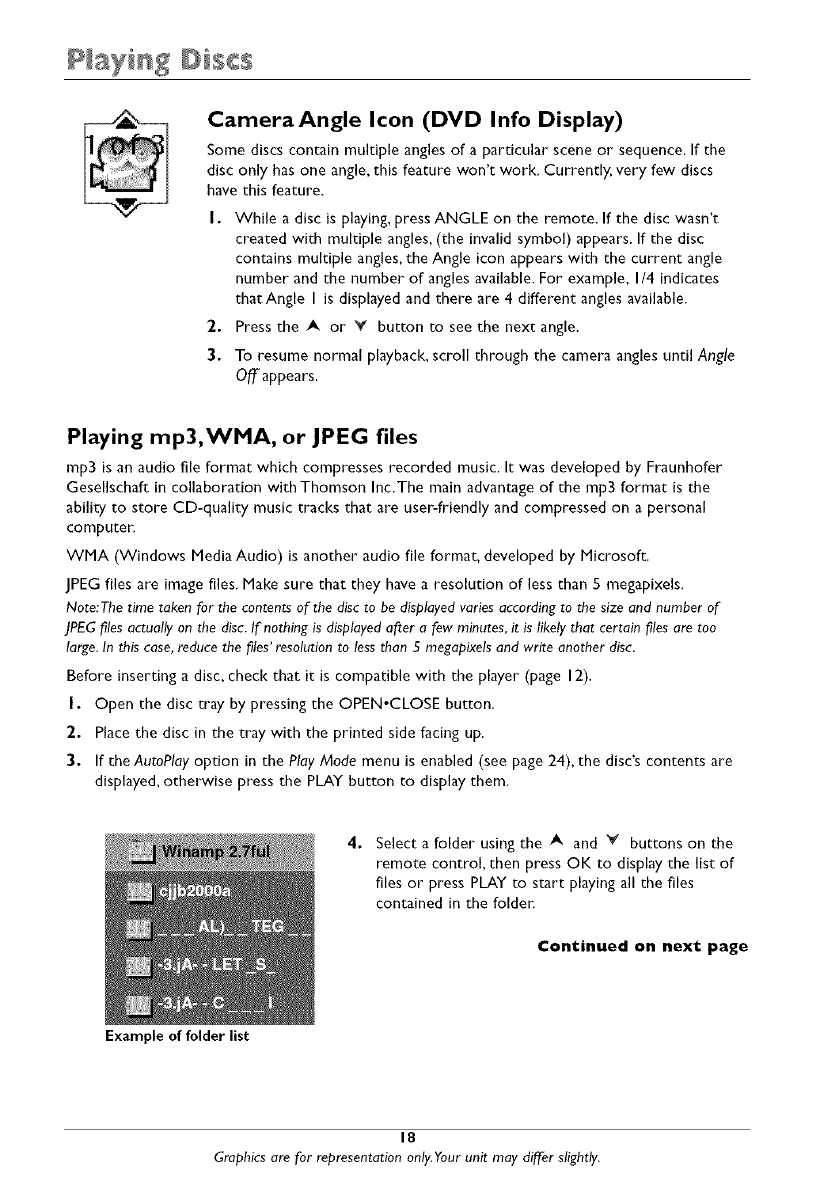

Camera Angle Icon ................................................ 18
Playing mp3,WMA_ and/or JPEG Files ...................... 19
Musical Slide Show (playing JPEG files, rap3 or
WMA files) at the same time .............................. 20
Chapter 3: DVD Menu System
The DVD Player Menu System .................................. 2 I
Play Menu .................................................................... 21
Play Mode menu .......................................................... 21
Start (standard play) .............................................. 21
Random Play ............................................................ 21
Program Play ............................................................ 22
AutoPlay .................................................................... 22
IntroScan .................................................................. 22
Parental Control Menu .............................................. 23
Locking your player ................................................ 23
Unlocking your player ............................................ 24
Changing your password ...................................... 24
Explanation of Ratings Limits .................................... 24
Rated Titles .............................................................. 2S
Unrated Titles .......................................................... 2S
Display menu .............................................................. 26
TV Image .................................................................. 26
Black Level ................................................................ 27
Sound menu ................................................................ 28
Sound Logic .............................................................. 28
Virtual Surround ...................................................... 28
Voice+ ........................................................................ 28
Languages menu .......................................................... 29
Player Menus ............................................................ 29
Disc Menus .............................................................. 29
Audio .......................................................................... 29
Subtitles .................................................................... 29
Chapter 4:Additional Information
Troubleshooting .......................................................... 30
Maintenance of cabinet .............................................. 32
Handling Cautions ...................................................... 32
Recommendations and information
concerning discs ...................................................... 33
Limited Warranty ........................................................ 3S
Accessories to complement your DVD player ........ 37
This product incorporates copyright protection technology that isprotected by method claims of certain U,S, patents and
other intellectual property rights owned by MacrovisJon Corporation and other rights owners, Use of this copyright protection
technology must be authorized by Macrovision Corporation, and is intended for home use only unless otherwise authorized by
k]acr-ovision Corporation. Reverse englneenng or disassembly is prohibited

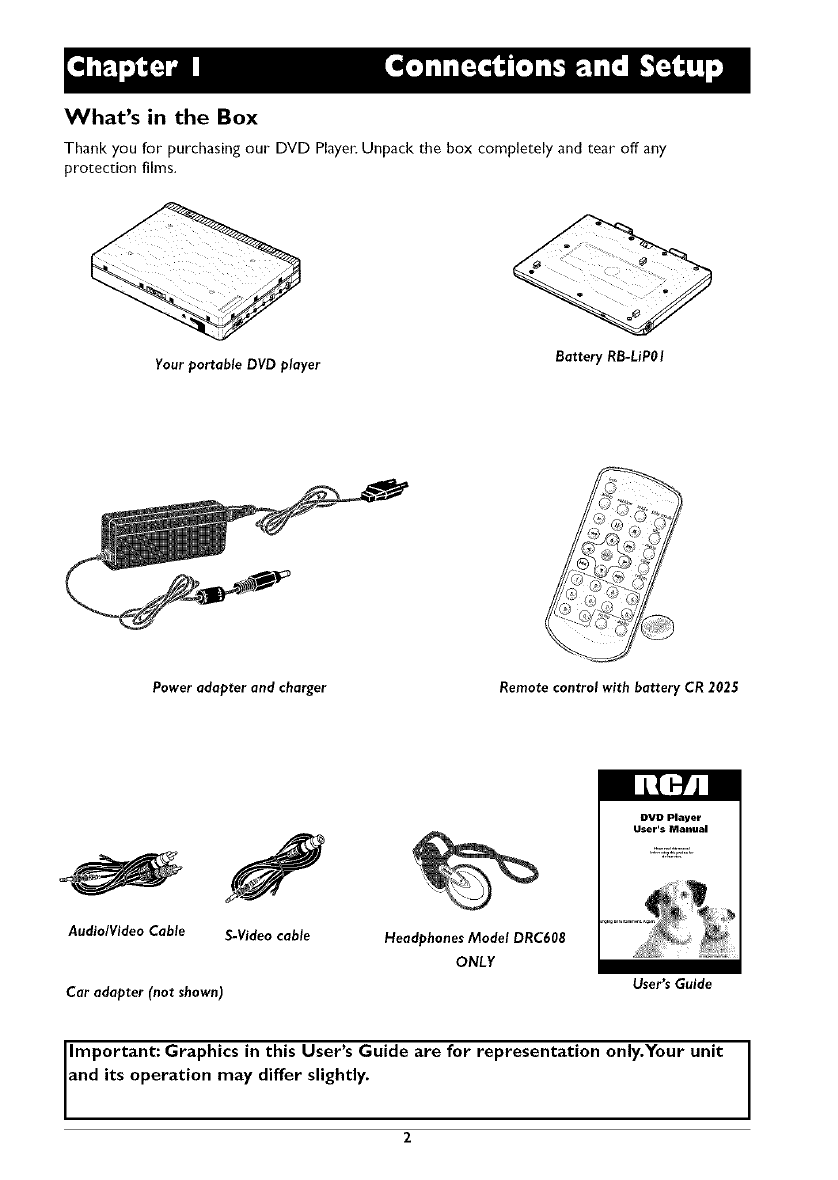

What's in the Box
Thank you for purchasing our DVD Playe_:Unpack the box completely and tear off any
protection films.
Your portable DVD player Battery RB-LiPO I
Power adapter and charger Remote control with battery CR 2025
Audio/Video Cable S-Videocable
Car adapter (not shown)
Headphones Model DRC608
ONLY
User's Guide
Important: Graphics in this User's Guide are for representation only.Your unit
and ts operat on may d fief s ght y.
2

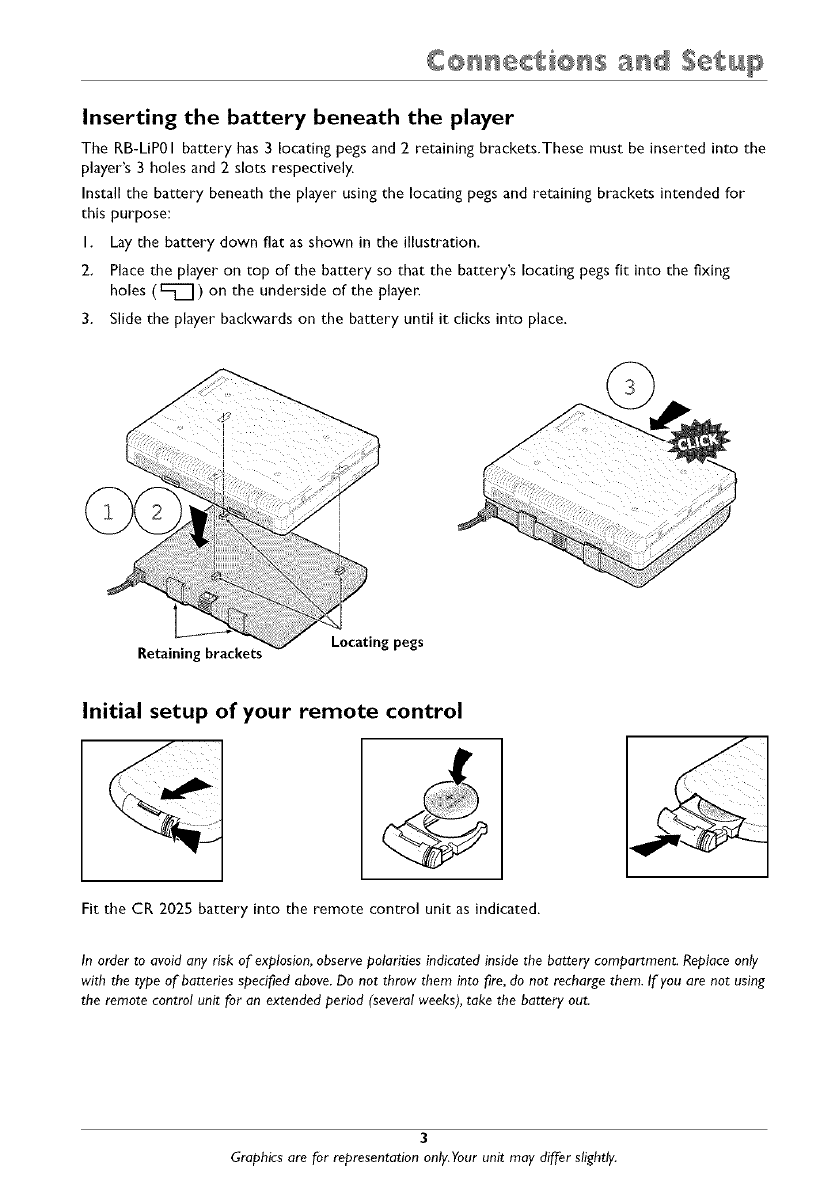

Inserting the battery beneath the player
The RB-LiP01 battery has 3 locating pegs and 2 retaining brackets.These must be inserted into the
player's 3holes and 2 slots respectively.
Install the battery beneath the player using the locating pegs and retaining brackets intended for
this purpose:
I. Lay the battery down flat as shown in the illustration.
2. Place the player on top of the battery so that the battery's locating pegs fit into the fixing
holes (_) on the underside of the player.
3. Slide the player backwards on the battery until it clicks into place.
Locating pegs
Retaining brackets
Initial setup of your remote control
Fit the CR 2025 battery into the remote control unit as indicated.
In order to avoid any risk of explosion, observe polarities indicated inside the battery compartment. Replace only
with the type of batteries specified above. Do not throw them into fire, do not recharge them. If you are not using
the remote control unit for an extended period (several weeks), take the battery out.
3
Graphicsare for representationonly.Yourunit may differ slightly.

C® He¢ ®HS aridSetup
The Player's Power Supply
You can power your player either from the power adapter or from the battery.The battery must
first be charged using the power adapter_
Using the power adapter
I. Connect the output from the power adapter to the player's DC IN socket.
2. Connect the power adapter's supply cable to an AC power outlet.
Using the battery
I. Install the battery as explained on page 3.
Charging the battery
I. Connect the output from the power adapter to the battery's DC IN socket.A red warning
light will come on.This light will go out once the battery is fully charged.
4
Graphics are for representation only. Your unit may differ slightly.

Connecting your DVD player to other components
Connecting the player to a television set
If you wish to use your portable player for home viewing, you can connect it to a television set
using the Audio-Video cables supplied.
Caution! The selector
switch must be in the
OUT position.
I1.1
Using headphones
For private listening, use the phones iack to connect aheadset to the player. Headphones are only
included with model DRC608N.
Connecting Audio-Video output to the player
If you want to use the player's built-in LCD screen (I) to watch pictures from an external source
(camcorder, VCR, etc.), use the Audio-Video cables supplied and set the Line select switch to the
in position.
5
Graphicsare for representationonly.Yourunit may differslightly.

C® He¢ ®HS aridSetup
Buttons, jacks, and controls on your DVD player
15
13
10
I Locldng clip
2 LCD screen
3 display mode: adjusts brightness, color, and picture format (full, normal, or zoom). Pressdisplay
mode button repeatedly co access different options; then use the • or • buttons (I 2) co make
adjustments.
4return: goes back to the previous menu.
5 menu: accesses disc menu.
6 title: accesses disc title menu (if disc has one).
7previous and next: goes to previous chapter or track; goes to next chapter or track.
8 II (pause): pauses playback.
9 • (stop): stops playback.
I 0 play: plays disc.
I I •(oldselect): selectsahighlightedmenu.
12 Navigation buttons • • A _f : used to highlight on-screen items, and make some menu
adiustments (e.g., display mode settings).
13 Disc compartment.
14 open _ : opens disc compartment.
15 on-power-off: turns the player on or off.
6
Graphicsare for representationonly.Yourunit may differ slightly.

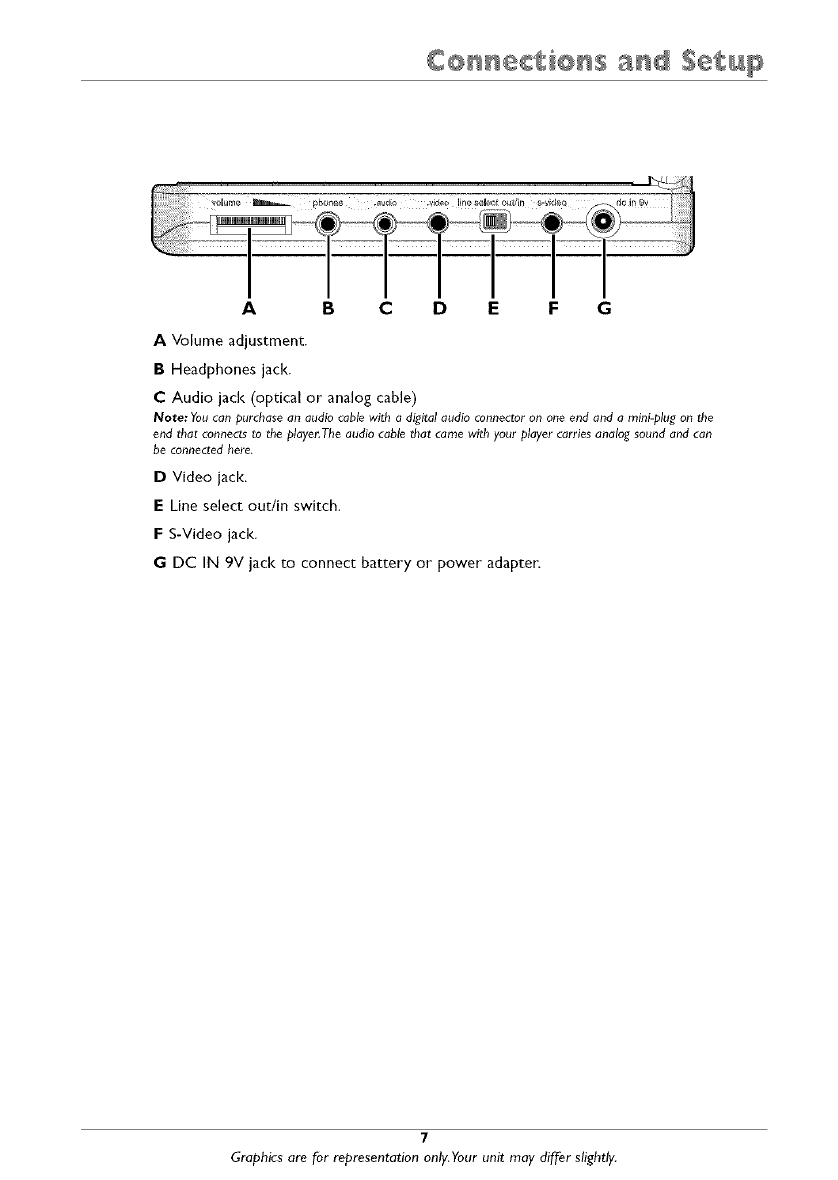

A B C D E F G
AVolume adjustment.
BHeadphones jack.
CAudio jack (optical or analog cable)
Note: You can purchase an audio cable with a digital audio connector on one end and amini-plug on the
end that connects to the player.Tile audio cable that came with your player carries analog sound and can
be connected here.
D Video iack.
ELine select outlin switch.
F S-Video jack.
GDC IN 9V jack m connect battery or power adapter.
7
Graphicsare for representationonly.Yourunit may differslightly.

C® He¢$ ®HS aridSe$ p

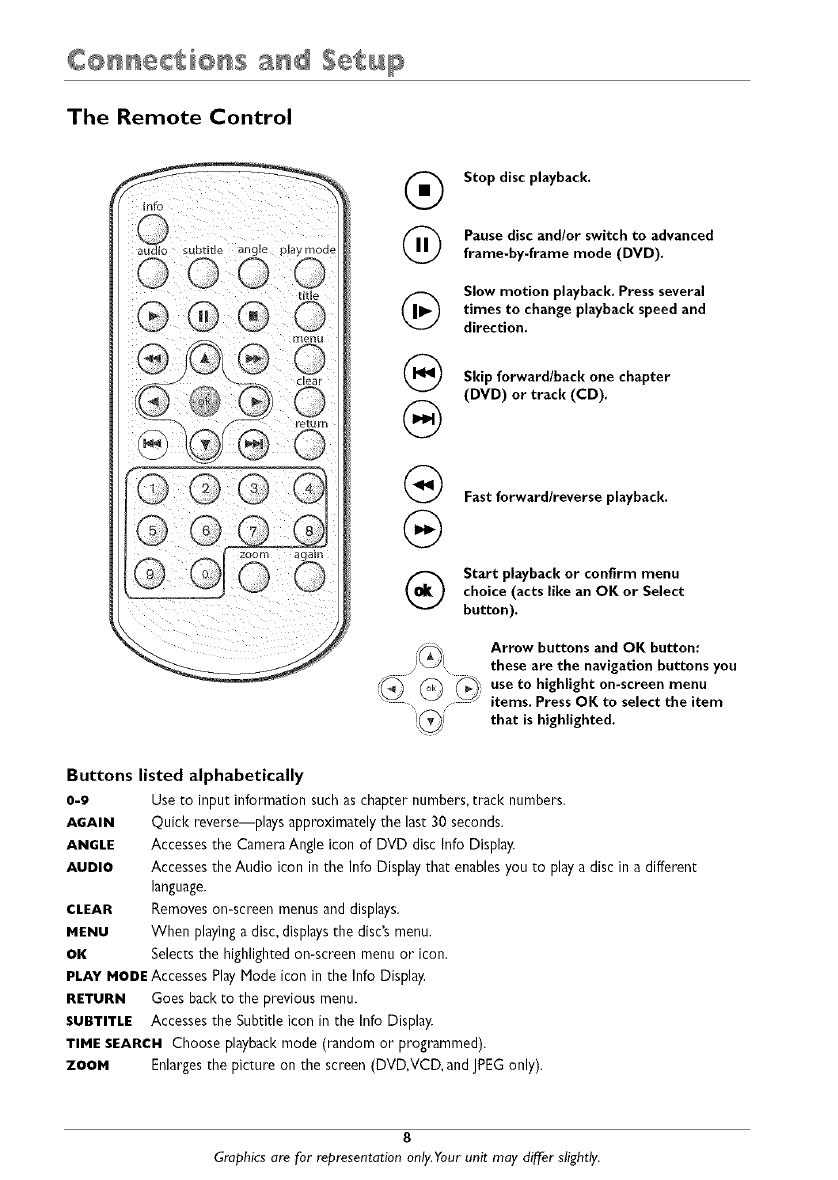

The Remote Control
®
®
®
®
®
®
Stop disc playback.
Pausediscand/or switch to advanced
frame-by-frame mode (DVD).
Slow motion playback. Press several
times to change playback speed and
direction.
Skip forward/back one chapter
(DVD) or track (CD).
Fast forward/reverse playback.
Start playback or confirm menu
choice (acts like an OK or Select
button).
Arrow buttons and OK button:
these are the navigation buttons you
use to highlight on-screen menu
items. Press OK to select the item
that is highlighted.
Buttons listed alphabetically
0-9 Useto input information suchas chapter numbers,track numbers.
AGAIN Quick reverse--plays approximately the last30 seconds.
ANGLE Accesses the Camera Angle icon of DVD disc Info Display.
AUDIO Accessesthe Audio icon inthe InfoDisplaythat enablesyou to playa disc in adifferent
language.
CLEAR Removeson-screen menusand displays.
MENU When playingadisc, displaysthe disc'smenu.
OK Selectsthe highlightedon-screen menu or icon.
PLAYMODEAccessesPlayMode icon in the Info Display.
RETURN Goes backto the previous menu.
SUBTITLE Accessesthe Subtitleiconin the Info Display.
TIME SEARCH Choose playbackmode (random or programmed).
ZOOM Enlargesthe picture on the screen(DVD,VCD,andJPEGonly).
8
Graphicsare for representationonly.Yourunit may differ slightly.
