RealFlame 9650 LP User manual

If the information in this manual
is not followed exactly, a fire or
explosion may result causing
property damage personal injury
or loss of life.
Installation and service must be
performed by a qualified installer,
service agency or gas supplier.
Improper Installation, adjustment,
alteration, service or maintenance
can cause injury or property
damage.
Read the installation, operation
and maintenance instructions
thoroughly before installing or
servicing this equipment.
Save these instructions for
future reference. If you are
assembling this unit for
someone else, give this manual
to him or her to read and save
for future reference.
!!
IMPORTANT WARNING
SAVE THESE
INSTRUCTIONS
!DANGER
If you smell gas:
1. Shut o gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the appliance and
immediately call your gas supplier or fire department.
!
!
WARNING
WARNING
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
An LP-cylinder not connected for use should be
stored in vicinity of this or any other appliance.
For outdoor use only. DO NOT use
for cooking. DO NOT use under any
overhead enclosure.
USC
9650 LP
Rectangle Fire Table Owner’s Manual
For Technical Support Please Contact Real Flame® At: 1-800-654-1704

2
!DANGER
This appliance can produce carbon
monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed
space such as a camper, tent, car or home.
CARBON MONOXIDE HAZARD
TABLE OF CONTENTS
Important Safety Information
Propane (LP) Dangers and Warnings
Hose & Regulator Assembly and Replacement
Parts List
Assembly Instructions
Lighting Instructions
Care and Cleaning
Gas Component Checks
Troubleshooting
Warranty
Baltic Tanks Cover Instructions
3
5
7
8
9
15
16
17
19
21
22

3
IF YOU SMELL GAS
• Shut o gas supply to the re table.
• Extinguish any open ame.
• Do not try lighting any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone.
• Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the re department.
• WARNING Failure to follow the dangers, warning and cautions in this manual may
result in serious bodily injury or death, or in a fire or an explosion causing damage to
property.
• IMPORTANT NOTICE Read and understand all warnings and precautions prior to
assembly and use of your gas fire table. Improper installation, adjustment, alteration,
service or maintenance can cause injury or property damage.
• Note The use and installation of this product must conform to local codes. In the
absence of local codes, use the National Fuel Gas Code, ANSI Z21.97. Reference to
Natural Gas and Propane Installation code CSA B149.1 or Propane Storage and
Handling code B149.2.
•Minimum Clearance from Unit to Combustible Materials
72”(182.9cm) from the top; 48” (121.9 cm) from all sides and back. Do not locate this
fire table under any overhead enclosure.
• This gas re table and its individual shuto valve must be disconnected from the gas
supply piping system during any pressure testing of that system at test pressures in
excess of 1/2 of psi (3.5 kPa). The appliance must be isolated from the gas supply
piping system by closing its individual manual shuto valve during any pressure
testing of the gas supply piping system at test pressures equal to or less than 1/2 psi
(3.5 kPa).
• Keep these instructions for future reference. If you are assembling this unit for
someone else, give this manual to him or her to read and keep for future reference.
• This gas re table must be used ONLY outdoors in a well-ventilated space and shall
NOT be used inside a building, garage, or any other enclosed area.
• DO NOT use this outdoor gas re table for indoor heating. TOXIC carbon monoxide
fumes can accumulate and cause asphyxiation.
• NEVER LEAVE this gas re table unattended when in use.
• Children should be alerted to the hazards of high surface temperatures and kept at a
safe distance while fire table is in use.
• Do not store or use gasoline or other ammable vapors and liquids within 25 feet
(7.62m) of this or any other appliance.
• Do not store any combustible materials in the base enclosure.
• The use of alcohol, prescription or non-prescription drugs may impair an individual’s
ability to properly assemble or safely operate this outdoor fire table.
IMPORTANT SAFETY INFORMATION
!WARNING FIRE TABLE IS FOR OUTDOOR USE ONLY

4
• DO NOT use in an explosive atmosphere. Keep gas re table area clear and free from
combustible materials, gasoline and other flammable vapors and liquids.
• This outdoor re table is NOT to be operated by children. Young children should be closely
supervised when in the vicinity of this outdoor fire table.
• This outdoor re table is not to be installed or used in or on recreation vehicles and/or boats.
• Always use in accordance with all applicable local, state and national codes. Contact your local
fire department for details on outdoor burning.
• Use the same precautions you would with any open re when using this outdoor re table.
• DO NOT burn solid fuels such as: wood, charcoal briquettes, lump charcoal, manufactured
logs, driftwood, trash, leaves, paper, cardboard, plywood, painted or stained or pressure
treated wood in this outdoor fire table.
• DO NOT use this outdoor re table until it is COMPLETELY assembled and all parts are
securely fastened and tightened.
• DO NOT store another LP gas tank within 10 feet (3.05 m) of this outdoor re table while it is
in operation.
• DO NOT use this outdoor re table near automobiles, trucks, vans or recreational vehicles.
• DO NOT use this outdoor re table under any overhead structure or near any unprotected
combustible constructions. Avoid using near or under overhanging trees and shrubs.
• Always use this outdoor re table on a hard, level non-combustible surface such a concrete,
rock or stone. An asphalt or blacktop surface may not be acceptable for this purpose.
• DO NOT use this outdoor re table if any part has been under water. Immediately call a
qualified service technician to inspect the fire table and to replace any part or control system
and any gas control which has been under water.
• DO NOT wear ammable or loose clothing when operating this outdoor re table.
• DO NOT use in windy conditions.
• Keep all electrical cords away from a hot outdoor re table.
• Certain areas of this outdoor re table when in use will become too hot to touch. Do not touch
hot surfaces until the unit has cooled unless you are wearing protective gear such as insulated
pot holders or heat resistant gloves or mittens to avoid burns.
• DO NOT hang or place clothing or other ammable materials on or near the gas re table.
• Any guard or other protective device removed for servicing the re table must be replaced
prior to operating the fire table.
• DO NOT attempt to move or store this outdoor re table until all parts are cool.
• DO NOT lean over this outdoor re table when lighting or when in use.
• Use only the regulator and hose assembly provided. The replacement regulator and hose
assembly shall be that specified by the manufacturer.
• DO NOT attempt to disconnect the gas regulator from the tank or any gas tting while the
outdoor fire table is in use.
• Always shut o gas supply at the tank valve and disconnect regulator from the tank when the
fire table is not in use
• DO NOT sit on the mantle when the unit is in operation.
• DO NOT throw anything onto the re when the unit is in operation.
• Lava rocks are very hot; please keep the children or pets away at a safe distance.
• It is essential to keep the outdoor re table valve compartment, burners, and circulating air
passages clean. Inspect outdoor fire table before each use.
•Prior to each re table operation, check the hose for evidence of excessive abrasion or wear
by looking through the visual check hole. If the hose is damaged, cracked or cut, it must be
replaced before using the gas fire table. The hose assembly can only be replaced with a hose
assembly specified by the manufacturer. Please call Real Flame at 1-800-654-1704.
IMPORTANT SAFETY INFORMATION (continued)

5
•Before each use, remove the lava rocks. Examine the burner and its components. If dirty,
clean with a soft brush and soapy water solution. Examine the area around the burner; any
dirt or foreign material, such as spider webs or nests in this area should be removed. If it is
evident that the burner is damaged, the fire table must not be used. The burner assembly
cannot be replaced. Please contact Real Flame at 1-800-654-1704 for technical support.
• Place the hose out of the pathways where people may trip over it. Do not place the hose
in areas where it may be subjected to accidental damage.
LP GAS
LP gas is ammable and hazardous if handled improperly. Become aware of the
characteristics before using any LP gas product.
Propane Characteristics
• Flammable, explosive under pressure, heavier than air and settles in pools in low areas.
• In its natural state, propane has no odor. For your safety, an odorant has been added.
• Contact with propane could burn your skin.
• Propane is extremely ammable and hazardous if handled improperly.
LP GAS WARNINGS
• Cylinders must be stored outdoors in a well-ventilated area out of reach of children.
• Disconnected cylinders must have threaded valve plugs tightly installed and must not be
stored in a building, garage or any other enclosed area.
• Never use a propane cylinder with a damaged body, valve, collar or footing.
• Dented or rusted propane cylinders may be hazardous and should be checked by your
propane gas supplier.
• Be sure to use only one 20 lb (9.1 kg) LP gas cylinder with a Type 1 valve with this
appliance as required by the American National Standards Institute (ANSI) and the
Canadian Standards Steering Committee.
• Only tanks marked “propane” may be used.
• The LP gas supply tank must be constructed and marked in accordance with the
Specifications for LP gas LP gas tanks of the U.S. Department of Transportation (DOT) or
the National Standard of Canada, CAN/CSA-B339, LP gas tanks, Spheres and Tubes for
the Transportation of Dangerous Goods; and Commission.
• LP gas tank must be arranged for vapor withdrawal.
• The LP gas tank must have a listed overlling prevention device (OPD) and a QCCI or
Type I (CGA810) LP gas tank connection.
ATTENTION: Any alteration of the outdoor fire table that is not specifically directed in the
operations manual will void manufacturer warranty.
IMPORTANT SAFETY INFORMATION (continued)
PROPANE (LP) DANGERS AND WARNINGS
!WARNING
This outdoor fire table is for use with liquid propane (LP) gas only. The conversion to or
attempted use of natural gas in this outdoor fire table is dangerous and could result in
serious personal injury, or property damage.

6
• The LP gas tank must have a tank collar to protect the tank valve.
• LP gas cylinder must contain a shut-o valve as specied in the Standard for Compressed
Gas Cylinder Valve Outlet and Inlet Connection, ANSI/CGA-V-1-1977, CSA B96.
• The LP gas tank should not be dropped or handled roughly.
• Tanks must be stored outdoors out of the reach of children. Do NOT store in a building,
garage, or any other enclosed area.
• Never store your LP gas tank where temperatures can reach over 125°F.
• Do not store the LP gas cylinder in direct sunlight or near a source of heat or combustion.
• Never keep a lled LP gas tank in a hot car or car trunk. Heat will cause the gas pressure
to increase, which may open the relief valve and allow gas to escape.
• Place dust cap on valve outlet whenever the LP gas tank is not in use. Only install the
type of dust cap on the LP gas tank valve outlet that is provided with the LP gas tank
valve. Other types of caps or plugs may result in leakage of propane.
a. Do not store a spare LP gas cylinder under or near this appliance.
b. Never fill the LP gas cylinder beyond 80% full.
c. If the information in (a) and (b) is not followed exactly, a fire causing death or
serious injury may occur.
• LP gas cylinders should be lled only by a certied LP gas dealer.
• The pressure regulator is set for 11 inches of water column (pressure).
• The maximum inlet gas pressure for this outdoor re table is 14 inches of water column pressure.
• Never attempt to attach this appliance to the self-contained LP gas system of a camper trailer,
motor home or house.
• Always use the pressure regulator and hose assembly provided with the appliance to connect to
a LP gas cylinder. Never connect to an unregulated LP gas supply. For technical support contact
Real Flame at 1-800-654-1704.
• Hand turn the manual gas control valve. Never use tools. If the valve will not turn by hand, do not
try to repair it. Call a Certified Gas Technician. The use of force or any self attempted repair may
result in a fire or explosion.
Connecting your gas cylinder
Before connection, be sure that there is no debris caught in the head of the gas cylinder, head of
the regulator valve or in the head of the burner and burner ports. Connect regulator valve and
hand-tighten firmly. Disconnect the propane cylinder from the regulator valve when the fire table
is not in use. DO NOT obstruct the flow of combustion air and ventilation air to the burner.
PROPANE (LP) DANGERS AND WARNINGS

7
1. This fireplace comes equipped with a standard LP gas hose and regulator including the
appliance side connection for a CGA No 791 Cylinder Connection Device. The LP gas hose
and regulator supplied with this fire table must be used. Only a hose and regulator specified
by manufacturer can be used for replacement.
a. The CGA No 791 connection incorporates a magnetic flow limiting device that acts
to limit the flow of gas if a
leak is detected between the regulator and the burner valve.
b. If the burner valve is open prior to the LP gas cylinder service valve being opened,
the connection will interpret this free flow of gas to be a leak.
c. The connection safety feature will reduce gas flow from the regulator to the
appliance to a minimal level.
d. Be sure that the burner control valve is closed prior to opening the LP gas cylinder
service valve to ensure that the connection flow limiting device is not triggered
mistakenly.
e. If the connection flow limiting device is triggered mistakenly, close the LP gas
cylinder service valve and the burner valve, wait 10 seconds to allow the device to
reset, open the cylinder service valve, then open the burner valve and light the
fireplace as per lighting instructions.
2. Be sure to protect the hose from any hot surfaces. Serious danger may result if the hose
contacts any hot surface.
3. Regular maintenance of the hose and regulator:
a. Inspect the hose before each use of the fire table. If the hose shows signs of
cracks, abrasions, cuts or damage of any kind, do not operate the appliance. Fix or
replace the hose as required before using the appliance. For assistance with repair
or replacement of the hose, call Real Flame at 1-800-654-1704. Use only
replacement parts from the manufacturer.
b. Inspect the seal inside the CGA No 791 service valve on the LP gas cylinder when
replacing the cylinder or at least once per year. If there is any indication of
damage, have the seal replaced by a certified gas dealer before operating the
appliance.
4. Do not use tools to tighten the CGA No 791 connection nut onto the LP gas cylinder
service valve. Hand tighten only.
5. Be careful to not cross the threads on the connection when tightening the CGA No 791
connection on to the LP gas cylinder service valve.
6. “Leak Test” should always be performed after attaching the connection to the LP gas
cylinder service valve. (See “Checking for Leaks” section of this manual on page 10)
7. For the connection of the hose and regulator to the LP tank, refer to the “Connection”
section of the LP gas cylinder section above.
HOSE & REGULATOR ASSEMBLY AND REPLACEMENT

8
PARTS LIST1
1
5
2
3
6
4
7
8
Fire Table Lid 1
Glacier Grey 96504201
Kodiak Brown 96504501
Adjustable Screw 100050000 4
Fire Table No Number 1
Tank Seat 05600005 1
LP Regulator and Hose 05600007 1
Feet 05600006 4
Lava Rock 100040100 1
Vinyl Cover 96500109 1
1 5
2
6
3
7
8
4
A
x 1 x 2 x 2x 4
BCD
Hose Guide - 100060000

9
ASSEMBLY INSTRUCTIONS
1
3
6
6
6
6
The fire table is very heavy, make sure that another person is
available to help you when moving it or flipping it over.

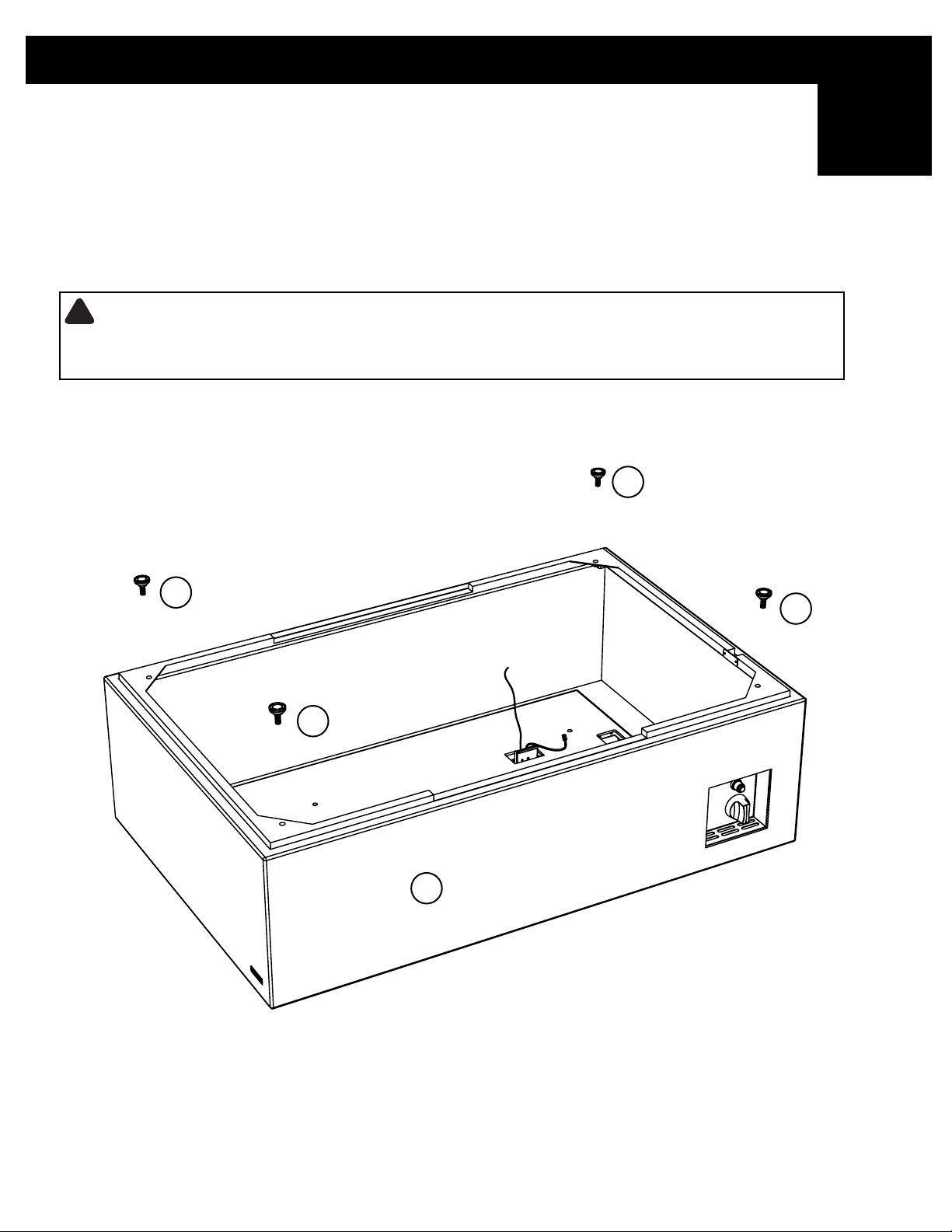

With the fire table upside down, install the four feet (6) by
screwing them into the holes located in the corners of the unit.
!WARNING
Flip the table over with the help of another person. Do not attempt to turn the table
upright by yourself as injury to yourself or damage to the table may occur.

10
ASSEMBLY INSTRUCTIONS

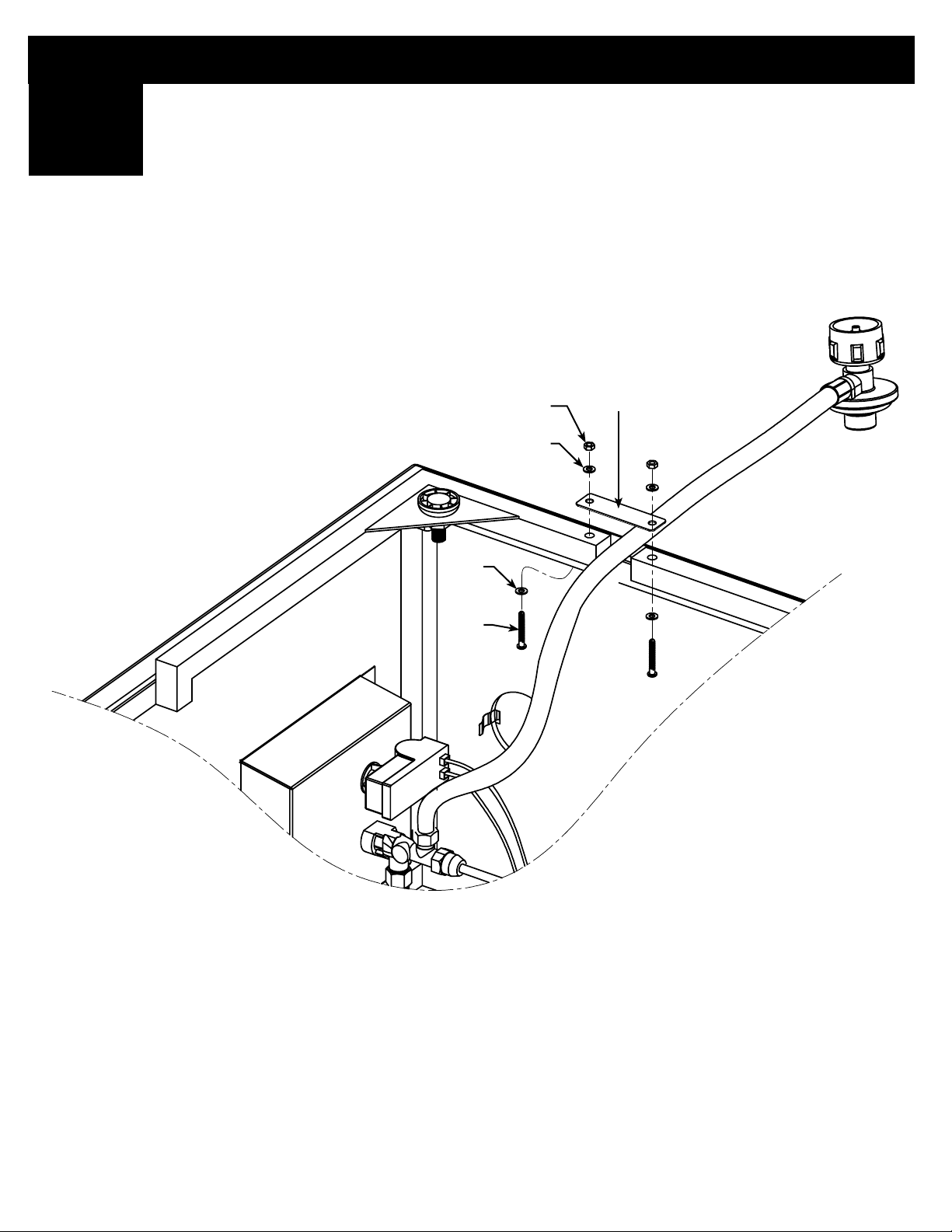

2Install the Hose Guide
1. Carefully unwrap the hose and lay it across the gap in the base.
2. Place the hose guide (A) over the hose and attach using the
provided hardware. Be careful not to damage hose while installing
hose guide.
A
B
C
C
D

11
3
4
+
-
Install the AAA battery as shown in the diagram below.
Battery not included.
1. Place the tank seat on the ground and place a 20 lb. propane tank
into the tank seat.
2. Tighten down the screw on the side of the tank seat to secure the
propane tank.
5
12
3
4
4
ASSEMBLY INSTRUCTIONS

12
5
6
Check to make sure there is no debris
in the head of the LP gas tank or in the
head of the regulator valve. Make sure you
check the burner and burner ports as well.
Connect gas line to tank by turning knob
clockwise. Hand tighten only.
Make sure the valve on the LP gas tank is
OFF.
Disconnect by turning the knob counter
clockwise until it is o the valve.

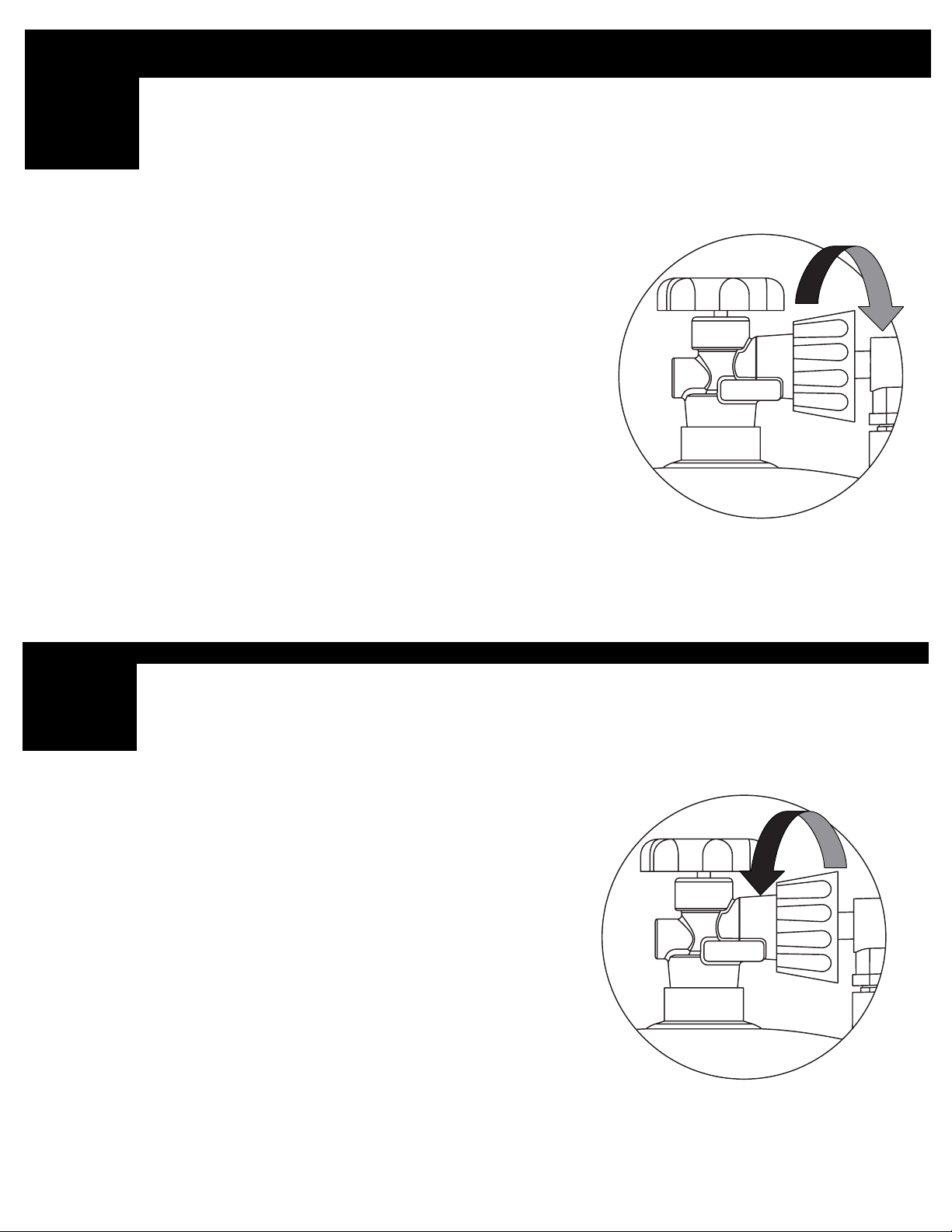

Connecting the LP Gas Tank
Disconnecting the LP Gas Tank
ASSEMBLY INSTRUCTIONS

13
7
Igniter box

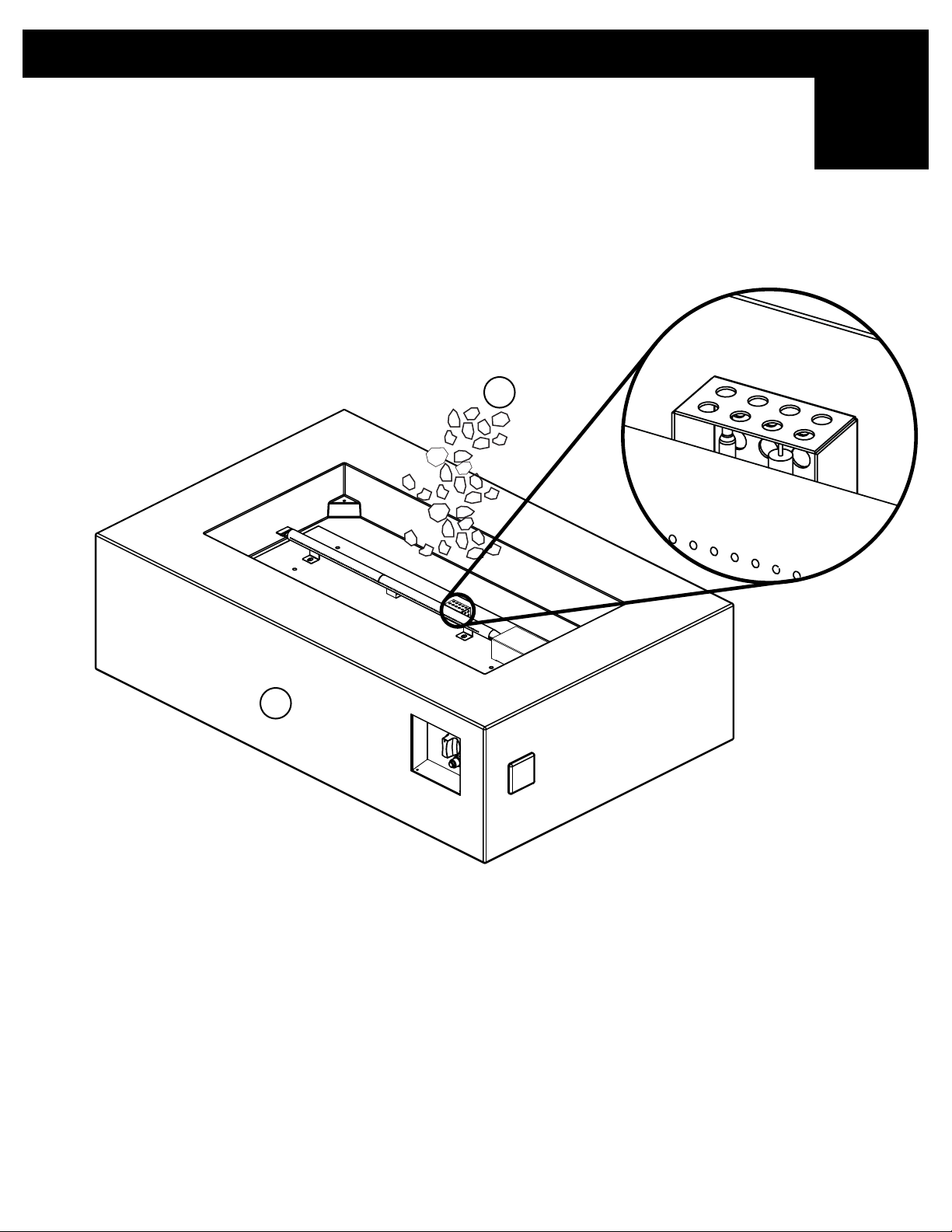

Place lava rock by hand. DO NOT dump bag out into tray to avoid
clogging the burner with dust. Position the lava rock (10kgs) to a level
about 1” above the top of the burner. Make sure that you do not block
the igniter box with lava rock to ensure proper ignition.
3
8
ASSEMBLY INSTRUCTIONS

14
Please refer to diagram for proper installation.
If the burner pipe does not rest flush to the orifice
please contact Real Flame at 1-800-654-1704 for
assistance.

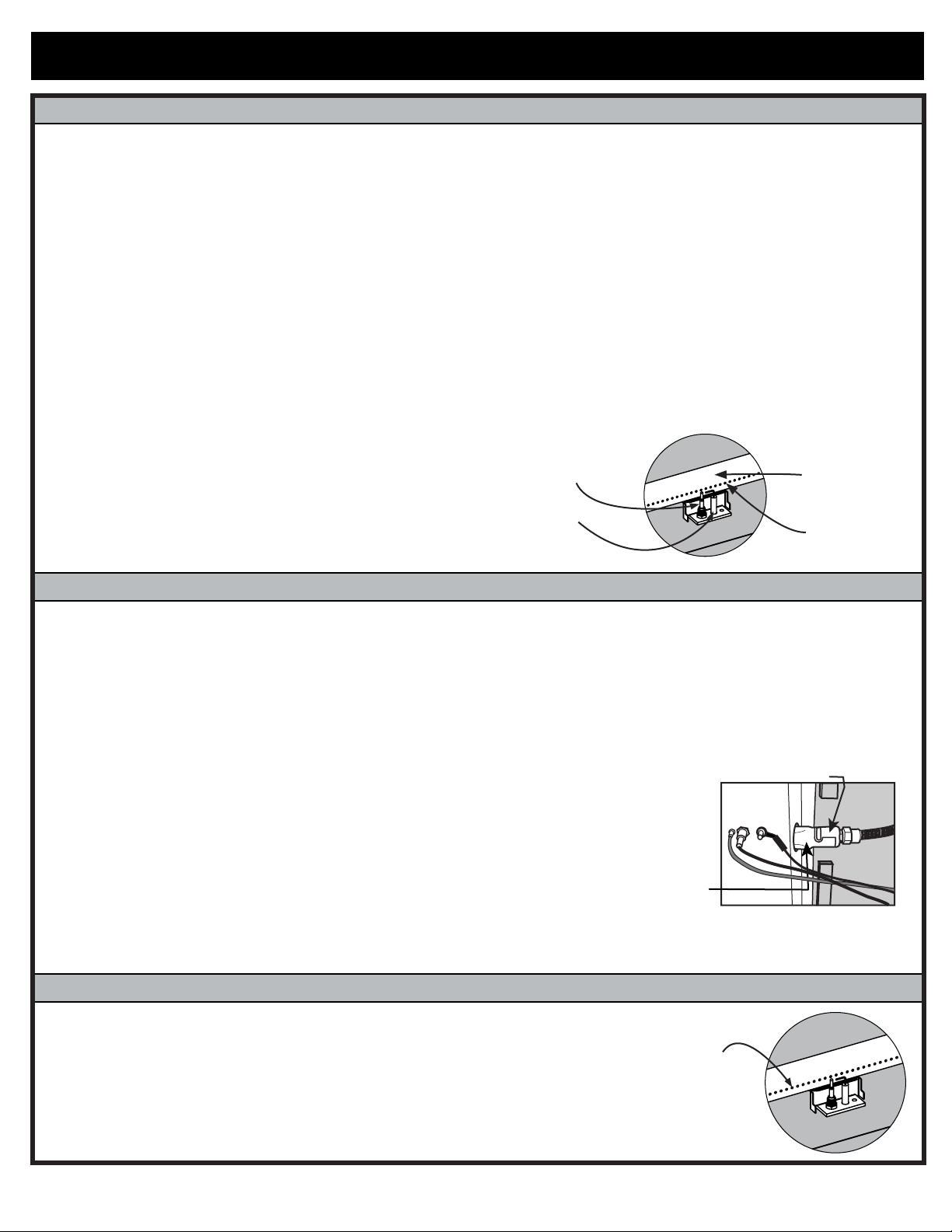

CHECKING FOR LEAKS
Make a leak check solution by mixing 1 part dish
washing soap with 3 parts water in a spray bottle.
Make sure control knob is “OFF.” Then, turn LP gas
tank to “ON” at valve.
Spray leak solution on valve connections paying
particular attention to the areas indicated by arrows.
If any bubbles appear turn LP gas tank OFF,
reconnect and re-test. If you continue to see bubbles
after several attempts, disconnect LP gas source and
contact Real Flame at 1-800-654-1704 for assistance.
If no bubbles appear after one minute turn tank OFF,
wipe away solution and proceed.
PRE-USE INSTRUCTIONS
8
Visual Check Hole Location
Remove cover to inspect
Check for leaks at these locations
!
!
WARNING Before using this outdoor fire table, make
WARNING Failure to inspect this connection or
sure you have read, understand and are following all
information provided in the Important Safety Information
section of this manual. Failure to follow those instructions
can cause death, serious injury or property damage.
follow these instructions could cause a fire or an
explosion, which can cause death, serious bodily
injury, or damage to property.

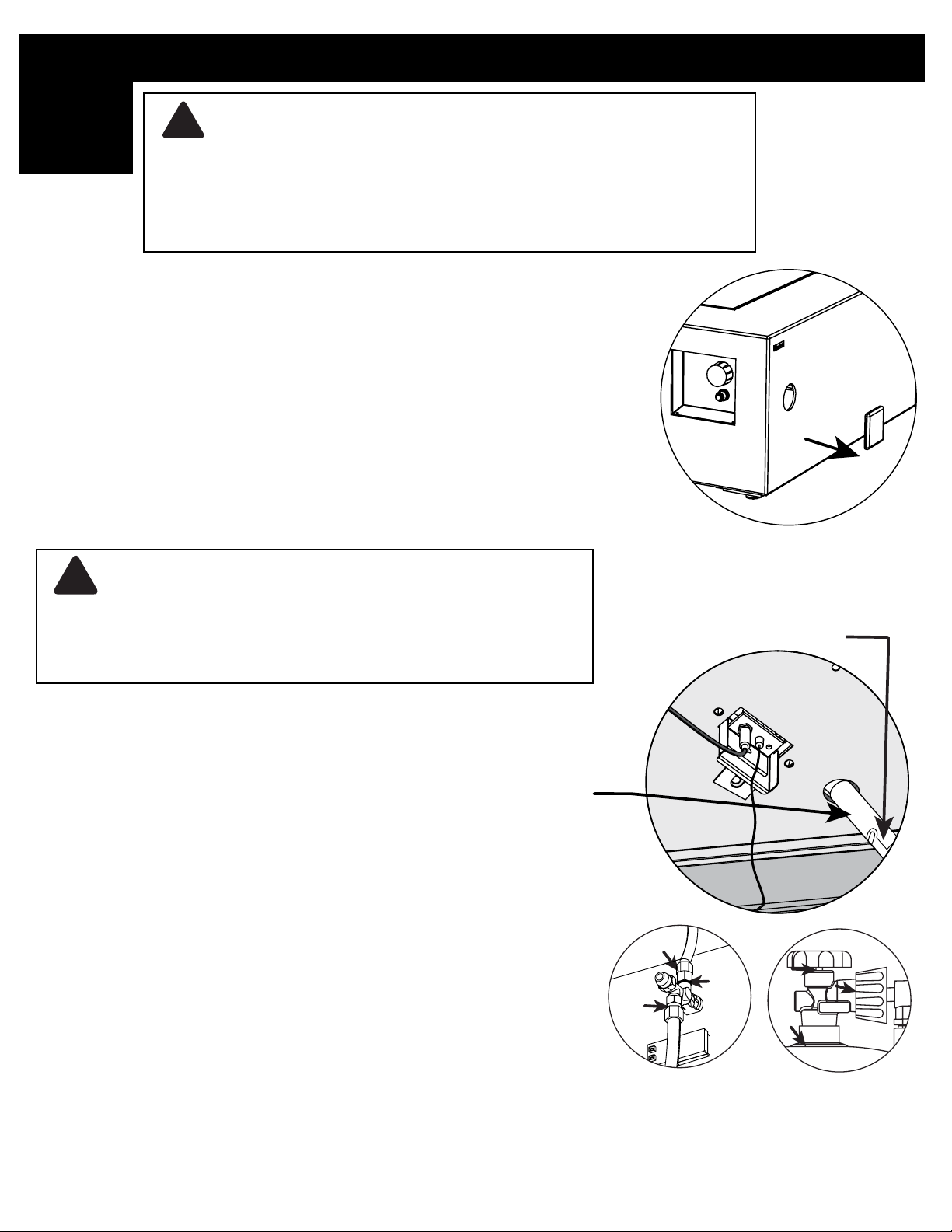

Prior to each gas fireplace operation, check the hose and
valve for evidence of excessive abrasion or wear though
the visual check hole on the side of the base. Replace
visual check cap prior to operating fireplace.
BURNER CONNECTIONS
Make sure the regulator valve and hose connections are
securely fastened to the burner and the tank. If your unit
was assembled for you, visually check the connection
between the burner pipe and orifice. Make sure the burner
pipe fits over the orifice.
Orifice is located
in this connection
Burner Pipe

15
LIGHTING INSTRUCTIONS
1. Read and understand all operating instructions before lighting
Ensure that all protective film has been removed from stainless
burn tray prior to lighting.
2. Burner control knob must be in the “OFF” position.
3. Connect propane (LP) cylinder (see previous pages).
4. Slowly open valve on LP gas cylinder.
5. Push and hold igniter button to create sparks.
6. While holding the igniter button with one hand, use your other
hand to push and turn the control knob to the “LIGHT” position
to light the burner.
7. Keep Burner Control Knob pressed in for 15-30 seconds after
ignition.
8. If ignition does not occur in 30 seconds, turn control knob to the
“O” position and turn gas o at the source, wait 5 minutes until
gas has cleared and repeat lighting procedure.
9. After lighting, rotate the Burner Control Knob counter clockwise
to “Low” setting. Observe ame, make sure all burner ports are
lit. Flame height should be no higher than 13 inches tall.
10.Adjust the flame to the desired height with the
control knob.
Using a Long Match or Lighter
1. Prior to lighting, use a shovel to move lava rocks for
access to the burner.
2. Wearing heat resistant gloves, position the burning
long match or burning butane lighter near the side of
the burner. DO NOT lean over the fire table while
lighting!
3. Turn control knob counterclockwise to “LIGHT”.
4. Remove long match/long butane lighter.
5. After lighting, use a shovel and heat resistant gloves
to carefully move the lava rocks back into their proper
position and replace the glass panel.
6. After lighting, rotate the Burner Control Knob counter
clockwise to “Low” setting. Observe ame, make sure
all burner ports are lit. Flame height should be no
higher than 13 inches tall.
7. Adjust the flame to the desired height with the control
knob.
When using this method to light
your fire table use heat resistant
gloves and follow the step by
step instructions. Failure to do so
could result in severe injury.
If burner flame goes out during operation, immediately
turn the control knob “OFF” and let the gas clear a
minimum of 5 minutes before attempting to re-light the
fire table.
Please refer to the trouble shooting pages for
additional support, beginning on page 18.
Using the Ignitor
!
!WARNING
WARNING
HI
OFF
LIGHT
LOW
Control Knob
PUSH
IN

16
WARNING DO NOT inspect this outdoor replace until the re is COMPLETELY out.
WARNING DO NOT move or store this re table unless the re is COMPLETELY out and
cool to the touch.
WARNING DO NOT tamper with this appliance. This is DANGEROUS and will void the
warranty. Any part found to be faulty must be replaced with an approved part, confirmed by
manufacturer. For technical support contact Real Flame at: 1-800-654-1704.
!
!
!
Inspecting
This outdoor fire table must be inspected regularly to insure that the product is safe
to use and to extend product life.
1. Check the burner to make sure it is securely in place.
2. Check the Venturi tube to make sure it is clear and free of insects, spider nests and other debris.
3. Check all gas connections for leaks.
4. Check ignition system to insure proper sparking.
5. Check components for any signs of damage, rust or excessive wear.
6. If damage to any component is detected, DO NOT operate until the proper repairs have been made.
1. Turn gas OFF at tank connection. Remove tank and store in a cool, dry location outdoors,
away from children.
2. Carefully remove rock filler and store components flat to protect them from breakage.
3. ALWAYS cover your outdoor re table when not in use with the cover provided with the unit.
4. Store in a cool, dry location away from children and pets.
General Care and Cleaning
This outdoor fireplace should be cleaned regularly to ensure safe use and extend product life.
Note: After repeated use, a slight discoloration of the finishes may occur.
Table
1. Wipe exterior surfaces with a mild dish washing soap or baking soda, then rinse clean with
water.
Stainless Steel
1. For general cleaning use warm water, soap, ammonia, or detergent apply with a soft cloth or
sponge.
2. For finger prints or smears use 3M Stainless Steel Cleaner and Polish, Arcal 20, Lac-O-Nu,
LuminWash, O’Cedar Cream Polish, or Stainless Shine, this will provide a barrier file to
minimize ngerprints.*
3. For stubborn stains and discoloration use 3M Stainless Steel Cleaner and Polish, Allchem
Concentrated Cleaner, Samae, Twinkle, Cameo Copper Cleaner, Liquid Nu Steel, Copper’s or
Revere Stainless Steel Cleaner, apply using a soft cloth in the same direction of the polish
lines.*
* Use of proprietary names is intended only to indicate a type of cleaner and does not constitute endorsement. Omission of any
proprietary cleanser does not imply its inadequacy. All products should be used in strict accordance with instructions on package.
Storage
CARE AND CLEANING

17
GAS COMPONENT CONNECTION CHECKS
Pilot Housing
Burner
Tube
Do not block
opening
CORRECT INCORRECT
If the burner will not light or stay lit, please perform the following checks.
1. Make sure the electrode wire is correctly connected.
Both electrode wires must be fully inserted into the igniter box.
2. Make sure that the pilot housing is unobstructed.
Clear any debris on top of the pilot housing and make sure there is no debris
between the igniter pin, thermocouple and the burner tube.

18
3. Make sure that the igniter pin and thermocouple are correctly positioned.
- The igniter pin should be pointed straight to the thermocouple.
- The thermocouple should be positioned 5mm away from the burner tube.
4. Make sure that the thermocouple wire is correctly positioned. The thermocouple
wire should be in line with the valve.
5mm
Thermocouple
Igniter Pin
Igniter Box
Thermocouple Wire
Thermocouple
Wire
Wire should
be in line
with valve
Valve
Valve
GAS COMPONENT CONNECTION CHECKS

19
Possible Cause 1: No Gas Flow.
-Check if the LP gas tank is empty. If empty, replace and refill. If the propane
tank is not empty, refer to “Problem: Sudden drop in gas ow” on the
following page.
Possible Cause 2: Coupling nut and regulator not fully connected.
-Turn the coupling nut about one half to three fourths a turn, until you
feel a solid stop. Do not use tools, tighten by hand only.
Possible Cause 3: Obstruction of gas ow.
- Check for bent or kinked hose.
Possible Cause 4: Spider webs or insect nest in the Venturi.
- Clean the venturi.
Possible Cause 5: Burner ports clogged or blocked.
-Reference “Problem: Irregular ame pattern” on the
following page. Clean the burner ports as described
there.
Possible Cause 1: Electrode and burners are wet.
-Wipe dry with cloth.
Possible Cause 2: Igniter battery is dead or backwards.
-Check that the AAA battery is inserted correctly in the igniter (see page 10) or replace the
battery.
Possible Cause 3: Igniter Pin cracked or broken - sparks at crack.
-Call Real Flame at 1-800-654-1704 for technical support.
Possible Cause 4: Wire loose or disconnected.
-Reference page 16, step 1, reconnect wire. Call Real Flame at 1-800-654-1704.
Possible Cause 5: Wire is shorting (sparking) between igniter and electrode.
-Call Real Flame at 1-800-654-1704 for support.
Possible Cause 6: Igniter Pin not pointing at thermocouple.
-Reference page 17, turn electrode to point at
the thermocouple.
Possible Cause 7: Bad Igniter.
-Call Real Flame at 1-800-654-1704 for
support.
TROUBLESHOOTING
Problem: Burner will not light using igniter
For Technical Support Contact Real Flame at: 1-800-654-1704
Problem: The Fire Table emits a lot of black smoke when in use
Problem: Burner will not light with match
Igniter Pin
(Electrode)
Thermocouple Burner
Burner Ports
.
Burner Pipe
Venturi
Burner Ports
Possible Cause 1: Hose from gas replace is pinched.
-Make sure the hose is not pinched between the
fire table and the source of the gas.
Possible Cause 2: Flame is being obstructed at burner ports.
-Make sure that the gas ports on the burner are free
of any lava rocks so that the flame can flow naturally.

20
If these troubleshooting steps are unable to resolve the problem,
please call Real Flame at: 1-800-654-1704
Burner Ports
Possible Cause 1: High or gusting winds.
-Increase ame to “HIGH” setting.
Possible Cause 2: Low on LP gas.
-Replace or refill LP gas tank.
Possible Cause 3: Excess ow valve tripped.
-Refer to “Problem: Sudden drop in gas ow”
Possible Cause 1: Ice has built up on the outside of the LP gas tank because the
vaporization process is too low.
-Turn the control knob and the LP gas tank to “OFF”. Replace with a spare LP
gas tank and resume burning. Store the spare LP gas tank in a well ventilated
area, away from children.
Possible Cause: Burner ports are clogged or blocked.
-Clean burner ports. Do this by inserting a
paperclip into each of the burner ports to
ensure they are not clogged. WARNING: Make
sure burner is not on and the gas supply has
been properly disconnected. Allow 15 minutes
for unit to cool before touching it.
Possible Cause 1: Out of gas.
-Call your local gas company.
Possible Cause 2: Excess ow safety device may have been activated.
-Turn control knob to “OFF”, wait 30 seconds and light outdoor replace. If
flames are still too low reset the excessive flow safety device by turning o
the control knob and LP gas tank valve. Disconnect regulator. Turn burner
control knob to “HIGH”. Wait 1 minute. Turn burner control knob o.
Reconnect regulator and perform a leak check at tank connection. Turn LP
gas tank valve on slowly, wait 30 seconds and then light outdoor fire table.
Problem: Sudden drop in gas ow, or a reduced ame height
Problem: Irregular ame pattern, ame does not run the full length of the burner
Problem: Flame blow out
Problem: Flame seems to lose heat when burning in cold weather -
temperature below 50°F
TROUBLESHOOTING
