Reboot RBM2000P User manual

Version Number: RBM2000P-20210517A1
1
Operation Manual
Reboot RBM2000P welding machines adopts the latest pulse width modulation (PWM) technology and
insulated gate bipolar transistor (IGBT) power module, which can change work frequency to medium frequency so as
to replace the traditional Transistor transformer with the medium frequency transformer. its characterized with
portable, small size, light weight, low consumption and etc. It is also an intelligent and easy-to-operate multi-function
welding machine with MMA, MIG GAS, MIG GASLESS and pulse MIG. It has the characteristics of strong welding
performance and diversified usage scenarios. It can be used in both gas and gasless conditions, especially for
welding aluminum, the shape is particularly good ,and the welding effect is excellent. It is highly praised by welding
enthusiasts. It is also very friendly to beginners in welding and can quickly get started.
Part 1: Machine Introduction
1. Current display meter
The digital Ammeter is used to display preset current.
When the “MENU” light is on, it is also used to display menu items.
Depending on the menu item selected, the status indictor adjacent to the Ammeter will illuminate to show
the units of the programming parameter.
When welding, the Ammeter will display actual welding current.
2. Voltage display meter
The digital Ammeter is used to display preset voltage.
When the “MENU” light is on, the parameters of each menu item are displayed
When the “INDUCT” light is on, the inductance adjustment value is displayed.
When welding, the Ammeter will display actual welding voltage.
3. Current indicator.
4. MENU indicator.

Version Number: RBM2000P-20210517A1
2
5. Voltage indicator.
6. INDUCT indicator.
7. Select welding mode
MMA/ MIG CO2/ MIG MAX/ PULSE MIG ALMg/ PULSE MIG ALSi
8. Knob 8.
Long press it to feed the wire quickly.
Press once to select the “A” indicator and “MENU” indicator.
When the “A” indicator light is on, turn it to adjust the current; when the “MENU” indicator light is on,
turn it to change the menu item.
9. Knob 9.
Long press it to check whether the protective gas is provided normally.
Press once to select the “V” indicator and “INDUCT” indicator.
When the “V” indicator light is on, turn it to adjust the current; when the “INDUCT” indicator light is on,
turn it to change the menu item.
10. MIG Welding torch connector
11. Positive Terminal
Positive Terminal. Welding current flows from the power source via heavy duty bayonet type terminals. It is
essential, however, that the male plug is inserted and turned securely to achieve a sound electrical
connection.
12. Negative Terminal
Negative Terminal. Welding current flows from the power source via heavy duty bayonet type terminals. It is
essential, however, that the male plug is inserted and turned securely to achieve a sound electrical
connection.
Part 2: Introduction to the product and configuration list
No.
Name
Qty
Remark
1
RBM2000P
1
Please check outside of the whole machine no
scratch and break , it can power on normally.
2
MB24 welding
torch
1
2.5M, MB 24 MIG welding torch, European central
plug.
Graphite liners, special for welding aluminum.
3
MB15 welding
torch
1
Optional accessories, need to be purchased
separately.
3M, MB 15 MIG welding torch, European central
plug. Carbon steel wire guide tube, special for
welding carbon steel welding wire and stainless
steel welding wire
4
Welding holder
1
2.5m 25MM2 cable, 300A copper American welding
holder +10-25mm2 European quick plug.

Version Number: RBM2000P-20210517A1
3
5
Ground clamp
1
2.5m 25MM2 cable, 300A Ground clamp
+10-25mm2 European quick plug.
6
Transparent
hose
1
3m 8*12 transparent network hose.
7
Hose clamp
2
Used to fix the trachea to prevent air leakage.
8
Conductive
tip0.8
2
Spare parts, need to be replaced frequently, please
keep inventory.
9
Conductive
tip1.2
2
Spare parts, need to be replaced frequently, please
keep inventory.
10
Wire feed
wheel
1
Wire feed wheel adapts to solid welding wire or
filux-core wire 0.8mm/1.0mm.
11
Wire feed
wheel
1
Aluminum wire feed wheel is suitable for flux-cored
welding wire diameter U-TYPE 1.0mm/1.2mm,
installed on the machine.
12a
Flux-core wire
1
1KG diameter 0.8mm , suitable for MIG gasless
welding, consumables should be replaced in time,
please keep in stock.
12b
Aluminum
welding wire
1
0.5KG diameter 1.2mm ,5356 ALMg suitable for
pulse MIG welding, consumables should be
replaced in time, please keep in stock.
13
Manual
1
Normally provides manuals in English, if you need
other language like French, German, Italian,
Spanish, and Russian please contact us to get
electronic version documents.
Remark: The package will include 12a or 12b, and only one coil of welding wire is in the box.

Version Number: RBM2000P-20210517A1
4
Part 3: Simple test for powering on the machine
Reboot RBM2000P Welding machines will be subjected to strict various tests when they leave the factory to
ensure that each welding machine that reaches the user is of high quality, because our machine has to go through
tens of thousands of kilometers of long-distance transportation from the factory to the delivery to you. It’s inevitable
that some uncontrollable factors will cause some internal components of the machine to become loose or even
damaged in the process. We recommend that you check the external device as soon as you get the welder, and turn
on the power to check to ensure that you receive It is a qualified product.
Precautions for power-on inspection:
1、Please make sure your power supply voltage is 220+-15%. Reboot RBM2000P just supports 220V input voltage.
if you have a generator power supply, please ensure that the generator is not less than 6000w.
2、It is recommended to choose 30A circuit breaker protection when input voltage is AC 220V.
3、Please choose the power plug that suits your local electrical law requirements.
4、Extension cord: #12 AWG or larger; 25’ (8m) or shorter.
Turn on the power switch of the machine and the fan on the back of the machine rotates, and the digital
display on the panel indicates that the power is normal.
Note:
1) The digital display shows irregular changes at the beginning, and then returns to the digital display after 3
seconds, which is normal.
2) In order to reduce the working temperature of the machine, it is normal for the fan to continue to rotate for a
few seconds after the power is turned off.
3) During high-strength continuous welding, machine protection may occur. After continuous heat dissipation, the
machine will return to normal, which is normal.
Attached table: Self-examination of abnormal conditions without response when turning on the machine:
1. The machine's power switch is not turned on.
2. The power input voltage is wrong.
3. The power plug is loose.
4. The internal circuit is loose (due to long-distance transportation, bumps), you need to open the cover and
check the internal connection line.
Part 4: Technical specifications
Basic parameters
Model
RBM2000P
Rated input voltage
220V±10%
Rated input current
35.2A
Rated output capacity
7.7KV.A
Output no-load voltage
60V
Rated duty-cycle factor
30%
Power factor COSφ
0.73
Efficiency η
85%
Dimensions (mm)
420*170*250
Net weight (kg)
8

Version Number: RBM2000P-20210517A1
5
Manual welding parameters of coating (MMA Mode)
Model
RBM2000P
Rated current (A)
30～160A
Hot start (HOTI)
10～100A
Restore factory settings (DFLT)
ON/OFF
Unified gas shielded welding parameters (SYNC MIG)
Model
RBM2000P
Rated current (A)
30～200A
Arc length
-50～50
Arc force
-50～50
Material selection
Pulse gas shielding: AlSi5 (aluminum silicon),
AlMg5(aluminum magnesium)
Common gas protection: STEEL (carbon steel)
Diameter of wire (Size)
Pulse gas shielding: 1.2
Common gas protection: 0.8, 1.0
Operation Mode(mode)
2T，4T
Gas pre-flow time(GPR)
0～20S
Low wire feeding speed (FDC)
1～10M
Current downslope time (DWSL)
0.1～10s
Four-step arc extingui-shing current (CRAT)
10～100％
Spot welding (SPOT)
0.1～2
Gas lag time (GPO)
0.1～20s
Burnback time (BURN)
0.01～1s
Restore factory settings (DFLT)
ON/OFF
Note: Some parameters in the preceding table are used only in certain functions

Version Number: RBM2000P-20210517A1
6
Part 5: Instructions of Operation Panel
The welding machine has two operating interfaces: first level panel setting interface and second level
parameter setting interface.
First level panel setting interface
After starting up, the welding machine will automatically enter the first level panel setting interface.
During welding, it will also automatically enter the first level panel setting interface.
(1) Current and voltage regulation
Knob A is used for regulating the current, and knob B is used for regulating the voltage/arc length.
(2) Selection of welding mode
Button C is used for selecting the welding mode. See Table 5-1 Comparison Table of Welding Modes
for specific welding modes.
Table 5-1
Model
Welding mode
Function introduction
RBM2000P
MMA
Manual covered-electrode welding.
MIG/CO2
Common gas shielded arc welding, carbon dioxide.
MIG/MIX
Common gas shielded arc welding, mixed gas.
PULSE/AIMg/1.2
Aluminum-magnesium pulse gas shielded arc welding, wire
diameter of 1.2.
PULSE/AISi/1.2
Aluminium-silicon pulse gas shielded arc welding, wire
diameter of 1.2.
Remark: the unified default wire diameter of RBM2000P common gas shielded arc welding is 0.8mm. If
1.0mm wire is required, the parameters shall be matched manually .
(3) Regulation of arc force parameter
Press knob B, then the arc force indicator light (INDUCT) is on, and rotate knob B to adjust the arc length.

Version Number: RBM2000P-20210517A1
7
(4) Wire detection
Long press knob A, then the welding machine feeds wire fast; release knob A to stop wire feed.
(5) Gas detection
Long press knob B, then the welding machine detects gas; release knob B to stop gas detection.
Second level panel setting interface
Press knob A on the first level panel setting interface, then the welding machine displays “ITEM VRLU” and
nters the second level parameter setting interface. The knob A is used for selecting the parameters and the
knob B is used for adjusting the parameters. See Table 5-2 Comparison Table of Welding Machine Parameters
for the second level parameter setting interface.
Table 5-2
Code
Abbreviation
Parameter Introduction
INDUCT
Arc force/inductance
For different welding methods, the inductance/arc
force has different functions.
MENU
Menu
Enter the second level parameter setting interface.
HOTI
Hot striking arc current
It is used for manual covered-electrode welding.
GPR
Gas preflow time
It is used for setting the gas preflow time.
TRIG
Operation mode
Support 2T/4T operation mode.
FDC
Low wire feed rate
It is used for setting the low wire feed rate.
GPO
Gas postpone time
It is used for setting the gas postpone time.
BURN
Burnback time
It is used for adjusting the ball cutting effect at the
end of welding.
DFLT
Factory Reset
It is used for restoring factory setting.
DWSL
Current downslope time
It is used for setting 4T current downslope time.
CRAT
Four-step arc extinguishing
current
It is used for setting 4T arc extinguishing current.
Part 6: Machine operation guidance.
Tips:
1. Wear a welding helmet fitted with a proper shade of filter to protect your face and eyes when welding or watching;
2. Wear approved safety glasses. Side shields recommended;
3. Use protective screens or barriers to protect others from flash and glare; warn others not to watch the arc;
4. Wear protective clothing made from durable, flame-resistant material(wool and leather) and foot protection;
5. Use approved ear plugs or ear muffs if noise level is high;
6. Never wear contact lenses while welding.

Version Number: RBM2000P-20210517A1
8
MMA mode
If you want to repair some broken fences or fix brackets, you like to use traditional welding rods for operation,
you can use Reboot RBM2000P MMA mode for welding.
1、Select “MMA” process.
2、Connect welding holder and ground clamp.

Version Number: RBM2000P-20210517A1
9
3、To adjust the current, ARC FORCE and HOT START.
If the parameters stored in the welding machine are not required to be changed, the welding machine can
directly start welding after starting up. Otherwise, the welding machine shall be adjusted by steps 1, 2 and 3.
1. Press the welding mode selection button to select MMA welding mode.
2. Adjust knob A to set welding current I.
2. Adjust knob B to set the arc force.
4. Start welding.
All parameters adjusted by steps 1, 2, and 3 will be automatically saved after the start of welding, and still
remain unchanged even if the machine is shut down in the middle .
There are three adjustable parameters for manual covered-electrode welding:
1. Current: 30 - rated current for welding. Please select the appropriate current according to the process.
2. Arc force: the arc force shall be determined according to electrode diameter, sett current and process
requirements. If the arc force is large, the droplet transfer will be fast and it is not easy to stick the electrode;
however, if the arc force is too large, the spatter will increase; if the arc force is small, there will be
little spatter and the weld appearance will be good, but arc will be soft or it is easy to stick the electrode.
The arc force shall be increased especially when the thick electrode is used in the lowe current welding.
3. Hot striking arc current (HotI): 10-100A, Press A first, the MENU indicator light is on, turn the A knob, when
“HotI”is displayed on the digital display on the left, turn the B knob, you can adjust the value of the hot
start.
Note:
1) The welding rod specification supported by Reboot RBM2000P is below 4.0(5/32in), usually 2.5(3/32in) and
3.2(1/8in). European style generally uses E6013, American style generally uses E7018, and stainless steel
generally uses ER308.
2) It supports welding of 1-8mm(1/64-5/64in) carbon steel and 1-5mm(1/64-7/32in) stainless steel. Aluminum
can not be welded. For carbon steel, please use carbon steel electrode. For stainless steel, please use
stainless steel electrode.
3) Connect the ground clamp to clean bare metal. No rust, paint or other coatings, and ensure good electrical

Version Number: RBM2000P-20210517A1
10
conductivity.
4) The ideal distance between the welding rod and the welding object is 1-2mm(1/64-5/64in), to ensure that the
welding rod and the workpiece are in continuous and stable contact. The welding rod should not be too high
or pressed too low to avoid arc breaking and adhesion.
5) It is normal for novices to have adhesion during the welding process, and you can try to friction arc to avoid
adhesion.
6) Suitable for ordinary welding rods, such as 7018, 6013, etc., but not suitable for special welding rods, such as
7010, 7011.
Possible problems
1) There is no arc, check the ground wire to connect the workpiece to ensure that there is no rust, paint or other
coatings on the workpiece.
2) There is no arc, check the direct distance between the welding rod and the welding object, the ideal distance
is 1-2 mm; check whether the welding object has rust or oil stains, it is recommended to polish with sandpaper
or a grinder.
3) When welding, the spatter is very big, and it feels very difficult to weld. Please try to change the polarity
connection of the ground wire clamp and the welding clamp with the machine.
4) During the welding process, if the time exceeds 3 minutes, overcurrent protection may occur. You need to stop
working for a few minutes, let the machine cool down for a period of time, and automatically recover. If the air
cools for more than 10 minutes, the machine does not automatically recover, please shut down and restart.
5) If you have any problems that cannot be solved, please contact us at .
MIG mode
Reboot RBM2000P provides two welding modes: gas shielded welding and self-shielded welding with fluxed
wire. If you are working at home or in a studio, in order to ensure a better welding effect, it is recommended that you
use the gas welding mode; if you need to go out to work, carry gas cylinders and other inconvenient situations, you
can use the Self-protected welding method.
A) Common gas shielded arc welding and gasless self-shielded welding
1、Select “MIG/CO2 or MIG/MIX ” process.

Version Number: RBM2000P-20210517A1
11
2、Set polarity for MIG Solid wire（gas).
With gas protection, solid wire welding, connect "P" with "+" in the figure below;
Gasless protection, flux-cored wire welding, connect "P" with "-" in the figure below.
3、Connect MIG gun and ground clamp.
solid wire welding Flux-cored wire Note: No need to use gas cylinder and gas meter
4、Install wire spool
0.030”(0.8mm)/0.040”(1.0mm)diameter
8”(200mm 5kg)wire spool
4”(100mm 1kg)wire spool

Version Number: RBM2000P-20210517A1
12
5、Set drive roll
Face the side marked 0.030” away from the machine.
Remarks: 1. There are two grooves on one wire feed wheel, one side is 0.030” (0.8mm) and the other side is
0.040” (1.0mm) to match the corresponding wire diameter.
2. Gas welding requires the use of Knurl-type wire feed wheels, which are suitable for ordinary carbon
steel welding wire and stainless steel welding wire, and solid wire welding need to use CO2 gas or
CO2 and Argon gas mixture. Flux-cored wire is not need Protective gas.
6、Feed wire and set pressure
The pressure should not be too loose, too loose will cause the welding wire to slip and the wire feeding is
unstable, and too tight will cause the welding wire to slip and deform.
7、Connect to Input Power
Please refer to the digital sign on the rear panel of the machine for the input voltage, the input voltage is AC 220V,
the wrong voltage will damage the machine.
8、Please connect CO2 gas, flux cored wire welding does not require the use of shielding gas：
1. Attach gas hose to machine.
2. Attach hose and regulator to gas bottle.
9、Installation of welding torch.
The welding wire should be extended outside the European central socket, and then install the welding torch.
The wire guide tube and contact tip of the welding torch need to match the welding wire. Long press the A knob, This

Version Number: RBM2000P-20210517A1
13
is fast wire feeding, Let the welding wire be quickly delivered to the gun head. Please make sure that the welding
torch is not bent, so that the welding wire will be blocked.
10、Remove consumables and depress trigger until wire comes out. Replace consumables.
11、Adjust wire feed speed, current and voltage and so on.

Version Number: RBM2000P-20210517A1
14
Adjustable parameters for gas/gasless shielded arc welding .
1. Current:
The welding machine uses the built-in intelligent system with the function of unification. The user can
select the corresponding current according to the thickness of the welded plate, and the wire feeding
speed is not required to be adjusted.
2. Arc length:
The expert database has given the standard arc length (=0), and the user can appropriately increase or
decrease the arc length on this basis according to the process requirements.
3. Inductance:
The standard inductance given by the expert database is 0, and the user can appropriately increase or
decrease the inductance/arc force on this basis according to the process.
For different welding methods, inductance has different functions:
MIG/MIX: < 0: get a harder and more stable arc, =0: medium arc, > 0: soft arc, small spatter.
Pulse MIG: < 0: reduce the droplet transfer force, =0: medium droplet transfer force, > 0: increase the
droplet transfer force.
4. Selection of operating mode:
The selection of operating mode located in the second level parameter setting menu. There are three
operating modes: 2T\4T.
13、With contact tip 1/4” from metal, depress trigger completely to initiate arc.
14、To replace the welding wire.
Use the cutting pliers to cut off the front section of the contact tip that is more than the welding wire, loosen the
wire feed mechanism pinch wheel, rotate the welding wire reel clockwise, turn the welding wire back to the wire feed
reel, pay attention to pinch the welding wire with your right hand to avoid the wire bounce.

Version Number: RBM2000P-20210517A1
15
15、Welding gun installation
To ensure smooth welding, check that the wire feeding pipe and contact tip match the type of the welding
torch and that the wire feeding pipe matches the wire diameter and type. Wired hoses are suitable for hard
wires such as solid carbon steel wires and stainless steel wires, while Teflon hoses are suitable for soft
wires such as aluminum and its alloy wires, and copper and its alloy wires. If the wire feeding pipe is tight
or loose, the wire feeding resistance increases, which leads to unstable wire feeding. Tighten the quick joint
of the welding torch to prevent voltage drop on the contact surface. Loose contact causes pressure drop,
which causes the torch and wire feeder to be overheated.

Version Number: RBM2000P-20210517A1
16

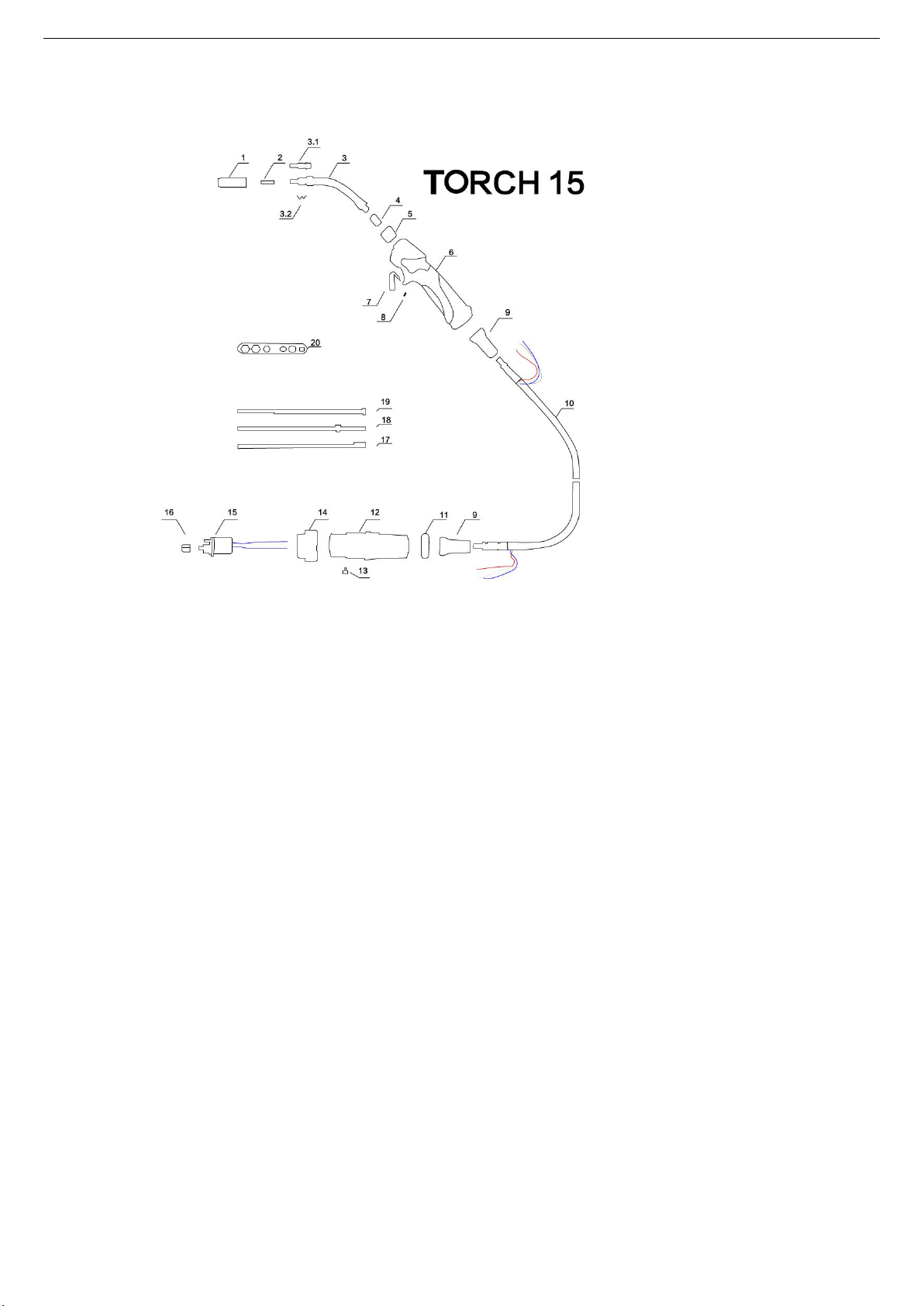

16、Structure of welding gun
Note: 1. Nozzle, 2. Conductive nozzle. They are wearing parts and need to be replaced frequently, please
keep inventory. 19. The guide wire tube, it is best to equip a spare part because it may damage the
accessories.
Note:
1）Please strictly follow the picture instructions to connect, otherwise it will not be possible to solder.
2）Solid core welding wire supports 0.8mm, 1.0mm, 0.6mm(need to purchase welding wire, wire feed wheel and
contact tip).
3）The machine can install 5kg(11lb) and 1kg(2.2lb) wire reels.
4）The machine comes with a 0.5kg(1.1lb) 5356AL-Mg welding wire or 1kg （2.2lb）Flux-cored wire.
5）Support welding material, carbon steel, stainless steel. And aluminum can not be welded in this mode.
6）The diameter of the welding wire, the groove of the wire feed wheel and the aperture of the contact tip must
match.
7）The pressure roller of the wire feeding structure should not be too tight or too loose, which will cause the wire
feeding to be unstable.
8）The installation of the wire feeding reel should not be too loose or too tight, which will cause the welding wire of
the wire reel to spring off and the wire feeding is too slow.
Possible problems
1) There is no response when turning on the power, please check the plug connection.
2) There is no response when turning on the power, please open the cover and check whether the internal
connecting wires are loose.
3) The wire feeding is unstable. Please check the wire feeding reel and the wire feeding pressure roller, and the
welding gun should not be wound. Pay attention that the diameter of the welding wire matches the wire feeding

Version Number: RBM2000P-20210517A1
17
wheel groove and contact tip.
4) No wire feeding, please confirm that the working mode is MIG state, please confirm that the welding gun is
connected well, press the gun switch or no wire feeding, please contact us.
5) During the welding process, if the time exceeds 3 minutes, over-current protection may occur. You need to stop
working for a few minutes, let the machine cool for a period of time, and automatically recover. If the air cools for
more than 10 minutes, the machine does not automatically recover, please shut down and restart.
6) If you have any questions, please contact us at.
B) Pulse gas shielded arc welding.
1、According to the aluminum welding wire material,select “Pulse/Al/Mg or Pulse/Al/Si ”
process.
2、Set polarity for MIG aluminum wire（gas）:
With gas protection, solid wire welding, connect "P" with "+" in the figure below.

Version Number: RBM2000P-20210517A1
18
3、Connect MIG gun and ground clamp.
Solid aluminum wire welding
4、Install wire spool
0.030”(0.8mm)/0.040”(1.0mm)diameter
8”(200mm 5kg)wire spool
4”(100mm 1kg)wire spool
5、Set drive roll
Face the side marked 1.2 away from the machine.
Remarks: 1. There are two grooves on one wire feed wheel, one side is 1.0mm and the other side is 1.2mm to
match the corresponding wire diameter.
2. Gas welding requires the use of U-type wire feed wheels, which are suitable for aluminum welding
wire, and solid wire welding need to use Argon gas .

Version Number: RBM2000P-20210517A1
19
6、Feed wire and set pressure
The pressure should not be too loose, too loose will cause the welding wire to slip and the wire feeding is
unstable, and too tight will cause the welding wire to slip and deform.
7、Connect to Input Power
Please refer to the digital sign on the rear panel of the machine for the input voltage, the input voltage is AC
220V, the wrong voltage will damage the machine.
8、Please connect Argon gas.
1. Attach gas hose to machine.
2. Attach hose and regulator to gas bottle.
9、Installation of welding torch.
To ensure smooth welding, check that the wire feeding pipe and contact tip match the type of the welding
torch and that the wire feeding pipe matches the wire diameter and type. While Teflon hoses are suitable for
soft wires such as aluminum and its alloy wires, and copper and its alloy wires. If the wire feeding pipe is tight
or loose, the wire feeding resistance increases, which leads to unstable wire feeding. Tighten the quick joint
of the welding torch to prevent voltage drop on the contact surface. Loose contact causes pressure drop,
which causes the torch and wire feeder to be overheated. Long press the A knob, This is fast wire feeding, Let
the welding wire be quickly delivered to the gun head. Please make sure that the welding torch is not bent, so
that the welding wire will be blocked.

Version Number: RBM2000P-20210517A1
20
10、Remove consumables and depress trigger until wire comes out. Replace consumables.
10、Adjust wire feed speed, current and voltage and so on.
Adjustable parameters for gas shielded arc welding.
1. Current:
The welding machine uses the built-in intelligent system with the function of unification. The user can
select the corresponding current according to the thickness of the welded plate, and the wire feeding
speed is not required to be adjusted.
2. Arc length:
The expert database has given the standard arc length (=0), and the user can appropriately increase or
decrease the arc length on this basis according to the process requirements.
3. Inductance:
The standard inductance given by the expert database is 0, and the user can appropriately increase or
decrease the inductance/arc force on this basis according to the process.
For different welding methods, inductance has different functions:
MIG/MIX: < 0: get a harder and more stable arc, =0: medium arc, > 0: soft arc, small spatter.
Pulse MIG: < 0: reduce the droplet transfer force, =0: medium droplet transfer force, > 0: increase the
droplet transfer force.
4. Selection of operating mode:
The selection of operating mode located in the second level parameter setting menu. There are three
operating modes: 2T\4T.
17、With contact tip 1/4” from metal, depress trigger completely to initiate arc.
