Rebotec Malta User manual

Dimensions
Dimensions (ca.)
Chair
Tub
Height
104 cm
17 cm
Width
74 cm
56 cm
Depth
90 cm
42,5 cm
Seat width
64 cm
-
Seat height
48 cm
-
Seat depth
48 cm
-
Footrest height adjustable
7fach
-
Wheel height
12,5 cm
-
Filling quantity
6-15 Litre
4
„Malta“
Art.-Nr.: 367.54.30/130 kg
Technical Specifications (Subject to changes!)
Model / Name
Capacity
Art.-No.
Weight
Max. patient
weight
Malta
Shower & bath chair
6-15 Litre
367.54.30
19,3 kg
130 kg
Accessories
Article-No.
Name
colour
467.54.00
Seat tub-Malta
blue
440.10.59
PUR-back padding
black
440.10.62
PUR-Shower seat cushion
black
440.10.04
PUR-Shower seat with hygiene opening
black
Notice
Keep the User Instructions in case of future use.
The identical serial number in the user manual is also printed on the nameplate of the
product. For complaints or questions, always provide the model number, serial number and
the user manual number (BA-No.).
Warranty
There is a 2-year warranty on our shower and commode chairs. A prerequisite for the
warranty is use in accordance to the requirements outlined herein, as well as conducting
regular maintenance. Excluded are all wear parts. Not observing the User Instructions,
improper maintenance, unauthorised modifications done to the product without the
manufacturer’s permission automatically lead to the immediate nullification of warranty and
product liability (see Maintenance).
The delivery date written on the REBOTEC-delivery note applies as the valid start date of the
warranty period.
Re use & lifetime
The product is designed for re-use. The re-use (lifetime) depends on the product’s condition.
Before re-use, maintenance of the chair must be conducted and the applicable instructions
concerning safety care and maintenance must be fully adhered to. The expected lifetime of
the chair can be up to 5 years when used properly and the safety instructions, maintenance
intervals and care instructions are followed.
Beyond this time period, the product can be used further if it is still in a safe condition (after a
complete inspection).
4
BA-No.: 02.07.047/2016-12
Serial No. / Product
06/2005 (Th.B.)
User manual
REBOTEC®Rehabilitationsmittel GmbH
DE-49610 Quakenbrück, Artlandstr. 57-59
Telephone: [phone]
Telefax: +49(0)5431/9416-66
http://www.rebotec.de
E-mail: [email protected]
Shower and bath chair
GB

Instructions for Assembly
The product is delivered in the package not fully assembled. Before using the chair for the
first time, the following assembly steps must be done:
1. Turn the armrests to the back and insert the backrest in the stainless steel tubes of the
chair. Push it down until it strikes the stops of the chair frame.
2. Swivel the armrests to the front until they click into the slot at the backrest, and the pins
in the lower frame click in as well.
3. Turn the footrests to the front until they click into position.
4. Flip down the foot-carrier plates.
First-time Use
The chair is now ready to be used. When using the chair for the first time, the following must
be observed:
Swivelling the Armrests
By pulling out the locking pin, the locking mechanism is disengaged and the armrests may be
swivelled back.
When swivelling the armrests up, check to be sure that the armrests are properly seated in
the locking position of the backrest and locked by the locking pin.
Adjusting the Footrests
Push the footrests to the desired position. Next install the footrest adjustment (model
dependent) under the footrest at the desired height onto the chair leg.
Folding up the Footrests
Next swivel the foot-carrier plates upwards and slightly lift the footrest. The footrests can now
be folded away to the front or back.
Removing the Footrests
First remove the seat tub. Lift up the footrests about 10 cm (until above the horizontal frame
brace) and rotate it 90° to the outside. Now you can push the footrest all the way up and then
pull it out.
Removing the back cushion
The back cushion is fastened to the cross-brace or backrest with studs. Press the buttons to
remove the back cushion.
Wheel Brakes
Step down on the activation lever (RED) of the castors. The wheels are now braked and
directionally locked. To release the wheels, simply lift up the activation lever of the castor.

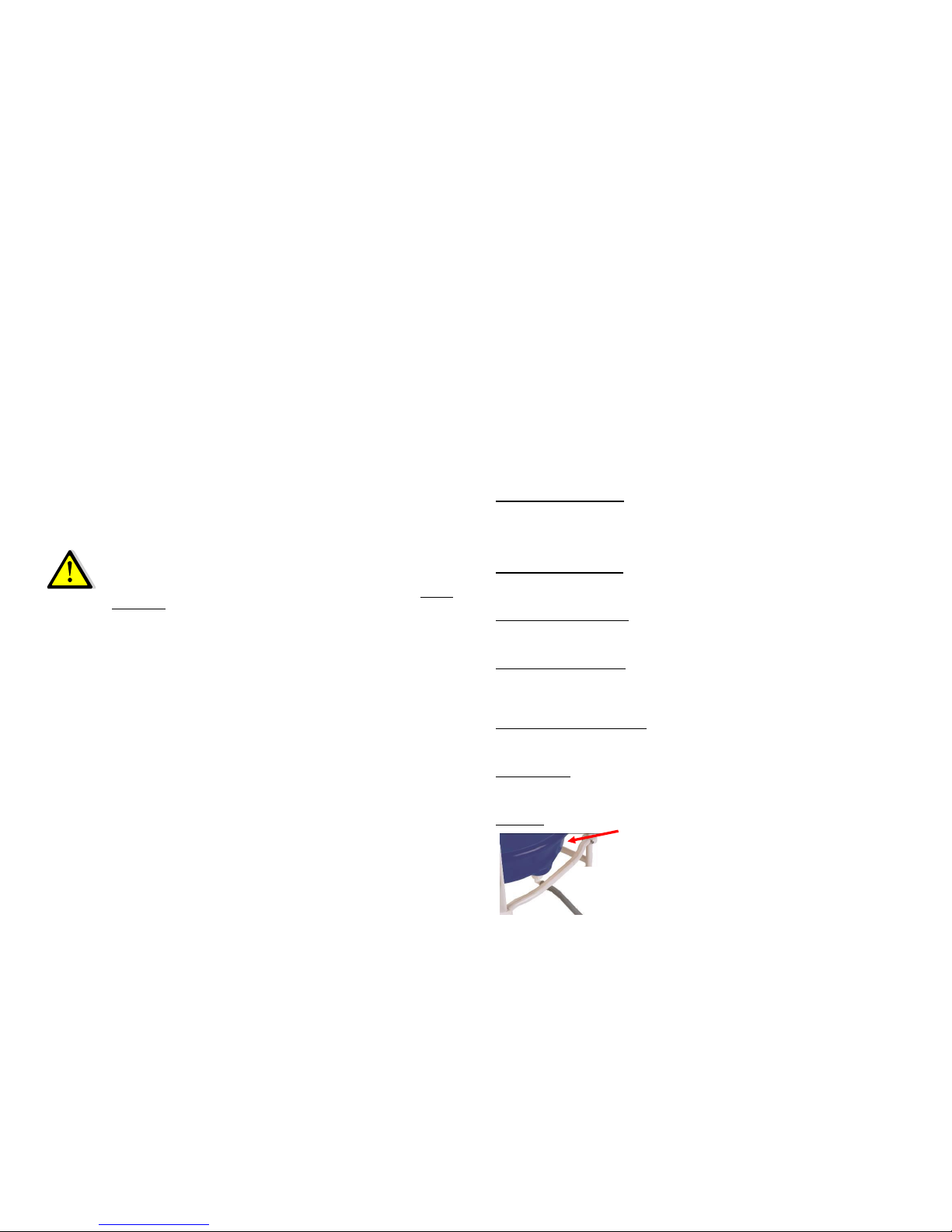

Seat Tub To achieve easier handling during cleaning, the seat tub can be
removed from the chair frame (first empty the tub).
The seat tub is outfitted with a discharge pipe for emptying
water.
Care and Maintenance
The chair should be cleaned with a commercially available cleaning or disinfecting agent.
Always follow the instructions for use. All moving parts are permanently lubricated. Inspect
the chair each time before using. Check all screwed connections to be sure they are tight
(especially those of the wheels). Also check to be sure calcium deposits do not limit the use
of the chair (clean if necessary!). Inadequate or negligent care and maintenance leads to
limitations or annulment of product liability by the Manufacturer.
The following can cause accidents:
Wear that is not recognised early enough.
Damage resulting from improper use.
For safety reasons and for preventing accidents, have the chair inspected
by your local specialised dealer, care provider or Service Company at least
once a year.
Safety Instructions
Chairs may not be used for transport of patients.
Always lock the wheels to prevent rolling away! Also when not in use.
Always flip up the foot-carrier plates before getting on or off the chair. Never step onto
the foot carrier plates.
Use the chair only when the armrests are securely locked into position.
Danger of tipping! The chair may be moved only by using the push handle.
Danger of tipping! The chair may be used only on solid, even surfaces.
Drive the chair only at a slow, reasonable speed.
Danger of tipping! Do not lean out of the chair. In certain swivel-wheel positions (turned
inwards) the chair stability is limited.
Do not carry the chair with a person sitting in it.
2
3
Intended Use / User Advisory
The tub seat chair is used in household and in-patient areas. It is used for bathing while
sitting and for washing the lower body area. Despite optimum sitting comfort, the chair is not
suited for long term sitting.
Seat tub chairs may be used in wet areas!
The seat tub roll chairs are made of a corrosion resistant frame with four rubber-tyre swivel
castors (3”) with four brakes. The armrests may be swivelled out and the footrests may be
removed or folded away. The back bow is made of stainless steel. The seat tub is equipped
with a discharge hose. The plastic is highly durable, easy to clean and gentle to the skin.
