Rebotec 363.00.20 User manual

1
4
Serial No. / Product
06/2005 (Th.B.)
Shower Aids
Shower Stool
“Monaco“
Art. No.: 363.00.10
Technical Specifications (Technical specifications subject to change without notice!)
Dimensions
Verona
Monaco
Cannes
Nizza
Seat height (variable)
42 - 57 cm
42 - 57 cm
42 - 57 cm
42 - 57 cm
Height with armrest
--------
--------
61 -76
--------
Height with armrest
--------
--------
--------
83,0-98,0
Seat width (L x B)
Ø 36 cm
■ 40 x 40 cm
■ 40 x 40 cm
■ 40 x 40 cm
Area needed
■ 40 x 40 cm
■ 45 x 45 cm
■ 45 x 53 cm
■ 51 x 53 cm
Seat height adjustment
7 times/ ea. 25
7 times/ ea. 25
mm
7 times/ ea. 25
7 times/ ea. 25
mm
Weight
2,6 kg
2,8 kg
3,6 kg
4,8 kg
Weight (patient)
Max. 175 kg
Max. 130 kg
Max. 130 kg
Max. 130 kg
Spare Parts
Article No.
Name
Remarks/Colour
463.90.20
Armrests (incl. clips)
Plastic, white
463.90.30
Backrests (incl. clips)
Plastic, white
463.90.40
Sleeve nut
Plastic, white
201.90.28
Clips for legs (height adjustment)
Round, white
463.90.60
Clips for attaching the armrests and backrests
Square, red
442.00.25
Plug for tube
Plastic, black
456.00.25
Leg tip
Plastic, white
Accessory
284.00.30
Pouch with shower aid
Textile fabric, black
Shower Stool
”Cannes“
Art. No.: 363.00.20
Shower Stool
”Nizza“
Art. No.: 363.00.30
Intended Use / User Advisory
The shower aids are used only in interior household and in-patient areas on even, solid
surfaces and for using showers. It serves to assist the physically impaired by increasing
independence during showering. Despite optimum sitting comfort, the chair is not suited
for long term sitting.
Advisory!
Always keep the user manual in case of future use.
The identical serial number in the User Instructions is also printed on the nameplate of
the product. For complaints or questions, always provide the model no., serial no. and
the User Instructions BA No.
User Instructions
REBOTEC® Rehabilitationsmittel GmbH
DE-49610 Quakenbrück, Artlandstr. 57-59
Telephone: [phone]
Telefax :+49(0)5431/9416-66
http://www.rebotec.de
E-mail: [e-mail]
GB
BA No.: 02.08.076/2016-12
Reuse
The product is intended for reuse. The reuse (life) depends on the product state. Before
the re-use of the device maintenance must be carried out and the appropriate
instructions to security, care and maintenance must be observed.
This review shall exclude a possible improper use caused by obvious or invisible
damage. Please refer to the Medical Device Directive (MDD) and the regulation for
operator MPBetreibV).
Life
The expected life of the products listed in this manual when used in accordance with
safety instructions, maintenance intervals and care instructions is 3 years. Beyond this
period, the product can be set used only in a safe condition.
Maintenance should be done at least every six months. Specific requirements of the
product, due to the use of the patient, causing shorter maintenance intervals.
Warranty
The products listed in this manual are provided with a warranty of 24 months.
Wear parts and damages of the products due to improper use are excluded.
Advisory!
You can see this User Instructions at our website at www.rebotec.de.
It is possible to print out the information and to read it as needed.
Shower-Stool
„Verona“
Art.-No.: 368.00.30

2
3
Product Advisories
The tubular frame is made of aluminium tubing. The seat height is adjustable (to 7
positions) using the telescoping aluminium tube. The leg tips for the stool legs are made
of a slip-resistant plastic. The shower aid can be completely assembled or
disassembled with the clip-system and thus offers easy mobility for location changes.
First-time Use
The shower aid is not delivered ready for use. It first has to be assembled before using
it the first time. Using the packing list, check to be sure all parts are at hand before
starting the assembly. The parts can vary depending on the shower aid model!
Cleaning and Disinfection
The chair can be cleaned with a commercially available household cleaning agent. Do
not use an aggressive or foaming type of cleaner. For disinfecting the surface, use a
commercially available disinfectant (be sure to follow the instructions). Then wipe away
with clean water and wipe dry. Inadequate or negligent care and maintenance leads to
limitations or annulment of warranty and product liability by the Manufacturer.
Maintenance
Regular maintenance and care of the shower aid assures long-term reliable use. For
safety reasons and for preventing accidents whose cause may be due to undetected
wear or damage resulting from improper use, be sure to have the shower aid checked at
least every six months by an authorised dealer.
Safety Advisories
Do not exceed the stool’s specified maximum allowable weight!
Before each use, carefully check the stool over for damage. If damage is detected,
then do not use the stool!
Danger of tipping!
The following points must be checked before using:
Check the shower aid for stability (after assembly and before each use).
Check seat plate for damage.
Check height adjustment clips for firm mounting.
Depending on the model, check clip locking of the armrests and backrests.
Do not carry the shower aid while the patient is on it.
Use the shower aid only inside and on solid, even surfaces.
Depending on the model, be sure that the armrests and backrest are used only
when they are fully and properly installed.
Do not lean too far out beyond the shower stool.
Model Verona and Monaco

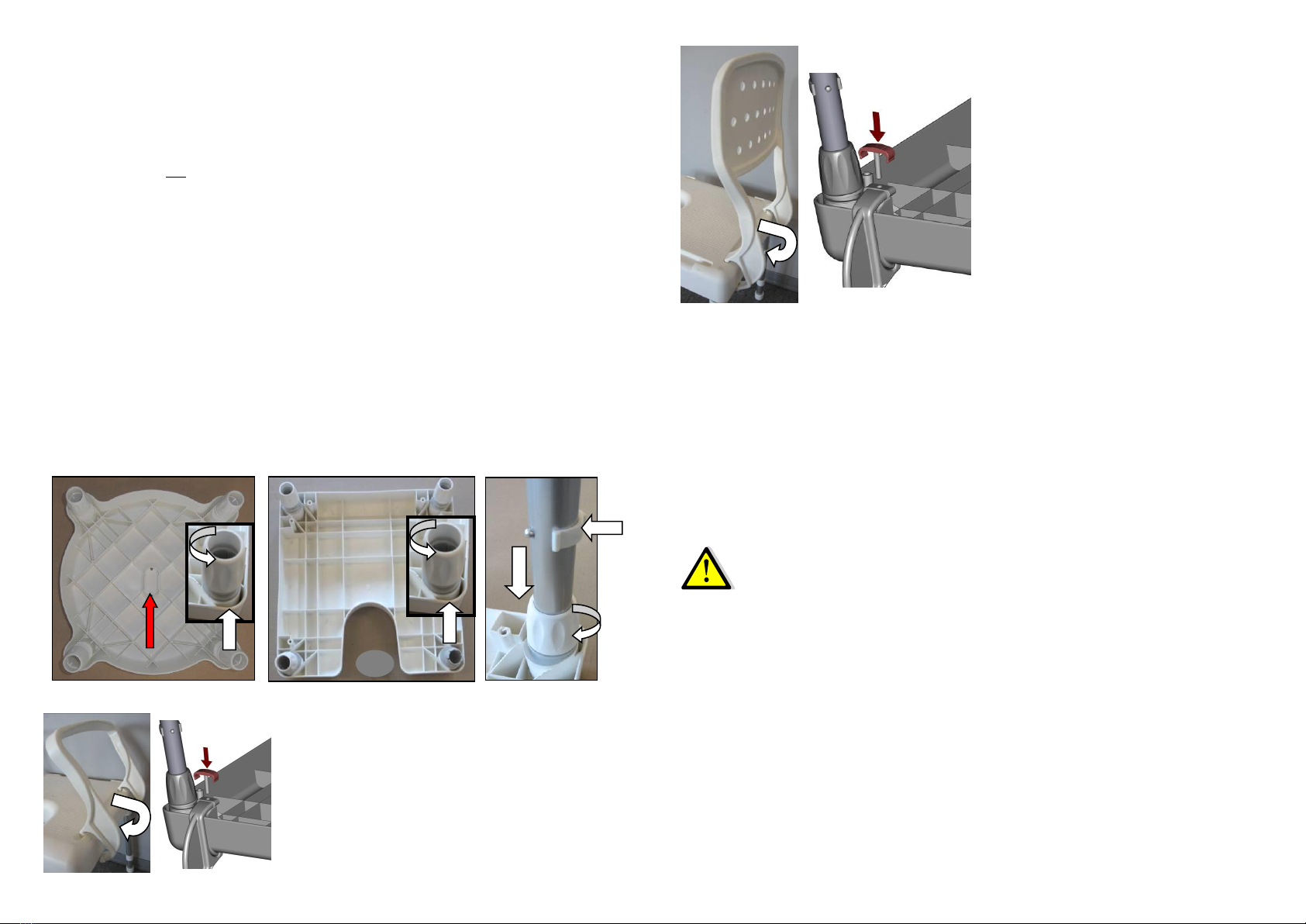

Place seat plate (A) on an even surface.
Loosen sleeve nut (B) by left-hand turning (counter-clockwise).
Insert tube (C) into the clamping element (D) until it strikes the end.
Rotate the tube so that clip (F) is positioned outwards. Be sure all legs are installed
in the same way!
Tighten sleeve nut (B) by turning it to the right until firm.
Install the other three legs in the same exact way.
Pull out clip (F) completely and adjust the seat height by pulling out the inner tube.
Insert clip (F) inside the borehole in the tube. Warning! Push the clip all the way
in. You will know when the clip is all the way inside the aluminium tube.
Adjust all 4 legs to the same height.
After assembly check the commode aid for stability!
Model Nizza
Assembly same as model Monaco
Armrest assembly same as with Model
Cannes
Clamp the backrest (A) firmly onto the
seat plate.
Be sure that the clamping unit snaps on
below the seat plate.
Attach backrest using clip (B).
Attention! Press the clip all the way in.
Model Cannes
Assembly same as model Monaco.
Clamp the armrests (A) firmly onto the seat plate.
Be sure that the clamping unit snaps on below the
seat plate.
Pull the armrest supports slightly apart until the
boreholes line up and fasten with clip (B).
Attention! Press the clip all the way in.
A
A
B
k
a
n
n
di
e
B
Verona
Monaco
Monaco
A
B
Monaco
C
D
F
Use it as a shower stool
only with this cap!
A
B
