RedBack Lasers EL614 User manual

CONTENTS
User Safety 2
Introduction and EL614™ Accessories 3
EL614™Diagram 4
Operating Instructions 7
Batteries 7
Power 8
Tilt Mode 8
V-W-S 9
Rotation Speed 9
Setting Grades (needs remote - Grade & Grade +MM kits only) 10
Laser Receiver LR715 11
Laser Receiver LR720 (Grade + MM Kit only) 12
Calibration Self Check & Technical Specications 14
Care & Maintenance, Trouble Shooting 15
Warranty 16

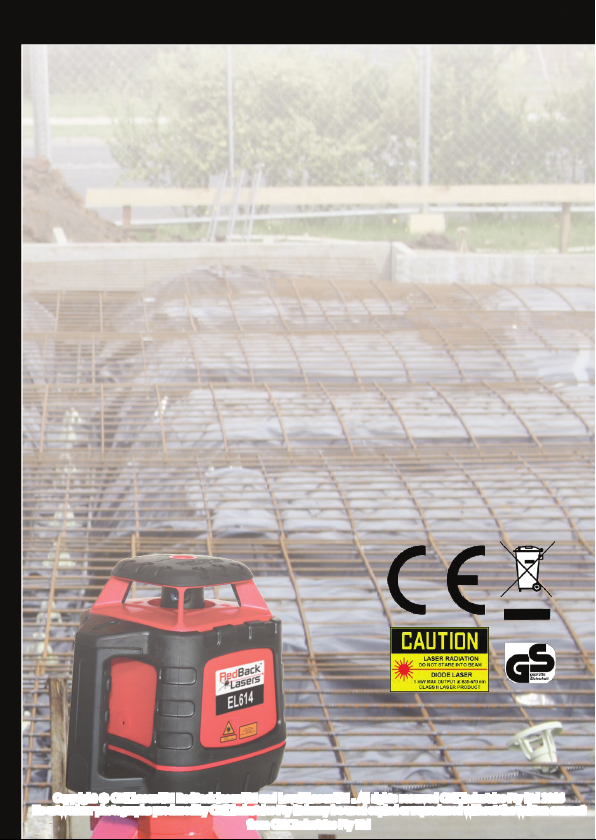

User Safety
• Laser output sign lies near the output aperture.
• Do not stare directly into laser beam.
• Do not disassemble the instrument or attempt to
perform any internal servicing. Repairs and service
should be performed only authorised service
centres of Redback Lasers.
• This instrument complies with the safety
Classication standards of laser radiation.
2
CAUTION: Class II laser <1mW at 635nm.
Do NOT stare into laser beam or aim at
another person.
Follow relevant Australian Standards
Copyright © CMI LasersTM RedBack lasersTM and Level1LasersTM . All rights reserved CMI Industries Pty Ltd 2016
No artwork or photographs produced by CMI Industries Pty Ltd may be used copied or reproduced without the written consent
from CMI Industries Pty Ltd

3
EL614TM INTRODUCTION
Congratulations on purchasing the EL614™ an electronic self levelling
builders/concreters rotating laser level built tough.
The EL614™ can be purchased in a number of dierent congurations;
1) Standard Kit - El614 +LR715 Receiver,
2) Grade Kit - EL614 + Remote Grade + LR715 Receiver,
3) Grade + MM Kit - EL614 + Remote Grade + LR720 mm Receiver.
These instructions cover all these congurations so may refer to Components such as remote or
receiver type that you may not have purchased in your EL614 laser level kit.
The EL614™ has all the features you need for general site levelling; Tilt
provides protection from knocks and bumps shutting down rotation warning
you that the laser has moved. V-W-S (Vibration and Wind setting control)
allows you to continue to work in high wind or on sites close to machinery.
If you have purchased your EL614 with Remote then there is also a single
grade match feature.
The EL614™ Comes with Ni-Mh rechargeable batteries and charger as well
as being able to operate with standard “C” Alkaline batteries.
The EL614™ features RedBack Laser’s “Safety Cage” technology with consists
of a full steel internal chassis which protects the levelling components in the
event of an accident, Its Built Tough. Finally the EL614™ has a Five Year
Redback Warranty. (See page 16)
EL614™ Standard Kit Included Accessories
• EL614™ Laser Unit
• Protective Carry Case
• Rechargeable Ni-Mh Batteries
• Charger
• Std Battery Compartment
• Laser Receiver LR715
• Receiver Sta Clamp
• Instruction Manual
EL614™ Other Kits Include
• Remote Control with Grade Function (Grade & Grade + MM kits only)
• LR720 mm Display Receiver (Grade + MM Kit only)

4
EL614TM DIAGRAMS
EL614TM Laser Unit
1
2
3
1. Laser Output Window
2. Rubberised Casing
3. Keypad
4. Battery Compartment
www.redbacklasers.com.au
4
EL614TM Safety Cage

5
Keypad
www.redbacklasers.com.au
Receiver - LR715
Reception Sensors
Fine/Coarse Mode
Speaker Control
Power On/O
Rubber Casing
LCD Display
(Repeated on rear)
Bubble Vial
Display back light
Power On/O
Tilt On/O
Rotation Speed
Vibration & Wind
Sensor Select
Axis LED’s
For Grade Setting (Remote required)
and calibration (service only)
Power LED
Magnetic Mounting

6
EL614TM DIAGRAMS
Receiver - LR720 mm Display (Grade + mm Kit only)
Rubber Casing
Large Reception Window
LCD Displays (front/back)
with mm from Level
Power Button
Custom Zero
LED Displays
Units of Measure
Sound and
Backlight Options
Accuracy Settings
Remote Control - Grade Setting (Grade & Grade + mm Kits only)
TILT and V-W-S buttons as per
main control panel. (page 9)
Grade Setting Functions - Left button
selects axis - Right buttons slope up or
down as required.
Rotation Speed and Level buttons same
as main control panel (page 8). Power
standby button powers laser o once
powered from main control panel.
Slide panel down to change 9V battery
and access calibration controls (service
only)

7
Large Reception Window
www.redbacklasers.com.au
EL614TM OPERATING INSTRUCTIONS
Battery Instructions
To charge this battery pack simply inserting the charger plug into the charging
socket above the locking screw. The LED on the charger is illuminated red
during the charging process and will turn green once the batteries are
fully charged. Battery pack can be charged while inserted in the laser or
independently.
When the power LED on the keypad ashes, the rechargeable battery pack
needs recharging or standard batteries need replacing. Note the charger will
only charge the supplied rechargeable battery pack.
Handy Hints
• Prior to initial use, charge the rechargeable batteries for at least 8
hours.
• Running rechargeable batteries completely at will increase battery life.
• The EL614™ can operate o mains by plugging the charger (for indoor
use only) into the unit.
• Remember the EL614™ can operate using standard batteries when
rechargeable pack is out of charge.
The EL614 has two battery options either 4 x standard “C” size Alkaline or
the Ni-Mh rechargeable pack. For standard 4 x “C” alkaline operation simply
insert into standard battery holder in the direction indicated and slide into
battery recess and tighten the locking screw.
To use the rechargeable
battery pack rst
remove standard pack
if inserted and place
into the same battery
recess and tighten
locking screw.

8
Turning Laser On
Press Power button on the keypad to turn on the EL614™, power LED
will light. Batteries are low if power LED ashes. After turning the laser on,
the laser will auto level and rotate. The EL614TM has a large self levelling
range, if the laser happens to be set up outside this range, a warning will
sound and the lasers will ash. Re-set the laser more level if this occurs.
Tilt Mode
Tilt mode is somewhat similar to tilt on a pinball table in that if when running
the EL614 detects signicant disturbance or movement that could eect the
accuracy of your work the laser will “Tilt” (stop working) and the laser beams
will ash to indicate this. You will need to then re level the laser by pressing
the tilt button, note that the tilt is then disabled to re-enable press
the TILT button again so its LED light illuminates. After a few seconds the
laser will re-level, then re-check your work to maintain maximum accuracy.
Tilt mode is turned on and o with the tilt button on the keypad, the default
setting is o. Once the tilt button has been pressed the tilt LED will light
indicating it is on.
To deactivate the tilt mode press the tilt button the LED goes out. It
is recommended to use tilt mode when optimal accuracy is required or when
there is a chance that machinery or worker may interfere inadvertently with
the lasers level.
EL614TM OPERATING INSTRUCTIONS cont.

9
www.redbacklasers.com.au
Rotation Speed Settings
• A short press of the Rotating Speed Button will switch the rotating
speed between 3 dierent rotational speeds. Sometimes dierent
rotation speeds will provide better reception with the LR715 receiver
when being used at dierent distances from the laser. For most
situations the default speed (800rpm) will provide best results.
V-W-S Vibration & Wind Sensor Setting
The EL614 continuously self levels for utmost accuracy, in high winds or
vibrations the laser will stop rotating to re-level this may be inconvenient by
slowing down your work, however, by selecting V-W-S button the laser
continually re-levels but does not stop rotating whilst doing so.

10 www.redbacklasers.com.au
Setting Grades (requires remote control that comes with Grade & Grade +MM kits)
EL614TM OPERATING INSTRUCTIONS cont.
The EL614 Grade and Grade + MM kits come with a remote control that
can set a grade on one axis, it can be set to either the “X” or “Y” axis but
not both.
First set up the laser aligning the X axis with the direction of the required
grade rise/fall, the laser can be placed anywhere on site as long as the X
axis runs parallel or in line with the desired grade.
For this example we want a grade of 1 in 60 or 1.667% or in other words
for every 6m (6000mm) travelled away from the laser along the X axis we
want the laser plain to tilt down/up 0.1m (100mm).
To achieve this measure out 6m away from the laser along the X axis and
hold the sta at this point slide the receiver up/down the sta until the
receiver indicates level.
Then making a note of the height on the sta slide the receiver up/down
the sta 100mm from the level point, this is now the height the laser needs
to be hitting to be setting a 1 in 60 slope or grade.
Using the remote, select grade mode on the X axis and use the Slope Grade
Direction buttons to slope the laser until the receiver shows level (see page
6 for remote diagram).
The Grade is now set at 1 in 60 or 1.667% on the X axis and anywhere on
or parallel to the X axis on site.

11
Laser Receiver LR715 (Standard & Grade Kits)
The LR715 is a heavy duty dual sided display rotating laser receiver, it can be
either hand held or with the sta bracket clamped onto a sta. The bubble
vials can be used to keep the receiver level.
• A press of the power button toggles the receiver on and o.
• The Speaker button toggles through 3 speaker volumes.
• Pressing the Coarse/Fine Mode button toggles through 3 levels
the rst being ne mode indicated by on the LCD the accuracy of
level is at its highest with 1mm tolerance movement by the receiver
before showing it o level. The next coarser mode allows 2mm
before showing o level the third press shows no symbol on the LCD
and allows 3mm before showing o level, these two coarser modes are
more suitable for general site levelling.
• The Back Light button toggles the LCD display back light.
The LR715 has two large LCD displays with progressive bars indicating
when the laser gets closer to the level mark. Move the receiver up and
down slowly and watch the display change when the solid tone is heard
and the centre line is shown then the receiver is at the height of the laser
beam plane. The receiver will auto power down after 10 minutes when not
receiving laser pulses.
Indicates laser beam is below
line - slide receiver down.
Indicates laser beam is above
line - slide receiver up.
Indicates laser beam is on the
line.
Power and Battery Life Indicator
Coarse/Fine and Speaker Indicator
www.redbacklasers.com.au
LR715TM RECEIVER INSTRUCTIONS

12
LR720TM RECEIVER INSTRUCTIONS
Laser mm Receiver LR720 (Grade + mm Kit only)
Battery Compartment
4x “AA” Alkaline Batteries
Battery Level
Sound Indicator
Accuracy Indicator
Measurement Above
or Below Level
Unit of Measure
Progressive
Display
Light Indicator
Custom Zero
Indicator
To power up the receiver press the red power button the display will ash a
solid tone will sound. The receiver will now pick up any rotating laser beam
striking the long reception window on the front of the receiver.
When displaying the height of the laser compared to the level point in
mm the LR720 will display up to +/- 45mm from level, between 45mm
and 65mm above or below the LCD display will indicate “OUT” and the
appropriate LED lights will ash. When a measurement is displayed it
indicates the distance between level and where the laser is actually striking
the receiver, the arrows and LED lights indicate which side of level the laser
is.
Power Button
Change Units Measured
(mm, inch)
Sound Options,
Back Light (long press)
Accuracy Options
(1,5 or 9mm)
Custom Zero Set
www.redbacklasers.com.au

13
To select sound volume press the Sound Options button (short press)
which will cycle through; o, low, high (default) sound levels.
To select Accuracy press the Accuracy Options button which will cycle
through level bands of; 5mm, 9mm and 1mm (default). The default single
line between the two arrows on the display indicates ne mode 1mm,
3 lines 5mm and 5 lines is 9mm, the mm value ashes up on the LCD
display momentarily.
Units of measure can be selected with the “UNITS” button, millimetres is
default, you could also select cm, inch and feet.
The LCD backlight function is activated by the same button as Sound
Options to activate press and hold button for two seconds and back light
will turn on, to turn o press and hold same button for two seconds.
Low Battery is indicated by a battery symbol appearing on the bottom left
of the LCD display.
The “OSET” button is used to set a customised level point other than the
default level point as indicated by markings on the casing. A custom level
point can be set between 20mm above and 20mm below the default level
point. A custom level point is set to where the laser is currently striking
(assuming it is within the +/-20mm band) by pressing the “OSET” button
the receiver (while laser is striking it) will now show as being level at that
height the LCD display will ash “Oset” to indicate a custom level point
has been set. To clear this custom level and return to the default setting
either press the “OSET” button once more or power o the receiver.
Auto power o function will activate after 10 minutes of the receiver not
picking up a laser, this is to save battery.
The LR720 has bubble vials built into its casing, this is to aid in accuracy,
when the top bubble is central in the vial then the receiver housing is level
side to side. The bubble vial on the long edge is used when using the
receiver to pick up a rotating laser on the vertical plane for alignment.
The LR720 also features two magnets, useful for indoor installation work
when using steel structures. They are not designed for attaching to a
moving machine arm as heavy vibrations could make the receiver to fall.
Battery Compartment
4x “AA” Alkaline Batteries

14 www.redbacklasers.com.au
EL614TM TECHNICAL SPECIFICATIONS
Technical Specications
Laser Wavelength 635nm <1mW
Laser Class II
Range with Receiver 500m Diam Rotating
Horizontal Accuracy ±1.5mm/20m
Rotation Speeds 800rpm, 300rpm, 5rpm
Self Levelling Range ±5o
Temperature Range -10oC - 45oC
IP Dust Water Resistance IP66
Power 4 x “C” Alkaline or Ni-Mh pack
Low Power Power LED Flash
Size 178x146x188mm
Weight 2.25Kg
Calibration & Self Check
All Redback Lasers have been checked for calibration and certied by one
of our technicians here in Australia prior to despatch and should under
normal conditions not go out of calibration. A calibration certied sticker
with the date and name of technician is located on the laser itself. It is
worth checking calibration from time to time particularly after any known
knocks or drops. An easy way to continually check calibration is to always
double check you work with the laser located in a dierent position or use
an alternate vertical line. Various other methods for checking calibration can
be found at www.redbacklasers.com.au/downloads or the laser can
be returned to our service department for checking and re-calibration. We
at Redback Lasers provide a once o free calibration and check within the
duration of the warranty period see page 16 for details.

15
EL614TM TROUBLE SHOOTING
• Keep laser and accessories stored in protective case.
• Make sure laser is stored dry, dry out before storage to prevent damage.
• Remove batteries when not used for an extended period of time to prevent
leakage. (battery leakage not covered by warranty)
• The EL614TM is a precision instrument and should not be subjected to excessive
knocks, drops or vibrations.
• Self check calibration from time to time. See page 14
• For service contact Redback Lasers. www.redbacklasers.com.au
Q. The Laser does not power up!
A. Check the rechargeable batteries are charged and connected
correctly and or replace standard “C” size Alkaline batteries and
check they are inserted correctly.
Q. Using the receiver I get multiple heights showing as level!
A. This is a common problem with all laser levels and is usually due
to the laser being reected o a window or other reective
surface. So the original laser beam plus the reection are both
hitting the receiver at slightly dierent heights. To prevent this,
set the laser unit up so that you cannot see a reective surface
from where you are holding the receiver i.e. Any glass behind
receiver not the laser.
www.redbacklasers.com.au
Care & Maintenance
Trouble Shooting - FAQ

REDBACK LASERS WARRANTY
Duration of warranty is xed and automatic, when we advertise 5 years on a particular model,
its ve years. No drop down to a lesser time if you forget to register, registration is NOT
required just proof of purchase showing date.
Although the duration of our warranties are for a particular period it does not mean we will
charge you for a genuine warranty failure a month or two outside that warranty period, we
believe in a fair go.
Even though a product shows signs of accidental damage, scratches and the like, we will not
automatically fail the warranty claim, if the fault is NOT caused by a drop or misuse and is a
genuine warranty failure then we will cover it.
Calibration is not covered by warranty much the same as the wheel balance on your car is not
covered by warranty, we do however oer a one o free re-calibration service during the period
of warranty, conditions and details below.
RedBack LasersTM distributed by CMI Industries Pty Ltd
P.O. Box 7324 - Geelong West - Victoria - 3218 - Australia
Ph: 1800 769 585 email: [email protected]
CMI Industries Pty Ltd provides consumers with a warranty to our products, this is in addition to requirements of any
relevant legislation such as the Competition and Consumer Act 2010. Denitions:
“CMI”, “We” or “Our” refers to CMI Industries Pty Ltd (ABN 29 102 713 922) of 8 Autumn St, Geelong West, Victoria
3218 ph [phone]
“You” or “Consumer” refers to the initial purchaser of the product.
“Product” refers to goods manufactured by or for CMI Industries Pty Ltd under the brands of RedBack Lasers,
Level1Laser and CMI Lasers.
“Material” refers to material or component used in the construction and manufacture of the product.
“Workmanship” refers to handling, assembly and manufacturing processes done by or for CMI Industries Pty Ltd in
order to manufacture the products.
“Warranty Period” For the EL614 Five Years. Warranty period is from original purchase date, no extension is made in
the event of warranty replacement products supplied or time spent being repaired.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.
You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure
does not amount to a major failure. LR715/LR720 receivers 2 Year warranty, Ni-Mh Battery/Charger 1 Year Warranty.
CMI warrants that our products will be free from defects in material and workmanship for the warranty period.
CMI promises to repair or replace, free of charge, the product or part of product if found to be faulty due to defective
workmanship or materials within the duration of the warranty as long as the following terms and conditions are met;
• Product must not have been misused or abused, must not have incurred accidental damage or had un-authorised
repair or tampering that has caused or contributed to its fault or failure.
• You must contact CMI by phone, mail or email immediately when a fault or defect has become apparent and within
the warranty period.
• Product must be returned to store of purchase or directly to CMI, we will cover cost of postage only when sent by
our reply paid Australia Post service (Australian Main land and Tasmania only) details will be provided upon phone, post
or email communications with us.
• CMI will cover cost of freight back of repaired or replaced product to original purchase store or you directly
(depending on how it was sent Australian Main Land and Tasmania only).
• CMI will determine whether to repair or replace the product or part of product on a case by case basis.
• Further exclusions in this warranty include damage or defect caused by use of non-original accessories or parts,
damage in transportation, normal wear and tear, damage through moisture, damage due to electric surge, failure due
to neglect or damaged caused by adjustments not outlined in CMI’s instructions.
Subject to the requirements of all applicable Australian Acts or legislation and to the extent permitted by law, CMI
accepts no liability (whether expressed or implied) of any nature whatsoever for any loss of earnings, hiring of
replacement equipment, Inaccurate work carried out by the consumer or agent, damage or injury arising as a result of
any fault in the product. It is the consumers responsibility to maintain good working practices and regularly test their
tools for accuracy and serviceability.
Calibration of the product is not covered by warranty subject to the requirement of all applicable Australian Acts or
legislation and to the extent permitted by law, CMI does however oer a free re-calibration service (once within the
period of the warranty) you are liable for the cost to send the product to us then we will recalibrate and return the
product to you free of charge. Note this oer is invalid if the product shows signs of misuse or accidental damage that
has caused it to go out of calibration.
A CMI product returned that fails to fall within the terms and conditions of this warranty will be quoted for repair.
