About your HoneyBadger
Your HoneyBadger is an Australian-made all-in-one battery system built for off-grid homes.
The system is designed to be easy to install and use. It is fully assembled, factory-tested prior to shipment and requires only
limited programming on-site (e.g. generator size & run-times).
It includes a 10kVA Victron Quattro inverter (5kW option Is also available), up to two
Maximum Power Point Trackers (MPPT), and up to 32.8kWh of self-managed Troppo-
4841 lithium batteries.
The two MPPTs allow you to connect at least 15kW of solar panels (maximum 250VDC (4
large panels in series) and a generator (either 2-wire auto start or manual start). Note
that an additional AC-coupled solar inverter can be added if more Solar is required (e.g.
Fronius 8.2).
Remote monitoring is available subject to mobile phone coverage. This uses RedEarth’s
EMU app that is available for download onto your phone. Just scan the QR code on the
HoneyBadger.
The Victron VRM portal is also available for more detailed analysis.
The HoneyBadger system can be installed either inside or outside, ideally in a shaded area against a wall. A changeover switch is
included in case of system problem. The loads can then be run off a generator until the system is operational again.
A typical complete installation of the HoneyBadger will require the electrical connection of:
 The customers' load: usually via an external switch board
with an earth stake and MEN link – there are dedicated
terminals inside the unit to connect to.
 PV solar panels: with one array per MPPT (maximum 250VDC
per string) (with two MPPTs, two different PV array
orientations can be used).
 Generator: recommended (2-wire auto start or manual start
generator). Terminals for connecting a dry-contact
compatible generator start or signal light are included. A
Victron smart charger is also included to keep the starter
battery of the generator charged up.
 In addition, the installer may need to program the Victron
CCGX controller for the customer’s specific requirements
(e.g., generator size and run times). RedEarth tech support is
available 7-days a week.
 Remote monitoring: The HoneyBadger comes with RedEarth’s RedPi Lite 4G modem, with SIM card built in. If there is
mobile phone coverage, then remote monitoring is possible. Optimal positioning of the antenna will help with
reception. A direct connection from the customers router to the HoneyBadger is also possible. A Starlink satellite option
Is also possible where there is no other internet connection..
Note: The HoneyBadger is not designed to act as a main switch board for the premises, as it does not include space for
additional main & customer circuit breakers or RCDs. The MEN link and Earth connection must be in place at the premises as
required.
Finally, the HoneyBadger conforms to the Australian Battery Safety Guide. This includes the requirement to have an earth fault
detection and alarm function on Victron MPPT equipment operating at above 120Vdc. (AS5033:2021 paragraph 3.5.1)

HoneyBadger | User Manual Jan 2023
RedEarth Energy Storage
15 Fienta Place, Darra BRISBANE QLD 4076 | 1800 733 637 | [e-mail] | www.redearth.energy
6
Dimensions and
clearance/positioning information
HoneyBadger Weight
 560kg with 8x Troppo LFP batteries
(42kg per battery)
 224kg without batteries
Dimensions w/ door closed:
169 H x 94 W x 65 D [cm]
Dimensions w/ door open:
169 H x 104 W x 144 D [cm]
IP rating: IP43
Positioning information summary:
Minimum Clearance around HoneyBadger where
no windows doors, etc. are allowed. According to
AS/NZS 5139.
Note: if the system is >300mm off the wall then
this does not apply, however the system should
be attached to a wall for stability.
The HoneyBadger is rated for outside installation.
It should be installed in a shaded area.

HoneyBadger | User Manual Jan 2023
RedEarth Energy Storage
15 Fienta Place, Darra BRISBANE QLD 4076 | 1800 733 637 | [e-mail] | www.redearth.energy
7
HoneyBadger Overview
Overview of operation
Your HoneyBadger has two sections. The top area contains the inverters, MPPT’s and all the electrical switch gear. The bottom
section is pre-wired for up to eight of RedEarth’s 4.1kWh Troppo batteries. Each section has a key-lockable door. Note that the
keys are not the same for the two doors.
External Power outlet – 10amp
On the left side of the HoneyBadger is a 10amp power outlet. This is
available anytime the system is turned on. It does not require the
solar panels to be connected.

HoneyBadger | User Manual Jan 2023
RedEarth Energy Storage
15 Fienta Place, Darra BRISBANE QLD 4076 | 1800 733 637 | [e-mail] | www.redearth.energy
8
HoneyBadger Components
Opening the top door provides access to the monitoring display and switch gear of your HoneyBadger. This is also where you
turn on/off your HoneyBadger.
AC Breakers
The AC Breakers include a two-pole breaker for connecting a generator. There is also a By-pass switch to use if the HoneyBadger
has a problem and the load is to be run off the generator alone. Each switch has an identification label directly below it. These
are shown below.

HoneyBadger | User Manual Jan 2023
RedEarth Energy Storage
15 Fienta Place, Darra BRISBANE QLD 4076 | 1800 733 637 | [e-mail] | www.redearth.energy
9
DC Breakers
The DC Breakers are used for isolating the MPPT from the
Solar array and the battery. If two MPPT’s are included in the
system then there will be two sets of breakers as shown,
otherwise there will only be one set.
Earth fault alarm
Just below the MPPT, is the Earth Fault Alarm display. This
monitors your unearthed Solar Array and battery storage
system for conductor insulation degradation.
The ALL-CLEAR light is illuminated in normal operation.
If the device detects a fault, the FAULT DETECTED light will
illuminate and a buzzer will sound that can be muted by
pressing “Silence” button. Contact your installer.
More information on the Earth Fault device is available at the
following link, www.aerl.com.au/wpcontent/uploads/2020/10/EarthGuard-300-User-Manual-REV-1.2.pdf
Monitoring display

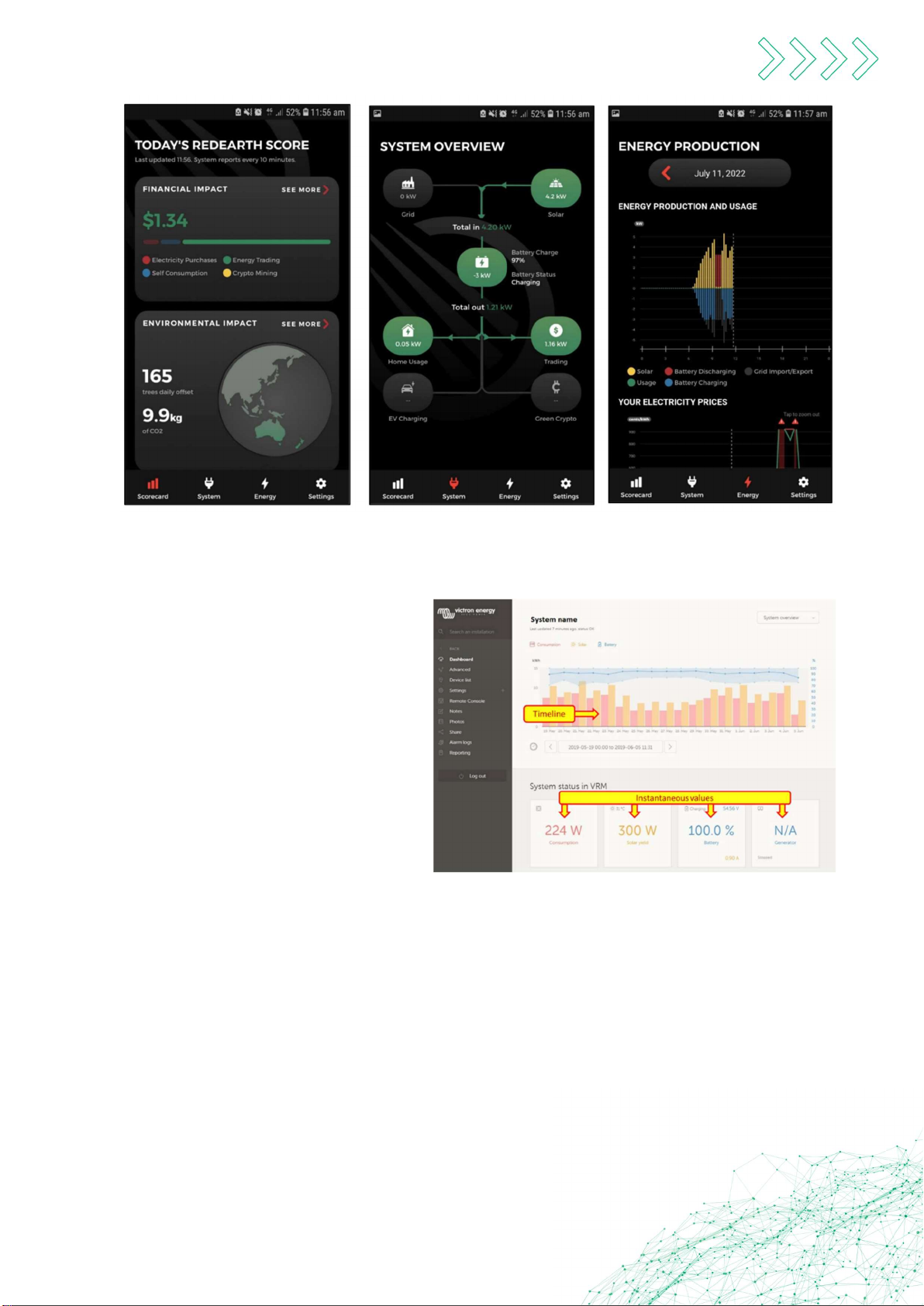

This display allows monitoring of the system status as well as some parameter
changes.
Additional detailed instructions on the monitoring display are available from
Victron at https://www.victronenergy.com/upload/documents/ManualColor-
Control-GX.0.3-EN.pdf
Documentation
The system documentation is kept in the holder on the inside of the top door. It
includes the manuals and other system paperwork.

HoneyBadger | User Manual Jan 2023
RedEarth Energy Storage
15 Fienta Place, Darra BRISBANE QLD 4076 | 1800 733 637 | [e-mail] | www.redearth.energy
10
Fan ventilation

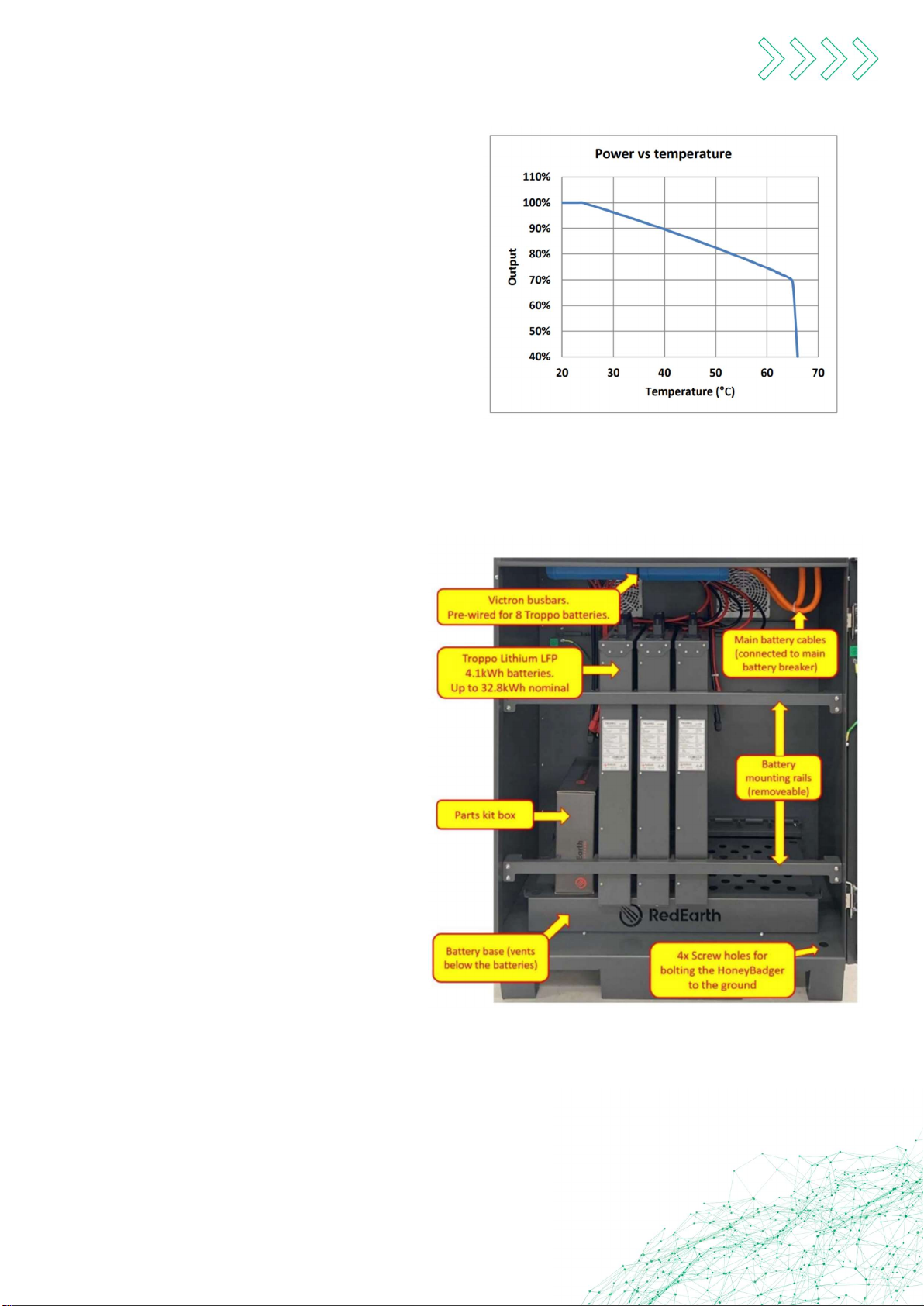

The top enclosure has 2 fans in the rear that come on once the
Internal air temperature reaches 35 degrees centigrade. The
graph at right shows the derating of the Inverter output as the
temperature rises.
The fan can be adjusted to come on at a lower temperature
however this Is accompanied by the fan operating noise.
Battery compartment
The bottom compartment can hold up to eight of
RedEarth’s 4.1kWh Troppo batteries.
Passive ventilation is provided via the vents in the base
of the HoneyBadger and through the vents in the top
rear of the compartment. Ensure that these are not
blocked by other material.
Additional batteries can be purchased from RedEarth. A
maximum of eight batteries can be installed. All the
battery cables are already included in your
HoneyBadger.

HoneyBadger | User Manual Jan 2023
RedEarth Energy Storage
15 Fienta Place, Darra BRISBANE QLD 4076 | 1800 733 637 | [e-mail] | www.redearth.energy
11
How to Turn ON / Shutdown my
HoneyBadger
Turn ON procedure
1. In the battery compartment; switch on the battery switches on the top of
each Troppo battery. The display and LED light on each battery will
illuminate.
2. In the top section; switch on the BATTERY SYSTEM D.C. ISOLATOR [4]; the
Monitoring display and Inverter will start (note the small black rocker-
switch on the front of the Inverter, In the centre, needs to be in the ON
position). The main monitoring display will begin
its power-up sequence.
3. Switch ON the SOLAR D.C. ISOLATOR #1 and, if
present, Isolator #2 [3]
4. Switch ON the MPPT #1 and, if present, MPPT #2
Isolator [2]
5. Ensure that the Changeover switch Is In the UP
position (position 1)
6. Turn ON all AC circuit breakers [1]
Shutdown Procedure
The shutdown procedure is the reverse of the “turn on” procedure and is shown below. This procedure can also be found on the
front faceplate of the unit just below the AC breakers.
1. In the top section Turn OFF all AC circuit breakers [1]
2. Switch OFF the MPPT #1 and, if present, MPPT #2 Isolator [2]
3. Switch OFF the SOLAR D.C. ISOLATOR #1 and, if present, #2
Isolator [3]
4. Switch OFF the BATTERY SYSTEM D.C. ISOLATOR [4]
5. Leave the Changeover switch In the UP position (position 1);
6. In the battery compartment switch off the battery switches on the
top of each Troppo battery. The display and LED light on each
battery will turn off.

HoneyBadger | User Manual Jan 2023
RedEarth Energy Storage
15 Fienta Place, Darra BRISBANE QLD 4076 | 1800 733 637 | [e-mail] | www.redearth.energy
12
Monitoring your HoneyBadger
There are three ways to monitor your HoneyBadger.
1. Direct monitoring via the Display screen in your HoneyBadger
The Colour Control GX is the communication-centre of your
HoneyBadger. It offers at-a-glance live information on power
demand from the loads (house), power production from the PV
(solar) and the batteries. It also shows the state-of-charge of the
batteries and the load on the generator if it is operating.
2. Monitoring via RedEarth’s EMU App
This option provides easy remote monitoring of your system operation using
your mobile phone.
Note: Remote monitoring assumes that your HoneyBadger Is Installed In an
area with mobile phone coverage, and that your system was connected
during installation.
To setup monitoring via the EMU App follow the steps below.
Using your mobile phone, scan the QR code sticker attached on the inside of
the top door of your HoneyBadger (shown below)
Scanning the code will automatically take you to the RedEarth customer
portal for system registration, as shown below.
Entering all the information requested will help you to get the most from
your investment in your HoneyBadger. It will also register your email. You will then be sent an email that allows you to
log into the EMU app.

HoneyBadger | User Manual Jan 2023
RedEarth Energy Storage
15 Fienta Place, Darra BRISBANE QLD 4076 | 1800 733 637 | [e-mail] | www.redearth.energy
13
Download RedEarth’s EMU app by clicking on the Google Play or App Store icons to download the RedEarth EMU app.
Open the EMU app and create and account using
the email you just registered via the QR code.
You can then start viewing your system straight
away.
If you have any issues email
suppo[email protected].

HoneyBadger | User Manual Jan 2023
RedEarth Energy Storage
15 Fienta Place, Darra BRISBANE QLD 4076 | 1800 733 637 | [e-mail] | www.redearth.energy
14
3. Monitoring via Victron’s on-line VRM portal
The VRM portal (Victron Remote Monitoring)
allows you to monitor additional operating
parameters of your HoneyBadger. It is ideally
viewed on a laptop/computer.
To access the VRM portal email or call RedEarth
tech support with the serial number of your
Honey Badger (it can be found on the inside of
the top door and looks like this HB-xxxx). You
also need to provide an email address to receive
your invitation to join the VRM portal.
After receiving the invitation email from Victron,
follow the prompts to setup your account.
Happy monitoring in the VRM portal.

HoneyBadger | User Manual Jan 2023
RedEarth Energy Storage
15 Fienta Place, Darra BRISBANE QLD 4076 | 1800 733 637 | [e-mail] | www.redearth.energy
15
FAQ’s
Q: Something went wrong, and I do not have power.
A: If you have lost power, it can be because your battery is flat and the generator did not start when it was requested. Start the
generator. If the system starts up, then leave it running while it charges the battery and supplies your loads. If the system does
not come on when you start the generator, then switch to By-Pass mode by following these steps:
1. Turn OFF the Victron Quattro (switch on inverter)
2. Turn OFF the Generator breaker;
3. Turn changeover switch from position 1 to position 2 (down position);
4. Turn ON generator AC breaker;
5. Manually start generator.
In By-Pass mode your loads will be run directly off your generator. Contact RedEarth during office hours to help resolve your
problem.
Q: My Generator is turning on too frequently and/or staying on for too long. What does this mean?
A: If connected to the auto-start function of the HoneyBadger, there are several reasons that it might be turning on. The default
settings are set to turn on the generator on low State of Charge (SOC) and low voltage levels of the battery. However, Victron
has many adjustable parameters that may have been activated and are causing the generator to run. Another possible reason
for frequent and extended runtime is that the batteries are constantly reaching low SOC meaning that the loads are too large
compared to the battery size. We recommend either reviewing your loads or contacting RedEarth for additional Troppo
batteries.

HoneyBadger | User Manual Jan 2023
RedEarth Energy Storage
15 Fienta Place, Darra BRISBANE QLD 4076 | 1800 733 637 | [e-mail] | www.redearth.energy
16
Maintenance and End of Life
Maintenance Schedule
Weekly
 Check the monitoring display on the HoneyBadger
 Check the RedEarth EMU app to monitor the operation of your HoneyBadger system (If available)
 Check the earth fault alarm is green “all OK”
Monthly
 Clear any vegetation or overgrowth around the HoneyBadger
 Ensure airflow around the unit is not blocked, including for air entering the base of the unit.
 Review any emails from RedEarth to remain up to date on relevant opportunities
 Confirm the generator battery is charged and that the generator starts.
Annually
 Visually inspect for loose or damaged cables or connections near the system
 Ensure safety labels/instructions remain visible
 Inspect condition of solar panels, cables, array frame for damage or corrosion
 Test the Generator (Back-up) functionality, also confirm the fuel in the generator is still fresh
End of Life Recycling
Please contact RedEarth Energy Storage to arrange recycling of your battery.
Working on the inside of the HoneyBadger system is restricted to qualified personnel.
RedEarth recommend installation by licensed electricians only.
Note that government rebates for solar panels are only available if solar panels are installed by a
certified installer

HoneyBadger | User Manual Jan 2023
RedEarth Energy Storage
15 Fienta Place, Darra BRISBANE QLD 4076 | 1800 733 637 | [e-mail] | www.redearth.energy
17
Services and options available for
your HoneyBadger
As a RedEarth HoneyBadger system owner you have the choice of joining our customer community. You just need to register
your contact details with RedEarth.
You can receive regular relevant communications from RedEarth, especially If you join the RedEarth Optimum program.
Other benefits include:
 Access to our PPP (Private Power Plant) stream of benefits to you
 Remote monitoring service if required. Includes recommendation for system upgrades.
 Additional batteries for system expansion
 Extended warranty option
In addition to the HoneyBadger system RedEarth offers other systems for both on-grid and off-grid applications. Contact
RedEarth for more information.

HoneyBadger | User Manual Jan 2023
RedEarth Energy Storage
15 Fienta Place, Darra BRISBANE QLD 4076 | 1800 733 637 | [e-mail] | www.redearth.energy
18
