Redexim OVERSEEDER 3D Series User manual

User Manual and
Parts book
OVERSEEDER 3D
1275-1575-2075
Translation of the original User Manual
REDEXIM
Kwekerijweg 8
3709JA –Zeist –The Netherlands
Tel.: [phone]
E-mail: [e-mail]
Internet: www.redexim.com
2010 English 922.120.204

2
EU DECLARATION
We –Redexim BV, Utrechtseweg 127, 3702 AC Zeist, Holland –declare entirely under our own
responsibility that the product:
OVERSEEDER 3D WITH A MACHINE NUMBER AS INDICATED ON THE MACHINE AND
INDICATED IN THIS MANUAL
to which this declaration refers, complies with stipulation of the 2006/42/EC machine directive and with
the norms NEN-EN-ISO 12100:2010, NEN-EN-ISO 13857:2008, ISO 4254-1:2013, ISO 4254-9:2018.
Zeist, 10.02.20
A.C. Bos
Manager Operations & Logistics
Redexim Holland

3
FOREWORD
Congratulations on your Overseeder 3D purchase. For safe and long-lasting operation of this machine, it is
necessary to read and to understand this user manual. It is impossible to work safely with this machine without
complete knowledge of the content of the user manual.
This machine does not operate independently! It is the user’s responsibility to use the correct tractor or other
towing vehicle. The user should check the combination of the towing vehicle and the machine with regard to
various aspects, such as noise level and safety risks. In addition, the user should comply with the user
instructions of the vehicle and spare parts that are used.
All information and technical specifications provided at the moment that this document is published are
the most recent ones. Design specifications may be changed without prior notice.
You can contact your sales point or dealer if you have questions and/or if there are ambiguities in this
manual or about the machine concerned.
This document is a translation of the original user manual. Upon request, the original user manual is
available in Dutch. WARRANTY CONDITIONS
AT THE TIME OF DELIVERY THIS MACHINE IS GUARANTEED AGAINST MATERIAL DEFECTS.
THIS WARRANTY IS VALID FOR A PERIOD OF 12 MONTHS FROM THE PURCHASE DATE.
REDEXIM WARRANTIES ARE SUBJECT TO THE ‘GENERAL CONDITIONS FOR SUPPLY OF PLANT AND
MACHINERY FOR EXPORT, NUMBER 188’ THAT ARE PUBLISHED UNDER THE AUSPICES OF THE
UNITED NATIONS ECONOMIC COMMISSION FOR EUROPE.
REGISTRATION CARD
For your own information, fill in the table below:
Serial number of the machine
Dealer name
Date of purchase
Remarks

4
TABLE OF CONTENTS
1. SAFETY INSTRUCTIONS.......................................................................................................... 5
1.1 Obligations of the user................................................................................................... 5
1.2 Maintenance, repairs and adjustments.......................................................................... 6
1.3 Using the machine......................................................................................................... 6
2. TECHNICAL DATA.................................................................................................................... 7
3. GENERAL DESCRIPTION......................................................................................................... 8
4. SAFETY STICKERS .................................................................................................................. 8
5. FIRST INSTALLATION.............................................................................................................. 9
6. ATTACHING AND DETACHING THE MACHINE................................................................... 10
6.1 Attaching the machine ................................................................................................. 10
6.2 Detaching the machine................................................................................................ 11
7. MACHINE SETTINGS.............................................................................................................. 12
7.1 Adjusting the working depth......................................................................................... 12
7.2 Setting the seed-element valves.................................................................................. 12
7.3 Setting the quantity of seeds using the gearbox.......................................................... 12
7.4 Dispensing test ............................................................................................................ 13
7.5 Setting the digital surface meter.................................................................................. 16
8. TRANSPORT ........................................................................................................................... 17
9. PUTTING THE MACHINE INTO OPERATION........................................................................ 18
9.1 Safety........................................................................................................................... 18
9.2 Working speed............................................................................................................. 18
9.3 General remarks for using the Overseeder 3D............................................................ 18
9.4 Start / stop procedure .................................................................................................. 18
10. MAINTENANCE ....................................................................................................................... 20
10.1 Lubrication points......................................................................................................... 20
11. TROUBLE SHOOTING (PROBLEM ANALYSIS) ................................................................... 21
12. OPTIONS.................................................................................................................................. 22
12.1 Weight kit..................................................................................................................... 22
12.2 Bogy kit........................................................................................................................ 23

5
1. SAFETY INSTRUCTIONS
This machine is designed for safe use. This can only be achieved if you completely follow the safety
instructions described in this manual.
Read and understand the manual before you start using this machine.
If the machine is not used as described in this manual, this can result in injuries and/or damage to the
machine.
This user manual lists instructions that are numbered in sequence. You should follow this sequence. A
is an indication of a safety instruction. A means a tip and/or note.
1.1 Obligations of the user
The machine is solely intended for work on grass fields or areas where grass can grow. Any other use
is improper. The manufacturer will not accept any liability for damage resulting from improper use. All
risks occurring with this are entirely at the expense of the user.
All persons assigned to operate, maintain and repair the machine by the owner must completely read
and understand the operation manual and in particular the chapter of Safety Instructions.
Modifications to the machine that have a negative impact on the safety must be rectified immediately.
The user is obliged to check the machine for visible damage and defects before using the machine.
For safety reasons it is not permitted to make changes or adjustments to the machine (except those
approved by the manufacturer). If modifications to the machine have been made, then the current CE
marking is cancelled. The person that has made these modifications has to apply for a new CE
marking himself.
Following the use, maintenance and repair instructions prescribed by the manufacturer is also
considered proper use of this machine.
The user is responsible for the safe combination of the machine and the towing vehicle, which comply
with the requirements as described in the Technical Data (see Chapter 2). This entire combination
should be tested for noise, safety, risk and user friendliness. User instructions should also be drafted.
Dress appropriately during work activities with the machine. Wear sturdy shoes with steel toecaps,
long trousers and tie up long hair. Do not wear loose clothing.
The general applicable health & safety (Dutch: ARBO) regulations must also be followed in addition to
the instructions in this user manual.
Relevant traffic regulations also apply in case of using public roads.

6
1.2 Maintenance, repairs and adjustments
Keep a record of the repair activities.
When unskilled people use, maintain or repair the machine, this could result in injuries to the user and
to third parties. This should be avoided!
Use only original Redexim parts for maintenance or repairs because of the safety of the machine and
of the user.
Only authorised technical personnel may carry out repairs to the machine.
When carrying out maintenance, adjustments and repairs, it is necessary to block the machine in
order to prevent it from sinking away, driving off and/or sliding off.
If a hydraulic installation is present, you should always make it pressure-free before working on this
installation.
Used oil / grease is harmful to the environment. Dispose of these substances according to the
regulations that apply in your location.
1.3 Using the machine
Attach the machine to the towing vehicle according to the regulations. Pay close attention to the risk of
injury!
Never use the machine in the absence of protective guards and safety stickers.
Check the machine for loose bolts, nuts and components before every operation.
Check whether you have a clear field of vision –both close by and far away –before you start moving.
All persons that are going to operate the machine must be familiar with all the functions and control
elements of the machine before starting any work activities.
NEVER crawl under the machine! Kantel, indien noodzakelijk, de machine om aan de onderkant te
werken.
If present, check the hydraulic hoses regularly and replace these when the hydraulic hoses are
damaged or appear old.

7
2. TECHNICAL DATA
Model
1275
1575 / 1575LV
2075
Working width
1.20 m (47.2”)
1.58 m (62.2”)
2.08 m (81.9”)
Working depth
5mm-20mm (0.19”-0.78”)
Sowing speed
Max. 12 km/h (7.5 mph)
Weight
698 kg (1539 lbs)
1184 kg (2610 lbs)
832 kg (1834 lbs)
1518 kg (3347 lbs)
Driving distance when
sowing
75 mm (2.9”)
Number of cutting elements
16
21
28
Recommended tractor
30 hp with a minimum
lifting capacity of 698
kg (1539 lbs) at 620
mm (24.4”) behind the
lifting eyes
40 hp with a minimum
lifting capacity of 1184
kg (2610 lbs) / 832 kg
(1834 lbs) at 620 mm
(24.4”) behind the lifting
eyes
50 hp with a minimum
lifting capacity of 1518
kg (3347 lbs) at 620
mm (24.4”) behind the
lifting eyes
Contents of seed container
212 litres (7.5 cu. ft.)
276 litres (9.7 cu. ft.)
367 litres (13.0 cu. Ft.)
Maximum capacity
(Theoretical at maximum
speed of 12 km/h [7.5mph]
and a single pass.)
15,300 m2/hour
(164,688 ft2/hour)
18,900 m2/hour
(203,438 ft2/hour)
24,900 m2/hour
(268,021 ft2/hour)
Transport dimensions
L x W x H
1,540x1,124x1,353 mm
(60.6” x 44.3” x 53.3”)
L x W x H
1,925x1,124x1,353 mm
(75.8” x 44.3” x 53.3”)
L x W x H
2,440x1,124x1,353 mm
(96.1” x 44.3” x 53.3”)
Three-point connection
3-point CAT. 1-2
Grease
EP 2
Tyre pressure
1 –2 Bar (14.5 - 29 Psi)
Standard components
Rear roller including a scraper that can be filled with water
Continuously variable gearbox
Integrated seed dispensing bin
Cylinder for the manual
Seed bin including a viewing window
Terrain-following sowing wheel
Cutting elements that do not depend on following the terrain
Adjustable legs for storage
Gearbox lubrication
EP 0 Grease (max 2.8 kg / 6.2 lbs)

8
3. GENERAL DESCRIPTION
The Overseeder 3D is a machine for sowing grass areas.
4. SAFETY STICKERS

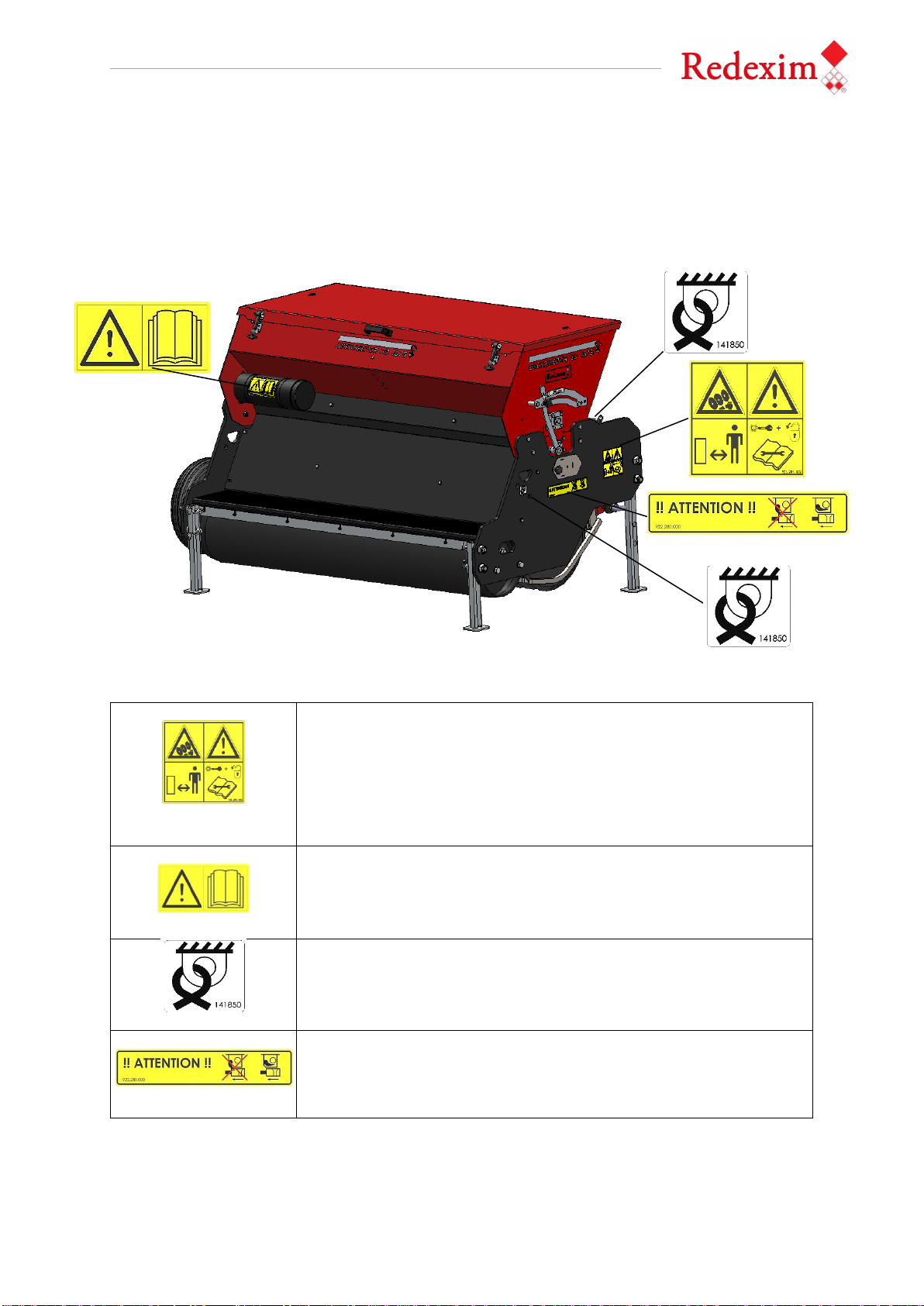

Safety stickers are located on both sides of the machine (see Figure 1). These safety stickers must
always be clearly visible and legible and must be replaced if they have become damaged.
Figure 1
933.280.402
-In case of maintenance, adjustments and repair, always switch
OFF the engine of the towing vehicle.
-Keep a distance of minimum 4 metres when the machine is
used (except for the user).
-No persons are allowed in the danger zone of the machine
during its operation, because there is the risk of injury caused
by rotating parts.
900.280.402
-Prior to using the machine, the operators of the machine must
read the user manual carefully.
922.340.008
-Fixation point to secure the machine during transport (e.g., on
a trailer)
922.280.000
-Close the seed flap before removing the receptacle. The seed
flaps can get damaged if this is not done.

9
5. FIRST INSTALLATION
The machine should be prepared for use as follows (see Figure 2):
1. Attach cables to the hoisting points (1).
Make sure that the crane and hoisting cable can handle at least the following weights:
Overseeder 3D 1275 1,050 kg (2315 lbs)
Overseeder 3D 1575 1,800 kg (3968 lbs)
Overseeder 3D 1575LV 1250 kg (2756 lbs)
Overseeder 3D 2075 2,300 kg (5071 lbs)
2. Lift the machine including the pallet approx. 5 cm (2”) off the ground.
3. Loosen the pallet by removing the lowest 3-point pins (2).
4. Pull the pallet from under the machine.
5. Make sure that all 4 legs are facing downwards (3).
6. Carefully lower the machine until it stands safely on the ground.
KEEP A SAFE DISTANCE. THE MACHINE MAY START TO SLIDE DURING HOISTING!
NEVER CRAWL UNDER THE MACHINE!
Figure 2
1
1
2
3

10
6. ATTACHING AND DETACHING THE MACHINE
Attaching and detaching the machine has to be done carefully. Follow the instructions below:

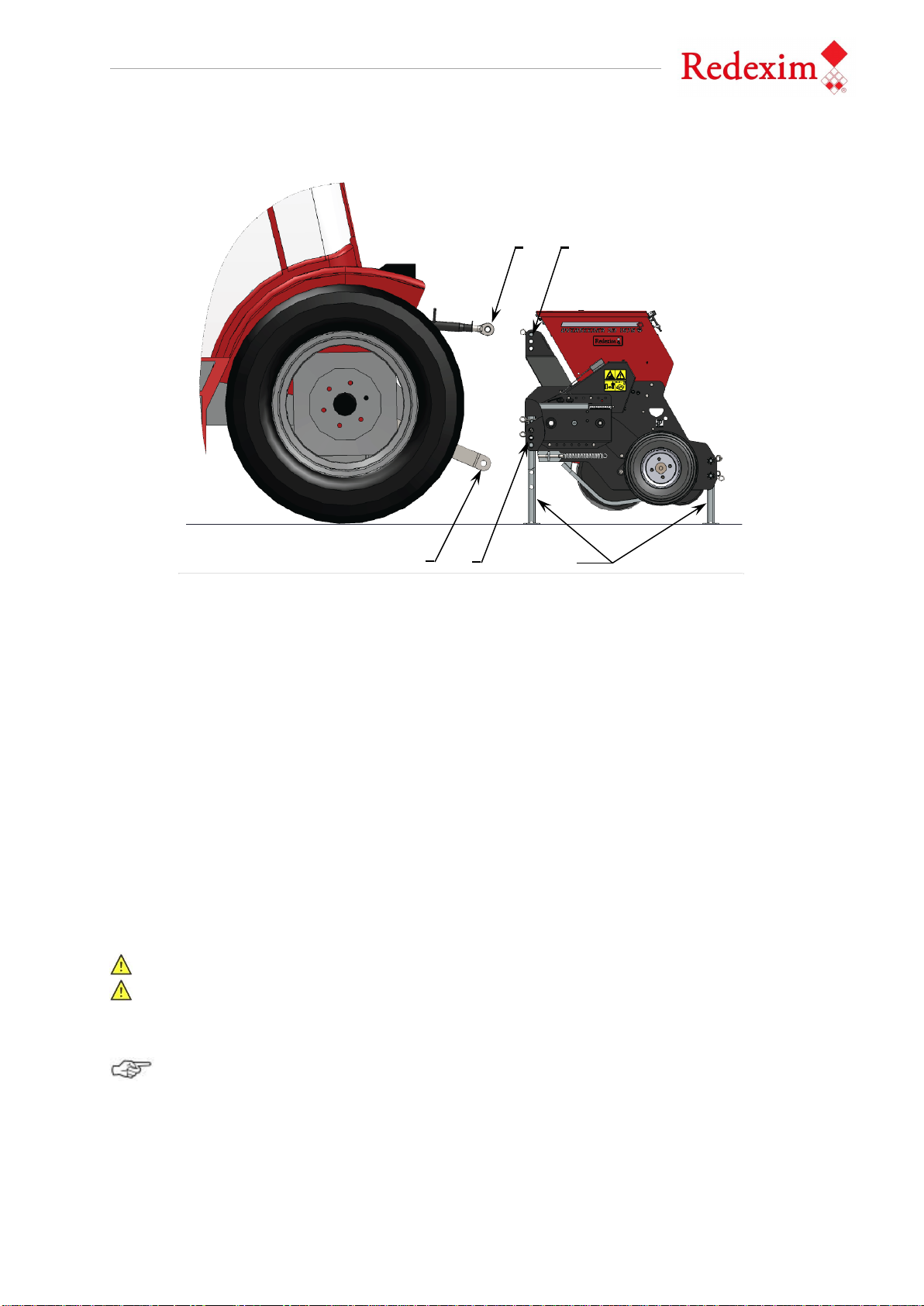

Figure 3
6.1 Attaching the machine
Prior to attaching the machine, check the following points:
-Check whether the machine is undamaged and whether it is safe to attach and use
the machine.
-Check the machine for unintentionally loose bolts and nuts.
-Check whether all safety stickers are on the machine and whether these are
undamaged and easily readable. Never use the machine if it has damaged or
unreadable stickers.
The machine should be attached to the tractor in the following manner:
1. Remove the upper 3-point pins (1) and (3) from the machine (see Figure 3).
2. Carefully drive the tractor backwards until the lifting arms (2) can be attached to the
machine.
!! Make sure that the tractor and the machine cannot move while you are attaching them !!
!! Switch off the tractor engine before attaching the machine !!
3. Attach the lifting arms (2) to the machine using the 3-point pins (3). Lock the pins
using the R-clips.
Use the highest possible hole, so that the pulling line of the tractor is optimal for
pulling the machine into the ground.
4. Set the stabilizer of the lifting arms (2) to 100mm lateral stroke.
2
3
1
4
5

11
5. Mount the top rod (4) onto the tractor and attach it to the machine using the 3-point pin
(1). Lock the pin using the R-clip.
6. Start the tractor and lift the machine off the ground.
!! Make sure that the 3-point pins are locked using the R-clips !!
7. Turn off the machine and rotate the support legs (5) upwards onto the machine.
!! Make sure that the tractor cannot move !!
8. Start the tractor and drive to the field that should be treated.
9. While driving, carefully lower the machine into the ground.
10. Turn off the tractor and secure the tractor / Overseeder 3D combination against
driving off and/or sliding off.
11. Adjust the top rod in such a manner that the machine is horizontal.
6.2 Detaching the machine
The machine should be detached in the following manner (see Figure 3):
1. Place the tractor and the lifted machine on a flat surface.
!! Make sure that the machine and the tractor cannot move while you are detaching
them !!
!! Switch off the tractor engine before detaching the machine !!
2. Turn off the machine and rotate the machine’s support legs (5) downwards.
3. Start the tractor and carefully put the machine onto the ground.
4. Turn off the machine, detach the top rod (4) and remove it.
5. Loosen the lowest arms (2).
!! The ground must be flat !!
6. Start the tractor and drive off.

12
7. MACHINE SETTINGS
The Overseeder 3D has several options for setting the machine optimally.
7.1 Adjusting the working depth
The working depth can be adjusted by turning the top rod.
If the top rod is turned, causing it to be shortened, the machine will rotate forward and the result is that
the sowing depth is set deeper.
This works if the ground that should be treated is sufficiently soft to be cut.
If the ground is too hard, the machine can also be constructed more heavily by additional weight sets
(see Section 12.1) and/or by filling the rear roller with water to obtain the correct sowing depth.
If the rear roller is filled with water, remove it before it starts to freeze!
7.2 Setting the seed-element valves
The machine is suitable for sowing different types of seeds. Furthermore, the seeder can also be used
in combination with various tractors and you can sow at different speeds. To adjust the machine to the
various factors, the machine’s sowing installation must be adjusted. The seed elements have a
number of functions (see Figure 4b):
1. If the seed-element valve is closed, no seeds can flow out of the hopper when the
machine is idle (e.g., during transport).
2. To empty the hopper after sowing, the valve (a sowing element) can be opened so
that the seeds can run out of the hopper.
3. The seed-element valve can be adjusted according to the size of the seeds that will be
sown. In case of fine grass seed, the element valve must be closed completely. Then
the gear wheel grabs the seeds. In the case of larger seeds, the space between the
gear wheel and the valve is not large enough to let the seeds pass. Therefore, the
valve needs to be opened more for larger seeds. Adjusting the size of the opening can
be done using the valve adjustment handle. The handle can be adjusted by loosening
the stellar knob (1), selecting the required position by means of the indication sticker
(2), and retightening the stellar knob (see Figure 4a).
Figuur 4a Figuur 4b
7.3 Setting the quantity of seeds using the gearbox
By affecting the setting of the seed elements, the delivery of seeds can be set to additional or fewer
seeds. Each seed element contains a rotor that transports the seeds. By affecting the speed of the
rotors, the quantity of seeds can be adjusted. The gearbox can continuously variable adjust the speed.
Do the following to adjust the quantity of the seeds:

13

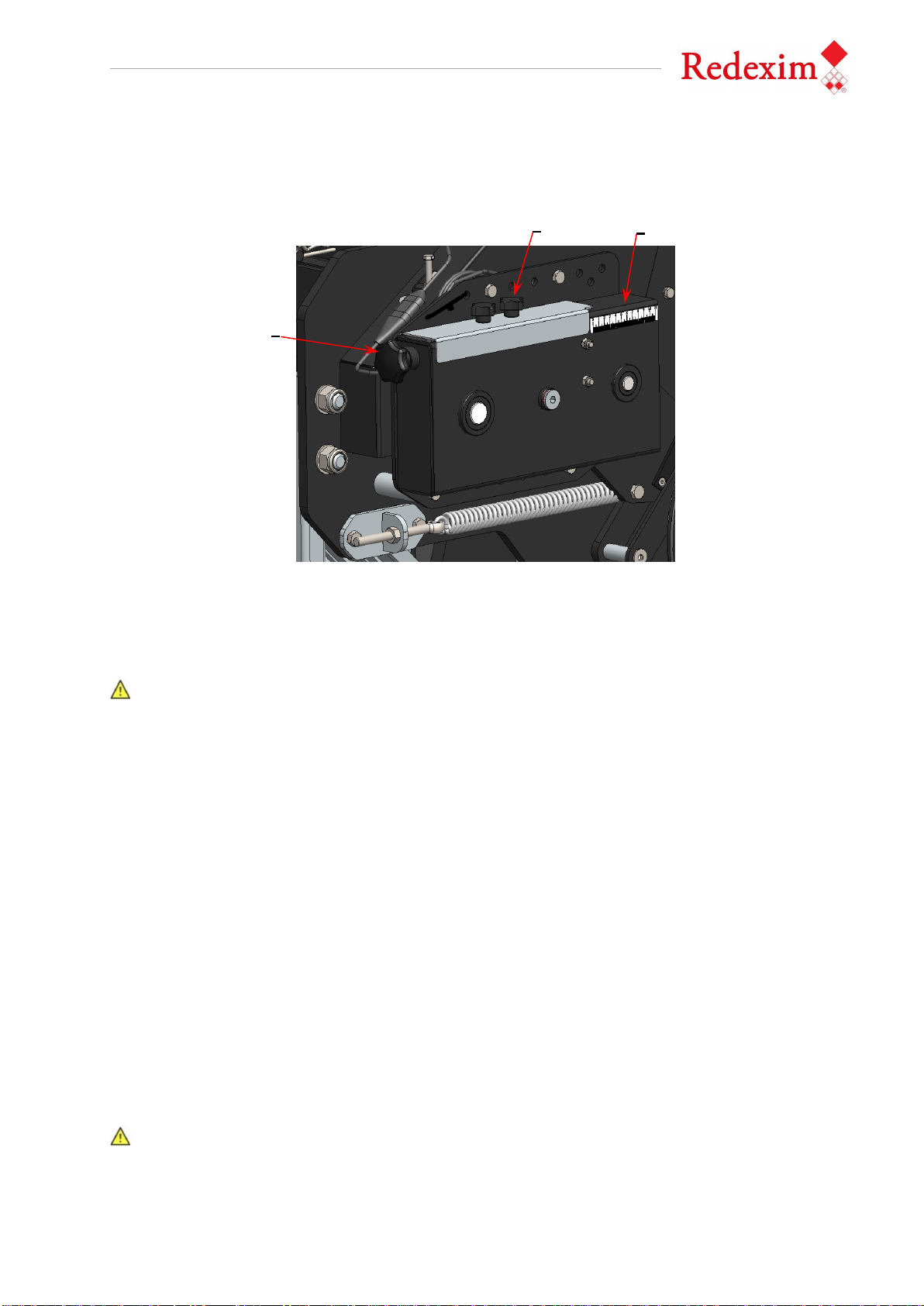

1. Loosen the stellar knobs (1) (see Figure 5).
2. Rotate the stellar knob (2) to change the settings. You can see the settings on the
sticker (3).
3. Retighten the stellar knobs (1).
Figure 5
7.4 Dispensing test
The quantity of seeds should be adjusted for the correct operation of the Overseeder 3D. See the
Tables 1, 2 and 3 for an indication of the required quantity.
You should consider the following instructions for this:
!! Make sure that the Overseeder 3D is standing on its legs and is detached from the
tractor (see Section 6.2) !!
You will need the following accessories for adjusting the quantity of seeds:
1. A scale
2. A tray for weighing the seeds
3. Enough seeds for filling the hopper for minimum 30%
The procedure is as follows (see Figure 6):
1. Set the flap of the seed-element valves (4) to 0.
2. Fill the hopper with seeds and make sure that these are evenly spread throughout the
hopper.
3. Loosen the stellar knob (1) and slide the seed dispensing bin (2) out of the machine.
4. Rotate the seed dispensing bin 90° and slide it back into the machine.
5. Turn the wheel (3) 13 rotations counter-clockwise.
6. Remove the seed dispensing bin (2) out of the machine and collect the seed in a tray.
7. Weigh the seeds in kilograms and multiply the outcome by:
Overseeder 3D 1275: 474
Overseeder 3D 1575/1575LV: 384
Overseeder 3D 2075: 291
The resulting outcome is the amount of seeds in kilograms that should be spread per hectare.
To obtain the outcome in pounds per acre, multiply the resulting outcome by 0.89.
!! Attention !! If the bin is in a high position, it may cause the release of a large quantity
of seeds. Then divide the 13 rotations in several smaller steps!
3
1
2

14
Figure 6
1
2
3
4

15
Sowing table
Gearbox setting
Gate opening
Rye grass
Kg/ha
Pound/Acre
0
0
0
0
1
0
8.5
7.6
2
0
26.6
23.8
3
0
45.3
40.4
4
0
67.1
59.9
5
0
87.8
78.4
6
0
112.3
100.2
7
0
140.1
125.0
8
0
172.5
153.9
9
0
211.4
188.6
10
0
252.2
225.0
11
0
319.3
284.9
Table 1
Sowing table
Gearbox setting
Gate opening
Bluegrass
Kg/ha
Pound/Acre
0
0
0
0
1
0
12.5
11.2
2
0
53.3
47.5
3
0
81.1
72.3
4
0
115.5
103.0
5
0
157.7
140.7
6
0
201.7
180.0
7
0
252.5
225.2
8
0
323.3
288.4
9
0
387.6
345.8
10
0
456.0
406.8
11
0
585.4
522.3
Table 2
Sowing table
Gearbox setting
Gate opening
Red Fescue grass
Kg/ha
Pound/Acre
0
0
0
0
1
0
7.6
6.8
2
0
24.3
21.6
3
0
42.0
37.5
4
0
58.5
52.2
5
0
81.0
72.2
6
0
102.6
91.5
7
0
127.3
113.6
8
0
158.5
141.4
9
0
192.4
171.7
10
0
236.7
211.1
11
0
292.9
261.3
Table 3

16
7.5 Setting the digital surface meter
A digital surface meter (1) is mounted onto the machine (see Figure 7). This meter can be used to
show various data (treated surfaces, distances, hours that you worked, etc.).
A separate manual is added to the Overseeder 3D toolbox. This describes the operation & setting
instructions of the surface meter.
If the settings of the surface meter have disappeared from the memory, the machine-specific settings
that should be entered are indicated below.
Machine
Parameter ‘C’
Pulses of the speed sensor
Parameter ‘L’
Working width
Setting UN = 0
Overseeder 3D 1275
31
1.29
Overseeder 3D 1575/1575LV
31
1.60
Overseeder 3D 2075
31
2.10
Table 4
Figure 7
1

17
8. TRANSPORT
The user is responsible for transporting the machine on public roads.
Verify the national legislation regarding the regulations. Related to the weight of the machine, it is
recommended not to drive faster than 20 km/h (12.4 mph) with a lifted machine. A higher speed can
be dangerous for the driver and/or the public and can even damage the machine.
!! When the machine is raised off the ground, the front axle of the tractor has to support
minimum 20% of the tractor’s weight !!

18
9. PUTTING THE MACHINE INTO OPERATION
9.1 Safety
Before using the Overseeder 3D, you should check the following:
1. Are there loose objects in the field? First remove these objects.
2. Are there slopes? The maximum slope is 20 degrees for this machine. Always go from top to
bottom.
3. Are there hard objects in the ground? If so, use the Overseeder 3D at adjusted speed.
4. Is there danger of flying objects (e.g., golf balls) that distract the attention of the driver? If so,
the Overseeder 3D CANNOT be used.
5. Is there danger of sinking / sliding away? If so, postpone the work activities.
6. If the soil is frozen or very wet, postpone the activities until conditions improve.
7. Check whether the hopper is not too damp. Dampness can cause the seeds to stick to each
other and this leads to a poor result.
8. Do NOT make sharp curves when the Overseeder 3D touches the ground.
9.2 Working speed
The maximum safe working speed of the machine is approx. 12 km/h (7.5 mph). However, the user should
check which speed is optimal to achieve the required result per individual situation and soil treatment.
9.3 General remarks for using the Overseeder 3D
−A field can be treated two or three times in different directions in order to obtain a
higher sowing density.
−Do NOT make sharp curves and preferably drive in straight lines to prevent damage to
the machine and the ground.
−If a hard object in the ground is hit, the knives can get damaged. In that case, try to file
the burrs or replace the knives.
−If the knives get damp, seeds can stick to each other and accumulate between the
knives.
−Try to make sure that the knives do not get damp or postpone sowing until the
conditions are better.
−NEVER drive in reverse when the machine stands on the ground.
9.4 Start / stop procedure
Before starting to sow, check the following points:
!! Make sure that the machine and the tractor cannot move while you are detaching
them !!
!! Switch off the tractor engine before detaching the machine !!
−Check the knives for damage and repair them, if necessary.
−Check whether the passageway to the sowing elements is not blocked (funnels,
sowing pipes, etc.).
−Check whether the machine is not wet or damp, predominantly in the sowing system.
−Check the ‘image’ of the sowing by rotating the runner once (counter-clockwise).
−Check whether the drive runs smoothly.

19
STARTING TO SOW
The start procedure is VERY important. If this procedure is not executed as described below, it might
result in serious damage to the machine. The procedure is as follows:
1. Put seeds in the seed container.
2. Set the required dose of seeds by adjusting the gearbox (see Section 7.3).
3. Move to the location where you want to start.
4. Start at a speed of approx. 3 km/h (1.9 mph).
5. While driving, lower the machine gently and in a controlled manner, until the
sowing elements cut into the ground.
6. Increase the speed until the correct drive speed is achieved.
STOPPING TO SOW
1. Decrease the driving speed to approx. 3 km/h (1.9 mph).
2. While driving, lift the machine off the ground.
3. Go to the next location and start again as described above.
It is absolutely necessary to work according the aforementioned procedures. If the
machine is put into the ground in a non-operating position, serious damage to the
machine might occur.
While driving, lower the machine carefully and in a controlled manner during treatment.
NEVER drive in reverse when the machine stands on the ground.

20
10. MAINTENANCE
Schedule
Check point
Method
Before every use
Check for loose bolts / nuts.
Tighten loose bolts / nuts with the
correct tightening moment.
Presence and readability of the safety
stickers
Replace these if not present or
damaged.
Check the knives.
Replace or repair them if damaged.
After every use
Clean the machine.
Clean the machine using air. If possible,
do not use water.
After the first 20
working hours
(new or repaired)
Grease the bearings.
Use EP2 grease.
Check for loose bolts / nuts.
Tighten loose bolts / nuts with the
correct tightening moment.
Lubricate the chains.
Use a chain spray.
After every 100
working hours
Check for loose bolts / nuts.
Tighten loose bolts / nuts with the
correct tightening moment.
Lubricate the chains.
Use a chain spray.
Check the chain tension.
If necessary, adjust it.
Check the sowing elements for dirt
and/or damage.
If necessary, clean or replace the
sowing elements.
Check the quantity of seeds.
Carry out the dispensing test.
Check the sowing pipes and/or funnels.
Clean these items if necessary.
Grease the bearings.
Use EP2 lubrication grease.
Check the grease level in the gearbox.
Top up to the correct level (see the
specification in Chapter 2).
Clean the seed tray.
Clean the seed tray using air. If possible,
do not use water.
Table 5
10.1 Lubrication points
To guarantee the proper functioning of the Overseeder 3D, the bearings at both sides of the rear roller
should be greased regularly (see Figure 8).
Grease these points according to the schedule shown in Table 5.
Figure 8
