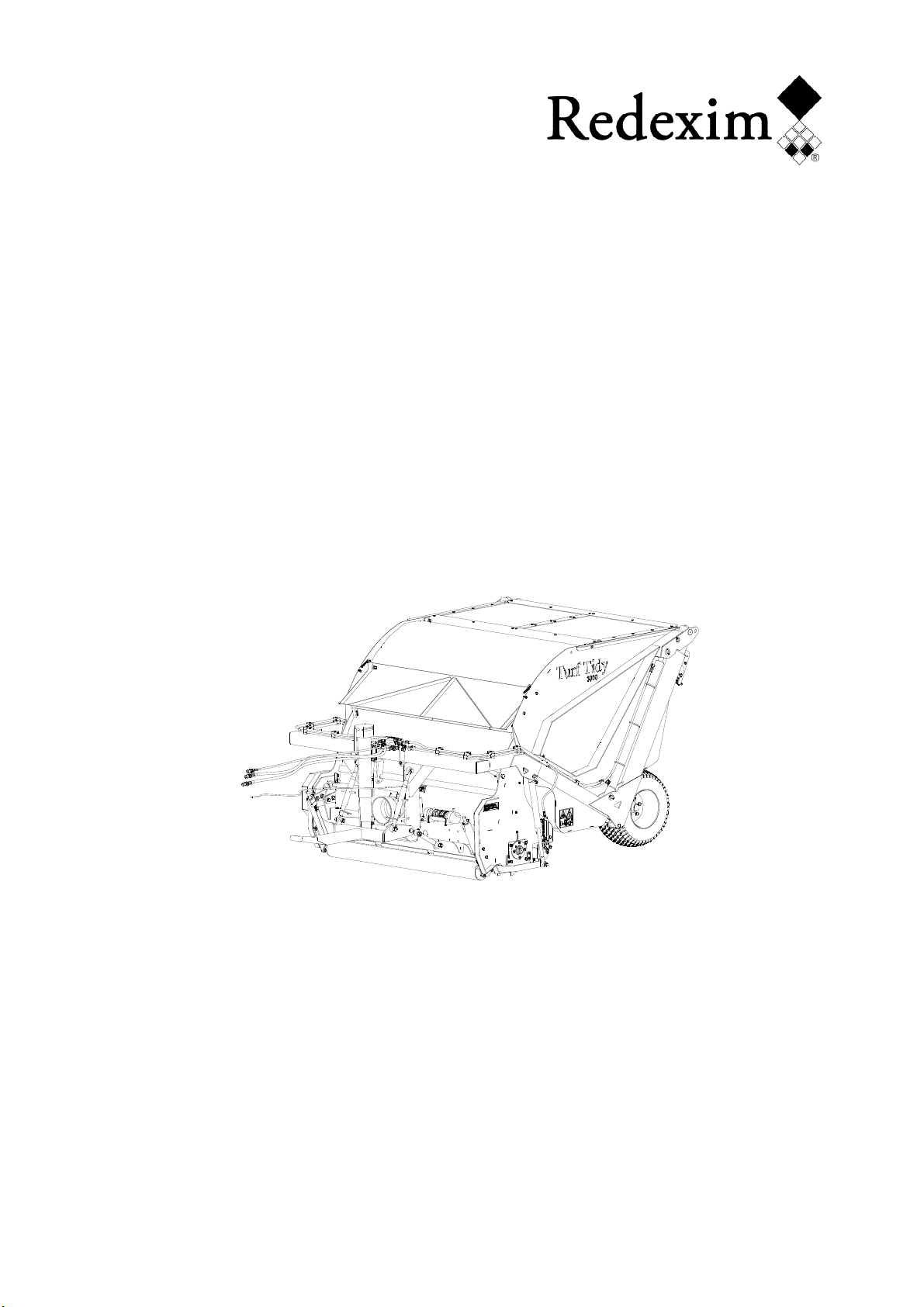

Redexim Turf Tidy 3000 User manual

NOTE:
IN THE INTERESTS OF SAFETY AND ACHIEVING THE BEST RESULT, IT IS VERY
IMPORTANT THAT THIS MANUAL IS READ CAREFULLY BEFORE USING THE TURF TIDY.
1821 English 941.120.406
User manual and parts
book
Turf Tidy 3000
Turf Tidy 2300
Serial number:
Translation of the original user manual
Kwekerijweg 8
3709JA Zeist
The Netherlands
T: (31)306933227
F: (31)306933228
E: [email protected]
www.redexim.com

2
FOREWORD
Congratulations with the purchase of your Turf Tidy. This manual must be read and understood in
order to ensure safe and long-term operation of this Turf Tidy.
Safe operation of this machine is not possible if the user is not fully familiar with the content of this
manual. OPTIONAL EXTRAS: PLATE PULLBAR
The Turf Tidy is not a stand-alone machine. It is the responsibility of the user to use the correct
tractor. The user also has to perform safety-related checks on the tractor/Turf Tidy combination
including sound level, user instructions and risk analysis.
The general safety instructions will be covered on the next page. All users must be familiar with
and apply these instructions. There is a registration card below, which must be sent back in order
to process any future claims.
This user manual contains numerous instructions, which are numbered in sequence. This working
sequence must be adhered to. The pictogram indicates safety instructions. The pictogram
indicates a tip and/or note.
All information and technical specifications used were the most recent at the time of publication.
Design specifications are subject to change without notice.
This document is a translation of the original user manual.
Original user manual (Dutch language) is available on request.
WARRANTY CONDITIONS
THIS TURF TIDY IS SUPPLIED WITH A WARRANTY FOR DEFECTS IN MATERIALS.
THIS WARRANTY IS VALID FOR A PERIOD OF 12 MONTHS FROM THE DATE OF
PURCHASE.
TURF TIDY WARRANTIES ARE SUBJECT TO THE “GENERAL CONDITIONS FOR SUPPLY OF
PLANT AND MACHINERY FOR EXPORT, NUMBER 188”, WHICH WERE PUBLISHED UNDER
THE AUSPICES OF THE UNITED NATIONS ECONOMIC COMMISSION FOR EUROPE.
REGISTRATION CARD
Complete the table below for your own records:
Machine serial number
Dealer name
Purchase date
Comments

3

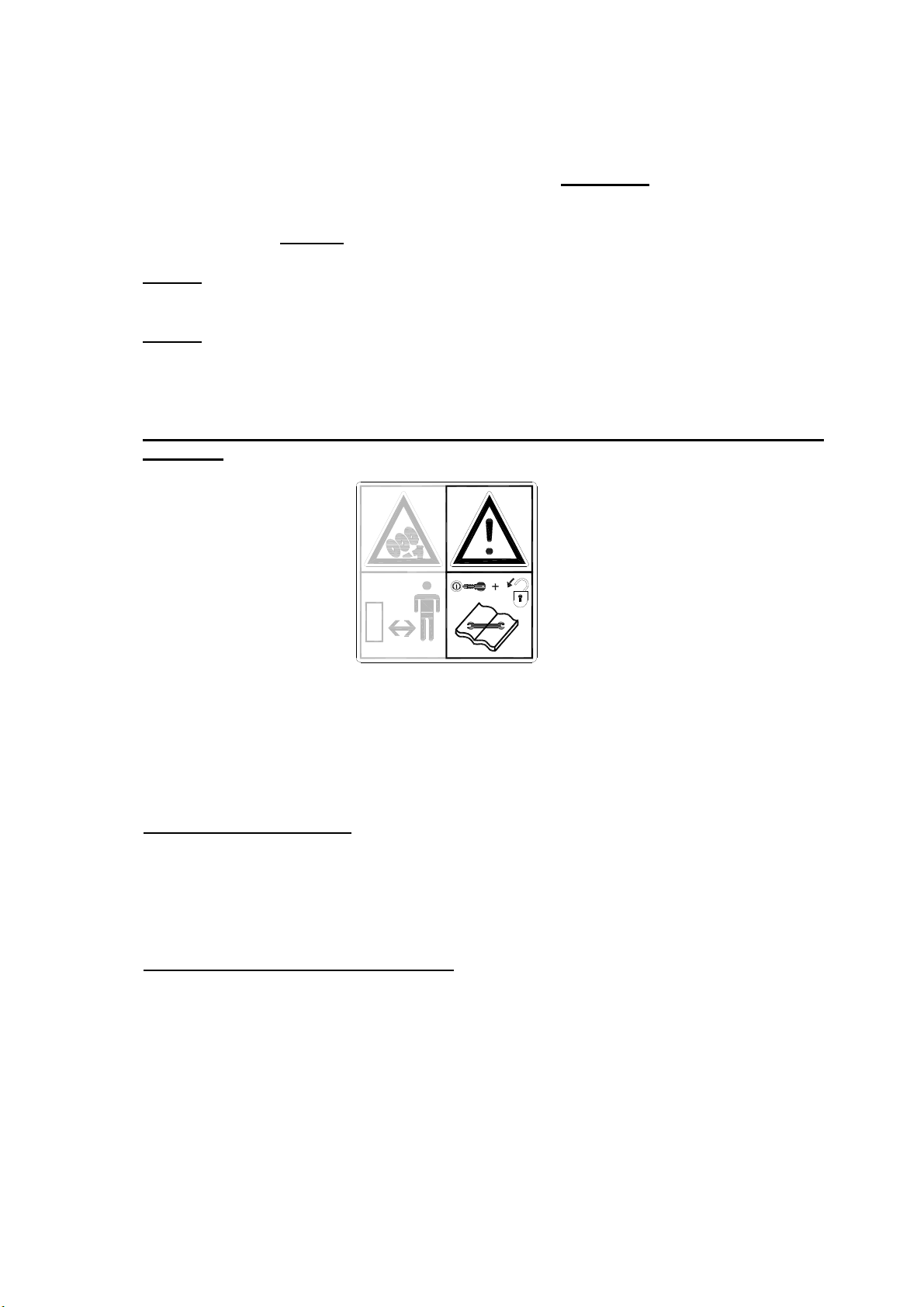

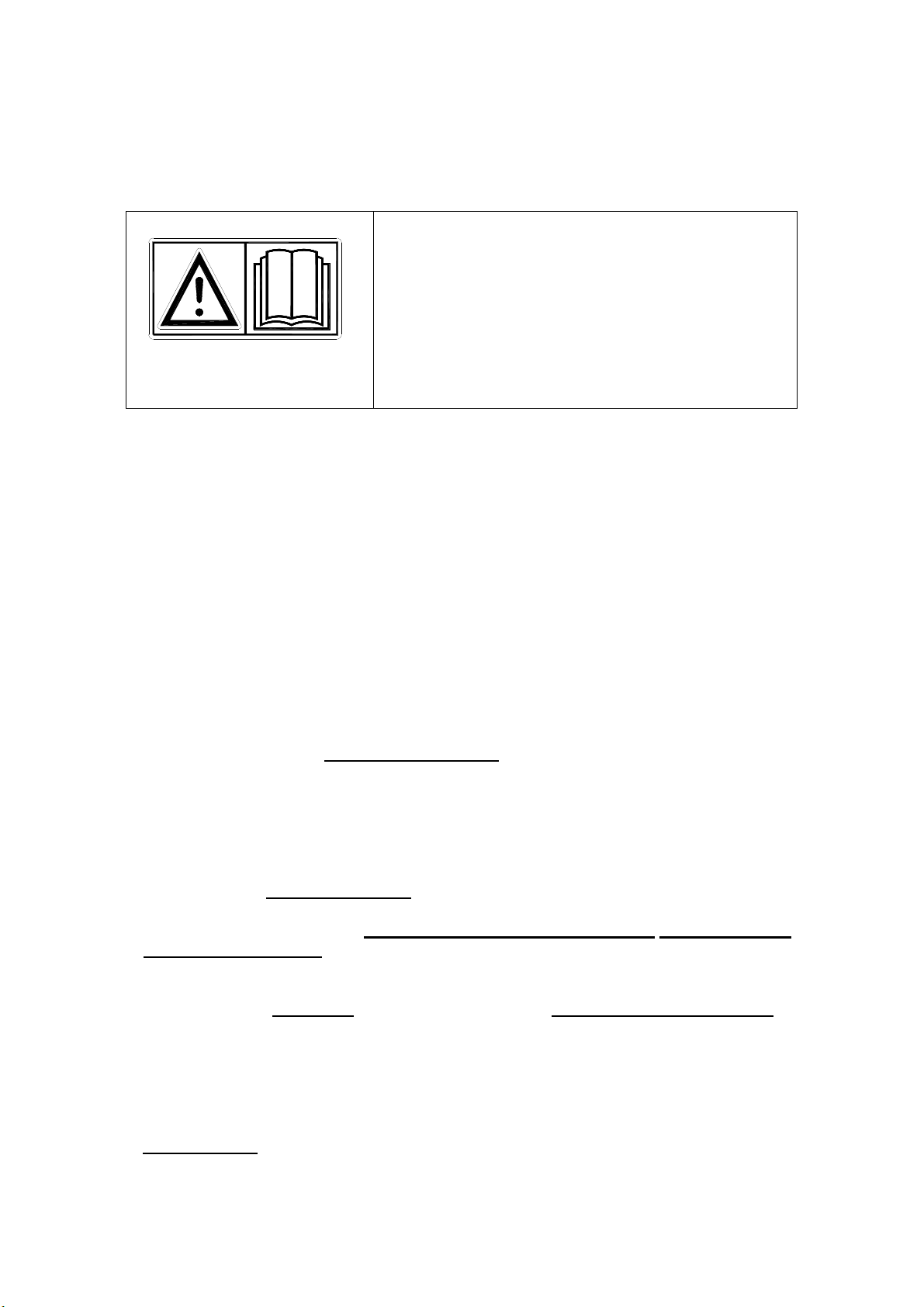

! SAFETY INSTRUCTIONS !
Fig. 1
The Turf Tidy is designed for safe use. This is
only possible if the safety instructions defined in
this manual are observed in full.
Read and understand (Fig. 1) the manual before
proceeding to use the Turf Tidy.
Failure to use the machine as described in the
manual can result in injury and/or damage to the
Turf Tidy.
(1) Use of the machine requires operation by a competent user who has proficiently adjusted
the machine to suit the surface for treatment.
The manufacturer accepts no liability whatsoever for incompetent use and any damage
arising from this; the user bears full responsibility for all risks arising from this.
The timely and correct execution of the user, maintenance and repair instructions
prescribed by the manufacturer also constitutes competent use.
Inspect the area for treatment prior to using the Turf Tidy.
Remove any free-standing obstacles and avoid irregularities.
(2) The Turf Tidy has been manufactured in accordance with the latest technological
knowledge and is safe for use.
There is a risk of injury for the user and third parties if the machine is inexpertly operated,
maintained or repaired. This must be avoided!
Always use the Turf Tidy in combination with the correct tractor, as defined in the technical
data.
(3) All persons appointed by the owner as authorised to operate, perform maintenance on or
repair the Turf Tidy must have read and fully understood the content of the operation
manual and the Safety guidelines section in particular.
The user is responsible for a safe Tractor/ Turf Tidy combination. The system as a
whole must be tested for sound, safety, risk and ease of use. User instructions must also
be drawn up.
(4) The user has an obligation to check the Turf Tidy for visible damage and defects before
use.
Changes to the Turf Tidy (including the operation) that are detrimental to safety must be
rectified immediately.
For safety-based reasons, adapting or adding to the Turf Tidy (with the exception of factory
approved changes) is not permitted as a rule.
Modifications to the Turf Tidy will render the current CE marking ineffective and the
person who performed the modifications is responsible for arranging new CE marking.
Check the Turf Tidy for loose bolts / nuts / parts prior to each use.
. .

4
Regularly check any hydraulic hoses and replace these if damaged or show signs of
ageing. The replacement hoses must meet the manufacturer’s technical requirements.
If present, the hydraulic system must be depressurised at all times before performing any
activities on it.
The turf Tidy may NEVER be used if the safety stickers are not present.
NEVER crawl underneath the Turf Tidy.
Tilt the turf Tidy if required.
NEVER get off the tractor while the engine is still running.
The Turf Tidy must be blocked to prevent it from lowering/driving off/sliding away when
performing maintenance, adjustment and repair activities.
Always switch off the tractor engine, remove the tractor ignition key and disconnect
PTO shaft when performing maintenance, adjustment and repair activities. (Fig.2)
Fig. 2
Only use original Turf Tidy parts for maintenance or repair activities
in relation to the safety of the machine and user.
Repairs to the Turf Tidy must be performed by authorised, technical staff.
Maintain a repairs record.
(5) In addition to the instructions in this user manual, the prevailing safety standards and
Occupational Health and Safety regulations must be observed.
The governing procedures of the traffic regulations apply to use on public highways.
Transport of persons is not permitted!
Do not use the Turf Tidy during hours of darkness, heavy rain/storm or on slopes with a
gradient greater than 20 degrees.
(6) All persons using the Turf Tidy must be familiar with all functions and operational elements
of the machine prior to commencing the activities.
Connect the Turf Tidy to the towing vehicle as stated in the instructions.
(Injury hazard!)
Ensure that you have a clear long distance view and clear sight of the immediate vicinity.

5

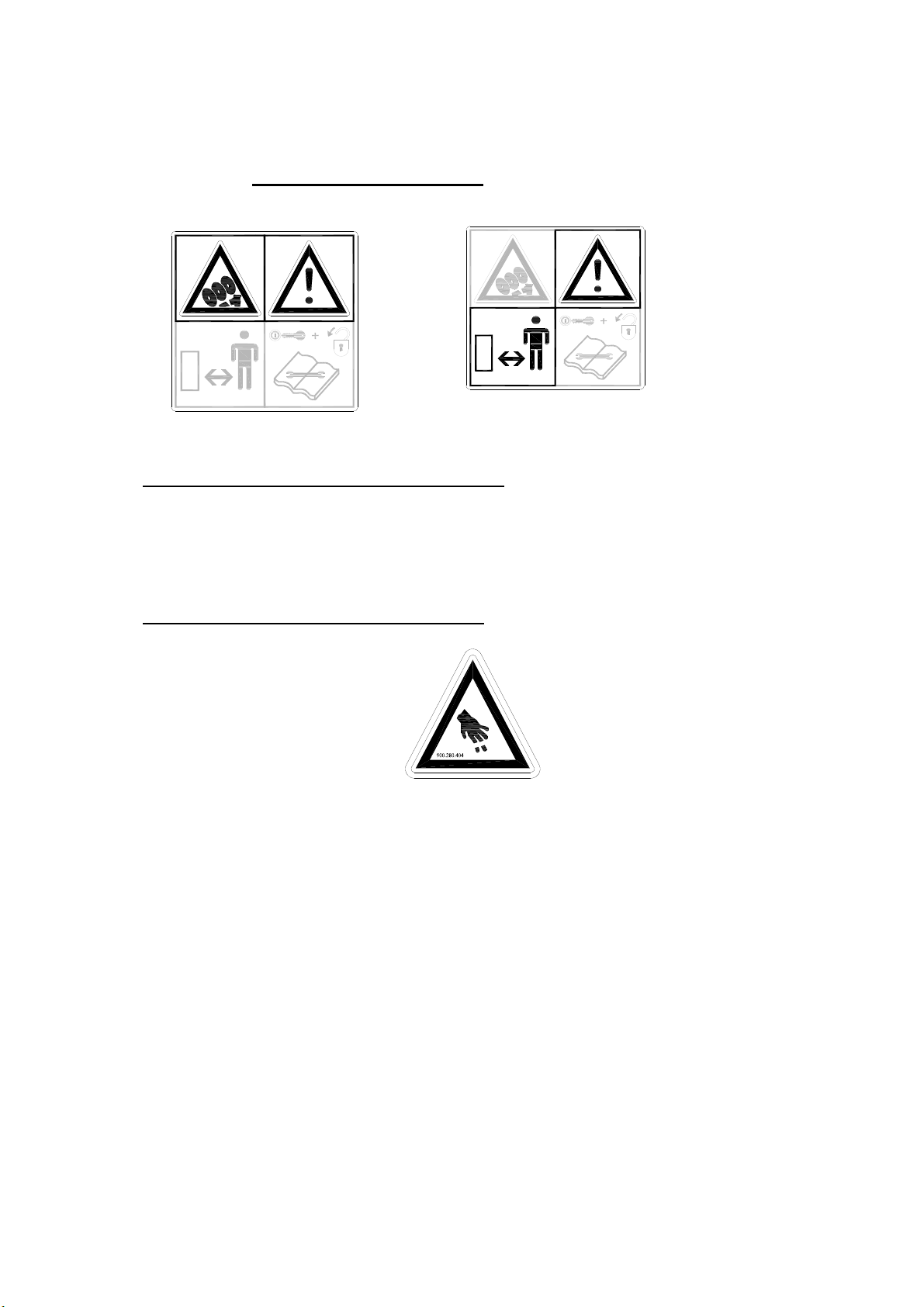

There are safety stickers (Fig. 6) on both sides of the Turf Tidy with an identical meaning.
These safety stickers must be clearly visible and legible at all times and replaced when
damaged.
Persons must STAY out of the hazard zone of the Turf Tidy when operational, as there is
a physical injury hazard due to moving parts (Fig. 3).
Fig. 3
Fig. 4
Maintain a safe distance of at least 4 metres! (Fig. 4)
Observe the permitted lifting capacity of the pulling vehicle.
Wear appropriate clothing. Wear steel toecap safety shoes, long trousers, secure long hair
and do not wear loose clothing.
Beware of jamming hazard for body parts! (Fig. 5)
Fig. 5

6
900.280.404
921.280.402
900.280.402
Fig. 6
(7) Locations of safety stickers. (Fig.6)
Used oil/grease constitutes an environmental hazard and must be disposed in accordance
with current regulations.

7
EU-DECLARATION
We,
Redexim BV
Utrechtseweg 127
3702 AC Zeist, the Netherlands
declare entirely under our own responsibility that the product:
TURF TIDY WITH MACHINE NUMBER AS STATED ON THE MACHINE AND IN THIS MANUAL,
to which this declaration refers, complies with stipulation of the 2006/42/EC machine directive and
is in conformity with the following standards: NEN-EN-ISO 12100 : 2010 NEN-EN-ISO 13857 :
2008
Zeist, 7/10/2014
A.C. Bos
Manager Operations & Logistics
Redexim Holland

8
TABLE OF CONTENTS
EU-DECLARATION ...................................................................................................................... 7
1.0TECNICAL DATA .............................................................................................................. 9
2.0GENERAL DISCRIPTION ................................................................................................. 9
3.0FIRST INSTALLATION TURF TIDY ................................................................................ 11
3.1TOW BAR INSTALLATION ............................................................................................. 12
4.0CONNECTING / DISCONNECTING TURF TIDY ........................................................... 12
5.0THE PTO SHAFT ............................................................................................................ 13
5.1LENGTH OF THE PTO SHAFT ...................................................................................... 13
5.2USING THE PTO SHAFT ................................................................................................ 13
6.0TRANSPORTING THE TURF TIDY ................................................................................ 13
7.0WORKING SPEED .......................................................................................................... 13
8.0USING THE TURF TIDY ................................................................................................. 14
9.0WORKING DEPTH ADJUSTMENT ................................................................................ 15
9.1WORKING DEPTH ADJUSTMENT USING THE FRONT ROLLER ............................... 15
9.2WORKING DEPTH ADJUSTMENT USING THE FRONT WHEELS .............................. 16
9.3 WEIGTH COMPENSATION…………………………………………………………………..17
10.0START / STOP PROCEDURE TURF TIDY .................................................................... 18
11.0EMPTYING THE COLLECTION TRAY ........................................................................... 19
12.0TROUBLE SHOOTING ................................................................................................... 19
13.0MAINTENANCE .............................................................................................................. 20
13.1POSITION OF LUBRICATING POINTS .......................................................................... 20
14.0TENSIONING V-BELTS TURF TIDY TILL SERIAL NUMBER C310212 ........................ 22
14.1TENSIONING V-BELTS TURF TIDY FROM SERIAL NUMBER C310212 ..................... 23
14.2CHANGING / REPLACING BLADES .............................................................................. 24
14.3REPLACING HARROW / MOWING ROTOR WITH SWEEPING ROTOR ..................... 27
15.0OPTIONAL EXTRAS : HARROWING BLADES .............................................................. 29
15.1OPTIONAL EXTRAS : FLAIL BLADES ........................................................................... 29
15.2OPTIONAL EXTRAS : BRUSHKIT .................................................................................. 29
15.3OPTIONAL EXTRAS : FRONT WHEELS ....................................................................... 30
15.4OPTIONAL EXTRAS : DOUBLE REAR WHEELS .......................................................... 31
15.5 OPTIONAL EXTRAS: PLATE PULLBAR……………………………………………………32

9
1. TECHNICAL DATA
Model 3000 2300
Operational width 1800mm (71”) 1400mm (55”)
Dimensions (LxWxH) 3604mm x 2223mm x
1807mm
141.8” x 87.5” x 71.3”
3604mm x 2223mm x
1407mm
141.8” x 87.5” x 55.4”
Weight 1528 Kg (3369lbs) 1358 Kg (2994lbs)
Collection tray capacity 3.0m3 (105 cu.ft) 2.3m3 (81 cu.ft)
Tilting height collection tray 2,170mm (85”) 2,170mm (85”)
Working speed
Sweeping @ 300 RPM PTO
Harrowing @ 540 RPM PTO
Mowing @ 540 RPM PTO
1-10 km/h (0.6-6 mph)
1-5 km/h (0.6-3 mph)
1-2 km/h (0.6-1.5 mph)
1-10 km/h (0.6-6 mph)
1-5 km/h (0.6-3 mph)
1-2 km/h (0.6-1.5 mph)
Operational depth (With sharp
blades) Harrowing: -30mm (1.2”)
Mowing: 10mm / 80mm
(0.4”/ 3.1”)
Harrowing: -30mm (1.2”)
Mowing: 10mm / 80mm
(0.4”/ 3.1”)
Distance between the blades
(Harrowing)
20mm / 40mm (0.8”/ 1.6”) 20mm / 40mm (0.8”/ 1.6”)
PTO shaft RPM Sweeping: Up to 300 RPM
Harrowing: Up to 540 RPM
Mowing: Up to 540 RPM
Sweeping: Up to 300 RPM
Harrowing: Up to 540 RPM
Mowing: Up to 540 RPM
Recommended tractor Sweeping: 25 HP
Harrowing: 45 HP
Mowing: 45 HP
Sweeping: 20 HP
Harrowing: 35 HP
Mowing: 35 HP
Hydraulic tractor connector 1x single acting valve
1x double acting valve
1x single acting valve
1x double acting valve
Tractor connector Towing ring and pin Towing ring and pin
Tyre pressure 0.8 – 1.8 bar (11.6 – 26 psi) 0.8 – 1.8 bar (11.6 – 26 psi)
Gearbox oil 1.7l (0.45 gallon) SAE 80W90 1.7l (0.45 gallon) SAE 80W90
Lubricating grease EP2 EP2
Standard parts
-Harrowing blade set 2mm
(0.08”) +
blades with integrated tips
(fitted)
-PTO shaft
-Tool case and manual
-Harrowing blade set 2mm
(0.08”) +
blades with integrated tips
(fitted)
-PTO shaft
-Tool case and manual
Optional extras -Harrowing blades 3mm
(0.11”)
-Flail blades.
-Brush kit
-Front wheel set for the head.
-2 extra rear wheels
-Platehitch
-Harrowing blades 3mm
(0.11”)
-Flail blades.
-Brush kit
-Front wheel set for the head.
-Platehitch
2. GENERAL DESCRIPTION
The Turf Tidy is a combination machine for harrowing/mowing and sweeping surfaces.

10

11
34
43
5
6
7
1
2
Fig. 6
3. FIRST INSTALLATION TURF TIDY
The machine is in the transport position on the pallet. To remove the pallet, follow the instructions
below: (see Fig.6)
!! NEVER CRAWL UNDERNEATH THE MACHINE !!
1. Remove all individually packaged parts from the pallet.
2. Fit the tow bar and the corresponding spindles 1 to the front of the Turf Tidy.
3. Fit the wheels 2 to the rear of the Turf Tidy.
4. Prevent the Turf Tidy from sliding away by connecting it to a tractor for example.
(See section 4.0 connecting to the tractor)
Use the correct tractor; see specifications.
Switch the tractor off and apply the parking brake.
5. Position a hydraulic jack 3 on both sides and lift the Turf Tidy slightly to release it from the
auxiliary frame 4 at the rear.
Ensure that the hydraulic jack can lift at least 2 x the weight of the machine.
(See section 1.0 technical data for the weight)
6. Remove auxiliary frame 4.
!! Never crawl underneath the machine !!
7. Rotate the spindles 6 slightly until the front of the Turf Tidy is lifted slightly.
8. Remove the nuts and bolts 5.
9. Lower the hydraulic jacks until the rear wheels 2 are on the ground.
10. Remove the pallet 7.

12
3.1 TOW BAR INSTALLATION
Fig. 7
The Turf Tidy is connected to the tractor using the tow bar
The tow bar can be used as both an upwards and downwards tow bar, subject to the position of
the connector on the tractor. (Fig. 7)
4. CONNECTING / DISCONNECTING TURF TIDY
Check procedure before proceeding to connect the Turf Tidy.
 Check the Turf Tidy for visual damage and repair this damage if the safe operation
of the machine is no longer guaranteed.
 Check that all nuts and bolts are properly secured.
 Check that all safety guards and all safety stickers are in place on the machine and
are not damaged.
The machine must NEVER be used without these.
The connection method is as follows: (Fig. 8)
1. Carefully reverse the tractor into a suitable position for connecting the tow bar to the tractor.
!! Ensure that that tractor is properly blocked and cannot move
independently !!
!! Switch the tractor engine off before getting off the tractor !!
2. Connect the Turf Tidy to the tractor by placing the pin in the connector of the tractor through
the tow bar 1 of the Turf Tidy and securing this.
3. Connect the hydraulic hoses 2 to the tractor.
The narrow hose is connected to the head and the wide hose to the collection tray.
4. Position the disconnecting rope 3 from the head to the cabin for safety reasons.
5. Connect the PTO shaft 4 between the Turf Tidy and the tractor. (See section 5.0 for the
correct length of the PTO shaft)
6. Retract the height adjustable leg.
7. Expand or retract the spindles 7 to adjust the upper side of the frame 6 of the Turf Tidy until
it is parallel with the surface.
Disconnecting takes place in reverse order.

13

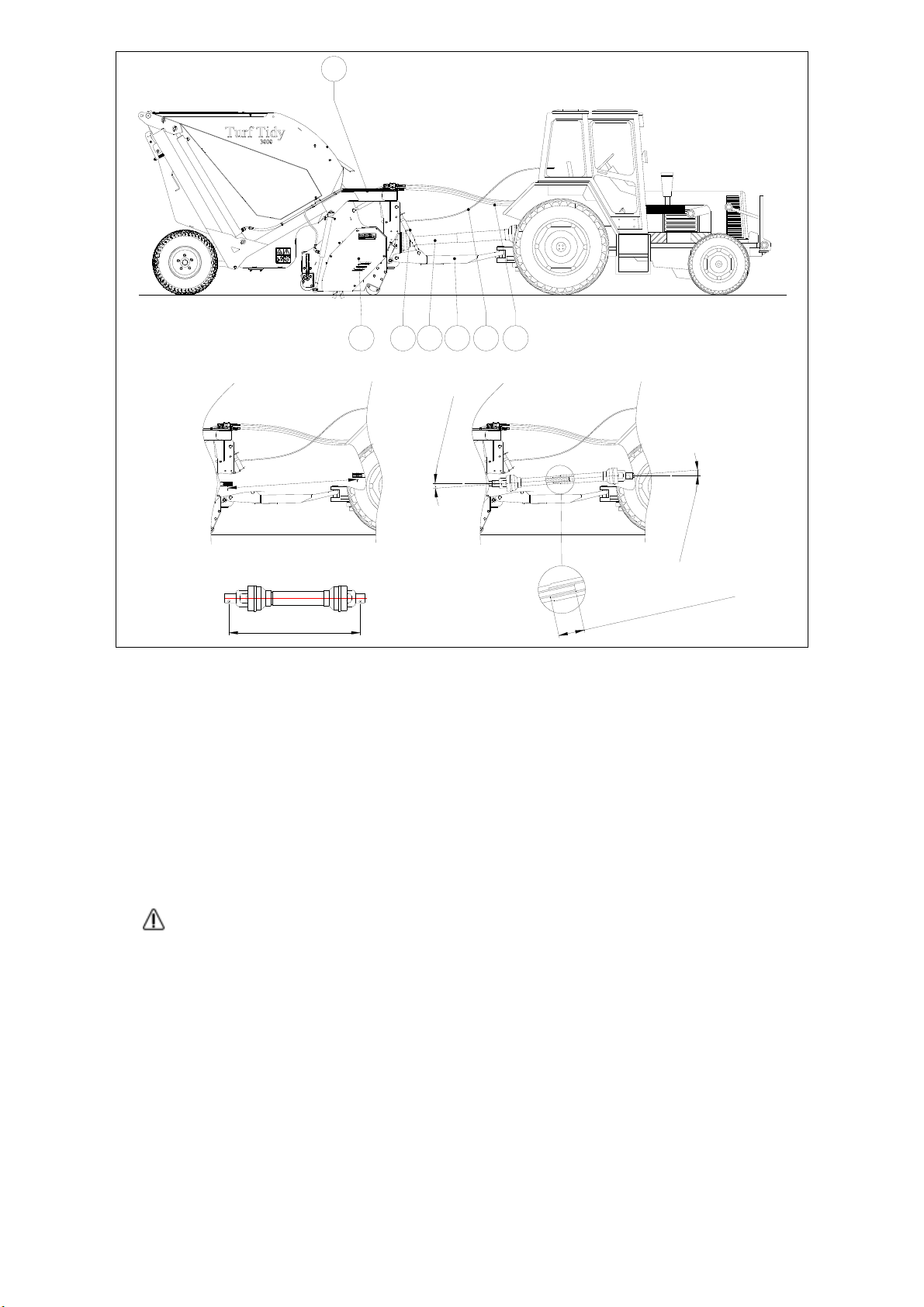

Fig.8
5. THE PTO SHAFT
The PTO shaft is a very important part. It provides the drive from the tractor and ensures, if
correctly maintained and installed, safe use of the machine. The PTO shaft has dedicated CE
certification. Read the PTO shaft manual, which can be found on the actual PTO shaft.
5.1 LENGTH OF THE PTO SHAFT
The length of the PTO shaft is very important. The drive on the tractor and/or Turf Tidy can
become damaged if this is too long. The PTO shaft can be damaged if the length of the tube
overlap exceeds 300 mm (12") at any given time.
The length changes when head 8 (see Fig.8) is lifted, when another tractor is
used or when turning sharp corners.
The procedure for correctly adjusting the length of the PTO shaft if newly purchased or if another
tractor is used is as follows: (see Fig.8)
1. Measure the distance between the PTO shaft connector on the tractor and the connector on
the machine, from groove to groove, when the machine is correctly angled on the ground and
is connected to the tractor and head 8 is in the most unfavourable position.
81
7 2
3
6
4
A
300mm (12") min.
B
Max.30°
Max.30°

14
2. Measure the length B of the PTO shaft when in the shortest position from locking pin to locking
bolt.
3. Split the PTO shaft into two parts and remove the safety guards from both ends.
4. Both the ends of the tubes and the safety guards must be shortened. (B-A) + 150 mm (3”).
5. Burr all parts, use a little grease and reassemble all parts.
6. Secure the other end of the PTO shaft to the tractor.
7. Check the tube overlap.
Never use the machine if the PTO shaft safety guard is damaged.
Replace this first!
5.2 USING THE PTO SHAFT
Correct use of the PTO shaft requires checks of the following items:
1. The angle of the centres of rotation may never exceed 30 degrees when operational.
2. The centres of rotation must always be aligned.
3. The minimum tube overlap is 300 mm.
4. Never use the machine if the PTO shaft safety guard is damaged.
5. See maintenance section for lubrication.
6. TRANSPORTING THE TURF TIDY
The user is responsible for transporting the Turf Tidy behind the tractor on public highways. Look
into national legislation for the regulations.
The maximum speed across open fields, with the machine elevated, is 15 km/hour (9.3 mph),
circumstances permitting; driving at higher speeds constitutes a potential hazard for the
driver/bystanders and may even cause damage to the machine. Make sure that during transport
the head of the machine is always locked in the transporting position.
7. WORKING SPEED
The maximum working speed for the Turf Tidy is 5 km/h (3.1 mph), however, the user will have to
determine the correct speed based on the surface to be treated in combination with the desired
working depth. This is directly related to the power output, the higher the output the lower the
forward speed.
The following may occur in the event of excessive power output transfer:
 The V-belts start slipping / burning, which can result in broken V-belts.
 The blades wear more rapidly.
 The brackets for the blades wear more rapidly.
The machine design is robust, therefore overloading is not easily noticed.
However, it is important that the power output requirements are assessed. Take the following into
consideration:
When harrowing:
 What is the working depth? The required power output increases with the depth.
 How hard is the surface? The required power output increases with the hardness.
 What is the working speed? The wear and tear and power output increases with the speed.

15
When sweeping:
 Weight and quantity of material for sweeping? The required power output increases with the
weight.
 What is the working speed? The wear and tear and power output increases with the speed.
When mowing:
 How long is the grass? The required power output increases with the length.
 What is the working speed? The wear and tear and power output increases with the speed.
The following applies in general: the working speed must be lowered as the load increases. See
the specifications in section 1.0 for guidelines.
8. USING THE TURF TIDY
The following checks must be made before proceeding to use the Turf Tidy at a site:
1. Are there any freestanding objects on the field? Remove these first.
2. Are there slopes? This machine is only suitable for use on slopes with a maximum
gradient of 20 degrees.
Always work from the top to the bottom.
3. Are there are any airborne objects in the area, such as balls, which will distract the user
from the task at hand? If so, the Turf Tidy may NOT be used.
4. Is there a slipping or sagging hazard? If yes, postpone the activities until the conditions
improve.
5. If the surface is wet, postpone the activities until conditions improve.
6. Do not make any sharp turns as this may cause damage to the surface.
7. Only tilt the collection tray when on a solid, level surface.
8. Never drive the Turf Tidy when the collection tray is not lowered.
9. During transport: Ensure that the head is facing upwards and is blocked to prevent
sagging.
10. During the use of the Turf Tidy in the working field can be chosen to put the locking pin
in the lower hole. In this situation the head will not directly be locked when lifted.

16
9. WORKING DEPTH ADJUSTMENT
The machine is fitted with a front roller as standard, but can also be supplied with front wheels
(prod. no. 241.180.008). These enable turning corners with the machine when flail mowing and/or
sweeping.
Therefore, there are 2 ways to adjust the working depth of the machine.
1. By adjusting the front roller.
2. By adjusting the optional front wheels.
Fig. 9
9.1 ADJUSTING WORKING DEPTH USING THE FRONT ROLLER
Proceed as follows to adjust the working depth: (See Fig.6)
!! NEVER CRAWL UNDERNEATH THE MACHINE !!
Switch the tractor off and apply the parking brake.
Ensure that the machine is properly blocked and cannot move independently.
If wind vanes (See fig. 9 item 4) have been fitted, never increase the depth to
ensure that the wind vanes remain above the surface. !! If this is not observed,
the surface and the machine can be seriously damaged!!
!! Adjust the working depth carefully; if the setting is too deep the machine
and the surface can be seriously damaged !!
1. Rotate the spindles 1 on both sides to the desired working depth B and align on both sides.
Use the indicator stickers on the spindles for this.
2. Loosen the bolts 2 on both sides of the machine and adjust the rear roller using nuts 3 until
the distance above the ground A is 10mm (0.4") and align on both sides. Use the
indicator stickers on the spindles for this.
This prevents the grass layer being removed by the head.
3. Secure the nuts 3 and bolts 2 properly.
4. Run a test strip to verify that the correct working depth has been achieved.
4
2
3
A
B
1

17
9.2 ADJUSTING WORKING DEPTH USING THE FRONT WHEELS
Proceed as follows to adjust the working depth: (See Fig.10)
5
3
4
2
1
Fig. 10
1. Fully lift the head by operating the hydraulic output of the tractor and ensure that it is
properly positioned in the transport securing device 1 and is fully blocked to prevent
sagging.
!! NEVER CRAWL UNDERNEATH THE MACHINE !!
Switch the tractor off and apply the parking brake.
Ensure that the machine is properly blocked and cannot move independently.
If wind vanes (See fig. 9 item 4) have been fitted, never increase the depth to
ensure that the wind vanes remain above the surface.
!! If this is not observed, the surface and the machine can be seriously
damaged!!
!! Adjust the working depth carefully; if the setting is too deep the machine
and the surface can be seriously damaged !!
2. Remove clip 2 and remove the wheels 3 by sliding them downwards.
3. Adjust to the required height by using various combinations of spacing rings.
4. Slide the wheels 3 back into the centre pin 5 and secure using the clip 2.
5. (See Fig.9) Loosen the bolts 2 on both sides of the machine and adjust the rear roller using
nuts 3 until the distance above the ground A is 10mm (0.4") and align on both sides.
Use the indicator stickers on the spindles for this.
This prevents the grass layer being removed by the head.
6. (See Fig.9) Secure the nuts 3 and bolts 2 properly.
7. Run a test strip to verify that the correct working depth has been achieved.

18
9.3 Weight compensation
If there are small radius bends to be made with the machine, while working, the weight of the head
must be reduced. If not, the head could be pushed to the side and can cause damage to the head
and the lifting mechanism.
Adjust the spring load 2 (Fig. 10b) by inserting bolt 1 through the correct chain shackle. Fine tuning
of the weight compensation can be done by inserting the pin in another hole on the frame (always
adjust both springs the same amount). When the spring load increases (sharper) turns are
possible.
The spring load 2 can be changed only when the aerator / mower is raised sufficiently so that the
spring is not under full tension.

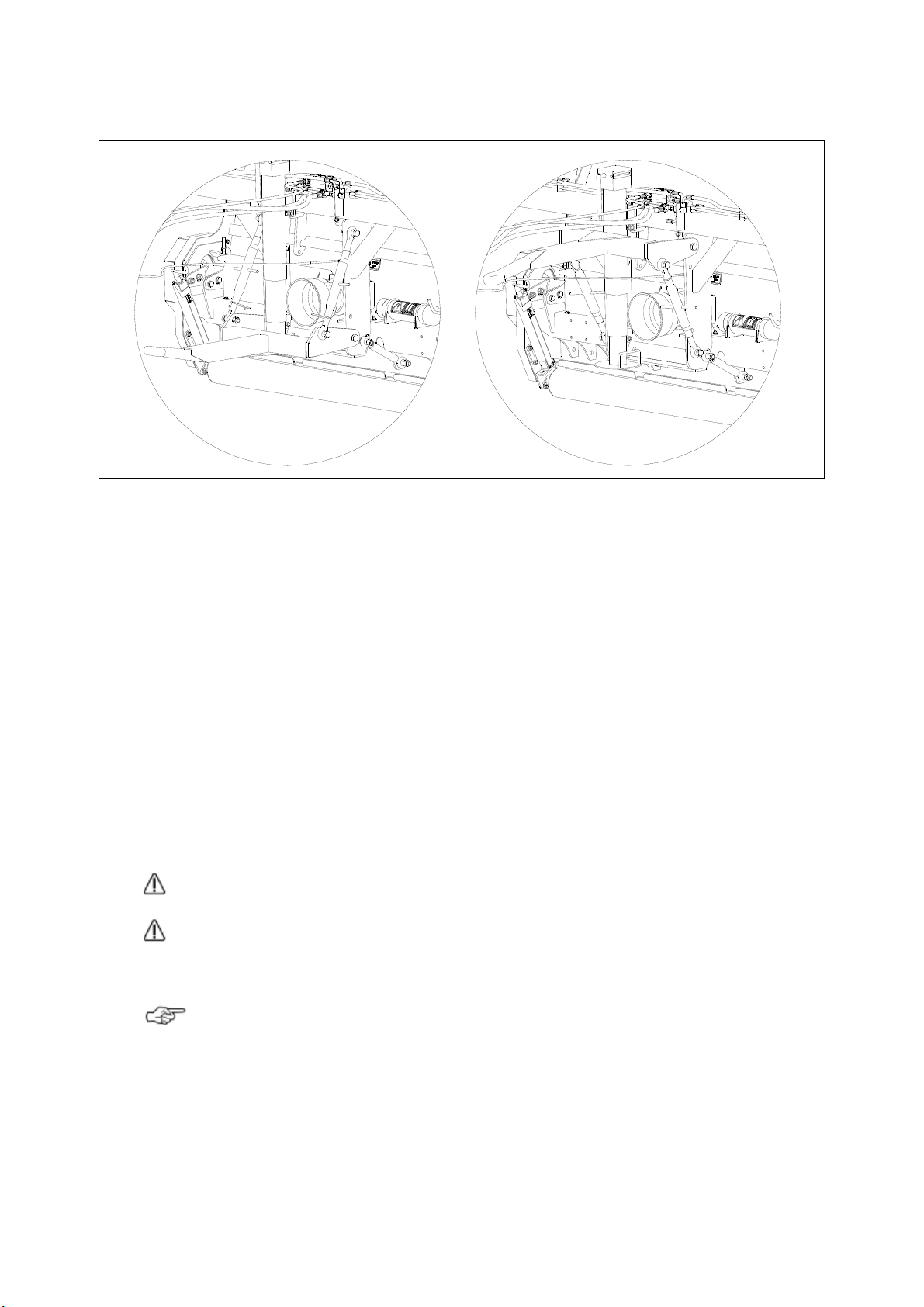

Fig 10b.

19
10. START/STOP PROCEDURE TURF TIDY
The start procedure is VERY important. The surface to be treated /machine can be seriously
damaged if this procedure is not executed as described below.
1
2
3

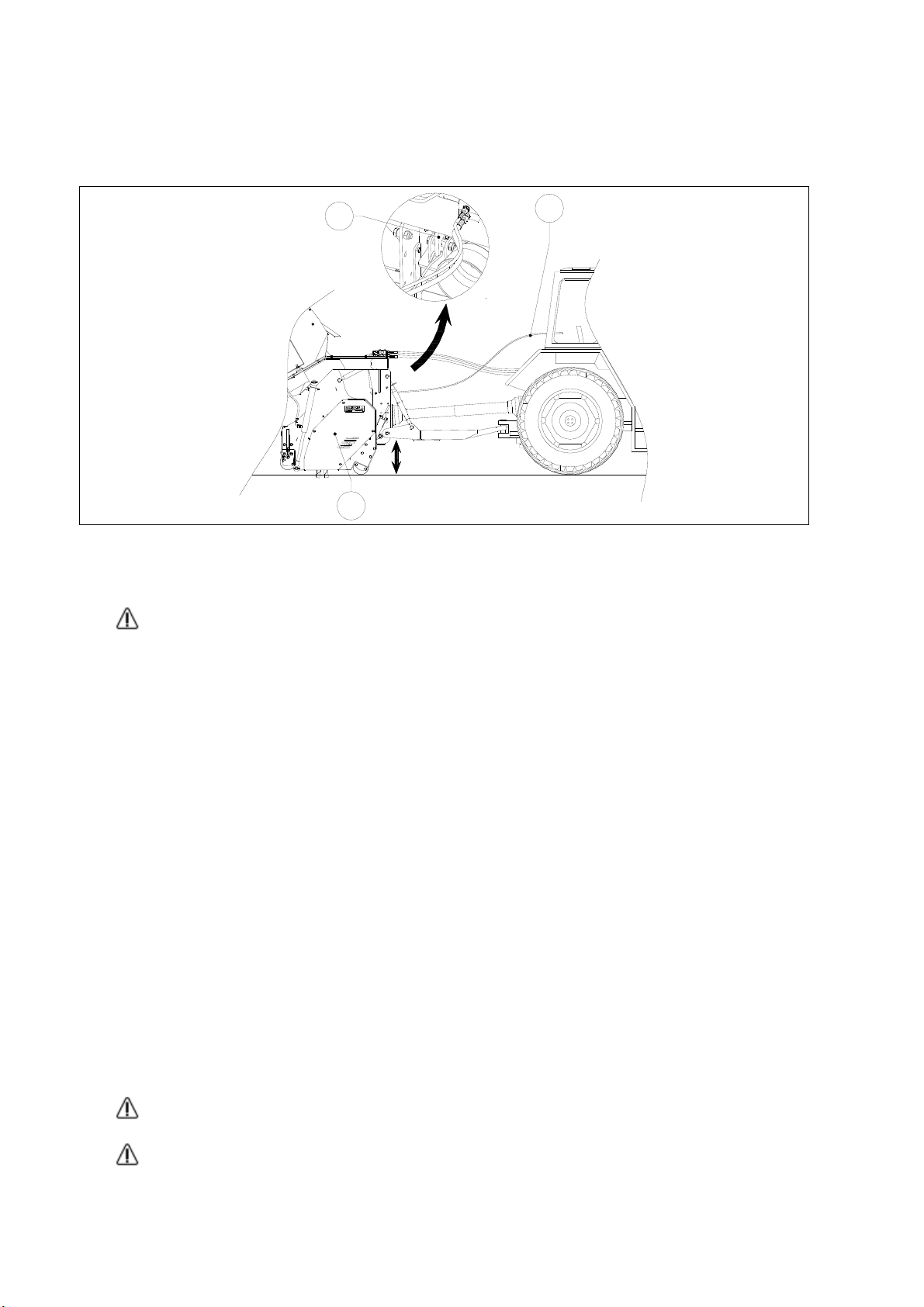

Fig. 11
The start procedure is as follows: : (See Fig.11)
1. Thoroughly check the Turf Tidy for loose parts and check that all parts are working properly.
!! If loose parts are discovered or incorrectly functioning parts, the problem must be
rectified before using the Turf Tidy !!
2. Drive to the site to be treated.
3. Activate the hydraulic output of the tractor to lift head 1, pull the cord 2 to release the transport
securing device 3.
4. Lower head 1 until the blades are just above the ground.
5. If required, adjust the working depth of the machine as described in section 9.0.
6. Put the tractor into the correct gear.
7. Adjust the tractor engine to approximately 1200 RPM and activate the PTO shaft.
8. Gently lower head 1 until the front roller or wheels of the head touch the ground.
9. Drive forwards and increase the RPM up to the RPM of the PTO shaft reaches the required
level. (Max 540 rpm when harrowing and mowing and max. 300 rpm when sweeping.)
10. For the first strip:
Check whether the correct working depth has been achieved after a few metres, adjust the
working depth as described in section 9.0. where required
Stopping takes place as follows:
1. Lower the engine RPM to approximately 1200 RPM.
2. Lift head 1 slightly by operating the hydraulic output of the tractor.
3. Switch off the PTO shaft as soon as the blades are no longer touching the ground and allow
the rotor to stop turning.
4. Fully lift head 1 and ensure that it falls into the transport securing device.
5. Proceed to the following site and repeat procedure.
!! Drive in straight lines where possible, in relation to potential damage to the
surface and/or machine !!
!!T he head must be lifted during transport and in the transport securing device !!

20
11. EMPTYING THE COLLECTION TRAY
1. Drive to the location where the collection tray is emptied.
!! Only tilt the collection tray when on a solid, level surface !!
!! Ensure that there are no persons in the hazard zone of the machine !!
2. Activate the hydraulic outlet of the tractor to raise the collection tray and to tilt to empty it.
3. Lower the collection tray again when empty by operating the hydraulic outlet of the tractor.
!! Do not drive off until the collection tray has been fully lowered!!
12. TROUBLESHOOTING
Problem Possible cause Solution
Machine vibrates - Missing blades.
- Rotor out of balance
- PTO shaft damaged.
- Surface too hard.
- Rotor bearings defective.
- PTO shaft RPM too high.
- Working speed too high.
- Check and replace.
- Check for damage and/or
material wrapped around the
rotor
- Check and repair or replace.
- Postpone work until
conditions improve.
- Check and replace.
- Adjust RPM.
- Adjust working speed
Blade rotor does not rotate. - Machine depth setting is
too deep.
- V-belts slipping
- Decrease depth setting on
machine
- Adjust V-belts.
Blades / securing clips break. - Overload.
- Obstacles in soil.
- Check ground conditions and
adjust the working depth or
postpone until conditions
improve.
- Remove obstacles.
Lower PTO shaft RPM.
Lower working speed.
Crunching sound when
machine is operational
- Bearings are worn. - Replace the defective
bearings.
Not enough material
removed.
- Working depth setting is
not deep enough.
- Excessive driving speed.
- Blades worn.
- V-belts slipping.
- Increase depth setting on
machine
- Decrease driving speed
- Replace blades.
- Adjust V-belts or replace
where necessary.
