USER MANUAL
Please read and keep these instrucons
TRI WALKER
RG4402
JAN 2020

redgumbrand.com.au
REDGUM Brand owns the copyright to the TRI WALKER user manual.
Any informaon contained in this user manual shall not be photocopied, reproduced or
translated into any other languages without the prior wrien consent of REDGUM Brand.
REDGUM Brand strives to provide the highest quality products possible that are subject
to change without noce.
© Copyright REDGUM Brand 2020

redgumbrand.com.au
CONTENTS
1. INTRODUCTION - INTENDED USE
2. PRODUCT OVERVIEW - FEATURES / SPECIFICATIONS
3. ASSEMBLY - UNPACK and INSPECT SUPPLIED PARTS
4. ASSEMBLY - UNFOLD MAIN FRAME / REAR WHEEL INSTALLATION
5. ASSEMBLY - INSTALL HANDLES
6. ASSEMBLY - INSTALL BAG
7. OPERATION - USING THE TRI WALKER (BRAKES / FOLDING THE TRI WALKER)
8. USAGE GUIDELINES - DO’s + DON’Ts
9. PRODUCT CARE - INSPECTIONS /SERVICING / CLEANING
10. WARRANTY
11. REDGUM BRAND PRODUCT RANGE
12. NOTES

redgumbrand.com.au
INTRODUCTION
Thank you for purchasing this quality REDGUM Brand product.
If you have any issues or quesons about the Tri Walker please contact your supplier or
REDGUM Brand direct:
T: [phone]
F: [phone]
E: [e-mail]
A: 1 Business Way, Malaga Western Australia 6090
INTENDED USE
This product has limitaons and should be used in accordance to these guidelines.
Failure to follow these guidelines may result in damage to the product and injury to the
user. It is the responsibility of the user to ensure the suitability of this product for its
intended use. The user should consult their appropriate healthcare
professional if unsure of the correct product usage for their unique circumstances.
Only use your Tri Walker for the purpose for which it intended, which is as a walking aid
that can adjust to suit the users individual requirements. The Tri Walker is designed to
give support and aid to those who cannot, or who lack the condence to, walk
without some level of guidance.
This Tri Walker is intended for indoor and outdoor use.
IMPORTANT NOTE
This equipment MUST be assembled
by a competent person.
Maximum User Weight: 115kg
Exceeding the weight limit could
cause damage to the product and
could put the user at risk.
1.

redgumbrand.com.au
PRODUCT OVERVIEW
FEATURES
Super Lightweight
Epoxy powder coated aluminium frame
Modern contemporary design
Large wheels for excellent mobility
Removable zip lock storage bag with carry handle
Height adjustable handles
Locking hand brakes
Easy to engage / release brake levers
Ergonomic rubber hand grips
Swivel front wheel
Easy to assemble - no tools required
Folds for storage and transport
SPECIFICATIONS
(All dimensions shown are nominal)
Overall Length: 580mm
Overall Width: 675mm
Overall Height: 830mm (at lowest seng)
Handle Heights: 830 - 930mm (oor to top of handle)
Seng 1: 830mm
Seng 2: 855mm
Seng 3: 880mm
Seng 4: 905mm
Seng 5: 930mm
Wheel size: Ø190mm
Product Weight: 5kg
Maximum User Weight: 115kg
Please contact REDGUM Brand if you would like any further informaon
on your Tri Walker.
2.

redgumbrand.com.au
ASSEMBLY - UNPACK and INSPECT SUPPLIED PARTS
Ensure you have been supplied with the following parts:
PARTS:
IMPORTANT NOTE
Check the product for any visible damage. If you see any damage or suspect a fault,
DO NOT USE YOUR PRODUCT and contact your supplier for support.
3.

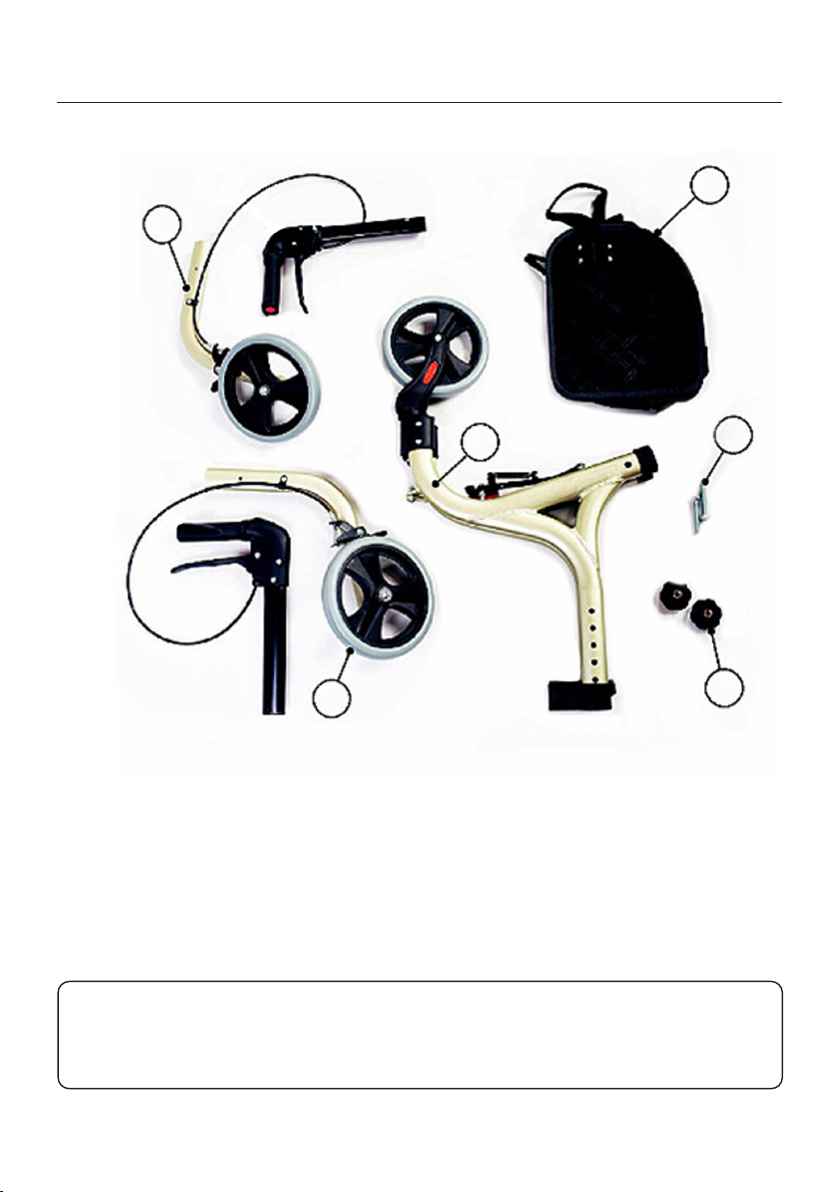

1 - Main Frame (including front wheel) x 1
2 - RHS Handle / RHS Rear Wheel Frame x 1
3 - LHS Handle / LHS Rear Wheel Frame x 1
4 - Bag x 1
5 - Handwheel x 2
6 - Handwheel Bolts x 2
1
35
2
4
6

redgumbrand.com.au
4.
ASSEMBLY - UNFOLD MAIN FRAME / REAR WHEEL INSTALLATION
UNFOLD MAIN FRAME:

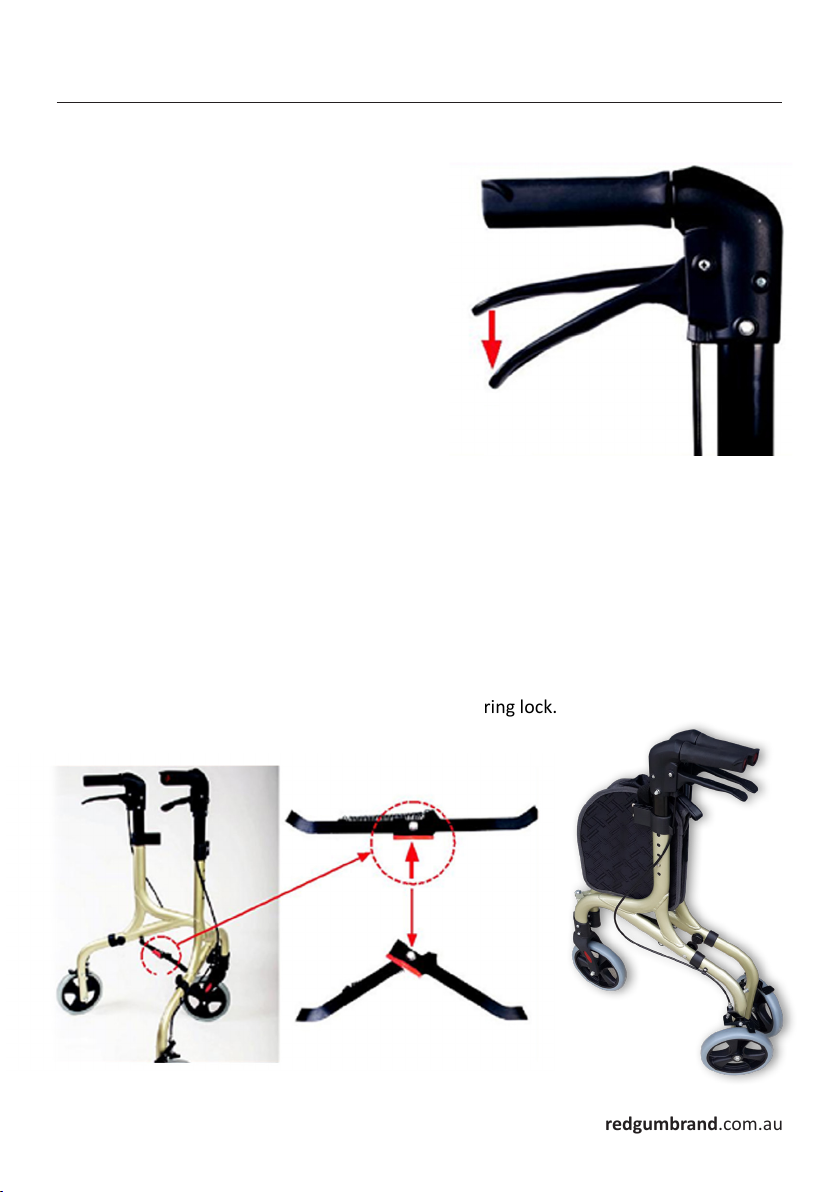

Gently pull the main frame apart unl the spring locks the cross bar open.
Crossbar
REAR WHEEL INSTALLATION:
With the wheel facing toward the outside of the walker - Insert the wheel frame tube
into the main frame tube.
Align the holes and insert the handwheel bolt.
Orientate the hex head of the bolt with the hex hole
on the main frame tube.
Screw on the handwheel and hand ghten suciently.
Repeat process for other wheel frame.
Crossbar

redgumbrand.com.au
ASSEMBLY - INSTALL HANDLES

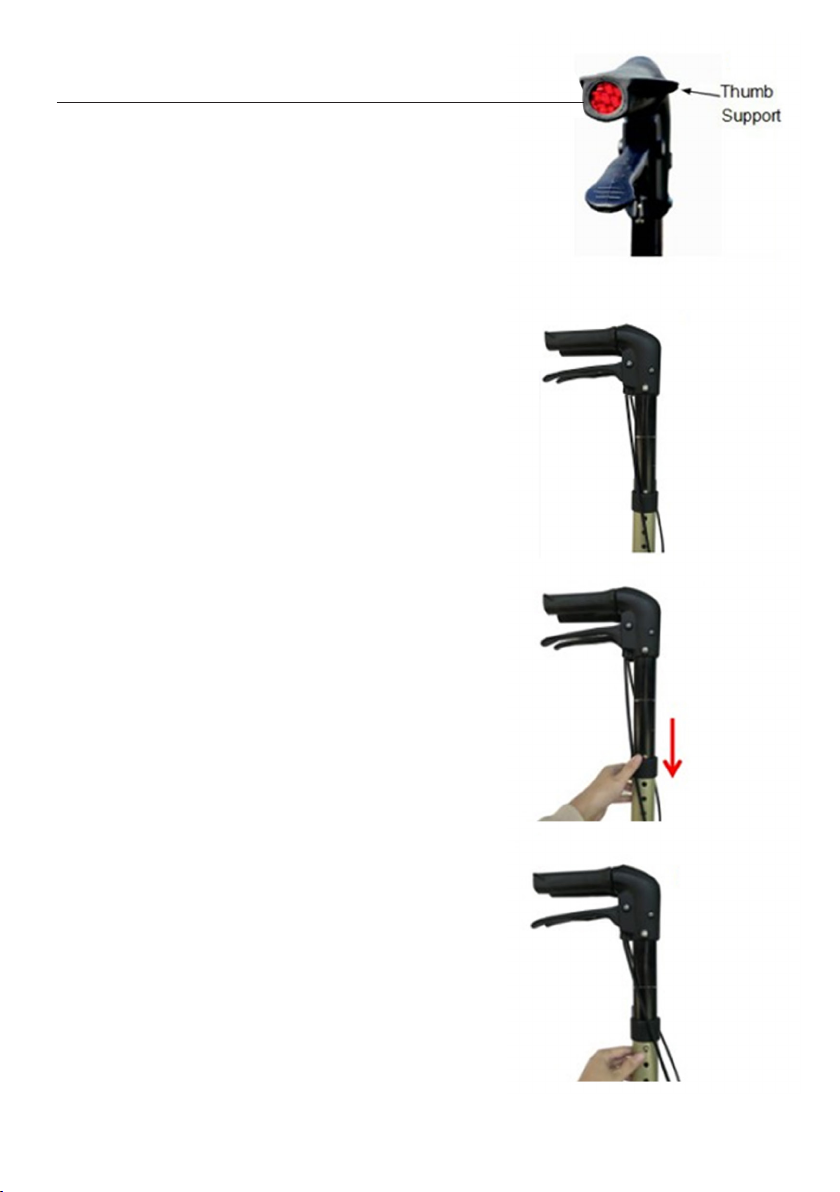

With the thumb support on the handle facing toward
the outside of the walker...
Insert the handle tube into the main frame tube.
Allow the handle to go down unl the press buon
contacts the main frame.
Push and hold the press buon down whilst pushing
the handle down.
The press buon will click into posion in the rst hole.
The handle posion should line up with your wrists,
in a standing posion, with your arms relaxed by your side.
Adjust the height of the handle by pushing down the
press buon and moving the handle unl it is at the
correct height seng.
The range of the handle adjustment
is in 25mm increments, from 830mm to 930mm.
Important Note:
Make sure that the head of the press buon
has fully engaged into the hole.
Repeat process for other handle.
5.

redgumbrand.com.au
ASSEMBLY - INSTALL BAG

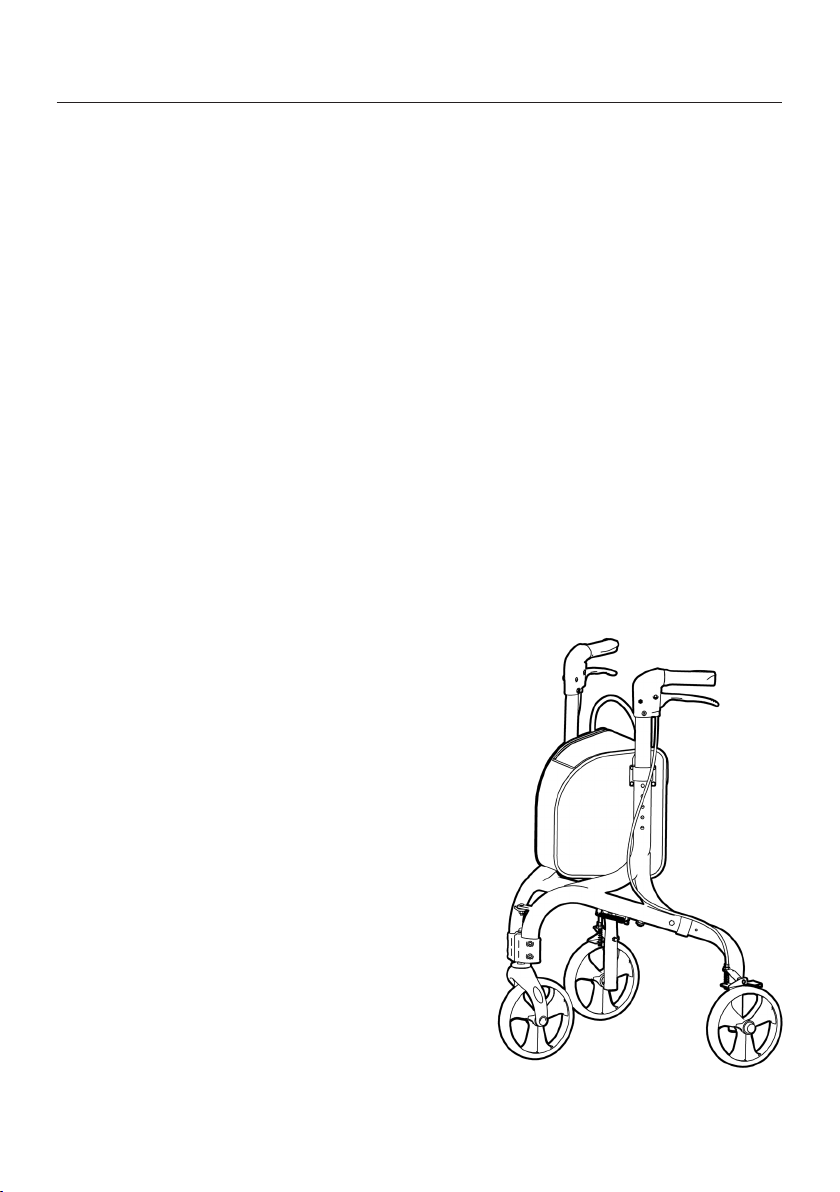

The Tri Walker comes standard with a carry bag.
Orientate the bag so the wider part of the bag is facing toward the rear of the walker.
(Pockets on rear of bag to be facing the user)
Slot one of the ‘T-brackets’ on the side of the bag into the slot at the top of the main frame.
Slot the other ‘T-bracket’ onto the main frame.
Finally secure the bag with the safety strap.
6.
The Tri Walker is now ready to use.

redgumbrand.com.au
OPERATION - USING THE TRI WALKER
Using the Brakes:
Squeeze the brake lever up to apply the brake.
Let go of the brake lever to release the brake.
Note: The brakes are operated independently.
Using the Park Brakes:
Push the brake lever down
unl it locks into posion.
Pull the brake lever up to
unlock the park brakes.
An audible click will be heard
as the brake is released.

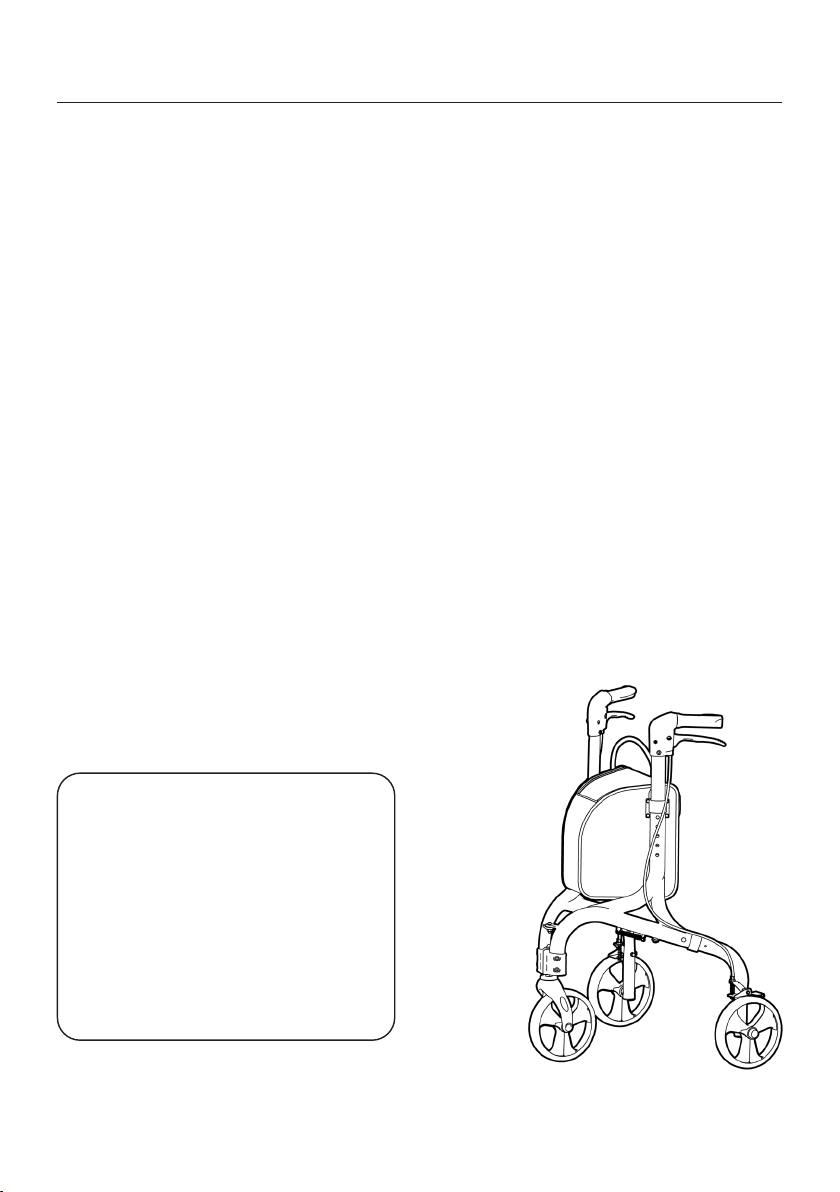

Important Note:
Please check the brakes to see if they are working properly
prior to rst use. Failure to do so can result in injury.
Folding the Tri Walker:
Release the bag security strap, then remove the bag by liing it up with the handle.
The ‘T-brackets’ should slide free from the bag slots on both sides.
Note: If the bag is empty it does not need to be removed prior to folding.
Gently, push the cross-bar forwards to release the spring lock.
Push the handles together to fold the Tri Walker.
7.
Park Brake engaged

redgumbrand.com.au
8.

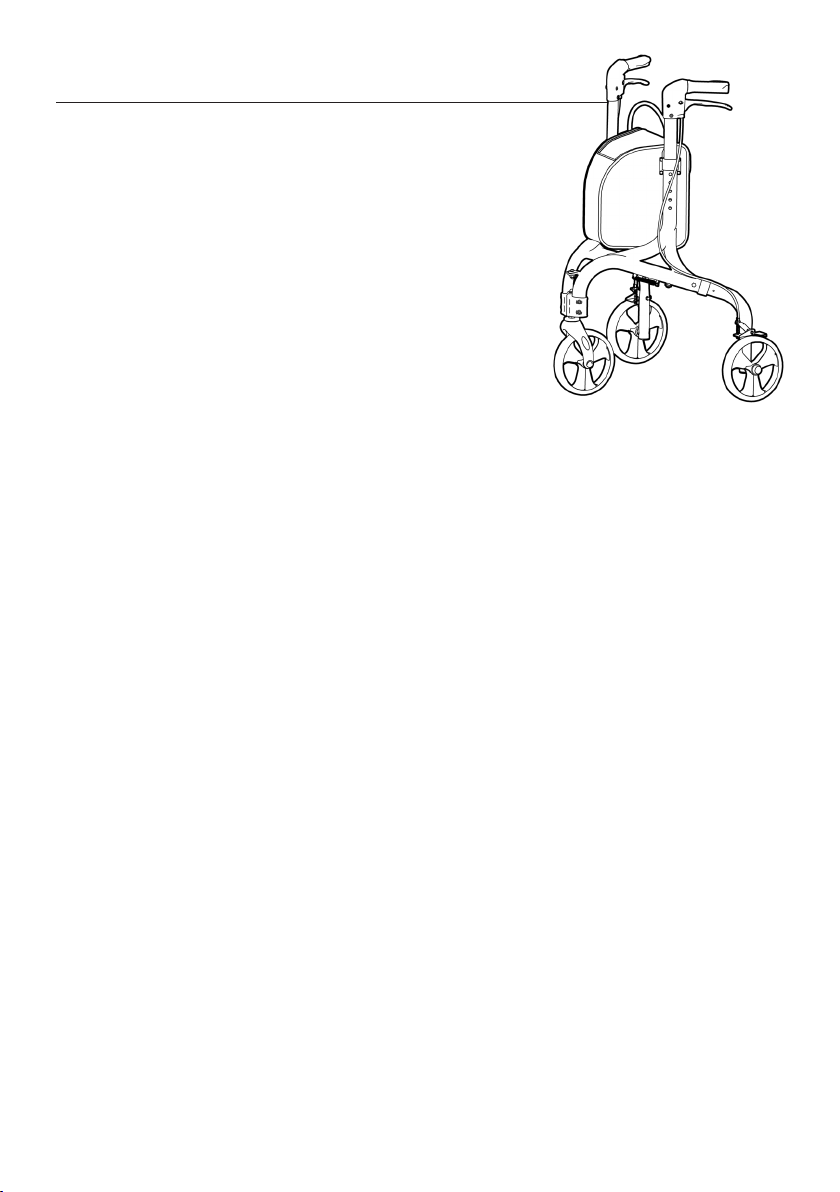

USAGE GUIDELINES - DO’s + DON’TS

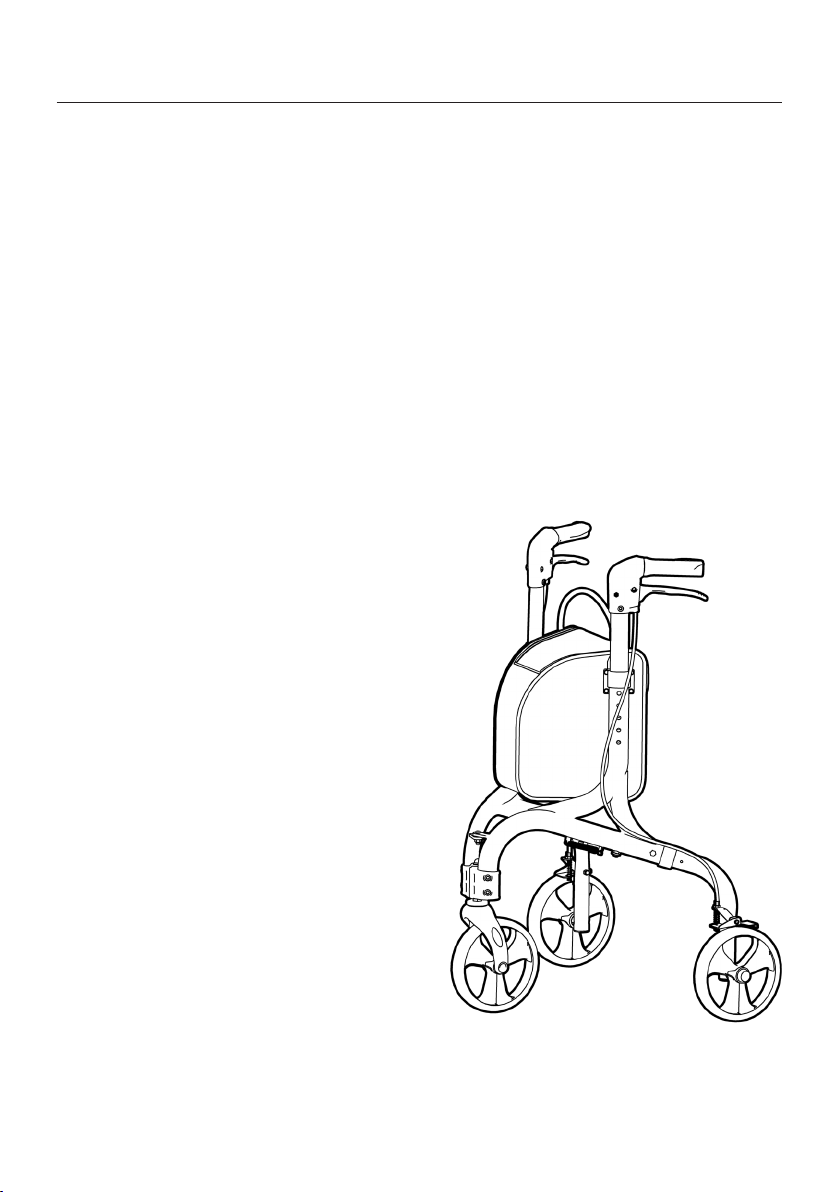

Please follow these guidelines to get the
opmal benet from your Tri Walker.
Failure to follow these guidelines may result
in damage to the Tri Walker and put the user at risk.
115kg Maximum User Weight
The maximum load weight for the Tri Walker bag
must not be greater than 5kg.
Do not hang items from the handles as this will aect the stability of the Tri Walker.
Make sure that the Tri Walker is locked in the open posion before use.
(Refer to page 4 for more informaon)
Ensure ALL three wheels remain on ground at all mes when the Tri Walker is being
used as a walking aid. Do not lean too far to the side or backward causing any
wheels to leave the ground.
Only use Tri walker on level / even ground (should not be used on rough terrain).
Do not use on stairs or escalators and take care on steep hills.
Only use as a walking aid in the forward direcon.
Do not make adjustments to the Tri Walker unless it is staonary.

redgumbrand.com.au

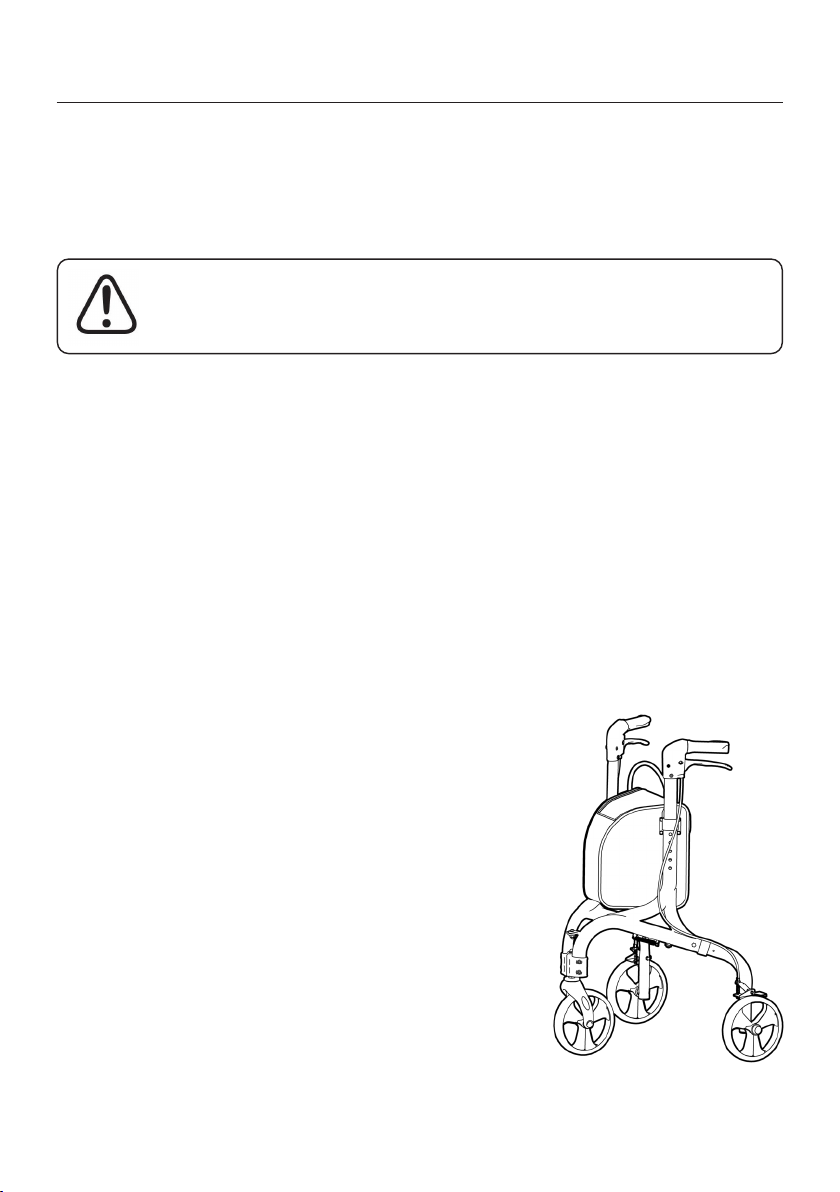

PRODUCT CARE - INSPECTIONS / SERVICING / CLEANING
INSPECTIONS
We suggest that you check your Tri Walker visually periodically for signs of damage
or wear prior to use.
Please check all aspects of the Tri Walker to ensure that no components are loose or worn.
Withdraw the Tri Walker immediately if you suspect damage or any
other fault. If in any doubt, please do not issue or use, but immediately
contact your supplier for service support.
SERVICING
REDGUM Brand recommend that you should have your Tri Walker serviced every 12 months
or less if used by, or issued to, various users. Servicing should be carried out by an approved
service technician or by REDGUM Brand directly.
Do not t any parts or accessories to your Tri Walker that are manufactured by another
company. To do so will void your warranty and may seriously compromise your safety.
CLEANING
Clean your Tri Walker using a non-abrasive cleaner
or mild detergent with a so cloth.
Abrasive cleaners e.g. AJAX and / or
abrasive cleaning pads could seriously damage
the Tri Walker beyond repair and should not be used.
9.

redgumbrand.com.au
WARRANTY
Your REDGUM Brand RG4402 - TRI WALKER is covered by a 12 Month Warranty
from the date of purchase.
If the product has any manufacturing faults during this period contact the place of
purchase for assessment. Failures as a result of ACCIDENTAL DAMAGE, MISUSE,
MODIFICATION OR WEAR AND TEAR ARE NOT COVERED BY THIS WARRANTY.
Our goods come with guarantees that cannot be excluded under the Australian
Consumer Law. You are entled to a replacement part for a major failure and for
compensaon for any other reasonably foreseeable loss or damage. You are entled
to have the goods repaired or replaced if the goods fail to be of acceptable quality
and failure does not amount to major failure.
If you have any issues or quesons
about your Tri Walker
please contact your supplier
or REDGUM Brand direct on:
T: [phone]
F: [phone]
E: [e-mail]
A: 1 Business Way, Malaga
Western Australia 6090
Please keep this User Manual
in a safe place for future reference.
10.

redgumbrand.com.au
REDGUM Brand product range
REDGUM Brand oer a comprehensive range of products including:
Seat Walkers
Side Folding Seat Walkers
Walking Frames
Wheelchairs
Walking Scks + Quads
Crutches
Reachers
Shower / Bathroom products
Toilet products
Cushions: Air / Foam
Electric Li Chairs
Electric Beds
Portable / Fixed Aluminium Ramps
Exercisers
Personal Alarms
Large range of Spare Parts for all REDGUM brand products
Please contact REDGUM Brand for further informaon:
T: [phone]
F: [phone]
E: [e-mail]
A: 1 Business Way, Malaga Western Australia 6090
W: www.redgumbrand.com.au
11.

redgumbrand.com.au
NOTES
12.
