Carefully read all instructions before operating the device and save them for future reference.
By carefully following these instructions you can considerably prolong the service life of your
appliance.
The safety measures and instructions contained in this manual do not cover all possible situ-
ations that may arise during the operation of the appliance. When operating the device the
user should be guided by common sense, be cautious and attentive.
IMPORTANT SAFEGUARDS
•
Manufacturer is not liable for injuries caused by failure to comply with
the safety requirements and operation rules of the appliance.
•
This appliance is intended to be used for nonindustrial use in household
and similar spheres of application. Industrial application or any other
misuse will be regarded as violation of proper service conditions. Should
this happen, manufacturer is not responsible for possible consequences.
•
Before plugging in the appliance ensure that the circuit voltage matches
operating voltage of the appliance (see technical specications or
manufacturer’s plate on the appliance).
•
Use an extension cord designed for power consumption of the appliance
as the parameter mismatch may result in a short circuit or re outbreak.
•
The appliance must be grounded.Connect the appliance only to a properly
installed power point. Failure to do so may result in the risk of electrical
shock. Use only grounded extension cords.
•
Unplug the appliance after use, while cleaning or moving. Remove the
power cord with dry hands holding it by the plug, not cord.
•
Do not place the cord in doorframes or by heat sources. Do not twist or
bend the power cord,ensure it is not in contact with sharp objects,corners
and edges of furniture.
Accidental damage to the power cord may cause electric shock or
breakdown not covered by the terms of warranty. Promptly contact
the service centre to have the damaged power cord replaced. Do
not place the appliance on soft, unstable surface.
•
Never place the device on soft surfaces to keep ventilation slots clear of
any obstruction.
•
Do not operate the appliance outdoors, to prevent water or any foreign
object or an insect from getting into the device. Doing so may result in a
serious damage of the appliance.
•
Do not use a disassembled juicer. The lid should be rmly secured with
locks. Otherwise the juicer will not switch on.
•
Do not put too much food into the feeding tube. Do not apply excessive
force.
ATTENTION! Do not touch the rotating parts of the device! Wait for
the rotation to stop completely. Do not allow foreign objects into
the hole for ingredients. Be careful when using.
Do not push food
into the feeding tube port with ngers or foreign objects as this can
cause injuries or breakdown. Use pushers that come with the appliance.
•
Before cleaning the appliance ensure that it is unplugged and has cooled
down,rotation has stopped.Keep the device clean.While cleaning you are
advised to follow the instructions of the “Cleaning and maintenance”
section of this user manual.
DO NOT immerse the appliance in water or keep in running water!
•
This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved.Children shall not play with the appliance.Keep the appliance and
its cord out of reach of children aged less than 8 years. Cleaning and user
maintenance shall not be made by children without supervision.
•
Keep packaging (lm, foam plastic and other) out of reach of children as
they may choke on them.
RJ-914S
5
GBR
UKR
KAZ
•
Do not repair the appliance or make changes to its design. All service and
repair works should be performed in an authorized service centre.
Unprofessional repairs may result in breakdown, injury or damage to
property.
CAUTION! Do not use the appliance in case any breakdown has been noticed.
Specication
Model....................................................................................................................................................RJ-914S
Type............................................................................................................................................................screw
Rated power.......................................................................................................................................... 200 W
Max. power............................................................................................................................................. 400 W
Voltage.........................................................................................................................220-240 V, 50/60 Hz
Protection against electric shock.....................................................................................................class I
Motor type..................................................................................................................................................... DC
Housing material ................................................................................................................................. plastic
Screen type lter....................................................................................................................stainless steel
Screw rotation speed................................................................................................................55 rpm/min
Noise level...............................................................................................................................................64 dB
Feeding tube diameter.............................................................................................................35 × 45 mm
Separator bowl volume......................................................................................................................... 0.3 L
Pulp cup volume ..................................................................................................................................... 0.6 L
Juice cup volume..................................................................................................................................... 0.6 L
Overheating/overload protection .............................................................................................. available
Protection mechanism to prevent switching the device if incorrectly assembled...... available
Reverse function ............................................................................................................................. available
Cleaning brush................................................................................................................................. available
Suction cups .................................................................................................................................... available
Dimensions................................................................................................................155 × 145 × 390 mm
Net weight..............................................................................................................................................3.3 kg
Power cord length .................................................................................................................................1.2 m
Delivery package
Slow juicer .................................................................................................................................................1 шт.
Juice cup.....................................................................................................................................................1 шт.
Pulp collecting cup.....................................................................................................................................1 шт.
Cleaning brush..........................................................................................................................................1 шт.
Recipe book...............................................................................................................................................1 шт.
User manual ..............................................................................................................................................1 шт.
Service book..............................................................................................................................................1 шт.
The manufacturer has the right to make changes in the design, conguration, as well as in the
specication of the product in the course of improving its products without further notice of
these changes. The specication allows an error of ±10%.

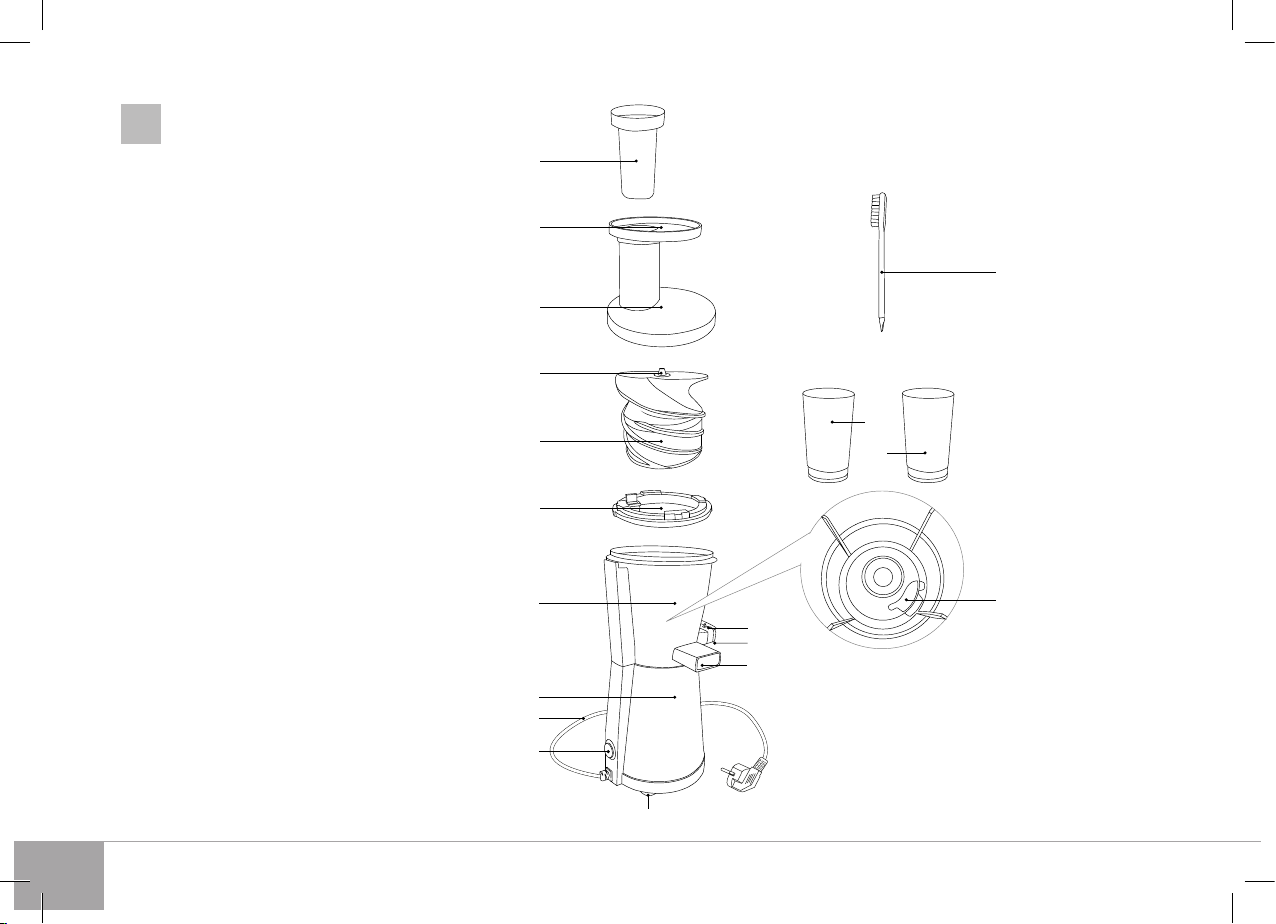

Parts list (scheme A1, p. 2)
1. Appliance housing
2. Mode switch
3. Pusher
4. Loading tray with hole for placing ingredients inside
5. Lid
6. Screw with screen type lter
7. Screw base
8. Cap
9. Bowl
10. Juice outlet
11. Pulp outlet
12. Plug
13. Juice cup
14. Pulp collecting cup
15. Sealing ring
16. Cleaning brush
17. Power cord
18. Suction cups
I. PRIOR TO THE FIRST USE
Carefully remove the unit and its accessories from the packaging. Dispose of all packaging
materials and promotional stickers.
Keep all warning labels, warning stickers (if any), and the serial number identication label
located on the housing.
After transportation or storage at low temperature allow the appliance to stay at room temperature
for at least 2 hours before use.
Uncoil the power cord.Wipe the housing with a damp cloth.Wash the parts with soapy water,
let them dry at room temperature and natural ventilation before plugging-in.
I I. OPERATION
See the order of assembling the appliance on A2 and scheme (p. 3).
Before use ensure that the plug is installed in pulp outlet!
6
Juice preparation
ATTENTION! The device must not be operated continuously for more than 20 minutes. A break
before the reprocessing should not be less than 5 minutes.
1. Wash fruits and vegetables before juicing, cut the largest ones that do not t into the
food supply сhamber. When squeezing juice from plums, peaches and other fruits with
large seeds, remove the seeds rst to avoid damage to the separator. Remove any thick
or tough skins from fruits (kiwifruit, mango, etc.) before juicing.
2. Place the appliance on at solid horizontal surface, the device has suction cups for
stability. Make sure the device is assembled correctly (see g.
A2
p.3) and disconnected
from the power supply, ensure the switch is set to “0”, and the food supply chamber is
empty.
3. Place the juice and pulp cups under the outlets of the device.
4. Refer to scheme A3 (р. 3) to use the appliance.
ATTENTION! Load products into the juicer only while the motor is spinning.
Do not push food into the feeding tube port with ngers or foreign objects as this can cause
injuries or breakdown. Do not allow foreign objects into the food supply сhamber.
Do not press too hard on the pusher. This may affect the quality of the juice and lead to the
separator not working or damage components of the device.
To improve the productivity and prolong service life it is recommended while using the
juicer, switch the appliance occasionally to clean and wash the lter. We recommend that
you do it after you have processed 1.5–2 kg fruit or vegetables. You might need to clean
and wash the lter more often while processing berries (grapes, currants, gooseberries).
Pressing juice from these products my require more frequent cleaning of the juicer and
separator.
Soft varieties of apples and pears are not intended to produce juice. When pressed, they
produce a large quantity of waste which may clog the separator. If disruption occurs while
the juicer is running, then pulp should be cleaned from the working chamber more often.
Reverse function
Use the reverse function if liquid accumulates inside the cutting unit or the juicer unit and
output product’s solid mass prevents it from owing.
Before using the reverse function, turn the switch to “0” and wait for the motor to stop
completely. After this, turn the switch to “II”. The screw will turn backwards moving the foods
towards the feed chute port. After 10–15 seconds, let the switch go and it will return to “0”.
Turn the switch to “I” to make the device continue working.
DO NOT change the machine from press to reverse mode without waiting for the motor to stop.
This may cause the device to not work correctly or break down.
Protection systems
•
The device is equipped with protection against switching on in case of incorrect assembly.
If the separator bowl or device lid is not installed or installed incorrectly, then the device
will not switch on.
•
The device is equipped with a system to protect the motor from overheating. If the
temperature is too high, the device will switch off automatically. In this case, the juicer
must be switched off by turning the speed switch to “0” and disconnecting the device
from the power supply. The motor will have cooled down after 20–30 minutes and you
may continue using the device,but with shorter periods of continuous use and increasing
the intervals between use.
• The device is equipped with a system to protect the motor from blockages. If the motor
is blocked, the power automatically switches off. In this case, the juicer must be switched
off byturning the speed switch to“0” and disconnecting the device from the power supply
and clean the blades.After this you may continue use.
•
The device is equipped with a system to protect the motor from the reverse function
being activated incorrectly or accidentally. If the reverse function is switched on before
the motor has completely stopped, the power will switch off automatically. In this case,
the juicer must be switched off by turning the speed switch to “0” and disconnecting the
device from the power supply. After a few seconds the device can be plugged in and
switched on to continue work.
Manufacturer’s warning!
To improve the productivity and prolong service life it is recommended:
• To ensure that the separator bowl isn’t lled above the MAX mark;
• to cut rm products, as carrots, beets, radish into 1.5 cm pieces;
• To gradually put the precut vegetables, fruit or berries into the feed chute and slightly
press;
• Not to press the push bar too much to avoid quality degradation of juice and the auger
rotation stopping;
• To remove stones from fruit and berries to avoid auger and lter breakage;
• To preliminarily defrost food.
Recommended methods for slicing fruit and vegetables
Product type Slicing type Slicing method
Apples wedges Cut the apples into 4–5 wedges and remove seeds and core
Pears wedges Cut the pears into 4 wedges and remove seeds and core
Carrots slices Peel the carrots and cut into slices
Beet wedges Peel the beet and cut into 4–5 cm wedges
Radish wedges Peel the radish and cut into 5 cm wedges
Pineapple wedges Peel the pineapple and cut into 4–5 cm wedges
RJ-914S
7
GBR
UKR
KAZ
WARNING! This devices is NOT INTENDED for getting juice from beans, nuts, stones from
vegetable/fruit and frozen products!
III. CLEANING AND MAINTENANCE
Before you start cleaning the appliance, make sure that it is unplugged and has completely
cooled down.Clean the device after each use.
Wipe the housing of the appliance with a damp cloth,wash the detachable parts with soapy
water after use.
DO NOT immerse the appliance and power cord in water or wash under running water!
DO NOT use a sponge or tissue with hard or abrasive surface or abrasive pastes. Do not use
any chemically aggressive substances or any other agents that are not recommended for cleaning
items that contact food.
When cleaning the separator bowls, remove the plug to clean the juice outlet.
Be careful when cleaning the silicone parts of the device. If they are lost of deformed it may
lead to malfunction.
Use the brush included with the kit to clean the mesh lter. If necessary, place the blades in
hot soapy water for 10 minutes. Dry all the parts before putting them back into the device.
Storage and transportation
Before repeated operation or storage completely dry all parts of the appliance. Store the
assembled appliance in a dry,ventilated place away from heating appliances and direct sunlight.
During transportation and storage, do not expose the device to mechanical stress, that may
lead to damage of the device and/or violation of the package integrity.
Keep the device package away from water and other liquids.
I V. BEFORE CONTACTING THE SERVICE CENTER
Problem Possible cause Solution
The appliance does not turn on
Appliance is not plugged in
Connect the appliance to a properly
working electrical socket
Electrical socket is not powered
Separator bowl incorrectly installed on
the motor unit
Check the way you have assembled the
appliance
Lid is not closed properly
The motor stopped during operation
Overload/overheating protection
tripped Follow the instructions in the “Protection
systems” section
Protection against accidental or
incorrect activation of the reverse
function has been activated
Problem Possible cause Solution
Pulp gets stuck on the lter or gets
through with a lot of moist
The lter was not cleaned after
previous use Wash the lter, use the cleaning brush
Pulp in the juice. Juice is leaking
from the separator bowl
Plug not in the juice nozzle Put the plug in as shown in image A2 on
p. 3
Soft varieties of apples and pears are
not intended to produce juice. When
pressed, they produce a large quantity
of waste which may clog the separator.
Juicer interrupted
Do not use soft varieties of apples or pears.
Clean pulp from the device more often
Juice gets out under too much
pressure or leaks out of the lid
Amount of juice exceeds the outlet
transfer capacity
Do not place too many pieces into the
feeding tube,do not use excessive force to
move the pusher
An off-odour appeared during
operation
Appliance is new, the smell is coming
from protective cover The smell will disappear after few uses
In case you didn’t manage to eliminate the defects, please, refer to the authorized service centre.
Environmentally friendly disposal (WEEE)
The packaging, user manual and the device itself shall be taken to the applicable
collection point for the recycling of electrical and electronic equipment.Do not throw
away the electronic waste to help protect the environment.
Old appliances must not be disposed with other household waste but must be collected
separately. Municipal disposal of recyclable wastes is free of charge. The owners of old
appliances are required to bring it to a waste facility centre. With this little extra effort, you
can help to ensure that valuable raw materials are recycled and pollutants are treated as
appropriate.
This appliance is labelled in accordance with European Directive 2012/19/EU — concerning
used electrical and electronic appliances (waste electrical and electronic equipment WEEE).
The guideline determines the framework for the return and recycling of used appliances as
applicable throughout the EU.
Manufacturer: “Power Point Inc Limited” №1202 Hai Yun Ge (В1) Lin Hai Shan Zhuang
Xiameilin Futian Shenzhen China 518049 Under license of REDMOND®
Importer (EU): SIA “SPILVA TRADING” Address: Jelgava, Meiju cels 43 - 62, LV-3007 Reg. Nr.
43603078598.
Importer Cyprus (CY): ASBIS Kypros Limited; 26, Spyrou Kyprianou Str, 4040, Germa-
sogeia, Limassol, Cyprus. Tel: +357 25 257 350; Fax: +357 25 322 432, e-mail: info@
asbis.com.cy; www.asbis.com.cy
www.redmond.company
www.multivarka.pro
www.store.redmond.company
www.smartredmond.com
Made in China
RJ-914S-GBR-UM
Table of contents
Other Redmond Juicer manuals
