Reebok Trainer Rx 1.5 Bike User manual

CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Serial Number Decal
(under frame)
Model No. RBEX11911.1
Serial No.
Write the serial number in the
space above for reference.
USER'S MANUAL
www.reebokfitness.com
QUESTIONS?
If you have questions, or if parts are
damaged or missing, DO NOT
CONTACT THE STORE; please
contact Customer Care.
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
CALL TOLL-FREE:
1-877-994-4999
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.reebokservice.com

2
WARNING DECAL PLACEMENT
TABLE OF CONTENTS
WARNINGDECALPLACEMENT ..............................................................2
IMPORTANTPRECAUTIONS ................................................................3
BEFOREYOUBEGIN ......................................................................4
ASSEMBLY ...............................................................................5
HOWTOUSETHEEXERCISEBI E .........................................................12
FCCINFORMATION.......................................................................17
MAINTENANCEANDTROUBLESHOOTING ...................................................18
EXERCISEGUIDELINES ...................................................................20
PARTLIST ..............................................................................22
EXPLODEDDRAWING ....................................................................23
ORDERINGREPLACEMENTPARTS ..................................................BackCover
LIMITEDWARRANTY ..............................................................BackCover
This drawing shows the location(s) of the
warning decal(s). If a decal is missing or
illegible, see the front cover of this
manual and request a free replacement
decal. Apply the decal in the location
shown. Note: The decal(s) may not be
shown at actual size.
REEBO and the Vector Logo are registered trademarks and service marks of Reebok.
This product is manufactured and distributed under license from Reebok International.

3
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your exercise bike before using your exercise bike.
ICON assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
2. Use the exercise bike only as described in
this manual.
3. It is the responsibility of the owner to ensure
that all users of the exercise bike are ade-
quately informed of all precautions.
4. The exercise bike is intended for home use
only. Do not use the exercise bike in a com-
mercial, rental, or institutional setting.
5. Keep the exercise bike indoors, away from
moisture and dust. Do not put the exercise
bike in a garage or covered patio, or near
water.
6. Place the exercise bike on a level surface
with at least 2 ft. (0.6 m) of clearance around
the exercise bike. To protect the floor or
carpet from damage, place a mat under the
exercise bike.
7. Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
8. Keep children under age 12 and pets away
from the exercise bike at all times.
9. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the exercise bike. Always wear
athletic shoes for foot protection.
10. The exercise bike should not be used by
persons weighing more than 250 lbs.
(113 kg).
11. The heart rate monitor is not a medical
device. Various factors, including the user's
movement, may affect the accuracy of heart
rate readings. The heart rate monitor is
intended only as an exercise aid in determin-
ing heart rate trends in general.
12. The exercise bike does not have a free
wheel; the pedals will continue to move until
the flywheel stops. Reduce your pedaling
speed in a controlled way.
13. Always keep your back straight while using
the exercise bike; do not arch your back.
14. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
IMPORTANT PRECAUTIONS

4
Thank you for selecting the new REEBO ®TRAINER
RX 1.5 exercise bike. Cycling is an effective exercise
for increasing cardiovascular fitness, building
endurance, and toning the body. The TRAINER RX
1.5 exercise bike provides an impressive selection of
features designed to make your workouts at home
more effective and enjoyable.
For your benefit, read this manual carefully before
you use the exercise bike. If you have questions
after reading this manual, please see the front cover
of this manual. To help us assist you, note the product
model number and serial number before contacting
us. The model number and the location of the serial
number decal are shown on the front cover of this
manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Handgrip Heart
Rate Monitor
Seat
Seat Post
Leveling Foot
Wheel
Pedal/Strap
Console
Handlebar
Adjustment nob
Water Bottle Holder*
*Water bottle is not included
BEFORE YOU BEGIN
Length: 2 ft. 8 in. (81 cm)
Width: 2 ft. (61 cm)

5
M8 Locknut
(37)–8
M4 x 22mm
Screw (54)–2
M4 x 16mm
Screw (40)–6
M10 x 75mm
Screw (36)–4
M8 x 38mm Button
Bolt (53)–4
M8 x 18mm
Screw (35)–4
ASSEMBLY
To hire an authorized service technician to assemble the exercise bike, call 1-800-445-2480.
Assembly requires two persons. Place all parts of the exercise bike in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s), assembly requires a Phillips screwdriver , an adjustable
wrench , and a rubber mallet .
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following
the key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if
it has been preassembled. To avoid damaging parts, do not use power tools for assembly.

6
1.
Identify the Rear Stabilizer (14), which has a
Leveling Foot (63) near each end.
Attach the Rear Stabilizer (14) to the Frame (1)
with two M10 x 75mm Screws (36).
2. Attach the Front Stabilizer (2) to the Frame (1)
with two M10 x 75mm Screws (36).
1
To make assembly easier, read the
information on page 5 before you begin.
3. Orient the Upright (3) and the Top Shield (9) as
shown.
Have a second person hold the Upright (3) and
the Top Shield (9) near the Frame (1) until you
complete step 4.
Connect the Upper Wire (32) to the Lower Wire
(31). Then, pull the excess Upper Wire out of
the top of the Upright.
3
36
63
63
36
9
1
31
32
14
1
1
2
3
2

7
4
Avoid pinching
the wires
4. Tip: Avoid pinching the wires. Slide the
Upright (3) onto the Frame (1).
Attach the Upright (3) with four M8 x 18mm
Screws (35).
Slide the Top Shield (9) downward and press it
onto the Left and Right Shields (17, 18).
5. Attach the Seat (12) to the Seat Post (5) with
four M8 Locknuts (37). Note: The Locknuts
may be preattached to the underside of the
Seat.
5
9
35
17
18
35
3
1
12
37
37 5

8
6. Using an adjustable wrench, tighten the
Adjustment nob (11) into the Frame (1).
Next, loosen the Adjustment nob (11) a few
turns, pull it outward, and insert the Seat Post
(5) into the Frame (1).
Slide the Seat Post (5) upward or downward to
the desired position, and release the Adjustment
nob (11) into one of the adjustment holes in
the Seat Post. Move the Seat Post upward or
downward slightly to make sure that the
Adjustment Knob is engaged in one of the
adjustment holes in the Seat Post. Then,
tighten the Adjustment nob.
6
7
7. Attach the Water Bottle Holder (49) to the
Upright (3) with two M4 x 22mm Screws (54).
5
1
3
11
49
54

9
8
8. Identify the Right Handlebar (48), which is
marked with an “R” sticker, and orient it as
shown. Make sure that the hexagonal holes
are in the indicated location.
While a second person holds the Right
Handlebar (48) near the Upright (3), tie the indi-
cated wire tie to the Right Pulse Wire (64).
Then, pull the other end of the wire tie upward
out of the top of the Upright.
Tip: Avoid pinching the wire. Slide the Right
Handlebar (48) onto the Upright (3).
Attach the Right Handlebar (48) with two M8 x
38mm Button Bolts (53) and two M8 Locknuts
(37). Make sure that the Locknuts are in the
hexagonal holes.
Attach the Left Handlebar (47) in the same
way.
9
Avoid pinching
the wire
48
47
37
3
Hexagonal
Holes
Wire Tie
53
64
66
6
Batteries
Batteries
Screws
Battery
Covers
9. The Console (6) can use four D batteries (not
included); alkaline batteries are recommended.
Do not use old and new batteries together or
alkaline, standard, and rechargeable batteries
together. IMPORTANT: If the Console has
been exposed to cold temperatures, allow it
to warm to room temperature before insert-
ing batteries. Otherwise, you may damage
the console displays or other electronic
components. Remove the screws and the bat-
tery covers, insert batteries into the battery
compartments, and then reattach the battery
covers. Make sure to orient the batteries as
shown by the diagrams inside the battery
compartments.
To purchase an optional AC adapter, call the
telephone number on the front cover of this
manual. To avoid damaging the console, use
only a manufacturer-supplied AC adapter.
Plug one end of the AC adapter into the recep-
tacle on the console; plug the other end into an
outlet installed in accordance with all local
codes and ordinances.

10
10. While a second person holds the Console (6)
near the Upright (3), connect the wires on the
Console to the Upper Wire (32) and to the Right
and Left Pulse Wires (64, 66).
Insert the excess wire downward into the
Upright (3) or upward into the Console (6).
Tip: Avoid pinching the wires. Attach the
Console (6) to the Upright (3) with four M4 x
16mm Screws (40).
10
11. Attach the Handlebar Cover (19) to the Upright
(3) with two M4 x 16mm Screws (40). 11
6
3
3
32
64 66
40
19
40
Avoid pinching
the wire

11
12
12. Identify the Right Pedal (26), which is marked
with an “R.” Using an adjustable wrench, firmly
tighten the Right Pedal clockwise into the right
arm of the Crank (13).
Tighten the Left Pedal (not shown) counter-
clockwise into the left arm of the Crank (not
shown).
Adjust the strap on the Right Pedal (26) to the
desired position, and press the end of the strap
onto the tab on the Right Pedal. Adjust the
strap on the Left Pedal (not shown) in the
same way.
13. Make sure that all parts are properly tightened before you use the exercise bike. Note: Some hardware
may be left over after assembly is completed. Place a mat under the exercise bike to protect the floor or car-
pet.
26
Strap
Tab
13

12
HOW TO AD UST THE HEIGHT OF THE SEAT
For effective exercise, the seat should be at the
proper height. As you pedal, there should be a slight
bend in your knees when the pedals are in the lowest
position.
To adjust the seat,
first loosen the
adjustment knob a
few turns. Next, pull
the knob outward,
slide the seat post
upward or down-
ward to the desired
position, and then
release the knob
into one of the
adjustment holes in
the seat post. Move the seat post upward or down-
ward slightly to make sure that the knob is
engaged in one of the adjustment holes in the seat
post. Then, tighten the knob.
HOW TO AD UST THE PEDAL STRAPS
To adjust the pedal
straps, first pull the
ends of the straps off
the tabs on the ped-
als. Then, adjust the
straps to the desired
position, and press
the ends of the straps
onto the tabs.
HOW TO LEVEL THE EXERCISE BIKE
If the exercise bike
rocks slightly on your
floor during use, turn
one or both of the
leveling feet under
the rear stabilizer
until the exercise bike
is level.
Tab
Seat
Seat
Post
Strap
HOW TO USE THE EXERCISE BIKE
Leveling
Feet
Adjustment
nob

13
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
When you use the manual mode of the console, you
can change the resistance of the pedals with the touch
of a button. As you exercise, the console will provide
continuous exercise feedback. You can even measure
your heart rate using the handgrip heart rate monitor.
The console also offers ten preset workouts—five
weight loss workouts and five performance workouts.
Each preset workout automatically changes the resis-
tance of the pedals as it guides you through an
effective workout.
The console also features the iFit interactive workout
system, which enables the console to accept iFit cards
containing workouts designed to help you achieve
specific fitness goals.
For example, lose unwanted pounds with the 8-week
Weight Loss workout. iFit workouts control the resis-
tance of the pedals while the voice of a personal
trainer coaches you through your workouts. iFit cards
are available separately. To purchase iFit cards, go
to www.iFit.com or call the telephone number on
the front cover of this manual. iFit cards are also
available at select stores.
You can even connect your MP3 player or CD player
to the console sound system and listen to your favorite
music or audio books while you exercise.
To use the manual mode, see page 14. To use a
preset workout, see page 15. To use an iFit work-
out, see page 16. To use the sound system, see
page 17. To use the user mode, see page 17.
Note: Before using the console, make sure that batter-
ies are installed (see assembly step 9 on page 9). If
there is a sheet of plastic on the display, remove the
plastic.
CONSOLE DIAGRAM

14
HOW TO USE THE MANUAL MODE
1. Turn on the console.
Press any button or begin pedaling to turn on the
console.
When you turn on the console, the display will turn
on. A tone will sound and the console will be ready
for use.
2. Select the manual mode.
When you turn on the console, the manual mode
will be selected.
If you have selected a workout, reselect the man-
ual mode by pressing the Workouts increase or
decrease button repeatedly until a track appears in
the center display.
3. Begin pedaling and change the resistance of
the pedals as desired.
As you pedal, change the
resistance of the pedals by
pressing the Resistance
increase and decrease
buttons.
Note: After you press the buttons, it will take a
moment for the pedals to reach the selected resis-
tance level.
4. Follow your progress with the display.
The left display–This
display can show the
elapsed time and the
approximate number of
calories you have
burned. The display will
change modes every few seconds.
Note: During a preset workout, the display will
show the time remaining in the workout.
The left display will also show your heart rate
when you use the handgrip heart rate monitor (see
step 5 on page 15).
The center
display–This display
will show the resistance
level of the pedals for a
few seconds each time
the resistance level
changes.
This display will also
show a track represent-
ing 1/4 mile (400 m). As
you exercise, indicators
will appear in succes-
sion around the track
until the entire track appears. The track will then
disappear and the indicators will again begin to
appear in succession.
The right display–This
display can show the
distance you have ped-
aled in miles or
kilometers and your
pedaling pace in miles
per hour or kilometers per hour. The display will
change modes every few seconds.
Note: The console can show pedaling speed and
distance in either miles or kilometers. To change
the unit of measurement, see HOW TO USE THE
USER MODE on page 17.
Track

15
5. Measure your heart rate if desired.
If there are sheets
of plastic on the
metal contacts on
the handgrip
heart rate moni-
tor, remove the
plastic. In addi-
tion, make sure
that your hands
are clean. To mea-
sure your heart
rate, hold the
handgrip heart rate monitor with your palms rest-
ing against the metal contacts. Avoid moving
your hands or gripping the contacts tightly.
When your pulse is detected, a heart-shaped sym-
bol will flash in the display and then your heart
rate will be shown. For the most accurate heart
rate reading, hold the contacts for at least 15
seconds.
If your heart rate is not shown, make sure that
your hands are positioned as described. Be care-
ful not to move your hands excessively or to
squeeze the metal contacts tightly. For optimal
performance, clean the metal contacts using a soft
cloth; never use alcohol, abrasives, or chemi-
cals to clean the contacts.
6. Turn on the fan if desired.
The fan has high and low speed settings. Press
the Fan button repeatedly to select a fan speed or
to turn off the fan.
Note: If the pedals do not move for about thirty
seconds, the fan will turn off automatically.
7. When you are finished exercising, the console
will turn off automatically.
If the pedals do not move for several seconds, a
series of tones will sound, the console will pause,
and the time will flash in the display.
If the pedals do not move for several minutes, the
console will turn off and the display will be reset.
HOW TO USE A PRESET WORKOUT
1. Turn on the console.
See step 1 on page 14.
2. Select a preset workout.
To select a preset workout, press the Workouts
increase or decrease button repeatedly until the
number of the desired workout appears in the right
display.
When you select a preset workout, the duration of
the workout will appear in the left display, the max-
imum resistance level for the workout will flash in
the center display, and the number of the workout
will appear in the right display.
After a few seconds, a profile of the resistance lev-
els of the workout will scroll across the center
display.
Note: Complete profiles of the preset workouts are
printed on the sides of the console.
3. Begin pedaling to start the workout.
Each workout is divided into several one-minute
segments. One resistance level is programmed for
each segment. Note: The same resistance level
may be programmed for consecutive segments.
Contacts
Profile

16
During the workout, the workout profile will show
your progress (see the drawing on page 15). The
flashing segment of the profile represents the cur-
rent segment of the workout. The height of the
flashing segment indicates the resistance level for
the current segment.
At the end of each segment of the workout, a
series of tones will sound and the next segment of
the profile will begin to flash. If a different resis-
tance level is programmed for the next segment,
the resistance level will flash in the display for a
few seconds to alert you. The resistance of the
pedals will then change.
If the resistance level for the current segment is
too high or too low, you can manually override the
setting by pressing the Resistance buttons.
However, when the current segment ends, the
pedals will automatically adjust to the resistance
level for the next segment.
If you stop pedaling for several seconds, a series
of tones will sound and the workout will pause.
To restart the workout, simply resume pedaling.
The workout will continue until the last segment of
the profile flashes and the last segment of the
workout ends.
Note: If you continue to pedal after the workout is
completed, the display will continue to show exer-
cise feedback; however, the display will not show
the elapsed time until you select the manual mode
or a new workout.
4. Follow your progress with the display.
See step 4 on page 14.
5. Measure your heart rate if desired.
See step 5 on page 15.
6. Turn on the fan if desired.
See step 6 on page 15.
7. When you are finished exercising, the console
will turn off automatically.
See step 7 on page 15.
HOW TO USE AN IFIT WORKOUT
iFit cards are available separately. To purchase iFit
cards, go to www.iFit.com or see the front cover of this
manual. iFit cards are also available at select stores.
1. Turn on the console.
See step 1 on page 14.
2. Insert an iFit card and select a workout.
To use an iFit workout, insert an iFit card into the
iFit slot; make sure that the iFit card is oriented so
the metal contacts are face down and are facing
the slot. When the iFit card is properly inserted,
the indicator next to the slot will turn on.
Next, select the desired workout on the iFit card
by pressing the increase and decrease buttons
next to the iFit slot.
The duration of the workout will appear in the left
display, the maximum resistance level for the
workout will flash in the center display, and the
number of the workout will appear in the right
display.
A moment after you select a workout, the voice of
a personal trainer will begin guiding you through
your workout. iFit workouts function in the same
way as preset workouts. To use the workout, see
steps 3 to 7 on pages 15 and 16.
3. When you are finished exercising, remove the
iFit card.
Remove the iFit card when you are finished exer-
cising. Store the iFit card in a secure place.
iFit Slot
iFit Card

17
HOW TO USE THE SOUND SYSTEM
To play music or audio books through the console
sound system while you exercise, plug the included
audio cable into the jack on the console and into a
jack on your MP3 player or CD player; make sure
that the audio cable is fully plugged in.
Next, press the play button on your MP3 player or CD
player. Adjust the volume level using the volume con-
trol on your MP3 player or CD player.
THE USER MODE
The console features a user mode that allows you to
select a unit of measurement for the console and to
view console usage information.
To select the user mode, press and hold down the Fan
button for a few seconds until the user mode informa-
tion appears in the display.
The console can show pedaling speed and distance in
either miles or kilometers.
The center display will show the selected unit of mea-
surement. An E for English miles or an M for metric
kilometers will appear in the display. To change the
unit of measurement, press the Resistance increase
button repeatedly.
Note: When you replace the batteries, it may be nec-
essary to reselect the unit of measurement.
The left display will show the total number of hours
that the console has been used since the exercise
bike was purchased. The right display will show the
total distance that the exercise bike has been pedaled.
To exit the user mode, press the Fan button.
FCC INFORMATION
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, try to correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from the circuit to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC CAUTION: To assure continued compliance, use only shielded interface cables when connecting to
computer or peripheral devices. Changes or modifications not expressly approved by the party respon-
sible for compliance could void the user's authority to operate this equipment.

18
Inspect and tighten all parts of the exercise bike regu-
larly. Replace any worn parts immediately.
To clean the exercise bike, use a damp cloth and a
small amount of mild soap. IMPORTANT: To avoid
damage to the console, keep liquids away from
the console and keep the console out of direct
sunlight.
CONSOLE TROUBLESHOOTING
If the console display becomes dim, replace all the
batteries at the same time. See assembly step 9 on
page 9 for replacement instructions.
If the console does not display your heart rate when
you use the handgrip heart rate monitor, see step 5 on
page 15.
HOW TO AD UST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted.
To adjust the reed switch, you must remove the seat
post, the adjustment knob, and the top shield (see the
instructions below).
To remove the Seat Post (5), loosen the Adjustment
nob (11) a few turns, pull the Adjustment nob out-
ward, and remove the Seat Post. Then, using an
adjustable wrench, remove the Adjustment nob.
Using a flat screwdriver, release the tabs along the
bottom edge of the Top Shield (9) and slide the Top
Shield upward.
Locate the Reed Switch (21). Turn the Pulley (13) until
a Magnet (16) is aligned with the Reed Switch.
Loosen, but do not remove, the indicated M4 x 16mm
Screw (40). Slide the Reed Switch slightly closer to or
away from the Magnet, and then retighten the Screw.
Turn the Pulley (13) for a moment. If necessary,
repeat the step above until the console displays cor-
rect feedback.
When the reed switch is correctly adjusted, reattach
the shield cover, the adjustment knob, and the seat
post.
HOW TO LEVEL THE EXERCISE BIKE
If the exercise
bike rocks
slightly on your
floor during use,
turn one or both
of the leveling
feet until the
exercise bike is
level.
MAINTENANCE AND TROUBLESHOOTING
9
11
5
13
Leveling
Feet
16
40 21

19
HOW TO AD UST THE DRIVE BELT
If the pedals slip while you are pedaling, even while
the resistance is adjusted to the highest setting, the
drive belt may need to be adjusted.
To adjust the drive belt, you must remove the seat
post, the adjustment knob, the top shield, the right
pedal, and the right shield (see the instructions
below).
To remove the Seat Post (5), loosen the Adjustment
nob (11) a few turns, pull the Adjustment nob out-
ward, and remove the Seat Post. Then, using an
adjustable wrench, remove the Adjustment nob.
Using a flat screwdriver, release the tabs along the
bottom edge of the Top Shield (9) and slide the Top
Shield upward. Then, using an adjustable wrench, turn
the Right Pedal (26) counterclockwise and remove it.
Remove all the screws from the left and right shields;
there are two sizes of screws in the shields—note
which size of screw you remove from each hole.
Then, gently pull the right shield away from the frame.
Loosen the M6 x 20mm Hex Screw (60). Then, tighten
the M10 x 50mm Hex Screw (33) until the Drive Belt
(23) is tight.
When the Drive Belt (23) is tight, tighten the M6 x
20mm Hex Screw (60).
Then, reattach the left and right shields, the right
pedal, the top shield, the adjustment knob, and the
seat post.
9
11
26
5
60
33
23

20
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper inten-
sity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.

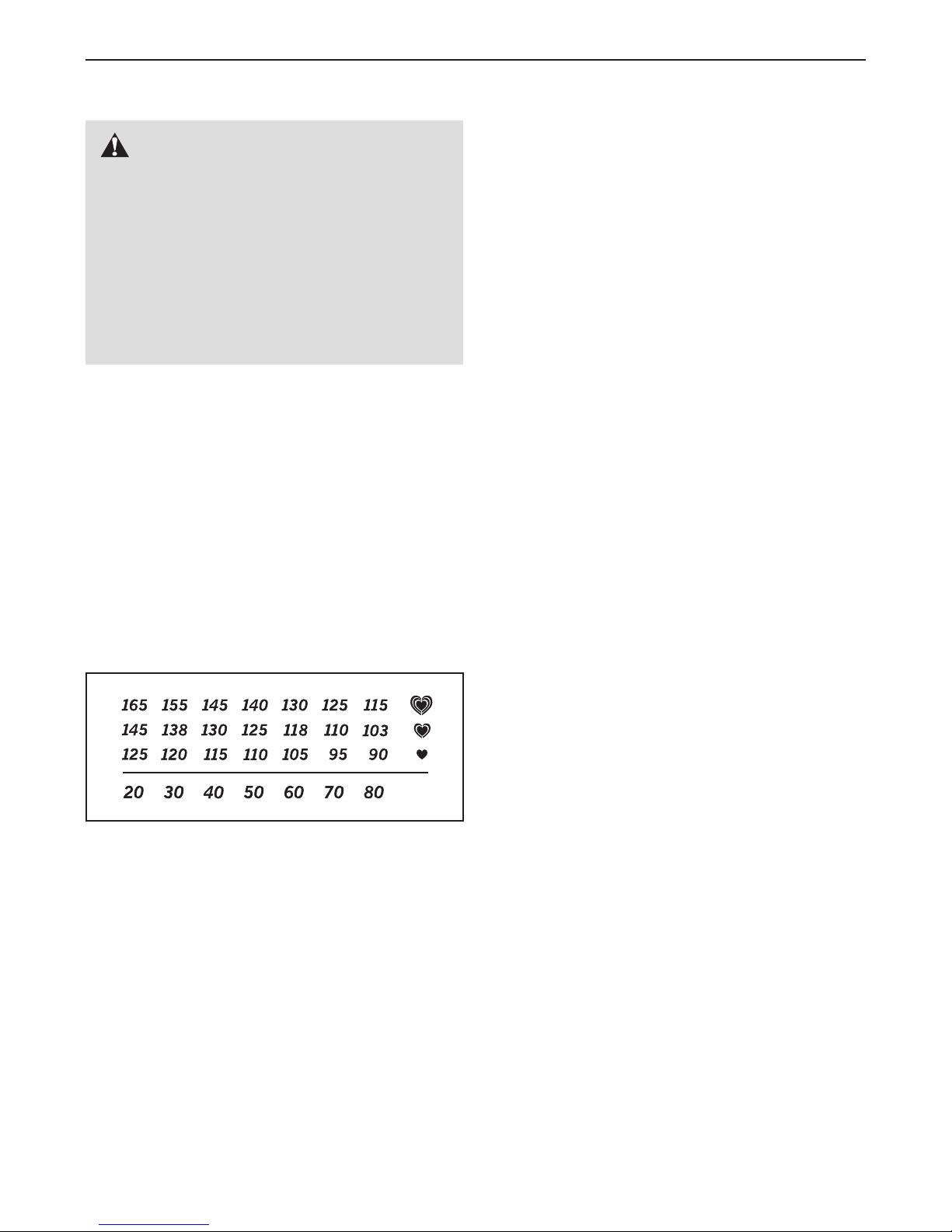

The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the near-
est ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
Burning Fat—To burn fat effectively, you must exer-
cise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretching
and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 min-
utes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise—never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of
stretching. Stretching increases the flexibility of your
muscles and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exer-
cise, you may complete up to five workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.
EXERCISE GUIDELINES
WARNING: Before beginning this
or any exercise program, consult your physi-
cian. This is especially important for persons
over age 35 or persons with pre-existing
health problems.
The heart rate monitor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The heart rate monitor is
intended only as an exercise aid in determin-
ing heart rate trends in general.
