Regency Fireplace Products E18 Quick start guide

WARNING:
If the information in these instructions are not followed exactly,
a fire or explosion may result causing property damage,
personal injury or loss of life.
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
Installation and service must be performed by a qualified
installer, service agency or the gas supplier.
FOR YOUR SAFETY
What to do if you smell gas:
Do not try to light any appliance
Do not touch any electrical switch:
do not use any phone in your
building.
Immediately call your gas supplier
from a neighbour's phone. Follow
the gas supplier's instructions.
If you cannot reach your gas
supplier, call the fire department.
FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4
919-180d
MODELS: E18-NG Natural Gas E18-LP Propane
E18 Gas Insert
12/02/13
Owners &
Installation Manual
Tested by:
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
www.regency-fire.com
www.regency-fire.com

2Regency®E18 Gas Fireplace Insert
CONGRATULATIONS!
You are the owner of a state-of-the-art Gas Insert by:
FPI FIREPLACE PRODUCTS INTERNATIONAL LTD.
The Regency®Gas Fireplace Series has been designed to provide you with all the warmth and
charm of a fireplace, at the flick of a switch. The models E18-NG and E18-LP of this series have been
approved by Warnock Hersey for safety. As it also bears our own mark, it promises to provide you with
economy, comfort and security for many trouble free years to follow. Please take a moment now to
acquaint yourself with these instructions and the many features of your Regency®Fireplace.

Regency®E18 Gas Fireplace Insert 3
DIMENSIONS
UNIT DIMENSIONS
 
PP
 
PP

 

P
P
 
PP


PP
 
PP

 
PP

 
PP

 
PP

 
PP
 
PP

Diagram 1.1

4Regency®E18 Gas Fireplace Insert
TABLE OF CONTENTS
Required steps and procedure for the E18 install ..............17
Tools required .....................................................................17
Separating the Outer Firebox Shell from the Inner Firebox
18
STEPS REQUIRED TO PREPARE THE E18 FOR
INSTALLATION
ZERO CLEARANCE KIT INSTALLATION
INSTALLING THE E18 INTO THE EXISTING ZC
BOX
INSTALLATION AND OPERATION
DIMENSIONS
Unit dimensions.................................................................. 3
INSTALLATION
Before You Start.................................................................. 7
Important Message ........................................................... 7
Save these instructions ...................................................... 7
General Safety Information................................................. 7
Installation Checklist........................................................... 8
High Elevation..................................................................... 8
Air Shutter Adjustment........................................................ 8
Gas Pipe Pressure Testing ................................................. 9
Gas Connection.................................................................. 9
Installation Checklist......................................................... 10
Materials required............................................................. 10
Minimum Fireplace Opening for ....................................... 10
Masonry and factory built fireplaces................................. 10
Venting.............................................................................. 10
Minimum Fireplace Clearances ........................................ 11
Zero Clearance framing.................................................... 12
Venting Configurations ..................................................... 12
EP28-4/EP28-5 Installation Specifications ....................... 19
Step #4: Surround Installation .......................................40
Remote control Installation............................................ 41
Conversion from NG to LP.............................................41
Glass Burner Installation ............................................... 44
Enamel panel Installation .............................................. 45
Glass crystal and stone install....................................... 46
Optional Spa or volcanic stones Installation ................. 46
Brick panel Installation................................................... 47
Log Tray Installation...................................................... 48
Log Set Installation........................................................ 48
Optional Log Set Installation.......................................... 50
Glass Door Installation .................................................. 52
Safety Screen Replacement..........................................52
Drafthood check ............................................................53
Remote Control ............................................................. 53
Wall Switch .................................................................... 53
Wall Thermostat ............................................................ 53
Safety Switches ............................................................. 54
Operation Controls ........................................................ 54
Fireplace Controls ......................................................... 54
Final Check.................................................................... 55
Operating Instructions ..................................................55
Lighting Procedure ........................................................ 55
Shutdown Procedure ..................................................... 55
Pilot Adjustment............................................................. 56
Copy of Lighting Plate Instructions ............................... 56
First Fire ........................................................................ 56
Operation.......................................................................56
Normal Operating Sounds of Gas Appliances...............57
Maintenance Instructions ..............................................57
Log Replacement .......................................................... 57
Glass Gasket ................................................................. 57
Valve replacement ......................................................... 58
Installing Valve............................................................... 58
Removing the Fan ......................................................... 59
Wiring Diagrams ............................................................ 60
Modification of Montigo EP28-S2 ......................................21
Modification of Montigo 28F-2 or 28-F...............................23
28 F / 28 F2 Installation Specifications..............................26
Modification of Montigo 36SR............................................27
Modification of Firesong 220N...........................................31
Modification of Firesong 120N...........................................33
Installation of the E18 into Existing Units .......................... 38
Step #1: Vent Connection Type A ...................................... 38
Step #1: Vent Connection Type B ...................................... 38
Step #2: Outer Shell Installation ........................................ 39
Step #3: Firebox Installation .............................................. 39
PARTS LIST
Main Assembly ..............................................................61
Montigo EP28 Installation Kit.........................................62
Montigo 28-F and 28F-2 Installation Kit.........................63
Montigo 36SR Installation Kit ........................................65
Firesong 220N Installation Kit........................................65
Firesong 120N Installation Kit........................................66
WARRANTY
Warranty ........................................................................67
ZC kit installation ............................................................... 13

Regency®E18 Gas Fireplace Insert 5
SAFETY LABEL
This is a copy of the label that accompanies each Regency®Gas Insert. We have
printed a copy of the contents here for your review. The safety label is located on the
front inside base of the unit visible when the bottom louver is open.
Note: Regency® units are constantly being improved. Check the label on the
unit and if there is a difference, the label on the unit is the correct one.
Please note that with the addition of thermostat control and outside
combustion air supply, this unit is approved for bedroom installations.
For the State of Massachusetts, installation and repair must be done by a plumber
or gasfitter licensed in the Commonwealth of Massachusetts.
For the State of Massachusetts, flexible connectors shall not exceed 36 inches
in length.
For the State of Massachusetts, the appliances individual manual shut-off must
be a t-handle type valve.
The State of Massachusetts requires the installation of a carbon monoxide alarm
in accordance with NFPA 720 and a CO alarm with battery back up in the same
room where the gas appliance is installed.
DO NOT REMOVE THIS LABEL / NE PAS ENLEVER CETTE ETIQUETTE
Serial No. / No de serie
4001172
415
415
Min. supply pressure 5" WC (1.25kPa)
Low Setting Man. pressure 1.6" WC (0.40kPa)
Max. Manifold pressure 3.5" WC (0.87kPa)
Orifice size 44 DMS (2.64mm)
Minimum input 15,000 Btu/h (4.40kW)
Altitude 0-4500ft (0-610m)
Maximum input 21,600 Btu/h (6.33kW)
919-179a
NATURAL GAS FIREPLACE INSERT: MODEL E18-NG
PROPANE FIREPLACE INSERT: MODEL E18-LP
12" WC (2.99 kPa)
6.4" WC (1.59 kPa)
10" WC (2.49 kPa)
55 DMS (1.6mm)
17,000 Btu/h (4.98kW)
0-4500ft (0-610m)
20,500 Btu/h (6.01kW)
FPI Fireplace Products International Ltd.Delta BC, CANADA
MADE IN CANADA / FABRIQUE AU CANADA
Model: E18-NG Model: E18-LP
Factory Equipped For Altitude 0-4500ft. (0- m)1370
Duplicate Serial number
This appliance must be installed in accordance with local codes, if any; if none,
follow the National Fuel Gas Code, ANSI Z223.1, or Natural Gas and Propane
Installation Code, CSA B149.1.
This appliance must be installed in accordance with the Standard CAN/CSA Z240
MH, Mobile Housing, in Canada, or with the Manufactured Home Construction
and Safety Standard, Title 24 CFR, Part 3280, in the United States, or when such a
standard is not applicable, ANSI/NCSBCS A225.1/NFPA 501A, Manufactured
Home Installations Standard or ANSI A119.2 ou NFPA 501C Standard for
Recreational Vehicles
This appliance is only for use with the type of gas indicated on the rating plate and
may be installed in an aftermarket, permanently located, manufactured (mobile)
home where not prohibited by local codes. See owner's manual for details.
WARNING. This fireplace has been converted for use with a gas fireplace insert
only and cannot be used for burning wood or solid fuels unless all original parts
have been replaced, and the fireplace re-approved by the authority having
jurisdiction.
Installer l'appareil selon les codes ou règlements locaux, ou, en l'absence de tels
règlements, selon les codes d'installation ANSI Z223.1, National Fuel Gas Code
ou CSA-B149.1 en vigueur.
Installer l'appareil selon la norme CAN/CSA-Z240, Série MM, Maison mobiles ou
CAN/CSA-Z240 VC, Véhicules de camping, ou la norme 24 CFR Part 3280,
Manufactured Home Construction and Safety Standard. Si ces normes ne sont
pas pertinentes, utilisez la norme ANSI/NCSBCS A225.1/NFPA 501A,
Manufactured Home Installations Standard, ou ANSI A119.2 ou NFPA 501C
Standard for Recreational Vehicles.
AVERTISSEMENT : Ce foyer a été converti pour utilisation avec un foyer au gaz
encastrable et ne peut être utiliser pour brûler du bois ou d'autres combustibles
solides à moins que toutes les pièces d'origine aient été remplacées et que le
foyer ait été approuvé de nouveau par l'autorité compétente.
For use with glass doors certified with the appliance only
This vented gas fireplace heater is not for use with air filters.
Ne pas utiliser de filtre à air avec ce foyer au gaz à évacuation.
Cet appareil doit être utilize uniquement avec le type de gaz indiqué sur la plaque
signalétique. Cet appareil peut être installé dans une maison préfabriquée ou
mobile (É.-U. seulement) installée à demeure si les règlements locaux le
permettent. Voir la notice de l'utilisateur pour plus de renseignements. Cet
appareil ne peut pas être utilisé avec d'autres gaz sauf si une trousse de
conversion certifiée est fournie.
Pour utilisation uniquement avec les portes en verre certifiées avec l'appareil
Minimum Clearances to Combustibles:
Min. Mantel Height A 17-7/8"(453mm)
Min. Ceiling B 37-7/8"(961mm)
D
Side wall E 6" (152mm)
Max. Mantel Depth F 9" (229mm)
Height
37-1/2"(953mm)
Degagement Minimum Des Materiaux
Combustibles:
Listed:
Certified for/Certifi e pour:
Tested to:
CANADA and U.S.A.
VENTED GAS FIREPLACE HEATER
/ FOYER AU GAZ À ÉVACUATION
é
CAN/CGA-2.17-M91(R2009)
Electrical supply / Électrique 115VAC, 2.5 A, 60Hz,
Less than 10A Fan Part # 911-071
Min. supply pressure
Low Setting Man. pressure
Max. Manifold pressure
Orifice size
Minimum input
Altitude
Maximum input
Factory Equipped For Altitude 0-4500ft. (0-1370m)
F
D
E
B
A
VENTED GAS FIREPLACE HEATER - NOT FOR USE WITH
SOLID FUELS. / NE PAS
UTILISER AVEC DUCOMBUSTIBLE SOLIDE.
FOYER AU GAZ À ÉVACUATION -
Conforms to: ANSI Z21.88a-2012
Certified to: CSA 2.33a-2012

6Regency®E18 Gas Fireplace Insert
REQUIREMENTS
5.08: Modifications to NFPA-54, Chapter 10
(2) Revise 10.8.3 by adding the following additional requirements:
(a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for
residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than
seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall
be satisfied:
1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fueled
equipment, the installing plumber or gasfitter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is
installed on the floor level where the gas equipment is to be installed. In addition, the installing plumber or gasfitter shall observe that a battery
operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure
served by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the services of
qualified licensed professionals for the installation of hard wired carbon monoxide detectors
a. In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon
monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.
b. In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have a period of
thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon
monoxide detector with an alarm shall be installed.
2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions
shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified.
3. SIGNAGE. A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight
(8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The
sign shall read, in print size no less than one-half (1/2) inch in size, "GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL
OBSTRUCTIONS".
4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation
unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR
5.08(2)(a)1 through 4.
(b) EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:
1. The equipment listed in Chapter 10 entitled "Equipment Not Required To Be Vented" in the most current edition of NFPA 54 as adopted by
the Board; and
2. Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling, building or
structure used in whole or in part for residential purposes.
(c) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the manufacturer of Product
Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the
instructions provided by the manufacturer for installation of the equipment and the venting system shall include:
1. Detailed instructions for the installation of the venting system design or the venting system components; and
2. A complete parts list for the venting system design or venting system.
(d) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a
Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the flue gases, but identifies
"special venting systems", the following requirements shall be satisfied by the manufacturer:
1. The referenced "special venting system" instructions shall be included with the appliance or equipment installation instructions; and
2. The "special venting systems" shall be Product Approved by the Board, and the instructions for that system shall include a parts list and
detailed installation instructions.
(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions,
all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of
the installation.
MA Code - CO Detector
(for the State of Massachusetts only)

Regency®E18 Gas Fireplace Insert 7
INSTALLATION
BEFORE YOU START
Safe installation and operation of this appliance
requires common sense, however, we are required
by the Canadian Safety Standards and ANSI
Standards to make you aware of the following:
CLOTHING OR OTHER FLAMMABLE
MATERIAL SHOULD NOT BE PLACED
ON OR NEAR THE APPLIANCE.
CHILDREN AND ADULTS SHOULD BE
ALERTED TO THE HAZARDS OF HIGH
SURFACE TEMPERATURES, ESPE-
CIALLY THE FIREPLACE GLASS, AND
SHOULD STAY AWAYTO AVOID BURNS
OR CLOTHING IGNITION.
INSTALLATION AND REPAIR SHOULD
BE DONE BY AN AUTHORIZED
SERVICE PERSON. THE APPLIANCE
SHOULD BE INSPECTED BEFORE
USE AND AT LEAST ANNUALLY BY A
PROFESSIONAL SERVICE PERSON.
MORE FREQUENT CLEANING MAY
BE REQUIRED DUE TO EXCESSIVE
LINT FROM CARPETING, BEDDING
MATERIAL, ETC.IT IS IMPERATIVETHAT
CONTROL COMPARTMENTS,BURNERS
AND CIRCULATING AIR PASSAGEWAYS
OF THE APPLIANCE BE KEPT CLEAN.
DUE TO HIGH TEMPERATURES, THE
APPLIANCE SHOULD BE LOCATED
OUT OF TRAFFIC AND AWAY FROM
FURNITURE AND DRAPERIES.
WARNING: FAILURE TO INSTALL THIS
APPLIANCE CORRECTLY WILL VOID
YOUR WARRANTY AND MAY CAUSE A
SERIOUS HOUSE FIRE.
YOUNG CHILDREN SHOULD BE CARE-
FULLY SUPERVISED WHEN THEY ARE
IN THE SAME AREA AS THE APPLI-
ANCE. TODDLERS,YOUNG CHILDREN
AND OTHERS MAY BE SUSCEPTIBLE
TO ACCIDENTAL CONTACT BURNS. A
PHYSICAL BARRIERS IS RECOMMEND-
ED IFTHERE ARE AT RISK INDIVIDUAL
INTHE HOUSE. TO RESTRICT ACCESS
TO A FIREPLACE OR STOVE, INSTALL
AN ADJUSTABLE SAFETY GATE TO
KEEP TODDLERS, YOUNG CHILDREN
AND OTHER AT RISK INDIVIDUALS OUT
OF THE ROOM AND AWAY FROM HOT
SURFACES.
IMPORTANT MESSAGE
SAVE THESE
INSTRUCTIONS
The Regency®Gas Fireplace must be installed in
accordance with these instructions. Carefully read
all the instructions in this manual first. Consult the
"authority having jurisdiction" to determine the need
for a permit prior to starting the installation. It is the
responsibility of the installer to ensure this fireplace
is installed in compliance with the manufacturer's
instructions and all applicable codes.
GENERAL SAFETY
INFORMATION
The condition of the appliance, that the E18 is
to be installed into, shall be in accordance with
reasonable concepts of safety, substantiality and
durability. Component parts shall be well fitted and
not show signs of becoming warped, bent, broken
or otherwise damaged during the installation. Every
part of the appliance shall be secured against
displacement and constructed to maintain a fixed
relationship between essential parts under normal
and reasonable conditions of handling and usage.
1. The appliance installation must conform with
local codes or, in the absence of local codes,
with the current Canadian or National Gas
Codes, CAN1-B149 or ANSI Z223.1 Installation
Codes.
2. The appliance when installed, must be electri-
cally grounded in accordance with local codes,
or in the absence of local codes with the current
National Electrical Code, ANSI/NFPA 70 or CSA
C22.1 Canadian Electrical Code.
3. See general construction and assembly in-
structions. The appliance and vent should be
enclosed.
4. This appliance must be connected to the speci-
fied vent and termination cap to the outside of
the building envelope. Never vent to another
room or inside a building. Make sure that the
vent is installed as per Venting instructions.
5. This appliance may only be installed in a vented,
solid fuel burning masonry, in any of the ap-
proved zero clearance gas appliances listed in
this manual, or as a zero clearance appliance
with the zero clearance kit.
6. This appliance isListed for bedroom installations
when used with a Listed Millivolt Thermostat.
Outside combustion air supply is also required.
Some areas may have further requirements,
check local codes before installation.
Emissions from burning wood or gas could
contain chemicals known to the State of
California to cause cancer, birth defects or
other reproductive harm.
7. This appliance is Listed for Alcove installations,
maintain minimum Alcove clearances as follows,
minimum ceiling height of 37-7/8" from the top
of the glass door, minimum width of 49" and a
maximum depth of 29".
8. Inspect the venting system annually for blockage
and any signs of deterioration.
9. Any safety glass removed for servicing must be
replaced prior to operating the appliance.
10. To prevent injury, do not allow anyone who is
unfamiliar with the operation to use the fireplace
insert.
11. Wear gloves and safety glasses for protection
while doing required maintenance.
12. Ensure adequate combustion and ventilation air.
13. Under no circumstances should this appliance
be modified. Parts that have to be removed for
servicing should be replaced prior to operating
this appliance.
14. Installation and any repairs to this appliance
should be done by a qualified service person. A
professional service person should be called to
inspect this appliance annually. Make it a practice
to have all of your gas appliances checked
annually.
15. Do not slam shut or strike the glass door.
16. Under no circumstances should any solid fuels
(wood, paper, cardboard, coal, etc.) be used in
this appliance.
17. The appliance area must be kept clear and free
of combustible materials, (gases and other flam-
mable vapours and liquids).
18. Do not use this appliance if any part has been
under water. Immediately call a qualified service
technician to inspect the appliance and to replace
any part of the electrical control system and any
gas control which has been under water.
19. WARNING: Failure to position the parts
in accordance with the diagrams in
this manual or failure to use only parts
specifically approved with this appliance
may result in property damage or
personal injury.
20. WARNING: Operation of this appliance
when not connected to a properly
installed and maintained venting system
or tampering with the blocked vent shut-
off system can result in carbon monoxide
(CO) poisoning and possible death.

8Regency®E18 Gas Fireplace Insert
INSTALLATION
POLICY FOR SOLID FUEL
BURNING &
FACTORY BUILT
FIREPLACES
The Regency®E18 may be installed and vented
into any solid fuel fireplace that has been installed
in accordance with the National, Provincial and
local building codes and is constructed of non-
combustible materials.
1. Installer must mechanically attach the supplied
label to the inside of the firebox of the fireplace
into which the gas fireplace insert is installed.
2. If the factory-built fireplace doesn't have gas
access hole(s) provided, an access hole of
1-1/2" (37.5mm) or less may be drilled though
the lower sides or bottom of the firebox in a
proper workmanship like manner.This access
hole must be plugged with a non-combustible
insulation after the gas supply line has been
installed.
3. The fireplace flue damper can be fully blocked
open or removed for installation of the gas
fireplace insert.
4. The fireplace and fireplace chimney must be
clean and in good working order and con-
structed of non-combustible materials.
5. The chimney cleanouts must fit properly.
6. Refractory (firebricks), glass doors, screen
rails, screen mesh and log grates can be
removed from the fireplace before installing
the gas fireplace insert.
7. Smoke shelves, shields and baffles may be
removed if attached by mechanical fasteners.
If any part is removed it must not weaken the
structural integrity of the factory built.
8. Trim panels or surrounds shall not seal ventila-
tion openings in the fireplace.
9. Do not cut any sheet-metal parts of the fire-
place, in which the gas fireplace insert is to
be installed.
INSTALLATION
CHECKLIST
1. Locate your appliance. Refer to the "Clear-
ances to Combustibles" and "Minimum
Fireplace Clearances" sections.
2. Make gas and electrical connections. Refer
to the "Gas Connection" section.
Test the pilot. Must be as per diagram in the
"Valve Description" section.
3. Install Flue Connector. Refer to the "Flue
Connector Installation" section.
4. Install vent. Refer to the "Venting" section.
5. Test Gas pressure. Refer to the "Gas Pipe
Pressure Testing" section.
Check aeration. Refer to the "Gas Insert
Aeration System" section.
6. Test for flue spillage. Refer to the "Test for
Flue Spillage" section.
7. Install standard and optional features. Refer
to the following sections where applicable:
a. Brick or Enamel Panels
b. Faceplate & Trim
c. Circulation Fan
d. Remote Control
e. Wall Switch
f. Wall Thermostat
8. Final check. Refer to the "Final Check"
section.
Before leaving this unit with the customer,
the installer must ensure that the appliance is
firing correctly and operation fully explained to
customer.
This includes:
1. Clocking the appliance to ensure the correct
firing rate (rate noted on label) after burning
appliance for 15 minutes.
2. If required, adjusting the primary air to ensure
that the flame does not carbon. First allow
the unit to burn for 15-20 min. to stabilize.
3. Ensure that the appliance is venting correctly.
CAUTION: Any alteration to the product that
causes sooting or carboning that results
in damage is not the responsibility of the
manufacturer.
"WARNING:This fireplace has been converted
for use with a gas fireplace insert only and
cannot be used for burning wood or solid fuels
unless all original parts have been replaced,
and the fireplace re-approved by the authority
having jurisdiction."
Specifications
For Altitude: Natural Gas 0-4500 ft.
Propane: 0-4500 ft.
Burner Orifice Sizes:
Natural Gas Propane
Burner #44 #55
Max. Input Rating
- Natural Gas 21,600 Btu/h
- Propane 20,500 Btu/h
Min. Input Rating
- Natural Gas +/-5% 15,000 Btu/h
-Propane +/-5% 17,000 Btu/h
Supply Pressure
Natural Gas min. 5.0" w.c.
Propane min. 12.0" w.c.
Manifold Pressure (High)
Natural Gas 3.5" +/- 0.2" w.c.
Propane 10" +/- 0.2" w.c.
Circulation Fan: 120 VAC, 60 Hz
Variable Speed: 127 CFM, thermally
actived
HIGH ELEVATION
This unit is approved in Canada for altitude
0 to 4500 ft. (CAN/CGA 2.17-M91)
AIR SHUTTER
ADJUSTMENT
The aeration adjustment rod is attached to the
air shutter which is located just above the orifice
bracket. The rod is used to adjust the aeration
on the main burner without having to take the
appliance apart.
The burner aeration is factory set but may need
adjusting due to either the local gas supply, air
supply or altitude.
Natural Gas: 3/16" open
Propane: Fully Open
Note: Any damage due to carboning
resulting from improperly setting
the aeration controls is NOT covered
under warranty.
Note: Aeration Adjustment should only be
performed by an authorized Regency®
Installer at the time of installation or
service.

Regency®E18 Gas Fireplace Insert 9
INSTALLATION
For minimum and maximum supply pressure
see the Specifications table.
1. If the appliance is to be installed into an
existing chimney system, thoroughly clean
the masonry fireplace that has been chosen
for the Regency®Gas Fireplace.
2. The appliance is provided with an opening
on the left hand side of the control
compartment for the gas line.
Note: During any pressure testing of the
gas supply piping system that exceeds test
pressures of 1/2 psig, this appliance and its
individual shut-off valve must be disconnected
from the piping system. If test pressures equal
to or less than 1/2 psig are used then this
appliance must be isolated from the piping
system by closing its individual manual shut-off
valve during the testing.
CAUTION: If the glass is removed for
servicing, it must be replaced prior to
operating the appliance. The glass must be
fixed in the closed position when operating.
GAS CONNECTION
Only persons licensed to work with gas piping
may make the necessary gas connections to
this appliance.
The gas connection is a 1/2" NPT accessible on
the left side of the unit. The gas line connection
may be made of rigid pipe, copper pipe or an
approved flex connector. (If you are using rigid
pipe, ensure that the valve can be removed
for servicing.) Since some municipalities have
additional local codes it is always best to consult
with your local authorities and the CAN/CGA
B149 installation code.
For USA installations follow local codes and/
or the current National Fuel Gas Code, ANSI
Z223.1.
When using copper or flex connectors use only
approved fittings.Always provide a union so that
gas lines can be easily disconnected for burner
or fan servicing. Flare nuts for copper lines and
flex connectors are usually considered to meet
this requirement.
Important: Always check for gas leaks
with a soap and water solution or gas
leak detector. Do not use open flame
for leak testing.
GAS PIPE
PRESSURE TESTING
The appliance must be isolated from the gas
supply piping system by closing its individual
manual shut-off valve during any pressure
testing of the gas supply piping system at test
pressures equal to or less than 1/2 psig. (3.45
kPa). Disconnect piping from valve at pressures
over 1/2 psig.
The manifold pressure is controlled by a
regulator built into the gas control, and should
be checked at the pressure test point.
Note: To properly check gas pressure,both
inlet and manifold pressures should
be checked using the valve pressure
ports on the valve.
1. Make sure the valve is in the "OFF" position.
2. Loosen the "IN" and/or "OUT" pressure
tap(s), turning counterclockwise with a 1/8"
wide flat screwdriver.
3. Attach manometer to "IN" and/or "OUT"
pressure tap(s) using a 5/16" ID hose.
4. Light the pilot and turn the valve to "ON"
position. Read manometer.
5. The pressure check should be carried out
with the unit burning and the setting should
be within the limits specified on the safety
label.
6. When finished reading manometer, turn
off the gas valve, disconnect the hose and
tighten the screw (clockwise) with a 1/8"
flat screwdriver. Note: Screw should be
snug, but do not over tighten.

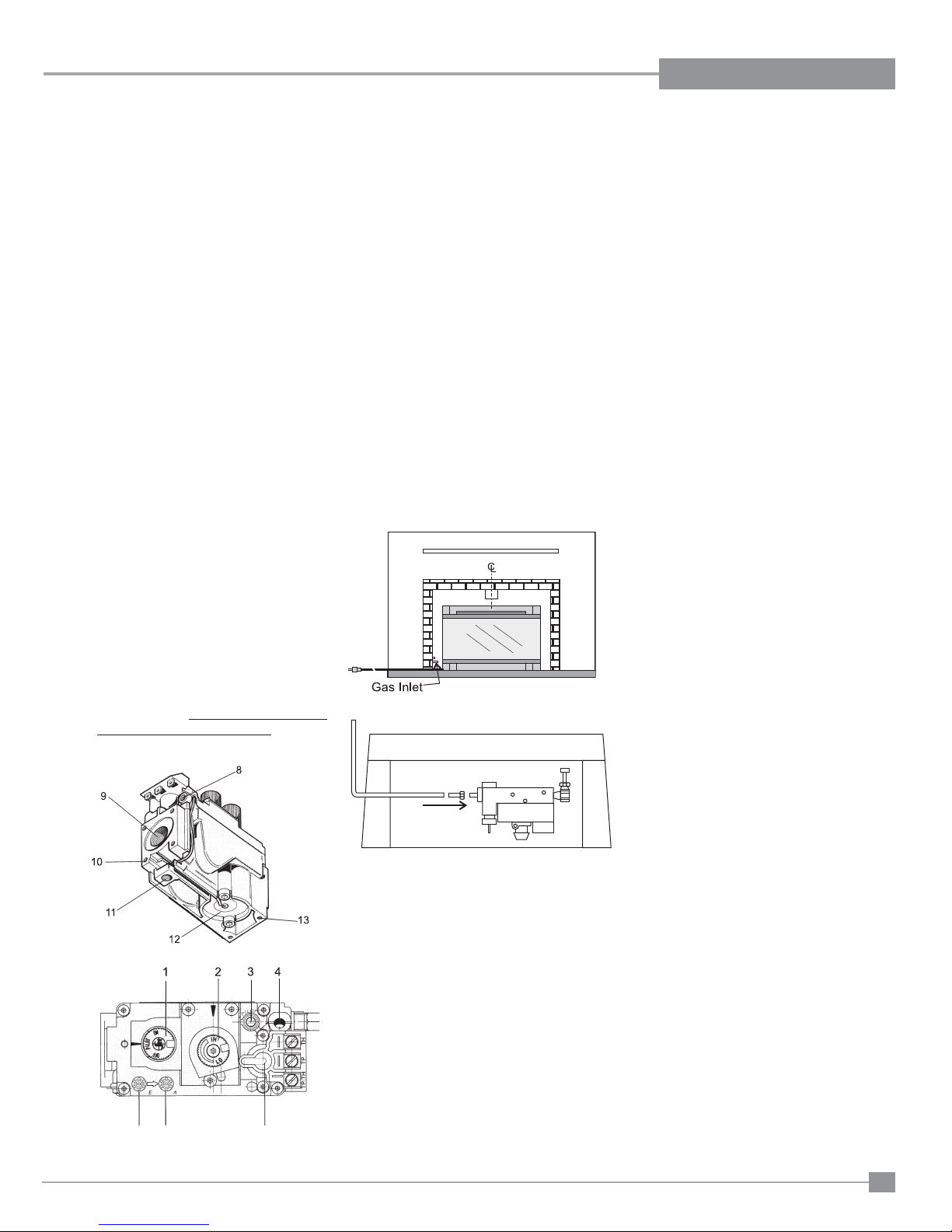

Diagram 2.1
Diagram 2.2
Diagram 2.3

10 Regency®E18 Gas Fireplace Insert
INSTALLATION
INSTALLATION CHECKLIST
1. Verify the model of the existing appliance you
are installing into is one of the following ap-
proved units:
Montigo EP28-2
Montigo EP28-4
Montigo EP28-5
Montigo EP28-S2
Montigo 36SR (Non powervent unit)
Montigo 28F-2
Montigo 28-F
Firesong 220N
Firesong 120N
2. Verify all clearances are at least the specified
clearances.
3. Inspect existing venting and appliance for signs
of wear and durability.
4.Determine the route for the electrical for
the circulation fan. The circulation fan is not
optional.
5. Determine the route for the gas supply.The valve
has a 1/2" Male Flare on the left side of the E18.
Some modification may need to be made to a
hard lined gas supply to connect to the E18.
6. Clean out the existing appliance of all dust and
debris.
7. Make the appropriate modifications to the existing
appliance specified in the "Existing Appliance
Modification" section of the manual. Make sure
when done there are no sharp edges exposed
to a person during operation of the unit.
8. Unpack the E18 from the box and disassemble.
9. Install the E18 into the existing unit as per
instructions.
10. Connect Gas Supply.
11. Connect Circulation Fan Power Cord.
12. Test Fire the E18 and check gas pressures
and confirm Circulation Fan begins operation
with 10 minutes of firing the unit.
13. Check draft hood for spillage as per instructions.
14. Install Trim Kit as per instructions.
MATERIALS REQUIRED
Electrical power supply is required for the circulation
fan A 120 Volt AC power cord is hooked up to the
fan. Plug the 3 wire cord into a suitable recepta-
cle. Do not cut the ground terminal off under any
circumstances. When connected with 120 volts,
the appliance must be electrically grounded in ac-
cordance with local codes, or in the absence of local
codes, with the current Canadian Electrical Code
CSA C22.1 (in Canada) or with the current National
Electrical Code ANSI/NFPA 70-1987 (in U.S.A.).
NOTE:This unit is equipped with a heat sensor
thermodisc which will prevent the blower
from operating until the unit reaches the
correct temperature.
Height Depth Width
23-3/8" 12-1/2" 32"
MINIMUM FIREPLACE
OPENING FOR
MASONRY AND FACTORY
BUILT FIREPLACES
The minimum fireplace opening for this Regency
gas insert are listed below.
VENTING
THE APPLIANCE MUST NOT BE
CONNECTED TO A CHIMNEY FLUE
SERVING A SEPARATE SOLID FUEL
BURNING APPLIANCE.
Thisapplianceisdesignedtoattachtoa4"diameter
typeB-Vent ordoublethicknessapprovedaluminium
flex liner.
The flue collar of the appliance will fit inside a
standard vent and may be fastened directly to the
vent using a minimum of 3 sheet metal screws or
a B-Vent, single wall vent connector.
B-Vent chimneys require a 1" clearance to com-
bustibles.
The Regency®Insert incorporates its own internal
draft hood, so no additional external draft hood is
required. Check periodically that the vent is unre-
stricted and an adequate draft is present when the
unit is in operation.
Before installing the vent system ensure that the
damper plate is locked into the open position and
secure to prevent the damper plate from falling
down and crushing the liner.
Theapplianceisequippedwithaventsafetyshutoff
system and a safety control system designed to
protect against improper venting of combustion
products. The appliance will not function without
being connected to a proper system.
WARNING: Operation of this heater when
not connected to a properly installed and
maintained venting system or tampering
with the vent shut-off system can result
in carbon monoxide (CO) poisoning and
possible death.
Thisappliancemustnotbeconnectedtoachimney
flueservingaseparatesolidfuelburningappliance.
Forbestventingperformance,werecommendthe
following venting rules:
1. UseonlycertifiedTypeB gas vent or approved
flex liner.
2. Followtheventmanufacturer'sinstructionsand
clearance requirements.
3. Observe any local code restrictions, if any,
regarding the installation of gas inserts.
4. Use as few elbows as possible.
5. Keep horizontal lengths as short as possible
andmaintainatleastanupwardslopeof1/4in.
(6.4mm)forevery12 in. (305mm) of horizontal
run.
6. Terminate the vent with a suitable certified
vent cap.

Regency®E18 Gas Fireplace Insert 11
INSTALLATION
MINIMUM FIREPLACE CLEARANCES TO COMBUSTIBLES
Diagram shows the minimum clearances to any combustible material. Installer must check that all installs maintain at least these clearances..
 
PP



PP



PP



PP



PP



PP



PP
 
PP



PP



PP



PP
 
PP

The minimum clearance from the side of the appliance to a combustible
side wall is 6" (229mm). The minimum clearance from the bottom edge
of the front trim above the window to a combustible mantel is 17- 7/8 "
(454 mm). The minimum height from bottom edge of the front trim above
the window to the ceiling is 37-7/8"(962 mm).
Note: A non-combustible mantel and framing may be installed
at a closer tolerance if the framing is made of metal studs
covered with a non-combustible board.

PP
0LQ

PP
PLQ

PP
0LQ

PP
0LQ
6LGHZDOO
0DQWHO
&HLOLQJ
)ORRU
GHJ

PP
0D[
 
PP

$OORZDEOH
0DQWOH
DUHD
Diagram 3.1
Diagram 3.2

12 Regency®E18 Gas Fireplace Insert
INSTALLATION
ZERO CLEARANCE FRAMING
VENTING CONFIGURATIONS
The E18 is approved to be attached to any of the approved appliances listed
in the Installation Checklist.The existing unit must be connect to B-Vent Pipe
having at least 8 feet of vertical venting and can having a maximum of 6 feet
horizontal venting with two 90 degree elbows. The venting must terminate
vertically with an approved B-Vent Cap.
When Installing the E18 as a Zero Clearance Unit, the E18 will connect to
4" B-Vent only. You must use a minimum of 8 feet of vertical pipe and you
may use up to a maximum of 6 feet of horizontal pipe with two 9 degree
elbows.The venting must terminate vertically with an approved B-Vent Cap.
All horizontal runs must maintain a 1/4" of rise for every foot of horizontal run.

PP
0LQ

PP
0LQ
 
PP


PP
0LQ

PP
0LQ

PP
0LQ
&KDVH
'HSWK
+HDGHU+HLJKW
&HLOLQJ+HLJKW
(,QVHUW
=HUR&OHDUDQFH
.LW6XUURXQG
)UDPLQJ
7\SLFDO
)UDPLQJ
1. When installing the E18 as a
zero clearance, you will use
the framing clearances in the
following diagrams. Mantel
and inside corner clearances
can be found in Minimum
Clearances to Combustibles.
2. Attach the E18 to the Zero
Clearance Kit.
3. Attach the Zero Clearance Kit
to the Framing.
4. Install the Surround as per
manual.
Diagram 4.1
Diagram 4.2

Regency®E18 Gas Fireplace Insert 13
INSTALLATION
35-9/16"
(903mm)
41"
(1042mm)
14-1/2"
(369mm)
36"
(914mm)
32-1/2"
(825mm)
37-13/16"
(961mm)
1. Shut down existing unit and allow to cool to room temperature.
2. Turn off gas supply and disconnect electrical.
3. Remove all accessories from existing unit, ie.glass doors, louvers, etc.
4. Remove any tiles, hearth or surround from existing unit (if required).
5. Disconnect gas supply from existing unit.
6. Cut away a perimeter of drywall around the existing unit to expose the
framing. See example below.
7. Uninstall existing unit from framing.
8.Disconnect venting from existing unit - remove carefully to avoid damage.
9. Remove existing unit from framed opening.
10. Measure framed opening and compare to dimension requirements
for ZC kit (noted below).
Remove existing wood header and replace with supplied steel
stud. Supplied stud will be longer than framed opening, adjust to fit
before installing.
Additional adjustments to framed opening may be required.
11. Bend ZC kit side pieces as shown and remove knockouts (if required)
before installation.
Bend to 90º
secure in place to
supplied steel stud
Remove knockouts
(if required)
Bend to 90º
616-900 E18 ZC Kit contains the following:
1 ZC Left Section
1 ZC Right Section
1 ZC Base Section
1 ZC Back Center Section
1 ZC Trim surround LH
1 ZC Trim surround RH
1 ZC Trim surround Top
1 ZC Lower Trim piece
1 Steel Stud header (required)
26 (904-897) #8 x 9/16" black wafer screws
25 (904-576) #8 x 1/4" Phillips screws
NOTE: Before removing existing unit - ensure ZC kit will fit.
Framed opening - Top View
Framed opening - Side View
Cut drywall
Remove unit from framing
Side pieces
ZERO CLEARANCE KIT INSTALLATION

14 Regency®E18 Gas Fireplace Insert
INSTALLATION
12. When framing is complete, ensure wiring is installed by an electrician
prior to installing ZC kit.
13. Install the base of the ZC kit first. Knockout may need to be removed
to accommodate gas line - see below for example.
14. Install one side section of the ZC kit. Fasten side and back with
(904-576) screws provided. Fasten the header tab (folded in Step
11 to the 2"X4" with 1 screw.
NOTE: Side/back sections–fit inside base section.
15. Install the back section of the ZC kit. Fasten bottom, back and side
sections with (904-576) screws provided.
16. Install the remaining side of the ZC kit. Bring the electrical box to the
inside of the ZC kit. Fasten side and back sections with (904-576)
screws provided.
17. Assemble ZC kit surround with 8 (904-897) screws provided in loca-
tions shown below.
18. Secure surround and outside flange of ZC sides to the stud on each side
with (904-897) screws provided.
Assemble the
ZC box surround
with 4 screws on
each side.
Use 4 screws on each side to secure surround
and ZC box to studs.
Fasten ZC box sections with provided screws.
Base install
Sides/Back install

Regency®E18 Gas Fireplace Insert 15
INSTALLATION

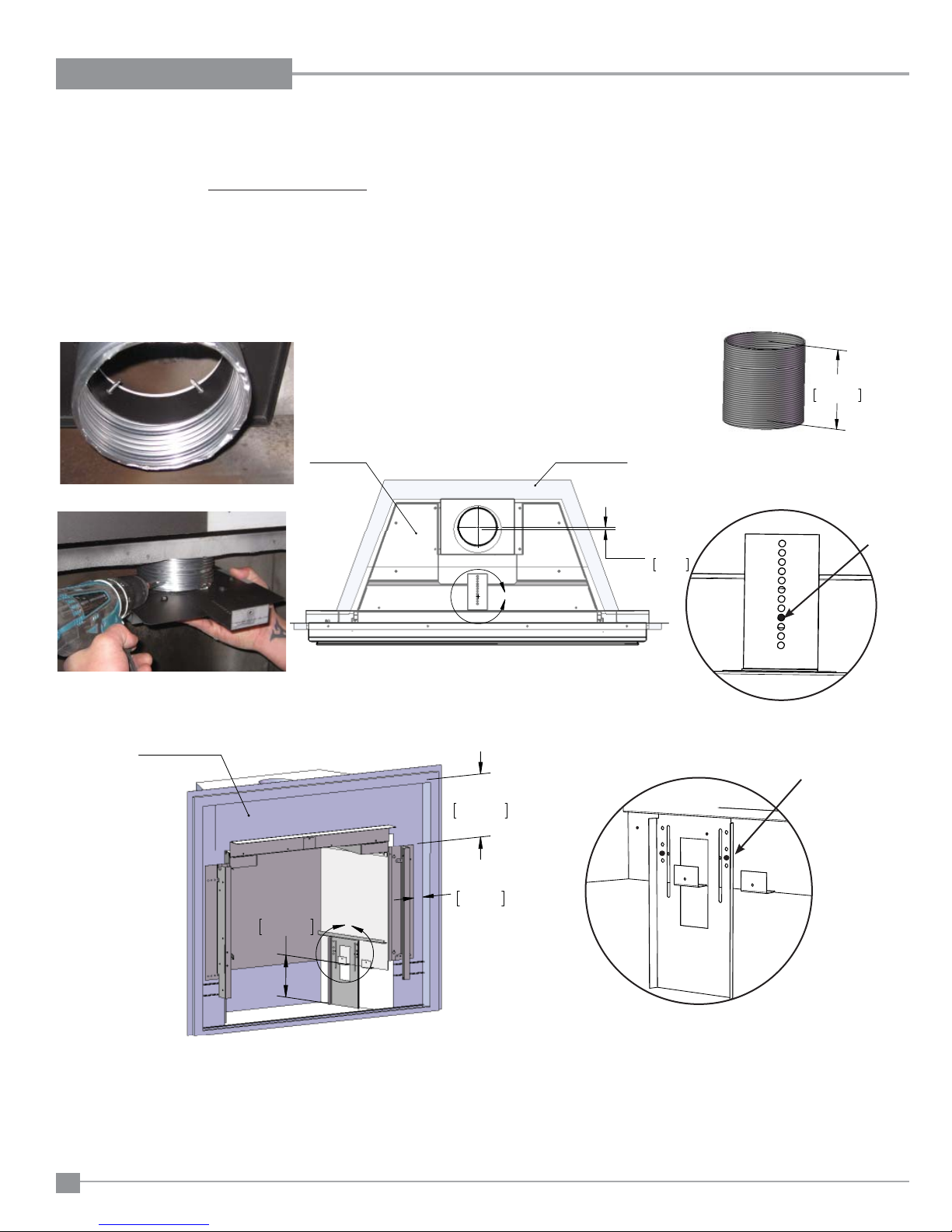

22.Follow instructions in the manual for installation into a EP28-2 for exact
measurements for installation of the outside firebox to the surround.
Right side shown
Set to this
hole
Outside firebox shown in position - refer to
measurements (Step 22) before securing to surround.

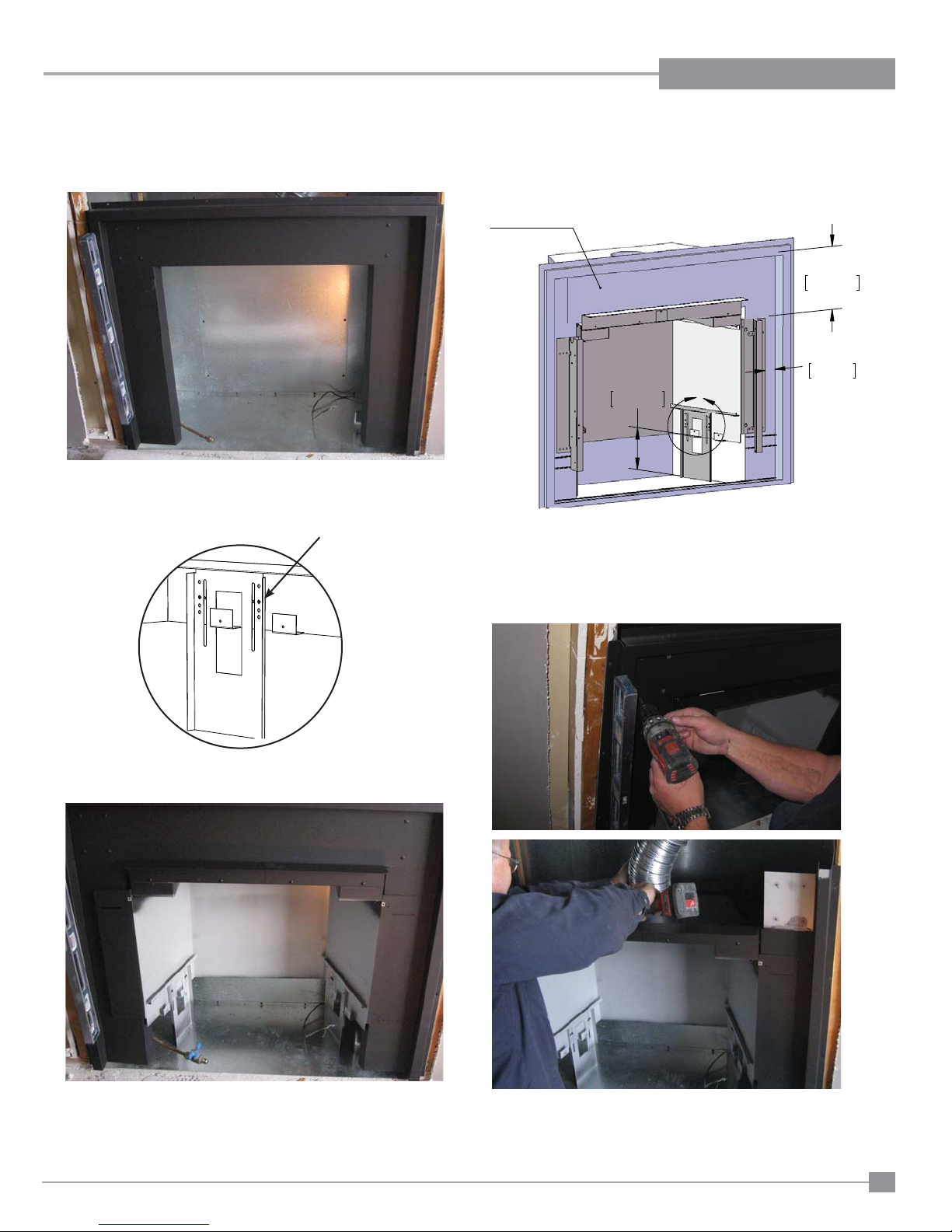

19. ZC box and surround installed into framed opening.
20. Separate E18 inner and outer fireboxes - see E18 installation manual
for details.
21. Set E18 outside firebox legs as shown below.
23. The top panel of the ZC surround may be removed to ease the in-
stallation of the venting - reinstall top panel after venting is installed.
*Extra venting may be required to get inside the ZC box. A 4" flex can
be used if required (not provided), if inside ZC shell.
 
PP



PP



PP

$
(3)LUHER[
/H
J
24. Follow instructions in the E18 installation manual to complete the
install of inner firebox.
Follow Step 25 before installing faceplate.

16 Regency®E18 Gas Fireplace Insert
INSTALLATION

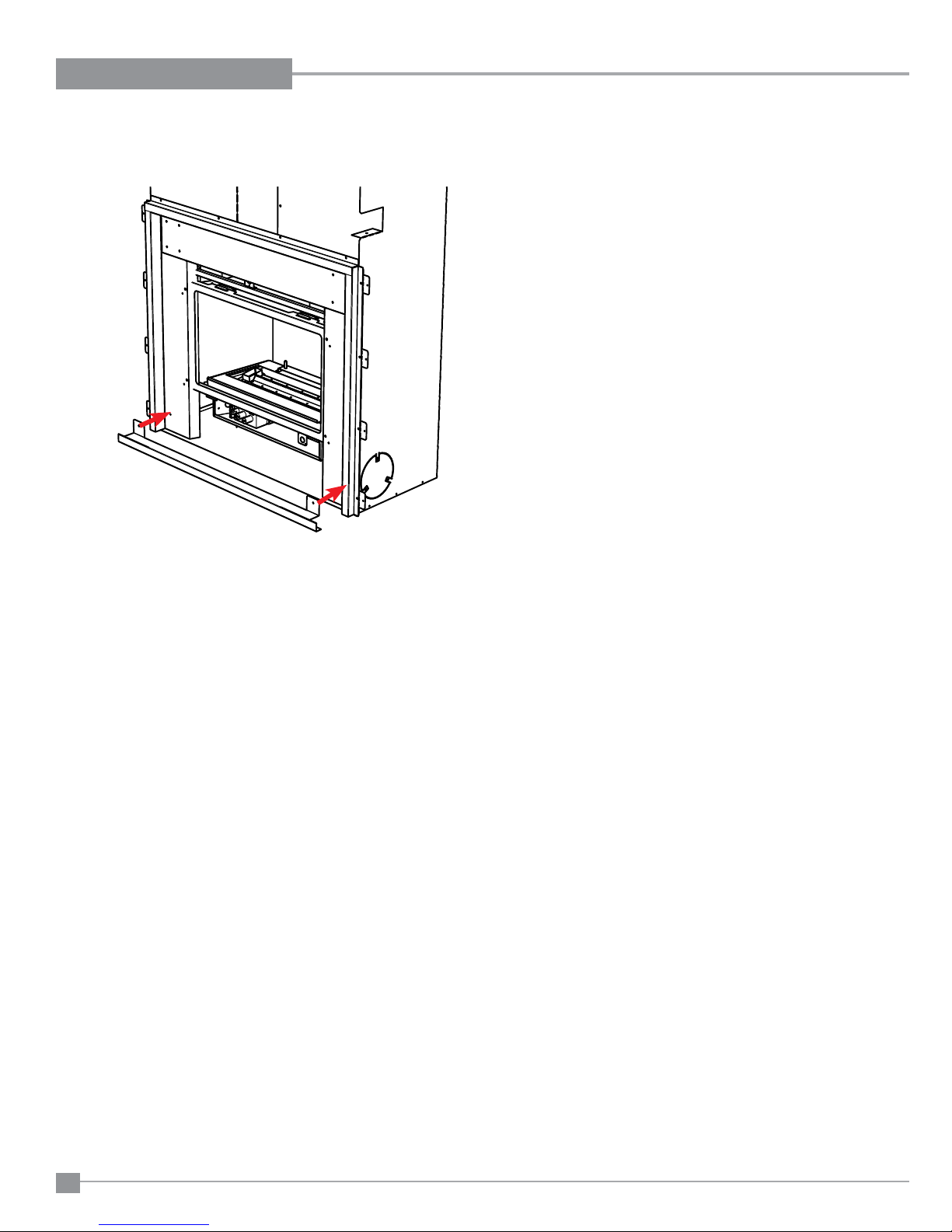

25. Install lower trim piece with 2 (904-897) screws to the bottom of the
ZC surround before installing faceplate.

Regency®E18 Gas Fireplace Insert 17
INSTALLATION
REQUIRED STEPS AND PROCEDURES FOR E18 INSTALLATION
1. Locate model on existing ZC box - locate corresponding section in this manual.
2. Make necessary alteration to the ZC firebox as per manual.
3. Separate inner and outer fire box (see procedure in manual).
4. Remove flue adaptor for outer firebox.
5. Make necessary adjustment to flue adapter mounting plate as per manual.
6. Cut flex to required length and secure to top plate using 3 screws and washers.
7. Secure top plate flue adapter to ZC box.
8. Secure flue adapter to flex using 3 screws/washers.
9. Slide outer firebox into place, be sure flue adapter mounting screw doesn't hold unit up on installation.
10. Adjust left and right side lgs on outer shell (depends on ZC box it is being intalled in) - See details in manual.
11. Measure and align outer firebox as per manual, secure each corner using self tapping screws.
12. Install inner firebox into outer firebox, ensure draft hood bottom fits on top of draft hood slides, left side, right side and rear.
13. Secure inner firebox - 2 screws on top left and right side - using existing holes.
14. Secure inner firebox on bottom inside - 2 screws on each side. Be sure to re install panel brackets, and line up with existing holes.
15. Reinstall burner.
16. Make gas connection - check for leaks.
17. Install enamel panels.
18. Install Faceplate
19. Install Glass Crystals on burner.
20. Light pilot.
21. Install glass door.
22. Install thermostat.
• Nibbler
• Oscillating tool / metal blades
• Tin snips
• Uni Bit/Step Drill
• Black high temp paint
• Drill/ ¼” bit – Phillips bit
• Measuring tape
• Level
• Sharpie
• Shop vacuum
TOOLS REQUIRED (SUGGESTED)
Nibbler
Oscillating tool
Optional:
• Plasma cutter
• Fibre drop sheet
• Fire extinguisher

18 Regency®E18 Gas Fireplace Insert
INSTALLATION
E18

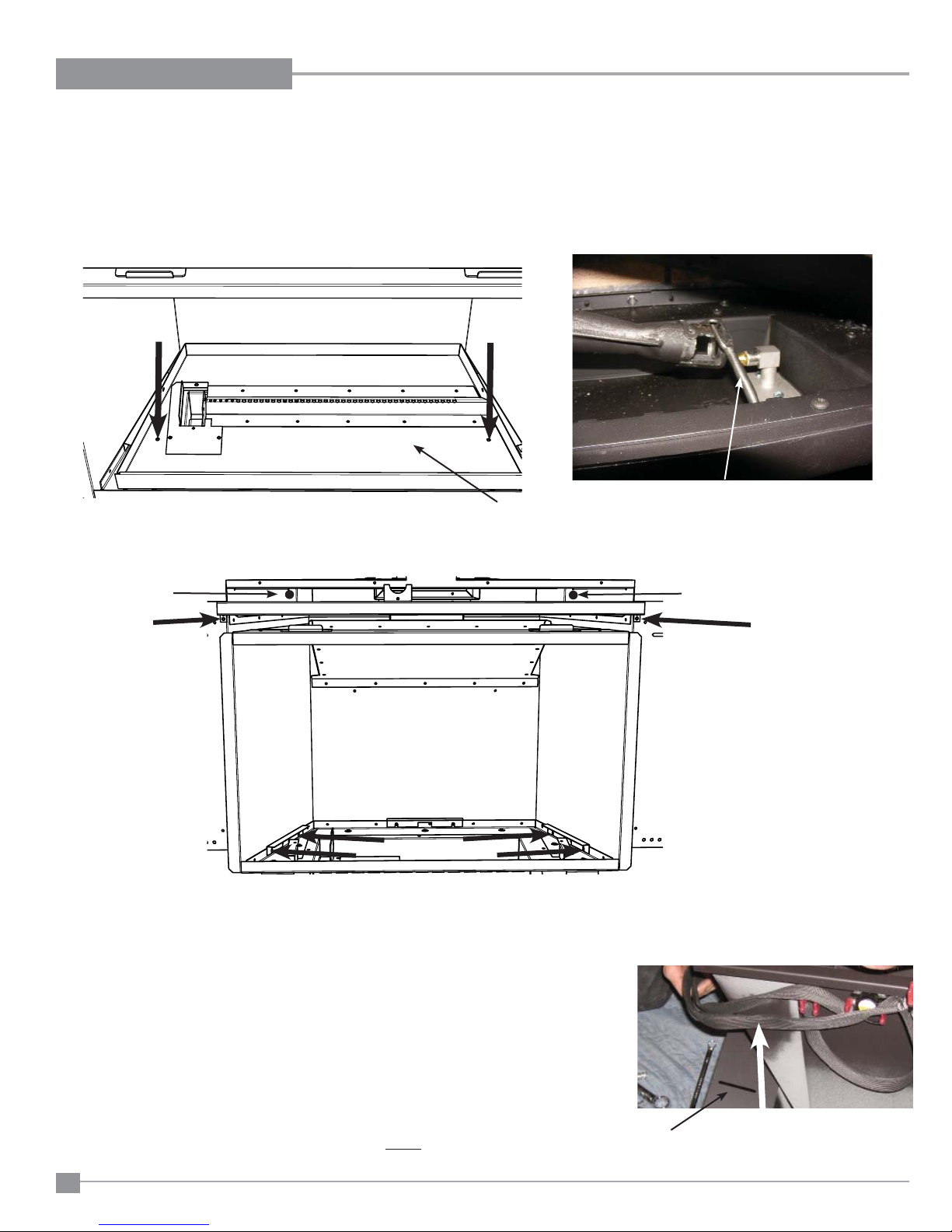

SEPARATING THE OUTER FIREBOX SHELL FROM INNER FIREBOX
1. Lay fireplace insert on flat surface (use a drop sheet to protect surface).
2. Remove Glass Door by removing 2 x Phillips screws at the bottom of Glass Door Frame.
3. Remove burner by removing 2 x Phillips screws, take note of how aeration adjustment rod is routed.
4. Remove 2 Phillip screws from top left and right side (Thermodisc bracket).
Remove 2 x 1/4" Hex head screws from top left side and right side of inner firebox.
5. Remove 4 Phillips crews - 2 per side, located on the bottom base of the firebox. Place
screws and panel brackets aside for reinstallation.
6. Carefully lift out the inner firebox and set aside until required. Use caution with sleeved
wires on the left side, place inner firebox aside.
7. Outer firebox shell is ready for installation.
Refer to particular approved appliance in which the E18 is being installed into for the
following:
Existing unit modifications
Adaptor setting
Required flex length
Leg setting / outer shell position both need to be exact as measurements indicated. Outer shell
Before separating Outer Shell and
Unit—Clear wire harness
Aeration adjustment Rod
Burner
Remove screws from these locations
Hex Head
Screws
Phillips
Screws

Regency®E18 Gas Fireplace Insert 19
INSTALLATION
MODIFICATION OF MONTIGO EP28-2, EP28-4
OR EP28-5
*Units could have any of the following Log Sets Installed: 2LB (2 Log Set),
MB (2 Log Set), 4LB (4 Log Set)
1. Turn off unit, disconnect Gas and Power.
2. Remove Upper and Lower Louvers.
3. Remove Optional Doors or Screen Mesh.
4. Remove Logs.
5. Remove Bottom Door Rail (See Diagram 5.1).
6. Remove Burner Assembly (See Diagram 5.1).
Diagram 5.1
Diagram 5.2
Grind corners
Diagram 5.3
Diagram 5.4
Modidfied edges must be flush to allow proper seating of the E18
outer shell.
7. Cut the Front Bar Out on the left and right Sides of the Firebox. (See
Diagram 5.2). Grind the corners smooth on the left side - to reduce the
risk of wires being cut. Alternate method is to cut front bar in the center
and break off each side spot weld completely.
8. Remove Hood and Inner Baffle (See Diagram 5.3).
9. Bend Down the Three Flanges at the Bottom of the Firebox or cut them
off (See Diagram 5.4).

20 Regency®E18 Gas Fireplace Insert
INSTALLATION
E18 INSTALLATION SPECIFICATIONS
See Installation of E18 into Existing Units for General Installation Guidance - for vent connection configuration.
This install of the E18 uses Vent Connection Type A.
The length of 4" Flex needed is 4 -1/8" semi-expanded.
Secure flue adapter top plate to under side of existing firebox using 4 self tapping screws.
The height of the unit installed is shown below.
 
PP



PP



PP

$
(3)LUHER[
/H
J
Right side shown
 
PP



PP

%
(3)LUHER[ (,QVHUW
'(7$,/%
6&$/(
$GDSWRU3ODWH
IDVWHQHUVHWWLQJ
)OH[$GDSWRU/HQJWK
&ROODU3ODWH6HWWLQJ9HQWSRVLWLRQ
1. Loosen 2 x Phillips screws on both right and left legs.
2. See above diagram below for required leg setting.
3 Install with supplied Phillips screws to pre-punched holes and tighten previous screws that were loosened in Step 1.
4. Keep left side leg loose until outer firebox is in position in ZC box - to allow adjustment of gas line.
EP28-4 / EP28-5 INSTALLATION SPECIFICATIONS
Set to this
hole
Set to this
hole
Secure top plate to firebox w/4 screws.
Secure vent slide plate to flex pipe with 4
screws
