Regency Fireplace Products Bellavista B36XTCE Quick start guide

WARNING:
Iftheinformationintheseinstructionsarenotfollowedexactly,
a fire or explosion may result causing property damage,
personal injury or loss of life.
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
Installation and service must be performed by a qualified
installer, service agency or the gas supplier.
FOR YOUR SAFETY
What to do if you smell gas:
Do not try to light any appliance
Do not touch any electrical switch:
do not use any phone in your
building.
Immediately call your gas supplier
from a neighbour's phone. Follow
the gas supplier's instructions.
If you cannot reach your gas
supplier, call the fire department.
FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4
919-154
Regency Bellavista™
B36XTCE
Gas Fireplace
10/30/13
Owners &
Installation Manual
www.regency-fire.com
Tested by: Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
MODEL: B36XTCE
Medium DV Gas Fireplace
Bellavista
B36XTCE Video

2Regency B36XTCE Gas Fireplace
To the New Owner:
Congratulations!
Youaretheownerofastate-of-the-artGasFireplacebyREGENCY®.The Bellavista™ B36XTCE has been designed to
provide you with all the warmth and charm of a wood fireplace at the flick of a switch. The Bellavista™ B36XTCE has
been approved by Warnock Hersey/Intertek for both safety and efficiency. As it also bears our own mark, it promises
to provide you with economy, comfort and security for many trouble free years to follow. Please take a moment now
to acquaint yourself with these instructions and the many features of your Regency®Fireplace.
Bellavista
B36XTCE Bellavista B36XT Gas Fireplace Benefits

Regency B36XTCE Gas Fireplace 3
MANUFACTURED MOBILE HOME REQUIREMENTS
INFORMATION FOR MOBILE/MANUFACTURED HOMES AFTER FIRST SALE
This Regency®product has been tested and listed by Warnock Hersey as a Direct Vent Wall Furnace to the following standards:
VENTED GAS FIREPLACE HEATERS ANSI Z21.88-2009 / CSA 2.33-2009 and GAS-FIRED APPLIANCES FOR USE AT HIGH
ALTITUDES CAN / CGA 2.17-M91.
ThisDirectVentSystemAppliancemustbeinstalledinaccordancewiththemanufacturer'sinstallationinstructionsandtheManufactured
Home Construction and Safety Standard, Title 24 CFR, Part 3280, or the current Standard of Fire Safety Criteria for Manufactured
Home Installations, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240-MH Mobile Home Standard in Canada.
This appliance installation must comply with the manufacturer's installation instructions and local codes, if any. In the absence of
local codes follow the current National Fuel Gas Code,ANSI Z223.1 and the current National Electrical Code ANSI/NFPA70 in the
U.S.A., and the current CAN/CGA B149 Gas Installation Code and the current Canadian Electrical Code CSA C22.1 in Canada.
This appliance comes equipped with a dedicated #8 Ground Lug for attachment of the ground wire to the steel chassis as applicable
to local codes.
The appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with
the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1.
This appliance may only be installed in an aftermarket permanently located, manufactured (U.S.Aonly) or mobile home, where not
prohibited by local codes.
This appliance can only be used with the type of gas indicated on the rating plate. This appliance is not convertible for use with
other gases.
Ensure that structural members are not cut or weakened during installation.

4Regency B36XTCE Gas Fireplace
TABLE OF CONTENTS
SAFETY LABEL
Copy of Safety Decal.....................................................5
REQUIREMENTS
MA Code - CO Detector.................................................6
DIMENSIONS
Unit Dimensions ............................................................7
INSTALLATION
Important Message ......................................................8
Before You Start ............................................................8
General Safety Information............................................8
Installation Checklist.....................................................9
Locating Your Gas Fireplace.........................................9
Clearances ..................................................................10
Mantel Clearances.......................................................11
Mantel Leg Clearances................................................12
Non- Combustible Requirements: ...............................12
Framing ......................................................................13
Framing & Finishing.....................................................14
Tile Finish ............................................................14
Clean Finish.........................................................14
Unit Assembly Prior to Installation...............................16
Top Standoff Assembly........................................16
Nailing strips........................................................16
Venting Introduction.....................................................18
Vent Restrictor, Baffle & Heat Deflector Installation ....19
Exterior Vent Termination Requirements.....................20
4" X 6-5/8" Rigid Pipe .................................................21
5" X 8" Rigid Pipe ......................................................23
AstroCap XL & Rigid REAR VENT KIT for CORNER
INSTALLATIONS.........................................................28
RIGID PIPE 5" x 8"..............................................28
venting arrangements For Horizontal TerminationS
29
RIGID PIPE 4" x 6-5/8"........................................29
Horizontal terminations................................................31
Two (2) 90oElbows (Rigid Pipe 4" x 6 - 5/8") ..............31
Horizontal terminations................................................31
Three (3) 90oElbows (Rigid Pipe 4" x 6 - 5/8")............31
venting arrangements For Vertical TerminationS.32
RIGID PIPE 4" x 6-5/8"........................................32
Vertical terminations ...................................................33
Three (3) 90oElbows (Rigid Pipe 4" x 6 - 5/8")............33
venting arrangements..........................................34
With Co-linear Flex System.................................34
Vertical Terminations ...........................................35
Co-linear Flex System Into Masonry Fireplaces .35
Unit Installation with Horizontal Termination ...............36
4" x 6-5/8" or 5" x 8" Venting ......................................36
Unit Installation with Horizontal Termination ...............37
Unit installation with Vertical Termination ....................38
Gas Line Installation....................................................38
Pilot Adjustment...........................................................39
High Elevation .............................................................39
886 S.I.T. Valve Description.........................................39
Gas Pipe Pressure Testing..........................................39
Conversion from NG to LP ..........................................40
Brick panel installation.................................................42
Optional black enamel panel installation.....................43
Log set installation.......................................................44
Optional Fan installation..............................................47
AC power adaptor installation (for surefire systems)...48
GT Remote installation................................................49
Optional Wall Thermostat ...........................................50
Optional Remote Control.............................................50
Optional Wall Switch....................................................50
GTM Remote installation.............................................51
GTMF Remote installation...........................................53
Aeration Adjustment ....................................................56
Wiring diagram ............................................................56
PROFLAME SYSTEM WIRING diagram.....................56
Optional accent light Installation..................................58
Mesh guard Installation ...............................................61
Flush glass door Installation........................................62
OPERATING INSTRUCTIONS
Operating Instructions .................................................63
First Fire ......................................................................63
Lighting Procedure ......................................................63
Shutdown Procedure...................................................63
Normal Operating Sounds of Gas Appliances.............63
Copy of Lighting Plate Instructions..............................64
Maintenance Instructions.............................................65
Log Replacement ........................................................65
Bulb Replacement.......................................................65
Removing Valve...........................................................66
Installing Valve.............................................................66
PARTS LIST
Main Assembly ............................................................67
Burner Assembly .........................................................69
WARRANTY
The Warranty: Limited Lifetime ...................................71

Regency B36XTCE Gas Fireplace 5
SAFETY LABEL
This is a copy of the label that accompanies
each Bellavista™ B36XTCE Direct Vent Gas
Fireplace. We have printed a copy of the
contents here for your review.
NOTE: Regency®units are constantly being
improved. Check the label on the unit and if
there is a difference, the label on the unit is
the correct one. COPY OF SAFETY DECAL
FortheState of Massachusetts, installation
and repair must be done by a plumber or
gas fitter licensed in the Commonwealth of
Massachusetts.
For the State of Massachusetts, flexible
connectors shall not exceed 36 inches in
length.
For the State of Massachusetts, the appli-
ances individual manual shut-off must be a
t-handle type valve.
The State of Massachusetts requires the
installation of a carbon monoxide alarm in
accordancewithNFPA720andaCOalarm
withbatterybackupinthesameroomwhere
the gas appliance is installed.
DO NOT REMOVE THIS LABEL / NE PAS ENLEVER CETTE ÉTIQUETTE
410
410
DOOR SEAL: Please
check that the door is
properly sealed
FPI Fireplace Products International Ltd. Delta, BC, Canada
Minimum Clearances to Combustibles /
Degagement Minimum De Materiaux Combustibles
Serial No./ No de serie
919-153
MAY BE INSTALLED IN MANUFACTURED (MOBILE) HOMES AFTER FIRST SALE.
Listed:
Certified for/Certifi e pour:
Tested to:
VENTED GAS FIREPLACE HEATER /
CANADA and U.S.A.
FOYER AU GAZ À ÉVACUATION
é
CAN/CGA-2.17-M91(R2009)
ANSI Z21.88-2009/CSA 2.33-2009
Electrical supply/Électrique 115VAC, 1.13 A, 60Hz.
NOT FOR USE WITH SOLID FUELS. /
NE PAS UTILISER AVEC DU COMBUSTIBLE SOLIDE.
Made in Canada/ Fabrique au Canada
Duplicate S/N
0" Clearance to
combustibles from:
Mantel Clearances from
Fireplace Opening:
Side Wall Clearance
from Fireplace Opening
Ceiling from Top of
Fireplace Opening:
Mantel Depth:
Alcove Clearances:
Sides, bottom and rear of unit
(A) Min. 15-1/2" (394mm)
B) Min. 12” (305mm)
C) 39” (991mm)
D) Max. 12” (304mm)
F) Max. Depth 36" (914mm)
*Top - 3-1/2" (89mm) non-combustible
material required above unit.
(on one side)
E) Min. Width 84" (2134mm),
(See Instruction Manual for
detailed instructions)
ÉÉ
é
QUIP A L'UISINE POUR GAZ PROPANE
CONCU POUR ETRE POELE: Mod le B36XTCE-LP
PROPANE GAS: Model B36XTCE-LP
Minimum supply pressure
Manifold pressure high
Manifold pressure low
Orifice size
Minimum input
Maximum input
Altitude
NATURAL GAS: Model B36XTCE-NG
APPAREIL FONCTIONNANT AU NATURAL GAS
CONCU POUR ETRE POELE: Mod le B36XTCE-NG
Pression d'allimentation minimum
Pression à la tubulure d' chappement lev e
Pression à la tubulure d' chappement basse
Grandeur de l'injecteur
D bit minimum selon
D bit maximum selon
l'altitude
Calorifique
Calorifique
é
ééé
é
é
é
5.0" (1.25 kPa)
3.5" (0.87 kPa)
1.6" (0.40 kPa)
#35 DMS
0-4500 ft/pi (0-1372 m)
WC/C.E.
WC/C.E.
WC/C.E.
21,500 Btu/h (6.3 kW)
31,000 Btu/h (9.09 kW)
Pression d'allimentation minimum
Pression à la tubulure d' chappement lev e
Pression à la tubulure d' chappement basse
Grandeur de l'injecteur
D bit minimum selon
D bit maximum selon
l'altitude
Calorifique
Calorifique
ééé
é
é
é
11" (2.74 kPa)
10" (2..49 kPa)
6.4" (1.60 kPa)
#51 DMS
0-4500 ft/pi (0-1372 m)
WC/C.E.
WC/C.E.
WC/C.E.
25,000 Btu/h (7.33 kW)
31,000 Btu/h (9.09 kW)
Minimum supply pressure
Manifold pressure high
Manifold pressure low
Orifice size
Minimum input
Maximum input
Altitude
This appliance must be installed in accordance with local codes, if any; if none, follow the National Fuel Gas Code, ANSI Z223.1, or Natural Gas and Propane Installation Code, CSA B149.1.
This appliance must be installed in accordance with the Standard CAN/CSAZ240 MH, Mobile Housing, in Canada, or with the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, in the
United States, or when such a standard is not applicable,ANSI/NCSBCS A225.1/NFPA501A, Manufactured Home Installations Standard or ANSIA119.2 ou NFPA 501C Standard for Recreational Vehicles
This appliance is only for use with the type of gas indicated on the rating plate and may be installed in an aftermarket, permanently located, manufactured (mobile) home where not prohibited by local codes. See
owner's manual for details. This appliance is not convertible for use with other gases, unless a certified kit is used. (Kit #576-972).
Fan Part # 576-917.
Installer l'appareil selon les codes ou règlements locaux, ou, en l'absence de tels règlements, selon les codes d'installationANSI Z223.1, National Fuel Gas Code ou CSA-B149.1 en vigueur.
Installer l'appareil selon la norme CAN/CSA-Z240, Série MM, Maison mobiles ou CAN/CSA-Z240 VC, Véhicules de camping, ou la norme 24 CFR Part 3280, Manufactured Home Construction and Safety
Standard. Si ces normes ne sont pas pertinentes, utilisez la norme ANSI/NCSBCS A225.1/NFPA 501A, Manufactured Home Installations Standard, ou ANSI A119.2 ou NFPA 501C Standard for Recreational
Vehicles.
This vented gas fireplace heater is not for use with air filters. Ne pas utiliser de filtre à air avec ce foyer au gaz à évacuation.
FOR USE WITH GLASS DOORS CERTIFIED WITH THE APPLIANCE ONLY
Cet appareil doit être utilize uniquement avec le type de gaz indiqué sur la plaque signalétique. Cet appareil peut être installé dans une maison préfabriquée ou mobile (É.-U. seulement) installée à demeure si les
règlements locaux le permettent. Voir la notice de l'utilisateur pour plus de renseignements. Cet appareil ne peut pas être utilisé avec d'autres gaz sauf si une trousse de conversion certifiée est fournie.
POUR UTILISATION UNIQUEMENT AVEC LES PORTES EN VERRE CERTIFIÉES AVEC L'APPAREIL
4001172
C
Floor
Wall
Ceiling
A
F
E
D

6Regency B36XTCE Gas Fireplace
REQUIREMENTS
5.08: Modifications to NFPA-54, Chapter 10
(2) Revise 10.8.3 by adding the following additional requirements:
(a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for
residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than
seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall
be satisfied:
1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fueled
equipment, the installing plumber or gasfitter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is
installed on the floor level where the gas equipment is to be installed. In addition, the installing plumber or gasfitter shall observe that a battery
operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure
served by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the services of
qualified licensed professionals for the installation of hard wired carbon monoxide detectors
a. In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon
monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.
b. In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have a period of
thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon
monoxide detector with an alarm shall be installed.
2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions
shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified.
3. SIGNAGE. A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight
(8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The
sign shall read, in print size no less than one-half (1/2) inch in size, "GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL
OBSTRUCTIONS".
4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation
unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR
5.08(2)(a)1 through 4.
(b) EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:
1. The equipment listed in Chapter 10 entitled "Equipment Not Required To Be Vented" in the most current edition of NFPA 54 as adopted by
the Board; and
2. Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling, building or
structure used in whole or in part for residential purposes.
(c) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the manufacturer of Product
Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the
instructions provided by the manufacturer for installation of the equipment and the venting system shall include:
1. Detailed instructions for the installation of the venting system design or the venting system components; and
2. A complete parts list for the venting system design or venting system.
(d) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a
Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the flue gases, but identifies
"special venting systems", the following requirements shall be satisfied by the manufacturer:
1. The referenced "special venting system" instructions shall be included with the appliance or equipment installation instructions; and
2. The "special venting systems" shall be Product Approved by the Board, and the instructions for that system shall include a parts list and
detailed installation instructions.
(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions,
all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of
the installation.
MA Code - CO Detector
(for the State of Massachusetts only)

Regency B36XTCE Gas Fireplace 7
DIMENSIONS

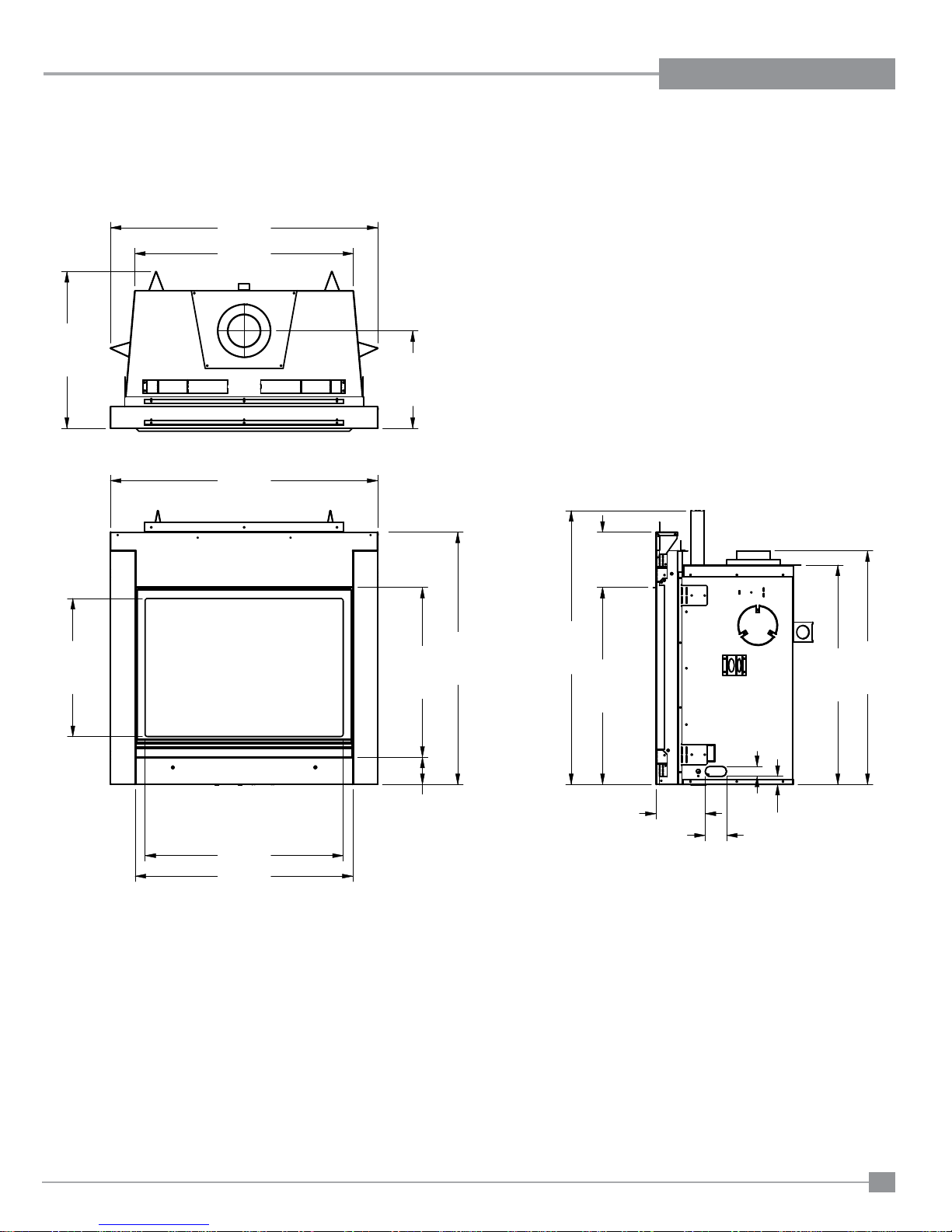

UNIT DIMENSIONS
33"
23-5/8"
40-5/16"
14-3/4"
8-5/8"
29-3/4"
41-5/16"
35-5/16'
33-1/8"
7-7/16"
3-1/4"
1-1/2
1-1/4"
40-5/8"
38-1/16"
29-7/8"
4-1/8" 25-5/8"
32-7/8"
21-13/16"
(1024mm)
(838mm)
(599mm)
3(375mm)
(1032mm)
(529mm)
(759mm)
(759mm)
(105mm) (650mm)
(79mm)
(188mm)
(32mm)
(38mm)
(840mm)
(895mm)
(756mm)
(1049mm)
(219mm)

8Regency B36XTCE Gas Fireplace
INSTALLATION
7) Any safety glass removed for servicing must
be replaced prior to operating the appliance.
8) To prevent injury, do not allow anyone who is
unfamiliarwiththeoperationtousethefireplace.
9) Wear gloves and safety glasses for protection
while doing required maintenance.
10) Be aware of electrical wiring locations in walls
andceilingswhencuttingholesfortermination.
11) Under no circumstances should this appliance
be modified. Parts that have to be removed for
servicing should be replaced prior to operating
this appliance.
12) Installation and any repairs to this appliance
should be done by a qualified service person.
Aprofessionalservice person should be called
to inspect this appliance annually. Make it a
practice to have all of your gas appliances
checked annually.
13) Do not slam shut or strike the glass door.
14) Undernocircumstancesshouldanysolidfuels
(wood,paper,cardboard, coal, etc.) beusedin
this appliance.
15) The appliance area must be kept clear and
freeofcombustiblematerials,(gasesandother
flammable vapours and liquids).
Emissions from burning wood or gas could
contain chemicals known to the State of
California to cause cancer, birth defects or
other reproductive harm.
IMPORTANT MESSAGE
SAVE THESE
INSTRUCTIONS
TheB36XTCE Gas Fireplace must be installed
inaccordancewiththeseinstructions.Carefully
read all the instructions in this manual first.
Consult the "authority having jurisdiction" to
determinethe need for apermitpriorto starting
the installation. It is the responsibility of the
installer to ensure this fireplace is installed in
compliancewithmanufacturersinstructionsand
all applicable codes.
BEFORE YOU START
Safeinstallationandoperationofthisappliance
requires common sense, however, we are
required by the Canadian Safety Standards
and ANSI Standards to make you aware of
the following:
GENERAL SAFETY
INFORMATION
1) The appliance installation must conform with
localcodesor,intheabsenceoflocalcodes,with
the current Canadian or National Gas Codes,
CAN1-B149orANSIZ223.1InstallationCodes.
2) The appliance when installed, must be
electrically grounded in accordance with local
codes,orintheabsenceoflocalcodeswiththe
currentNationalElectricalCode,ANSI/NFPA70
or CSA C22.1 Canadian Electrical Code.
3) See general construction and assembly
instructions. The appliance and vent should be
enclosed.
4) This appliance must be connected to the
specifiedventandterminationcaptotheoutside
of the building envelope. Never vent to another
room or inside a building. Make sure that the
vent is fitted as per Venting instructions.
5) Inspecttheventingsystemannuallyforblockage
and any signs of deterioration.
6) Venting terminals shall not be recessed into a
wall or siding.
CHILDREN AND ADULTS SHOULD BE
ALERTED TO THE HAZARDS OF HIGH
SURFACE TEMPERATURES, ESPE-
CIALLY THE FIREPLACE GLASS, AND
SHOULD STAY AWAYTO AVOID BURNS
OR CLOTHING IGNITION.
INSTALLATION AND REPAIR SHOULD
BE DONE BY AN AUTHORIZED
SERVICE PERSON. THE APPLIANCE
SHOULD BE INSPECTED BEFORE
USE AND AT LEAST ANNUALLY BY A
PROFESSIONAL SERVICE PERSON.
MORE FREQUENT CLEANING MAY
BE REQUIRED DUE TO EXCESSIVE
LINT FROM CARPETING, BEDDING
MATERIAL,ETC.IT IS IMPERATIVETHAT
CONTROL COMPARTMENTS,BURNERS
AND CIRCULATING AIR PASSAGEWAYS
OF THE APPLIANCE BE KEPT CLEAN.
DUE TO HIGH TEMPERATURES, THE
APPLIANCE SHOULD BE LOCATED
OUT OF TRAFFIC AND AWAY FROM
FURNITURE AND DRAPERIES.
WARNING: FAILURE TO INSTALL THIS
APPLIANCE CORRECTLY WILL VOID
YOUR WARRANTY AND MAY CAUSE A
SERIOUS HOUSE FIRE.
CLOTHING OR OTHER FLAMMABLE
MATERIAL SHOULD NOT BE PLACED
ON OR NEAR THE APPLIANCE.
YOUNG CHILDREN SHOULD BE CARE-
FULLY SUPERVISED WHEN THEY ARE
IN THE SAME AREA AS THE APPLI-
ANCE. TODDLERS,YOUNG CHILDREN
AND OTHERS MAY BE SUSCEPTIBLE
TO ACCIDENTAL CONTACT BURNS. A
PHYSICAL BARRIERS IS RECOMMEND-
ED IFTHERE ARE AT RISK INDIVIDUAL
INTHE HOUSE. TO RESTRICT ACCESS
TO A FIREPLACE OR STOVE, INSTALL
AN ADJUSTABLE SAFETY GATE TO
KEEP TODDLERS, YOUNG CHILDREN
AND OTHER AT RISK INDIVIDUALS OUT
OF THE ROOM AND AWAY FROM HOT
SURFACES.
ANY SAFETY SCREEN, GUARD, OR
BARRIER REMOVED FOR SERVICING
THE APPLIANCE,MUST BE REPLACED
PRIORTOOPERATINGTHEAPPLIANCE.
IFTHE BARRIER BECOMES DAMAGED,
THE BARRIER SHALL BE REPLACED
WITHTHEMANUFACTURER'SBARRIER
FOR THIS APPLIANCE.

Regency B36XTCE Gas Fireplace 9
INSTALLATION
This includes:
1) Clockingtheappliancetoensurethecorrect
firing rate (rate noted on label 31,000 Btu/h,
after burning appliance for 15 minutes.
2) Ifrequired,adjustingtheprimaryairtoensure
that the flame does not carbon. First allow
the unit to burn for 15-20 min. to stabilize.
CAUTION: Any alteration to the product that
causes sooting or carboning that results
in damage is not the responsibility of the
manufacturer.
LOCATING YOUR
GAS FIREPLACE
A) Flat on Wall
B) Flat on Wall Corner
C) Recessed into Wall/Alcove
D) Corner

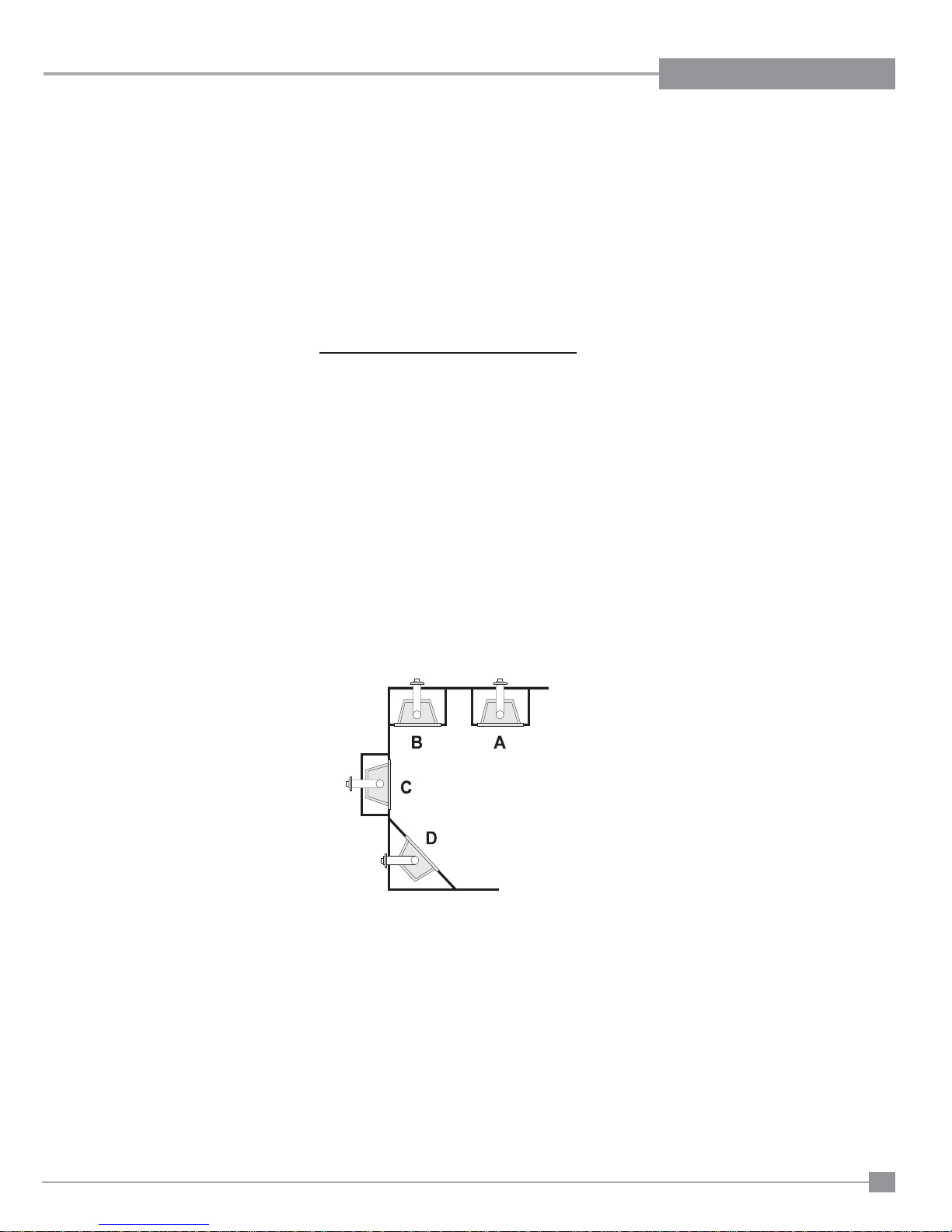

Diagram 1
1) When selecting a location for your fireplace,
ensure that the clearances are met.
2) The appliance must be installed on a flat,
solid, continuous surface For example a
wood,metalorconcretefloororinaraised(on
thewall)application.Theappliancemust be
installedonametalorwoodpanelextending
the full width and depth of the appliance.
3) TheB36XTCEGasFireplacecanbeinstalled
in a recessed position or framed out into the
room as in A, B, C and D. See Diagram 1.
INSTALLATION
CHECKLIST
1) Locate appliance
a) Room location (Refer to "Locating Your
Gas fireplace" section)
b) Clearances to Combustibles (Refer to
"Clearances" section)
c) MantleClearances(Referto"Combustible
Mantel Clearances" section)
d) Framing&FinishingRequirements(Refer
to "Framing & Finishing" section)
e) VentingRequirements(Referto"Venting"
section)
2) Assemble Top Standoffs and Top Facing
Support and Side Nailing Strips (Refer to
"UnitAssemblyPriortoInstallation"Section).
NOTE: Must be done before installing unit
into place.
3) Install vent (Refer to "Venting" sections).
4) Make gas connections. Test the pilot. Must
beasperDiagram(Referto"PilotAdjustment
" section).
Converttopropaneifdesired(Referto"Gas
Line Installation" and "Conversion Kit from
NG to LPG" sections).
5) Make electrical connections to receptacle
supplied with unit (recommended).
6) Installstandardandoptionalfeatures. Refer
to the following sections:
a. Install 4AA batteries into battery pack or
install optional AC power adaptor
b. Inner Panels or Brick Panels (Optional)
c. Log Set Installation
d. Standard Flush Door
e. Remote Control
f. Wall Switch
g. Wall Thermostat
h. Fan Installation (Optional)
i. Light Installation (Optional)
7) Final check.
4) This appliance is Listed for bedroom
installations using the standard Remote
(millivolt thermostat system). Some areas
may have further requirements, check local
codes before installation.
5) The B36XTCE Gas Fireplace are approved
for alcove installations, see "Clearances"
section for details.
6) We recommendthatyouplanyourinstallation
on paper using exact measurements for
clearances and floor protection before
actually installing this appliance. Have an
authorized inspector, dealer, or installer
review your plans before installation.
Note: For vent terminations refer to
"ExteriorVent TerminationLocations"
section.

10 Regency B36XTCE Gas Fireplace
INSTALLATION
Caution Requirements
The top, back and sides of the fireplace are defined by
standoffs. The metal ends of the standoff may NOT be
recessed into combustible construction.
WARNING
Fire hazard is an extreme risk
if these clearances (air space) to combustible materials are not
adhered to. It is of greatest importance that this fireplace and vent
system be installed only in accordance with these instructions.

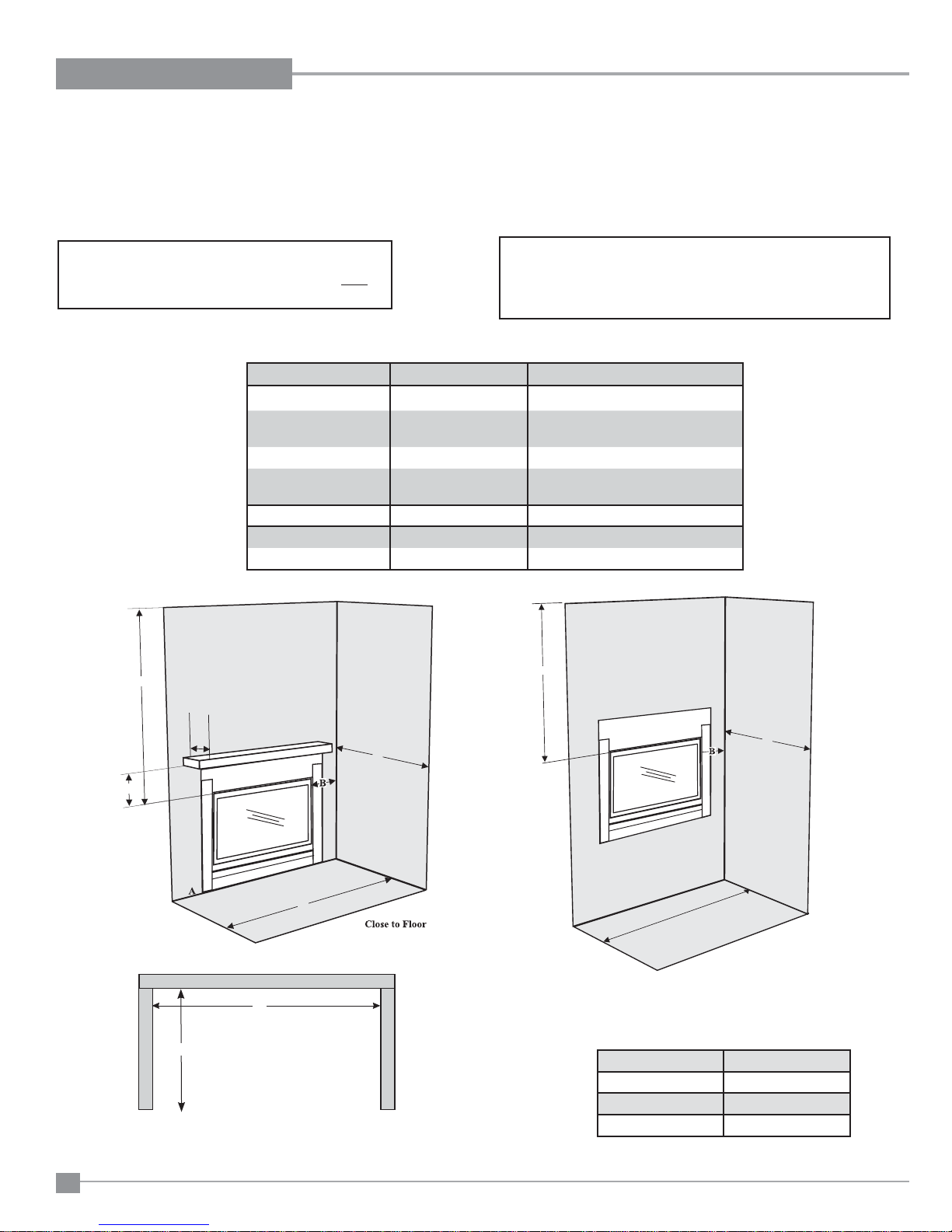

CLEARANCES
The clearances listed below are Minimum distances unless otherwise stated:
Amajorcauseofchimney related firesisfailureto maintainrequiredclearances(air space) tocombustiblematerials.It is ofthegreatestimportance
that this fireplace and vent system be installed only in accordance with these instructions.
B36XTCE Clearance Requirements
Minimum Vent Clearances
to Combustibles
Clearance: Dimension Measured From:
A: Mantel Height (min.) 15-1/2" (394mm) Top of Fireplace Opening
B: Sidewall 12" (304mm) one side
only Side of Fireplace Opening
C: Ceiling 39" (991mm) Top of Fireplace Opening
D: Mantel Depth (max.) 12" (304mm) 23-1/2 " (570mm) from
Top of Fireplace Opening
E: Alcove Width 84" (2134mm) Wall to Wall (Minimum)
F: Alcove Depth 36" (914mm) Front to Back Wall (Maximum)
Notes: 0" No Hearth Required
Horizontal Top 2" (51mm)
Horizontal Side 1-1/2 " (38mm)
Horizontal Bottom 1-1/2" (38mm)
Vertical Vent 1-1/2" (38mm)
Alcove
E
F
C
D
A
E
F
C
Close to Ceiling
F
E

Regency B36XTCE Gas Fireplace 11
INSTALLATION

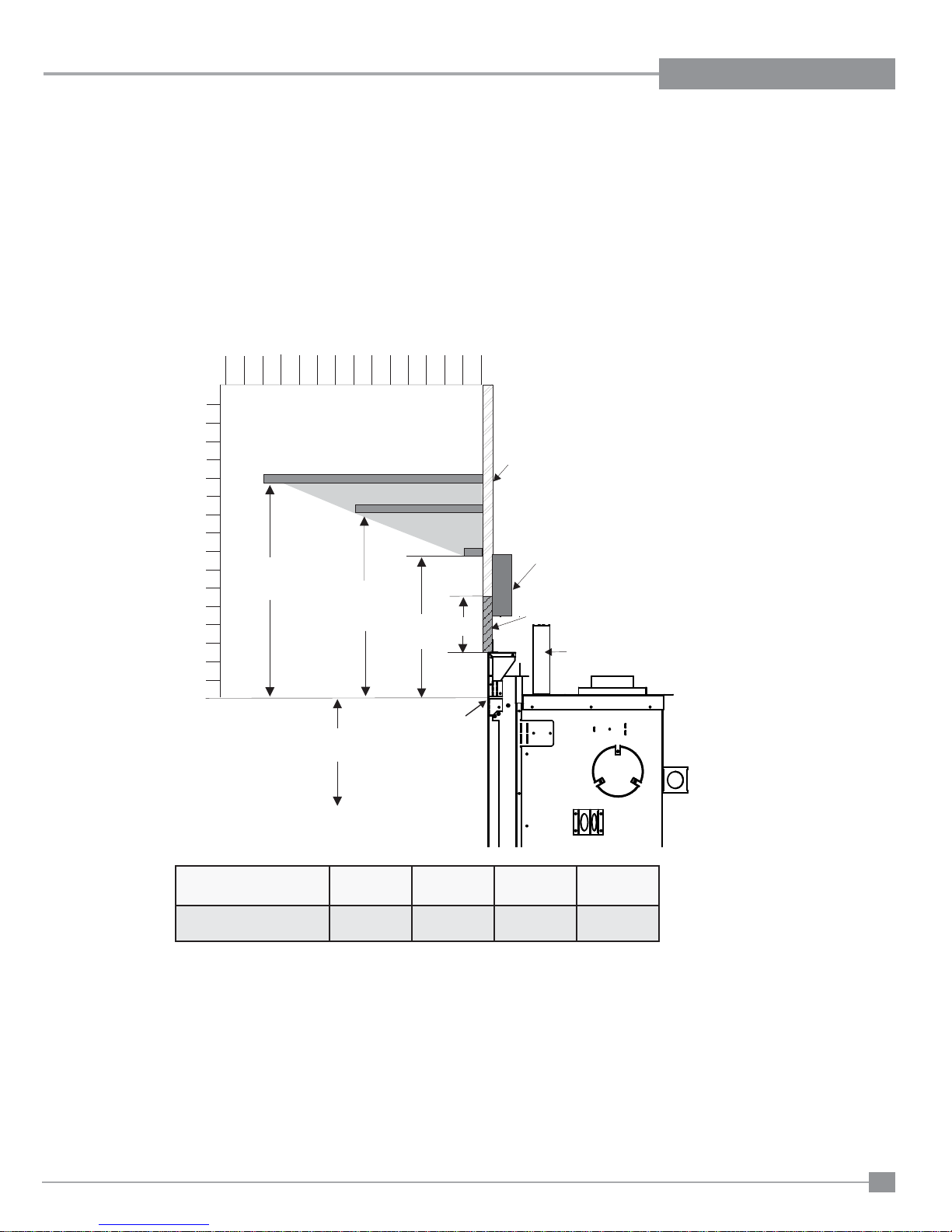

MANTEL CLEARANCES
Note: Ensure the paint that is used on the mantel and the facing is "High Quality" or the paint may discolour.
Due to the extreme heat this fireplace emits, the mantel clearances are critical. Combustible mantel clearances from top of front facing are shown in
the Diagram on the right.
Note: A non-combustible mantel may be installed at a lower height if the framing is made of metal studs covered with a non-combustible board.
Mantel Clearances
B36XTCE ABCD
From Top of Fireplace
Opening 29-11/16" (754mm) 23-1/2" (597mm) 20" (508mm) 15-1/2" (394mm)
Combustible
Mantel Clearances
2
0
12 64
810
0
Top of
Fireplace
Opening
12”
1"
7”
A
BC
Non-combustible
Header
(steel stud)
on edge
14
To Floor
12
24
Inches
D3-1/2” Non-combustible
Standoff

12 Regency B36XTCE Gas Fireplace
INSTALLATION
MANTEL LEG CLEARANCES
NON- COMBUSTIBLE REQUIREMENTS:
32-7/8"
835mm
25-5/8"
[651mm]
NO FACING OR
FINISHING MATERIAL
IN THIS AREA
No Combustible
Materials in this Area
41-5/8"
[1057mm]
40-5/8"
[1031mm]
4-1/8"
[105mm]
8-3/8"
[213mm]
3-7/8"
[98mm]
3-1/2"
[89mm]
Non combustible - supplied w/unit
6.5"
3.5”
Mantel leg
Mantel leg
Allowable mantel leg
projection.
3"
1-1/2"
Top View
12"
Side opening
of fireplace
See framing dimensions on next page.
NOTE: The 3-1/2" x 40-5/8" non combustible material supplied with this unit can be replaced if trying to achieve a clean finish. A large piece of non
combustible material (ie. 4' x 8' x 1/2") can be used to eliminate taped seams on or near unit.

Regency B36XTCE Gas Fireplace 13
INSTALLATION

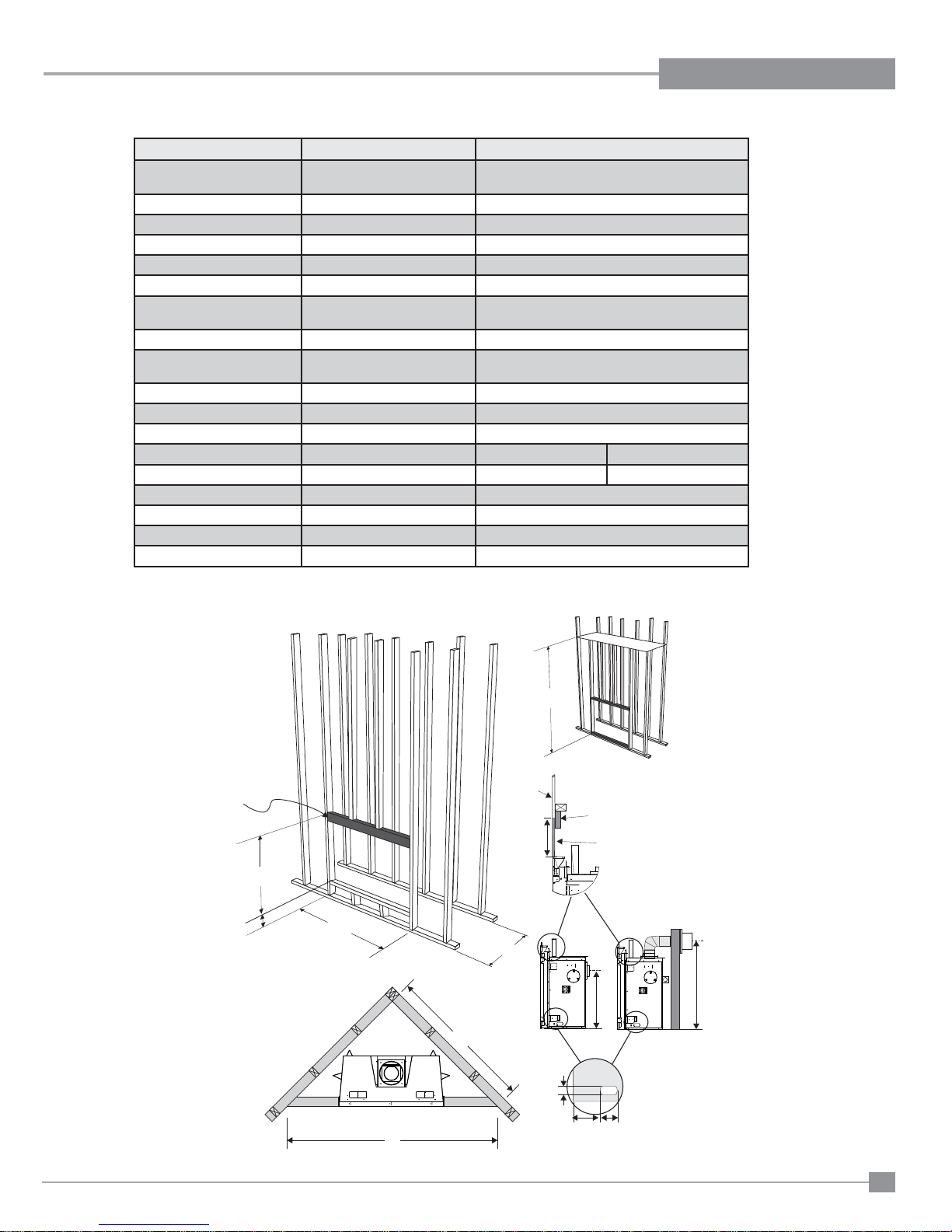

FRAMING
Q
P
U
V
T
Opening for gas
connection
11" (279mm)
dia. Hole through
wall Vent.
Non-Combustible
Header
(steel stud) on edge
Drywall
(or other
facing)
WNon-Combustible Facing
S
S
R
Non-combustible
Header
(steel stud
on edge)
M
N
L
O
Framing Dimensions Description B36XTCE
L Framing rise from floor 0" (when not using a surround)
1" min (when using Mantel)
M Framing Width 41-1/4"(1048mm)
N Framing Height 42" (1067mm)
O (Rear Vent) Framing Depth - Rear Vent 23-7/8" (606mm)
O (Top Vent) Framing Depth - Top Vent 23-7/8" (606mm)
P (Top Vent) Corner Facing Wall Width 53-1/4" (1353mm)
P (Rear Vent) Corner Facing Wall Width 57-7/8" (1470mm) AstroCapXL
66-1/8" (1670mm) - other approved caps
Q (Top Vent) Corner Facing Wall Width 75-1/4" (1911mm)
Q (Rear Vent) Corner Facing Wall Width 81-1/2" (2070mm) AstroCapXL
93-1/2" (2375mm) - other approved caps
R (Rear Vent) Framed Chase Ceiling - Rear 41-1/2" (1054mm)
R (Top Vent) Framed Chase Ceiling - Top 50-1/2" (1283mm)
S (Rear Vent) Vent Centerline Height - Rear 26-1/2" (673mm)
S (Top Vent) (5" x 8") Vent Centerline Height - Top 42-1/8" (1070mm) Flex 44-1/4" (1123mm) Rigid
S (Top Vent) (4" x 6-5/8") Vent Centerline Height - Top - 49" (1245mm) Rigid
T Gas Connection Height 1-1/2" (38mm)
U Gas Connection Inset 7-3/8" (187mm)
V Gas Connection Width 3-1/4" (82mm)
W Non-combustible Height 3-1/2"" (89mm)
** Important: Framing height requires consideration of the hearth depth. Dimension N = N + the thickness of the installed hearth.

14 Regency B36XTCE Gas Fireplace
INSTALLATION
FRAMING & FINISHING
1. Frame in the enclosure for the unit with framing material.
Note: When constructing the framed opening, please ensure there is access to install the gas lines when the unit is installed.
2. For exterior walls, insulate the enclosure to the same degree as the rest of the house; apply vapour barrier and drywall, as per local installation codes.
(Do not insulate the fireplace itself.)
WARNING: Failure to insulate and add vapor barriers to the inside of the exterior wall will result in operational and performance problems
including, but not limited to: excessive condensation on glass doors, poor flame package, carbon, blue flames etc. These are not product
related issues.
3. The unit does not have to be completely enclosed in a chase. You must maintain clearances from the vent to combustible materials: See "Clearances"
section. Combustible materials can be laid against the side and back standoffs and the stove base.
4. Tile Finish Option 1: Drywall may be installed onto the unit as shown below to create a surface to apply finishing materials such as tile, slate, etc.
Drywall cannot extend beyond the metal surface of the unit.
5. Tile Finish Option 2: If applying a non-combustible finishing material (tile,slate,etc) the material can be installed directly onto the metal surface (clean
front) of the unit in the area shown below.
1/2" DRYWALL
NON-COMBUSTIBLE FACING
FOR CLEAN LOOK
(ie. painted finish)
40-5/8"
[1032mm]
41-5/8"
[1054mm]
1/2" DRYWALL
DO NOT EXTEND
DRYWALL ONTO METAL
SURFACE OF UNIT.
WOOD STUD
NON-COMBUSTIBLE BOARD - SUPPLIED WITH UNIT
32-7/8"
835mm
25-5/8"
[651mm]
Combustible and Non-combustible Facing and Finishing
Materials around unit.
CLEAN FINISH
TILE FINISH
6. If applying a non-combustible facing it may be installed over the metal surface (clean front) of the unit in the area shown below.
Combustible
Material
Non-combustible
Finishing Material
(ie. tile)
Non-combustible Material (3-1/2" x 40-5/8")
Finishing Material
(ie. tile)
Nailing Strip -1/2" back from unit face
Combustible
Material
Non-combustible Supplied with Unit
1-1/2
(38mm)
Ensure finished
material is
brought to lip
Combustible
Material
Non-combustible
Finishing Material
Non-combustible Material (3-1/2" x 40-5/8")
Finishing Material Nailing Strip -flush with unit
Combustible
Material
Non-combustible
Supplied with Unit
1-1/2
(38mm)
Ensure finished
material is
brought to lip
NOTE: The 3-1/2" x 40-5/8" non combustible material supplied with this unit can be replaced if trying to achieve a clean finish. A large piece of non com-
bustible material (ie. 4' x 8' x 1/2") can be used to eliminate taped seams on or near unit.

Regency B36XTCE Gas Fireplace 15
INSTALLATION
32-7/8"
835mm
25-5/8"
[651mm]
NO FACING OR
FINISHING MATERIAL
IN THIS AREA
No Combustible
Materials in this Area
41-5/8"
[1057mm]
40-5/8"
[1031mm]
4-1/8"
[105mm]
8-3/8"
[213mm]
3-7/8"
[98mm]
3-1/2"
[89mm]
Non combustible - supplied w/unit
J Style trim or metal
corner bead may be
used to finish edges
No Combustible
Materials in this Area
32-7/8"
835mm
25-5/8"
[651mm]
7. Non-combustible material (ie. tile, slate, etc) may be brought up to the edge of the glass door of the unit. Minimum clearances must be adhered to, this
will assure ease of glass door removal and access to the lower panel.
NOTE: Non-combustible finishing materials may be of any thickness desired.
Minimum Clearances for Finishing Materials Trim materials
Note: All non-combustible facing material should butt up cleanly
to the flanges around the firebox opening.
Rough edges may be visible from an angle.
To maintain a clean finished edge - facing material edges
may be finished with a J-style trim or metal cornerbead (both
materials available at your local building or hardware store).
IMPORTANT: Materials used must be NON-COMBUSTIBLE.
IMPORTANT FINISHING DETAIL NOTE:
Before placing unit into final position - it is important to know the
total thickness / height of finished hearth (tile, carpet, etc.) The base
of the fireplace, 4 sided faceplate or mantel should be level or higher
than the finished hearth height.

16 Regency B36XTCE Gas Fireplace
INSTALLATION
UNIT ASSEMBLY PRIOR TO INSTALLATION
BEFORE YOU START
The Top Nailing Support, the Side Nailing Strips, the 2 Top Standoffs and the Flue Collar must be correctly positioned and attached before the fireplace
is moved into position.
TOP STANDOFF ASSEMBLY
The top standoffs are shipped in a flat position and must be folded into shape and
attached.
1) Take each standoff and bend into the correct shape. Bend up at the bend lines
until the tab in the standoff and the pre-punched slots on the fireplace top line
up. Be sure to use correct slots, they are marked.
B36XT/
B36XTE/
B36XTCE
STANDOFF SLOT LOCATION
B36XT/
B36XTE/
B36XTCE
TopView
B36X B36X
Nailing strip for
Tile Finish (set
back 1/2")
Nailing strip for
Clean Finish (set
flush with unit)
1. There are 8 (eight) side nailing strips and one top nailing strip available on the unit. One set of four (4) are for a clean finish installation, the other set are
for a tile finish installation as they are set back 1/2" (13mm). The top nailing strip is adjustable to 1/2" (13mm).
2. Bend the required four (4) nailing strips to 90º.
3. Attach top nailing strip with one (1) screw (located at the back of the nailing strip). Adjust to required position, flush or back 1/2" and tighten screw.
Nailing strip for
Tile Finish (set
back 1/2")
Nailing strip for
Clean Finish (set
flush with unit)
Adjustable Top
Nailing Strip
NAILING STRIPS

Regency B36XTCE Gas Fireplace 17
INSTALLATION

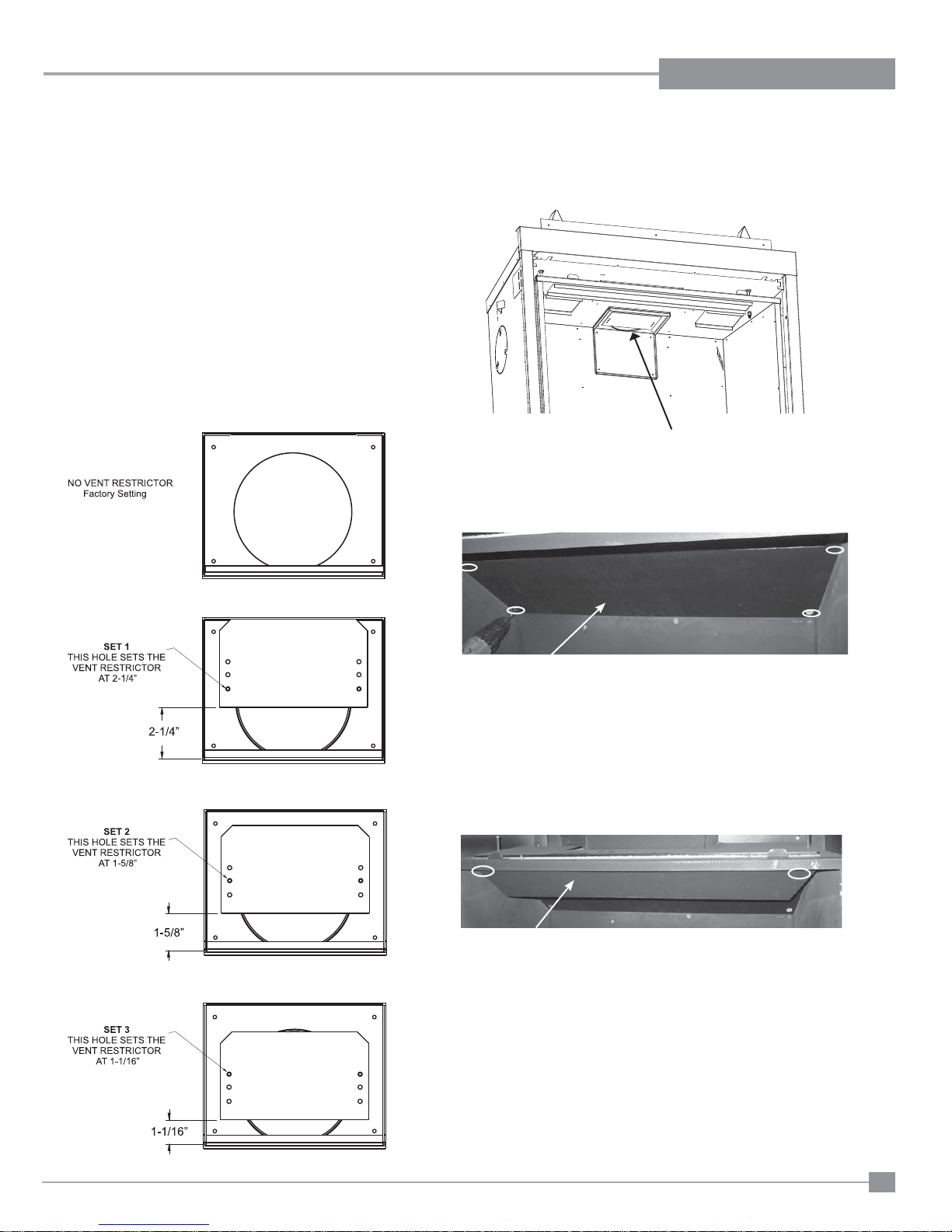

CONVERSION TO TOP VENT
Note: This conversion must be done prior to the unit being placed in position.
The unit comes equipped as a rear vent unit. These instructions are to be used, only if the unit is going to be top vented.
Top Collar Assembly Kit
1 Intake Collar Assembly with Gasket
1 Intake Cover Plate with Gasket
1 Top/Rear Exhaust Assembly with Gasket
1 Heat Deflector
1 Baffle Plate
29 1/4" x 1/2" Screws (4 spares)
1 Restrictor
1 Intake Collar Gasket (spare)
1 Exhaust Assembly Gasket (spare)
1 Insulation Plate Cover
1 Insulation Filling
Exhaust Assembly
w/ gasket Intake Cover Plate
w/gasket
Insulation cover
plate Insulation filling
Intake Collar Assembly
Intake Collar Assembly
w/gasket
w/gasket
2) From inside the firebox, remove the top heat deflector by removing
2 screws.
Heat Deflector Diagram 2
1) Remove the door assembly by releasing the adjustable latches and lifting up off the door frame assembly.
Adjustable Tension
Latch location
Diagram 1
Note: Components shown are installed on unit.
3)From insidethe firebox,removethebaffleplatebyremoving4 screws
- remove top front screw first. See Diagram 3.
Baffle Plate Diagram 3

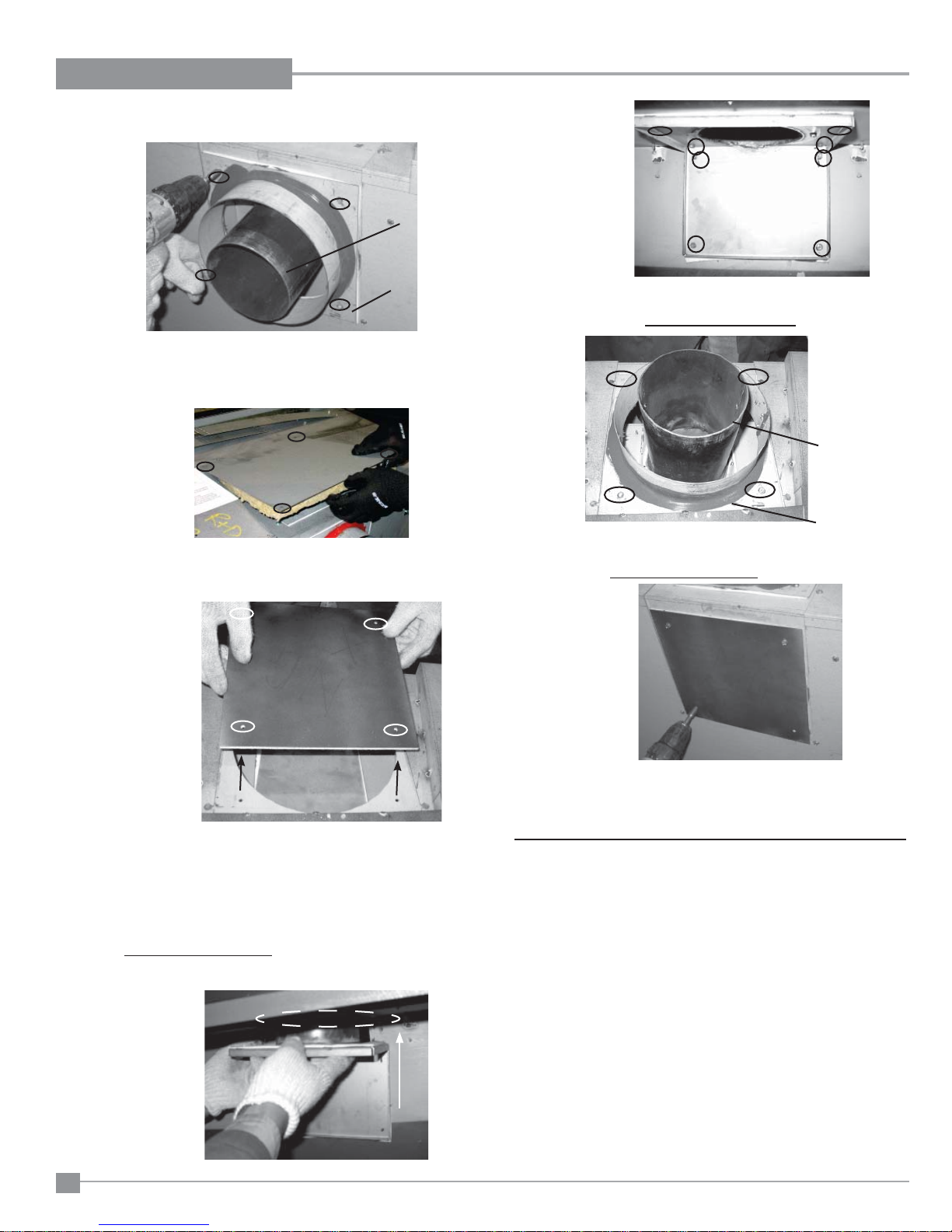

4) From the inside of the firebox, remove the exhaust assembly by
removing the 8 screws. See Diagram 4.
Diagram 4

18 Regency B36XTCE Gas Fireplace
INSTALLATION
7) From the outside top of the firebox - remove the intake cover plate
by removing the 4 - 1/4" x 1/2 " screws. See Diagram 7.
6) From the outside top of the firebox - remove top insulation cover
plate and insulation filling - by removing 4 screws. See Diagram 6.
Discard cover plate and insulation filling.
5) From the outside rear of the firebox, remove the intake collar
assembly. Remove the 4 - 1/4" x 1/2" screws. See Diagram 5.
Diagram 5
Exhaust
Assembly
Intake Collar
Assembly
Diagram7
Diagram 6
Before proceeding to Step 8, inspect condition of all gaskets.
DO NOT install parts with damaged gaskets. Replace if necessary
with spare gaskets supplied.
8) From the inside of the firebox, place the exhaust assembly into
positionasshowninDiagram8andsecurewith8-1/4"x1/2"screws
(Diagram 9). Ensure all screws are tight, but do not over tighten.
All 8 screws must be used.
Diagram 8
Diagram 9
10) From the outside rear of the firebox, install the intake cover plate
with 4 - 1/4" x 1/2" screws. Ensure all screws are tight, but do not
over tighten. All 4 screws must be used.
11) Set vent restrictor accordingly - see next page.
12) From inside the firebox, re-install the baffle plate and heat
deflector - reverse steps 2 & 3.
9) Fromtheoutsidetopofthefirebox,installtheintakecollarassembly.
Secure with 4 - 1/4" x 1/2" screws. Ensure all screws are tight, but
do not over tighten. All 4 screws must be used.
Diagram 11
Intake Collar
Assembly
Exhaust
Assembly
Diagram 10
VENTING
INTRODUCTION
The B36XTCE uses the "balanced flue" technology Co-Axial sys-
tem. The inner liner vents products of combustion to the outside while
the outer liner draws outside combustion air into the combustion cham-
ber thereby eliminating the need to use heated room air for combustion
and losing warm room air up the chimney.
Note: These flue pipes must not be connected to any other
appliance.
The gas appliance and vent system must be vented directly to the
outside of the building, and never be attached to a chimney serving
a separate solid fuel or gas burning appliance. Each direct vent gas
appliance must use it's own separate vent system. Common vent
systems are prohibited.

Regency B36XTCE Gas Fireplace 19
INSTALLATION
VENT RESTRICTOR, BAFFLE & HEAT DEFLECTOR INSTALLATION
NOTE: THE VENT RESTRICTOR & BAFFLE MUST BE INSTALLED PRIOR TO OPTIONAL PANEL INSTALLATION.
Note: If installing brick/optional panels, see brick/optional panel
instructions before proceeding to next step.
Diagram 2 Vent restrictor installed on top exhaust assembly
6) From inside the firebox, install the baffle plate with 4 - 1/4" x 1/2 "
screws. Ensure all screws are tight, but do not over tighten.
Baffle Plate Diagram 3
7) From inside the firebox, install the top heat deflector with 2 -
1/4" x 1/2" screws. Ensure all screws are tight, but do not over
tighten.
Heat Deflector Diagram 4
1) Determine the venting configuration.
2) Remove top heat deflector and baffle plate (reverse of steps 5 & 6).
3) Go to venting arrangements section (in the manual) to determine if
a vent restrictor setting is required.
Note: The vent restrictor does not apply to rear vent applications.
4) Align the vent restrictor plate to the required vent restrictor position
as per the Diagrams shown.
5) Once the vent restrictor plate is in the required position, secure with
2 - 1/4" x 1/2" screws. Ensure all screws are tight, but do not over
tighten. (See Diagram 2).

20 Regency B36XTCE Gas Fireplace
INSTALLATION
EXTERIOR VENT TERMINATION REQUIREMENTS
Minimum Clearance Requirements Canada1USA2
AClearance above grade, veranda, porch, deck, or balcony 12"(30cm) 12"(30cm)
BClearance to window or door that may be opened 12"(30cm) 9" (23cm)
CClearance to permanently closed window **
DVertical clearance to ventilated soffit located above the terminal within a horizontal distance of 2 feet (61cm)
from the center line of the terminal (check with the local code)
24"(60cm) 24"(60cm)
EClearance to unventilated soffit 19"(48cm) 19"(48cm)
FClearance to outside corner: with AstroCap Termination Cap. 13"(33cm) 13"(33cm)
Clearance to outside corner: with all other approved Termination Caps. 13"(33cm) 13"(33cm)
GClearance to inside corner: with AstroCap Termination Cap 11"(28cm) 11"(28cm)
Clearance to inside corner: with all other approved Termination Caps. 11"(28cm) 11"(28cm)
HClearance to each side of center line extended above meter/regulator assembly 36"(90cm)a*
JClearance to service regulator vent outlet 36"(90cm) *
KClearance to non-mechanical air supply inlet to building or the combustion air inlet to any other appliance 12"(30cm) 9" (23cm)
LClearance to a mechanical air supply inlet #3' (91cm) above if within 10' (3m) horizontally. 72"(1.8m) 36"(90cm)b
MClearance above paved sidewalk or a paved driveway located on public property 84"(2.1m)┼*
NClearance under veranda, porch, deck, or balcony 12"(30cm)‡*
1In accordance with current CSA B149.1, Natural Gas and Propane Installation Code
2In accordance with the current ANSI Z223.1/NFPA 54, National Fuel Gas Code
┼A vent shall not terminate directly above a sidewalk or paved driveway which is located between two single family dwellings and serves both dwellings
‡ Permitted only if veranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the floor
*Clearance in accordance with local installation codes and the requirements of the gas supplier
a3 feet (91cm) within a height of 15 feet (4.5m) above the meter / regulator assembly
b3 feet (91cm) above - if within 10 feet (3m) horizontally
