Regency Fireplace Products HZ54EPV-NG Quick start guide

WARNING:
Iftheinformationintheseinstructionsarenotfollowedexactly,
a fire or explosion may result causing property damage,
personal injury or loss of life.
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
Installation and service must be performed by a qualified
installer, service agency or the gas supplier.
FOR YOUR SAFETY
What to do if you smell gas:
Do not try to light any appliance
Do not touch any electrical switch:
do not use any phone in your
building.
Immediately call your gas supplier
from a neighbour's phone. Follow
the gas supplier's instructions.
If you cannot reach your gas
supplier, call the fire department.
FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4
918-947a
Regency Horizon™HZ54EPV
Gas Fireplace
06/29/11
Owners &
Installation Manual
www.regency-fire.com
Tested by: Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
MODELS: HZ54EPV-NG Natural Gas
HZ54EPV-LP Propane

2Regency Horizon HZ54EPV Gas Fireplace 2Regency Horizon HZ54EPV Gas Fireplace
To the New Owner:
Congratulations!
You are the owner of a state-of-the-art Gas Fireplace by REGENCY®. The HZ54EPV has been
designed to provide you with all the warmth and charm of a wood fireplace at the flick of a switch.
ThemodelHZ54EPVhasbeenapprovedbyWarnockHersey/Intertekforbothsafetyandefficiency.
As it also bears our own mark, it promises to provide you with economy, comfort and security for
many trouble free years to follow. Please take a moment now to acquaint yourself with these
instructions and the many features of your Regency®Fireplace.

Regency Horizon HZ54EPV Gas Fireplace 3 Regency Horizon HZ54EPV Gas Fireplace 3
This appliance can only be used with the type of gas indicated on the rating plate.
This appliance is not convertible for use with other gases.
This appliance may be installed as an OEM installation in a manufactured home (USA only) or mobile home and must be
installed in accordance with the manufacturer's instruction and the Manufactured Home Construction and Safety Standard,
Title 24 CFR, Part 3280, in the Untied States, or the Standard for Installation in Mobile Homes, CAN/CSA Z240 MH, in
Canada.
MANUFACTURED MOBILE HOME REQUIREMENTS
INFORMATION FOR MOBILE/MANUFACTURED HOMES AFTER FIRST SALE
This Regency®product has been tested and listed by Warnock Hersey/Intertek as a Direct Vent Wall Furnace to the following
standards: VENTED GAS FIREPLACE HEATERS ANSI Z21.88a-2007 / CSA 2.33a-2007 and GAS-FIRED APPLIANCES
FOR USE AT HIGH ALTITUDES CAN / CGA 2.17-M91.
This appliance may only be installed in an aftermarket permanently located, manufactured (U.S.A only) or mobile home,
where not prohibited by local codes.
This Direct Vent System Appliance must be installed in accordance with the manufacturer's installation instructions and the
Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, or the current Standard of Fire Safety Criteria
for Manufactured Home Installations, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240-MH Mobile Home
Standard in Canada.
This appliance installation must comply with the manufacturer's installation instructions and local codes, if any. In the absence
of local codes follow the current National Fuel Gas Code, ANSI Z223.1 and the current National Electrical Code ANSI/NFPA
70 in the U.S.A., and the current CAN/CGA B149 Gas Installation Code and the current Canadian Electrical Code CSA C22.1
in Canada.
This appliance comes equipped with a dedicated #8 Ground Lug for attachment of the ground wire to the steel chassis as
applicable to local codes.
The appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes,
with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1.
Ensure that structural members are not cut or weakened during installation.

4Regency Horizon HZ54EPV Gas Fireplace
TABLE OF CONTENTS
SAFETY LABEL
Copy of Safety Decal.....................................................5
REQUIREMENTS
MA Code - CO Detector.................................................6
(for the State of Massachusetts only)............................6
DIMENSIONS
Unit Dimensions ............................................................7
Faceplate & Door frame overlay Dimensions................7
INSTALLATION
Important Message ......................................................8
Before You Start ............................................................8
General Safety Information............................................8
Installation Checklist......................................................9
Locating Your Gas Fireplace .........................................9
Clearances ..................................................................10
Non-Combustible Requirements .................................10
Non-combustible facing board.....................................11
Non combustible facing installation.............................11
Mantel Clearances.......................................................12
Mantel Leg Clearances................................................12
Framing & Finishing.....................................................13
Framing dimensions....................................................14
Framing with a negative vent run ................................15
Unit Assembly Prior To Installation..............................16
Standoff Assembly...............................................16
Nailing Strips........................................................16
Venting Introduction.....................................................16
Vent Restrictor Position...............................................17
Gas Power Vent Installation Rigid Pipe only ...............18
5” x 8” Rigid Pipe Cross Reference Chart...................19
Venting Arrangements for Horizontal Terminations .....21
Exterior Vent Termination Requirements.....................22
Clearances to the power..............................................25
vent termination...........................................................25
PIPe connection from terminal to unit..........................25
power vent wiring diagram...........................................28
Aeration Adjustment ....................................................29
High Elevation .............................................................30
Gas Line Installation....................................................30
Pilot Adjustment...........................................................30
Gas Pipe Pressure Testing..........................................30
886 S.I.T. Valve Description.........................................30
Valve cover removal....................................................31
Optional fan Wiring Diagram ......................................32
Optional Remote Control.............................................33
Receiver Wall Switch...................................................33
Wall mount receiver installation...................................34
Battery installation.......................................................36
GT remote Installation.................................................36
GTM remote installation ..............................................37
GTMF remote installation............................................38
OptionaL Reflective Panel Installation.........................40
Glass Crystals or optional ceramic stones ..................41
Installation On Burner..................................................41
Glass Crystals or optional pebbles..............................42
Installation On firebox base.........................................42
Optional Log set Installation........................................43
Faceplate & Door frame overlay Installation................46
optional fan installation................................................48
OPERATING INSTRUCTIONS
Operating Instructions .................................................51
First Fire ......................................................................51
Lighting Procedure ......................................................51
Shutdown Procedure...................................................51
Normal Operating Sounds of Gas Appliances.............51
Copy of Lighting Plate Instructions..............................52
MAINTENANCE
Maintenance Instructions.............................................53
General Vent Maintenance..........................................53
Glass Gasket...............................................................53
Glass Door...................................................................53
Glass Replacement .............................................53
Glass Door Removal ...................................................54
Valve Tray Replacement..............................................55
PARTS
Main Assembly ............................................................57
Accessories.................................................................58
WARRANTY
The Warranty: Limited Lifetime ...................................59

Regency Horizon HZ54EPV Gas Fireplace 5
SAFETY LABEL
This is a copy of the label that accompanies
each HZ54EPV-NG and HZ54EPV-LP Direct
Vent Gas Fireplace. We have printed a copy of
the contents here for your review.
NOTE: Regency®units are constantly being
improved. Check the label on the unit and if
there is a difference, the label on the unit is the
correct one.
FortheState of Massachusetts, installation
and repair must be done by a plumber or
gasfitter licensed in the Commonwealth of
Massachusetts.
FortheStateofMassachusetts,flexiblecon-
nectorsshallnotexceed36inchesinlength.
For the State of Massachusetts, the appli-
ances individual manual shut-off must be a
t-handle type valve.
The State of Massachusetts requires the
installation of a carbon monoxide alarm in
accordancewithNFPA720 and a CO alarm
withbatterybackupinthesameroomwhere
the gas appliance is installed.
DO NOT REMOVE THIS LABEL / NE PAS ENLEVER CETTE ÉTIQUETTE
373
373
DOOR SEAL: Please
check that the door is
properly sealed
FPI Fireplace Products International Ltd. Delta, BC, Canada
Minimum Clearances to Combustibles /
Degagement Minimum De Materiaux Combustibles
Serial No./ No de serie
918-940
MAY BE INSTALLED IN MANUFACTURED (MOBILE) HOMES AFTER FIRST SALE.
Listed:
Certified for/Certifi e pour:
Tested to:
VENTED GAS FIREPLACE HEATER /
CANADA and U.S.A.
FOYER AU GAZ À ÉVACUATION
é
CAN/CGA-2.17-M91,ANSI Z21.88a-2007/CSA 2.33a-2007
4001172
.
NOT FOR USE WITH SOLID FUEL. / NE PAS UTILISER AVEC DU COMBUSTIBLE SOLIDE.
Made in Canada/ Fabrique au Canada
Duplicate S/N
(See Instruction Manual for
detailed instructions)
ÉÉ é QUIP A L'USINE POUR GAZ PROPANE
CONCU POUR CET POELE: Mod le HZ54EPV-LP
PROPANE GAS: Model HZ54EPV-LP
APPAREIL FONCTIONNANT AU NATURAL GAS
CONCU POUR CET POELE: Mod le
Pression d'allimentation minimum
Pression à la tubulure d' chappement lev e
Pression à la tubulure d' chappement basse
Grandeur de l'injecteur
D bit minimum selon
D bit maximum selon
l'altitude
Calorifique
Calorifique
é
ééé
é
é
é
HZ54EPV-NG
Pression d'allimentation minimum
Pression à la tubulure d' chappement lev e
Pression à la tubulure d' chappement basse
Grandeur de l'injecteur
D bit minimum selon
D bit maximum selon
l'altitude
Calorifique
Calorifique
ééé
é
é
é
D
E
F
A
B
C

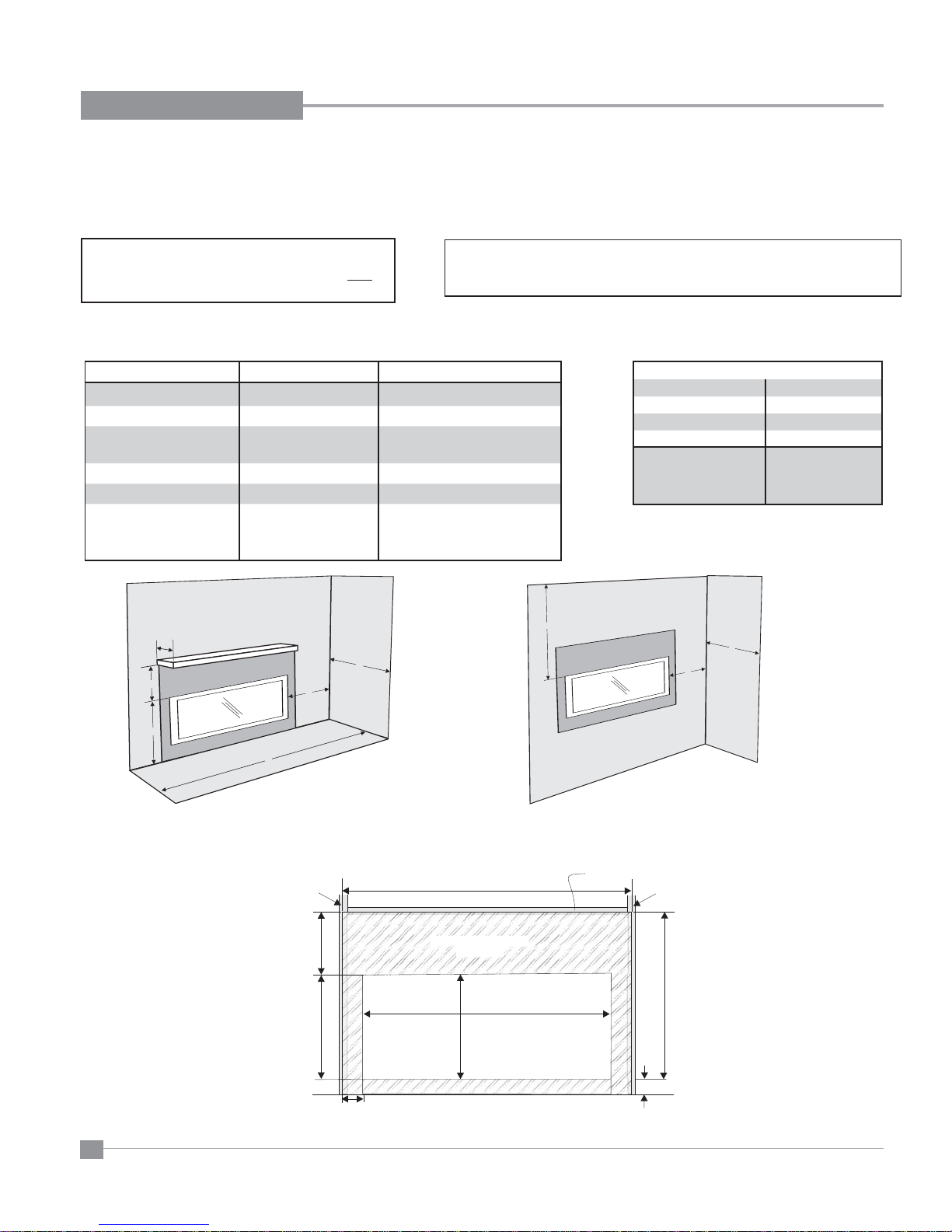

Side Walls
A 4” (102mm)
B 40-7/8” (1038mm)
C 20" (508mm)
D 13” (330mm)
E 83" (2108mm)
F 36" (914mm)
Ceiling
Min. Mantel Height
Max. Mantel Depth
Alcove Width
Alcove Depth
This appliance must be installed in accordance with local codes, if any; if none, follow the National Fuel Gas Code, ANSI Z223.1, or Natural Gas and Propane Installation Code, CSA B149.1.
This appliance must be installed in accordance with the Standard CAN/CSAZ240 MH, Mobile Housing, in Canada, or with the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, in
the United States, or when such a standard is not applicable,ANSI/NCSBCS A225.1/NFPA501A, Manufactured Home Installations Standard orANSI A119.2 ou NFPA 501C Standard for Recreational Vehicles
This appliance is only for use with the type of gas indicated on the rating plate and may be installed in an aftermarket, permanently located, manufactured (mobile) home where not prohibited by local codes. See
owner's manual for details. Listed for use with Power Vent Kit #946-705.
Installer l'appareil selon les codes ou règlements locaux, ou, en l'absence de tels règlements, selon les codes d'installationANSI Z223.1, National Fuel Gas Code ou CSA-B149.1 en vigueur.
Installer l'appareil selon la norme CAN/CSA-Z240, Série MM, Maison mobiles ou CAN/CSA-Z240 VC, Véhicules de camping, ou la norme 24 CFR Part 3280, Manufactured Home Construction and Safety
Standard. Si ces normes ne sont pas pertinentes, utilisez la norme ANSI/NCSBCS A225.1/NFPA 501A, Manufactured Home Installations Standard, ou ANSI A119.2 ou NFPA501C Standard for Recreational
Vehicles. Homologué avec terminaison à évacuation mécanique 946-705.
This vented gas fireplace heater is not for use with air filters. Ne pas utiliser de filtre à air avec ce foyer au gaz à évacuation.
FOR USE WITH GLASS DOORS CERTIFIED WITH THE APPLIANCE ONLY
Cet appareil doit être utilize uniquement avec le type de gaz indiqué sur la plaque signalétique. Cet appareil peut être installé dans une maison préfabriquée ou mobile (É.-U. seulement) installée à demeure si
les règlements locaux le permettent. Voir la notice de l'utilisateur pour plus de renseignements.
POUR UTILISATION UNIQUEMENT AVEC LES PORTES EN VERRE CERTIFIÉESAVEC L'APPAREIL
Min. Supply Pressure 12“WC (2.98 kpa)
Low Setting Man. Pressure 6.4"WC (1.59 kpa)
Max. Manifold Pressure 10"WC (2.49 kpa)
Orifice Size #49 DMS
Minimum Input 30,000Btu/
Maximum Input 37,000Btu/h (10.84 kW)
(8.79 kW)
0-4500 ft/pi (0-1372 m)
Altitude
Min. Supply Pressure 5“ WC (1.25 kpa)
Low Setting Man. Pressure 1.6"WC (0.40 kpa)
Max. Manifold Pressure 3.5"WC (0.87 kpa)
Orifice Size #30DMS
Minimum Input 29,000Btu/h
Maximum Input 41,500 Btu/h (12.16 kW)
(8.50 kW)
0-4500 ft/pi (0-1372 m)
Altitude
NATURAL GAS: Model HZ54EPV-NG
Electrical supply / Électrique 115VAC, 2.5 A, 60Hz.

6Regency Horizon HZ54EPV Gas Fireplace
REQUIREMENTS
5.08: Modifications to NFPA-54, Chapter 10
(2) Revise 10.8.3 by adding the following additional requirements:
(a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for
residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than
seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall
be satisfied:
1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fueled
equipment, the installing plumber or gasfitter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is
installed on the floor level where the gas equipment is to be installed. In addition, the installing plumber or gasfitter shall observe that a battery
operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure
served by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the services of
qualified licensed professionals for the installation of hard wired carbon monoxide detectors
a. In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon
monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.
b. In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have a period of
thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon
monoxide detector with an alarm shall be installed.
2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions
shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified.
3. SIGNAGE. A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight
(8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The
sign shall read, in print size no less than one-half (1/2) inch in size, "GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL
OBSTRUCTIONS".
4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation
unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR
5.08(2)(a)1 through 4.
(b) EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:
1. The equipment listed in Chapter 10 entitled "Equipment Not Required To Be Vented" in the most current edition of NFPA 54 as adopted by
the Board; and
2. Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling, building or
structure used in whole or in part for residential purposes.
(c) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the manufacturer of Product
Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the
instructions provided by the manufacturer for installation of the equipment and the venting system shall include:
1. Detailed instructions for the installation of the venting system design or the venting system components; and
2. A complete parts list for the venting system design or venting system.
(d) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a
Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the flue gases, but identifies
"special venting systems", the following requirements shall be satisfied by the manufacturer:
1. The referenced "special venting system" instructions shall be included with the appliance or equipment installation instructions; and
2. The "special venting systems" shall be Product Approved by the Board, and the instructions for that system shall include a parts list and
detailed installation instructions.
(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions,
all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of
the installation.
MA Code - CO Detector
(for the State of Massachusetts only)

Regency Horizon HZ54EPV Gas Fireplace 7

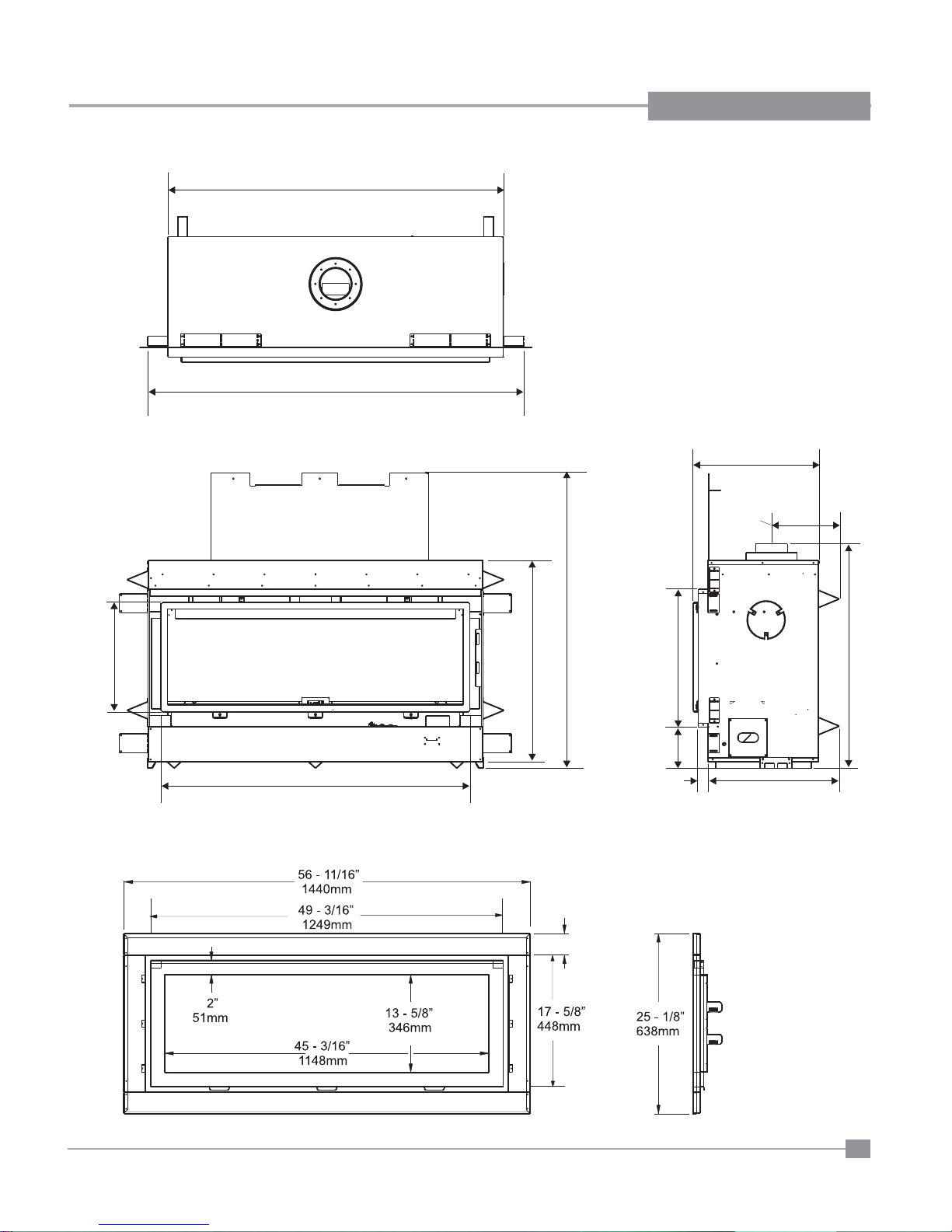

DIMENSIONS
59” (1499mm)
52-5/8” (1337mm)
48-1/2” (1232mm) 20-1/2” (521mm)
19-3/4” (502mm)
10-5/8”
(270mm)
1-1/2”
(38mm)
31-5/8” (803mm)
46-3/8” (1178mm)
35-1/4” (895mm)
22-3/8” (568mm)
17-1/8” (435mm)
5-11/16”
(144mm)
FACEPLATE & DOOR FRAME OVERLAY DIMENSIONS
UNIT DIMENSIONS

8Regency Horizon HZ54EPV Gas Fireplace
INSTALLATION
10) Be aware of electrical wiring locations in walls
andceilingswhencuttingholesfortermination.
11) Under no circumstances should this appliance
be modified. Parts that have to be removed for
servicingshouldbe replaced prior to operating
this appliance.
12) Installation and any repairs to this appliance
should be done by an authorized service per-
son. A professional service person should be
calledto inspect this applianceannually.Make
it a practice to have all of your gas appliances
checked annually.
13) Do not slam shut or strike the glass door.
14) Underno circumstancesshouldanysolidfuels
(wood,paper, cardboard, coal, etc.) be used in
this appliance.
15) The appliance area must be kept clear and
freeofcombustiblematerials,(gasesandother
flammable vapours and liquids).
Emissions from burning wood or gas could
contain chemicals known to the State of
California to cause cancer, birth defects or
other reproductive harm.
IMPORTANT MESSAGE
SAVE THESE
INSTRUCTIONS
The HZ54EPV Direct Vent Fireplace must be
installed in accordance with these instructions.
Carefully read all the instructions in this manual
first. Consult the "authority having jurisdiction" to
determinetheneedforapermitpriortostartingthe
installation.Itis the responsibility of theinstallerto
ensurethisfireplaceisinstalledincompliancewith
manufacturersinstructionsandallapplicablecodes.
BEFORE YOU START
Safe installation and operation of this appliance
requirescommonsense,however,wearerequired
by the Canadian Safety Standards and ANSI
Standards to make you aware of the following:
GENERAL SAFETY
INFORMATION
1) Theapplianceinstallationmustconformwithlo-
calcodesor,intheabsenceoflocalcodes,with
the current Canadian or National Gas Codes,
CAN1-B149orANSIZ223.1InstallationCodes.
2) The appliance when installed, must be electri-
callygroundedin accordance with local codes,
orintheabsenceoflocalcodeswiththecurrent
NationalElectricalCode,ANSI/NFPA70orCSA
C22.1 Canadian Electrical Code.
3) See general construction and assembly in-
structions. The appliance and vent should be
enclosed.
4) Thisappliancemustbeconnectedtothespeci-
fied vent and termination cap to the outside of
the building envelope. Never vent to another
room or inside a building. Make sure that the
vent is fitted as per Venting instructions.
5) Inspecttheventingsystemannuallyforblockage
and any signs of deterioration.
6) Venting terminals shall not be recessed into a
wall or siding.
7) Any safety glass removed for servicing must
be replaced prior to operating the appliance.
8) To prevent injury, do not allow anyone who is
unfamiliarwiththeoperationtousethefireplace.
9) Wear gloves and safety glasses for protection
while doing required maintenance.
CHILDREN AND ADULTS SHOULD BE
ALERTED TO THE HAZARDS OF HIGH
SURFACE TEMPERATURES, ESPE-
CIALLY THE FIREPLACE GLASS, AND
SHOULD STAY AWAYTO AVOID BURNS
OR CLOTHING IGNITION.
INSTALLATION AND REPAIR SHOULD
BE DONE BY AN AUTHORIZED
SERVICE PERSON. THE APPLIANCE
SHOULD BE INSPECTED BEFORE
USE AND AT LEAST ANNUALLY BY A
PROFESSIONAL SERVICE PERSON.
MORE FREQUENT CLEANING MAY
BE REQUIRED DUE TO EXCESSIVE
LINT FROM CARPETING, BEDDING
MATERIAL,ETC.IT IS IMPERATIVETHAT
CONTROL COMPARTMENTS,BURNERS
AND CIRCULATING AIR PASSAGEWAYS
OF THE APPLIANCE BE KEPT CLEAN.
DUE TO HIGH TEMPERATURES, THE
APPLIANCE SHOULD BE LOCATED
OUT OF TRAFFIC AND AWAY FROM
FURNITURE AND DRAPERIES.
WARNING: FAILURE TO INSTALL THIS
APPLIANCE CORRECTLY WILL VOID
YOUR WARRANTY AND MAY CAUSE A
SERIOUS HOUSE FIRE.
CLOTHING OR OTHER FLAMMABLE
MATERIAL SHOULD NOT BE PLACED
ON OR NEAR THE APPLIANCE.
YOUNG CHILDREN SHOULD BE CARE-
FULLY SUPERVISEDWHEN THEY ARE
IN THE SAME AREA AS THE APPLI-
ANCE. TODDLERS,YOUNG CHILDREN
AND OTHERS MAY BE SUSCEPTIBLE
TO ACCIDENTAL CONTACT BURNS. A
PHYSICAL BARRIERS IS RECOMMEND-
ED IFTHERE ARE AT RISK INDIVIDUAL
INTHE HOUSE. TO RESTRICT ACCESS
TO A FIREPLACE OR STOVE, INSTALL
AN ADJUSTABLE SAFETY GATE TO
KEEP TODDLERS, YOUNG CHILDREN
AND OTHER AT RISK INDIVIDUALS OUT
OF THE ROOM AND AWAY FROM HOT
SURFACES.

Regency Horizon HZ54EPV Gas Fireplace 9
INSTALLATION
This includes:
1) Clocking the appliance to ensure the correct
firing rate (rate noted on label 41,500 Btu/h
(NG), after burning appliance for 15 minutes.
2) If required, adjusting the primary air to ensure
that the flame does not carbon. First allow the
unit to burn for 15-20 min. to stabilize.
CAUTION: Any alteration to the product that
causessootingorcarboningthatresultsindam-
ageisnottheresponsibilityofthemanufacturer.
LOCATING YOUR
GAS FIREPLACE
A) Flat on Wall
B) Flat on Wall Corner
C) Recessed into Wall/Alcove
D) Corner
Diagram 1
1) When selecting a location for your fireplace,
ensure that the clearances are met.
2) Theappliance mustbeinstalledon aflat,solid,
continuoussurfaceForexampleawood,metal
orconcrete floor orina raised (onthe wall) ap-
plication. The appliance must be installed on
a metal or wood panel extending the full width
and depth of the appliance.
3) The HZ54EPV Gas Fireplace can be installed
in a recessed position or framed out into the
room as in A, B, C and D.
See Diagram 1.
INSTALLATION
CHECKLIST
1) Locate appliance
a) Roomlocation(Referto"LocatingYourGas
fireplace" section)
b) Clearances to Combustibles (Refer to
"Clearances" section)
c) Mantle Clearances (Refer to "Mantel
Clearances" section)
d) Framing & Finishing Requirements (Refer
to "Framing & Finishing" section)
e) Venting Requirements (Refer to "Venting"
section)
f) Clearances to terminal
2) Make electrical connections for Power Vent
System and for unit. 120V power is required
to operate unit / power vent system.
3) Assemble Top and Side Standoffs (Refer to
"Unit Assembly Prior to Installation).
4) Slide unit into place.
5) Install vent (Refer to "Venting Arrangement"
sections).
7) Make gas connections (Refer to "Gas Line
Installation section).
8) Install 4 AA batteries into battery pack.
9) Test the pilot (Refer to "Pilot Adjustment"
section).
10) TestGasPressure(Referto"GasPipePressure
Testing" section).
11) Install standard and optional features. Refer to
the following sections:
a) Optional Log Set Installation
b) Glass Crystals/ Optional Ceramic
Stones
c) Optional Firebox Base Pebbles
d) Optional Reflective Panels
e) Faceplate / Door Frame Overlay
f) Remote Control
g) Wall Switch
12) Final check.
Before leaving this unit with the customer, the
installer must ensure that the appliance is firing
correctly and operation fully explained to
customer.
4) This appliance is Listed for bedroom
installations using the standard Remote
(millivoltthermostat system).Someareasmay
have further requirements, check local codes
before installation.
5) The HZ54EPV Direct Vent Gas Fireplace
is approved for alcove installations, see
"Clearances" section for details.
6) We recommendthat youplan your installation
on paper using exact measurements for
clearancesandfloorprotectionbeforeactually
installing this appliance. Have an authorized
inspector, dealer,or installer review yourplans
before installation.
Note: For vent terminations refer to "Exterior
Vent Termination Locations" section.

10 Regency Horizon HZ54EPV Gas Fireplace
INSTALLATION
Caution Requirements
The top, back and sides of the fireplace are defined by
standoffs. The metal ends of the standoff may NOT be
recessed into combustible construction.
WARNING
Fire hazard is an extreme risk if these clearances (air space) to combustible materials
are not adhered to. It is of greatest importance that this fireplace and vent system be
installed only in accordance with these instructions.
CLEARANCES
The clearances listed below are Minimum distances unless otherwise stated:
Amajorcauseofchimneyrelatedfiresisfailureto maintain required clearances (air space) to combustible materials. It is of the greatest importance
that this fireplace and vent system be installed only in accordance with these instructions.
F
B
E
D
A
Installed Close
to Floor
G
Clearance: Dimension Measured From:
A: Mantel Height (min.) 20" (508mm) Top of Fireplace Opening
B: Sidewall (on one side) 4" (102mm) Side of Fireplace Opening
C: Ceiling
(room and/or alcove) 40-7/8" (1038mm) Top of Fireplace Opening
D: Mantel Depth (max.) 13" (330mm) 30" Above Fireplace Opening
E: Alcove Width 83" (2108mm) Sidewall to Sidewall (Minimum)
F: Alcove Depth 36" (914mm) Front to Back Wall (Maximum)
G: To Floor 28 - 7/8" (733mm) Top of Fireplace Opening
Note 0" No hearth required
F
B
C
Installed Close
to Ceiling
Flue Clearances to Combustibles
Horizontal - Top 3"
Horiztonal - Side 2"
Horiztonal - Bottom 2"
Vertical 2"
Passing through wall/
floor/ceiling - when
firestop is used. 1-1/2"
NON-COMBUSTIBLE REQUIREMENTS
42-3/8” (
1079mm)
3-7/8"
(99mm) 5-1/2”
(140mm)
22-1/2”
(572mm)
19-7/8"
(505mm)
22-5/8”
52-7/8”
60-1/2" (1537mm)
Non-combustible
Material
Non-combustible Material
Non-combustible Material
Non-combustible Material
Metal Stud (header)
Wood Stud
Wood Stud

Regency Horizon HZ54EPV Gas Fireplace 11
INSTALLATION
s
NON-COMBUSTIBLE FACING BOARD
If finishing the wall above the unit with paint -
the non-combustible board (shipped separately
from the unit) should be installed. Facing board
must be ordered when ordering the unit.
Calcium silicate board is a high - grade material
with cement, quartz, natural and selected
minerals as the main raw materials. It is widely
used for partitions and ceilings in buildings.
It is fire proof and earthquake proof.
If finishing the wall above the unit with materials
such as tile, brick, marble, etc. non-combustible
board available from the building supply store
can be used.
Note: Calcium Silicate is 1/2' thick
Caution: This non-combustible board can be damaged if
dropped or struck. Handle with care.
Inspect board prior to installation. Do not install if cracked.
1) Using drywall screws - secure non combustible material
around unit, framing and top nailing strip every 6 inches.
Important Note: To avoid cracking the board - pre-drill holes prior to
securing to unit/ framing.
2) Wipe any debris/dust from the non combustible
material and drywall.
3) Prior to taping and mudding it is highly recommended
to prime the facing and edges using a quality primer. This will
ensure proper adhesion of both the tape and mud.
The optional board is very porous. During dry fit, ensue that both
surfaces being taped are even.
4) Tape the seams using a mesh type tape.
5) Mud seams as normal We recommend using a
product called Durabond high strength compound - for the first coat
This product can be found at any hardware store.
Mud must be cured as per manufacturer’s recommendations.
6) Prime wall for a second time for proper adhesion of paint
7) Paint walls using a high quality paint which will withstand
the high temperatures being emitted from this appliance.
Note: Due to the high temperatures being emitted from
this appliance, incorrectly mudded joints may crack. Keep mud
thickness to a minimum.
4"
(102mm)
22-3/8”
(568mm)
20"
(508mm)
21-3/4”
52-5/8”
61-1/2" (1537mm)
Non-combustible
Facing Board
Non-combustible Facing Board
Non-combustible Facing Board
Metal Stud (header)
Wood Stud
Wood Stud
Non-combustible Facing Board
61-1/2" (1537mm)
5-5/8”
(143mm)
NON COMBUSTIBLE FACING INSTALLATION
Non- combustible board
(calcium silicate)
Non-combustible board
MUST BE PRIMED.
Non- combustible board
(calcium silicate)
All four pieces (top, 2 sides, bottom) are now supplied to meet the non combustible requirements. Previously only the top was supplied.

12 Regency Horizon HZ54EPV Gas Fireplace
INSTALLATION
MANTEL CLEARANCES
Due to the extreme heat this fireplace emits, the mantel clearances are critical. Combustible mantel clearances from top of front facing are shown in
Note: Ensurethepaintthatisusedonthemantel
and the facing is "heat resistant" or the
paint may discolour.
MANTEL LEG CLEARANCES
Combustible mantel leg clearances as per diagram:
4"
Allowable mantel
leg projection
5-1/2” (140mm)
8” (203mm)
11” (279mm)
1.5" (38mm)
MANTEL LEG 4”(102mm)
Non-Combustible
7”
Drywall
2
0
12 64
810
Top of
Fireplace
Opening
13" (330mm)
3 ½" (89mm)
Standoff
Metal Stud
(On Edge)
0
30
Non-combustible
Facing
To Unit
Base Legs
1" (25mm)
30”
20”
21”
28-1/8”
Combustible Material
20
10
the diagram on the right.
Note: A non-combustible mantel may be
installed at a lower height if the framing
is made of metal studs covered with a
non-combustible board.

Regency Horizon HZ54EPV Gas Fireplace 13
INSTALLATION

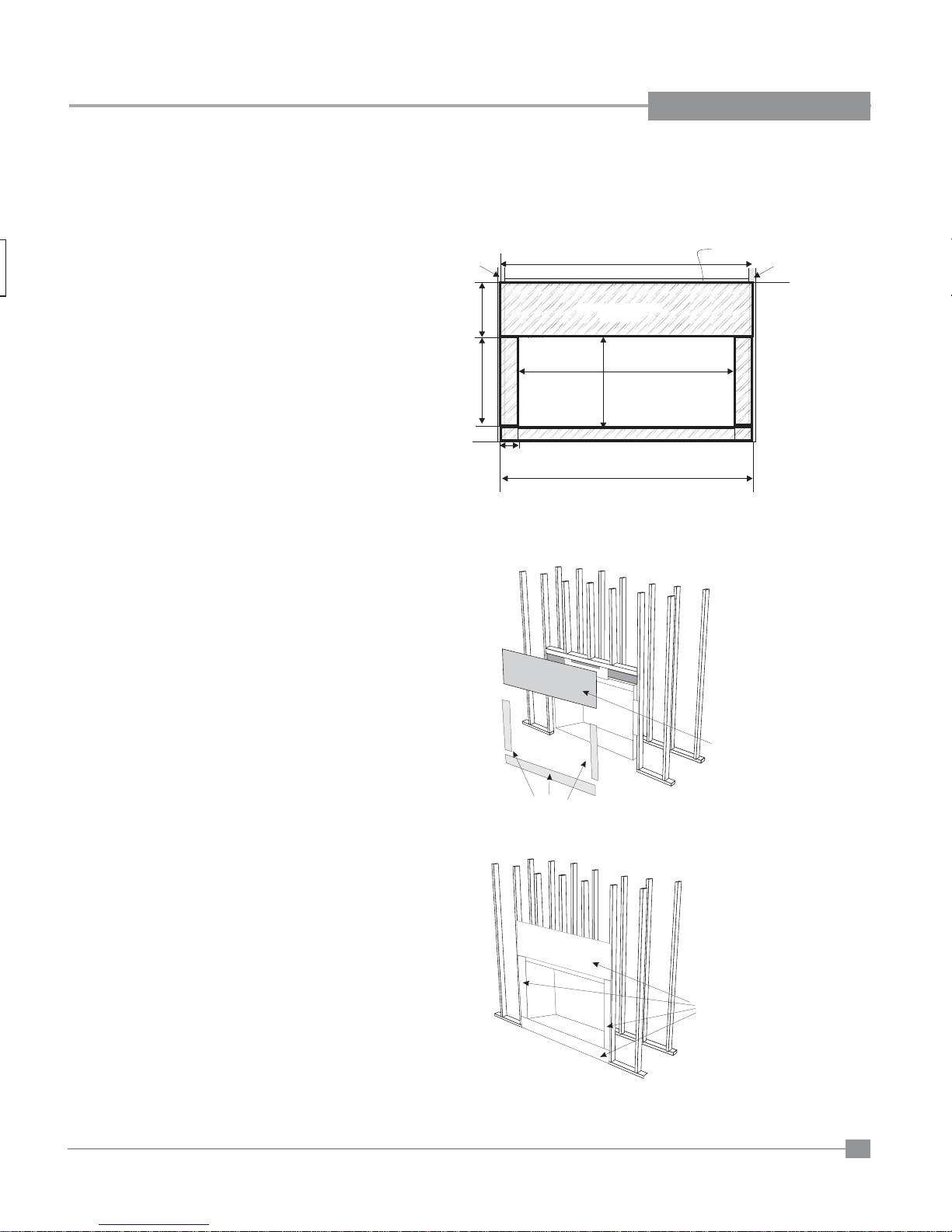

FRAMING & FINISHING
6) Determine the total thickness of facing material (eg. hardiboard + ceramic
tile) to ensure the finished surface is flush with the front edge of the
unit (see diagram below). If necessary, side and top nailing strips are
adjustable, loosen the 1/4" screws and adjust.
Total non-combustible facing allowable: Min. = 1/2"
Max. = 1- 1/2"
See diagram below.
1) Frame in the enclosure for the unit with framing material.
IMPORTANT: Header must be metal stud. All other framing may be of
combustible type such as 2x4 / 2x6 framing materials.
ote: When constructing the framed opening, please ensure there is ac-
cess to install the gas lines when the unit is installed.
2) For exterior walls, insulate the enclosure to the same degree as the rest
of the house, apply vapour barrier and drywall, as per local installation
codes. (Do not insulate the fireplace itself.)
WARNING: Failure to insulate and add vapor barriers to the inside of
the exterior wall will result in operational and performance problems
including,butnotlimitedto:excessivecondensationonglassdoors,
poor flame package, carbon, blue flames etc. These are not product
related issues.
3) The unit does not have to be completely enclosed in a chase. You must
maintain clearances from the vent to combustible materials: See "Clear-
ances" section. Combustible materials can be laid against the side and
back standoffs and the stove base.
4) The combined total of non-combustible facing materials (ie. hardiboard
+ tile, slate, etc) may be brought up to and overlap the face of the unit
(top and bottom). The minimum thickness = 1/2"
to a maximum thickness = 1-1/2", as shown in the diagram below.
If material is thicker than 1-1/2" - it will not be possible to mount
the faceplace.
5) When finishing around the faceplate, if material such as brick, stone, etc.
extend past the faceplate depth - the minimum opening
dimensions noted below must be adhered to, this is to ensure removal
of the faceplate.
1-1/2”
(38mm)
Max
½”
(13mm)
Min
Important:
Finished
facing
material to
be flush with
edge of unit.
Finished
Material Nailing Strip Position
1/2" 1"
1" 1/2"
1-1/2" 0" (flush)
Unit
Nailing Strip
1” Forward
Unit
Nailing Strip
½” Forward
Unit
Nailing Strip
Flush w/unit
Factory Set
Nailing Strips
For material such as brick, stone, etc that extends less than 1-1/2" , the
minimum opening dimensions noted below must be adhered to when
finishing around the unit. This is to ensure safe operation of this appli-
ance and the longevity of the finishing material.
52-7/8 ”
22-5/8”
Unit shown without faceplate

14 Regency Horizon HZ54EPV Gas Fireplace
INSTALLATION
A
B
C
D
E
F
G
H
I
J
KL
Non-Combustible
Facing
Metal Stud (Header)
on edge
Metal Stud
(Header)
on edge
(Located on the right side of the fireplace)
Framing
Dimensions Description HZ54EPV
A Framing Height 46-5/8” (1184mm)
B Framing Width 60” (1524mm)
B1 (see next page) Framing Width (negative vent run) 70" (1778mm)
B2 (see next page) Framing Width (negative vent run) 80" (2032mm)
C* Framing Depth*22” (559mm)
C1* (see next page) Framing Depth* (negative vent run) 31” (787mm)
D Minimum Height to Combustibles 51” (1295mm)
E Corner Wall Depth 72" (1829mm)
F Corner Facing Wall Width 101-7/8 (2586mm)
G Vent Centerline Height 44” (1118mm)
H Non-combustible facing height 20” (508mm)
I Gas Connection Opening Height 1-1/2” (38mm)
J Gas Connection Height 4” (102mm)
K Gas Connection Inset 7-1/4” (184mm)
L Gas Connection Opening Width 3-1/4” (83mm)
*Framing depth measurement is noted with the side nailing strips set as far forward on the firebox as possible.
The side nailing strips can be adjusted back up to 1” to allow for varying thicknesses in non-combustible material
& wall finishes.
Important: The minimum framing dimensions given for height, width and depth must be maintained even if using
non combustible materials.
Dangerous operating conditions will occur if minimum framing dimensions are not adhered to.

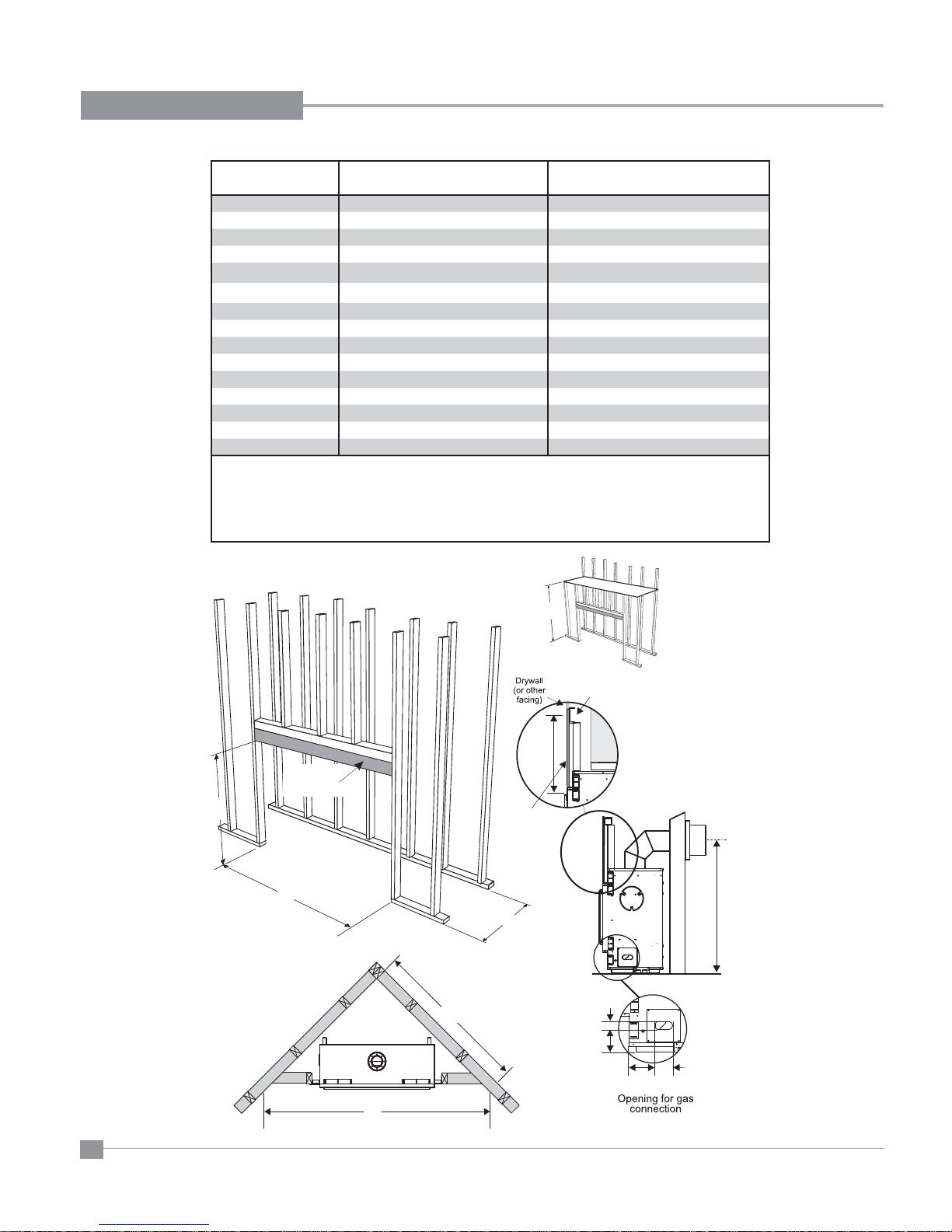

FRAMING DIMENSIONS

Regency Horizon HZ54EPV Gas Fireplace 15
INSTALLATION
FRAMING WITH A NEGATIVE VENT RUN
70” (1778mm)
80” (2032mm)
Framing width - offset to one side (left or right)
Framing depth
90°elbow 90°elbow rigid pipe
adaptor
8" slip 18" length
Framing width - equal on both sides (left or right) (pipe configuration same as above).
31” (787mm)
90°elbow
90°elbow
rigid pipe
adaptor
Parts required
1 rigid pipe adaptor
1 18" pipe length
1 8" slip
2 90° elbows
Note: Rigid pipe adaptor and 2 x 90° elbows required to achieve minimum clearances.
Note: Framing height and width remain the same as previous page.
Note: Framing height and depth remain the same as
previous page.

16 Regency Horizon HZ54EPV Gas Fireplace
INSTALLATION
NAILING STRIPS
The nailing strips come attached to the unit. There is 1 plate on each side,1
on the top, and one on the bottom that can be folded out as required. The
top and side nailing strips are secured to the framing. The bottom nailing
strip is secured to the unfinished floor - if installing the unit directly on the
floor.
Note: The bottom nailing strip will need to be bent on site and
adjusted to accommodate the thickness of the facing material.
The top stand off / nailing strip is shipped attached to the back of the unit as
shown below.
1) Remove one screw in location shown below.
Replace the screw on the back the unit after removing the
standoff / nailing strip.
2) Bend the 3 tabs at the bottom of the stand off / nailing strip to 90°,
bend in the same direction as the top tabs.
3) Install on the top front of the unit as shown in diagram 3. Do not fully
tighten the screws when installing - until the facing thickness has been
determined.
UNIT ASSEMBLY
PRIOR TO
INSTALLATION
The Top Standoff/ Nailing Strip, side nailing strips and standoffs must be
correctlypositionedandattachedtotheunitbeforeslidingtheunitintoposition.
STANDOFF ASSEMBLY
The top, side, rear and bottom standoffs are shipped in a flat position and
must be folded into shape and attached - see diagram 1.
1) Remove the standoffs from the unit.
2) Take each standoff and bend into the correct shape. Bend up at the bend
linesuntilthescrewholesinthestandoffandthepre-punchedscrewholes
on the unit line up.
VENTING INTRODUCTION
The HZ54EPV uses the "balanced flue" technology Co Axial system. The
inner liner vents products of combustion to the outside while the outer liner
drawsoutsidecombustionairintothecombustionchambertherebyeliminating
the need to use heated room air for combustion and losing warm room air
up the chimney.
Note: These flue pipes must not be connected to any other appliance.
The gas appliance and vent system must be vented directly to the outside of
the building, and never be attached to a chimney serving a separate solid fuel
or gas burning appliance. Each direct vent gas appliance must use it's own
separate vent system. Common vent systems are prohibited.
IMPORTANT NOTE
Framing depth measurement is noted with
the side nailing strips set as far forward on
the firebox as possible. The nailing strips can
be adjusted back up to 1” to allow for varying
thicknesses in non-combustible material & wall
finishes.
Remove this screw to
release top standoff / nailing
strip
Standoff
Nailing Strips
Standoff
Diagram 1
Diagram 2
Diagram 3
Standoff
Standoff

Regency Horizon HZ54EPV Gas Fireplace 17
INSTALLATION
Vent restriction is required for certain venting installations, see the diagrams in the "Venting
Arrangements" section to determine if they are required for your installation.
The Vent Restrictor plate is located on the inside top of the firebox.
To set the vent restriction as indicated in the venting arrangements diagrams, refer to the following instructions;
1) Remove the glass door.
2) Remove the screws that hold the vent restrictor plate in place.
3) Adjust the vent restrictor plate to the required vent restrictor position as per the diagrams shown.
4) Once the vent restrictor plate is in the required position, secure with screws.
VENT RESTRICTOR POSITION
Vent Restrictor Settings for HZ54EPV NG & LP
3”
Vent Restrictor Set 2
THIS HOLE SETS THE
VENT RESTRICTOR
AT 3”
2”
Vent Restrictor Set 3
THIS HOLE SETS THE
VENT RESTRICTOR
AT 2”
Factory Setting

18 Regency Horizon HZ54EPV Gas Fireplace
INSTALLATION

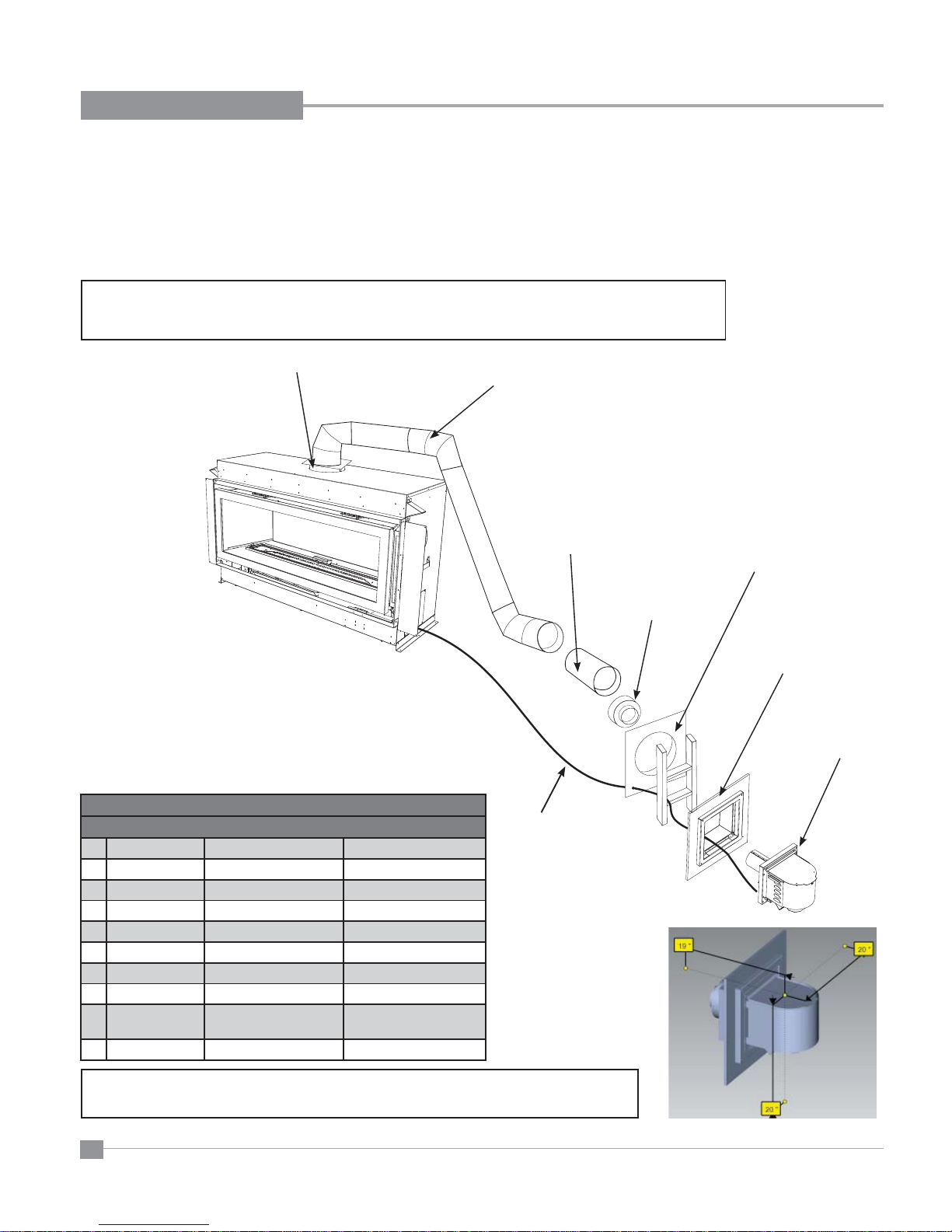

GAS POWER VENT INSTALLATION
RIGID PIPE ONLY
Firestop Spacer
(included w/power vent kit)
BX Cable
(sold separately)
Rigid Pipe Adaptor
(included w/unit
Frame Assembly
(included w/power vent kit)
Power Vent Terminal
(946-705)
Reducer 5" x 8" to 4 " x 6-5/8"
(included w/unit - Required)
Slip Section
(sold separately)
POWER VENT SYSTEMS ARE FOR USE WITH RIGID PIPE ONLY.
See venting in this manual for detailed instructions.
The Power Vent System is a Direct Vent Terminal designed to allow installation of gas appliances where typical vent configurations cannot be achieved.
These installation instructions must be used in conjunction with the appliance and appropriate Power Vent components installation instructions.
120 Volt power supply is required to operate this system (see Electrical Installation section in this manual).
Clearances listed in these Instructions supersede those in the appliance's Installation Instructions.
946-705 Power Vent Kit with Vent Terminal
Parts Required
1 770-994 Rigid Pipe adaptor included with unit
1 946-606 Reducer (required) included with unit
158
DVA-08A 8-1/2" Slip section - or sold separately
158
DVA-16A 16" Slip section sold separately
1 911-046 Power Vent Fan included w/power vent kit
1 Firestop included w/power vent kit
946-706 20' 5-wire BX cable or sold separately
946-707 60' 5-wire BX cable sold separately
amount required
for install
5" x 8" Rigid Pipe sold separately
1 946-705 Power Vent Kit sold separately
Models Equipped with Surefire Ignition
The power vent system can only be used with units that have been tested with the Regency Power Vent system.
Downward vertical vent runs are permitted with the Surefire Ignition system. See vent configuration in this manual.
5" x 8" Rigid pipe lengths
(sold separately)

Regency Horizon HZ54EPV Gas Fireplace 19
INSTALLATION
Adjustable Length 3”-10”-Galvanized N/A 5DAL
Adjustable Length 3”-10”-Black N/A 5DALB
Adjustable Length 11”-14” -Galvanized Disc. - See 58DV-08A N/A
Adjustable Length 11”-14” -Black Disc. - See 58DV-08B N/A
Extension Pipe 17”-24” -Galvanized Disc. - See 58DV-16A N/A
Extension Pipe 17”-24” -Black Disc. - See 58DV-16AB N/A
Adjustable Length 8-1/2”-Galvanized 58DVA-08A - N/A from FPI N/A
Adjustable Length 8-1/2”-Black 58DVA-08AB N/A
Extension Pipe 16”-Galvanized 58DVA-16A - N/A from FPI N/A
Extension Pipe 16”-Black 46DVA-16AB N/A
45ºElbow-Galvanized 58DVA-E45 5DT-EL45
45ºElbow-Black 58DVA-E45B 5DT-EL45B
45ºElbow Swivel-Galvanized Disc. - See 58DVA-E45 N/A
45ºElbow Swivel-Black Disc.-See 58DVA-E45B N/A
90ºElbow-Galvanized 58DVA-E90 5DT-EL90S
90ºElbow-Black 58DVA-E90B 5DT-EL90SB
90ºElbow, Swivel-Galvanized Disc. - See 46DVA-E45 N/A
90ºElbow, Swivel-Black Disc. - See 46DVA-E45 N/A
90º Starter Elbow, Swivel-Galvanized N/A N/A
Adaptor* N/A N/A
Ceiling Support 58DVA-DC 5DSP
Cathedral Support Box 58DVA-CS 5DRS
Wall Support/Band 58DVA-WS 5DWS
Offset Support 58DVA-ES - N/A from FPI N/A
Wall Thimble-Black 58DVA-WT 5DWT
Wall Thimble Support/Ceiling Support 58DVA-DC - N/A from FPI N/A
Firestop Spacer 58DVA-FS 5DFS
Trim Plate-Black 58DAV-WFS 5DCP
Description Simpson
Direct Vent Pro®
Metal-Fab™
Sure Seal
6” Pipe Length-Galvanized 58DVA-06 5D6
6” Pipe Length-Black 58DVA-06B 5D6B
9” Pipe Length-Galvanized 58DVA-09 N/A
9” Pipe Length-Black 58DVA-09B N/A
12” Pipe Length-Galvanized 58DVA-12 5D12
12” Pipe Length-Black 58DVA-12B 5D12B
18” Pipe Length-Galvanized 58DVA-18 5D18
18” Pipe Length-Black 58DVA-18B - N/A from FPI 5D18B
24” Pipe Length-Galvanized 58DVA-24 5D24
24” Pipe Length-Black 58DVA-24B 5D24B
36” Pipe Length-Galvanized 58DVA-36 5D36
36” Pipe Length-Black 58DVA-36B 5D36B
48” Pipe Length-Galvanized 58DVA-48 5D48
48” Pipe Length-Black 58DVA-48B 5D48B
60” Pipe Length-Galvanized 58DVA-60 N/A
60” Pipe Length-Black 58DVA-60B - N/A from FPI N/A
5” X 8” RIGID PIPE CROSS REFERENCE CHART
Components from different Manufacturers may not be mixed. Not All Rigid Pipe components are available directly from FPI.

20 Regency Horizon HZ54EPV Gas Fireplace
INSTALLATION
Description Simpson
Direct Vent Pro®
Metal-Fab™
Sure Seal
Attic Insulation Shield 12” 58DVA-IS N/A from FPI N/A
High Wind Vertical Cap 58DVA-VCH N/A
High Wind Horizontal Cap N/A N/A
Horizontal Square Termination Cap N/A 5DHT
Vertical Termination Cap N/A 5DVT
Storm Collar 58DVA-SC 5DSC
Restrictor Disk 58DVA-RD N/A
Colinear Flex Connectors N/A N/A
Adjustable Flashing 0/12-6/12 58DVA-F6 5DF
Adjustable Flashing 6/12-12/12 58DVA-F12 5DF1-2
Vinyl Siding Standoff 58DVA-VSS 5DVS
Vinyl Siding Shield Plate N/A N/A
Snorkel Termination 14” 58DVA-SNK14 N/A
Snorkel Termination 36” 58DVA-SNK36 (N/A - FPI) N/A
Basic Horizontal Termination Kit (A) N/A N/A
Horizontal Termination Kit (B) 58DVA-KHA N/A
Vertical Termination Kit 58DVA-VHA N/A
FPI
946-604/P Simpson Direct Vent -Vent Guard (Optional) 946-623/P AstroCap XL Horizontal Cap
770-994 Rigid Pipe Adaptor (Must use with all rigid piping) 946-506/P Vent Guard (Optional)
946-606 Starter collar reducer 5” x 8” to 4” x 6-5/8” 946-625 Vinyl Siding Standoff - AstroCap XL
Note: When using Metal-Fab Sure Seal Rigid Piping - please note that the Adaptor (4DDA) must be used in conjunction with FPI Rigid Pipe Adaptor (510-994).
Offset Pipe Selection: Use this table to determine offset pipe lengths.
Pipe Length
(L)
5” x 8” Venting For specific instructions on venting components - visit the
manufacturers website listed below.
Run (X) Rise (Y)
0” (0mm) 5-11/16” (144mm) 15-5/16” (389mm) Simpson Direct Vent Pro: www.duravent.com
9” (229mm) 10-15/16” (278mm) 20-9/16” (522mm) Metal-Fab Sure Seal: www.mtlfab.com
12” (305mm) 13” (330mm) 22-11/16” (576mm) Industrial Chimney Company: www.icc-rsf.com
24” (610mm) 21-7/16” (697mm) 31-1/16” (789mm) Note: Horizontal runs of vent must be level, or have a 1/4”
rise for every 1 foot of run towards the termination.
Never allow the vent to run downward - this could cause high
temperatures and may present a possible fire hazard.
36” (914mm) 29-13/16” (757mm) 39-7/16” (1002mm)
48” (1219mm) 38-1/4” (972mm) 47-7/8” (1216mm)
