Dear Customer!
The wet trimmer ROTOGRIND MINI is characterised by a particularly favourable price-
performance ratio. The powerful motors provides a precise finish with high surface quality.
The stainless steel housing is extremely robust and durable. For safety reasons the device is
equipped with a safety fuse in case of power failure. The device’s front cover can be easily
removed with two special quick releases for cleaning purposes or disc exchange. Clean the
device’s front under running water in the sink. Stainless steel ensures durability and long-
term visual attractiveness.
Any other use or usage beyond this scope is considered unintended use. The manufacturer
shall not be responsible for any damages that may result thereby.
Prior to installation of the device operating instructions and especially the safety instructions
must be read and followed by all personnel who use this device.
After having unpacked the device, please check carefully whether transportation damages of
any kind have occurred. If that is the case, the carrier or manufacturer must be notified within
3 days. The company will not be responsible for any damages found after that.
These operating instructions must be read and followed by all personnel who use this device.
Store it at a safe place near the device. This documentation is protected by copyright.
Transmittal or reproduction of this document in whole or in part and disclosure of its contents
is not permitted. If the operation manual gets lost an extra copy can be ordered from the
manufacturer at a nominal fee.

III
CONTENTS
TECHNICAL DESCRIPTION......................................................................................... 4 1
B ASIC E QUIPMENT ....................................................................................................... 4 1.1
S PECIAL E QUIPMENT ................................................................................................... 4 1.2
D EVICE DESCRIPTION ................................................................................................... 5 1.3
T ECHNICAL D ATA ......................................................................................................... 7 1.4
SAFETY NOTES........................................................................................................... 8 2
G ENERAL S AFETY N OTES ............................................................................................ 8 2.1
S PECIFIC S AFETY N OTES ............................................................................................. 9 2.2
INSTALLATION...........................................................................................................10 3
I NSTALLATION .............................................................................................................10 3.1
C HANGING A GRINDING DISC ........................................................................................10 3.2
OPERATION................................................................................................................11 4
C HRONOLOGICAL RUN OF OPERATION ..........................................................................11 4.1
C LEANING ..................................................................................................................11 4.2
TROUBLESHOOTING .................................................................................................12 5
MAINTENANCE...........................................................................................................12 6
WARRANTY.................................................................................................................13 7
DISPOSAL REGULATIONS ........................................................................................17 8
SPARE PARTS LIST ...................................................................................................18 9

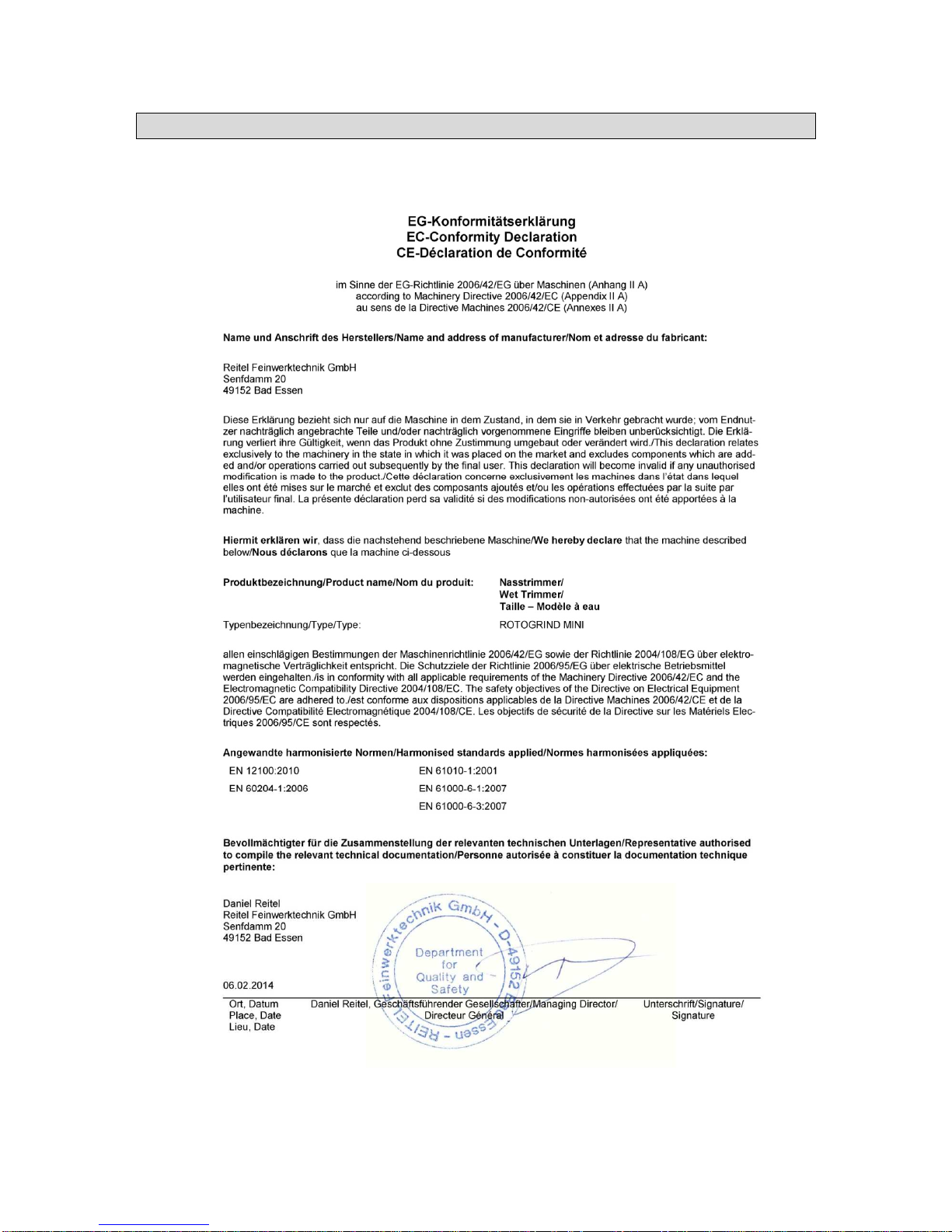

EC-CONFORMITY DECLARATION.............................................................................19 10

4
Technical Description 1
Basic Equipment 1.1
•Wet trimmer ROTOGRIND MINI
•Allen key, size 2,5 for quick release fixing screws and size 4,0 for disc change
•Inlet and outlet hose
Special Equipment 1.2
•Order-No.: 20301 Silicon carbide grinding disc
•Order-No.: 23301 Diamond grinding disc PW, partly coated
•Order-No.: 23401 DELTA diamond grinding disc, partly coated
•Order-No.: 22204 Aluminium backing plate with Velcro fastener, for 22205
•Order-No.:22205 Corundum disc „Velcro“ (5 pcs./pack.)

5

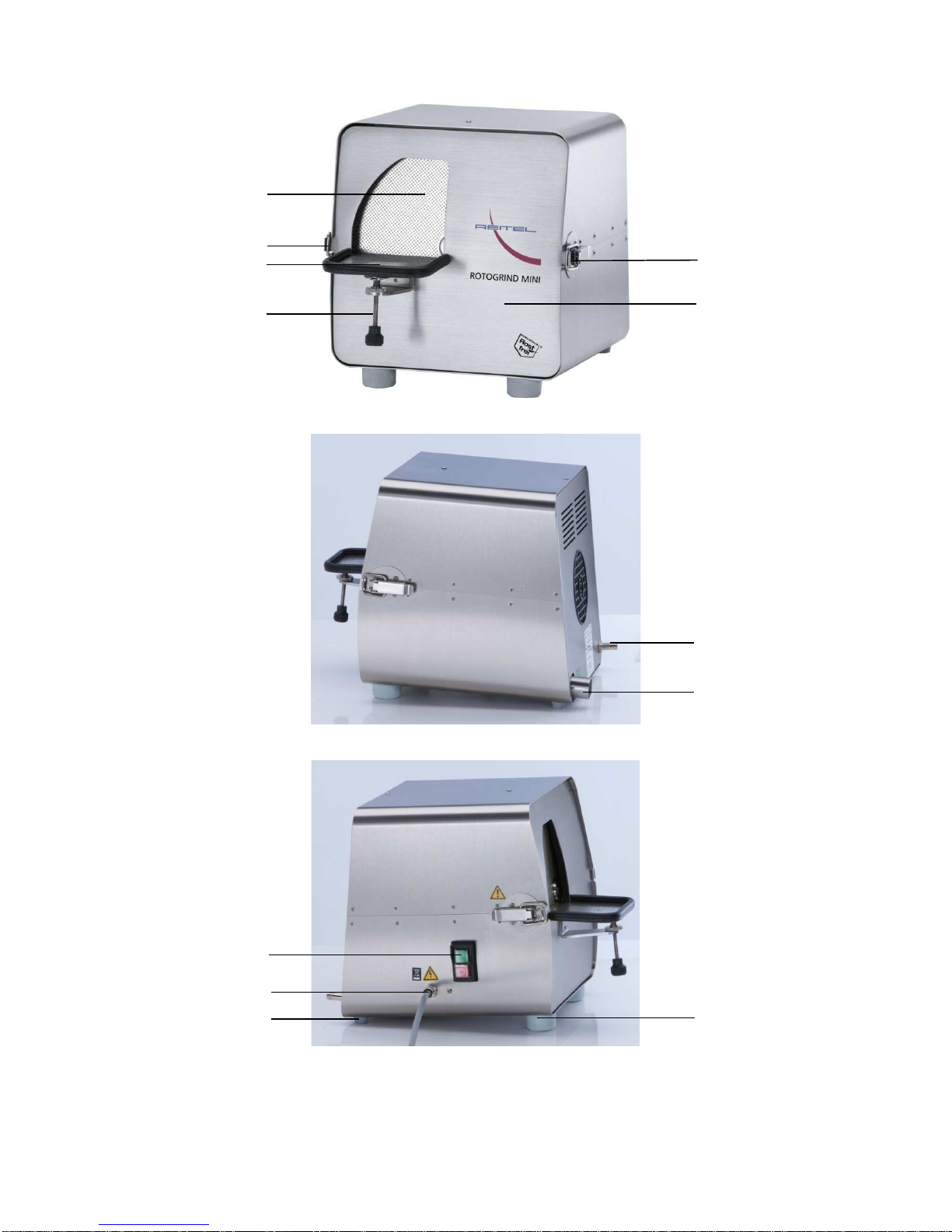

Device description 1.3
1 Grinding disc (photo shows order-no.: 23301 diamond grinding disc PW)
2 Tray table
3 Height fastener (with knurled nut)
4 (4a und 4b) quick releases
5 Front
6 Water outlet (photo without hose)
7 Water supply
8 Power switch
9 Power connector
10 Rubber feet
11 Rubber feet

6
Device view
Lateral view
Lateral view
1
4b
6
7
3
2
5
8
9 11
10
4a

7
Technical Data 1.4
Line voltage 230 V/50–60 Hz
Current consumption 1.300 W
Height/width/depth 310/310/400 mm
Weight 20 kg
Speed 3.000 rpm
Disc diameter 250 mm
Sound level ≤70 dB(A)
Housing Stainless steel
Order-No.: 13400
Made in Germany (Subject to modifications)

8
Safety Notes 2
General Safety Notes 2.1
•All equipment undergoes final inspection and testing before leaving our factory. However,
if equipment is damaged during shipping or through any other circumstances, it must not
be used in service. Please check the device regularly for damages. Damaged parts
should be replaced immediately.
•All power/air/water/gas sources should be rated for the demands of the device as listed in
the technical data sheets. Maximum ratings must not be exceeded. All VDE (Verein
Deutscher Elektro-Ingenieure) standards should be followed. Equipment should be
grounded according to standards.
•Adherence to valid regulations regarding necessary checks (e.g. according to Accident
Prevention & Insurance or electrical equipment) is exclusively taken over by the
buyer/user of this product.
•This device has been designated to be used only for its intended purpose. All other
applications must be prohibited for safety reasons as otherwise the manufacturer’s
warranty expires.
•The device should be set-up in a clean, well-ventilated room, if necessary under a hood.
•Supporting surfaces should be straight, flat and adequately stable.
•Don’t place anything on top of the machine.
•To avoid injury, appropriate protection should be worn (e.g. gloves, safety glasses, safety
shoes, hearing protection etc.)
•If the machine is defective or working improperly it must be taken out of service. In case
of further use of the machine the owner will be held responsible for any consequential
damage.
•To prevent accidents from water, fire or explosion, all power/air/water/gas sources should
be turned off after working hours and during breaks, and secured against unauthorized
access.
•When carrying out maintenance works or repairs or when opening the device always turn
off the main power switch and unplug the whole unit.
•Repairs should be carried out only by the manufacturer or by qualified and certified
personnel appointed according to chapter 7 – warranty.
•In case of leaking water out of housing or tank shut down device and call service.
•Check all hose connections for leak tightness, if necessary tighten hose clamps again.

9
Specific Safety Notes 2.2
Note
:
•Investment material and dry hard plaster reduce the grinding disc’s service time. The
diamond grinding discs may not be used for metal and quartzide material. The diamonds
will start to melt immediately and the grinding disc is rendered unusable.
•The ROTOGRIND MINI includes a wet-rinsing, cleaning the grinding disc. When working
with material containing components which are not meant to be put into the public
wastewater disposal, suitable cleaning systems have to be used or the wastewater has
to be collected and disposed of separately.
•Keep the housing clean and dry.
•The ROTOGRIND MINI is a benchtop unit. Supporting surfaces should be straight, flat
and adequately stable.
•When opening the machine’s front, please keep in mind that the grinding disc doesn’t
stop immediateley after the machine has been turned off. Wait till it has stopped
completely.
•Always wear goggles when working with the device.
•Always use a wedging block when working on smaller pieces.
•Put the working piece on the model tray first and then press it towards the grinding disc.
•Never put your hands into the running device.
•Only turn on the machine again when the grinding disc is still at a halt.
•Don’t use worn or damaged grinding discs.
•Only change the grinding disc when it stands still and the whole unit is unplugged.
•Only use original REITEL grinding discs – with an outer diameter of 250 mm. Using
grinding discs supplied by other manufacturers will render our warranty null and void with
immediate effect.
•Always respect the regulations of the grinding discs manufacturer (e.g. max. speed,
sense of rotation, cutting speed, material to be worked on).

10
Installation 3
The electric equipment is being delivered fully installed. The sealed plug can be connected
directly to the mains supply 230 V/16 A. For installation please refer to safety notes in
chapter 2.
Installation 3.1
1. Attach supplied hose to water inlet (7) fastening it with the hose clamp included in
delivery. Fix the other end of the hose to your water tap.
2. Fix the drainage hose to the water outlet (6). Lead wastewater via drain hose with a fall to
the plaster-settling basin (respect local regulations).
3. Connect the machine to the power supply.
Changing a grinding disc 3.2
1. Turn off power switch (8). Pull the mains cable (9) from the socket.
2. Wait until the grinding disc has completely stopped.
3. Remove the security screws and open the quick releases (4a und b), push the front (5)
aside and then take it out.
4. Release the central nut holding the disc by using the Allen key (see chapter 1.1) counter-
clockwise. Take off the central nut and remove the disc.
5. Clean the disc’s working surface and supporting disc, put on supporting disc and new
grinding disc and ensure that it’s placed correctly and then fix the screw in a clockwise
direction.
6. Reinsert the front (5) with the quick releases (4a und b) and fasten them with the security
screws.

11
Operation 4
Chronological run of operation 4.1
1. Turn power switch (8) on.
2. Adjust inclination angle of the tray table (2) with height fastener (3). Secure height
fastener by turning the knurled nut upwards.
3. Put the model to be worked on the tray table (2) and press it against the rotating disc (1).
It’s prohibited to use the trimmer with inadmissible material.
4. Always turn off the trimmer when not in use.
Cleaning 4.2
1. Turn power switch (8) off.
2. Pull power plug (9) from socket.
3. Wait until the grinding disc has stopped completely.
4. Remove the security screws and open the quick releases (4a und b). Move the front (5)
forward to remove.
5. Clean the front under running water. Clean the inside with a damp cloth.
6. Clean the rubber gasket. Reinsert the front (5) and lock it with quick releases (4a and b)
and reinsert the security screws.

12
Troubleshooting 5
Machine doesn’t work at all. a. Check domestic fuses.
b. Check device’s fuse.
Abrasive power diminishes. a. Replace worn or defective grinding discs.
b. Clean dirty grinding discs (e.g. with
steam cleaner).
Machine is untight. a. Check correct fitting of the front cover
(5).
b. Clean the sealing behind the front,
maybe grease sealing with vaseline.
c. Replace sealing.
Maintenance 6
•Regularly check the appliance for visible damage to the housing or power cord.
•Clean the front and inner grinding area once a week (see chapter 4.2 cleaning).
•Clean the housing regularly with a damp cloth and use REITEL stainless steel care
spray.

13
Warranty 7
We, REITEL Feinwerktechnik GmbH, offer a 1 year’s warranty beginning from the proven
date of purchase. This warranty covers all defects traceable to materials, design or
workmanship. The following warranty regulations are applicable:
Within the warranty period Reitel Feinwerktechnik GmbH or an authorized distributor agrees
at its sole option, to perform repair or replace this product at no charge covering all defects
traceable to materials, design or workmanship. Warranty only applies to appropriate use and
regular maintenance of this product according to the operating instructions. Claims under
warranty are restricted to complementary performance. Additional claims, especially claims
for indemnifications, are not covered by this warranty.
1.
Warranty claims have to be addressed to the distributor the product was purchased from or
directly to our service department.
Contact:
REITEL Feinwerktechnik GmbH
Senfdamm 20
49152 Bad Essen
Germany
Phone: [phone] (Service Department)
Phone: [phone] (Reception)
Fax-No: [phone]
2.
In case of warranty claim application the sales receipt or your purchase invoice showing the
date of purchase of the product and the serial number must be furnished. Securely pack and
ship the device, freight charges prepaid, at your own risk to us, along with a report describing
the defect. We reserve the right to decline warranty if this information has been removed or
modified after purchase of the product or if they are not included in case of warranty claims.
3.
Warranty repairs have to performed by REITEL Feinwerktechnik GmbH or by authorised
distributors. Repairs performed by non-authorised companies will void the claim for refund
since damages to the product resulting hereof are not covered by warranty.
4.

14
If the unit sent in for repair or replacement is still under the original warranty then warranty is
to the end of the original 1 year warranty.
5.
If the unit is destined to be operated in another country than originally intended and
manufactured for, modifications to the product might be necessary to comply to special
technical and /or safety standards of that specific country. Such modifications are no defects
traceable to materials, design or workmanship. and are therefore expressly excluded from
warranty claims.
Modification costs or damages arising from operation of the product under deviating
conditions are not covered by warranty.
6.
Exclusions from warranty:
−Service and maintenance work as well as repair and replacement of consumables
according to our consumables‘ list
−Transportation cost of the machine or installation and dismounting expenses incurred
−Damages due to use of the product other than for its intended purpose
−Damages due to faulty installation or insufficient maintenance of the product (e.g.
decalcification)
−Damages due to natural disaster e.g. lightning, water, fire, act of nature beyond
control, war, inadequate line voltage, insufficient ventilation, no decalcification,
insufficient care and cleaning or non-adherence to operation and maintenance
instructions according to the accompanying operation guide.
−Damage due to use of the product other than in accordance with the instructions
provided by REITEL Feinwerktechnik GmH;
−The warranty does not cover the cost of removal and replacement of parts and
accessories, unless supplied as original equipment by REITEL Feinwerktechnik
GmbH
−All kind of damages occurred not directly at the device as well as consequential
damages (e.g. damages to furniture due to a lack of water, downtime of the machine,
material, lost working hours, wages and other consequential damages).
This warranty shall be rendered null and void if:
−the product has been subject to any modification, repair or replacement other than as
authorised by REITEL Feinwerktechnik GmbH
−the product is continued to be operated despite a functional defect

15
7.
The warranty is device specific and may be claimed, within the warranty period, by any
person who has legally acquired the device.
8.
Consumables are excluded from warranty. Spare parts are subject to a warranty coverage of
6 months against all defects traceable to materials, design or workmanship according to
these warranty regulations.
9.
Legal default claims on the part of the purchaser remain unaffected by this warranty.
10.
We reserve the right to charge a fee of 30 € if repair of the device is rejected and the device
is destined to be sent back unrepaired.
11.
Please note:
Upon repair or replacement of this unit, personal data and settings might get lost or
damaged. We don’t accept liability for all kind of data loss. The customer is advised to
backup essential programs and data before sending for service.
12.
This warranty shall be interpreted in accordance with German law to the exclusion of UN
sales law. Place of jurisdiction is our business location.
13.
If any provisions of this warranty are judged to be illegal or unenforceable, the continuation in
full force and effect of the remaining provisions will not be prejudiced. The provisions of this
warranty judged to be illegal or unenforceable shall be construed so as to give effect to the
intent manifested by the provision held invalid, illegal or unenforceable and to give effect to
section 13 hereof.
14.
Should you need to borrow a device while your device is being repaired, please contact
Messrs. REITEL or your distributor. These loans are a service for which availability cannot
necessarily be guaranteed. After the warranty period, a free may be charged for loan
equipment as well as for shipping and packaging.

16

17
Disposal Regulations 8
Disposal of our devices once you’ve finished with them in accordance with the
local regulations. For further information please contact your distributor.

18
Spare Parts List 9
Z.-Nr.: Best.-Nr.: Menge
ME
E60145 Ablaufschlauch / Drain hose 0,5 m
E60142 Achsabdichtung Gummi / Rubber axis seal 1 St./pc.
E79109 Anlagenaufnehmer / Disc support adapter 1 St./pc.
E79146.2 Auflagetisch mit Kantenschutz / Table with edge protection 1 St./pc.
E78134 Dichtungsprofil / Seal profile 0,8 m
E79145 Front komplett / Complete front 1 St./pc.
E79141 Gehäuse komplett (ohne Front) / Complete housing (without front) 1 St./pc.
E60203 Gummifüsse 2 Stück hinten / Rubber feet, 2 pcs. at the back 1 Satz/set
E60126 Gummifüsse 2Stück vorne / Rubber feet, 2 pcs. in front 1 Satz/set
E79105 Höhenversteller komplett / Complete height fastener 1 Satz/set
E60212 Kabelverschraubung / Cable screwing 1 St./pc.
E61580 Kantenschutzprofil für Modelltisch / Edge protection profile for model table 0,3 m
E79404 Klemmscheibe d = 30 mm / Clamping disc d = 30 mm 1 St./pc.
E60121 Lüftungsgitter / Ventilation grid 1 St./pc.
E61883.2 Magnetventil 1/4" NW 3 / Solenoid valve 1/4" nominal witdth 3 1 St./pc.
E75039 Motor / Motor 1 St./pc.
E78714 Profilgummi Frontabdichtung / Rubber seal profile for front 1 St./pc.
E73003 PU-Schlauch blau 4x1x6mm / Blue PU-hose 4x1x6 mm 0,3 m
E60101.1 Rändelmutter / Knurled nut 1 St./pc.
E60197.2 Schalter mit Wiedereinschaltschutz / Switch incl. restart protection 1 St./pc.
E79144 Scheibenanlage / Disc support 1 St./pc.
E71547 Senkschraube M6 x 20 / Flat head screw M6 x 20 1 St./pc.
E78189 Spannverschluss Satz / Fastener set 1 Satz/set
E78192 Spülrohr Baugruppe / Rinsing tube unit 1 St./pc.
E60804 Teflonscheibe Motorachse / Teflon screw motor axis
1 St./pc.
E72991 Gewindetülle G1/4"-10mm / Screwing 1/4"-10 mm 1 St./pc.
E60719 Zuleitung 3 x1,5 / Feed 3 x1,5 1 St./pc.

19
EC-Conformity Declaration 10

We manufacture in compliance with Quality Management ISO 9001:2008 incorporating
established standards.
REITEL Feinwerktechnik GmbH
Senfdamm 20 - 49152 Bad Essen
Phone: [phone] - Fax: [phone]
http://www.reitel.com
-
[email protected]
042014
