REITEL STEAMY MINI User manual

Operating Instructions
LABORATORY EQUIPMENT IN
STAINLESS STEEL
STEAMY MINI with Luer-Lock Adaptor
REITEL Feinwerktechnik GmbH
Senfdamm 20 | 49152 Bad Essen
Phone: [phone] | Fax: [phone]
www.reitel.com | [email protected]

II
Dear Customer!
The STEAMY MINI is a steam cleaner with a single steam level. Grease, sticky wax, pickling
agents, various contaminants and adhesives are gently removed without affecting the object
itself. Environmentally safe, because no chemicals are needed. The Luer-Lock adaptor
enables you quick nozzle change.
Any other use or use beyond this is deemed improper. For resulting damage the
user/operator of this device is solely responsible.
Prior to installation of the device operating instructions and especially the safety instructions
must be read and followed by all personnel who use this device.
After having unpacked the device, please check carefully whether transportation damages of
any kind have occurred. If that is the case, the carrier or manufacturer must be notified within
3 days. The company will not be responsible for any damages found after that.
These operating instructions must be read and followed by all personnel who use this device.
To ensure quick access we recommend to keep it at a safe place near the device. In case of
loss it can be ordered at a nominal fee from the manufacturer.
This document is protected by the copyright law. Passing on or duplication of this document
or extracts thereof, evaluation and communication of its contents are not authorised. In case
of loss it can be ordered at a nominal fee from the manufacturer.

III
INDEX
TECHNICAL DESCRIPTION......................................................................................... 4
BASIC EQUIPMENT....................................................................................................... 4
SPECIAL ACCESSORIES................................................................................................ 4
OPERATING ELEMENTS................................................................................................ 5
TECHNICAL DATA......................................................................................................... 7
SAFETY NOTES........................................................................................................... 8
GENERAL SAFETY NOTES ............................................................................................ 8
SPECIFIC SAFETY INSTRUCTIONS ................................................................................. 9
INSTALLATION ...........................................................................................................10
OPERATING INSTRUCTIONS.....................................................................................10
CHRONOLOGICAL RUN OF OPERATION..........................................................................10
DECALCIFY THE DEVICE WHEN USING NON-DISTILLED WATER.........................................11
TROUBLESHOOTING .................................................................................................12
MAINTENANCE...........................................................................................................13
WARRANTY.................................................................................................................14
DISPOSAL REGULATIONS ........................................................................................17
SPARE PARTS LIST ...................................................................................................18
EC CONFORMITY DECLARATION.............................................................................19

4
Technical Description
Basic Equipment
•Steam cleaner STEAMY MINI
•Luer-Lock set
- Steam nozzle 2,5 mm
- Tool for nozzle change
Special Accessories
•Order-No.: 20116000 Steam nozzle 1,5 mm
•Order-No.: 20119000 Tool for nozzle change
•Order-No.: 20112000 Steam brush for external cleaning
•Order-No.: 20113000 Steam brush for internal cleaning, 25 cm, Ø 4 mm
•Order-No.: 20114000 Steam brush for internal cleaning, 50 cm, Ø 4 mm
•Order-No.: 20107000 Wall shelf
•Order-No.: 20121000 Decalcifying pump (manual operation)
•Order-No.: 90410000 Decalcifying agent
•Order-No.: 10106000 BIOSTEAM CENTER with extraction
•Order-No.: 10205000 Water softening device DELIMER COMFORT

5
Operating Elements
1 Housing
2 Power switch
3 Control lamp: lack of water
4 Control lamp: heating
5 Heating control
6 Tank cap
7 Steam gun incl. tube
8 Steam gun hose
9 Deflector plate (if applicable)
10 Safety valve
11 Temperature limiter
12 Device’s fuse
13 Steam gun switch
14 Pistol clip or holder
15 Contact screw
16 Steam brush
17 Tool for quick nozzle change
18 Steam nozzle 2,5 mm
19 Steam nozzle 1,5 mm (option)

6
1
6
5
9
10
13
14
15
2
3
4
8
7
Device view
Rear side
Side view
Safety valve
Luer-Lock Set
16
17
18
19
11
12

7
Technical Data
Line voltage
230 V/50-60 Hz
Current consumption
1.200 W
Height / width / depth
280 / 330 / 330 mm
Weight
8 kg
Pressure
4,5 bar variable
Temperature
150 °C
Volume
3,5 l
Control
Pressure via temperature
Steam level
1
Filling
manual
Sound level
≤70 dB(A)
Housing
Stainless steel
Order-No.:
10904000
Made in Germany (Subject to modifications)

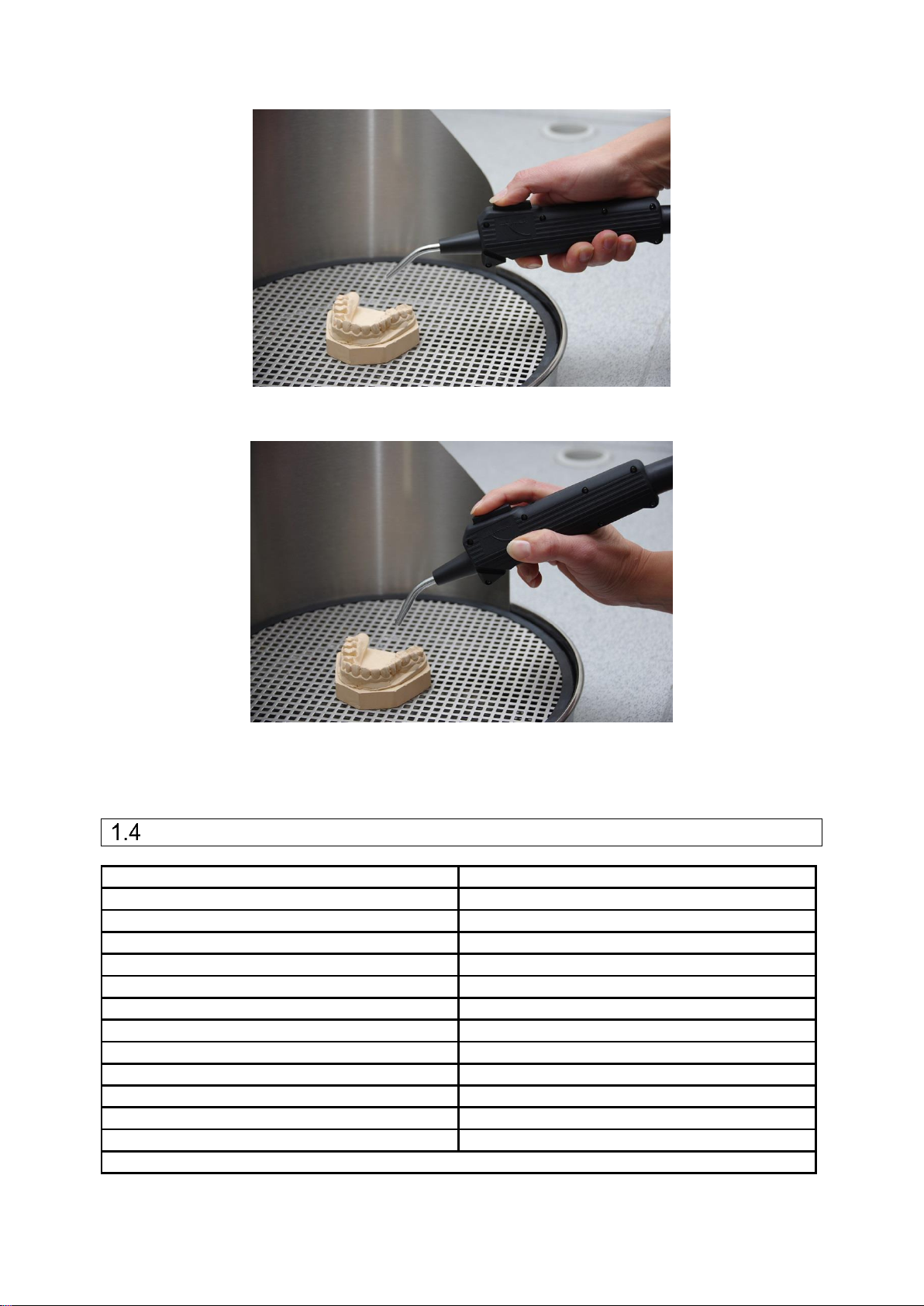

Fig.: Posture for detailed cleaning
Fig.: Posture for fast operation and high ergonomics

8
Safety Notes
General Safety Notes
•All equipment undergoes final inspection and testing before leaving our factory. However,
if equipment is damaged during shipping or through any other circumstances, it must not
be used in service. Please check the device regularly for damages. Damaged parts
should be replaced immediately.
•All power/air/water/gas sources should be rated for the demands of the device as listed in
the technical data sheets. Maximum ratings must not be exceeded. All VDE (Verein
Deutscher Elektro-Ingenieure) standards should be followed. Equipment should be
grounded according to standards.
•Adherence to valid regulations regarding necessary checks (e.g. according to Accident
Prevention & Insurance or electrical equipment) is exclusively taken over by the
buyer/user of this product.
•This device has been designated to be used only for its intended purpose. All other
applications must be prohibited for safety reasons as otherwise the manufacturer’s
warranty expires.
•The device should be set-up in a clean, well-ventilated room, if necessary under a hood.
•Supporting surfaces should be straight, flat and adequately stable.
•Don’t place anything on top of the machine.
•To avoid injury, appropriate protection should be worn (e.g. gloves, safety glasses, safety
shoes, hearing protection etc.)
•If the machine is defective or working improperly it must be taken out of service. In case
of further use of the machine the owner will be held responsible for any consequential
damage.
•To prevent accidents from water, fire or explosion, all power/air/water/gas sources should
be turned off after working hours and during breaks, and secured against unauthorized
access.
•When carrying out maintenance works or repairs or when opening the device always turn
off the main power switch and unplug the whole unit.
•Repairs should be carried out only by the manufacturer or by qualified and certified
personnel appointed according to chapter 7 –warranty.
•In case of leaking water out of housing or tank shut down device and call service.
•Check all hose joints for tightness, if necessary fasten clamps.

9
Specific Safety Instructions
Note:
•Keep a safe distance of at least 100 mm from the safety valve (back of the device) to
circulation areas or workplaces –Danger of scalding.
•Ground yourself by touching the steam gun handle (7) and the contact screw (15).
Alternatively lay your flat hand on the steam cleaner’s housing. (Gases or fluids flowing
through pipes generate static electricity. For safety reasons static electricity is
discharged during evaporation by the contact screw at the steam gun handle. If the user
gets an electric shock when touching the device or the steam gun, the person was
exposed to static electricity before. The combination of floor covering and shoe soles is
often the reason, falling outside the sphere of influence of the steam cleaner’s
manufacturer.)
•We recommend to fill the device only with decalcified or distilled water (damage due to
limescale deposits is not covered by warranty). Decalcification depending on water
hardness every one or two weeks. Not necessary if distilled water is used (we
recommend special accessories: Water softening device DELIMER).
•The device must not be filled under pressure and not be connected to the water supply.
•The steam jet is only to be aimed at objects which need cleaning, never at living beings.
•Only clean objects appropriate for this purpose, if necessary first clean sample or test on
an inconspicuous area.
•The tank cap (6) may only be opened if the device is not under pressure.
•The device may not be filled when the radiator is hot and the tank is empty (danger of
scalding).
•The device should be filled every morning when it is still cold in order to preserve the
heating aggregates as well as the gaskets. Furthermore an unintended break will be
avoided.
•In case of leaking water (caution: hot) out of housing or tank shut down the device (see
chapter 5 troubleshooting).
•Gases or fluids flowing through closed tubes or hoses generate static electricity. It should
be continuously discharged. If static electricity is noticeable before using the steam gun,
the user was exposed to static electricity before (e.g. carpets, shoes).
•Observe minimum distances.

10
Installation
The electric equipment is being delivered fully installed. The sealed plug can be connected
directly to the mains supply 230 V/16 A. For installation please refer to chapter 2.
Operating Instructions
Chronological run of operation
1. Use the device only when it’s filled with water. (Pay attention to the safety notes in
chapter 2). In order to avoid an unintended dry run a daily filling in the morning is
recommended. Turn the heating control (5) completely to the left (if necessary ventilate
tank by activating steam gun). Fill the device only in a cold state. Open tank cap (6) and
fill in distilled or decalcified water up to the edge (a filling funnel is recommended). Close
the tank cap (6) hand-tight.
2. Attach the required steam nozzle or brush (16 / 18 / 19) and be sure it is securely
attached during steam cleaning.
3. Turn power switch (2) on. Set heating control (5) to max. by turning in clockwise direction.
After the maximum pressure has built up and the control lamp (4) goes out. If the heating
control is not set to max., the control lamp heating (4) might shine, although the tank was
filled up. However the STEAMY MINI is ready for operation, but at low temperature. The
heating is automatically activated and the lamp (4) shines.
4. Adjust steam pressure with controller (5).
5. For dry steam please press steam gun switch (13). (Pressure builds up only in the upper
quadrant of the controller area. Pressure builds up with a slight delay.)
6. For nozzle change use the special tool (17) when the nozzle (18 / 19) is too hot or the
steam brush has been attached too tight. Slide the tool (17) with its round opening over
the steam nozzle or brush (18 / 19), gently press together and detach the nozzle or
brush. When attaching another nozzle or brush be sure it is securely attached during
steam cleaning.
Caution:
The metal nozzles (18 / 19) can become very hot during operation. Therefore please use
the special tool (17) for nozzle change.

11
Decalcify the device when using non-distilled water
1. Turn off power switch (2).
2. Let the machine cool down and empty the tank.
3. Fill in decalcifying agent. (Note: Use decalcifying agent only for its intended purpose and
respect the manufacturer’s instructions!)
4. Close the tank cap (6).
5. Turn power switch (2) on. As soon as pressure starts building up (control by activating
steam gun switch), turn the controller down (5). For decalcifying the steam valve put the
device in some short intervals on the left side and activate the steam gun switch (13).
Then put the device in an upright position and let the decalcifying agent take effect.
6. Let the device cool down, let off steam and empty the tank. For easy emptying, use the
optional decalcifying pump (manual operation).

12
Troubleshooting
Device doesn’t work after turning it on.
a. Check the building’s fuse
b. Check the device’s fuse.
Safety valve (10) opens or water drips.
a. Slightly down-regulate heating control (5)
and call service. Note: If applicable,
don’t remove cover and don’t close
opening.
b. Tank is overfilled →drain some water
off.
Control lamp (3) shines, although water has
been filled up and steam was taken out.
Temperature limiter (11) or heating control
(5) switched off by itself →Set heating
control to max. and press temperature limiter
at the back of he device again after cooling
down.
Tank cap (6) untight.
→Replace cap or seal.
No steam.
Device might be calcified, valve might be
blocked, buttons or valves defective →call
customer service.
No steam pressure.
Heating control (5) is not set to max.
Pistol drips.
Device might be calcified, valve might be
blocked →decalcify.
Static charge.
Touch contact screw (15) at the steam
gun while jetting
(see chapter 2.2 Specific Safety Notes).
High wear of seals.
→Ventilate tank by activating steam gun
button (13).
Machine doesn’t work after turning it on,
power switch (2) doesn’t shine.
No power at the socket →Check the
building’s fuse.
Machine’s fuse has blown.
→Unplug the whole unit and change the
device’s fuse (12).
Short circuit
In case of water in the housing shut down
device and pull the plug. Contact customer
service.
Attention: Water temperature range up to
150 degrees C –Danger of scalding!

13
Maintenance
•Check the device regularly for damage. Pay attention to visible damage to the housing or
power cord.
•Using hard water we advise decalcifying the unit regularly (chapter 4.2 Decalcify the
device when using non-distilled water).
Note
Clean and protect your device at regular intervals with the REITEL stainless steel care
spray (order -no.: 90405000) to remove lime, plaster and dust as well as other
contaminants from the surface of the equipment and to prevent corrosion. The spray
creates a lasting, water repellent protective film which helps keep the equipment clean.

14
Warranty
We, REITEL Feinwerktechnik GmbH, offer a 1 year’s warranty beginning from the proven
date of purchase. This warranty covers all defects traceable to materials, design or
workmanship. The following warranty regulations are applicable:
Within the warranty period Reitel Feinwerktechnik GmbH or an authorized distributor agrees
at its sole option, to perform repair or replace this product at no charge covering all defects
traceable to materials, design or workmanship. Warranty only applies to appropriate use and
regular maintenance of this product according to the operating instructions. Claims under
warranty are restricted to complementary performance. Additional claims, especially claims
for indemnifications, are not covered by this warranty.
1.
Warranty claims have to be addressed to the distributor the product was purchased from or
directly to our service department.
Contact:
REITEL Feinwerktechnik GmbH
Senfdamm 20
49152 Bad Essen
Germany
Phone: [phone] (Service Department)
Phone: [phone] (Reception)
Fax-No: [phone]
2.
In case of warranty claim application the sales receipt or your purchase invoice showing the
date of purchase of the product and the serial number must be furnished. Securely pack and
ship the device, freight charges prepaid, at your own risk to us, along with a report describing
the defect. We reserve the right to decline warranty if this information has been removed or
modified after purchase of the product or if they are not included in case of warranty claims.
3.
Warranty repairs have to performed by REITEL Feinwerktechnik GmbH or by authorised
distributors. Repairs performed by non-authorised companies will void the claim for refund
since damages to the product resulting hereof are not covered by warranty.
4.

15
If the unit sent in for repair or replacement is still under the original warranty then warranty is
to the end of the original 1 year warranty.
5.
If the unit is destined to be operated in another country than originally intended and
manfactured for, modifications to the product might be necessary to comply to special
technical and /or safety standards of that specific country. Such modifications are no defects
traceable to materials, design or workmanship. and are therefore expressly excluded from
warranty claims.
Modification costs or damages arising from operation of the product under deviating
conditions are not covered by warranty.
6.
Exclusions from warranty:
−Service and maintenance work as well as repair and replacement of consumables
according to our consumables‘ list
−Transportation cost of the machine or installation and dismounting expenses incurred
−Damages due to use of the product other than for its intended purpose
−Damages due to faulty installation or insufficient maintenance of the product (e.g.
decalcification)
−Damages due to natural disaster e.g. lightning, water, fire, act of nature beyond
control, war, inadequate line voltage, insufficient ventilation, no decalcification,
insufficient care and cleaning or non-adherence to operation and maintenance
instructions according to the accompanying operation guide.
−Damage due to use of the product other than in accordance with the instructions
provided by REITEL Feinwerktechnik GmH;
−The warranty does not cover the cost of removal and replacement of parts and
accessories, unless supplied as original equipment by REITEL Feinwerktechnik
GmbH
−All kind of damages occurred not directly at the device as well as consequential
damages (e.g. damages to furniture due to a lack of water, downtime of the machine,
material, lost working hours, wages and other consequential damages).
This warranty shall be rendered null and void if:
−the product has been subject to any modification, repair or replacement other than as
authorised by REITEL Feinwerktechnik GmbH
−the product is continued to be operated despite a functional defect

16
7.
The warranty is device specific and may be claimed, within the warranty period, by any
person who has legally acquired the device.
8.
Consumables are excluded from warranty. Spare parts are subject to a warranty coverage of
6 months against all defects traceable to materials, design or workmanship according to
these warranty regulations.
9.
Legal default claims on the part of the purchaser remain unaffected by this warranty.
10.
We reserve the right to charge a processing fee if you do not want to carry out a repair and
the device should be returned unrepaired.
11.
Please note:
Upon repair or replacement of this unit, personal data and settings might get lost or
damaged. We don’t accept liability for all kind of data loss. The customer is advised to
backup essential programs and data before sending for service.
12.
This warranty shall be interpreted in accordance with German law to the exclusion of UN
sales law. Place of jurisdiction is our business location.
13.
If any provisions of this warranty are judged to be illegal or unenforceable, the continuation in
full force and effect of the remaining provisions will not be prejudiced. The provisions of this
warranty judged to be illegal or unenforceable shall be construed so as to give effect to the
intent manifested by the provision held invalid, illegal or unenforceable and to give effect to
section 13 hereof.
14.
Should you need to borrow a device while your device is being repaired, please contact
Messrs. REITEL or your distributor. These loans are a service for which availability cannot
necessarily be guaranteed. After the warranty period, a free may be charged for loan
equipment as well as for shipping and packaging.

17
Disposal Regulations
According to valid laws our devices are properly disposed of according to B2B –
Regulations for proper disposal. Pls. contact your local dealer for additional
information.

18
Spare Parts List
Best.-Nr.
Ref.:
Steamy Mini 43 Star 44
Ersatzteilliste / spare parts list 03/2019
Menge
Qty.
ME
Unit
E6065810
Dampfentnahmepistole komplett mit Schlauch, ohne Klammer
Steam gun complete with hose
1
Stck
piece
E6065850
Dampfpistole (schwarz) bestehend aus Griff E60658 (mit Wippe und
Federn E 72105), Düse Luerlock, Düsenspitze 2,5, Werkzeug, Taster,
Tülle
Steam gun (black), completed
1
Stck
piece
20110000
Dampfpistole: Mehrpreis für Schlauchlänge 2,30 m
Extra hose extension - 2,30m
1
Stck
piece
E7000800
Dichtung Tankverschluß 5/PACK
Tank cap seal 5 pcs./pack
1
Pack
E6225700
Gummiring für Einfüllschale 130x115x4 mm
Rubber ring for funnel
1
Stck
piece
E6063600
Heizkörper (incl. Dichtungssatz E60600)
Heating (incl. sealing set E60600)
1
Stck
piece
E60687000
Kabelbaum komplett
1
Stck
piece
E60604
Klammer für Pistole inclusive Halter
Clip for steam gun incl. Holder
1
Stck
piece
E6060000
O-Ring Dichtungssatz für Heizkörper (Heizkörperdichtung)
O-ring seal set for heater
1
Satz
set
E7209700
Pistolentaster für schwarze Pistole
Switch for black steam gun
1
Stck
piece
20121000
Pumpe für Entkalkung, Handbetrieb
Pump for decalcification, manual operation
1
Stck
piece
E6064800
Schalter mit Lampe grün
Switch with green lamp
1
Stck
piece
E6065000
Schutzkappe für Schalter (2Stck.)
Key's protective cap (2 pcs.)
1
Satz
set
E6048700
Sicherung 6,3A träge
Delay fuse 6,3 A
1
Stck
piece
E7413500
Signallampe gelb, rund
Round yellow signal lamp
1
Stck
piece
E7413400
Signallampe rot, rund
Round red signal lamp
1
Stck
piece
E6063000
Tankverschluß ohne Sicherheitsventil
Tank cap without safety valve
1
Stck
piece
20100000
Wandmontageset mit Abstandhalter
Wall mounting set
1
Stck
piece

19
EC Conformity Declaration

We manufacture in compliance with Quality Management ISO 9001:2015 incorporating
established standards.
REITEL Feinwerktechnik GmbH
Senfdamm 20 | 49152 Bad Essen
Phone: [phone] | Fax: [phone]
www.reitel.com | [email protected]
062019
