REITEL ERGORET CC KFO User manual

Operating Instructions
LABORATORY EQUIPMENT IN
STAINLESS STEEL
ERGORET CC KFO
REITEL Feinwerktechnik GmbH
Senfdamm 20 | 49152 Bad Essen
Phone: [phone] | Fax: [phone]
www.reitel.com | [email protected]
(photo shows white unit with Vario-lifting table)

II
Dear Customer!
The ERGORET CC KFO has been developed for working in orthodontics practices. A large
sieve grid and the integrated extraction system in the rear of the device are used to
purposely remove toxic plastic fumes or polymer fumes. The work surface made of high
quality wood is designed ergonomically. Two drawers are available for storing tools and
materials. A handpiece preparation, several sockets and the operation of the functions on the
front complete the program.
Any other use or usage beyond this scope is considered unintended use. The manufacturer
shall not be responsible for any damages that may result thereby.
Prior to installation of the device operating instructions and especially the safety instructions
must be read and followed by all personnel who use this device.
After having unpacked the device, please check carefully whether transportation damages of
any kind have occurred. If that is the case, the carrier or manufacturer must be notified within
3 days. The company will not be responsible for any damages found after that.
These operating instructions must be read and followed by all personnel who use this device.
Store it at a safe place near the device. This documentation is protected by copyright.
Transmittal or reproduction of this document in whole or in part and disclosure of its contents
is not permitted. If the operation manual gets lost an extra copy can be ordered from the
manufacturer.

III
INDEX
TECHNICAL DESCRIPTION......................................................................................... 4
BASIC EQUIPMENT....................................................................................................... 4
SPECIAL ACCESSORIES................................................................................................ 4
DEVICE COMPONENTS.................................................................................................. 5
TECHNICAL DATA......................................................................................................... 6
SAFETY NOTES........................................................................................................... 7
GENERAL SAFETY NOTES ............................................................................................ 7
SPECIFIC SAFETY NOTES............................................................................................. 8
INSTALLATION............................................................................................................ 8
INSTALLATION.............................................................................................................. 8
INSTALLATION OF TOOLS/EQUIPMENT............................................................................ 8
OPERATION................................................................................................................. 9
OPERATING SEQUENCE ............................................................................................... 9
VARIO-LIFTING TABLE (OPTION).................................................................................... 9
HOW TO CHANGE FILTERS OF THE INTEGRATED SUCTION...............................................10
LAMP REPLACEMENT...................................................................................................10
TROUBLESHOOTING .................................................................................................10
MAINTENANCE...........................................................................................................10
WARRANTY.................................................................................................................11
RULES FOR DISPOSAL..............................................................................................14
SPARE PARTS LIST ...................................................................................................14

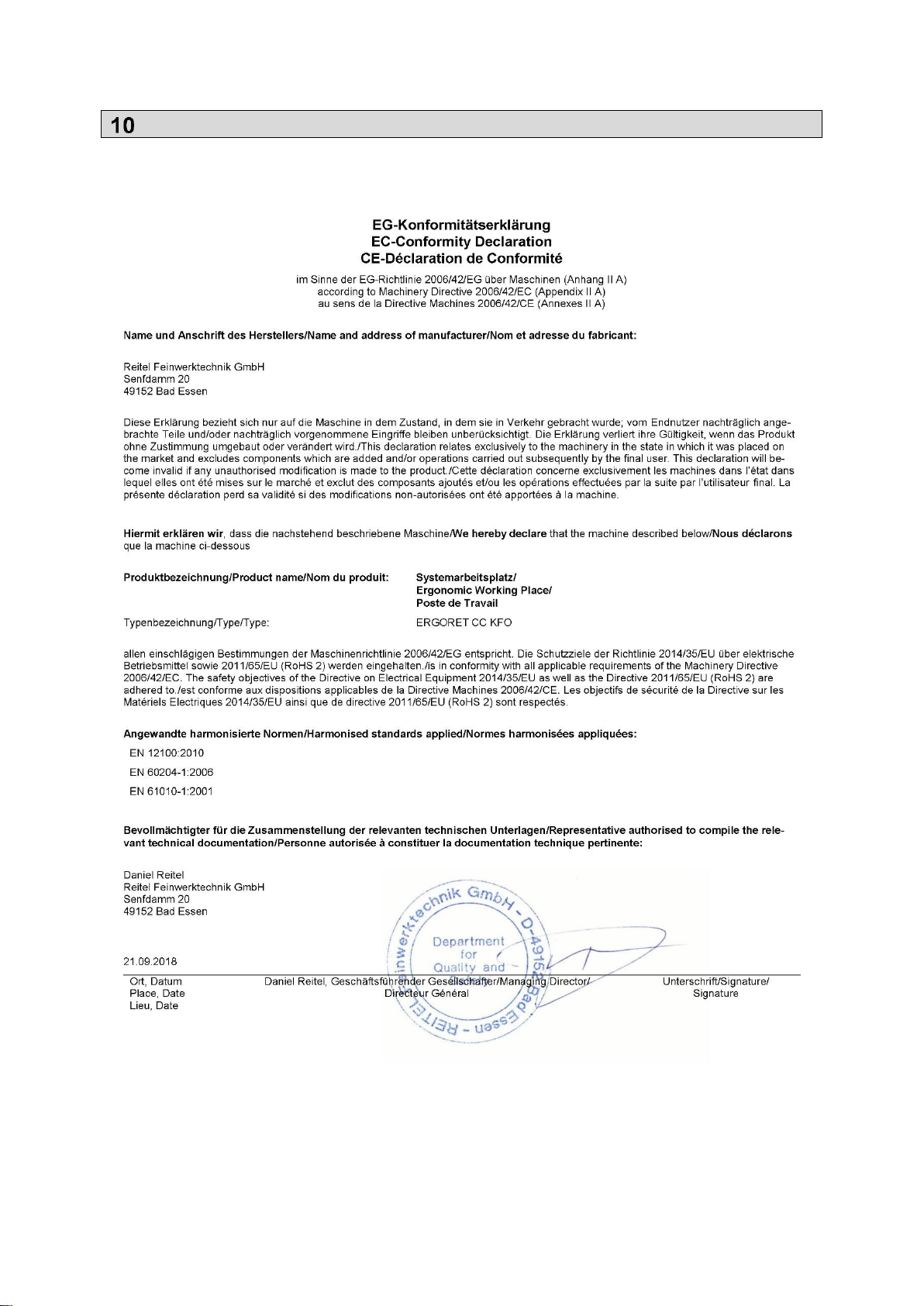

EC CONFORMITY DECLARATION.............................................................................15

4
Technical Description
Basic Equipment
•ERGORET CC KFO benchtop unit, magnifying glass, 4 diopters, internal suction for
gases and fumes
•ERGORET CC KFO with Vario-lifting table, magnifying glass, 4 diopters, internal suction
for gases and fumes
Special Accessories
•Order-No.: 24800000 Vario-lifting table
•Order-No.: 23206000 Dust protection lamellae

5
Device components
1 Protective screen
2 Magnifier with holder
3 Glass cover
4 Lamp
5 Suction socket
6 Socket for Vario-lifting table
7 Socket with flap
8 Socket with flap
9 Filter cover
10 Integrated suction, 3 step variable (for gases and fumes)
11 Opening for tools and equipment
12 Main power switch
13 Lamp switch
14 Internal suction switch
15 Assignable switch (e.g. for external suction)
16 Stainless steel tray
17 Gas spring for opening the glass cover
18 Power cable
19 Remote control for Vario-lifting table (option)
20 Foot switch
21 External suction (for dust, cuttings etc.)
22 Suction hose
23 Suction port
24 Compressed air connector
25 Vario-lifting table (option)
26 Tray
27 Sinter filter
28 Tabletop

6
Fig.: Device views
Technical Data
Line voltage
230 V/50–60 Hz
Current consumption
120 W
Height/width/depth
670/910/860 mm (upper part)
Variable working height
880-1100 mm with Vario-lifting table
Weight
60 kg (benchtop) + 30 kg (Vario-lifting table)
Magnifiying glass
4 diopters
Compressed air
max. 8 bar
Sound level
≤70 dB(A)
Housing
Stainless steel, wood, wood composite
Order-No.:
14805000 (white) / 14805100 (grey)
Made in Germany (Subject to modifications)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
25
24
23
22
21
28
27
26

7
Safety Notes
General Safety Notes
•All equipment undergoes final inspection and testing before leaving our factory. However,
if equipment is damaged during shipping or through any other circumstances, it must not
be used in service. Please check the device regularly for damages. Damaged parts
should be replaced immediately.
•All power/air/water/gas sources should be rated for the demands of the device as listed in
the technical data sheets. Maximum ratings must not be exceeded. All VDE (Verein
Deutscher Elektro-Ingenieure) standards should be followed. Equipment should be
grounded according to standards.
•Adherence to valid regulations regarding necessary checks (e.g. according to Accident
Prevention & Insurance or electrical equipment) is exclusively taken over by the
buyer/user of this product.
•This device has been designated to be used only for its intended purpose. All other
applications must be prohibited for safety reasons as otherwise the manufacturer’s
warranty expires.
•The device should be set-up in a clean, well-ventilated room, if necessary under a hood.
•Supporting surfaces should be straight, flat and adequately stable.
•Don’t place anything on top of the machine.
•To avoid injury, appropriate protection should be worn (e.g. gloves, safety glasses, safety
shoes, hearing protection etc.)
•If the machine is defective or working improperly it must be taken out of service. In case
of further use of the machine the owner will be held responsible for any consequential
damage.
•To prevent accidents from water, fire or explosion, all power/air/water/gas sources should
be turned off after working hours and during breaks, and secured against unauthorized
access.
•When carrying out maintenance works or repairs or when opening the device always turn
off the main power switch and unplug the whole unit.
•Repairs should be carried out only by the manufacturer or by qualified and certified
personnel appointed according to chapter 7 –warranty.
•In case of leaking water out of housing or tank shut down device and call service.
•Check all hose connections for leak tightness, if necessary tighten hose clamps again.

8
Specific Safety Notes
Note:
•Disposal of debris from suction:
- If you should need to dispose of this product please observe local regulations
governing disposal.
- Replace the filter as soon as finest dust or vapor arise during operation (not for
flammable dust without MAK/TRK-value)
- Empty the filter and the tray as soon as grinding chips and dust arise.
•Using external suctions, please observe the manufacturer’s instructions.
Installation
The equipment delivered is ready for immediate use. The sealed plug can be connected
directly to the mains supply 230 V / 16 A. For installation, please refer to chapter 2.
Installation
1. If the Vario-lifting table is included, screw the upper part of the unit onto the Vario-lifting
table.
2. Connect to power:
- Insert the suction’s plug into socket (5).
- Insert the Vario-lifting table’s plug into socket (6).
- Insert tools‘/equipment plugs into sockets (7 or 8).
- Attach the air hose (24) to the compressed air supply with 2-8 bar.
3. Connect the suction hose (22) to the external suction (if applicable).
Installation of tools/equipment
1. Feed the cable of the tools/equipment through the opening (11) and connect it with the
control unit.
2. Follow the instructions of the tools/equipment manufacturer for further assembly.

9
Operation
Operating Sequence
1. Turn the main power switch (12) on.
2. Turn on the external suction (21) with switch (15).
3. Turn on upper lamp (4) with switch (13).
4. Turn on the suction (10) with switch (14). With the adjustment knob on the back of the
device, you can choose between three extraction levels.
5. Activate the air blast nozzle (30) with the foot switch (20).
6. Use the magnifying glass (2) above the glass cover (3).
The magnifying glass can be moved upwards.
7. Rotate the worktop (28) to the desired position. The sinter filter (27) and the hand vice
(29) are arranged opposite each other. Dust is extracted into the filter of the external
suction.
8. The lid (3) can be lifted upwards if not needed.
9. After having finished work switch off the device with the main power switch (12).
Vario-lifting Table (option)
The solid, motor driven Vario-lifting table raises and lowers the unit to the optimum working
height in a standing or sitting posture. It reduces lengthy procedures by offering best
conditions to minimise strain and tiredness.
Height-adjustable table stroke 220 mm.
The remote control holder (19) is equipped with a piece of Velcro tape that can be sticked to
a smooth and clean surface at the device.
1. Clean the surface (e.g. with spirit). The surface must be free from oil and grease.
2. Peel backing paper from the Velcro tape at the remote control holder and press firmly to
the cleaned surface.
Remote control/holder (19) for the Vario-lifting table:
1. Pressing the upper key, the lifting table moves upwards.
2. Pressing the lower key the lifting table moves downwards.
Adjustable working height 800 to 1.100 mm. Lifting capacity 150 kg.

10
How to change filters of the integrated suction
1. To open the filter grid put the two shutter sliders down.
2. Fold the filter grid down.
3. Press the ends of the wire bow outwards and take them off the top.
4. Replace the filter.
5. Insert the wire bows and press the ends inwards.
6. To close the filter grid put the two shutter sliders up.
Lamp replacement
1. Pull the power plug.
2. Remove the screws of the lamp cover.
3. Replace the lamp.
4. Attach the cover to the holder with screw.
Troubleshooting
Device doesn’t turn on.
a. Check the building’s main fuse.
b. Check the device fuse. (The fuse holder
is located at the power input of the
device.)
Insufficient suction power.
Clean or replace filters. Check whether
suction is clogged.
Maintenance
•Inspect the filters of the suctions regularly.
•The device should be regularly cleaned with a moist cloth.
Note for the Vario-lifting Table
Clean and protect your device regularly with the REITEL stainless steel care spray
(order-no.: 90405000) to remove lime, plaster and dust as well as other contaminants
from the surface of equipment and to prevent corrosion. The spray creates a lasting,
water repellent protective film which helps keep the environment clean.

11
Warranty
We, REITEL Feinwerktechnik GmbH, offer a 1 year’s warranty beginning from the proven
date of purchase. This warranty covers all defects traceable to materials, design or
workmanship. The following warranty regulations are applicable:
Within the warranty period Reitel Feinwerktechnik GmbH or an authorized distributor agrees
at its sole option, to perform repair or replace this product at no charge covering all defects
traceable to materials, design or workmanship. Warranty only applies to appropriate use and
regular maintenance of this product according to the operating instructions. Claims under
warranty are restricted to complementary performance. Additional claims, especially claims
for indemnifications, are not covered by this warranty.
1.
Warranty claims have to be addressed to the distributor the product was purchased from or
directly to our service department.
Contact:
REITEL Feinwerktechnik GmbH
Senfdamm 20
49152 Bad Essen
Germany
Phone: [phone] (Service Department)
Phone: [phone] (Reception)
Fax-No: [phone]
2.
In case of warranty claim application the sales receipt or your purchase invoice showing the
date of purchase of the product and the serial number must be furnished. Securely pack and
ship the device, freight charges prepaid, at your own risk to us, along with a report describing
the defect. We reserve the right to decline warranty if this information has been removed or
modified after purchase of the product or if they are not included in case of warranty claims.
3.
Warranty repairs have to performed by REITEL Feinwerktechnik GmbH or by authorised
distributors. Repairs performed by non-authorised companies will void the claim for refund
since damages to the product resulting hereof are not covered by warranty.
4.

12
If the unit sent in for repair or replacement is still under the original warranty then warranty is
to the end of the original 1 year warranty.
5.
If the unit is destined to be operated in another country than originally intended and
manufactured for, modifications to the product might be necessary to comply to special
technical and /or safety standards of that specific country. Such modifications are no defects
traceable to materials, design or workmanship. and are therefore expressly excluded from
warranty claims.
Modification costs or damages arising from operation of the product under deviating
conditions are not covered by warranty.
6.
Exclusions from warranty:
−Service and maintenance work as well as repair and replacement of consumables
according to our consumables‘ list
−Transportation cost of the machine or installation and dismounting expenses incurred
−Damages due to use of the product other than for its intended purpose
−Damages due to faulty installation or insufficient maintenance of the product (e.g.
decalcification)
−Damages due to natural disaster e.g. lightning, water, fire, act of nature beyond
control, war, inadequate line voltage, insufficient ventilation, no decalcification,
insufficient care and cleaning or non-adherence to operation and maintenance
instructions according to the accompanying operation guide.
−Damage due to use of the product other than in accordance with the instructions
provided by REITEL Feinwerktechnik GmH;
−The warranty does not cover the cost of removal and replacement of parts and
accessories, unless supplied as original equipment by REITEL Feinwerktechnik
GmbH
−All kind of damages occurred not directly at the device as well as consequential
damages (e.g. damages to furniture due to a lack of water, downtime of the machine,
material, lost working hours, wages and other consequential damages).
This warranty shall be rendered null and void if:
−the product has been subject to any modification, repair or replacement other than as
authorised by REITEL Feinwerktechnik GmbH
−the product is continued to be operated despite a functional defect

13
7.
The warranty is device specific and may be claimed, within the warranty period, by any
person who has legally acquired the device.
8.
Consumables are excluded from warranty. Spare parts are subject to a warranty coverage of
6 months against all defects traceable to materials, design or workmanship according to
these warranty regulations.
9.
Legal default claims on the part of the purchaser remain unaffected by this warranty.
10.
We reserve the right to charge a fee if repair of the device is rejected and the device is
destined to be sent back unrepaired.
11.
Please note:
Upon repair or replacement of this unit, personal data and settings might get lost or
damaged. We don’t accept liability for all kind of data loss. The customer is advised to
backup essential programs and data before sending for service.
12.
This warranty shall be interpreted in accordance with German law to the exclusion of UN
sales law. Place of jurisdiction is our business location.
13.
If any provisions of this warranty are judged to be illegal or unenforceable, the continuation in
full force and effect of the remaining provisions will not be prejudiced. The provisions of this
warranty judged to be illegal or unenforceable shall be construed so as to give effect to the
intent manifested by the provision held invalid, illegal or unenforceable and to give effect to
section 13 hereof.
14.
Should you need to borrow a device while your device is being repaired, please contact
Messrs. REITEL or your distributor. These loans are a service for which availability cannot
necessarily be guaranteed. After the warranty period, a free may be charged for loan
equipment as well as for shipping and packaging.

14
Rules for disposal
According to valid laws our devices are properly disposed of according to B2B
–regulations for proper disposal. Please contact your local dealer for
additional information.
Spare Parts List
Ref.
Ergoret CC KFO
without lifting table, Spare parts list
Qty.
Unit
E6284700
Arbeitsplatzmatte, grau, Zuschnitt 864x356mm
1
Stck
piece
E6187700
Dichtung
Sealing
1
m
E6245410
Erweiterungsset für Arbeitsvorbereitung, mit Feilkloben und
Einsatzsieb, Nachrüstung für KFO-Tische
1
Stck
piece
E6249110
Feilkloben Buche ohne Absaug-Löcher
Filing vice made of beechwood without suction holes
1
Stck
piece
E6285500
Fein-Sieb halbrund Edelstahl an Absaugmaul
Sieve for suction adapter (for small parts)
1
Stck
piece
24806000
Filter, Sinter grob
Coarse sintered filter
1
Stck
piece
E6285600
Filterhalter für Sieb E62855
1
Stck
piece
E6246230
Filtermatte rückwärtige Absaugung Weiß/Blau ab Gerät 336
Filter mat fume suction
1
Stck
piece
E6246100
Glas-Spritzschutzscheibe vorne 235*193*6
Glass pane front
1
Stck
piece
23206000
Handdurchführung Lamellenschutz (li/re)
Reach-through curtain
1
Set

15
EC Conformity Declaration

We manufacture in compliance with Quality Management ISO 9001:2015 incorporating
established standards.
REITEL Feinwerktechnik GmbH
Senfdamm 20 | 49152 Bad Essen
Phone: [phone] | Fax: [phone]
www.reitel.com | [email protected]
012020
