REITEL RETOMIX EASY User manual

Operating Instructions
LABORATORY EQUIPMENT
IN
STAINLESS TEE
L
RETOMIX EASY
REITEL Feinwerktechnik GmbH
Senfdamm 20 - 49152 Bad Essen
Phone: [phone] - Fax: [phone]
http://www.reitel.com
-
[email protected]

II
Dear Customer!
The RETOMIX EASY vacuum mixer is the entry-level model of the REITEL vacuum mixer
product family. Vacuum is generated with a high-quality and durable vacuum pump. Easy
handling due to automatic starting of the vacuum pump as soon as the mixing bowl is held
under the bowl support. Required mixing time is easily set with the manual timer. You simply
need a socket to plug in for operation.
The RETOMIX EASY is perfectly suitable to mix plaster, investment material and alginates. A
filter system prevents contamination and damage to the motor and the vacuum pump.
Vacuum intensity is adjustable. The device is available as wall-mounted or benchtop unit.
Prior to installation of the device operating instructions and especially the safety instructions
must be read and followed by all personnel who use this device.
After having unpacked the device, please check carefully whether transportation damages of
any kind have occurred. If that is the case, the carrier or manufacturer must be notified within
3 days. The company will not be responsible for any damages found after that.
These operating instructions must be read and followed by all personnel who use this device.
To ensure quick access we recommend to keep it at a safe place near the device. In case of
loss it can be ordered at a nominal fee from the manufacturer.

III
CONTENTS
EQUIPMENT................................................................................................................. 4 1
B ASIC E QUIPMENT ....................................................................................................... 4 1.1
S PECIAL A CCESSORIES ................................................................................................ 4 1.2
SAFETY NOTES........................................................................................................... 5 2
G ENERAL S AFETY N OTES ............................................................................................ 5 2.1
S PECIFIC S AFETY I NSTRUCTIONS ................................................................................. 6 2.2
INSTALLATION............................................................................................................ 7 3
I NSTALLATION .............................................................................................................. 7 3.1
P REPARATION FOR I NSTALLATION ................................................................................. 7 3.2
NOTES FOR THE USER............................................................................................... 7 4
M IXING WITH VACUUM .................................................................................................. 7 4.1
M IXING WITH REDUCED VACUUM ................................................................................... 8 4.2
M IXING BOWL FOR ALGINATES ( SPECIAL ACCESSORIES ) ................................................. 8 4.3
TROUBLESHOOTING .................................................................................................. 9 5
MAINTENANCE...........................................................................................................10 6
WARRANTY.................................................................................................................11 7
RULES FOR DISPOSAL OF COMMERCIAL ELECTRICAL EQUIPMENT .................15 8
TECHNICAL DATA......................................................................................................15 9

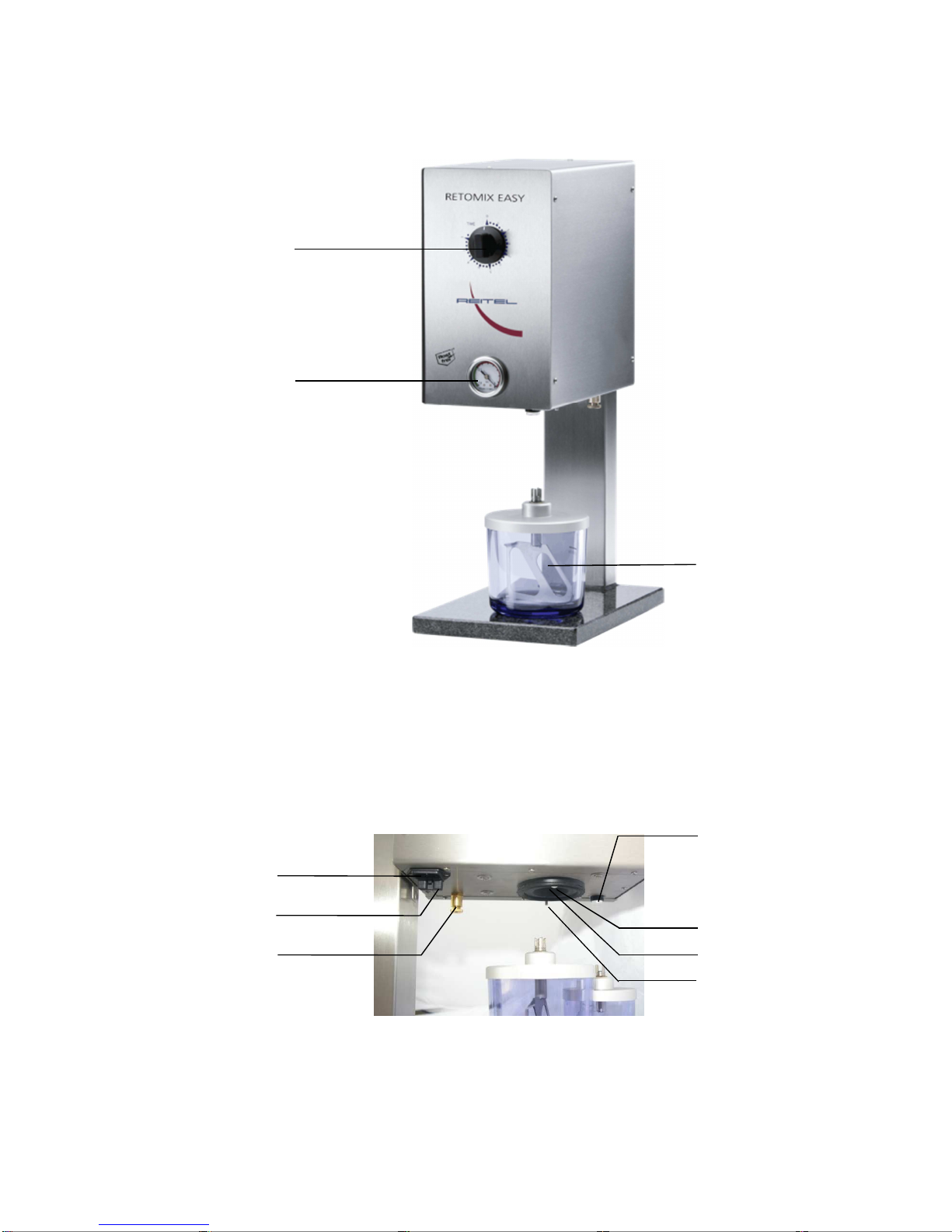

OPERATING ELEMENTS............................................................................................16 10
SPARE PARTS LIST ...................................................................................................18 11
WALL MOUNTING.......................................................................................................19 12

4
Equipment 1
Basic Equipment 1.1
•RETOMIX EASY Vacuum mixer
•1 Mixing bowl 400 ml
•Power cord
Special Accessories 1.2
•Order-No. 23701 Benchtop stand
•Order-No. 1302.1 Mixing bowl 75 ml
•Order-No. 21302 Mixing bowl 150 ml
•Order-No. 21303 Mixing bowl 400 ml
•Order-No. 21304 Mixing bowl 600 ml
•Order-No. 21213 Mixing bowl 1000 ml
•Order-No. 21306 Mixing bowl for alginates 150 ml
•Order-No. 21307 Mixing bowl for alginates 400 ml

5
Safety Notes 2
General Safety Notes 2.1
•All equipment undergoes final inspection and testing before leaving our factory. However,
if equipment is damaged during shipping or through any other circumstances, it must not
be used in service. Please check the device regularly for damages. Damaged parts
should be replaced immediately.
•All power/air/water/gas sources should be rated for the demands of the device as listed in
the technical data sheets. Maximum ratings must not be exceeded. All VDE (Verein
Deutscher Elektro-Ingenieure) standards should be followed. Equipment should be
grounded according to standards.
•Adherence to valid regulations regarding necessary checks (e.g. according to Accident
Prevention & Insurance or electrical equipment) is exclusively taken over by the
buyer/user of this product.
•This device has been designated to be used only for its intended purpose. All other
applications must be prohibited for safety reasons as otherwise the manufacturer’s
warranty expires.
•The device should be set-up in a clean, well-ventilated room, if necessary under a hood.
•Supporting surfaces should be straight, flat and adequately stable.
•Don’t place anything on top of the machine.
•To avoid injury, appropriate protection should be worn (e.g. gloves, safety glasses, safety
shoes, hearing protection etc.)
•If the machine is defective or working improperly it must be taken out of service. In case
of further use of the machine the owner will be held responsible for any consequential
damage.
•To prevent accidents from water, fire or explosion, all power/air/water/gas sources should
be turned off after working hours and during breaks, and secured against unauthorized
access.
•When carrying out maintenance works or repairs or when opening the device always turn
off the main power switch and unplug the whole unit.
•Repairs should be carried out only by the manufacturer or by qualified and certified
personnel appointed according to chapter 7 – warranty.
•In case of leaking water out of housing or tank shut down device and call service.
•Mobiles may lead to malfunctioning of the device and should be switched off near the
device.

6
Specific Safety Instructions 2.2
•Don’t mix any alienated material or material containing solvents, dangerous to health.
•The pump and other conducting components are not explosion-proof. Application with
burnable substances is therefore prohibited.
•Don’t use any high-viscosity material leading to a considerable decrease in mixing speed.
•If the machine gets unusually hot, turn it off immediately.
•Don‘t put your hands into the running driving axle and never put the mixer on the support
without a bowl.
•Don’t overfill the mixing bowl.
Note
:
The mixing bowl is dishwasher-proof and may be cleaned with solvent-free cleaning agents.
The mixing bowl is non-resistant to some chemicals like e.g. concentrated mineral acids,
aromatic hydrocarbons and chlorinated hydrocarbons as well as ester, ether and ketone.
Keep the housing clean.

7
Installation 3
The electric equipment is being delivered fully installed. The sealed plug can be connected
directly to the mains supply 230 V/16 A. For installation please refer to chapter 2.
Installation 3.1
Use the device either as a wall mounting device (see chapter 12 wall mount) or as 1.
benchtop unit with a stand.
Use the device only in a dust-free environment. 2.
Preparation for Installation 3.2
Put the connector into the power outlet (6) of the device. 1.
Put the power plug of the RETOMIX EASY into a socket. Now the device is ready for use. 2.
During long periods of non-use disconnect the device from mains supply. 3.
Notes for the User 4
Mixing with vacuum 4.1
Max. filling level of the mixing bowl (10) is paddle top. (Note: avoid overfilling, see chapter 1.
5 troubleshooting.)
Insert the mixing bowl (10) into bowl support (7) slightly pressing the bowl. The vacuum 2.
pump starts automatically after a couple of seconds. You can release the bowl. (Please
pay attention to the gauge (2). As soon as vacuum drops below -0,4 bar the bowl has to
be held tight.)
Set mixing time with timer (1). (Turn timer clockwise. For setting mixing time less than 1 3.
min. turn timer to max. and then turn back to required time.) Mixing process starts.
After time has elapsed the paddle stops. Mixing is finished and vacuum remains. 4.
Activate the switch for flooding (3) until the gauge (2) is at vacuum „0“. (Pay attention to 5.
gauge (2). As soon as vacuum drops below -0,4 bar the bowl has to be held tight.) The
pump switches off and the mixing bowl is flooded.
The mixing bowl is ready to take out material. 6.

8
Mixing with reduced vacuum 4.2
Max. filling level of the mixing bowl (10) is paddle top. (Note: avoid overfilling, see chapter 1.
5 troubleshooting.)
Insert the mixing bowl (10) into bowl support (7), slightly pressing the bowl. Vacuum 2.
pump starts automatically after a couple of seconds. You can release the bowl.
Activate vacuum relief valve (9) for mixing with reduced vacuum: 3.
−Opening the vacuum relief valve (9), vacuum is reduced.
−Closing the vacuum relief valve (9), vacuum is increased.
(Note: As soon as vacuum drops below -0,4 bar the bowl has to be held tight. Pay
attention to gauge (2).)
Set mixing time with timer (1). (Turn timer clockwise. For setting mixing time less than 1 4.
min. turn timer to max. and then turn back to required time.) Mixing process starts.
After time has elapsed the paddle stops. Mixing is finished and vacuum remains. 5.
Activate the switch for flooding (3) until the gauge (2) is at vacuum „0“. (Pay attention to 6.
gauge (2). As soon as vacuum drops below -0,4 the bowl has to be held tight.) The pump
switches off and the mixing bowl is flooded.
The mixing bowl is ready to take out material. 7.
Mixing bowl for alginates (special accessories) 4.3
In order to prevent power residues from falling from the edge of the bowl into the mixed
alginate, first of all water and power should be premixed without vacuum.
Put power and water into the bowl, mixing it with reduced vacuum (procedure see 1.
chapter 4.2.)
Mixing time is dependent on used material (see manufacturer’s indications). 2.
During the first ten seconds a lower mixing speed of approx. 400 min
-1
should be 3.
selected, then speed should be increased to 600 min
-1
.

9
Troubleshooting 5
Device doesn’t start. a. No power at the socket (check fuse of
the building).
b. Machine’s fuse (5) has blown (Unplug
the machine and replace the fuse. The
fuse holder is located at the device’s
plug).
Bubbles in investment material (low
vacuum). a. Dirty lid surface of the mixing bowl →
clean it.
b. Dirty gasket at the bowl support (7) →
clean it.
c. O-ring of mixing bowling (10) is untight
→clean it.
d. Adjust vacuum relief valve (9).
Bowl isn’t fixed although gauge indicates
max. vacuum. a. Clogged filter (8) in bowl support (7) →
replace filter.
b. Don’t overfill the mixing bowl (10).
c. Clogged filter in the device →call
Service.
Cracks in the bowl. Note: Don’t use spirit or other solvents for
cleaning or mixing. The mixing bowl (10) is
not resistant to some chemicals
according to description in chapter 2.2.
Scratch marks at the bowl are normal wear.

10
Maintenance 6
•Please check the device regularly for damages. Pay attention to visible damages at the
housing or cable.
•Regularly clean gasket and mixing bowl’s sealing space (10) and bowl support (7).
•Regularly grease the mixing bowl to keep in good condition.
•Regularly replace the filter at the bowl support (7).
•Regularly clean the housing with a damp cloth.

11
Warranty 7
We, REITEL Feinwerktechnik GmbH, offer a 1 year’s warranty beginning from the proven
date of purchase. This warranty covers all defects traceable to materials, design or
workmanship. The following warranty regulations are applicable:
Within the warranty period Reitel Feinwerktechnik GmbH or an authorized distributor agrees
at its sole option, to perform repair or replace this product at no charge covering all defects
traceable to materials, design or workmanship. Warranty only applies to appropriate use and
regular maintenance of this product according to the operating instructions. Claims under
warranty are restricted to complementary performance. Additional claims, especially claims
for indemnifications, are not covered by this warranty.
1.
Warranty claims have to be addressed to the distributor the product was purchased from or
directly to our service department.
Contact:
REITEL Feinwerktechnik GmbH
Senfdamm 20
49152 Bad Essen
Germany
Phone: [phone] (Service Department)
Phone: [phone] (Reception)
Fax-No: [phone]
2.
In case of warranty claim application the sales receipt or your purchase invoice showing the
date of purchase of the product and the serial number must be furnished. Securely pack and
ship the device, freight charges prepaid, at your own risk to us, along with a report describing
the defect. We reserve the right to decline warranty if this information has been removed or
modified after purchase of the product or if they are not included.
3.
Warranty repairs have to performed by REITEL Feinwerktechnik GmbH or by authorized
distributors. Repairs performed by non-authorized companies will void the claim for refund
since damages to the product resulting hereof are not covered by warranty.

12
4.
If the unit sent in for repair or replacement is still under the original warranty then warranty is
to the end of the original 1 year warranty.
5.
If the unit is destined to be operated in another country than originally intended and
manufactured for, modifications to the product might be necessary to comply to special
technical and /or safety standards of that specific country. Such modifications are no defects
traceable to materials, design or workmanship. and are therefore expressly excluded from
warranty claims.
Modification costs or damages arising from operation of the product under deviating
conditions are not covered by warranty.
6.
Exclusions from warranty:
−Service and maintenance work as well as repair and replacement of consumables
according to our consumables‘ list
−Transportation cost of the machine or installation and dismounting expenses incurred
−Damages due to use of the product other than for its intended purpose
−Damages due to faulty installation or insufficient maintenance of the product (e.g.
decalcification)
−Damages due to natural disaster e.g. lightning, water, fire, act of nature beyond
control, war, inadequate line voltage, insufficient ventilation, no decalcification,
insufficient care and cleaning or non-adherence to operation and maintenance
instructions according to the accompanying operation guide.
−Damage due to use of the product other than in accordance with the instructions
provided by REITEL Feinwerktechnik GmbH;
−The warranty does not cover the cost of removal and replacement of parts and
accessories, unless supplied as original equipment by REITEL Feinwerktechnik
GmbH
−All kind of damages occurred not directly at the device as well as consequential
damages (e.g. damages to furniture due to a lack of water, downtime of the machine,
material, lost working hours, wages and other consequential damages).
This warranty shall be rendered null and void if:
−the product has been subject to any modification, repair or replacement other than as
authorized by REITEL Feinwerktechnik GmbH

13
−the product is continued to be operated despite a functional defect
7.
The warranty is device specific and may be claimed, within the warranty period, by any
person who has legally acquired the device.
8.
Consumables are excluded from warranty. Spare parts are subject to a warranty coverage of
6 months against all defects traceable to materials, design or workmanship according to
these warranty regulations.
9.
Legal default claims on the part of the purchaser remain unaffected by this warranty.
10.
We reserve the right to charge a fee of 30 € if repair of the device is rejected and the device
is destined to be sent back unrepaired.
11.
Please note:
Upon repair or replacement of this unit, personal data and settings might get lost or
damaged. We don’t accept liability for all kind of data loss. The customer is advised to
backup essential programs and data before sending for service.
12.
This warranty shall be interpreted in accordance with German law to the exclusion of UN
sales law. Place of jurisdiction is our business location.
13.
If any provisions of this warranty are judged to be illegal or unenforceable, the continuation in
full force and effect of the remaining provisions will not be prejudiced. The provisions of this
warranty judged to be illegal or unenforceable shall be construed so as to give effect to the
intent manifested by the provision by the provision held invalid, illegal or unenforceable and
to give effect to section 13 hereof.
14.
Should you need to borrow a device while your device is being repaired, please contact
Messrs. REITEL or your distributor. These loans are a service for which availability cannot
necessarily be guaranteed. After the warranty period, a free may be charged for loan
equipment as well as for shipping and packaging.

14

15
Rules for Disposal of Commercial Electrical Equipment 8
According to valid laws our devices are disposed of according to B2B –
regulations for proper disposal. Pls. contact your local dealer for additional
information.
Technical Data 9
Line Voltage 230V/50-60 Hz
Current consumption 420 W
Height/width/depth 290/155/285 mm
Height/width/depth incl. stand 710/220/360 mm
Weight 8 kg/15 kg (incl. stand)
Speed Fixed speed 330 t/min.
Vacuum approx.93 %
Housing Stainless steel
Order-No.: 10606
Made in Germany (Subject to modifictations)

16
Operating Elements 10
1 Timer
2 Gauge
3 Switch Flooding
4 Start switch for vacuum pump
5 Device’s fuse
6 Power connector
7 Bowl support
8 Filter
9 Vacuum relief valve
10 Mixing bowl

17
7
10
1
6
3
5
9
2
8
4

18
Spare Parts List 11
Dr.-
No.: Order-No.:
Qty. Unit
E70117 Bowl support gasket 1 piece
E70112 Filter (5 pcs./pack) 1 pack

19
Wall Mounting 12
This is no drill template!
This is no 1:1 ratio!

We manufacture in compliance with Quality Management ISO 9001:2008 incorporating
established standards.
REITEL Feinwerktechnik GmbH
Senfdamm 20 - 49152 Bad Essen
Tel.: [phone] - Fax: [phone]
http://www.reitel.com
-
[email protected]
092013
