Renac LV 48070 Plus User manual

3.58KWh
LiFePO4 Lithium-ion Battery Product
User Manual
48070 Plus
LV

About this manual ................................................................................................................................................................................................. 2
1. Safety Precautions ........................................................................................................................................................... 4
1.1 Before connecting .............................................................................................................................................................................................. 5
1.2 In using ................................................................................................................................................................................................................... 5
2. Product Introduction ............................................................................................................................................................ 6
2.1 Product Features ...................................................................................................................................................................................................... 6
2.2 Product Specifications ................................................................................................................................................................................. 7
2.2.1 Dimensions ........................................................................................................................................................................................... 7
2.2.2 Specifications ................................................................................................................................................................................... 7
2.3 Illustration of Appearance ............................................................................................................................................................................. 8
2.4 Built-in BMS functions ............................................................................................................................................................................ 10
3. Safe handling of lithium batteries Guide .......................................................................................................................... 11
3.1 Caution label ....................................................................................................................................................................................................... 11
3.2 Installation tools ............................................................................................................................................................................................ 11
3.3 Safety Gear (It is recommended to wear the following safety gear when dealing with the battery pack) .............................. 12
4. Installation ................................................................................................................................................................................ 12
4.1 Installation Location .................................................................................................................................................................................... 12
4.2 Connection layout of communication cables ............................................................................................................................................. 13
4.3 Power on ......................................................................................................................................................................................................... 14
5. Trouble shooting .............................................................................................................................................................................. 15
5.1 Upon start, please make sure ................................................................................................................................................................................... 15
5.2 Basic steps .................................................................................................................................................................................................. 15
5.3 Advanced steps ..................................................................................................................................................................................................... 16
6. Emergencies .............................................................................................................................................................................. 16
ContentAbout this manual
This user manual introduces LV48070 Plus. It provides information about the main technical parameters, using and maintenance
methods of the product, and precautions during usage.
Please read this manual before you to install the battery and follow the instructions carefully during the installation process.
Any confusion, please contact technical support for advice for advice and clarification.

1.1 Before start:
1. Safety Precautions
1) It is very important and necessary to read the user manual carefully (in the accessories) before installing or using battery.
Failure to do so or to follow any of the instructions or warnings in this document can result in electrical shock, serious injury,
or death, or can damage battery, potentially rendering it inoperable.
2) If the battery is stored for long time, it is required to charge them every six months, and the SOC should be no less than 30%;
3) Battery needs to be recharged within 12 hours, after fully discharged;
4) Do not expose cable outside;
5) All the battery terminals must be disconnected for maintenance;
6) Please contact the supplier within 24 hours if there is something abnormal.
7) Do not use cleaning solvents to clean battery;
8) Do not expose battery to flammable or harsh chemicals or vapors;
9) Do not paint any part of battery, include any internal or external components;
10) Do not connect battery with PV solar wiring directly;
11) The warranty claims are excluded for direct or indirect damage due to items above.
12) Any foreign object is prohibited to insert into any part of battery.
Attention
Attention
1) After unpacking, please check product and packing list first, if product is damaged or lack of parts, please contact with the
local retailer;
2) Before installation, be sure to shut-down the external power and make sure the battery is in the switched-off mode;
3) Wiring must be correct, do not mistake the positive and negative cables, and make sure no short circuit with the external
device;
4) It is prohibited to connect the battery and AC power directly;
·
User Manual
LV 48070 Plus2
1.2 In using:
5) The battery’s embedded BMS is designed for 48VDC, please DO NOT connect multiple batteries in serial connection;
6) Battery system must be well grounded and the resistance must be less than 1Ω;
7) Please ensured the electrical parameters of battery system are compatible to related equipment;
8) Keep the battery away from water and fire.
1) If the battery system needs to be moved or repaired, the power must be cut off and the battery is completely shutdown;
2) It is prohibited to connect the battery with different type ofbattery.
3) It is prohibited to put the batteries working with faulty or incompatible inverter;
4) It is prohibited to disassemble the battery (QC tab removed or damaged);
5) When the fire around the battery system, only dry powder extinguisher can be used to extinguish the fire within the fire range.
And please keep the battery pack as far away from the fire as possible；
6) Please do not open, repair or disassemble the battery except staffs from manufacture or authorized by technical support.
We do not undertake any consequences or related responsibility which because of violation of safety operation or violating
of design, production and equipment safety standards.
2. Product Introduction
LV48070 Plus lithium iron phosphate battery is an energy device. It can be used as a reliable power source for various
applications with special requirements for high power, limited installation, restricted load-bearing and long cycle life.
LV48070 Plus has a built-in BMS battery management system that can monitor cell parameters such as voltage, current, and
temperature. Moreover, it can balance cell charging and discharging process to extend cycle life. Multiple batteries can be
connected in parallel to expand energy and power capacity.
2.1 Product Features
· The whole module is non-toxic, non-polluting and environmentally friendly;
· Cathode material is made from LiFe PO4 with safety performance and long cycle life;
· Battery management system (BMS)has protection functions including over- discharge, over-charge, over-current and high /
low temperature;
· The system can automatically manage charge and discharge state and balance current and voltage of each cell;
· Flexible configuration, multiple battery modules can be in parallel for expanding capacity and power
· Adopted self-cooling mode rapidly reduced system entire noise;
· The module has less self-discharge, up to 6 months without charging it on shelf, no memory effect, excellent performance of
shallow charge and discharge;
· Working temperature range is from -10℃to 50℃, (Charging 0~50℃;discharging-10~50℃) with excellent discharge performance
and cycle life;
· Small size and light weight, standard of 19-inch embedded designed module is comfortable for installation and maintenance;
3
User Manual
LV 48070 Plus

2.2 Product Specifications
2.2.1 Dimensions
2.2.2 Specifications
Nominal Voltage (V)
Nominal Capacity (kWh)
Usable Capacity (kWh)
Dimension (mm)
Weight (kg)
Discharge Voltage (V)
Charge Voltage (V)
Recommend Charge/Discharge Current (A)
Max.Iutput Current (A)
Max.Output Current (A)
Peak Output Current (A)
Communication
Battery String Configuration
Working Temperature
Recommended Working Temperature
51.2
3.58
3.2
474.4*408.7*132.2
35±1
43.2~56.0
55.2~57.6
35
55
70
100 @5S
RS485, CAN
1 ~ 8 units in parallel
0~50℃Charge
-10~50℃Discharge
Product Name
LV48070 Plus
User Manual
LV 48070 Plus4
Recommended Working Temperature
Storage Temperature
Depth of Discharge
Overload protection
Short-circuit protection
Power self-consumption when running
Power self-consumption when standby
Cooling method
IP rating of enclosure
Humidity
Reference to standards
0~35℃
15~35℃
90%
integrated
integrated
≤2W
1W@≤48h ；0W@＞48h
Nature Cooling
IP20
0 ~ 85%RH
CE,IEC62619,UL164
2, IEC61000,
UN38.3, ROHS
2.3 Illustration of Appearance
1) ON/OFF: Power Switch
ON – to start the battery’s self-detection process and enter working status if no fault is detected. OFF – to shut-down the
battery.
2) POWER: Power Reset Button
Short press 1 second to enter the normal working mode, long press 3 seconds to enter the hibernation mode.
3) SOC: State of Charge Indicators
One LED represents for 0~25% energy capacity. 4 LEDs on stands for SOC≥ 75%.
4) ALM: Alarm LED
The red ALM LED flashing indicates warning message, ALM LED on indicates self-protection mode.
5) RUN: operation status LED
The green RUN LED flashing indicates normal working status.
5
User Manual
LV 48070 Plus
1 3 4 5 8 6 7 2
910

L1●L4●
●
RUN
SOC
L3● ●
ALARM
L2●
OFF
OFF
OFF
L2
Condition
Power off
Idle / Normal
Error / Protection
Charging
Discharging
OFF
OFF
OFF
L4
OFF
OFF
OFF
L1
OFF
OFF
OFF
L3 Run Alarm
OFF
FLASH
OFF
On
FLASH
OFF
OFF
FLASH
OFF
OFF
Number of Lighting LEDs indicates SOC level, the last
lighting LED is flashing
Number of Lighting LEDs indicates SOC level
2.4 Built-in BMS functions:
Charge/ Discharge End
Charge Over Voltage
Discharge Under Voltage
Charge/ Discharge Over Current
High/Low Temperature(cell/BMS)
Short Circuit
Power Cable Reverse
Cells Balance
Intelligent Charge Model
Charge/ Discharge Current Limit
Capacity Retention Calculate
Administrator Monitor
Operation Record
Protection and Alarm
Management and Monitor
3. Safe handling of lithium batteries Guide
3.1 Caution label
7
User Manual
LV 48070 Plus
6) CAN port
For external CAN communication (500KB/s) between the battery and the power control device.
7) RS485 port
For internal communication between batteries, or between battery and the adapter board of battery cabinet (optional).
RJ45 Pin definitions:
1
2
3
4
5
6
7
8
RS485 B
RS485 A
GND


GND
RS485 A
RS485 B
Pin No.
RS485 protocol


GND
CAN_L
CAN_H
GND


CAN protocol
8) ADD: DIP switches of battery sequence (address).
PACK #1
PACK #2
PACK #3
PACK #4
PACK #5
PACK #6
PACK #7
PACK #8
OFF
ON
ON
OFF
OFF
ON
ON
OFF
PACK No.
DIP2
OFF
OFF
OFF
OFF
OFF
OFF
OFF
ON
DIP4
ON
OFF
ON
OFF
ON
OFF
ON
OFF
DIP1
OFF
OFF
OFF
ON
ON
ON
ON
OFF
DIP3
Note:
* The above configurations are applicable for batteries installed in a battery cabinet with adapter board for communication
with inverters. For batteries that directly connect to inverter, a different set of DIP switch configurations will be applied,
therefore please contact technical support for technical advice.
9) Power terminal –
10) Power terminal +
11) LED Indications:
User Manual
LV 48070 Plus6

8User Manual LV 48070 Plus

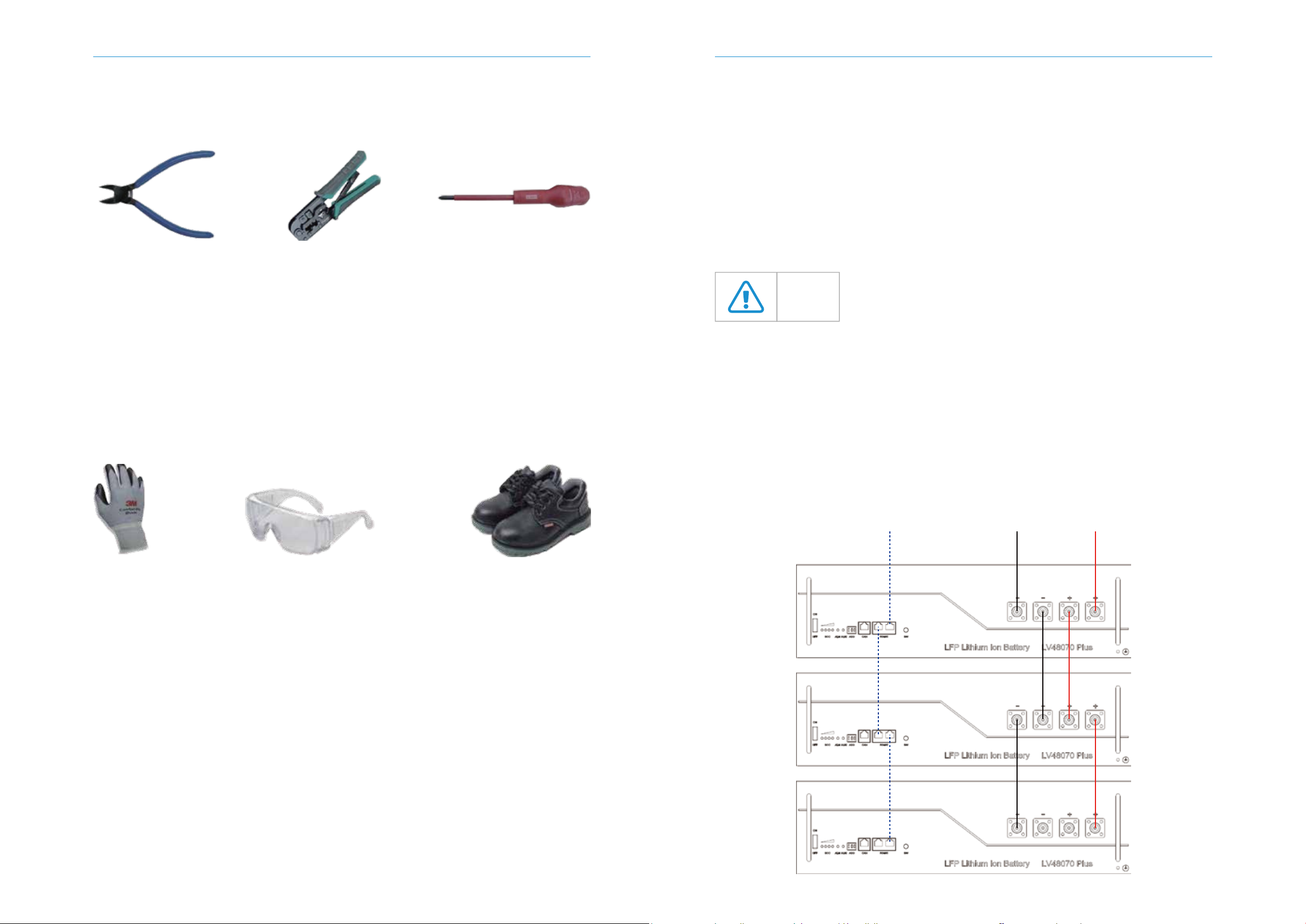

3.2 Installation tools
Wire cutter
The following tools are required to install the battery：
Crimping Modular Plier Crimping Modular Plier
Note:
Use properly insulated tools to prevent accidental electric shock or short circuits. If insulated tools are not available, cover the
entire exposed metal surfaces of the available tools, except their tips, with electrical tape.
3.3 Safety Gear
Insulated Gloves
It is recommended to wear the following safety gear when dealing with the battery pack.
Safety goggles Safety shoes
4. Installation
4.1 Installation Location:
Make sure that the installation location meets the following conditions:
· The area is completely water proof.
· The floor is flat and level.
· There are no flammable or explosive materials.
· The ambient temperature is within the range from 0°C to50°C.
· The temperature and humidity is maintained at a constantlevel.
· There is minimal dust and dirt in the area.
9
User Manual
LV 48070 Plus
· The distance from heat source is more than 2 meters
· The distance from air outlet of inverter is more than 0.5 meters.
· Do not cover or wrap the battery case or cabinet.
· Do not place at a children or pet touchable area.
· The installation area shall avoid directsunlight.
· There are no mandatory ventilation requirements for battery, but please avoid installation in confined area. The ambient shall
avoid high salinity, humidity or temperature.
Attention
If the ambient temperature exceeds the operating range, the battery pack will stop operating to protect itself. The optimal
temperature range for the battery pack to operate is 0°C to 35°C. Frequent exposure to harsh temperatures may deteriorate
the performance and life of the battery pack.
4.2 Connection layout of communication cables
Pack 3
Pack 2
Pack 1
To Upper control Output- Output+

4.3 Power on
Double check all the power cables, communication cables, and DIP switches to make sure proper connections / settings.
Turn on the power switch; the battery will start self-detection process.
After self-detection process completed, if no fault is found, the SOC LEDs will light on sequentially.
Attention
· To avoid current pulse of the inverter add on the battery bank. Shall start inverter first or switch on breaker between battery
and inverter after all connected batteries turned on.
· A DC breaker should be installed between battery bank and inverter for safety issue.
· All installation operation must follow local electric standard.
· The battery has a built-in battery management system (BMS). Usage beyond the operating voltage range will damage the BMS
and may cause the loss of safety protection function. Multiple batteries can only be grouped in parallel, not in serial connections.
5. Trouble shooting
5.1 Upon start, please make sure:
1) Whether the battery can be turned on or not;
2) If battery is turned on, check the red light is off, flashing or lighting;
3) If the red light is off, check whether the battery can be charged/discharged ornot
User Manual
LV 48070 Plus10
Power Switch DIP Switches
LV 48070 Plus User Manual 11
5.2 Basic steps:
1) The battery cannot be powered on:
If the battery’s power switch has been turned on but no LED indicator is on or flashing, and the external power supply voltage
is above 57.6V, please contact the dealer.
2) The battery has been powered on and the red ALM indicator turns on. The battery is under abnormal status, please check
the following values:
A) Temperature:
If ambient temperature is above 50 ℃or below -10 ℃, the battery cannot work. Solution: make sure ambient temperature is
within the operating temperature range. Recommended operating temperature 0℃~35℃
B) Current:
If charging current is over 55A or the discharge current is over 70A, battery’s self- protection function will be activated.
Solution: Check whether the current is too large, if it is too large, change the settings on the power supply side.
C) Over-Voltage:
When the charging voltage exceeds 58V, the battery’s self -protection will be activated. Solution: Adjust the charging voltage
of the power supply device.
D) Low voltage:
When the battery is discharged to 43.2V or lower, the battery’s self -protection will be activated.
Solution: Charge the battery until the red light turns off.
If the above measures have been taken but problem still exists, please switch off the battery and contact your dealer for help.
5.3 Advanced steps:
1) Unable to charge the battery: Switch off the battery, disconnect the power cables from external power device, measure the
output voltage of the power device.
· If the voltage is within 53 ~ 54V, reconnect the power cables and switch on the battery again.
· If the problem still exists, please switch off the battery and contact yourdealer.
2) Unable to discharge the battery:
Disconnect the power cables and measure the battery voltage.
· If the voltage is lower than 44.5V, please charge the battery until the voltage reaches above 48V;
· If the battery voltage is over 48V and it still cannot be discharged, please switch off the battery and contact the dealer.
6. Emergencies
1) Leaking Batteries
If a battery leaks, avoid contact with the leaking liquid or gas. In case if anyone has been exposed to the leakage substances,
please follow the below instructions accordingly:
· Inhalation: Evacuate from the contaminated area, and seek for medicalattention.
Contact with eyes: Rinse eyes with flowing water for 15 minutes, and seek for medical attention.
· Contact with skin: Wash the affected area thoroughly with soap and water, and seek for medical attention.

User Manual
LV 48070 Plus12
· Ingestion: Induce vomiting, and seek for medical attention.
2) Fire
Ⅰ When the fire around the battery system, only dry powder extinguisher can be used to extinguish the fire within the fire
range. Keep the battery pack as far away from the fire as possible.
Ⅱ When the fire in the battery pack, first immediately cut off the external power supply of the battery pack, and then put out
the fire with plenty of water.
3) Wet Batteries
If a battery is wet or submerged in water, people must keep away from it. Please contact your dealer or licensed electrician
for help immediately.
4) Damaged Batteries
Damaged batteries are dangerous and must be handled with the utmost care. They may pose a threat to the safety of people
or property.If a battery seems to be damaged, please pack it in its original carton or proper substitute, and then callyour
dealer or a licensed recycler for further treatment.

422-10005-00
SMART ENERGY FOR BETTER LIFE
