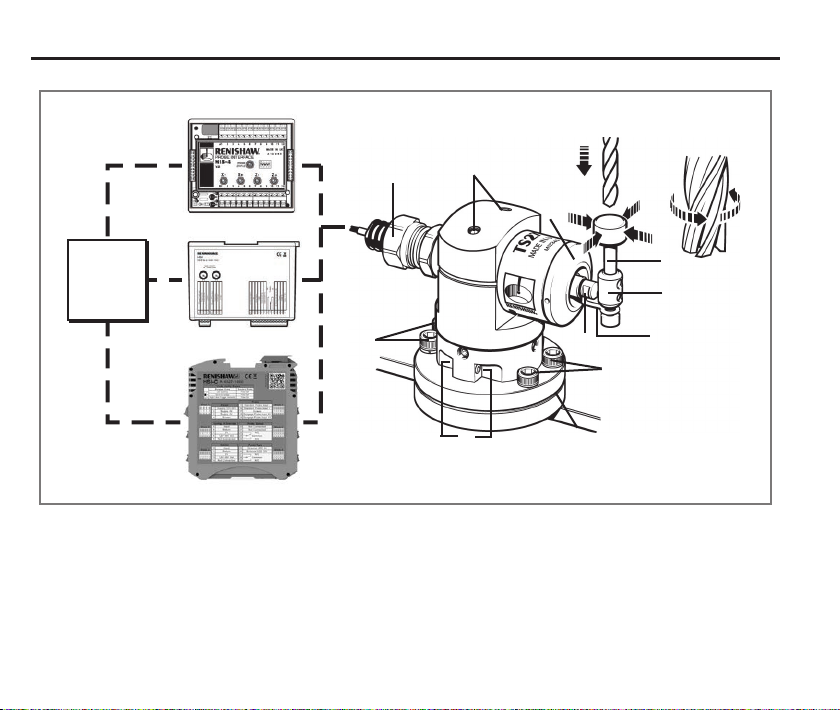

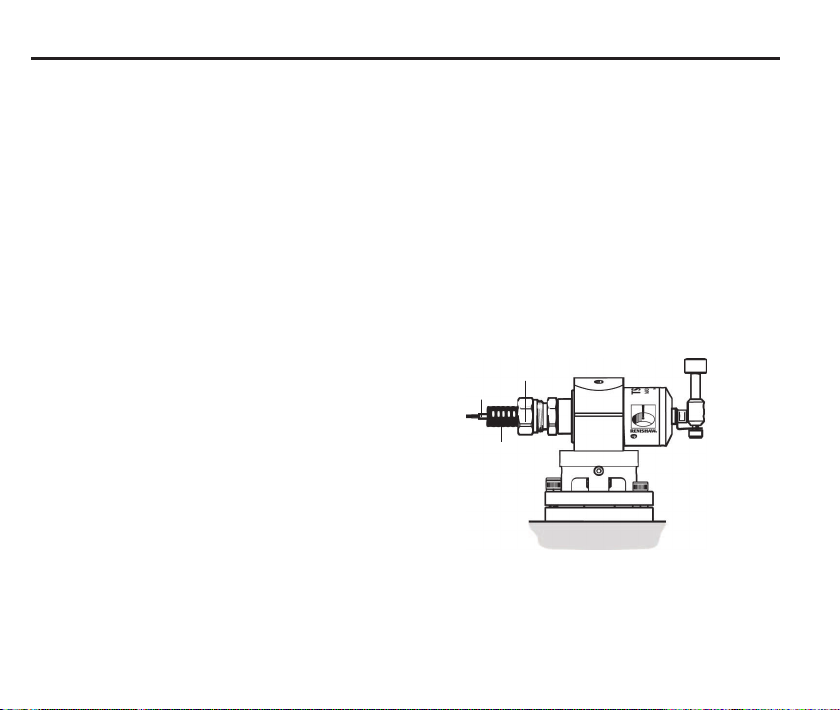

4 TS27R probe system
Alternative interface units
Cable
TS27R probe
Diameter setting
Rotate tool in
reverse direction
Z
X/Y
Machine table
T slot
7
5
11
710
6
43
2
1
8
9
1. Stylus
2. Stylus holder for disc or square styli
3. Captive link
4. Break stem
5. Front cover
6. Probe base holding screws
7. Stylus level alignment – adjusting screws
8. Plinth
9. Square stylus axes alignment – adjusting screws
10. Square stylus axes alignment – locking screws
11. Conduit adaptor
MI 8-4 interface
HSI interface
HSI-C interface
CNC
machine
controller

5TS27R probe system
Introduction
The TS27R probe is used for tool setting on CNC
machining centres.
For tool length measurements and broken tool
detection, the tool is driven against the probe’s
stylus in the Z axis. Rotating tools can be set in
the X and Y axes for tool radius offsets.
Screw adjusters allow the stylus to be aligned with
the machine’s axes.
An interface unit processes signals between the
probe and the CNC controller.

6 Operation
Achievable set-up tolerances
The tolerances to which tools can be set depend
upon the atness and parallelism of the stylus tip
setting. A value of 5 µm (0.0002 in) front to back
and side to side is easily achievable over the at
portion of the stylus tip, and 5 µm (0.0002 in)
parallelism is easily achievable with the axes of a
square tip stylus. This setting accuracy is sufcient
for the majority of tool setting applications.
Recommended rotating tool feedrates
Cutters should be rotated in reverse to the cutting
direction.
First touch – machine spindle rev/min
Rev/min for the rst move against the probe stylus
is calculated from a surface cutting speed of
60 m/min (197 ft/min).
Spindle speed should be maintained within the
range 150 rev/min to 800 rev/min and relates
to cutters of Ø24 mm to Ø127 mm (Ø0.95 in to
Ø5.0 in).
The surface cutting speed is not maintained if
cutters smaller than Ø24 mm (Ø0.95) or larger
than Ø127 mm (Ø5.0 in) are used.
First touch – machine feedrate
The feedrate (f) is calculated as follows:
f = 0.16 × rev/min f units mm/min (diameter set)
f = 0.12 × rev/min f units mm/min (length set)
Second touch – machine feedrate
800 rev/min, 4 mm/min (0.16 in/min) feedrate.
Software routines
Software routines for tool setting are available
from Renishaw for various machine controllers
and are described in the Probe software for
machine tools – programs and features data sheet
(Renishaw part no. H-2000-2298).
