Renz Sono K22 User manual

Sono
Assembly instruction
Operating manual

Sono
Electrical, height-adjustable office desks
2
This manual is valid for the following models:
K22 = Table top format 2200 x 1000mm
K23 = Table top format 2400 x 1000mm
K39 = Table top format K22/K23 2200/2400 x 1000mm + container K39
The enclosed assembly instruction and the operating instructions for the control unit and the manual switch from
Vibradorm are binding properties of this operating manual.
Please keep the documents complete and easily accessible to all users at a generally known place of storage.
Table of Contents:
1. Safety instructions, intended use Page 3
2. Lifetime of the lifting columns Page 5
3. Improper use Page 5
4. Assembly instruction Page 6
5. Function and operation Page 7
6. Troubleshooting Page 7
In the attachement:
- Manufacturer‘s manual Vibradorm for manual switch Page 8
- Manufacturer‘s manual Vibradorm for control unit Page 10
- List of error codes, Display Page 11
- EC Declaration of conformity Page 12

Sono
Safety instructions, intended use
3
1. Safety instructions, intended use
a.) The height adjustability of the undercarriage serves for the electrically operated adjustment of an individual
working height for the optionally sitting or standing user of the table by the hand switch,considering the following
notes.
b.) This product may only be used by children aged 8 years and older, as well as persons with physical, sensory,
or mental disabilities or lack of experience and knowledge, if they are supervised or instructed by a
responsible person and understand the resulting dangers. Children must not play with the device. Cleaning
and user maintenance may not be performed by children without supervision.
c.) The factory-provided power strip may be charged up to a maximum of 3500 watts as documented with the label
on the power strip mount.
d.) The maximum additional load of the height-adjustable table is 50kg.
e.) The operator must ensure that there are no persons or objects in the hazard area. There must be no objects
higher than 610 mm below the table.
f.) The electrically height- adjustable desk SONO is determined for the use in office space, only in dry environment.
Temperature range is +5°C to +40°C. Maximum duty cycle is ED 10% (S3, = 2 min. operation, 18 min. interruption)
Assembly according to the additional installation instructions!
g.) Precondition for the initiation of the table: Electrical installation, setup and initiation have to be done by qualified
personnel in accordance to the assembly instruction. If parts of the system are visibly or otherwise appreciably
damaged, the furniture must not be installed or put into operation. Please contact our service address
immediately.
h.) It is important to ensure that cables have not been crimped or damaged in any way.
Check regularly all cables in the area of the flank legs if they have been pinched between the lower end of the leg
and the ground.
Standing on soft floor coverings, the adjustable stands may gradually subside into the ground. At such pre-
conditions, please provide additional ground clearance in the beginning.
ATTENTION:
In case of non-observance: risk of property damage and damage to persons by electric shock.
Adjust the height of the adjustable stands as follows: Ø of the biggest cable in mm + 4mm = ground clearance.
On soft floorings significantly more additional reserve is necessary because of the risk of subsidence. Retain the stands
against unintentional readjustment by tightening/ fixing the nut against the base plate.
Cleaning work, moving of the table:
Turn off the power supply for cleaning work at the table. For wet cleaning of floor covers: The power supply of the table
is lead beneath the cladding of the table cheeks, invisible for outsiders. For cleaning workers the following orientation is
essential.
„In the range of the table cheeks and the power connection water and cleaning agent must not be used flooding or in
large amounts. Danger of death due to electric shock!“
ATTENTION:
Never move the table frame sideways!
Cables lead in a floor outlet or cables mounted onto the ground could be pinched or sheared off!
Danger of death due to electric shock!

Sono
Safety instructions, intended use
4
Electrical and mechanical components:
a.) In case of damage of the electric cable, the device mustn’t be operated any more. The damaged cable must
be replaced by a new, special electric cable delivered by Wilhelm Renz GmbH + Co.KG. Install the new cable in
the reverse order. The strain relief must be reattached.
b.) Owing to any further work or modification on the cabling, the height adjustment or any other parts of the table
by others than the producer or his servicing, the CE declaration of conformity by Renz is lapsed.
c.) The power supply must be interrupted immediately if electrical components, drive or mechanics cause unu
sual noise or odors during operation, or behave unexpectedly or atypically.
d.) In order to interrupt the power supply a freely accessible separator must be intended by customer. For examp
le the deduction of a power plug, the operating of a switch or a fuse ensures that the power supply can be
interrupted completely and as fast as possible.
ATTENTION:
The utilized separator has to provide a contact section opening width according to the terms of overvoltage category
III for complete detachment. It has to be integrated into the static electric system according to the valid regulatory
statues.
e.) The distance of movable table elements to permanent components (for example walls, columns, projections,
windowsills, containers and sideboards (ancillaries) must be at least 500 mm, to prevent violent pressure.
f.) Objects and devices on the table must be protected against falling down, make sure that cables of equipment is
long enough for highest / lowest position of the table . Use cord grips for traction relief.
g.) Keep in mind that movable furniture like swivel chairs (armrest, back support) or construction elements like
casements might slew round into the area of movement of the table. Violent pressure or blocking of the height-
adjustment may result.
Blocking of the height-adjustment may cause overload, toppling over or destruction of components.
h.) Persons or heavy objects must not be placed on the tabletop. Otherwise the height adjustment may be
damaged or the table might tip over.
i.) The moving table might destroy objects (hazard of shivers) or cause violent pressure.
j.) Keep away beverages and other liquids from the electrification in the table top. Danger of death due to electric
shock or danger of malfunction by spilling liquids into the power box or power strip.

2. Lifetime of the lifting columns
In normal use and in accordance with the intended use, in accordance with the respective technical
standard, the service life of the lifting columns is designed for a maximum of 10 years.
If this period is exceeded, we strongly recommend replacement.
Under certain circumstances, the service life on which the standard is based can be affected by improper use
or reduce excessive load. Warranty and guarantee claims remain unaffected by this.
WEEE-Reg.-Nr.: DE 75824099
3. Unintended use :
Unintended use, improper treatment or handling may cause risk or hazard to people or objects.
ATTENTION:
By unintended use the manufacturers liability and the general type approval will lapse. Modifications from the
factory-made delivery status are not permitted and result into extinction of the liability of Wilhem Renz GmbH +
Co.KG.
a.) The desk must not be used in humid or corrosive areas or areas exposed to explosion hazards.
b.) The desk must not be used for hoisting or lowering people or objects. Do not block the mechanism.
c.) Never use the desk for ascension, never stand onto the desk.
d.) By barriers in the movement range that might block the height adjustment, people or objects could be tipped
over, torn down, pinched, bruised or damaged in any other way.
e.) Barriers might even block the height adjustment and overcharge mechanical and electrical components.
Overcharging of electrical components causes fire hazard.
f.) The hand control switch must not be mounted in another position.
g.) The operation of the desk is not allowed in case of:
- non-observance of safety instructions
- the absence of a free accessible separator, provided by customer (see 5/f.)
5
Sono
Lifetime of the lifting columns, unintended use
5

4. Assembly
Please read the safety instructions carefully before assembly.
Set up, align and connect lifting column container K39 and all other containers.
- Also include the gliders next to the column.
- Place and fasten the Toolboard covering panel (M4x25 mm).
- Fasten the upper steel plate of the Toolboard column (4x M6x20 mm flat head screw).
- Mount vertical cable guide (2x M4x6 mm)
- Feed the power supply and any additional cables (RJ45, etc.) through the cable duct and secure at the bottom.
- When the column has been lowered, a loose cable loop must be formed.
- Position the free-standing column and align it exactly.
- Test the columns by connecting the columns and the hand switch to the control unit.
- Connect the power cable and make a test drive.
- Place the subframe and connect it first to only 1 column (M6x20 countersunk head).
- Check by a test drive whether both columns run up parallel, align if necessary.
- Vonnect the subframe to the 2nd column (M6x20 countersunk head).
- Place and connect the table top (M6x60). Guide the hand switch cable through the corresponding slot.
- Fasten the hand switch (M4x10).
- Stick the cable clips half way between the hand switch and the frame.
- Attach controls and cable guides, stow cables.
6
Sono
Assembly instruction

7
Sono
Function and operation, ergonomics
Ergonomics
a.) Always adapt the table height to your respective working position.
b.) For screen handling make sure that the top line on the screen is below your horizontal view axis.
An advantageous bearing results by a viewing direction 35° beneath the horizontal line. The screen surface
ideally shows an angle of 90° with the viewing axis.
c.) The working height (for sitting and standing work) should be the height of your elbow at loose-hanging upper
arms.
d.) For further detailed information we refer:
- Germany: Guideline for workplace design, published by the mutual indemnity association
(Berufsgenossenschaft)
- Outside of Germany: Country-specific guidelines / regulations.
5. Troubleshooting
a.) The manuals for handset and control and the error code list (by manufacturer Vibradorm) are enclosed in the
appendix. These documents are integral part of this operating manual.
ATTENTION:
Error codes are shown in the display. The malfunction shown by the code can be corrected, as shown in the
Troubleshooting list.
4. Function and operation, ergonomics
The height adjustable desk is is adjustable between 740 and 1140 mm by the hand control. The hand control
is at the underside of the tabletop, on the right from the seat. The adjusted table height will be shown on the
display.
a.) To raise the table, press the upward triangle push-button on the hand control. In the upper end position, the
drive stops automatically.
b.) In order to bring the table down, press the downward triangle push-button on the hand control.
At a height of 79cm, the drive switches off for safety reasons. (safety area)
ATTENTION:
At this point make sure there are no obstacles in the clamping area between the leg-panels and the floor.
By releasing and pressing the push-button again, the table moves down at a reduced speed to the end position.
c.) By holding down the M button and pressing one of the memory buttons, any desired height can be buffered
(3 memories)
d.) The buffered height is approached by holding the assigned memory button.

8
Appendix
Manufacturer‘s manual Vibradorm for hand control

9
Appendix
Manufacturer‘s manual Vibradorm for hand control

10
Appendix
Manufacturer‘s manual Vibradorm for control

11
Appendix

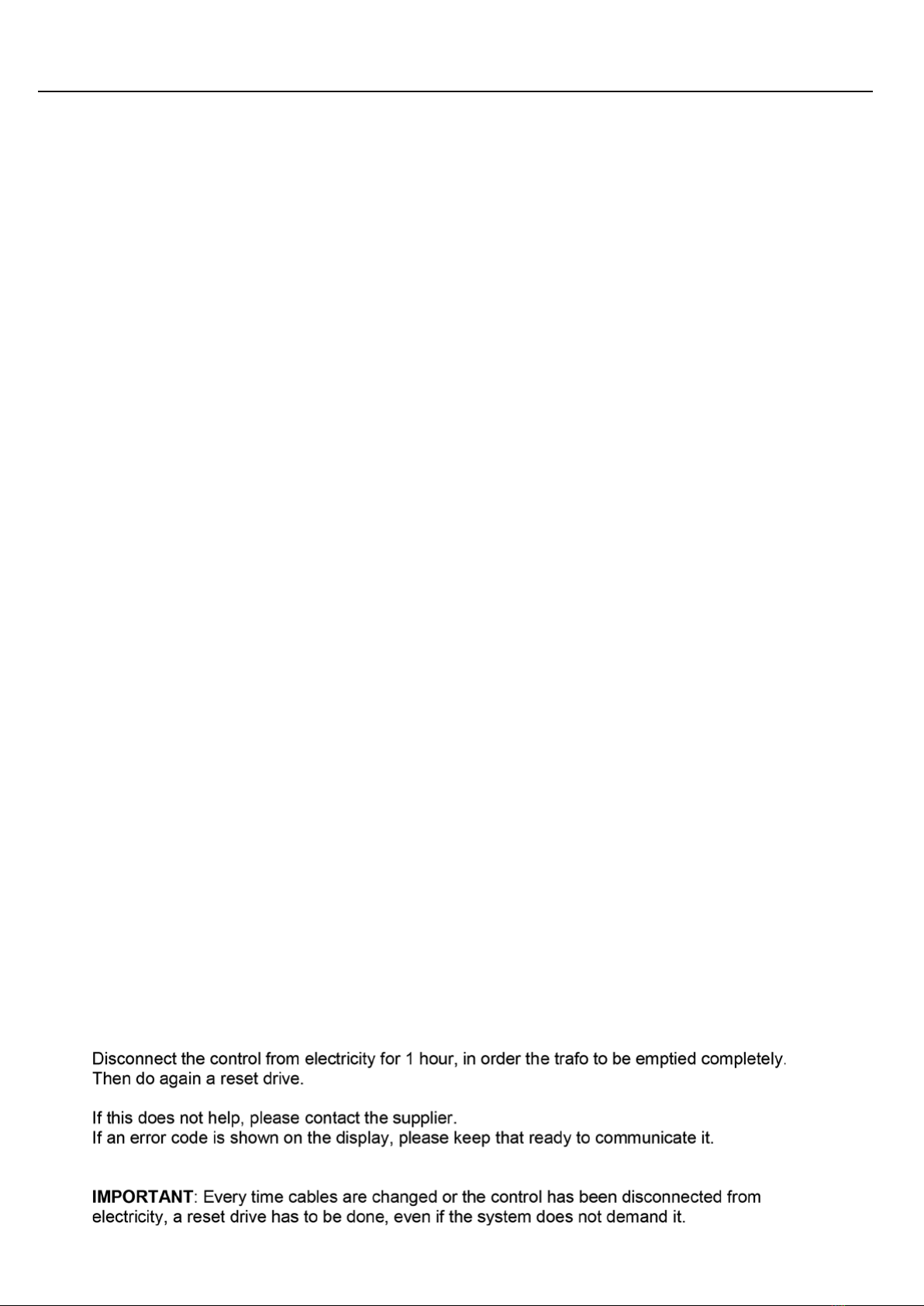

Trouble Shooting List

Wilhelm Renz GmbH + Co. KG
Hanns-Klemm-Straße 35
71034 Böblingen
Germany
T +49 (0)7031.21880
F +49 (0)7031.218850
[e-mail]
www.renz.de
09|2021
EC Declaration of Conformity
In the sense of the EC Machinery Directive 2006 / 42 / EG, Annex II 1. A
We hereby declare that the following products in the versions marketed by us comply with the following directives.
This declaration shall lose its validity in the event of modification or improper use.
Manufacturer: Wilhelm Renz GmbH + Co. KG
Hanns-Klemm-Straße 35
71034 Böblingen
Community resident Eckart Renz
who is authorized to take the technical Hanns-Klemm-Straße 35
to compile documents 71034 Böblingen
(authorized representative): 07031 / 21880
[email protected]
Product : Electric height-adjustable office desks, SONO
series
Model: K22 = Table frame/table top format 2200 x 1000 mm
K23 = Table frame/table top format 2400 x 1000 mm
K39 = Table frame/table top format K22/K23 Format 2200/2400 x 1000 mm
+ Container K39
Description: Electrically height-adjustable office desk.
Adjustment range (height of worktop) = 740 to 1140mm
Vmax= 38 mm/s; load capacity max. 50kg
Electrical connection = 220-240V - I 50Hz / 3500W
Duty cycle factor (DCF) = 10% S3
Applied standards: DIN EN 527-2: 2016+A1:2019
(Office furniture - Office desks - Part 2:
Safety, strength and durability requirements)
EN 60335-1:2012 + A11:2014 + A13:2017 + A1:2019 + A2:2019 + A14:2019
Internal cables, mains connection and external cables, improper operation
(operation under blocking conditions)
Böblingen, March 20, 2021 Managing Director:
Eckart Renz
Appendix
EC Declaration of Conformity
