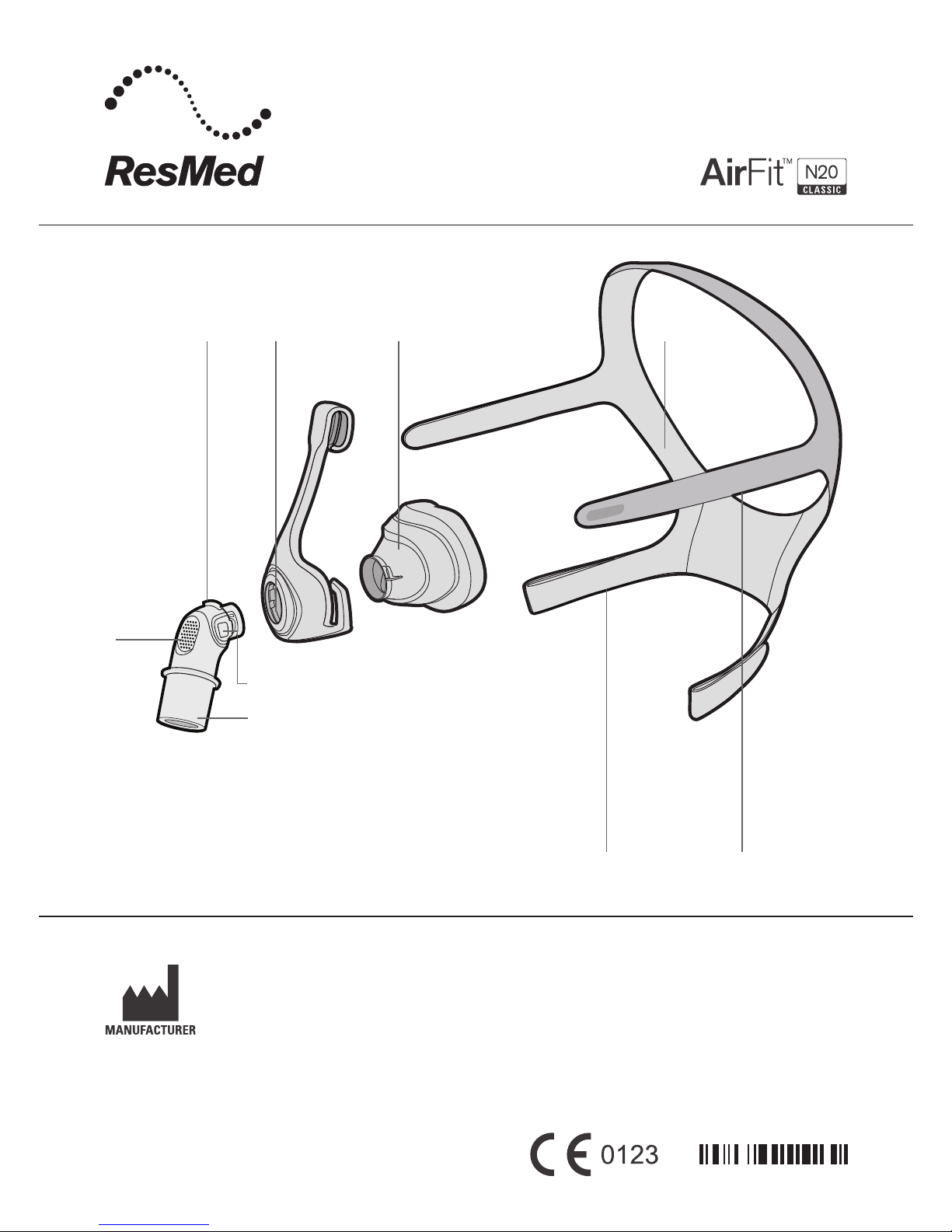

ResMed AirFit N20 Classic User manual

Nasal mask
User guideUser guide
User guide
English

i
Fitting / Anlegen / Ajustement / Applicazione / Opzetten /
ءاﺪﺗرﻻا
1
3 4
2
5 6

ii
AdjustmentAdjustment / Anpassen / Ajustement / Regolazione /
Afstellen / ﻂﺒﻀﻟا
Removal / Abnehmen / Retrait / Rimozione / Afnemen /
عﺰﻨﻟا
1 2

iii
Disassembly / Auseinanderbau / Démontage /
Smontaggio / Demonteren / ﻚﯿﻜﻔﺘﻟا
1 2
3

iv
Reassembly / Zusammenbau / Remontage /
Riassemblaggio / Opnieuw monteren / ﻊﯿﻤﺠﺘﻟا ةدﺎﻋإ
M
M
1
2 3

English 1
ENGLISH
Nasal Mask
Thank you for choosing the AirFit N20 Classic. This document provides
the user instructions for the AirFit N20 Classic.
Using this guide
Please read the entire guide before use. When following instructions,
refer to the images at the front of the guide.
Intended use
The AirFit N20 Classic channels airflow non-invasively to a patient from a
positive airway pressure (PAP) device such as a continuous positive
airway pressure (CPAP) or bilevel device.
The AirFit N20 Classic is:
•to be used by patients weighing more than 30 kg for whom positive
airway pressure has been prescribed
•intended for single-patient re-use in the home environment and multi-
patient re-use in the hospital/institutional environment.
GENERAL WARNINGS
•The vent holes must be kept clear.
•The mask should only be used with CPAP or bilevel devices
recommended by a physician or respiratory therapist.
•The mask should not be used unless the device is turned on. Once
the mask is fitted, ensure the device is blowing air. Explanation:
CPAP and bilevel devices are intended to be used with special
masks (or connectors) which have vent holes to allow continuous
flow of air out of the mask. When the device is turned on and
functioning properly, new air from the device flushes the exhaled
air out through the mask vent holes. However, when the device is
not operating, insufficient fresh air will be provided through the
mask, and the exhaled air may be rebreathed. Rebreathing of
exhaled air for longer than several minutes can, in some

2
circumstances, lead to suffocation. This applies to most models of
CPAP or bilevel devices.
•Follow all precautions when using supplemental oxygen.
•Oxygen flow must be turned off when the CPAP or bilevel device
is not operating, so that unused oxygen does not accumulate
within the device enclosure and create a risk of fire.
•Oxygen supports combustion. Oxygen must not be used while
smoking or in the presence of an open flame. Only use oxygen in
well ventilated rooms.
•At a fixed rate of supplemental oxygen flow, the inhaled oxygen
concentration varies, depending on the pressure settings, patient
breathing pattern, mask, point of application and leak rate. This
warning applies to most types of CPAP or bilevel devices.
•The technical specifications of the mask are provided for your
clinician to check that they are compatible with the CPAP or
bilevel device. If used outside specification or if used with
incompatible devices, the seal and comfort of the mask may not
be effective, optimum therapy may not be achieved, and leak, or
variation in the rate of leak, may affect the CPAP or bilevel device
function.
•Discontinue using this mask if you have ANY adverse reaction to
the use of the mask, and consult your physician or sleep therapist.
•Using a mask may cause tooth, gum or jaw soreness or aggravate
an existing dental condition. If symptoms occur, consult your
physician or dentist.
•As with all masks, some rebreathing may occur at low CPAP
pressures.
•Refer to your CPAP or bilevel device manual for details on
settings and operational information.
•Remove all packaging before using the mask.
•The mask must be used under qualified supervision for users who
are unable to remove the mask by themselves. The mask may not
be suitable for those predisposed to aspiration.
•Avoid connecting flexible PVC products (eg, PVC tubing) directly
to any part of the mask. Flexible PVC contains elements that can
be damaging to the materials of the mask, and may cause the
components to crack or break.
•The N20 line of nasal CPAP masks are not intended to be used
simultaneously with nebuliser medications that are in the air path
of the mask/tube.

English 3
•The mask contains an exhaust port safety feature to enable
normal breathing. The mask should not be worn if this safety
feature is damaged or missing.
Using your mask
When using your mask with ResMed CPAP or bilevel devices that have
mask setting options, refer to the Technical specifications section in this
user guide for the correct setting.
For a full list of compatible devices for this mask, see the Mask/Device
Compatibility List on www.resmed.com/downloads/masks. If you do not
have internet access, please contact your ResMed representative.
Fitting
1. With both lower headgear straps released, hold the mask against your
face and pull the headgear over your head.
2. Bringing the lower straps below your ears, loop the headgear into the
lower hooks on the mask frame.
3. Undo the Velcro®tabs on the upper headgear straps. Adjust the straps
evenly until the mask sits comfortably just over the nose. Reattach the
Velcro tabs.
4. Undo the Velcro tabs on the lower headgear straps. Adjust the straps
evenly until the mask is stable. Reattach the Velcro tabs.
5. Connect the device air tubing to the elbow. Attach the elbow to the
mask by pressing the side buttons and pushing the elbow into the
mask, ensuring it clicks in on both sides.
6. Your mask and headgear should be positioned as shown in the
illustration.

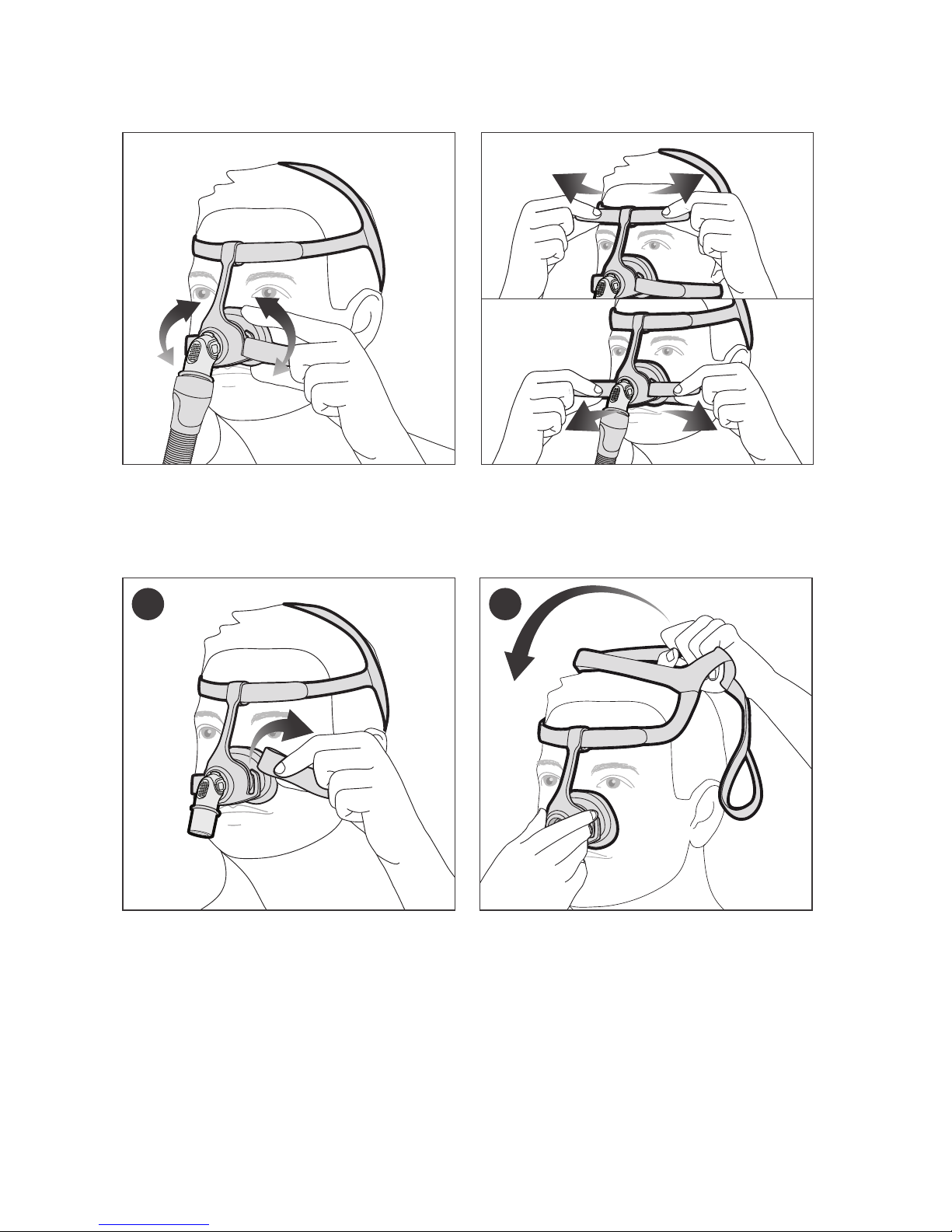

Adjustment
If necessary, slightly adjust the position of the mask for the most
comfortable fit. Ensure that the cushion is not creased and the headgear
is not twisted.
1. Turn on your device so that it is blowing air.
Adjustment tips:
To resolve any leaks at the upper part of the mask, adjust the
upper headgear straps. For the lower part, adjust the lower
headgear straps. Adjust only enough for a comfortable seal.

4
Ensure the headgear straps are not overtightened or too loose.
Removal
1. Unloop the lower headgear straps from the lower hooks of the frame.
2. With both lower straps released, pull the headgear back over your
head.

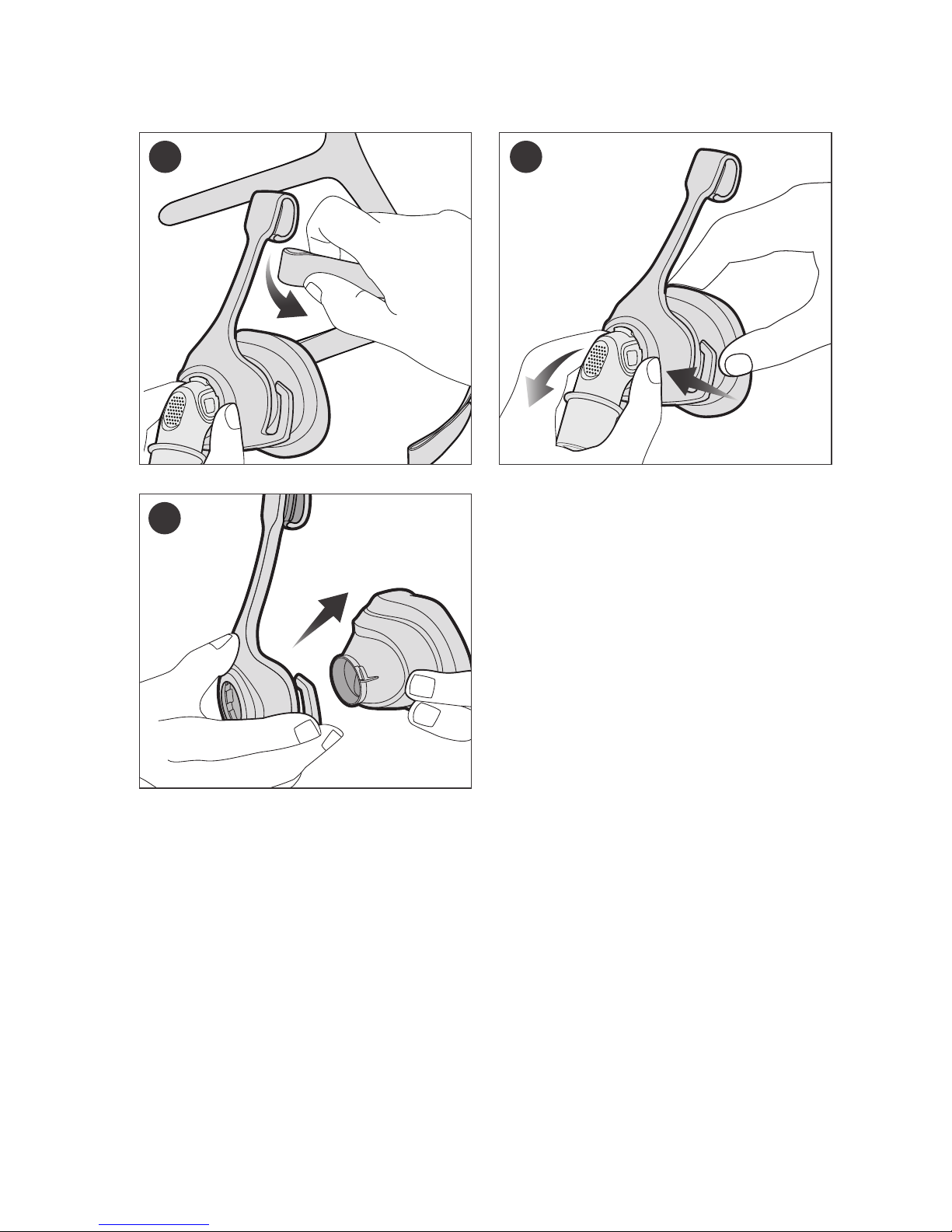

Disassembly
If the mask is connected to your device, disconnect the device air tubing
from the elbow.
1. Pull the straps out of the frame.
2. Remove the elbow from the mask by pressing the side button and
pulling the elbow away.
3. Pull the cushion away from the frame.

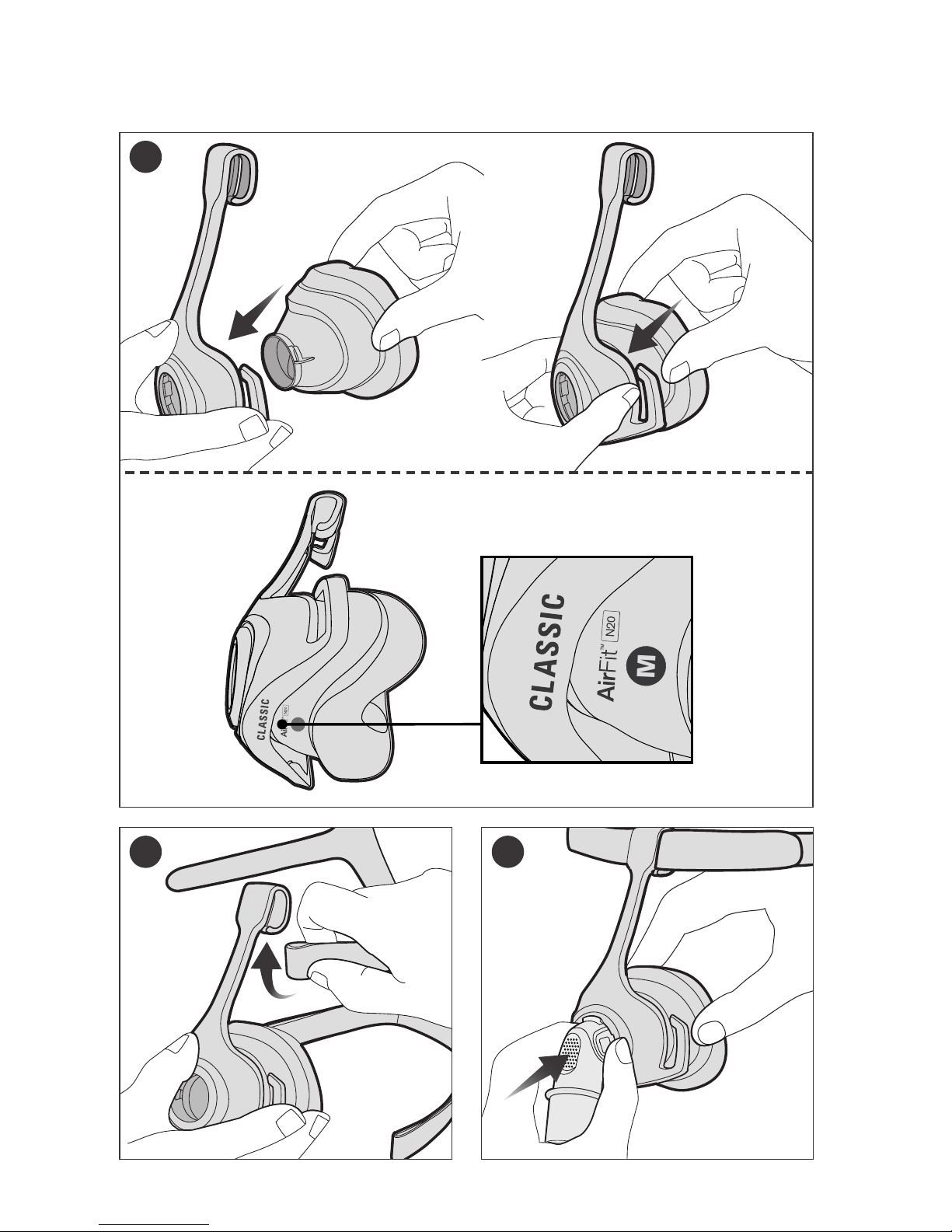

Reassembly
1. Push the cushion into the frame.
Note: Ensure the cushion mask size indicator is facing downwards.
2. Attach the top headgear straps to the mask frame by looping onto
each of the upper headgear hooks.
3. Attach the elbow by pressing the side buttons and pushing into the
mask.
Cleaning your mask at home
It is important to follow the steps below to get the best performance out
of your mask.
WARNING
•As part of good hygiene, always follow cleaning instructions and
use a mild liquid detergent. Some cleaning products may damage
the mask, its parts and their function, or leave harmful residual
vapours that could be inhaled if not rinsed thoroughly.
•Regularly clean your mask and its components to maintain the
quality of your mask and to prevent the growth of germs that can
adversely affect your health.

English 5
CAUTION
If any visible deterioration of a system component is apparent
(cracking, crazing, tears etc), the component should be discarded and
replaced.
Daily/After each use:
Before cleaning, take the mask components apart according to the
disassembly instructions.
1. Soak and agitate the cushion and elbow in warm water (approximately
30°C) using a mild liquid detergent for up to 10 minutes.
2. Clean the components with a soft bristle brush, paying particular
attention to the small vent holes on the elbow.
3. Rinse the components under warm flowing drinking quality water.
4. Inspect each component to ensure that they are visually clean and
free of detergent residue. If required, repeat washing.
5. Allow the components to dry out of direct sunlight before assembling.
Weekly:
1. Soak and agitate the separated headgear and frame in warm water
(approximately 30°C) using a mild liquid detergent for up to
10 minutes.
2. Rinse the components under warm flowing drinking quality water until
they are free of detergent residue.
3. Squeeze the headgear to remove excess water.
4. Allow the components to dry out of direct sunlight before assembling.
Reprocessing the mask between patients
Reprocess this mask when using between patients. Cleaning, disinfection
and sterilisation instructions are available on
www.resmed.com/downloads/masks. If you do not have internet access,
please contact your ResMed representative.
Troubleshooting
Problem/possible cause
Solution
Mask is too noisy.
Vent is dirty. Clean the vent according to the instructions.

6
Problem/possible cause
Solution
Mask is incorrectly assembled. Disassemble the mask, then reassemble
according to the instructions.
Mask is leaking. Refit or reposition your mask.
Readjust the headgear straps to bring the
mask closer to the face and improve your
seal.
Check that your mask is assembled correctly.
Mask leaks around face.
Mask may have been fitted incorrectly. Pull the mask away from your face and
reposition, ensuring that the lower corners of
the mask fully enclose your nose. If
necessary, readjust the headgear straps to
keep the mask in the right place.
Cushion may be dirty. Clean the cushion according to the
instructions.
Cushion membrane is creased or folded. Remove and refit your mask according to the
fitting instructions. Ensure that you position
the cushion correctly over your nose before
pulling the headgear over your head. Do not
slide the mask down your face during fitting
as this may lead to folding or curling of the
cushion.
Mask is not tightened correctly. Ensure that the headgear straps are not
overtightened or too loose. You may find that
this mask does not need to be tightened as
much as other nasal masks.
Check that the headgear is not twisted.
Mask may be the wrong size. Talk to your clinician.
Mask does not fit properly.
Mask is not positioned correctly. Check that the mask size indicator on the
bottom of the cushion is facing downward.
Mask is incorrectly assembled. Disassemble the mask, then reassemble
according to the instructions.
Mask may be the wrong size.
Talk to your clinician.

English 7
Technical specifications
Pressure-flow
curve
The mask contains passive venting to protect against rebreathing.
As a result of manufacturing variations, the vent flow rate may vary.
Pressure
(cm H2O)
Flow
(L/min)
4
20
7
27
11
35
14
40
17
44
20
49
24
54
27
58
30
61
Dead space
information
Physical dead space is the empty volume of the mask to the end of
the swivel. Using the large cushions it is 55.8 mL.
Therapy
pressure
4 to 30 cm H2O
Resistance
Drop in pressure measured (nominal)
at 50 L/min: 0.4 cm H2O
at 100 L/min: 1.5 cm H2O
Environmental
conditions
Operating temperature: 5°C to 40°C
Operating humidity: 15% to 95% non-condensing
Storage and transport temperature: -20°C to +60°C
Storage and transport humidity: up to 95% non-condensing
Sound
DECLARED DUAL-NUMBER NOISE EMISSION VALUES in accordance
with ISO 4871. The A-weighted sound power level of the mask is
26 dBA, with uncertainty of 3 dBA. The A-weighted sound pressure
level of the mask at a distance of 1 m is 18 dBA, with uncertainty of
3 dBA.
Gross
dimensions
141 mm (H) x 73 mm (W) x 90 mm (D)
Mask fully assembled with elbow assembly (no headgear)

8
Service life
The service life of the AirFit N20 Classic mask system is dependent
on the intensity of usage, maintenance, and environmental
conditions to which the mask is used or stored. As this mask system
and its components are modular in nature, it is recommended that
the user maintain and inspect it on a regular basis, and replace the
mask system or any components if deemed necessary or according to
the ‘visual criteria for product inspection’ in the ‘Cleaning your mask
at home’ section of this guide. Refer to the ‘Mask components’
section of this guide for information of how to order replacement
parts.
Mask setting
options
For AirSense, AirCurve and S9: Select 'Pillows'.
For other devices: Select 'SWIFT' (if available), otherwise select
'MIRAGE' as the mask option.
Notes:
•This product is not made with PVC or phthalates such as DEHP, DBP
or BBP.
•This product is not made with natural rubber latex.
•The manufacturer reserves the right to change these specifications
without notice.
Storage
Ensure that the mask is thoroughly clean and dry before storing it for any
length of time. Store the mask in a dry place out of direct sunlight.
Disposal
This mask does not contain any hazardous substances and may be
disposed of with your normal household refuse.

English 9
Symbols
The following symbols may appear on your product or packaging:
Catalogue number Batch code
Humidity limitation Temperature limitation
Fragile, handle with care
Not made with natural rubber
latex
Manufacturer European Authorised
Representative
Keep away from rain This way up
Classic nasal mask Device setting - Pillows
Size - small Size - medium
Size - large
Indicates a Warning or Caution and alerts you to a possible injury or explains
special measures for the safe and effective use of the device
Caution, consult accompanying documents

10
Consumer Warranty
ResMed acknowledges all consumer rights granted under the EU
Directive 1999/44/EC and the respective national laws within the EU for
products sold within the European Union.

Mask Components / Maskenkomponenten /
Composants du masque / Componenti della maschera /
Maskeronderdelen / عﺎﻨﻘﻟا تﺎﻧﻮﻜﻣ
AirFit N20
Classic
AElbow / Kniestück / Coude / Gomito / Bocht / ﻖﻓﺮﻣ 63765
1 Vent / Luftauslassöffnung / Orifice de ventilation / Foro
per l'esalazione / Ventilatieopening / ﺔﯾﻮﮭﺗ بﻮﻘﺛ
2 Side buttons / Seitlich angebrachte Laschen / Boutons
latéraux / Pulsanti laterali / Zijknoppen / نﺎﯿﺒﻧﺎﺟ نارز
3 Swivel / Drehadapter / Pièce pivotante / Giunto
rotante / Draaibare kop / ةراود ﺔﻠﺻو
B Frame / Maskenrahmen / Entourage rigide /
Telaio / Frame / رﺎطإ
63766
C Cushion / Maskenkissen / Bulle / Cuscinetto /
Kussentje / ةدﺎﺳو
63550 (S)
63551 (M)
63552 (L)
D Headgear / Kopfband / Harnais / Copricapo /
Hoofdband / سأر ءﺎﻄﻏ
63760 (S)
63761 (Std)
4 Lower headgear straps / Untere Kopfbänder / Sangles
inférieures du harnais / Cinghie inferiori del
copricapo / Onderste banden van de hoofdband /
نﺎﯿﻠﻔﺴﻟا سأﺮﻟا ءﺎﻄﻏ ﺎﻄﯾﺮﺷ
5 Upper headgear straps / Obere Kopfbänder / Sangles
supérieures du harnais / Cinghie superiori del
copricapo / Bovenste banden van de hoofdband /
نﺎﯾﻮﻠﻌﻟا سأﺮﻟا ءﺎﻄﻏ ﺎﻄﯾﺮﺷ
A+B+C+D
Complete system / Komplettes System / Système
complet / Sistema completo / Volledig systeem /
ﻞﻣﺎﻜﻟا مﺎﻈﻨﻟا
63710 (S)
63711 (M)
63712 (L)

S: Small / Small / Small / Piccolo / Small / ﺮﯿﻐﺻ
M: Medium / Medium / Medium / Medio / Medium / ﻂﺳو
L: Large / Large / Large / Grande / Large / ﺮﯿﺒﻛ
Std: Standard / Standard / Standard / Standard / Standaard / ﻲﺳﺎﯿﻗ

ResMed.com
638123
ResMed Ltd
1 Elizabeth Macarthur Drive Bella Vista NSW 2153 Australia
See ResMed.com for other ResMed locations worldwide. AirFit is a trademark and/or registered trademark of the
ResMed family of companies. For patent and other intellectual property information, see ResMed.com/ip.
Velcro is a trademark of Velcro Industries B.V. © 2017 ResMed Ltd. 638123/2 2017-11
BA C
5
D
4
1
2
3
