ResMed AutoSet CS-A Operating and safety instructions

Welcome Guide
English
AutoSet™CS-A
ADAptive servo-ventilAtor

Welcome
Thank you for choosing the AutoSet CS-A. Before operating the device, please read the entire Welcome
and Information Guides.

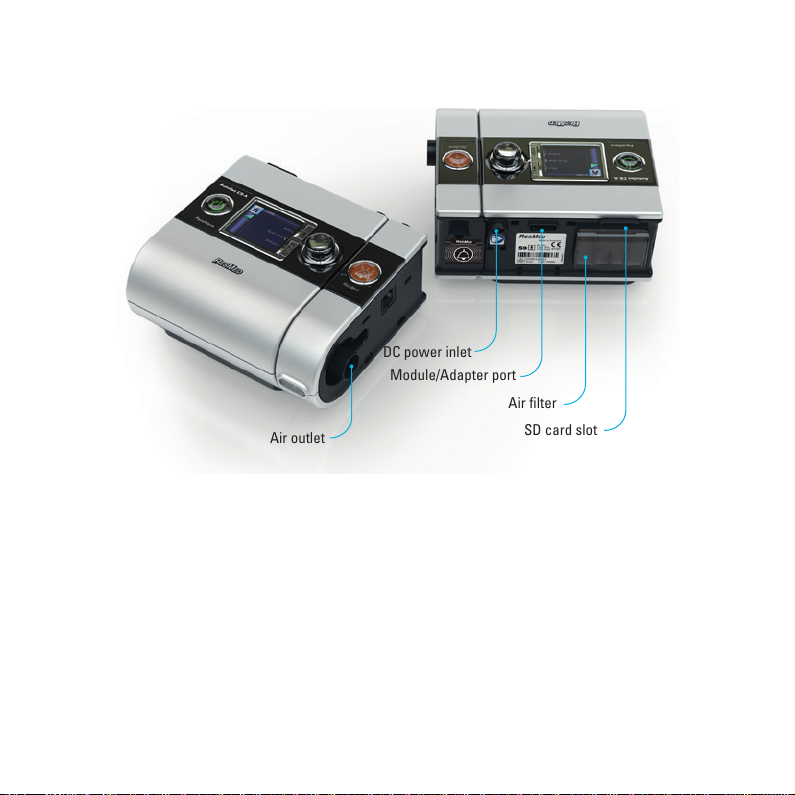

Air filter
DC power inlet
SD card slot
Module/Adapter port
Air outlet
AutoSet CS-A at a glance
The AutoSet CS-A system comprises the following elements:
• AutoSet CS-A device • Air tubing • 90W power supply unit • S9 Travel bag • SD card • S9 SD
card protective folder.
Optional components include:
• H5i heated humidifier • Standard air tubing • SlimLine air tubing • 3m air tubing • ClimateLine
heated air tubing • ClimateLineMAX heated air tubing • 30W power supply unit (does not support H5i)
• Power Station II battery pack • DC/DC Converter 24V/90W.
Travelling with the AutoSet CS-A
When travelling with your AutoSet CS-A only:
• Ensure you pack the SlimLine or Standard air tubing as the ClimateLine or ClimateLineMAX heated air
tubing is not designed to connect directly to the device.
• Please ensure you purchase and travel with the approved power cord for the region where you will be
using the device.
1
English

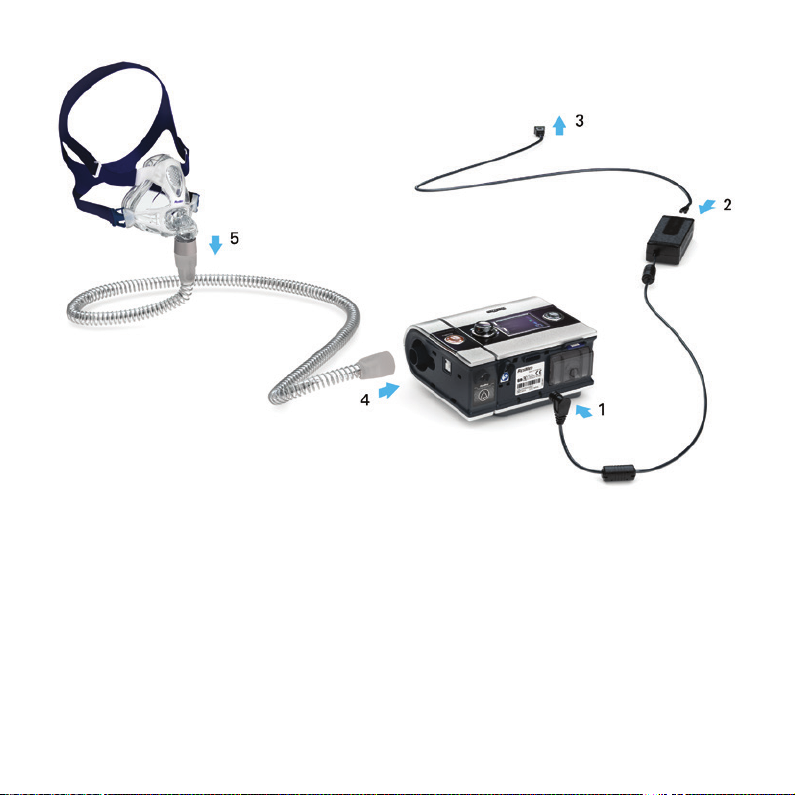

Setting up
1. Connect the DC plug of the power supply unit to the rear of the device.
2. Connect the power cord to the power supply unit.
3. Plug the other end of the power cord into the power outlet.
4. Connect one end of the air tubing firmly onto the air outlet.
5. Connect the assembled mask system to the free end of the air tubing.
Notes:
•Always ensure that the AutoSet CS-A is placed in an area where the alarm LED indicators are clearly
visible.
•For more information on assembling your mask see your mask user guide.
•Recommended masks are available on www.resmed.com on the Products page under Service &
Support.

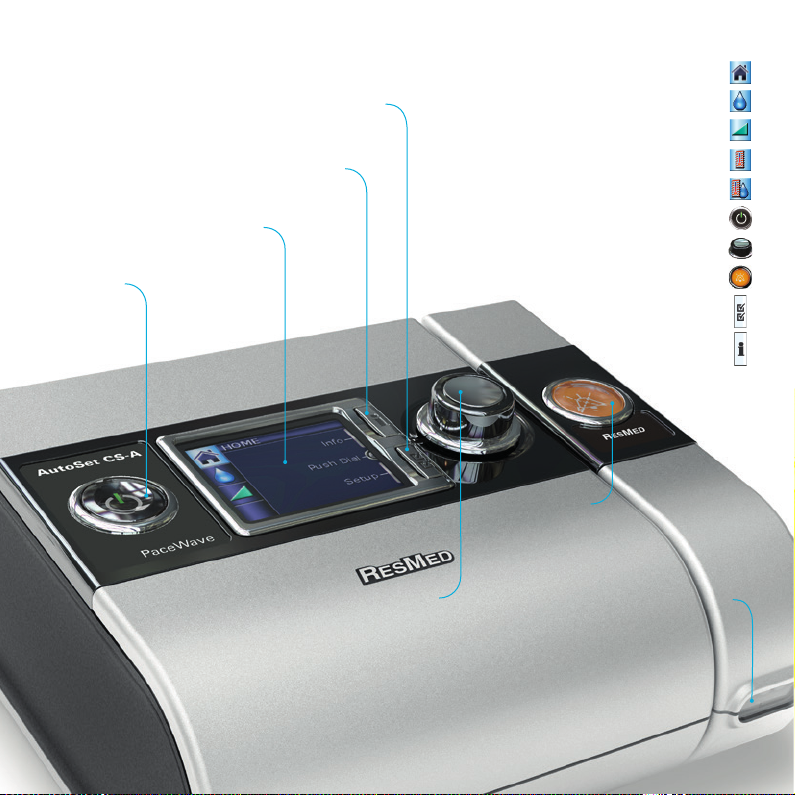

AutoSet CS-A basics
Info menu*
Allows you to view your sleep
statistics or exit from the menu.
Setup menu*
Allows you to make changes to
settings or exit from the menu.
Start/Stop button
Starts or stops
treatment.
LCD screen
Displays the menus, treatment
screens and reminders.
Push dial
Turning the dial allows you to scroll through
the menu and change settings. Pushing the
dial allows you to enter into a menu and
confirm your choice.
Alarm mute
Press once to mute
alarms. Press a
second time to
unmute.
Alarm and therapy LEDs
Yellow—flashes during an alarm.
Blue—on during therapy (if enabled
by clinician).
Key:
Home
Humidity Level
Ramp
Heated Tube
Climate Control
Start/Stop
Push dial
Alarm mute
Setup menu
Info menu
2

AutoSet CS-A basics
Info menu*
Allows you to view your sleep
statistics or exit from the menu.
Setup menu*
Allows you to make changes to
settings or exit from the menu.
Start/Stop button
Starts or stops
treatment.
LCD screen
Displays the menus, treatment
screens and reminders.
Push dial
Turning the dial allows you to scroll through
the menu and change settings. Pushing the
dial allows you to enter into a menu and
confirm your choice.
Alarm mute
Press once to mute
alarms. Press a
second time to
unmute.
Alarm and therapy LEDs
Yellow—flashes during an alarm.
Blue—on during therapy (if enabled
by clinician).
Key:
Home
Humidity Level
Ramp
Heated Tube
Climate Control
Start/Stop
Push dial
Alarm mute
Setup menu
Info menu
*The Info and Setup menus are disabled if S9 Essentials has been
enabled by your clinician.
3
English

S9 Essentials
S9 Essentials is designed to make device interaction and menu navigation easier for you. If enabled by
the clinician, S9 Essentials disables the Info and Setup functionality so that you can simply start and stop
therapy and adjust ramp, humidification and Climate Control.
Selecting the mask type
To select your type of mask:
4. Turn until the mask
setting that you require is
displayed.
5. Press to confirm your
choice.
6. Push to return to the
HOME screen.
Note: Selecting the mask type is not possible if S9 Essentials has been enabled by your clinician.
1. Press . The SETTINGS
screen is displayed.
2. Turn until Mask is
displayed in blue.
3. Press . The selection is
highlighted in orange.
Adjusting ramp time
Designed to make the beginning of treatment more comfortable, ramp time is the period during which
the pressure increases from a low start pressure to the treatment pressure. To adjust your ramp time:
1. From your HOME
screen, turn
until the RAMP
screen is displayed
in blue.
2. Press .
The selection
ishighlighted
inorange.
3. Turn until the
ramp time you
require is displayed.
4. Press to
confirm your choice.
Using Mask Fit
You can use Mask Fit to help you fit your mask properly. This feature delivers CPAP pressure for a
three-minute period, prior to starting treatment, during which you can check and adjust your Mask Fit to
minimise leaks.
1. Fit your mask as described in the mask user guide.
2. From your HOME screen, push and hold for three seconds.
One of the following MASK FIT screens is displayed:
3. If necessary, adjust your mask, mask cushion and headgear until Mask Fit indicates Good.
After three minutes, the pressure reverts to the set pressure and treatment will begin. You can end
Mask Fit at any time by pressing .
4

S9 Essentials
S9 Essentials is designed to make device interaction and menu navigation easier for you. If enabled by
the clinician, S9 Essentials disables the Info and Setup functionality so that you can simply start and stop
therapy and adjust ramp, humidification and Climate Control.
Selecting the mask type
To select your type of mask:
4. Turn until the mask
setting that you require is
displayed.
5. Press to confirm your
choice.
6. Push to return to the
HOME screen.
Note: Selecting the mask type is not possible if S9 Essentials has been enabled by your clinician.
1. Press . The SETTINGS
screen is displayed.
2. Turn until Mask is
displayed in blue.
3. Press . The selection is
highlighted in orange.
5
English

Getting started
1. Make sure the power is connected.
2. Adjust the ramp time or humidification level if required.
3. Fit your mask as described in your mask user guide.
4. To start therapy, simply breathe into the mask and/or press .
5. Lie down and arrange the air tubing so that it is free to move if you
turn in your sleep.
6. To stop treatment at any time, remove your mask and/or press .
Notes:
•If your clinician has enabled SmartStart the device will start automatically when you breathe
into the mask and stop automatically when you remove your mask.
•If power is interrupted during treatment, the device automatically restarts therapy when
power is restored.
6

Viewing the treatment screens
Depending on how the system has been configured and on which mode has been selected, you will see
one of the following example screens once therapy has started:
9H5i humidifier 9H5i humidifier
9ClimateLine/ClimateLineMAX
9Climate Control – Auto
9H5i humidifier
9ClimateLine/ClimateLineMAX
9Climate Control – Manual
9Therapy data without
optional accessories
9Oximetry data via the oximeter
adapter
The pressure bar is marked with fixed vertical lines indicating the expiratory and inspiratory pressures.
While the treatment is ramping (indicated by an orange ramp icon) or variable, the pressure values appear
in orange. When a set pressure is reached these values are displayed in white.
In CPAP mode, only the set pressure is shown.
In ASV mode, the fixed vertical lines on the pressure bar indicate the minimum and maximum pressures.
In ASVAuto mode, the expiratory and inspiratory values shown on the pressure bar are constantly
updated.
7
English

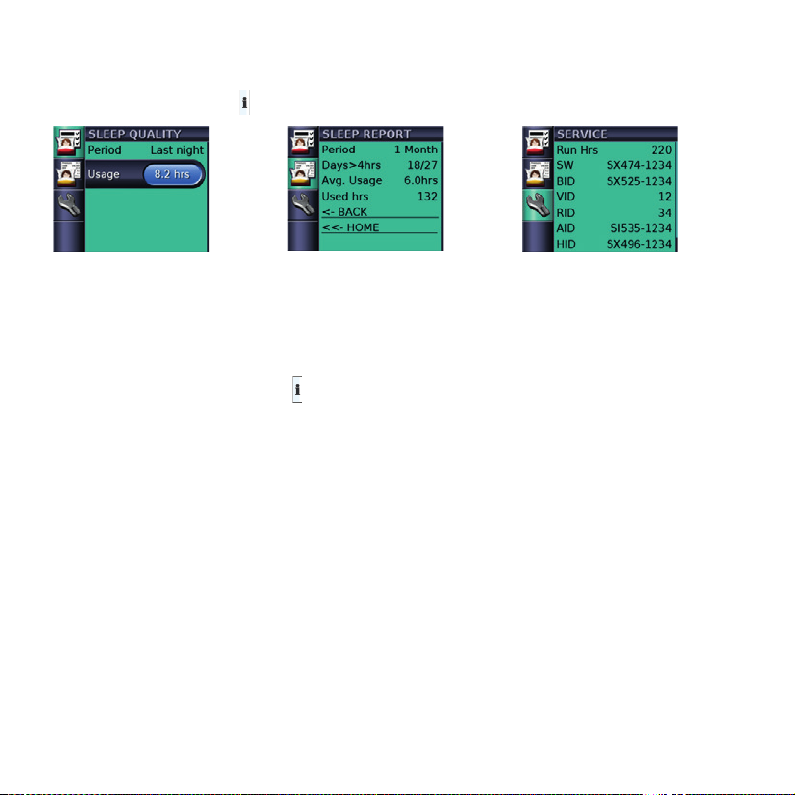

Viewing the Info menu
The Info menu has a series of screens showing your sleep quality, sleep report and service information.
To view the Info menu, push from your HOME screen.
9In the Sleep Quality screen,
you can always view your
usage hours during the last
session and if enabled by
your clinician, data on Mask
Fit and AHI is displayed.
9In the Sleep Report, only the
period can be changed—
other values are for display
only.
9In the Service information,
the total device run hours
(includes warm-up/cool-down
times for the humidifier) and
the software identifications
are displayed.
To return to the HOME screen, push .
8

Viewing alarms
The AutoSet CS-A is fitted with an alarm module that continuously monitors both therapy and device
conditions. Alarms are only activated when therapy is running. An alarm condition is indicated by an
audible sound, a flashing yellow alarm LED and a message on the screen. When the device is turned on,
the yellow alarm LED will flash, and the alarm will sound to confirm that the alarm is working.

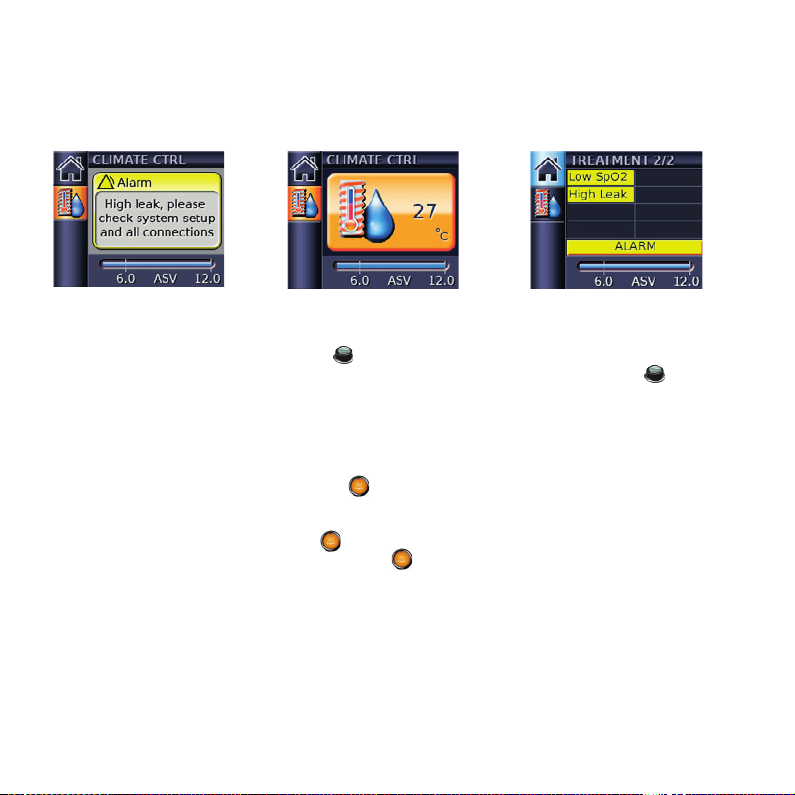

9Alarm activated 9Alarm cleared 9Multiple alarms
When an alarm activates, a
corresponding alarm message is
displayed. If multiple alarms are
active, the latest alarm message
is displayed and as these are
cleared each message can be
read.
To clear an alarm message,
press . This allows you
to return to the previously
displayed screen. If the alarm
condition remains, the alarm will
re-occur.
Note: Power Fail and Alarm Fail
alarms are cleared by
pressing .
To view the list of alarm
messages, go to the Treatment
screen and press until
Treatment screen 2 is displayed.
Muting the alarm
To mute an alarm for two minutes, press once. If the condition remains, the alarm will sound again
after two minutes. To turn on the alarm again, press a second time. The alarm LED will remain lit for
aslong as the condition remains.
9
English

Cleaning and maintenance
You should regularly carry out cleaning and maintenance as described in this section.
Refer to your mask and humidifier user guides for detailed instructions regarding the care of these
devices.
Daily
Remove the air tubing by pulling on the finger grips on the cuff. Hang it in a clean, dry place until
nextuse.
Notes:
•Do not hang the air tubing in direct sunlight as it may harden over time and eventually crack.
•Do not wash the air tubing in a washing machine or dishwasher.
Weekly
1. Remove the air tubing from the device and the mask.
2. Wash the air tubing in warm water using mild detergent.
3. Rinse thoroughly, hang, and allow to dry.
4. Before next use, reconnect the air tubing to the air outlet and mask.
Monthly
1. Wipe the exterior of the device with a damp cloth and mild detergent.
2. Check the air filter for holes and blockage by dirt or dust. Replace the air filter if necessary.

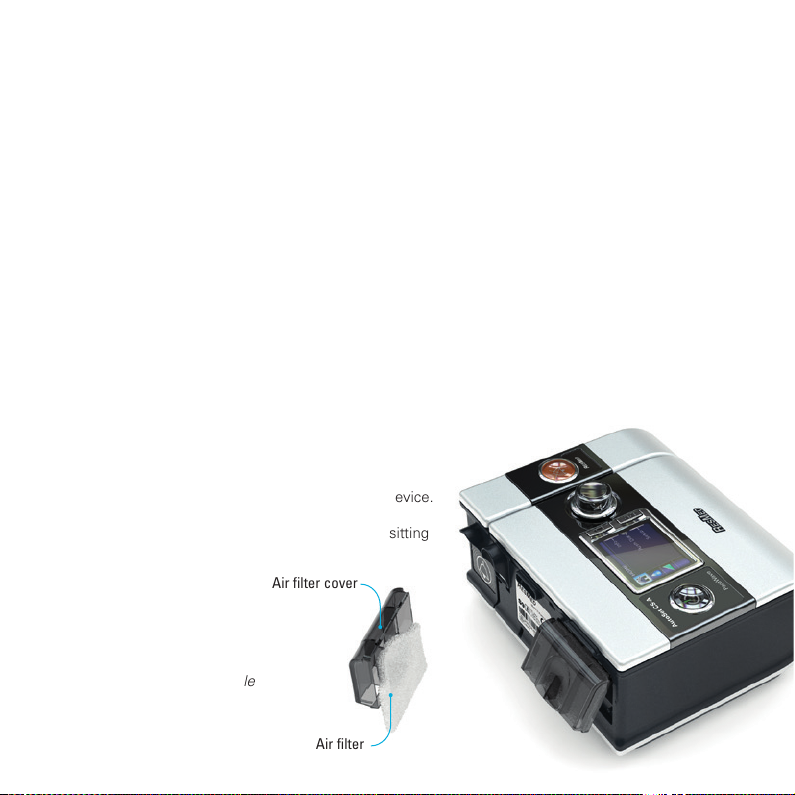

Replacing the air filter
Replace the air filter every six months (or more often
ifnecessary).
1. Remove the air filter cover from the back of the device.
2. Remove and discard the old air filter.
3. Insert a new ResMed air filter ensuring that it is sitting
flat in the air filter cover.
4. Replace the air filter cover.
Notes:
•Ensure the air filter and
airfilter cover are fitted at
alltimes.
•Do not wash the air filter.
Theair filter is not washable
orreusable.
Air filter
Air filter cover
10

SD card
An SD card has been supplied
to gather therapy data from
your device and provide settings
updates from your clinician.
When instructed to do so,
disconnect the device from the
power outlet, remove your SD
card, insert it in the protective
folder and send it to your
clinician.
Removing the card
1. Push in the SD card to
release it.
2. Remove the card.
3. Insert the card into the
protective folder.
4. Send the protective folder
back to your clinician as
instructed.
For more information on
removing and inserting your
card refer to your S9 SD Card
Protective Folder provided with
your device. Please retain the
S9 SD Card Protective Folder
for future use.
Notes:
•For Troubleshooting information
refer to the Information Guide.
•For more product information see
www.resmed.com.
1 2 3 4
11
English

Global leaders in sleep and respiratory medicine www.resmed.com
Manufacturer: ResMed Ltd 1 Elizabeth Macarthur Drive Bella Vista NSW 2153 Australia.
See www.resmed.com for other ResMed locations worldwide.
For patent information, see www.resmed.com/ip.
S9, AutoSet CS, H5i, ClimateLine, SlimLine and SmartStart are trademarks of ResMed Ltd. S9,
ClimateLine, SlimLine and SmartStart are registered in U.S. Patent and Trademark Office.
© 2017 ResMed Ltd.
368901-eng/22017-11
AutoSet CS-A
WELCOME
EUR2/APAC
