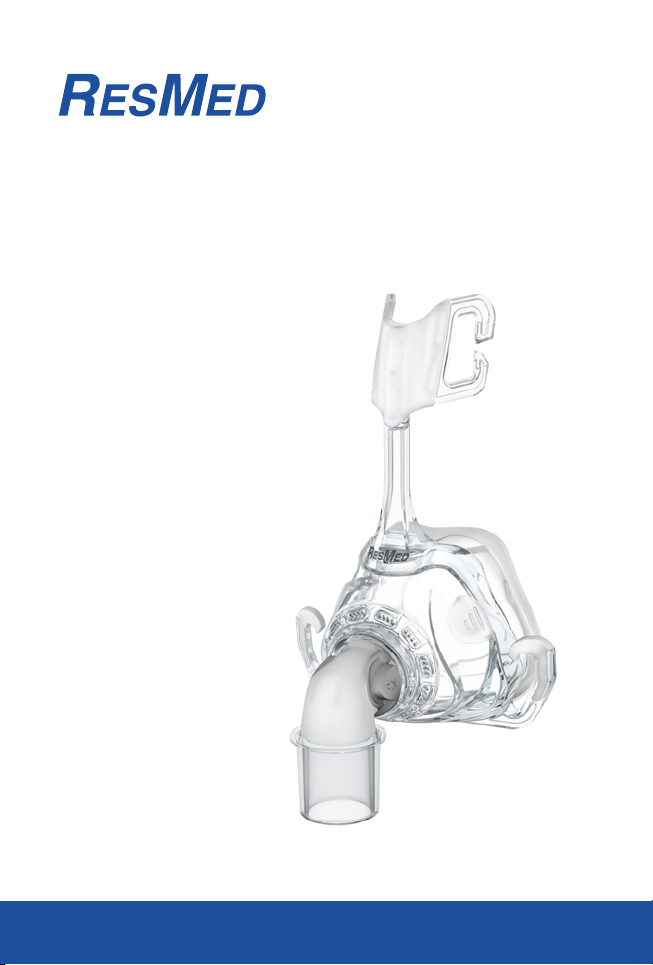

ResMed Mirage FX User manual

Mirage™ FX
NASAL MASK
User Guide
English • Deutsch • Français • Italiano

i
Fitting/Anlegen/Ajustement/Applicazione
3
1
45
6
Mirage FX
2
Mirage™ FX
NASAL MASK

ii

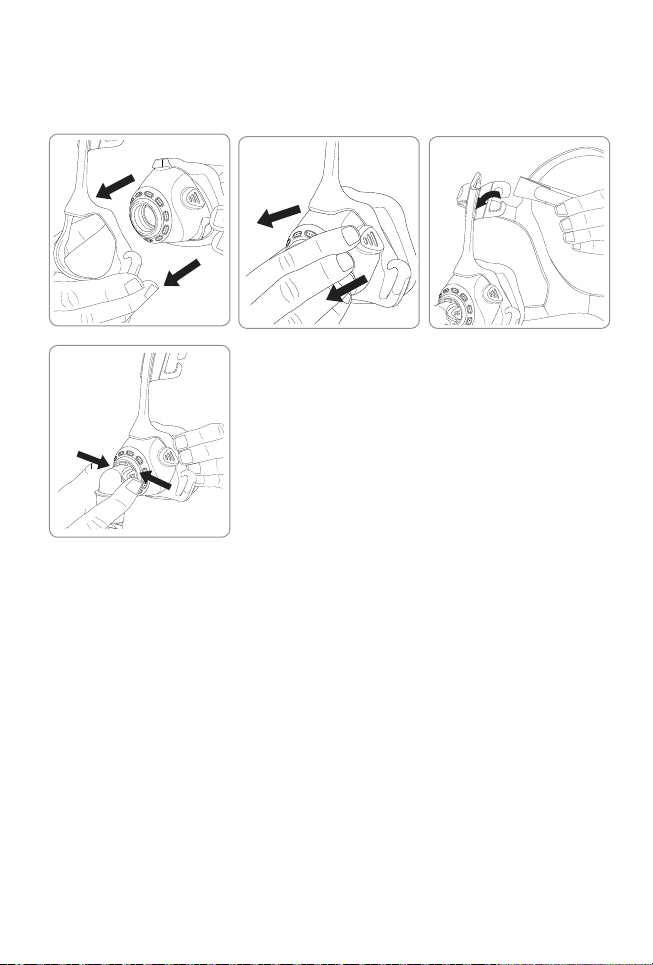

Disassembly/Auseinanderbau/Démontage/
Smontaggio
123
Removal/Abnehmen/Retrait/Rimozione
12

iii
4
123
Reassembly/Zusammenbau/Remontage/
Riassemblaggio

iv
Mirage FX
A
B
3
1
5
4
6
2
7

v

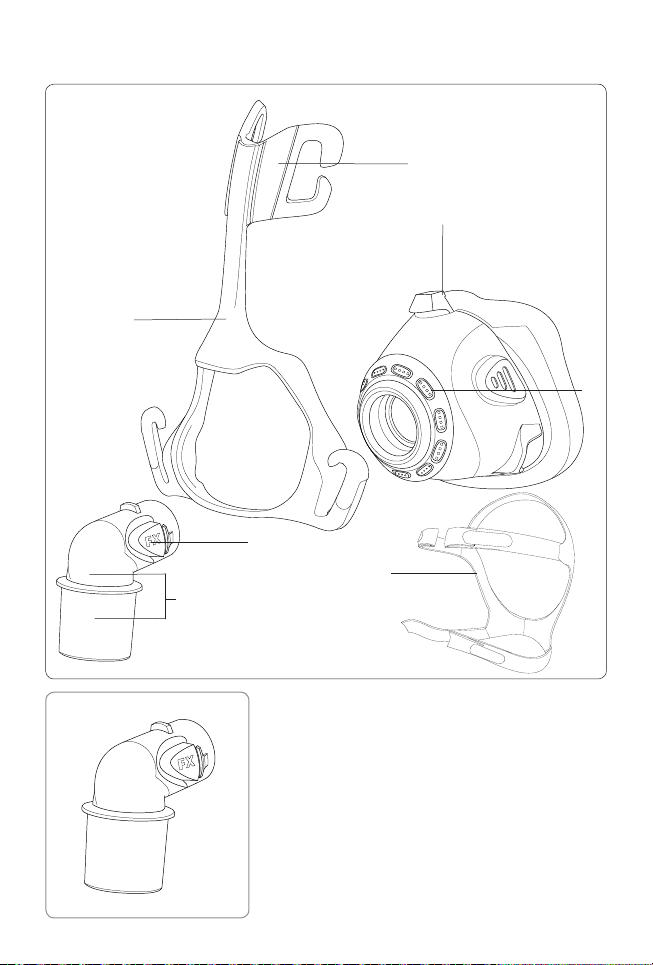

Mask components/Maskenkomponenten/
Composants du masque/Componenti
della maschera
Item/
Artikel/
Article/
Voce
Description/Beschreibung/Description/
Descrizione Part number/ Artikelnummer/
Code produit/
Numero parte
1 Mask frame/Maskenrahmen/Entourage rigide/
Telaio della maschera 62113 62127 (W)
2 Forehead support/Stirnstütze/Support frontal/
Supporto frontale —
3 Cushion/Maskenkissen/Bulle/Cuscinetto 62111
62125 (W)
4 Vent/Ausatemöffnung/Orifice de ventilation/
Foro per l’esalazione —
5 Headgear/Kopfband/Harnais/Copricapo 62110
62138 (S)
6 Elbow assembly/Kniestück/Ensemble coude/
Gruppo del gomito —
7 Elbow side tabs/
Seitliche Entriegelungsknöpfe des Kniestücks/
Pattes d’attache latérales coude/Alette laterali
del gomito
—
A Complete system/Komplettes System/
Système complet/Componenti della maschera 62100 62115 (W)
B Elbow assembly/Kniestück/Ensemble coude/
Gruppo del gomito 62114
S Small / Small / Petit / Small
W Wide / Breit / Large / Wide

1
English
Mirage™ FX
NASAL MASK
Thank you for choosing the Mirage FX. Please read the entire manual before
use.
Intended use
The Mirage FX channels airflow noninvasively to a patient from a continuous
positive airway pressure (CPAP) or bilevel device.
The Mirage FX is:
• to be used by patients (> 66 lb/30 kg) for whom positive airway pressure
has been prescribed
• intended for single-patient re-use in the home environment and
multipatient re-use in the hospital/institutional environment.
Clinical benefits
The clinical benefit of vented masks is the provision of effective therapy
delivery from a therapy device to the patient.
Intended patient population/medical
conditions
Obstructive pulmonary diseases (eg, Chronic Obstructive Pulmonary Disease),
restrictive pulmonary diseases (eg, diseases of the lung parenchyma, diseases
of the chest wall, neuromuscular diseases), central respiratory regulation
diseases, obstructive sleep apnoea (OSA) and obesity hypoventilation
syndrome (OHS).
WARNING
•The mask contains safety features, eg, exhaust vent and valve, to
enable normal breathing and exhaust exhaled breath. Occlusion of the
exhaust vent or valve needs to be prevented to avoid having an
adverse effect on the safety and quality of the therapy. Regularly
inspect the vent and valve to ensure it is kept clean, clear of blockages
and is not damaged.
•This mask should only be used with CPAP or bilevel devices
recommended by a physician or respiratory therapist.
•The mask should not be used unless the device is turned on. Once the
mask is fitted, ensure the device is blowing air.

2
Explanation: CPAP and bilevel devices are intended to be used
with special masks (or connectors) which have vent holes to allow
continuous flow of air out of the mask. When the device is turned on
and functioning properly, new air from the device flushes the exhaled
air out through the mask vent holes. However, when the device is not
operating, insufficient fresh air will be provided through the mask,
and the exhaled air may be rebreathed.Rebreathing of exhaled air
for longer than several minutes can, in some circumstances, lead to
suffocation.This applies to most models of CPAP or bilevel devices.
•Follow all precautions when using supplemental oxygen.
•Oxygen flow must be turned off when the CPAP or bilevel device is
not operating, so that unused oxygen does not accumulate within the
device enclosure and create a risk of fire.
•Oxygen supports combustion. Oxygen must not be used while
smoking or in the presence of an open flame. Only use oxygen in well
ventilated rooms.
•Remove all packaging before using the mask.
Note: For any serious incidents that occur in relation to this device, these
should be reported to ResMed and the competent authority in your country.
Using your mask
When using your mask with ResMed CPAP or bilevel devices that have mask
setting options, refer to the Technical specifications section in this user guide
for mask setting options.
For a full list of compatible devices for this mask, see the Mask/Device
Compatibility List on www.resmed.com/downloads/masks. If you do not have
internet access, please contact your ResMed representative.
Note:
If you experience nasal dryness or irritation, using a humidifier is
recommended.

3
English

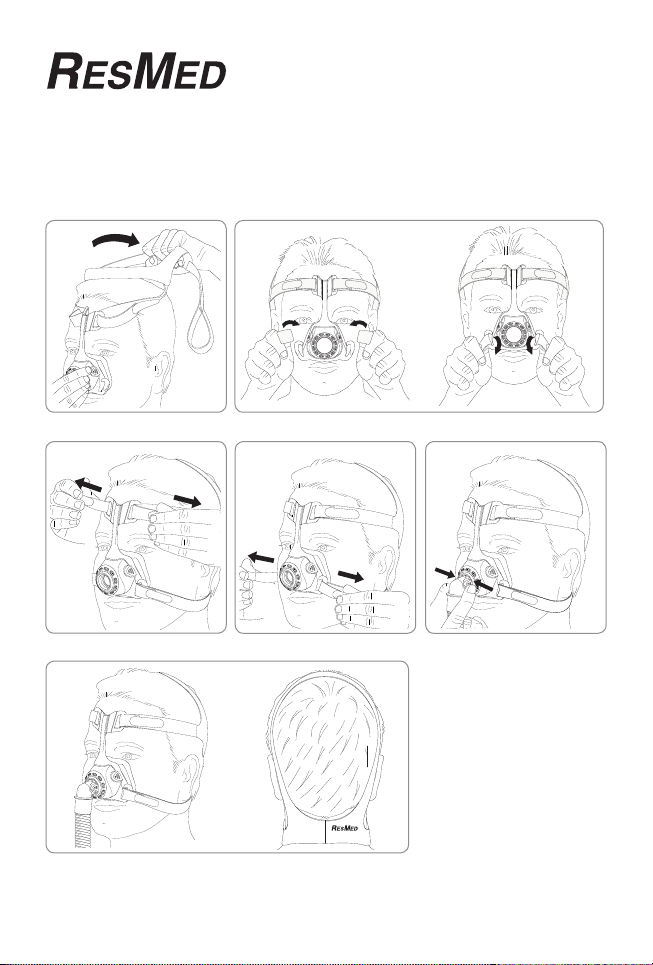

Fitting
The fitting illustrations section in this user guide show the sequence for
obtaining the best fit and comfort when using your mask.
Fitting steps
Prior to fitting your mask, remove the elbow from the mask by pressing the
side tabs. Connect the elbow to your device air tubing.
1. With both lower headgear straps released, hold the mask against
your face and pull the headgear over your head.
2. Bringing the lower straps below your ears, loop the headgear into
the lower hooks on the mask frame.
3. Unfasten the Velcro®, pull the upper headgear straps evenly until
they are comfortable and reattach the Velcro. Do not overtighten.
4. Repeat step 3 with the lower headgear straps.
5. Attach the combined elbow assembly and air tubing to the mask by
pressing the side-tabs and pushing into mask frame.
6. Your mask and headgear should be positioned as shown. Ensure
the headgear label is facing outwards.
Removing the mask
Refer to the removal illustrations section in this user guide. To remove your
mask, disconnect one of the lower headgear hooks and pull the mask and
headgear up over your head.
Disassembly
Refer to the disassembly illustrations in this user guide.
Disassembly steps
1. Unhook the upper headgear straps from the mask frame, there is
no need to undo the Velcro.
2. Remove the combined elbow assembly and air tubing from the
mask by pressing the side-tabs and pulling away from the mask
frame. Remove the elbow assembly from the air tubing.
3. Gently separate the cushion from the mask frame.

4
Reassembly
Refer to the reassembly illustrations in this user guide.
Reassembly steps
1. Ensure the cushion is oriented correctly by aligning the top cushion
tab with the recess in the top of the mask.
2. Gently pull the cushion through the front of the mask frame until
the cushion locks securely into the mask frame. The tabs on either
side of the cushion should be sitting against the mask frame.
Ensure the cushion is not twisted or distorted.
3. Attach the top headgear straps to the mask frame by looping onto
each of the upper headgear hooks.
4. Replace the elbow assembly into the air tubing and attach the
combined elbow assembly and air tubing to the mask by pressing
the side-tabs and pushing into the mask.
Cleaning your mask in the home
Your mask and headgear should only be gently handwashed.
Daily/After each use:
• Disassemble the mask components according to the disassembly
instructions.
• Thoroughly clean the separated mask components (excluding headgear),
by gently rubbing in warm (approximately 86°F/30°C) water using mild
soap.
• To optimise the mask seal, facial oils should be removed from the cushion
after use.
• Use a soft bristle brush to clean the vent.
• Inspect each component and if required, repeat washing until visually
clean.
• Rinse all components well with drinking quality water and allow to air dry
out of direct sunlight.
• When all components are dry, reassemble according to the reassembly
instructions.
Weekly:
• Handwash the headgear.
