ResMed Mirage SoftGel User manual

Mirage™ SoftGel
nasal mask
User Guide
English • Français • Español • Português

i

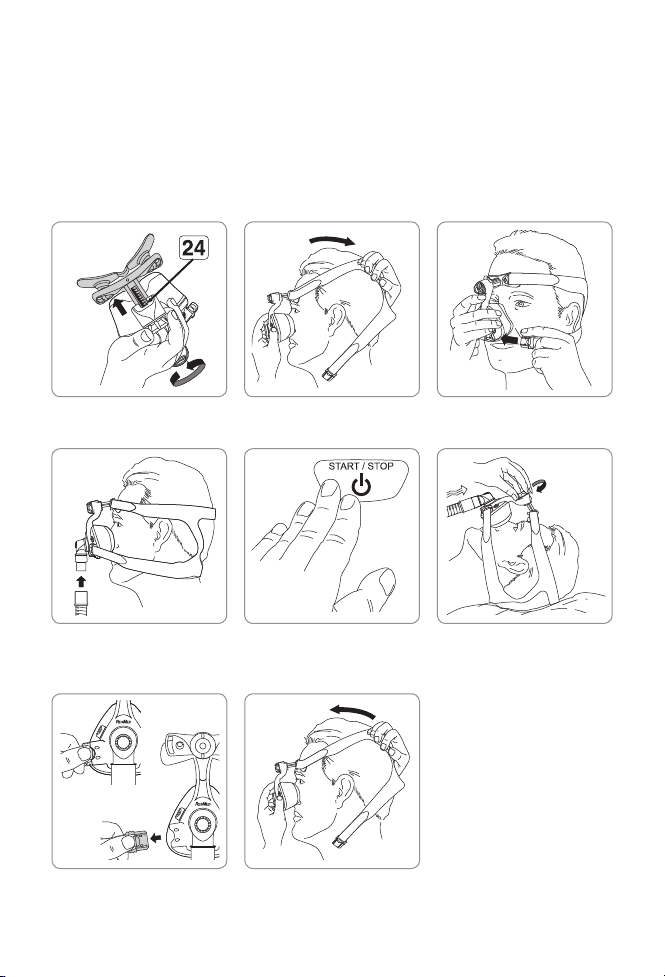

Fitting / Mise en place / Colocación / Colocação
1 2 3
4 5 6
Removal / Enlèvement du masque / Para quitarse la
mascarilla / Remoção
1 2
MirageTM SoftGel Rx Only

ii
Mirage SoftGel
A
1
2
34
5
6
7
9
10
11
12
8
B C
DE
13
6

iii

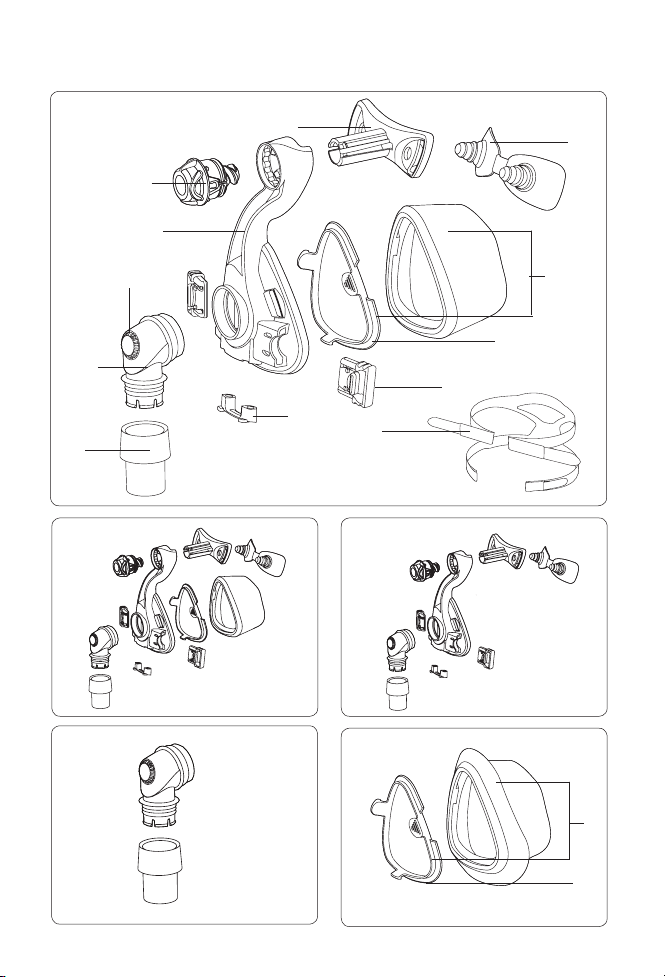

Mask components / Composants du masque /
Piezas de la mascarilla / Componentes da máscara
Item /
Article /
Artículo /
Item
Description / Description /
Descripción / Descrição Part number / Code produit / Número
de parte / Código do
produto
1Mask frame / Entourage rigide /
Armazón de la mascarilla / Armação da
máscara
60180 (St)
60193 (S)
2Dial / Molette de réglage / Disco /
Botão giratório 61289
3Forehead support / Support frontal /
Apoyo para la frente / Suporte para a
testa
16393
4Forehead support pad / Tampon frontal /
Almohadilla del apoyo para la frente /
Almofada do suporte para a testa
60123 (1)
60124 (10)
5SoftGel Cushion & clip / Bulle et clip /
Almohadilla y broche / Almofada e
presilha
61631 (S)
61632 (M) 61633 (L) 61634 (LW)
6Cushion clip / Clip de la bulle / Broche de
la almohadilla / Presilha da almofada 60176 (St)
60197 (S)
7Headgear clip / Clip d’attache du
harnais / Broche del arnés / Presilha do
arnês
16569 (2)
16734 (10)
8Headgear / Harnais / Arnés / Arnês 16118 (S)
16117 (M)
16119 (L)
9Ports cap / Bouchon d’entrées / Tapón de
los puertos / Tampa das portas 16570 (2)
16571 (10)
10 Swivel / Pièce pivotante / Pieza giratoria /
Peça giratória 16565
11 Elbow / Coude / Codo / Cotovelo 16387
12 Vent / Orifice de ventilation / Ventilación /
Respiradouro -
13 Activa LT Cushion & clip / Bulle et clip /
Almohadilla y broche / Almofada e
presilha
60198 (S)
60177 (M)
60178 (L)
60179 (LW)

iv
Item /
Article /
Artículo /
Item
Description / Description /
Descripción / Descrição Part number / Code produit / Número
de parte / Código do
produto
AComplete system / Système complet /
Sistema completo / Sistema completo 61600 (S)
61601 (M) 61602 (L) 61603 (LW)
BFrame system / Entourage complet /
Sistema de armazón / Sistema da
armação
61626 (S)
61627 (M) 61628 (L) 61629 (LW)
CFrame assembly / Ensemble entourage /
Conjunto del armazón / Conjunto da
armação
60175 (St)
60196 (S)
DElbow assembly / Ensemble coude /
Conjunto del codo / Conjunto do
cotovelo
16399
EActiva LT Cushion & clip / Bulle et clip /
Almohadilla y broche / Almofada e
presilha
60198 (S)
60177 (M)
60178 (L)
60179 (LW
Also available / Également disponible /También está disponible /
Também disponível
A + E ConvertAble Pack 61604 (S)
61609 (M) 61615 (L) 61620 (LW)
S Small / Petit / Pequeña / Pequeno(a)
M Medium / Moyen / Mediana / Médio(a)
St Standard / Standard / Estándar / Standard
L Large / Grand / Grande / Grande
LW Large Wide / Grand et large / Grande-Largo (GL) / Grande-Ancho (GA)

v
Disassembly / Démontage / Desmontaje / Desmontagem
4
123
5 6
789

vi
4
1 2 3
56
7 8 9
10 11 12

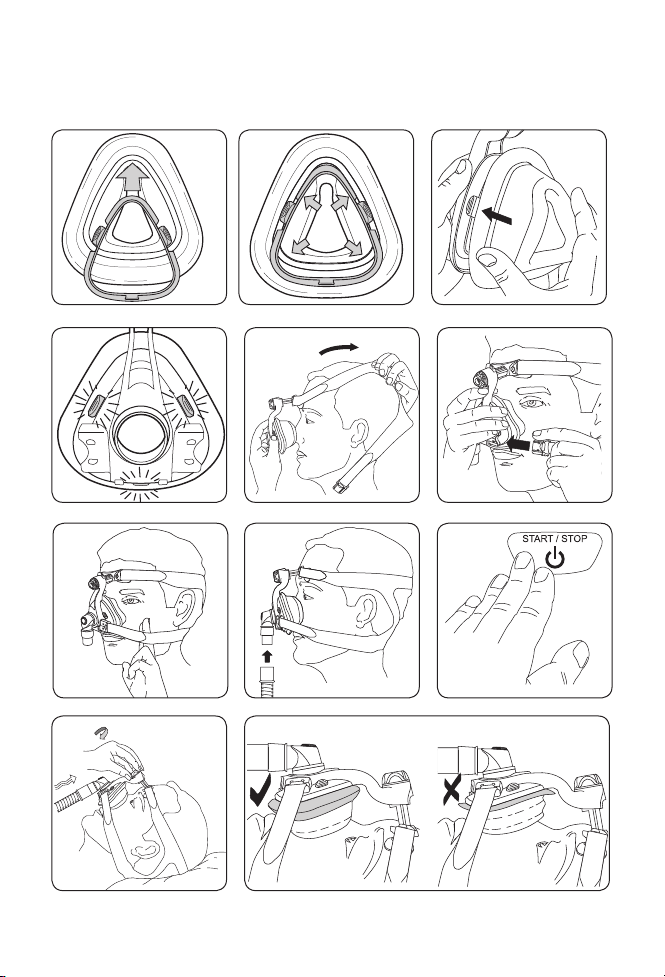

Reassembly / Remontage / Montaje / Remontagem

1
English
English
MirageTM SoftGel
nasal mask
Thank you for choosing the Mirage SoftGel. The Mirage SoftGel is the first in
ResMed’s ConvertAbleTM Series—offering a choice of two high performance
cushions (Mirage SoftGel and Mirage Activa LT) on the one durable frame.
For further information, refer to the ConvertAble Series section in this User
Guide.
Intended use
The Mirage SoftGel channels airflow noninvasively to a patient from a positive
airway pressure (PAP) device such as a continuous positive airway pressure
(CPAP) or bilevel system.
The Mirage SoftGel is:
to be used by adult patients (> 66 lb/30 kg) for whom positive airway•
pressure has been prescribed
intended for single-patient re-use in the home environment and•
multipatient re-use in the hospital/institutional environment.
Using your mask
When using your mask with ResMed CPAP or bilevel devices that have mask
setting options, refer to the Technical specifications section in this user guide
for mask selection options.
For a full list of compatible devices for this mask, see the Mask/Device
Compatibility List on www.resmed.com on the Products page under Service
& Support. If you do not have internet access, please contact your ResMed
representative.
Note: If you experience nasal dryness or irritation, use of a humidifier is
recommended.
WARNING
The vent holes must be kept clear.•
The mask should not be used unless the CPAP or bilevel device is
•
turned on and operating properly.
Follow all precautions when using supplemental oxygen.
•
Oxygen flow must be turned off when the CPAP or bilevel device
•
is not operating, so that unused oxygen does not accumulate
within the CPAP or bilevel device enclosure and create a risk of
fire.

2
At a fixed rate of supplemental oxygen flow, the inhaled oxygen•
concentration varies, depending on the pressure settings, patient
breathing pattern, mask, point of application and leak rate.
The technical specifications of the mask are provided for your
•
clinician to check that they are compatible with the CPAP or bilevel
device. If used outside specification or if used with incompatible
devices, the seal and comfort of the mask may not be effective,
optimum therapy may not be achieved, and leak, or variation in
the rate of leak, may affect the CPAP or bilevel device function.
Discontinue using this mask if you have ANY adverse reaction to
•
the use of the mask, and consult your physician or sleep therapist.
Using a mask may cause tooth, gum or jaw soreness or aggravate
•
an existing dental condition. If symptoms occur, consult your
physician or dentist.
As with all masks, some rebreathing may occur at low CPAP
•
pressures.
Refer to your CPAP or bilevel device manual for details on settings
•
and operational information.
Remove all packaging before using the mask.
•
Cleaning your mask in the home
Your mask and headgear should only be handwashed by gently rubbing in
warm (approximately 86°F/30°C) water using mild soap. All components
should be rinsed well with drinking quality water and allowed to air dry out of
direct sunlight.
Daily/After each use:
To optimize the mask seal, facial oils should be removed from the cushion•
after use.
Handwash the separated mask components (excluding headgear).•
If the vent requires cleaning use a soft bristle brush.•
Weekly:
Handwash the headgear. It may be washed without being disassembled.•

3
English
WARNING
Do not use aromatic-based solutions or scented oils (eg, eucalyptus•
or essential oils), bleach, alcohol or products that smell strongly (eg,
citrus) to clean any of the mask components. Residual vapours from
these solutions can be inhaled if not rinsed thoroughly.They may also
damage the mask, causing cracks.
CAUTION
If any visible deterioration of a system component is apparent•
(cracking, crazing, tears or cushion damage resulting in gel
exposure, etc), the component should be discarded and replaced.
Avoid connecting flexible PVC products (eg, PVC tubing) directly
•
to any part of the mask. Flexible PVC contains elements that can
be detrimental to the materials of the mask, and may cause the
components to crack or break.
Reprocessing the mask between patients
This mask should be reprocessed when used between patients.
Cleaning, disinfection and sterilization instructions are available from the
ResMed website, www.resmed.com/masks/sterilization/americas.
If you do not have internet access, please contact your ResMed
representative.
Troubleshooting
Problem/possible cause Solution
Mask is uncomfortable
Headgear straps are too tight. Adjust straps evenly. The forehead
support ‘anchors’ your mask and
should sit firmly on your forehead.
Fit is too tight. Wind out dial.
Mask is too noisy
Cushion clip is not inserted correctly. Remove cushion from frame and
reinsert starting at the top.
Check that the cushion clip is correctly
inserted into the cushion and that
the cushion is correctly clipped to the
frame. If the problem persists, talk to
your clinician.

4
Problem/possible cause Solution
Ports cap or elbow incorrectly inserted. Remove the ports cap or elbow from
the mask, then reassemble according
to the instructions.
Vent is blocked or partially blocked. If the vent requires cleaning, use a soft
bristle brush.
Mask leaks around the face
Mask not positioned correctly. Gently pull the cushion away from the
face to reinflate. Reposition your mask
according to the instructions.
Cushion clip is not inserted correctly. Remove cushion from frame and
reinsert starting at the top.
Check that the cushion clip is correctly
inserted into the cushion and that
the cushion is correctly clipped to the
frame. If the problem persists, talk to
your clinician.
Air leaking around the bridge of the
nose. Wind the dial in.
Air leaking around the top of the lip. Wind the dial out and or tighten the
bottom straps.
The mask does not fit properly
Cushion could be the wrong size. Talk to your clinician.
Mask is incorrectly assembled. Disassemble the mask, then
reassemble according to the
instructions.
Cushion may be dirty. Clean cushion according to the
instructions.
Cannot insert forehead support into mask frame
The dial has been inserted into the
frame before the forehead support. Push the end of the dial onto a hard surface until the dial comes out of the
frame. Reassemble according to the
instructions.

5
English
Technical specifications
Pressure–flow
curve
The mask contains passive venting to protect against rebreathing. As
a result of manufacturing variations, the vent flow rate may vary.
Dead space
information
Physical dead space is the empty volume of the mask to the end of
the swivel. Using the large cushions it is 145 mL.
Therapy
pressure
4 to 20 cm H2O
Resistance Drop in pressure measured (nominal)
at 50 L/min: 0.3 cm H2O
at 100 L/min: 0.9 cm H2O
Environmental
conditions
Operating temperature: +41°F to +104°F (+5°C to +40°C)
Operating humidity: 15% to 95% relative humidity non-condensing
Storage and transport temperature: -4°F to +140°F( -20°C to +60°C)
Storage and transport humidity: up to 95% relative humidity
non-condensing
Gross
dimensions
Large:
Mask fully assembled - no headgear
6.10“ (H) x 3.58“ (W) x 4.65“ (D)
(155 mm (H) x 91 mm (W) x 118 mm (D))
Mask setting
options Select ‘ACTIVA’ (if available), otherwise select ‘STANDARD’ as
the mask option.
Notes:
The mask system does not contain latex, PVC or DEHP materials.•
The manufacturer reserves the right to change these specifications•
without notice.
0
10
20
30
40
50
60
4 6 8 10 12 14 16 18 20
Mask pressure (cm H20)
Vent flow rate (L/min)
Pressure
(cm H2O) Flow
(L/min)
419
8 28
12 34
16 40
20 45

6
Storage
Ensure that the mask is thoroughly clean and dry before storing it for any
length of time. Store the mask in a dry place out of direct sunlight.
Disposal
This mask does not contain any hazardous substances and may be disposed of
with your normal household refuse.
Symbols
Caution, consult accompanying documents;
L O T
Lot number;
REF
Part
number; Temperature limitation; Humidity limitation; Does not
contain latex; Manufacturer; Indicates a Warning or Caution and alerts
you to a possible injury or explains special measures for the safe and effective
use of the device. Keep away from rain; This way up; Fragile, handle
with care.
Limited warranty
ResMed Ltd (hereafter ’ResMed’) warrants that your ResMed mask system
(including mask frame, cushion, headgear and tubing) shall be free from
defects in material and workmanship from the date of purchase for the period
of 90 days or in the case of disposable masks the maximum use period.
This warranty is only available to the initial consumer. It is not transferable.
If the product fails under conditions of normal use, ResMed will repair or
replace, at its option, the defective product or any of its components.
This limited warranty does not cover: a) any damage caused as a result of
improper use, abuse, modification or alteration of the product; b) repairs
carried out by any service organization that has not been expressly authorized
by ResMed to perform such repairs; and c) any damage or contamination due
to cigarette, pipe, cigar or other smoke.
Warranty is void on product sold, or resold, outside the region of original
purchase.
Warranty claims on defective product must be made by the initial consumer at
the point of purchase.
This warranty replaces all other expressed or implied warranties, including any
implied warranty of merchantability or fitness for a particular purpose. Some
regions or states do not allow limitations on how long an implied warranty
lasts, so the above limitation may not apply to you.

7
English
ResMed shall not be responsible for any incidental or consequential damages
claimed to have resulted from the sale, installation or use of any ResMed
product. Some regions or states do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitation may not apply to
you.
This warranty gives you specific legal rights, and you may also have other
rights which vary from region to region. For further information on your
warranty rights, contact your local ResMed dealer or ResMed office.

1
Rx Only
Mirage Activa™ LT
nasal mask / masQUE nasal / masCaRIlla nasal /
mÁsCaRa nasal
ConvertAbleTM Series
User information
English • Français • Español • Português
English
Please read this information in conjunction with your MirageTM SoftGel User
Guide when changing your Mirage SoftGel cushion to the Mirage Activa LT
cushion.
Intended use
The Mirage Activa LT channels airflow noninvasively to a patient from a positive
airway pressure device such as a continuous positive airway pressure (CPAP)
or bilevel system.
The Mirage Activa LT is:
to be used by adult patients (> 66 lb/30 kg) for whom positive airway•
pressure has been prescribed
intended for single-patient re-use in the home environment and•
multipatient re-use in the hospital/institutional environment.

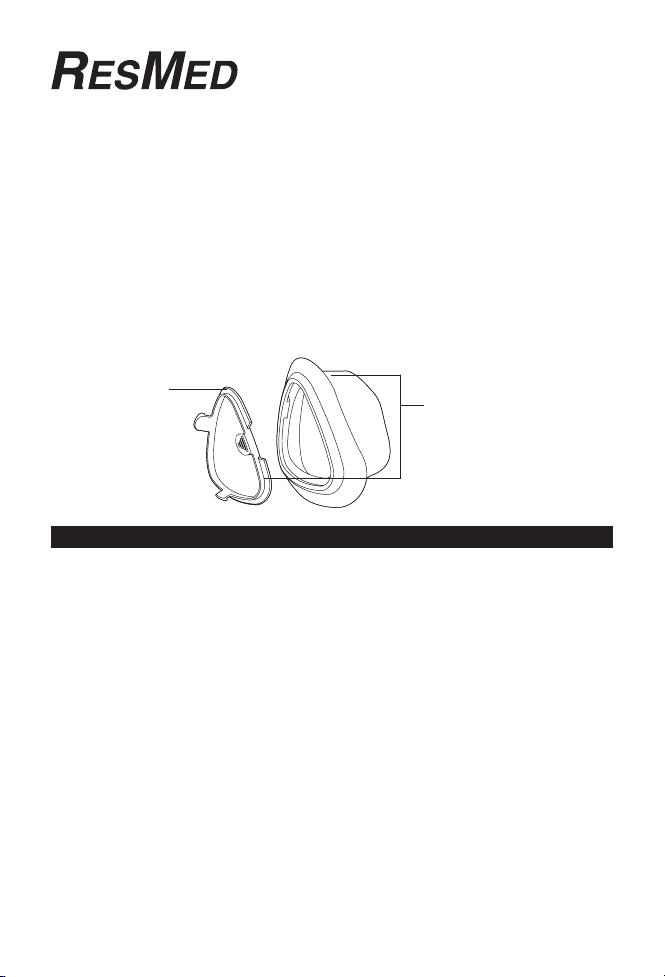

Cushion & clip / Bulle et
clip / Almohadilla y broche /
Almofada e presilha
60198 (S)
60177 (M)
60178 (L)
60179 (LW)
Cushion clip / Clip
de la bulle / Broche
de la almohadilla /
Presilha da
almofada
60176 (St)
60197 (S)

2
Troubleshooting
Problem/possible
cause Solution
Mask is uncomfortable
Cushion incorrectly
inflated With the air turned off, adjust the straps so that you can insert two fingers between your cheek and the lower
headgear strap.
Technical specifications
Dead space
information The dead space of the mask varies according to cushion
size. It is 185 mL for the Medium size.
Resistance Drop in pressure measured (nominal)
at 50 L/min: 0.1 cm H2O
at 100 L/min: 0.7 cm H2O
Gross dimensionsS,
M, L, LW:
Mask fully assembled – no headgear.
5.55”/141 mm (H) x 3.58”/91 mm (W) x 4.21”/107 mm (D)
6.06”/154 mm (H) x 3.74”/95 mm (W) x 4.6”/117 mm (D)
Mask setting
options Select ‘Activa’ (if available) or ‘Standard’ as the mask option
when using the Mirage Activa LT with ResMed devices that
have mask setting options.

6
Fitting and assembly / Ajustement et montage /
Colocación y montaje / Encaixe e montagem
4
79
10
6
8
11
5
13
2

Manufacturer:
ResMed Ltd 1 Elizabeth Macarthur Drive Bella Vista NSW 2153 Australia.
Distributed by:
ResMed Corp 9001 Spectrum Center Boulevard San Diego CA 92123 USA.
ResMed (UK) Ltd 96 Milton Park Abingdon Oxfordshire OX14 4RY UK.
See www.resmed.com for other ResMed locations worldwide.
Mirage SoftGel
Protected by patents: AU 741003, AU 766623, AU 775051, AU 777033, AU 785376, DE
20122844.0, EP 1187647, EP 1187649, EP 1187650, EP 1314445, EP 1582230, EP 1621225, EP
1640034, HK 1057714, JP 3686609, NZ 513052, NZ 526165, NZ 526166, NZ 526167, NZ 526168,
NZ 542849, NZ 543939, US 6119693, US 6374826, US 6439230, US 6463931, US 6532961, US
6557556, US 6581594, US 6691708, US 6823865, US 6860269, US 6997188, US 7159587, US
7216647, US 7234466. Other patents pending.
Protected by design registrations: AU 156663, AU 156665, AU 321676, DE 40301991.5, FR
031425, FR 031430, JP 1192859, JP 1197930, NZ 411222, US D486227, US D487510, US
D493521, US D493522, US D545960, US D567935. Others pending.
Mirage is a trademark of ResMed Ltd and is registered in U.S. Patent and Trademark Office
© 2009 ResMed Ltd.
Mirage Activa LT
Protected by patents: AU 2001267133, AU 2002301370, AU 710733, AU 741003, AU 766623,
AU 775051, AU 777033, AU 785376, CA 2261790, CA 2470671, DE 20122844.0, EP 0956069,
EP 1187647, EP 1187649, EP 1187650, EP 1314445, EP 1334742, EP 1479406, EP 1582230, EP
1621225, EP 1640034 , HK 1057714, HK 1071083, JP 3686609, JP 3802872, JP 4031422, NZ
513052, NZ 526165, NZ 526166, NZ 526167, NZ 526168, NZ 542849, NZ 543939, US 6112746,
US 6119693, US 6357441, US 6374826, US 6412487, US 6439230, US 6463931, US 6532961,
US 6557556, US 6581594, US 6581602, US 6634358, US 6691708, US 6772760, US 6796308,
US 6823865, US 6823869, US 6860269, US 6871649, US 6986352, US 6997188, US 7021311,
US 7107989, US 7159587, US 7178527, US 7216647, US 7234466, US 7243651, US 7318439, US
7487777. Other patents pending.
Protected by design registrations: AU 156663, AU 156665, AU 321676, DE 40301991.5, EU
985601, FR 031425, FR 031430, JP 1192859, JP 1197930, JP 1367396, NZ 411222, US D486227,
US D487510, US D493521, US D493522, US D545960, US D567935, US D597661. Others
pending.
Mirage and Activa are trademarks of ResMed Ltd and are registered in U.S. Patent and
Trademark Office.
© 2009 ResMed Ltd.

Global leaders in sleep and respiratory medicine www.resmed.comGlobal leaders in sleep and respiratory medicine www.resmed.com
618149/1 09 10
MIRAGE SOFTGEL
USER
AMER - ENG
12
34
5 6
618149
