ReSound Linx Quattro Assembly instructions

A guide for professionals
ReSound LiNX Quattro
fitting guide

2
First fitting with
ReSound Smart FitTM
This fitting guide gives an overview of how to fit ReSound LiNX Quattro wireless hearing
instruments with ReSound Smart Fit. A ReSound LiNX Quattro 961 wireless binaural fitting
is depicted. Not all features described in this fitting guide are applicable for all ReSound
LiNX Quattro fittings.
ReSound Smart Fit fitting software supports all ReSound LiNX Quattro, LiNX 3D and
ENZO 3D hearing instruments.
Prior to connecting to ReSound Smart Fit
ReSound LiNX Quattro 61
Rechargeable ReSound LiNX Quattro hearing instruments can only be connected through wireless interface
and cannot be connected with cables. Ensure that the instruments are charged prior to connection. Note
that they cannot be connected while in the charger.
Insert Noahlink Wireless in a USB slot on the fitting PC and wait for the message that new hardware has
been found. Then open ReSound Smart Fit.
ReSound LiNX Quattro 62
ReSound LiNX Quattro 62 hearing instruments require fresh batteries when fitting. Remove the stickers
from the batteries to activate. Wait for two minutes before using the batteries for best results.
Wireless fittings: Insert a Noahlink Wireless in a USB slot on the fitting computer.
Wired fittings: Ensure that the programming interface (Speedlink, Hi-PRO USB or NOAHlink) is connected.
Launch ReSound Smart Fit. For new fittings, ReSound Smart Fit begins in the Smart Launcher.

3
Smart Launcher
Both ReSound Aventa and ReSound Smart Fit are contained within one software
installation. The Smart Launcher will detect ReSound LiNX Quattro, LiNX 3D and ENZO
3D hearing instruments as well as ReSound Aventa legacy instruments, and then retrieve
the software appropriate for the connected device.
1. For ReSound LiNX Quattro rechargeable 961, reboot the devices by placing them in
the charger and removing them. Or, reboot the hearing instruments by pressing and
holding the push button for 5 seconds until the LED light flashes. This indicates the
instrument is ‘o’. Press and hold again until the light shows solid, meaning that is is ‘on’
again.
2. Click ‘Connect’ in the upper right of the Smart Launcher screen.
2

4
Select instruments
The hearing instruments will appear in the ‘Select Instruments’ section.
1. When the hearing instruments to be programmed have been identified, select them by
checking the left box.
2. Assign the hearing instruments to the right and left ears by choosing the correct radio
button for the right and left sides. When pressing ‘Beep Instrument’, the audio signal
will be played and the LED will flash. It is recommended to beep the instrument for
confirmation that the instrument selected in the software is in fact the instrument
being used in the fitting and on the correct side.
3. Select ‘Continue’ in the lower right of the screen once the hearing instruments are
selected and assigned.
1
2
3

5
Connection flow
Once the hearing instruments have been selected the connection process will begin.
1. Select instrument configuration and click ‘Continue’.
3. Calibration of the hearing instruments is required in order to activate DFS
Ultra II. Inform your patient that he or she will hear a buzzing sound
and should sit still and quiet during calibration. Click ‘Calibrate’ in the
lower right corner. When calibration is complete, click ‘Continue’.
2. Select physical properties of the instrument and click ‘Save’.
1

6
Patient profile screen
1. Select the Patient Experience Level based on the amplification history.
2. Set the desired programs to be used in the initial fit.
3. Click ‘Fit Patient’ button in the lower right corner to move to Fitting Screen.
Note: Access to ReSound Assist can be found in the tabs under the red navigation
bar on the Patient screen. ReSound Assist is defaulted ‘on’ in Smart Fit 1.3. To be
active in the hearing instruments and appear in the Smart 3D app, the patient
must provide consent during the fitting process.
4. Verify connected hearing instruments. Click ‘Continue’ to proceed to the Patient
Profile screen or pair Accessories by clicking ‘Accessories’.
1
2
3
4

7

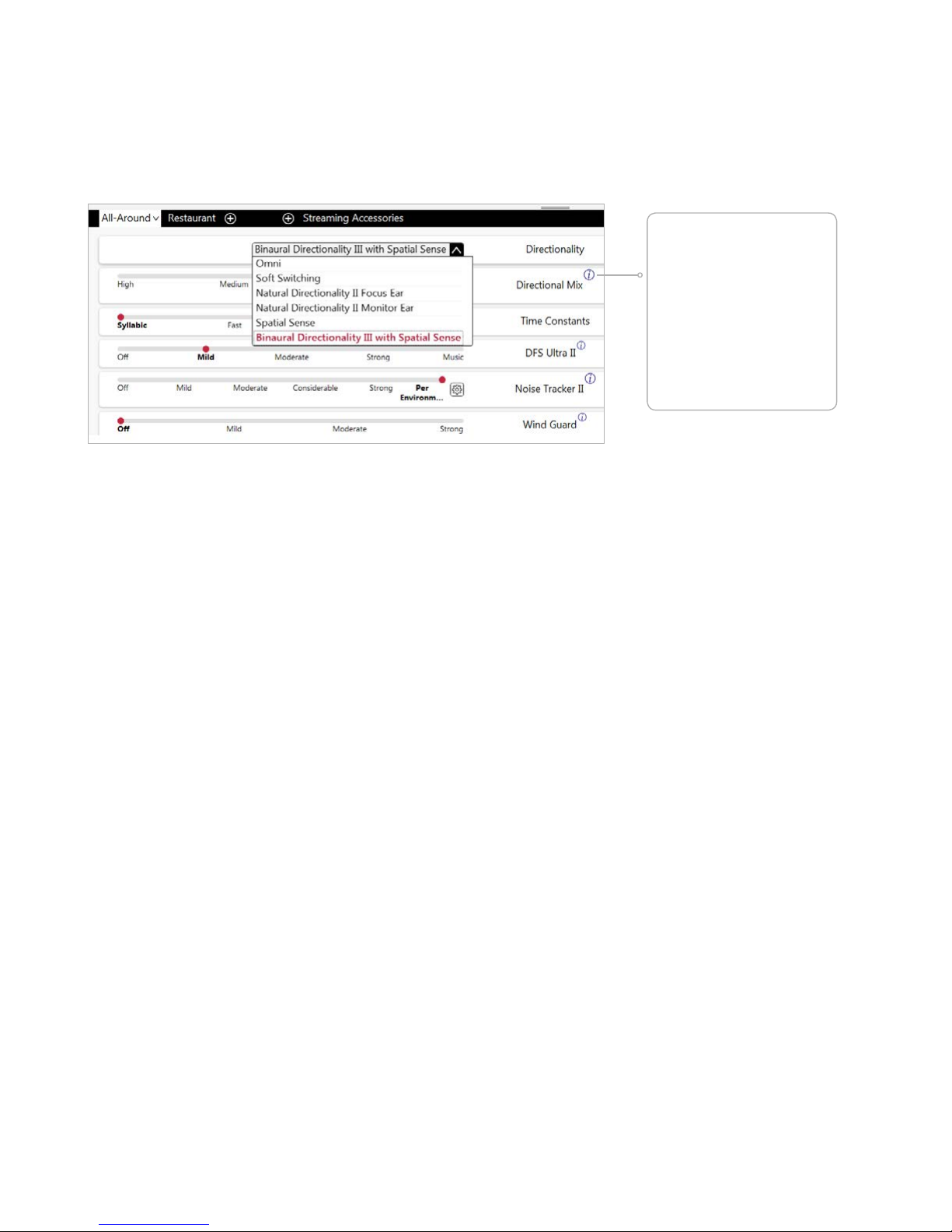

Advanced features
Advanced feature settings can be modified by selecting the appropriate drop down menu
or by moving the slider to the desired level. These feature settings apply only to the
currently selected program.
Directionality
Binaural Directionality III: Leverages ReSound’s 2.4 GHz wireless technology to allow the hearing
instruments to work together, dynamically selecting the best microphone response for the listening
environment. Possible configurations are bilateral omnidirectional, bilateral directional or an asymmetric
omnidirectional and directional response, depending on the analysis of speech and noise detectors from
both hearing instruments. This provides the optimal combination of speech understanding in noise plus a
more natural sense of surroundings.
Natural Directionality II: The Focus (directional) ear and Monitor (omnidirectional) ear are prescribed
based on the audiogram and any speech audiometry data that may be available.
Spatial Sense: An omnidirectional microphone response which mimics the human ear’s natural response
to sound, which preserves spatial cues and helps with the localization of sound sources.
Soft Switching: Seamlessly enables and disables AutoScope/MultiScope Adaptive Directionality™
depending on the listening environment. The response can be either omnidirectional or directional, based
on whether noise is present and the direction of speech in the listening situation.
Auto Scope: Adaptive Directionality enables the beam width to automatically widen or narrow depending
on the acoustic surroundings.
Directional Mix
All directional microphone modes have both omnidirectional and directional processing through the
frequency spectrum. The setting determines the degree of directionality in the output of the hearing
instrument(s). Directional Mix applies omnidirectional processing below a crossover frequency and
directional processing above that frequency. The default setting is prescribed depending on the hearing
instrument model selected and the degree of low frequency hearing loss. If the patient is still experiencing
diculty hearing in noise increasing the directional mix may help.
Note: Click the
information icons for
a short explanation
of the feature. Some
information text
may be clickable and
redirect to an in depth
explanation and video.

8
DFS Ultra II
This is the feedback control. It is activated when the devices have been calibrated for DFS Ultra II. The default
setting is Mild. Adjust the setting to a stronger level (Moderate or Strong) if concerns for feedback arise. The
Music Mode setting is a Mild setting, typically used for music programs or if the patient experiences feedback
only when tonal sounds occur (for example, from a musical instrument).
Noise Tracker II
Noise Tracker II noise reduction uses spectral subtraction to reduce noise between words and syllables in
many real-world noisy environments. The Per Environment setting allows for personalized noise reduction
settings in seven environments. The environments include Quiet, Soft Speech, Loud Speech, Moderate
Speech in Noise, Loud Speech in Noise, Moderate Noise and Loud Noise, and classification is performed
on a continuum if the listening situation has characteristics of more than one listening environment. If a
patient is reporting specific issues such as hearing conversation in restaurants, for example, the hearing
care professional can precisely increase the Noise Tracker II setting only for restaurant-like environments,
including Moderate Speech in Noise or Loud Speech in Noise. This maintains the setting for other
environments, permitting a great amount of fitting precision and personalization. Alternately, the Mild,
Moderate and Strong settings of Noise Tracker II apply the same level of noise reduction for all listening
environments, when noise is present.
By scrolling down or
pulling up the lower
part of the Advanced
Features screen, all
the features available
for the connected
hearing aid can be
viewed.

9
Impulse Noise Reduction
Sudden impulse sounds can be uncomfortable for those using hearing instruments. Impulse Noise
Reduction detects the loud impulse sound and attentuates it instantaneously. The feature can be set to
three dierent degrees, with mild as the default setting. Increasing the setting will decrease the threshold
to which the feature will react, or in other words, increase the aggressiveness. Stronger setting will also
increase the amount of attenuation.
Wind Guard
Wind Guard applies noise reduction specifically for windy situations. The default setting is o. If a patient
is experiencing too much wind noise, increase the setting to a stronger level. If the patient experiences the
hearing aid becoming quiet occasionally in outdoor situations, reduce the setting to a milder level.
Auto DFS
Auto DFS is a feedback control setting that is activated automatically before the hearing instrument has
been calibrated for DFS Ultra II. Once DFS Ultra II has been calibrated, this setting is grayed out, and cannot
be reselected unless the hearing instrument has been restored to factory settings. Auto DFS is designed
for use when a patient is unable to return to the clinic for the fitting, and the hearing instrument is instead
shipped to the patient from the hearing care professional. It applies a mild level of feedback cancellation, but
as it has not been calibrated for the patient’s ear, it may not be as eective at controlling feedback as a Mild
setting of DFS Ultra II.
Sound Shaper
Sound Shaper applies proportional frequency compression to the fitting. Higher frequencies are lowered to a
more usable or audible range for the patient. As patient candidacy criteria for the use of frequency lowering
is based on many factors, the default setting is o. However, if the hearing care professional perceives the
patient could benefit from frequency lowering, in the case of continued diculties with speech recognition or
previous success with frequency lowering features, Sound Shaper can be activated.

10
Low Frequency Boost
Should a patient fitted with an Ultra Power device feel that the sound is not full enough or loud enough,
low frequency boost is a quick way to increase the low frequency gain from 250 – 1000Hz.
Phone Accessories
Features related to the streamed sound from a Phone Clip+, or a smart device that is capable of direct
streaming, are located at the lower portion of each environmental program tab. Streamed sound will
inherit the gain settings of the environmental program that is being used during the time of streaming.
While the phone accessory features can be adjusted within the individual program tabs, it is important
to note that settings are applied across programs, therefore phone accessory features changes made
in one program will also be reflected in others. Please note when viewing Data Logging the time spent
streaming from the phone will be collected within the manual program that is being used during
streaming.
Environmental Optimizer II
Environmental Optimizer II allows specific gain adjustments for seven dierent environments, ensuring
the user receives optimal gain and noise reduction settings as the acoustic environment changes.
Classification is performed on a continuum if the listening situation has characteristics of more than
one listening environment. With binaurally fit wireless devices the hearing instruments will optimize
and synchronize the Environmental Optimizer II settings for a binaural fitting. If a patient experiences
diculty in a particular listening environment adjust the sliders to assign environment specific gains
without requiring a manual program change.

11
Pairing wireless accessories
The Accessories screen can be accessed in the final step of the connection flow at the
bottom of the fitting screen, or in the Accessories tab of the Instruments navigation item.
All accessories must be charged or plugged in, and turned on during the pairing process.
1. Click ’Add’ beneath the accessory to be paired.
1
2
3
3. When the accessory is successfully paired, the accessory image will appear in color.
The ‘Add’ button will change to a ‘Remove’ button.
2. Once the searching pop-up appears, press the pairing button on the accessory with
a small pointed object such as a pen tip or paper clip. Follow the pairing instructions
displayed.

12
Fitting screen
On the Fitting screen, adjustments can be made to gain, advanced features, and more.
1. Gain adjustments can be made to one or several frequencies by selecting frequencies between 250 Hz
and 8,000 Hz on the gain grid and then by clicking the up and down arrows found between the right
and left ear grids. Gain can be adjusted for soft, average, and loud input levels which alters the average
compression ratios noted above the MPO.
2. Access to advanced features and instrument controls is also found on the Fitting screen. The tabs below
the red navigation bar will provide access these tools.
3. Additional tools and features can be found in the upper right menu.
4. Programs are listed in the program tabs. Select the ‘+’ to add additional programs. Program tools can be
found in the tab on the far right.
5. Click the ‘Save’ button to save the fitting to hearing instruments and in the software.
6. Wireless accessories can be paired both outside and inside the software. To pair inside the software select
‘Pair Accessories’ to access the accessories screen. Be sure that the accessory is charged or plugged in, and
turned on during the pairing process.
7. For LiNX Quattro Rechargeable RIE 61, the power level of the hearing instrument batteries is displayed in
the collapsible sidebar. The green dots indicate the amount of charge left in the devices, as also shown on
the charger itself.
2
4
7
6
3
5

13
Completing a follow-up fit with
ReSound Smart Fit
Prior to connecting to ReSound Smart Fit
Rechargeable hearing instruments can only be connected through wireless interface and cannot be
connected with cables. Ensure that the instruments are charged prior to connection. Note that they cannot
be connected while in the charger.
Insert Noahlink Wireless in a USB slot on the fitting PC and wait for the message that new hardware has
been found. Then open ReSound Smart Fit. It is not possible for Noahlink Wireless to connect to hearing
instruments that are actively connected to a smart device via Bluetooth. Ensure that the hearing instruments
do not have an active Bluetooth connection to a smart device. This can be done by having the user turn o
their smart device or disable the Bluetooth during the visit. If an active connection to Bluetooth is detected,
ReSound Smart Fit will provide a reminder to deactivate the connection with the smart device.
Launch ReSound Smart Fit. For follow up fittings, the software that was used in the previous fitting will
launch.

14
ReSound Aventa
If the patient has an existing hearing instrument fit in the latest version of ReSound Aventa, then ReSound
Aventa will open when you begin a new fitting.
1. Click the ‘Go to Smart Fit’ button in the left navigation panel to close ReSound Aventa and arrive at the
Smart Fit Launcher.
2. Follow steps in the ‘First Fitting’ section of this guide
ReSound LiNX Quattro hearing instruments cannot be fit using ReSound Aventa software.
Upgrading a patient from legacy hearing
instruments to ReSound LiNX Quattro
1
Note: To transfer from a previous fitting to a ReSound LiNX Quattro fitting, select
‘Use Session’ in the fitting data mismatch screen of the connection flow. To start a
fresh fitting choose ‘Reset to Initial Fit’.

15
Connecting during a follow-up
When returning for a follow-up visit the software will open to the last saved session. Depending on the saved
preferences, the session will open to either the Patient Profile screen or the Fitting Gain Adjustments screen.
1. For ReSound LiNX Quattro rechargeable 961, reboot the devices by placing them in the charger and
removing them. Or, reboot the hearing instruments by pressing and holding the push button for 5
seconds until the LED light flashes. This indicates the instrument is ‘o’. Press and hold again until the light
shows solid, meaning that is is ‘on’ again.
2. Click ‘Connect’ in the collapsible side bar panel.
3. The hearing instruments will appear in the ‘Select Instruments’ section. When the hearing instrument to
be programmed has been identified, select it by checking the left box.
4. The hearing instrument that has already been programmed for this patient will already be assigned to the
right or left side. When the other instrument is selected, it will automatically be assigned to the opposite
side. Click on ‘Beep’ to confirm each hearing instrument selected is assigned to the correct side.
5. Click ‘Continue’ in the lower right of the screen once the instruments are selected and assigned.
6. Continue to connection flow and follow steps in the ‘First Fitting’ section of this guide.
Replacing one hearing instrument
in a pair
2
Note: To transfer settings from a previous session to the to replaced instrument,
select ‘Use Session’ in the fitting data mismatch screen of the connection flow. To
start a fresh fitting choose ‘Reset to Initial Fit’.

16
How to Complete a
ReSound Assist Fine-Tuning
This section provides an overview of how to perform a remote fine-tuning adjustment
with ReSound Smart Fit fitting software and the ReSound Smart 3D app.
Getting Started
Connect hearing instruments to the ReSound Smart Fit software. For further assistance, refer to page 3
of this guide. From the Patient Profile screen, sign in to GN Online Services.
GN Online Services
In order to sign in, the hearing care professional must be a registered user of GN Online Services.
1. Enter the username and password assigned to the hearing care professional to login to
GN Online Services.
2. After login, the name of the hearing care professional will appear in the upper right corner of the
fitting screen.
1
For more information on GN Online Services, see the GN Online Services Guide.

17
ReSound Assist Remote Fine-tuning
1. From the Patient screen, click ‘ReSound Assist’ from the lower navigation row.
2. Remote Fine-tuning and Remote Hearing Aid Updates are defaulted ‘On’. Patient
consent must be completed before requests can be completed.
Select Patient Consent from Menu
To utilize ReSound Assist, the patient must complete a one-time consent form before
becoming eligible to receive Remote Fine-tuning or Remote Hearing Aid updates.
1. Click on the ’Menu’ button below the hearing care professional’s name.
2. Click on the ‘Patient Consent’ option to begin the consent procedure.
1
2
1
2

18
Activate Consent
1. Click ‘Start Consent’.
2. Click ‘Agree’ on each
page of the consent
process.
3. Enter the patient’s
name and email
address. Click ‘Continue’
to send a copy of the
consent agreement.
Should the patient not
have an email address, the
hearing care professional’s
email address may be
used. Use the ‘Print
Consent’ button to print
a copy for the patient.
Keep a signed copy in the
patient’s record.
1
2
3
3

19
Move Cloud Icon to Taskbar
The orange cloud icon should be visible in the taskbar so that the hearing care professional
is notified when requests for assistance are received. If it is not already visible then:
1. Click on the upward arrow in the taskbar in order to view the hidden icons.
2. A window will appear which contains the orange cloud icon for GN Online Services.
3. Click and drag the cloud icon to the taskbar.
4. The cloud icon will now appear in the taskbar as shown.
1
2
3 + 4

20
Notification of Assistance Request
1. The number of requests received will
appear in the cloud icon in the taskbar.
2. Click on the cloud icon to open the GN
Notifications box. A list will appear if
more than one request is received.
3. Click on ‘New Request’. The options to
either ‘Open Smart Fit’ or ‘Remove from
List’ will appear.
4. If ‘Remove from List’ is selected, the
request is deleted from the Notification
Tray, but will still appear on the Patient’s
Timeline in ReSound Smart Fit.
5. Click on ‘Open Smart Fit’ to go directly
to the Timeline within ReSound Assist
for that particular patient.
Receiving an Assistance Request from a Patient
1 + 2
3
5
You will also receive email notifications for ReSound Assist requests for patients assigned to you in GN
Online Services. To deactivate email notifications, go to the Patient section in GN Online Services.
