Retevis RB37 User manual

RB37
( US )
Two Way Radio
Bluetooth

1
Bluetooth earphone

Basic Operations and Function Description
Power ON / OFF
Rotate Volume Switch clockwise until a “Click” sound is heard, that means radio power is on.
Rotate Volume Switch anti-clockwise until a “Click” sound is heard, that means radio power is off.
Communication
Press PTT key to transmit, the indicator turns red, talk to the microphone at the moment, the other
side will hear your speaking message. Release PTT key after finishing transmitting and start to
receive the other side speaking message, when receiving the other side message the indicator
light is green at the same time.
Volume Increase / Decrease
Rotate Volume Switch clockwise to increase the volume, rotate Volume Switch anti-clockwise to
decrease the volume.
Channel Adjustment
Press PF1 / Channel Increase key, channel will increase in turns, press PF2 / Channel Decrease
key, channel will decrease in turns.
Low Battery Voltage Warning
When you hear a sound “Please charge battery” while the indicator is flashing red light, it means
battery voltage is lower than working voltage, please charging radio.
Monitor
Press the Identify key which stores Monitor function for 2 seconds, Monitor function start. Release
the key to turn off the Monitor function.
Flashlight Starts
Press the Identify key which stores Flashlight function for 2 seconds, Flashlight function is on, and
repeat this operation to turn off flashlight.
Alarm Function Starts
Press the Identify key which stores Alarm function for 2 seconds, Alarm function is starts, and
press the PTT key to turn off.
VOX ON
Keep pressing PF1/PF2 the side key function definition key which stores VOX function for 2
second to turn on the VOX. Repeat operation to adjust the VOX function level. The higher the
level, the smaller the voice of the voice activation, and turn off the VOX with a “Beep”.
VOX Delay Function
Keep pressing PF1/PF2 the side key function definition key which stores VOX delay function for 2
second to turn on the VOX delay. Repeat operation to adjust the VOX delay time. The higher the
level,the longer the delay time, and turn off the VOX with a “Beep”.
Key Locks
Press the Identify key which stores Channel-Lock function for 2 seconds, the radio will give a
“Beep” sound to indicator that Channel-Lock function starts, and channel adjustment is
unavailable now. Repeat this operation to turn off channel lock function.
Scan Starts
Press the Identify key which stores Scan function for 2 second, scan function is on, and repeat
this operation to turn off scan.
Wireless copy
1.Press (no loose) the PF2 key of the receiver radio,and meanwhile turn on the radio which will
accept data, it must keep press the PF2 key for 1 second,When see the green light flashing and
hear "Beep" 3 times, the radio go into wireless copy receiving mode
2.Then press (no loose) the PF1 key of and meanwhile turn on
the other radio which is going to transmit data,and must press the PF2 key for 1 seconds,When
see the red light flashing and hear "Beep" 3 times, the radio go into wireless copy replication
mode.
2

Press the PPT key of the transmitter, and the red light flashes to transmit data. Restart the
walkie talkie and the radio will automatically exit the mode.
The red light and green light of the receiver flashes crosswise to indicate that the data is being
received at this time, and the power will restart after the radio receives the data.
Note:The wireless copy frequency and ID code of the transmitter and receiver must be the same
to transmit data. The wireless copy frequency and ID code can be changed by programming
software.
Read-Write Frequency Encryption
Use write frequency software Settings.
Scrambler Function
Users can set scrambler function ON/OFF on every working channel by software. Scrambler
function is one of the ways for encryption. Scrambler is to restore the transmission spectrum
through the spectrum to complete the change of the transmission spectrum, and to restore the
signal after receiving it, so that achieve voice encryption finally. Each channel can select
scrambler groups independently.Which has 8 groups optional.
Frequency Hopping Function
Frequency hopping function is DCS encryption on the transceiver. User can select Frequency
Hopping 1, Frequency Hopping2, Frequency Hopping3 or Frequency Hopping4, and communica-
tion is unavailable using different frequency hopping, only workable if under the same frequency
hopping.
CTCSS/DCS
User can set CTCSS/DCS signaling on the transceiver channel by software. Only when receiving
same CTCSS/DCS signaling from other transceiver, the squelch will open. If same channels but
with different CTCSS/DCS signaling for calling, then squelch will not open, only green light is on.
CTCSS/DCS codes are listed below:
Bluetooth on/off button
Press and hold the PF1/PF2 side key buttons that have defined the Bluetooth on/off button for 2
seconds to turn on, again to turn off the Bluetooth.
Press and hold the Bluetooth on/off button, walkie talkie will enter into the Bluetooth mode after a
beep and at the same time, the white light will flash quickly
The white light flashes slowly when the Bluetooth connection successful
Bluetooth Headset
After the Bluetooth headset and the walkie talkies are successfully connected, there will have a
beep then enter into the receiving state.
When Bluetooth Handset hears 3 beeps, then can talk.
Press 1 time, the radio will transmit, press again radio will stop transmitting
Press and hold, the radio will transmit, release it, the radio will stop transmitting
3
Language switch
Volume Switch
Power On/off button
Led indicator
Charging port
Charging: Red light is always on when charging.
The Blue light will always on when fully charged.
Power on: Blue light will flash quickly.
Pairing: Red light and blue light flash alternatively quickly
Standby: Blue light flash slowly

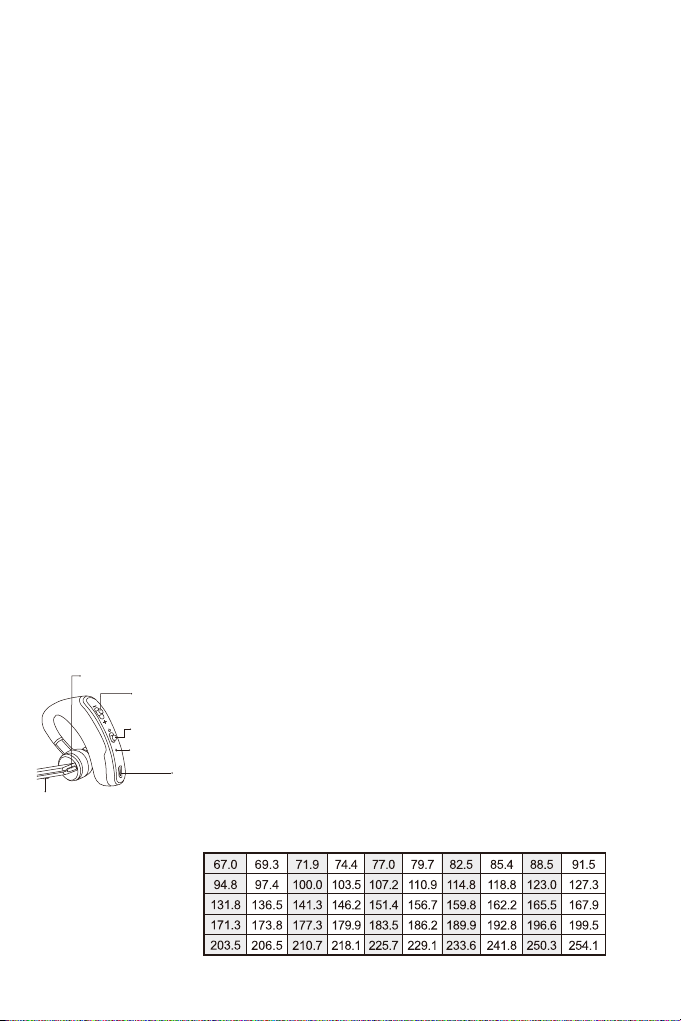

CTCSS (50 Numbers)

Technical Specifications
Frequency Range
Memory Channel
Audio Distortion
Frequency Stability
Maximum Frequency Deviation
Remanent Radiation
Modulation Mode
Reference Sensitivity
Noise-free Sensitivity
Adjacent Channel Selectivity
Spurious Response Rejection
Inter-Modulation
Electric Current
Operating Voltage
Operating Temperature
FRS
22
＜5%
±2.5ppm
≤5KHz/≤2.5KHz
≤7uW
1 6KφF3E/ 11KφF3E
≤0.25uV/≤0.3uV
≤0.2uV/≤0.25uV
≥65dB
≥55dB
≥60dB
≤1.3A
3.7V DC
-10°C～+50°C
4

Serial number Frequency Sub audio Power
1 462.5625 67.0 2W
2 462.5875 118.8 2W
3 462.6125 127.3 2W
4 462.6375 131.8 2W
5 462.6625 136.5 2W
6 462.6875 141.3 2W
7 462.7125 146.2 2W
8 467.5625 D243N 0.5W
9 467.5875 D032N 0.5W
10 467.6125 D047N 0.5W
11 467.6375 D051N 0.5W
12 467.6625 D053N 0.5W
13 467.6875 D065N 0.5W
14 467.7125 D116N 0.5W
15 482.5500 123.0 2W
16 462.5750 D7431 2W
17 462.6000 D3321 2W
18 462.6250 127.3 2W
19 462.6500 D2431 2W
20 462.6750 D606N 2W
21 462.7000 D7311 2W
22 462.7250 136.5 2W
5
