RH KING User manual

Page 1 of 3
10/1/18
HARDWARE INCLUDED
TOOLS NEEDEDPARTS INCLUDED
ASSEMBLY INSTRUCTIONS
HEADBOARD
SIDE RAILS
FOOTBOARD
BED SLATS
SUPPORT SLATS
SUPPORT LEGS
PLATFORM PANELS
WOOD BRACKETS
A
B
C
D
E
F
G
H
[1]
[2]
[1]
[3]
[2]
[4]
[2]
[4]
1. Gently lay the headboard(A) and footboard (C) on a flat and non-
abrasive surface.
2. Attach the wood brackets (H) to the headboard and footboard. Align
the wood brackets to the fixed nuts on the headboard and footboard.
Insert Allen bolts(1) through the holes on the wood brackets into the
fixed nuts on the headboard and footboard. DO NOT OVER TIGHTEN.
Refer to FIGURE 1.
Phillips Screwdriver (Not provided)
Allen Bolt
M6 x 40mm
Allen Wrench
Threaded Rod
Curved Washer
Lock Washer
Hex Nut
Wrench
Round Head Screw
M4 x 25mm
1
2
3
4
5
6
7
8
8 pcs.
8 pcs.
8 pcs.
8 pcs.
8 pcs.
1 pc.
1 pc.
20 pcs.
NO. ITEM DESCRIPTION QTY.
KEMPTON UPHOLSTERED PLATFORM KING AND CAL KING BED INSTRUCTIONS

Kempton Platform - Page 2 of 3
10/1/18
Place the headboard upright in the location you wish the bed to be in when fully assembled. Secure the Threaded Rod (3) to the
fixed nut in the headboard by simply turning it manually. Raise the Side Rail (B) up and place the rod to align with the bore holes
on the end of the side rails. Put the side rail up against the headboard so the threaded rods go through the bore holes. Insert
Curved Washer (4) and Lock Washer (5), place Hex Nuts (6) on threaded rod and tighten hex nuts with Wrench (7). See FIGURE 2
Repeat the above procedure with the other side rail to attach it to the headboard. And then repear to connect both side rails to the
footboard.
Attach the Support Leg (F) to the Slat Support (E) by turning it manually. See FIGURE 3
There are pre-installed wooden brackets on inside of both headboard and footboard for the slat support rail. Set the slat support
on the wood brackets as shown in FIGURE 4. If necessary, adjust the leveler on botom of the support leg to make sure the slat
support is level. See FIGURE 5
5.
6.
3.
4.
KEMPTON UPHOLSTERED PLATFORM KING AND CAL KING BED INSTRUCTIONS

Kempton Platform - Page 3 of 3
10/1/18

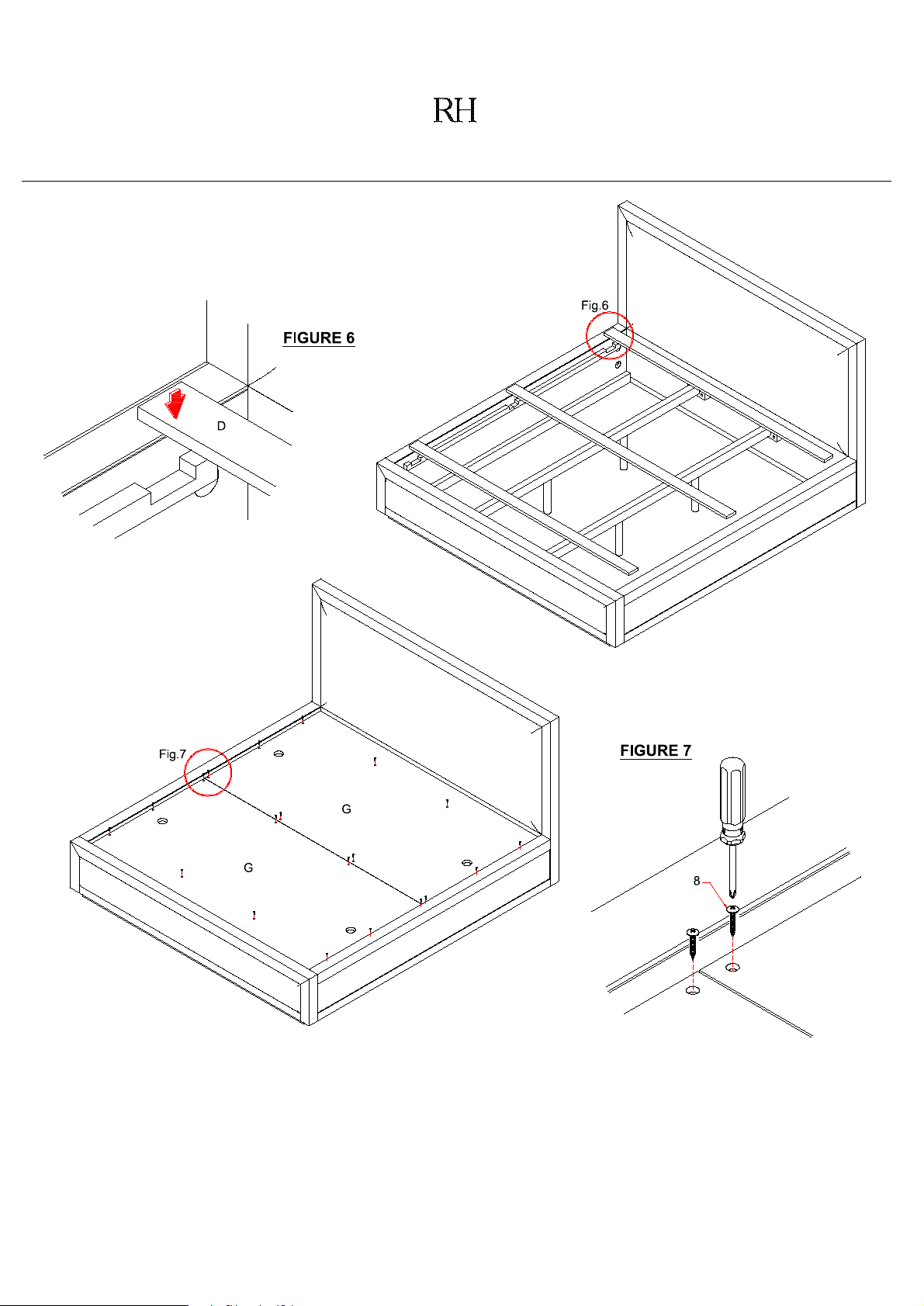

On inside surface of both side rails are cavities designed to hold the individual bed
slats. Set individual bed slats on both sides of the side rails as shown in FIGURE 6
Place the Platform Panels (G) on the bed slats, then fix them with screws(8)
provided. See FIGURE 7
Assembly is complete.
7.
8.
9.
CARE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
1. Dust often using a clean, sofy, dry and lint-free cloth.
2. Blot spills immediately and wipe with a clean, damp cloth.
3. We do not recommend the use of chemical cleansers, abrasives, or furniture polish on our lacquered finish.
1. Please read all instructions carefully before assembling.
2. For your safety, assembly by two or more adulst is strongly recommended.
3. Keep these instructions for future use.
4. Use only vendor supplied hardware to assemble. Using unauthorized hardware could jeopardize the structural integrity
of the item
KEMPTON UPHOLSTERED PLATFORM KING AND CAL KING BED INSTRUCTIONS
