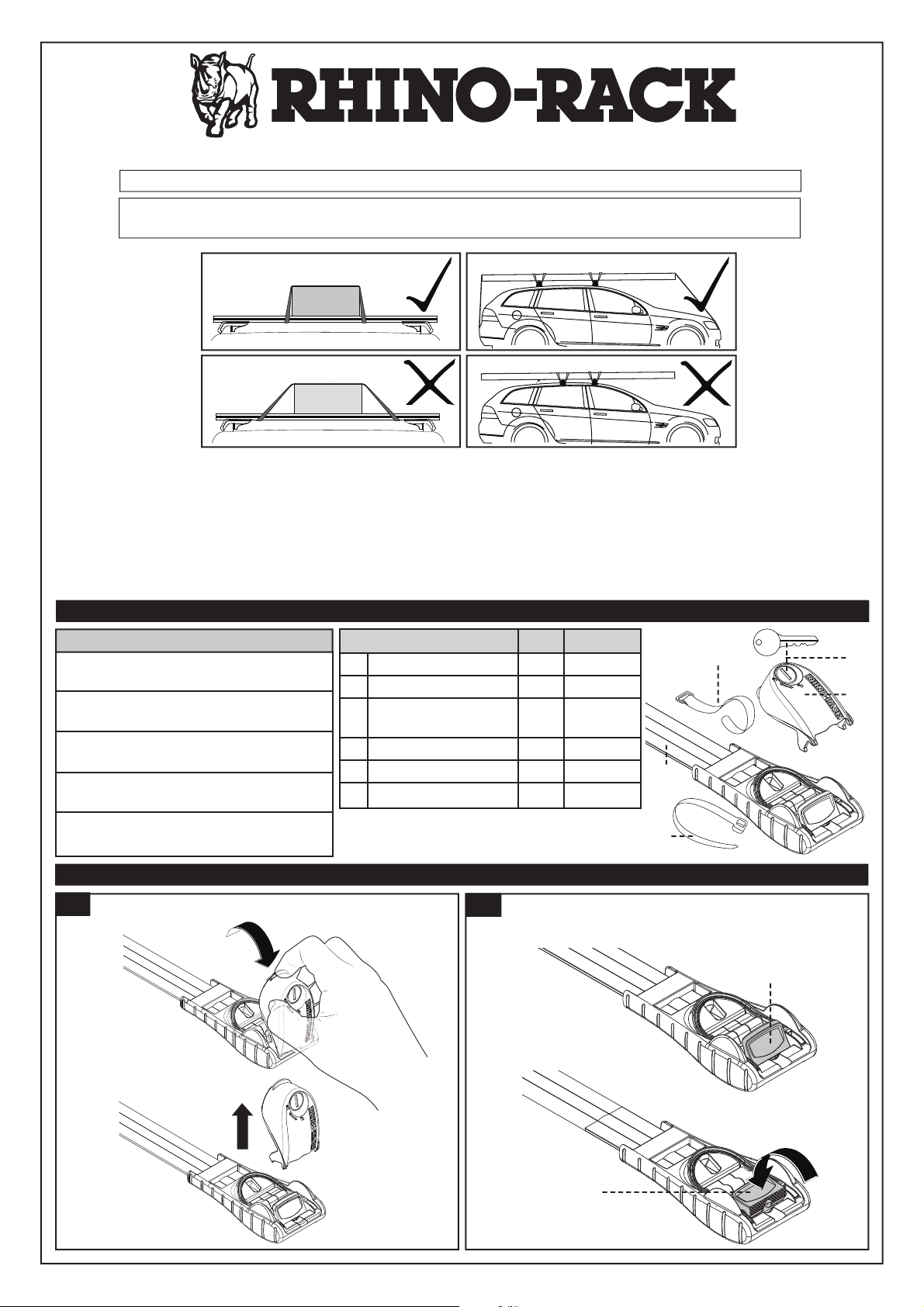

Rhino-Rack RTD25L User manual

Place these instructions in the vehicle’s glove box after installation is complete.
Important: Please read these instructions carefully prior to installation.
Check the contents of kit before commencing fitment and report any discrepancies
Rhino Rack Lockable Tie Down RTD25/35/45/55L
LOAD
LOAD
Remove the Lockable Cap with the Metal Key provided.
12Depress and hold down the Locking Tab on the
Assembly.
Locking Tab.
Depress and
hold Tab.
Parts List
Black Tie Down Locking Straps (2.5m) -
RTD25L
Black Tie Down Locking Straps (3.5m) -
RTD35L
Black Tie Down Locking Straps (4.5m) -
RTD45L
Black Tie Down Locking Straps (5.5m) -
RTD55L
Note: All sizes sold as separate. Max
carrying capacity 225kg/ 496lbs.
Note: RTD25L,35L,45L and 55L sold as
separate. Be sure to purchase the correct
length to meet individual needs.
Page 1 of 3
Available Sizes Parts List Qty RTDXXL
1 Tie Down 2 CA1559
2 Lock Barrel/Key 2 CA1339
3 Cam Buckle Cover
Locking
2 M752
4 Velcro Storage Strap 2 -
5 Cable Tie (display only) 2 -
6 Instructions 1 R851
Instructions
1.
2.
3.
4.
CAUTION:
Must NOT be used for lifting. Always inspect prior to use. Protect from friction and abrasion. Do NOT use strap if it is damaged.
For excessively long loads, use additional straps to secure the load at the front and rear of the vehicle (optional accessory
RBAS). This product is designed to aid in the safety of transporting long items (i.e. Kayaks) and not to be used for towing or
pulling applications. Special consideration must be taken when selecting your fixing point. Rhino-Rack does not take any respon-
sibility for damage to the vehicle that may be caused by this product on paintwork, panels and fixing hardware. Although they are
designed with the softest materials in mind to minimise this damage, they cannot take into consideration the variation of panel gaps
and wind flapping issues. It is the users responsibility to ensure that the strap is used in accordance with these fitting instructions.
1.
2.
5.
CONTROLLED

RTD25/35/45/55L
Pull the end of the Strap through the Assembly as
shown.
3 4 Release the Locking Tab. The Strap will now be held in
place.
The Strap is now locked
in position.
5Replace the Locking Cap into the Strap Assembly. The Tabs on the Locking Cap slip into the Housing Slots on the
Assembly. 1: Place the Tabs on the Locking Cap into the
Strap Assembly on an angle as shown.
2: Rotate the Cap downward to sit in place on the
Strap Assembly.
6Use the Key provided to secure the unit. Be sure all loads
are secure before use. Re-tension if necessary.
Page 2 of 3
Tabs.
Housing Slots.
1.
2.
Rhino-Rack
3 Pike Street, Rydalmere,
NSW 2116, Australia. Document No: R849 Fit Time: Approximately 2min
(Ph) [phone] Prepared By: Kayle Everett Issue No: 01
(Fax) [phone] Authorised By: Chris Murty Issue Date:19/11/2015
CLICK!
7For easy storage, firstly roll up the Strap. Loop a Velcro
Storage Strap around the assembly as shown. Tighten
the Velcro Storage Strap.
Secure the
Velcro strap
in place as
shown.
Ensure edges are seated correctly.

RTD25/35/45/55L
Page 3 of 3
Display Instructions
11: Open the Main
Flap.
2: Open the Side
Flaps.
1:
2:
2Slide both Cable Ties through the top of the Side Flap
as shown.
31: Slide a Cable Tie through the bottom of the Cam
Buckle and out through the top of the Assembly.
2: Tighten the Cable Tie.
2:
1:
4Using Cutters,
remove the
excess Cable
Tie.
51: Fold the Main Flap
back down.
2a: Fold the
BottomSide Flap
down.
2b: Fold the Top Side
down.
1:
2b: 2a:
