1. Machine Overview
1.1 Preface
Thank you for purchasing our products. This instruction manual contains the operation steps and
precautions for using this product, in order to improve the use and working efficiency of the product. Please
read this manual carefully before using, so as to operate the product accurately. Please contact your local
agent if you encounter any problem.
We reserve the right to change the contents of this instruction manual at any time without notice.
1.2 Statement
This product is used for counting banknotes. Our company does not assume any responsibility for
any loss arising from the application of this product for any purpose other than the above without our
company's permission, and for any loss caused by any modification of this product not by our
company or by any agents not authorized by our company. If you need to install or transport this
product, please consult your local agent to reduce (avoid) product damage due to installation errors or
transportation shocks.
This product is used for counting banknotes described in the specification. Please do not use this
product for any other purposes.
This product is only used in corresponding countries or regions and may not be used in other
countries or regions due to the difference between power supply specifications and safety
standards.
Please understand that the contents of this manual are subject to change without prior notice.
The appearance and technical specifications of this product are subject to change without prior
notice. Therefore, the actual product may be different from the instructions in this manual.
●This product may not be changed or modified in any form without the explicit written
authorization of our company.
1.3 Basic Requirements for Counting Banknotes
● The banknotes to be counted should be sorted according to size and put into the banknote inlet.
● If the banknotes to be counted are folded or arched, they need to be sorted in advance to increase the
one-time pass rate.
● In the process of counting, the limit baffle should be limited according to the maximum size of the
current count, so as to ensure that banknotes can be accurately identified by the relevant sensors.

BC-40 User Manual V1.2
4
2. Installation Precautions
2.1 Installation Instructions
1) Please contact your nearest sales store or our designated distributor if you need to install this
product.
2) This machine is specially designed for indoor use. Please do not install or use it outdoors.
3) Please do not install it in places that cannot bear the weight of this product or in places that are
inclined or uneven.
4) Do not use or place combustible materials, inflammables and volatile items such as thinners
around/inside this product.
2.2 Installation and Use Location

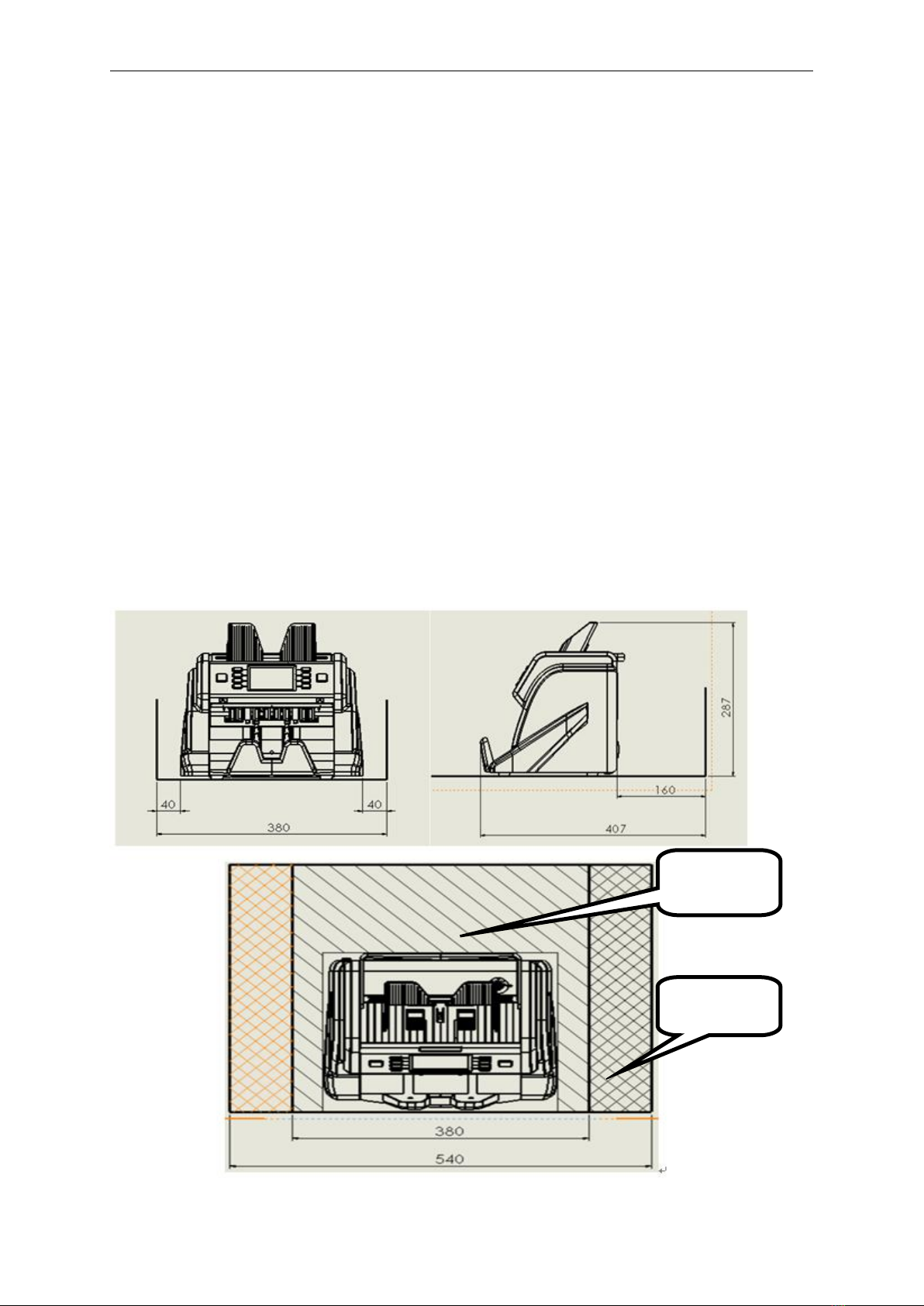

As shown in the figure, please stay away from the surrounding walls and reserve sufficient operation
space for placement of banknotes, opening or closing of the cover plate, as well as for maintenance.
Unit（mm）
Installation
space
Maintenance
space

BC-40 User Manual V1.2
5

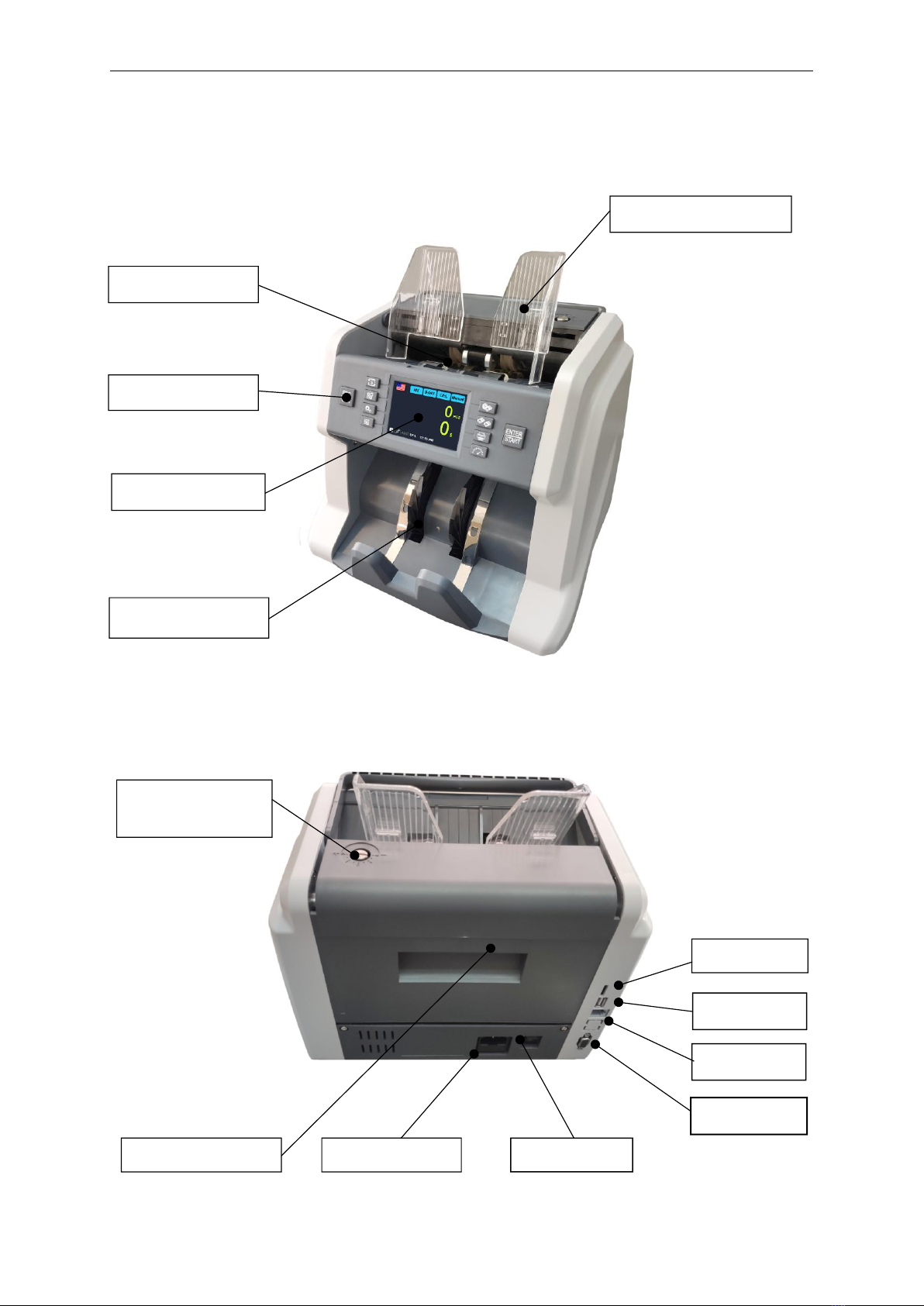

3. Complete Machine Diagram
3.1 Front Appearance
3.2 Back Appearance
Stacker
Hopper
Note Guider
Display
Key
SD card
Power jack
Serial port
Feed gap knob
Rear lid open button
Power switch
USB port
RJ12

BC-40 User Manual V1.2
6
4. Technical Parameters
Overall dimensions
(length×width×height)
300mm×247mm×287mm
Weight
About 7KG
Applicable currency
USD,EUR, MXN,CAD, etc
Banknote capacity
Max 4 currencies in one machine
Power requirement
220V±10%，50Hz±5%
110V±10%，60Hz±5%
Counting mode
Mix counting mode, single counting mode, piece counting
mode, automatic recognition mode, multi-country mix
counting mode.
Counting speed
Value counting mode（MIX/SDC）：800/1000/1200 PCS/min
Piece counting mode（CNT）：1000/1200/1500 PCS/min
Counterfeit function
UV/MG/MT/IR
Preset number
0~200
Display
3.5 inch TFT touch screen
Hopper capacity
500pcs
Stacker capacity
200pcs
Size range of sortable
banknotes
Length：120mm~180mm
Width：50mm ~90mm
Thickness of sortable
banknotes
0.05mm~0.15mm
Machine power
standby≤15W，normal operation≤50W
Noise from machine operation
No load＜60dB，operation＜75dB
Software upgrade
USB upgrade
External display
Optional
Use environment
Ambient temperature (0~40℃)/humidity (40~90%)
Air pressure (70-106kpa)
Storage environment
Ambient temperature (-40~55℃)/humidity (10~95%)
Air pressure (70-106kpa)

BC-40 User Manual V1.2
7
5. Description of Display and Operation Interface

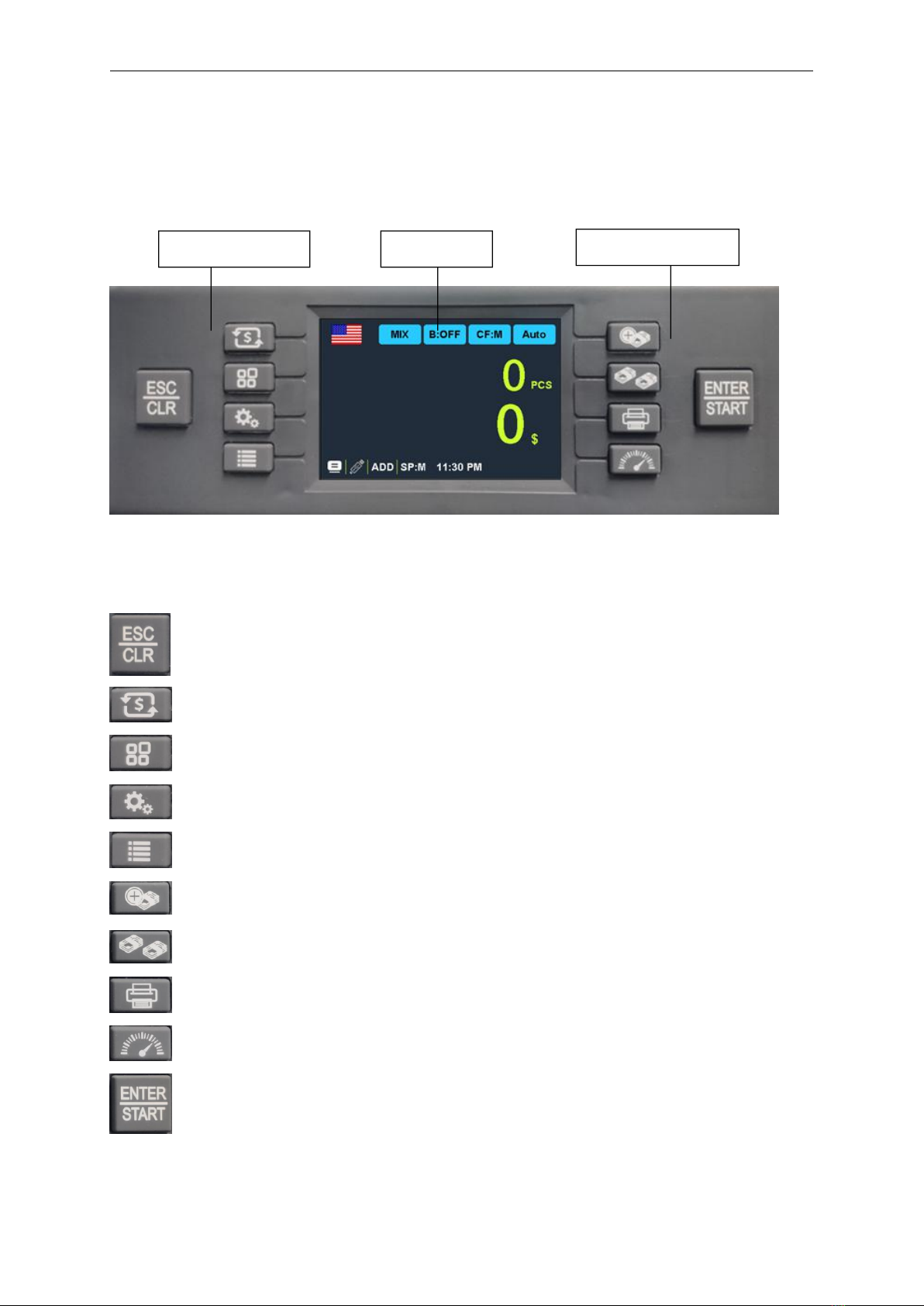

5.1 Display Appearance
5.2 Operating Instructions for Function Keys
Return key, to return to the previous interface when the function is set; Clear key.
Currency selection key.
Mode switch key.
Function key.
Counting information check key.
Accumulative function switch key.
Preset switch key.
Data printing key.
Speed switch key.
Start key, start the machine manually; Save key after selecting and entering, confirming or
modifying the function.
Display
Operational key
Operational key

BC-40 User Manual V1.2
8

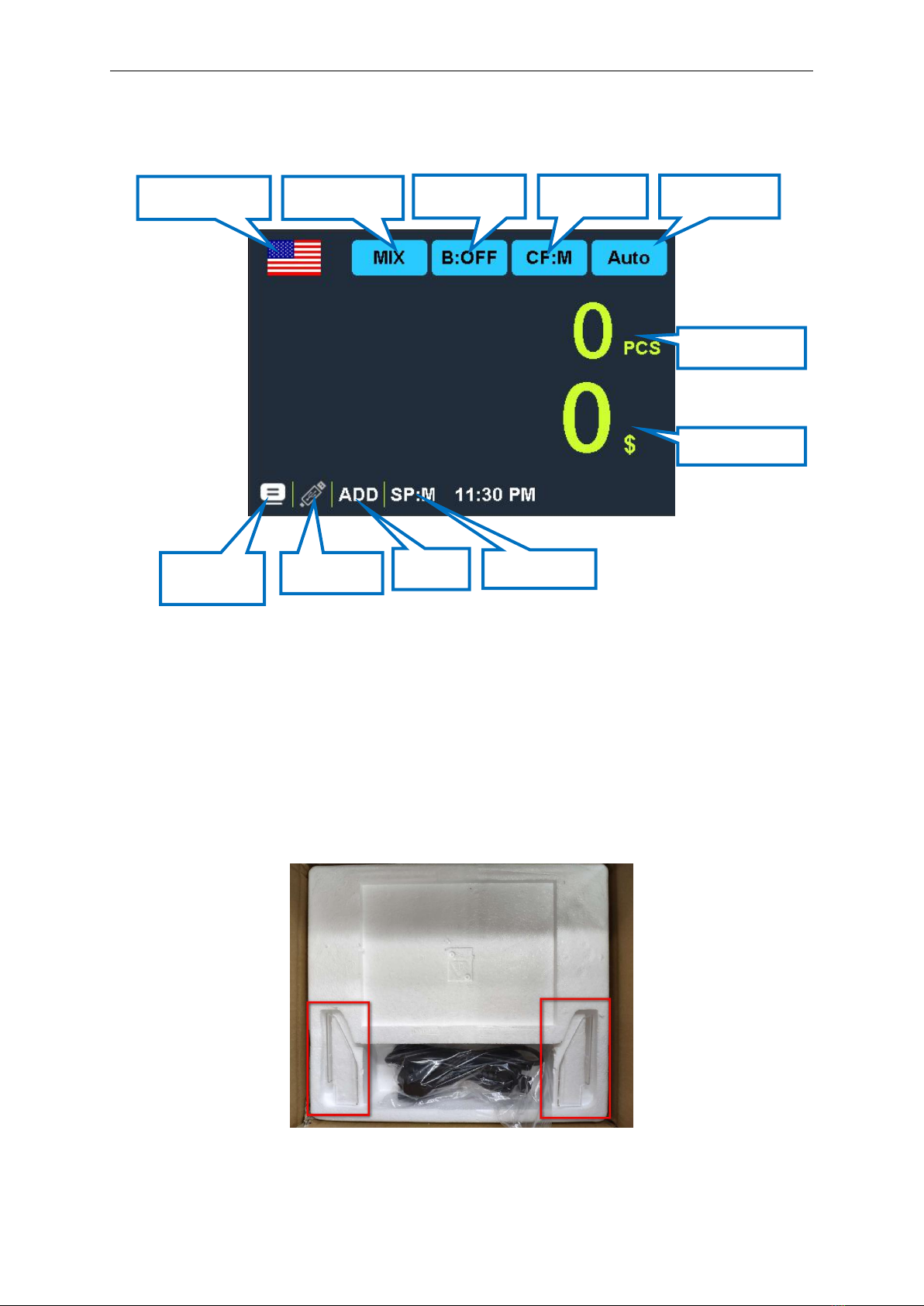

5.3 Display Interface and Touch Screen Description
6. Operating Instructions
6.1 Start-up
Reminder: To ensure smooth counting please install the left and right Note Guider in the box. Please
check below picture.
Take out the left Note Guider, install the click into the rail of the Note Guider, and press the Note
Guider until you hear a clicking sound, it means the Note Guider is installed in position.
Add
U-disk logo
Number of
banknotes
counted
Automatic/manu
al
Counting amount
Counting mode
Currency selection
key
Preset quantity
Counterfeit
level
PC or printer
mode
Counting speed

BC-40 User Manual V1.2
9

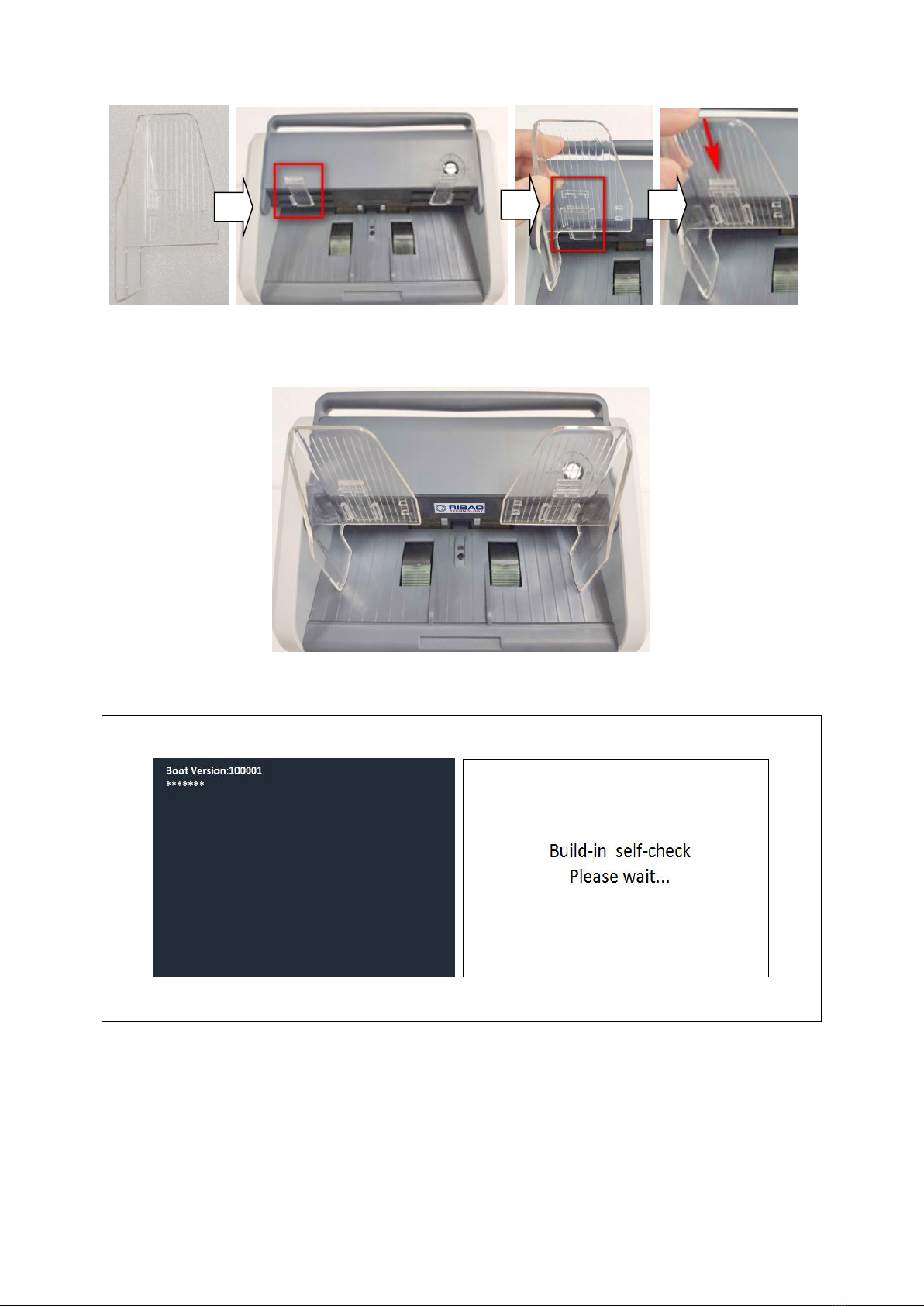

Then take out the right Note Guider, intall it in the same way. After you finish both, the machine looks
like this:
Turn on the switch after connecting the machine to the power supply. First, the machine enters
the load interface and self-checking interface as shown in Figure 1 below:
Figure 1
The machine will enter the main interface after self-checking succeeds, as shown in Figure 2
below:

BC-40 User Manual V1.2
10
Figure 2
6.2 Selection of Counting Mode
6.2.1 Single Country Currency Model
The currencies of different countries can be selected by pressing the key on the keyboard
plate or touching the flag pattern in the upper left corner of the display, as shown in Figure 3
below:
Figure 3
Take USD as an example. After the touch of key, the display returns to the main interface, and
the top left corner displays the flag graphic, indicating that the machine is in the mode of counting
dollars.
By pressing the key or touching the key above the display, the three counting modes
can be cyclically switched. In each mode, the machine will work with the default value of the system. The
corresponding order of each mode is shown in Figure 4 below.

BC-40 User Manual V1.2
11
Figure 4
6.2.1.1 <MIX> Mix Counting Mode
Figure 5 and Figure 6 below show the interface of Mix Counting Mode in the automatic state of the
machine. In this mode, the machine will count all the denominations of the same currency and record the
detailed information of the counted banknotes, including the total amount and the total number of
banknotes in the stacker for the convenience of users to view. When this mode is selected, the machine will
count at the default speed (L: 800/M: 1000/H:1200 PCS/min. 3 levels for option).
Figure 5 Figure 6
6.2.1.2 <SDC> Single Counting Mode
Figure 7 and Figure 8 below show the interface of Single Counting Mode in the automatic state of the
machine. In this mode, the machine will take the first banknote to be counted as a reference to count the
same denomination of the same currency, and at the same time the detailed information of the counted
banknotes, including the total amount and the total number of banknotes in the stacker, will be counted and
saved in detail for the convenience of users to view (note: different denominations rejected in this mode
will be prompted with an error in size). When this mode is selected, the machine will count at the default
speed (L: 800/M: 1000/H:1200 PCS/min. 3 levels for option).
Figure 7 Figure 8

BC-40 User Manual V1.2
12
6.2.1.3 <CNT> Count Mode
Figure 9 and Figure 10 below show the interface of CNT Count Mode in the automatic state of the
machine. This mode does not limit the currency and only counts the number of PCS. When this mode is
selected, the machine will count at the default speed (L: 1000/M: 1200/H:1500 PCS/min), and only the
counterfeit function is reserved.
Figure 9 Figure 10
Note: In MIX Counting Mode and SDC Single Counting Mode, the machine has the functions of
image acquisition, magnetic detection, ultraviolet detection and duplicate detection. While in CNT
Counting Mode, there is only a double detection function.

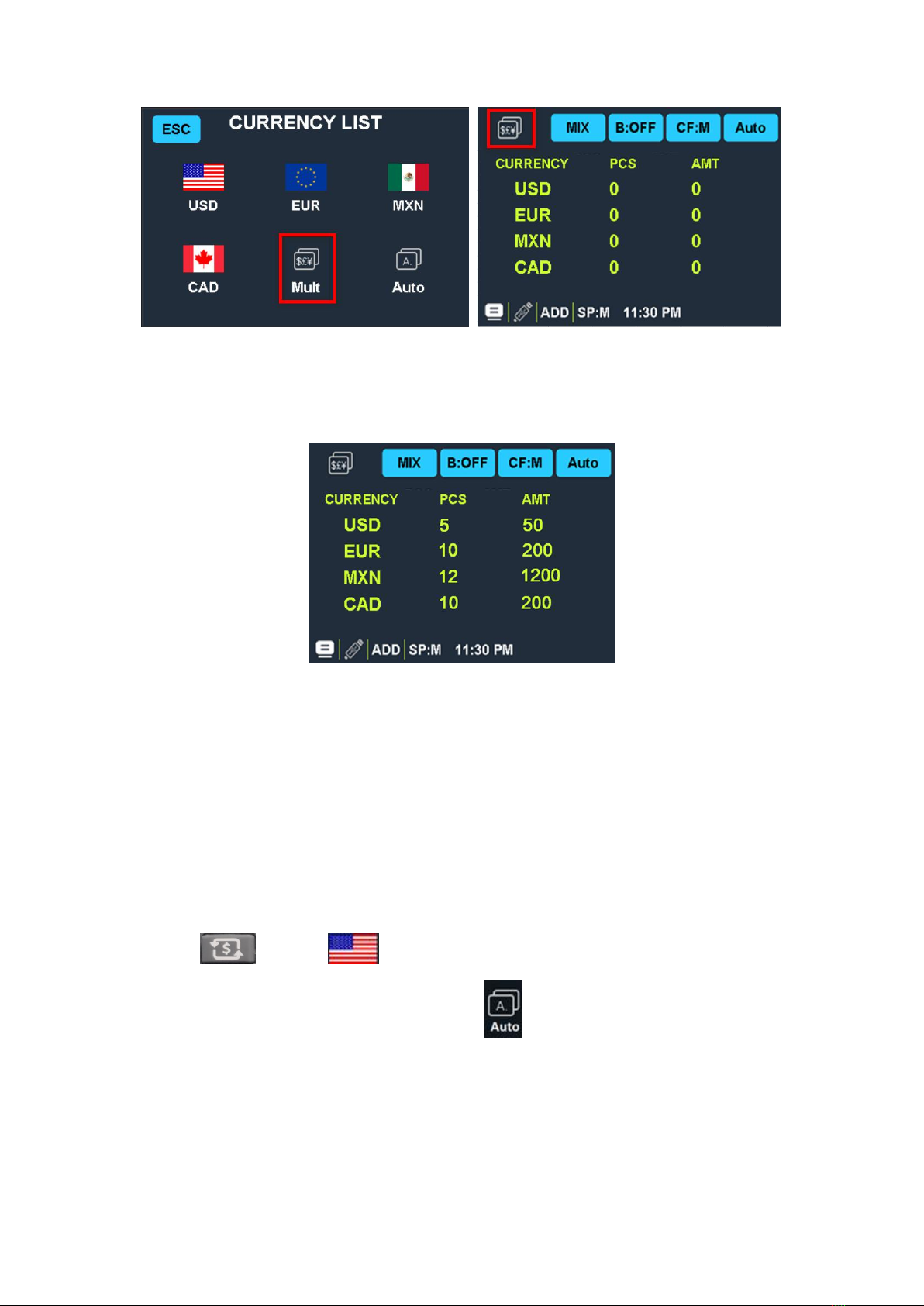

6.2.1 Multi-country Mix Counting Mode
Multi-country Mix Counting: A mixture of national currencies placed in a machine to count,
displaying the number and amount of each currency according to its currency name. Note: The machine can
only recognize the supported national currency displayed by the machine. The currency not supported will
be stopped.
Press the key or the flag in the upper left corner of the display to enter the currency
selection interface as shown in Figure 3. Then click Multi-country Mix Counting Mode, and the
display screen will automatically switch to the main interface, as shown in Figure 11 below. At this time,
the currencies of the four existing countries in the software will be displayed (depending on customer
requirements, the currencies of different countries will be displayed) as shown in the following figure:

BC-40 User Manual V1.2
13
Figure 3 Figure 11
Example: Put a handful of banknotes (including USD, EUR, MXN, CAD) into the machine to count.
Details of counting after counting are shown in the following figure 12:
Figure 12
6.2.3 Automatic Recognition Mode
Automatic recognition: Refers to the automatic recognition of banknote counting mode. In the process
of counting banknotes, the machine uses the first banknote passing through the sensor as the judgment rule
to recognize banknotes of all denominations of the same country. When banknotes from other countries are
recognized, the machine will alarm and stop. At this time, banknotes from other countries need to be taken
out, and the machine will continue counting. The machine can only recognize the currency of the country
displayed in the program.

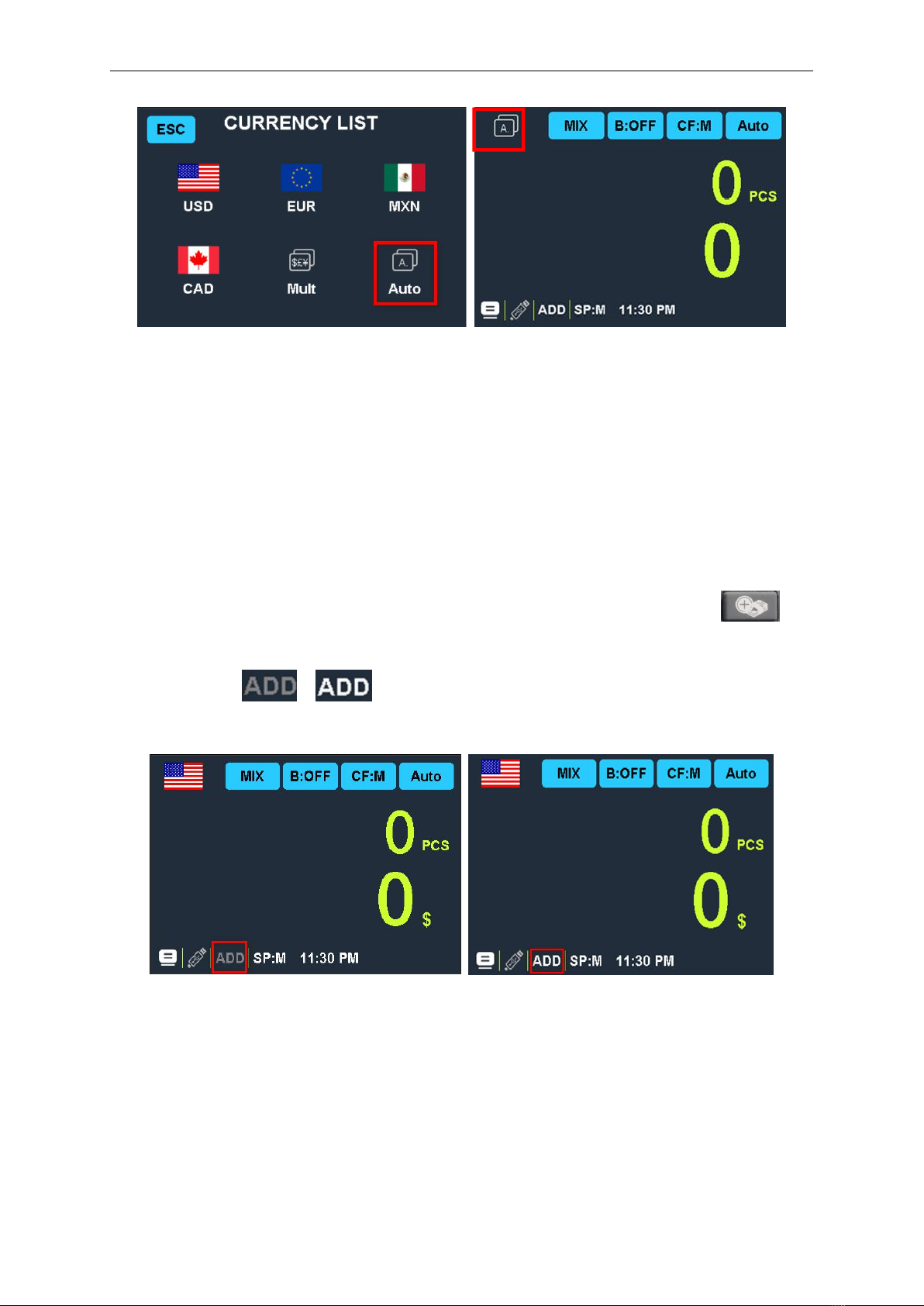

Press the key or the flag on upper left corner of the display to enter the currency
selection interface, as shown in Figure 3 below. Click the automatic identification mode, and the
display screen will be automatically adjusted to the main interface after selection, as shown in Figure 13
below:

BC-40 User Manual V1.2
14
Figure 3 Figure 13
In the automatic recognition mode, there are two counting modes: Mix Counting Mode and SDC
Single Counting Mode. Customers can choose operation according to their needs. It is recommended that
customers choose Mix Counting Mode for automatic recognition.
6.3 Accumulation Function
In any counting mode, the accumulation function of PCS can be opened by pressing the key.
At the same time, the word "ADD" in the bottom left corner of the counting interface changes from gray
font to white font ( — ). Figure 14 shows the closed state of accumulation function, and
Figure 15 shows the open state of accumulation function.
Figure 14 Figure 15
1）When a stack of banknotes has been counted and the banknotes have not been taken away from the
stacker the machine will display the total number and amount of the banknotes. If the banknotes are
removed from the stacker, the total number and the total amount of the banknotes counted and previously
counted will be displayed. At this time, press the CLR key once to clear the last counting information, and
press the CLR key for the second time to clear all counting information.

BC-40 User Manual V1.2
15
2）In the counting process, if there is an error, the machine will automatically delete the counted banknotes
information, and prompt to re-count the banknotes.
3）The accumulation mode applies only to the same currency and counting mode. When the currency is
switched in automatic recognition mode, the accumulation function will fail.

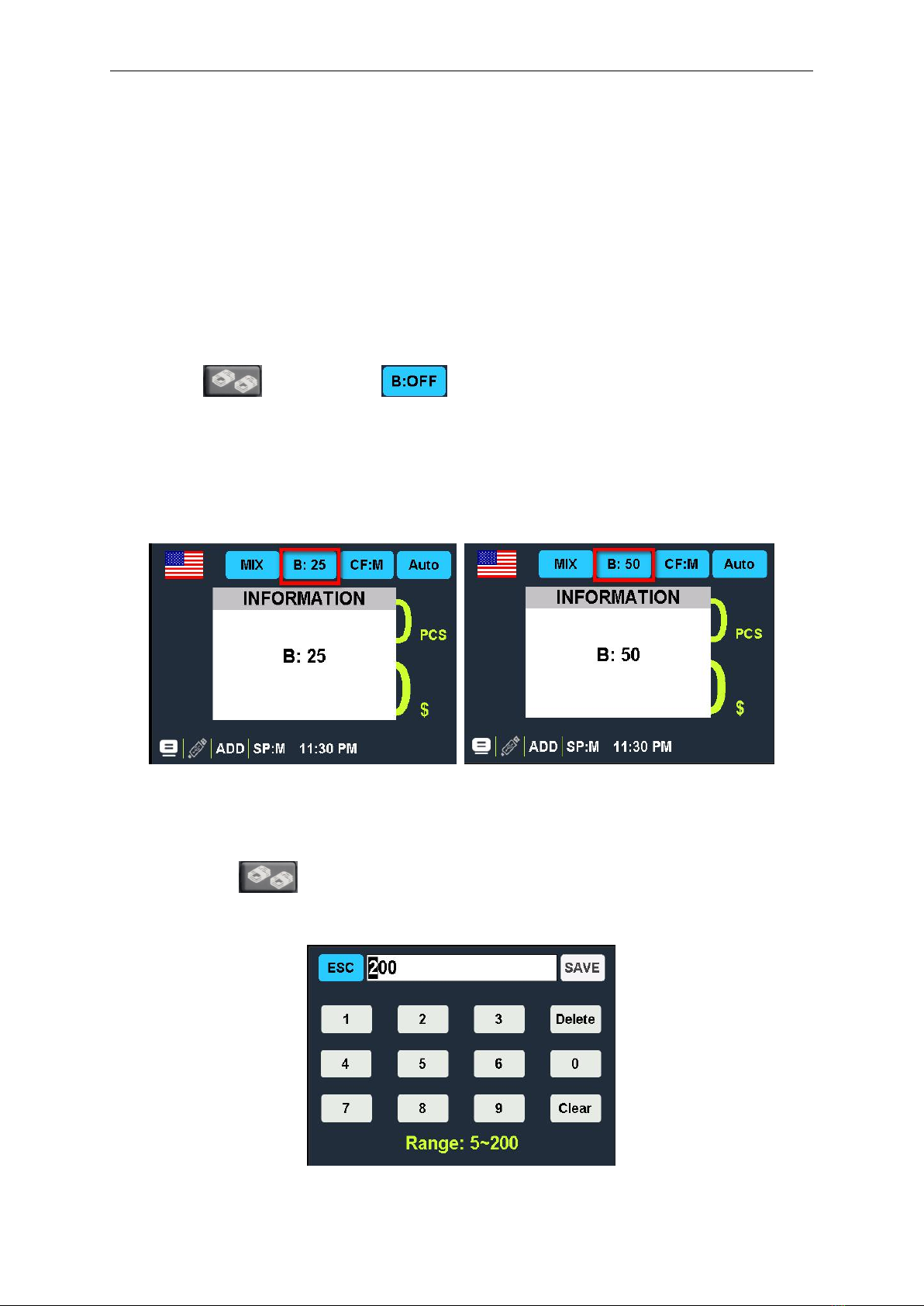

6.4 Number Presetting
6.4.1 Default Preset Number
Press the key or touch the key on the main interface to select the preset number.
The default is 10/25/50/100/200/OFF. (For example, Figure 16 is the preset number 25, and Figure 17 is the
preset number 50). The preset number of the previous "10/25/50/100" can also be changed. When the preset
number is off, the default preset number of the machine is 200. When the preset number reaches 200, the
machine will automatically stop running.
Figure 16 Figure 17
6.4.2 Customize Shortcut Key for Preset Number
Hold down the key under the main interface for 3 seconds until the preset interface pops out,
as shown in Figure 18 below:
Figure 18

BC-40 User Manual V1.2
16
PS: means that the preset value must be between 5 and 200, or it will not be saved
with the key.
At this point, we enter the example value: 155 in the input field, as shown in Figure 19. Click the
key in the upper right corner of the display again. The machine automatically jumps to the main
interface, and the current preset number also jumps to 155, as shown in Figure 20 below:
Figure 19 Figure 20
6.5 Counting Speed Setting and Function Description
The counting speed is divided into three options: H, M, L (high, medium and low). Under any
counting mode, different counting speed can be changed by pressing the key. The current speed
level will be displayed in the red box of Figure 21. The letter H means high level. If medium or low level is
selected, SP:M or SP:L will be displayed accordingly.
Figure 21
The corresponding counting speed of each level under each counting mode is shown in the following
table:

BC-40 User Manual V1.2
17
Counting mode
H
M
L
MIX
1200PCS/min
1000PCS/min
800PCS/min
SDC
1200PCS/min
1000PCS/min
800PCS/min
CNT
1500PCS/min
1200PCS/min
1000PCS/min

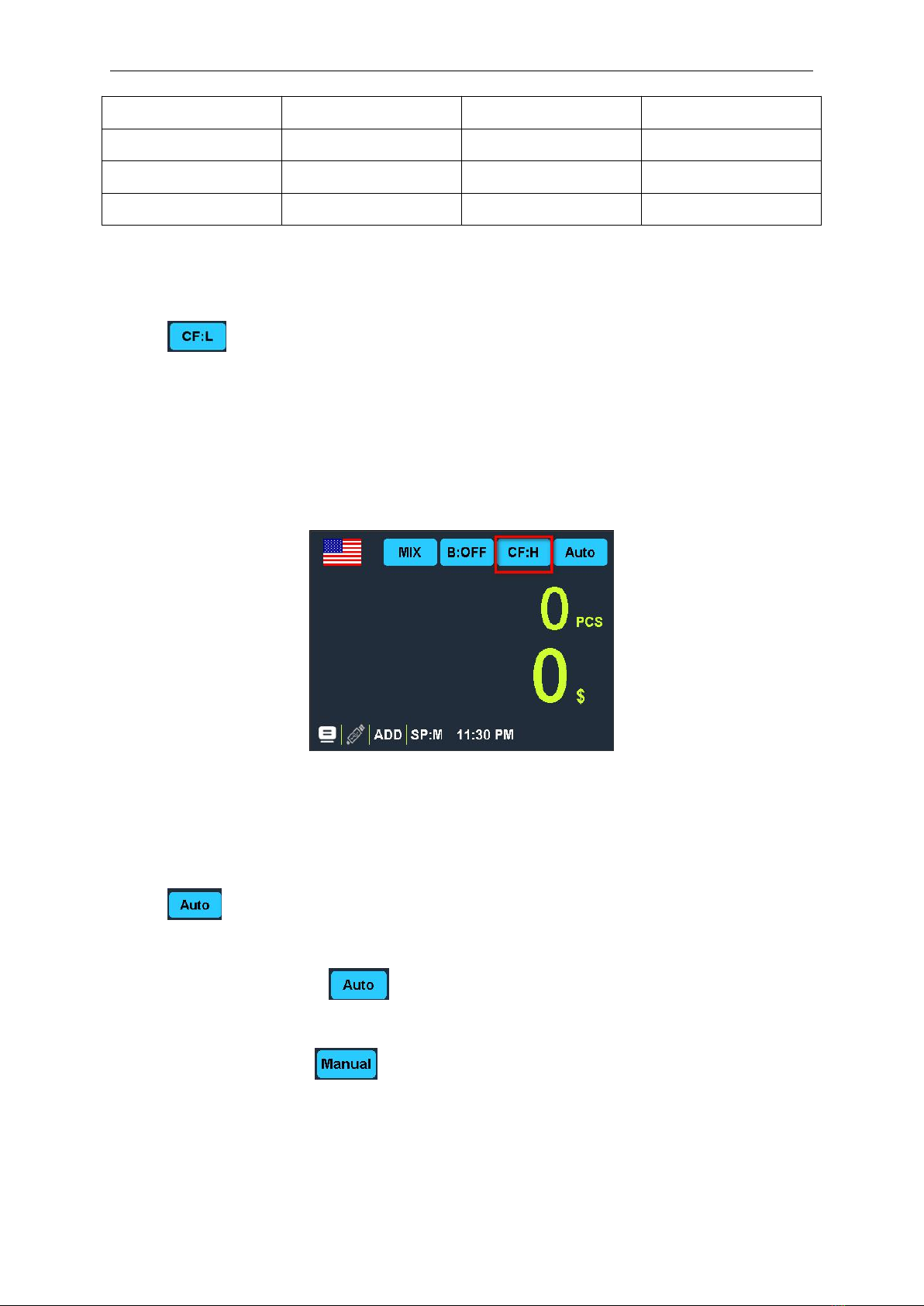

6.6 Simple level Adjustment
The key on the display screen is the simple level adjustment key. Touching it will switch in
the three levels (H, M, L).
H：High level, with the highest counterfeit sensitivity, as shown in Figure 22.
M：Medium level, with the moderate counterfeit sensitivity, suitable for the daily count of all national
currencies.
L：Low level, with the relatively weaker counterfeit sensitivity.
Figure 22
6.7 Manual/Automatic Setting
The key in the upper right corner of the display is the manual/automatic switch key. Touch it
and the mode will be changed.
Automatic mode: the word “ ” will appear in the upper right corner. The machine will count
the banknotes automatically when they are put into the banknote hopper, as shown in Figure 23.
Manual mode: the words " " will appear in the upper right corner. The machine will count the
banknotes when they are put into the banknote hopper. After pressing START, the machine will count the
banknotes.

BC-40 User Manual V1.2
18
Figure 23
7. Check Information and Print Information
7.1 Check Details of Counting
Under MIX counting mode or SDC counting mode, after finish counting and press left side
button , you can check the counting details as Figure 24 shows, Figure 25 is the interface after
finish counting:
Figure 24 Figure 25
This interface is used to check the number of banknotes of various denominations and the total amount
of this denomination, as well as the total amount of all amounts. At the same time, banknotes can also be
counted by directly placing them under this interface. To exit this interface, please press ESC or touch
the key in the upper right corner of the display.

BC-40 User Manual V1.2
19
7.2 Print Information
When the external printer has been connected and can be printed, after counting, press the
key to enter the detail list checking interface, and then press the key or touch the key, the
printer will print the detail and total amount of counting. The format printed is shown in Figure 26 below.
Figure 26
7.3 Check the Counting List Information
7.3.1 Plug-in of Serial Wire Harness
Figure 27
USB to 232 data cable, One end of 232 is
connected to the 232 female head end of the
machine, and the USB end is plugged into the
computer.
