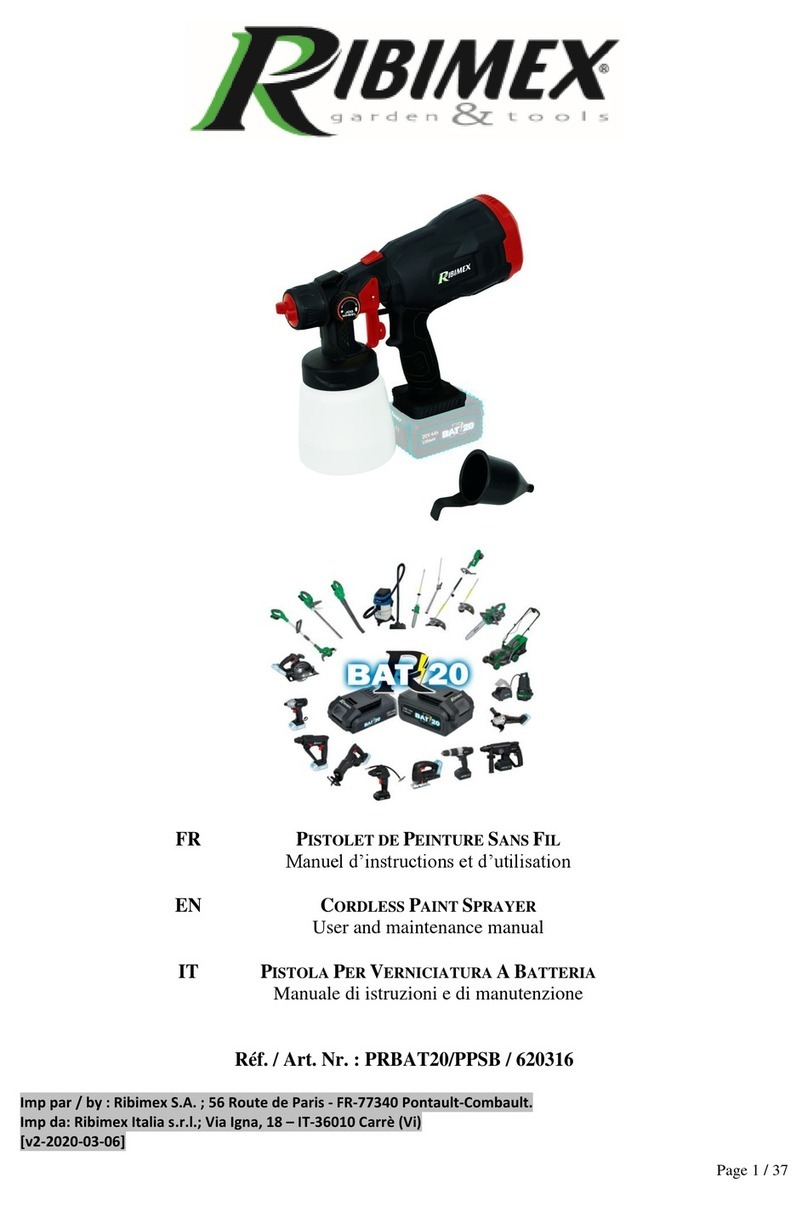

Ribimex RBAT20 PRBAT20/PPSB User manual

PRBAT20/PPSB
INSTRUCTIONS FOR HVLP ELECTRIC SPRAY GUN(Q0P-CX33-380)
Before using the gun, read this manual thoroughly.

Any improper use can cause damage or a serious hurt, even lead to death .
I Explosive view:

1
ST2.9*10SCRE
18
O-ring
35
Lock catch
2
Rear cover
19
22 Needle spring
36
microswitch
3
Cotton filter
20
Needle set
37
Battery pack
4
Right cover
21
GUN
38
Battery pack pin
5
Switch plunger spring
22
Pipette
39
Left cover
6
Switch plunger
23
Cup-ring
40
Gun-ring
7
Right side cover
24
Suction pipe splint
41
Stopper
8
ST3.5*10SCRE
25
Cup
42
Motor cover
9
Big nut
26
Φ3 flat gasket
43
550 motor
10
Spray ball
27
Short pin
44
wind mill
11
Spray nozzle
28
Adjusting knob
45
M4*8 SCRE
12
Barge board
29
trigger
46
Motor gasket
13
Nozzle seal
30
Spray a knob
47
Wind leaf
14
Needle
31
Left side cover
48
wind cover
15
Needle insert
32
O-ring
49
Damping ring
16
Needle seat
33
Atomization circle
50
funnel
17
bowl seals
34
Vent spring
51
Pin
II Technical parameters:
Model:Q0P-CX33-380
Rated power:120W
Atomization output:
Rated votage:18V
Battery capacity: 2000mAh
Frequency:50/60HZ
Spraying distance: 200-250mm
Rated speed:30000RPM
Width: 200-300mm
Air flow:160L/MIN
Viscosity: 8-12s
Paint flow:100-200ml/min
Material pot capacity: 800ml
III Function:
Suitable for painting furniture, fences, doors, windows, walls, ceiling,
and for car repairing, high altitude operation and so on.
IV How to use:

Before use the electric spray gun, material preparation is the first stage.
Please refer to the thinning chart and picture.
Material Run Out Time (Sec)
1) Unscrew the paint container from the spray gun.
2) Adjust the suction tube.
a) If spray in an upward direction，the angled end of the suction tube should be pointing toward the rear of the gun.
Suction Tube

b) If spray in a downward direction, the angled end of the suction tube should be pointing towards the front of the gun.
3) Pour material into container, make sure not to exceed 800ml
4) Remove the motor
a) Hold the gun with your hand and press the latch in the direction of the arrow.
b) At the same time hold the motor handle with your hand and rotate it counterclockwise 90°.
c) Pull out to remove the motor from the gun.
5) Connect gun body with motor
Suction Tube

a) Hold the gun with your hand to align the slot on the gun with the slot on the motor and insert it (as shown in the figure).
b) Hold the motor handle with your hand, rotate the right hand clockwise 90°.
c) When the gun and host are parallel, it is locked.
6) Adjust the needle adjusting screw to meet your requirement.
a) Adjust the screw to left to decrease paint volume, lower paint thickness
b) Adjust the screw to right to increase paint volume, increase paint thickness
7) Spray length adjustment: Turn this knob to adjust the round shape from vertical to horizontal.
Adjustion Screw

Adjust the required length according to the spraying environment, reduce waste and save material.
a) The counterclockwise rotation shortens the length, and when it rotates to the stop position, it is sprayed with the largest circle.
b) Adjust the screw to right to increase paint volume, increase paint thickness
8) Adjusting spray patterns

a) The gun spray patterns can be changed from a horizontal oval fan pattern to a round
b) detailed pattern to a vertical fan pattern by adjusting the nozzle.
VERTICAL HORIZONTAL
9) Open the power switch, pull trigger, the paint will spray from the nozzle.
V How To Spray Properly:
EVEN COAT THROUGHOUT
Correct:
Keep stroke smooth and at even speed.
Incorrect:
Do not flex wrist while spraying.
VI Replace nozzle and Needle:

When disassembling the nozzle, please pull the trigger first, then press and remove the nozzle.
a) As shown in the figure, rotate to remove the needle
b) As shown in the figure, rotate to set up the needle
VII Troubleshooting:

Problem Cause Solution
Problem
Cause
Solution
A.little or no material flow
1.nozzle clogged
2.suction tube clogged
3.material volume setting
turn too far to the right
4.suction tube loose
5.material is too thick
6.inconsistent paint
7.container is loose
1.clean
2.clean
3.turn to the left
4.insert
5.check viscosity
6.strain paint
7.tighten the container
B.material leaking
1.nozzle loose
2.nozzle worn
3.nozzle seal worn
4.material build-up on spray
pattern dial and nozzle
1.tighten
2.replace
3.replace
4.clean
C.atomization is too coarse
1.viacosity of material too high
2.material volume too large
3.nozzle clogged
4.too little pressure build-up
in container
1.thin
2.turn to the right
3.clean
4.tighten container
D.spray jet pulsates
1.material in container running out.
2.material is too thick
1.refill
2.check viscosity
E.pattern runs or sags
1.applying too much material
1.adjust material flow or increase movement of
spray gun
F.too much over-spray
1.gun too far from spray object
2.too much material applied
1.reduce distance
2.turn material volume setting to right
G.pattern is very light and splotchy
1.moving the spray gun too fast
1.adjust material flow or decrease movement of
spray gun
H.large cloud of paint
1. gun too close to surface
1.move gun away from surface
and reduce paint flow
VIII Warning!
1. Keep your workplace clean and tidy,never use the tool in hazardous areas that
contain flammable liquids,gasses or dusts.
2. Only use paints,solvents or other materials with a flash point of 73 °F(22C) or higher.
3. Never point the spray gun at other person or animal.In the event of an injury,seek immediate medical attention.
4. Always read the paint manufacturer's thinning instructions before use.
5. You must clean the spray gun thoroughly after each use.
6. Do not pull the power cord to move this tool.
