1
About This Manual
The IQ plus 310A XPCD explosion proof digital weight indicator represents the latest in state-of-the-art
microprocessor technology specifically applied to the explosion proof weighing marketplace. This IQ plus 310A
has been modified for use in a hazardous environment.
This manual provides information on installation of the IQ plus 310A XPCD. The installer should be familiar
with the National Electrical Code and RP 12.6 ( Recommended Practice ) requirements for installation of
equipment in hazardous areas (NEC Article 504, Intrinsically Safe Systems ) published through the Instrument
Society of America.
This equipment is intended only for industrial applications.
This instrument and accompanying equipment must be installed and serviced by an
authorized technician in accordance with the instructions provided in this manual.
Improper specification, installation, or service of this equipment could result in personal injury or property
damage.
Read all of the manual prior to installation. Do not assume that all hazardous area installations are identical.
Do not begin installation until all safety procedures are in place including lockouts, additional ventilation, or
washdowns. Make sure plant safety personnel have checked the area in which you will be working and have
officially declared it safe for work to proceed.
All explosion proof enclosures must remain closed unless being serviced by qualified personnel in an area
which safety inspectors have tested and declared safe. Each opening must have a sealoff fitting or plug
correctly installed in it. Sealoff installation is critical. Maximum voltage inside of enclosure must not exceed
250VAC.
The illustrations shown on the following pages represent a basic explosion proof flame control theory
(XPCD).
Warning
DISCONTINUED

2 IQ plus 310A XPCD Technical Service Manual

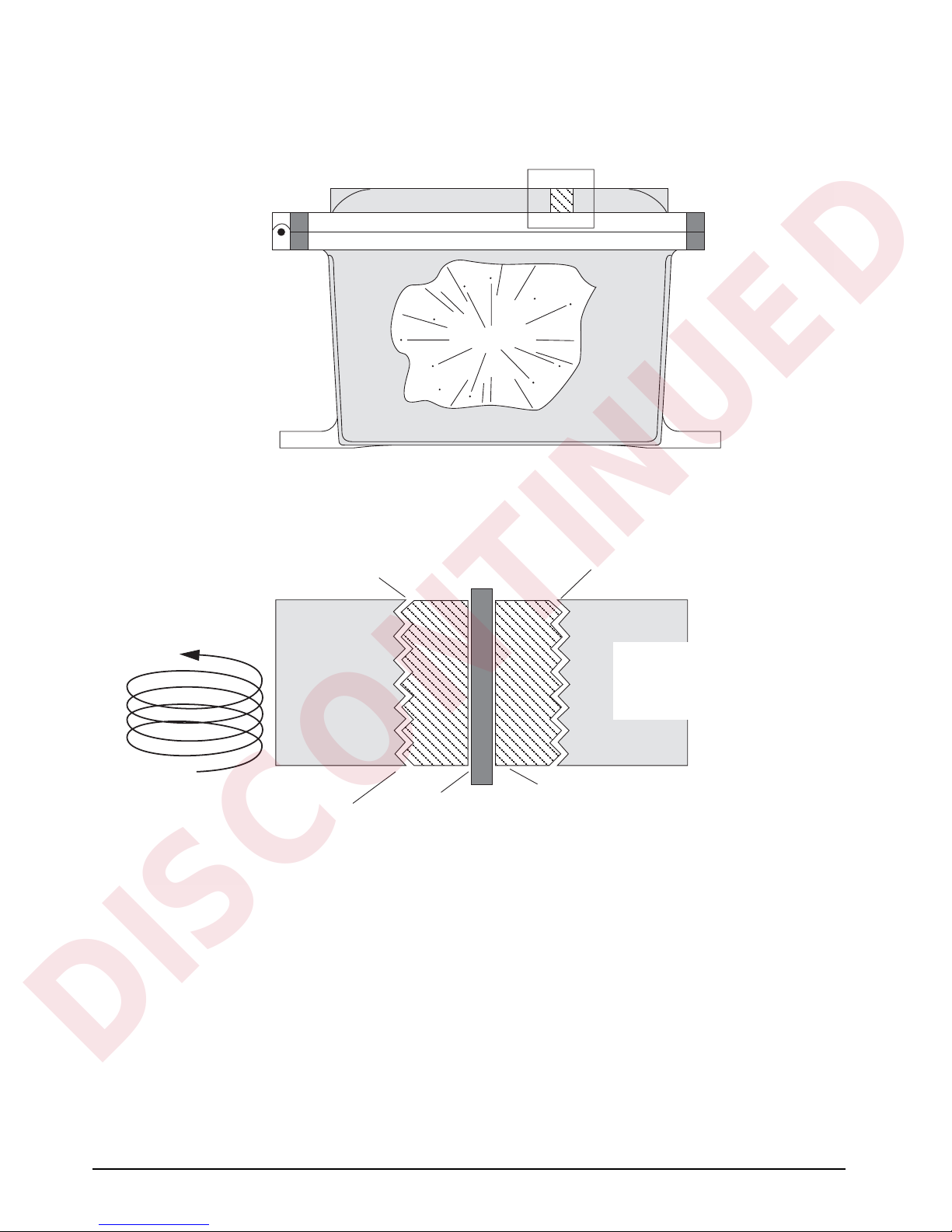

The push buttons, rotary switches and sealing fittings are all attached to the enclosure via drilled and
tapped holes in the enclosure. Just as with the flange, all threaded operators and fittings carefully control
the flame path.
Explosion
HAZARDOUS
AREA
High temperature
gases
Cooling from
conduction of heat
along the threads
There must be a minimum of five full
threads of engagement of a 2–A
2–B fit for a Group C enclosure.
Group B increases this to eight full
threads of engagement.
Propagation of gas due to
pressure from an internal
explosion is along the
threads
Shaft clearance
not to exceed 0.00033"
Cross–section of a
shaft-type threaded
operator
INSIDE OF
ENCLOSURE
Lower
temperature
gases
Enlarged view
below
DISCONTINUED

3

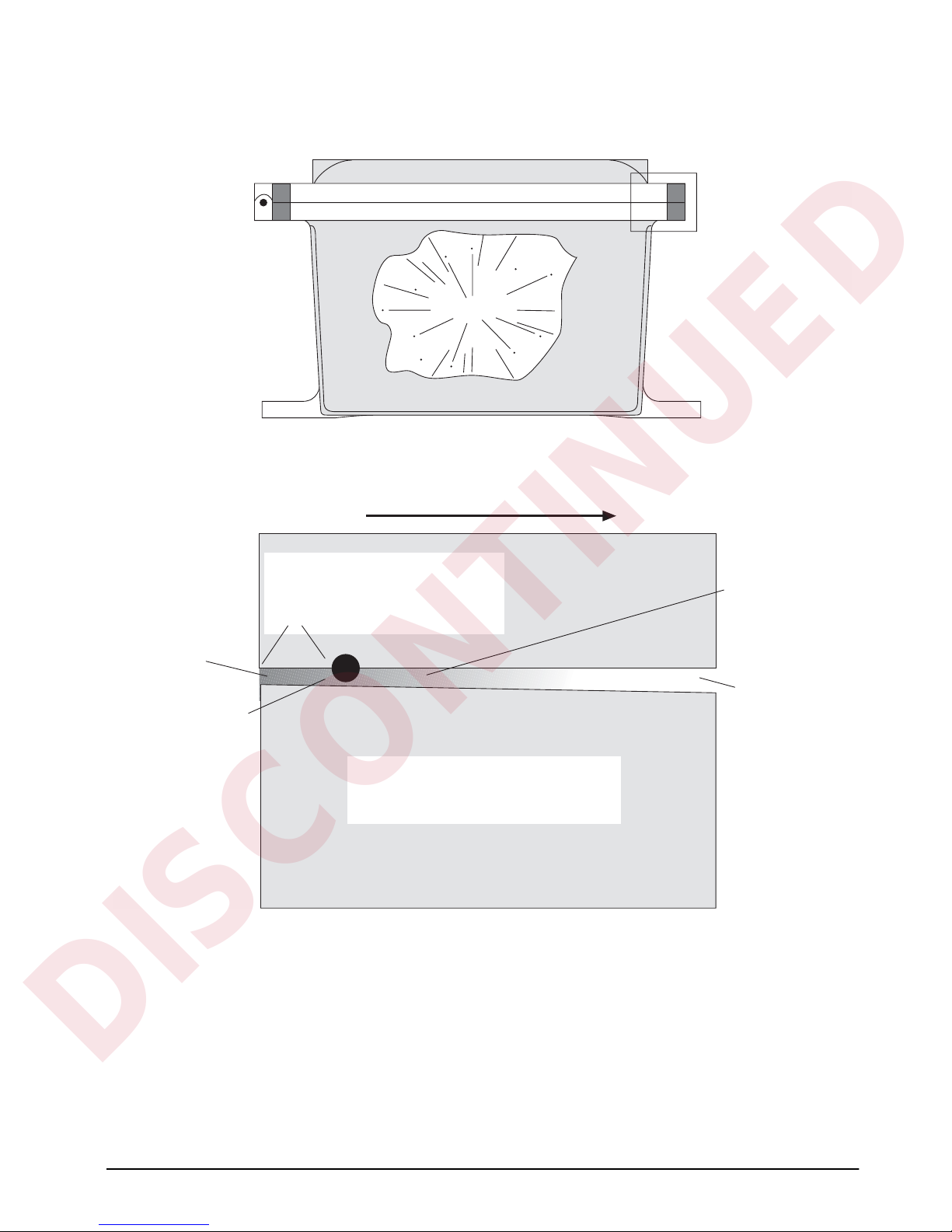

The design intent of an explosion proof enclosure is not to contain an explosion, but to control it. The flame
path is carefully controlled at the flanges. This insures that if an explosion occurs, any gases that escape will
be cooled to a temperature below the ignition point of any atmosphere specified within that enclosure’s
rating.
Explosion
HAZARDOUS
AREA
High temperature
gases
Cooling from
expansion of gas
(Boyle’s Gas Law)
The distance from the boundary of
the inside of the enclosure to the
gasket is known as the Flame Path.
This distance must be at least 1” for
Group C throughG.
INSIDE OF
ENCLOSURE
Lower
temperature
gases
Enlarged view
below
Propagation of gas due to
pressure from an internal
explosion
Gasket
For clarity, the slope of the flange
faces has been greatly enhanced
(typically, the slope is .0015”/inch)
DISCONTINUED

4 IQ plus 310A XPCD Technical Service Manual
1.0 Introduction
The IQ plus 310A XPCD is a single-channel digital weight indicator designed and approved to operate as an
explosion proof system in a wide variety of scale and weighing applications. The indicator is housed in a cast
aluminum explosion proof enclosure and can be safely used when the cover is properly installed and the sealing
fittings are packed and cemented. The indicator consists of four individual externally mounted buttons for
gross/net, tare, units, and print. (see Figure 1-1 on page 5).
Standard features of the IQ plus 310A XPCD include:
• Bright, bold vacuum fluorescent display (VFD)
• 50 updates/second
• Advanced digital filtering
•Two digital inputs, TTL or dry contact closure
• Selectable print data and format, via EDP port
• One communication port; EDP port, RS-232 or 20 mA selectable
• XPCD seal-off kit for three holes
• Cast aluminum explosion proof enclosure Class I, II, III; Divisions I & II, Groups C-G environments
1.1 System Limitations and Restrictions
The following items represent limitations and restrictions on the use of the IQ plus 310A XPCD:
• All wiring, connections, conduit and grounds must comply with the National Electrical Code.
• No modifications can be made in the field.
• It is mandatory to return the IQ plus 310A XPCD to Rice Lake Weighing Systems for service.
DISCONTINUED

Introduction 5
1.2 Front Panel Keypad and Annunciators
Figure 1-1 shows the IQ plus 310A XPCD front panel. The IQ plus 310A XPCD front panel consists of 4
individual externally mounted buttons for gross/net, tare, units and print. Table 1-1 lists the button functions.
Figure 1-1. IQ plus 310A XPCD Front Panel

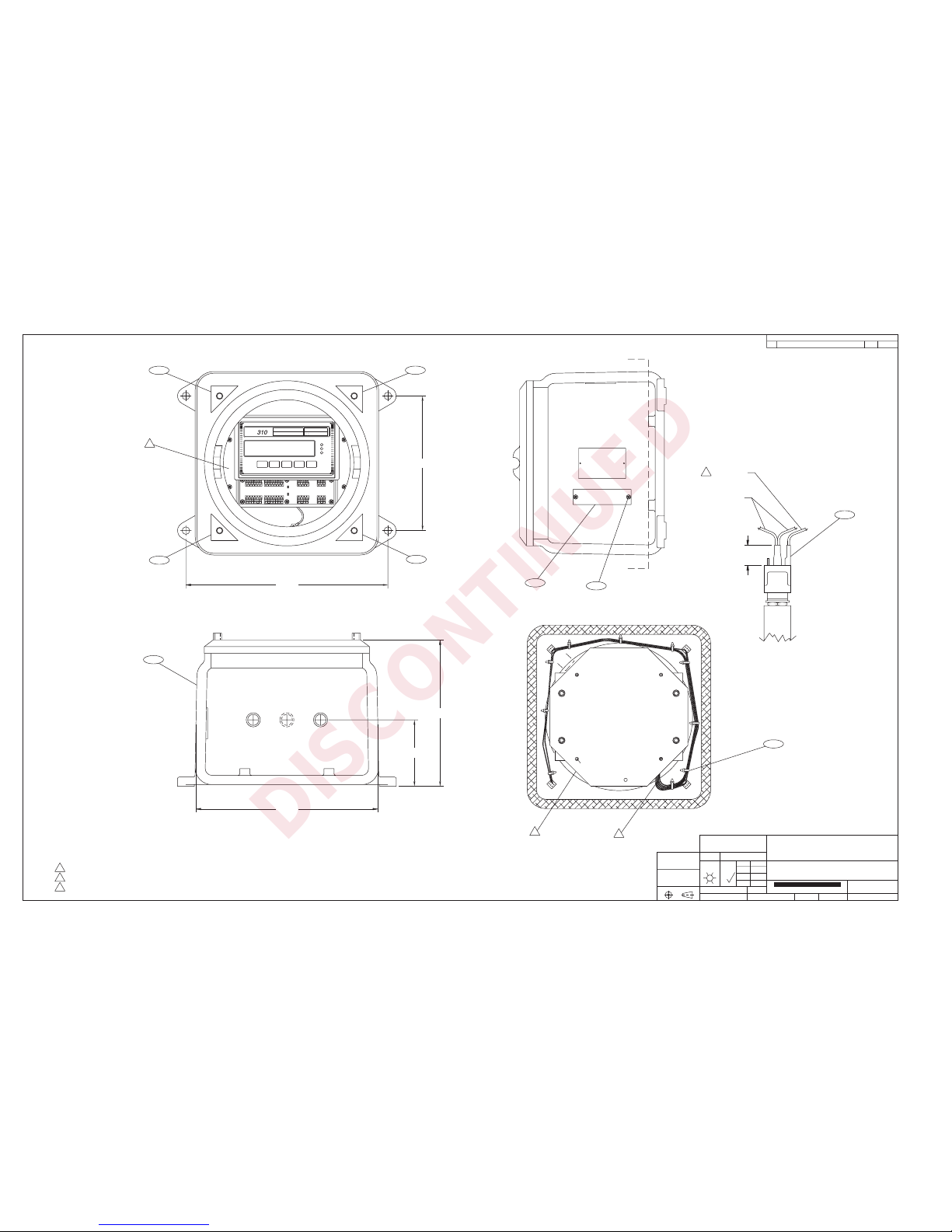

max
III/III L n =10,000
S/N
CAP
UNITS PRINT
GROSS
ZERO TARE
NET
Entry
kg
lb
Mode
A
MADE IN USA
IQ plus
GROSS/NET
ZERO
PRINT
TARE
Panel Key Function
ZERO Provides push-button auto zero (PAZ) over ±1.9% or 100% full scale capacity. Operates only in gross
weighing mode.
GROSS/NET Switches the unit between gross and net weighing modes.
TARE Provides push-button tare entry over 100% of scale capacity. Pressing TARE key switches to net mode
and enters tare.
PRINT Provides a manual print function if unit is wired to serial printer or other data device. See paragraph 6.6 in
the IQ plus 310A Installation and Operation manual, PN 22979, for serial output specifications.
Table 1-1. Front Panel Key Functions
DISCONTINUED

6 IQ 310A XCPD Technical/Service Manual
2.0 Installation and Wiring
This section is provided to help the installer and describes the procedures for installing the IQ plus 310A XPCD
indicator and enclosure, AC wiring, load cell wiring, conduit runs and internal modifications for the IQ plus
310A XPCD.
2.1 IQ plus 310A XPCD Enclosure
The following sections describe mounting locations and how to mount the enclosure and seal off the fittings.
2.1.1 Mounting and Mounting Locations
The mounting and installation of an explosion proof enclosure is more involved than a general purpose unit and it
is recommended that all outdoor installations have a shelter, roof, enclosure, or covering. The IQ plus 310A
XPCD enclosure is cast aluminum and direct sunlight can cause it to heat to a very high temperature which can
damage the electronics inside. (Such damage is not covered by the warranty). Sheltering the unit from sunlight
will help control the internal temperature.
Sunlight and variable temperatures can also cause moisture to condensate inside the enclosure. It is
recommended to shelter the outdoor installation by a shelter, roof, enclosure, or covering. Moist environments
can also be controlled by the use of desiccants. Contact your local dealer for information on desiccants.
Do not place desiccants on top of circuit boards. Place them in the bottom of the
enclosure away from electronics and wires.
The explosion proof enclosure is substantially heavier than a standard enclosure and thus the mounting surface
must be capable of reliably supporting the added weight.
The mounting and installation of the IQ plus 310A XPCD must be into Division II or safe electrical area per
NEC, Section 500. The inside of an explosion proof enclosure is classified as a Division II environment.
Switches and Glass
The glass and switches on the IQ plus 310A XPCD may look indestructible but they are not. If damaged in any
way, the entire unit must be completely turned off at the source until it is replaced. The enclosure must be
protected from blows and scrapes from passing equipment, falling objects, thick glues or resins, certain acids
which eat aluminum, and other hazards which can break or damage the enclosure.
The glass window in the enclosure must be not become scratched, pitted, or damaged in any way. Do not wipe
the glass with dirty gloves or rags as this can cause the glass to become scratched.
!Caution
DISCONTINUED

Installation and Wiring 7
2.2 Sealoff Fittings
The utmost care must be taken to completely seal the inside of the enclosure off from the outside world. To do
this all wiring into and out of the enclosure must be in conduit using sealoff fittings between the enclosure and
the conduit. The sealoff fittings ensure that the hazardous atmosphere does not travel either through the conduit
or through insulation or wiring back to the safe area. The graphic shown below illustrates the location of sealoff
fittings.
These fittings, once installed and sealed are very difficult to remove so make sure all the wiring has been double
checked before beginning. If rigid conduit is not being used for connection to the scale base, be sure to install an
approved strain relief fitting to avoid pulling the wires out of the sealoff fittings in an accident. Doing so would
open a flame path to the enclosure and defeat its purpose.
max
III/III L n =10,000
S/N
CAP
UNITS PRINT
GROSS
ZERO TARE
NET
Entry
kg
lb
Mode
A
MADE IN USA
IQ plus
GROSS/NET ZERO
PRINT
TARE
DISCONTINUED

8 IQ 310A XCPD Technical/Service Manual
2.3 Cabling and Conduit Runs
2.3.1 Cabling
There are two types of cables that pass through a sealoff fitting, single conductor and multi conductor.
Single Conductor Cabling
Single conductor cables are typically redundant ground wires (used with resistive intrinsic safety barrier). Due to
the nature of the method by which insulation is applied to wire, a single conductor wire (single or multi strand)
can be considered gas tight. It is not necessary to strip the insulation back ahead of entry into the safe area. Single
conductor cables will pass through a sealoff fitting as shown below.
Figure 2-1. Single Conductor Cable
Multi Conductor Cabling
Multi conductor cables may be load cell cables, AC power, serial data inputs or other signals. Because of the
airspace that typically exists within the outer insulation of a multi conductor cable, they cannot be considered gas
tight. Therefore, to insure that the explosion proof enclosure is allowed to vent internal pressure appropriately,
the outer insulation must be removed back to the point ahead of entry into the safe area. Multi conductor cables
will pass through a sealoff fitting as shown below.
Figure 2-2. Multi Conductor Cable
A sealing fitting must be installed within 18" of the enclosure for Groups C-G and 6" for Groups A and B.
Using the enclosed packing fiber and sealing cement, follow the directions for sealing the sealoff fittings
carefully. Make sure there are no openings, no matter how small to the outside.
An enclosure without sealoff fittings correctly installed and sealed is not explosion proof
therefore can pose serious injury or death.
Conduit to Indicator or other Safe
Area ( 18” Max. Group C & D)
Packing Plug
Safe Area
Airspace
Hazardous Area
Airspace
Conduit or Strain Relief
to Hazardous Area
Packing Fiber
Sealing Cement
Single
Conductor
Cable
Conduit to Indicator or other Safe
Area ( 18” Max. Group C & D)
Packing Plug
Safe Area
Airspace
Hazardous Area
Airspace
Conduit or Strain Relief
to Hazardous Area
Packing Fiber
Sealing Cement
Multi-Conductor
Cable
Warning
DISCONTINUED

Installation and Wiring 9
2.3.2 Conduit Runs
Conduit can be run either vertically or horizontally. But either way the conduit must be sealed properly to
maintain the explosion proof integrity of the unit. The following paragraphs explain the proper way to install a
conduit run and the sealing fittings.
Horizontal Conduit Runs
Install the fitting with covered filling opening facing up. Remove the threaded cover and pack Adaco
®
packing
fiber around and between cables at both ends of fitting to block the flow of cement into conduits. Packing fiber
must not project into the main cavity of fitting. The cavity length free of packing fiber must be at least equal to
inside diameter of conduit but not less than 5/8".
Mix the cement per label instructions using the enclosed shipping container. Fill the container with clean cold
water to “water line” (make sure not to exceed required amount of water). Gradually pour cement from the
plastic bag into water and stir thoroughly for proper mixture. Fill the fitting in one continuous pour to the top of
filling opening within five minutes after mixing cement. Tamp with a blunt stick to expel any air bubbles. Install
and tighten filling opening cover.
Fittings requiring more than 16 oz. of cement must be filled from a single mixture of cement and water. Do not
pour in stages.
Water-mix sealing compound should not be poured or installed at temperatures below 35F.
Vertical Conduit Runs
Install the fitting with angled fill plug or cap fill plug towards the top. Remove angled fill plug, large hole plug or
threaded cover. Pack fiber around and between cables at lower end of sealing fitting to block flow of cement into
conduit. Packing fiber must not project into main cavity of fitting. Install and tighten large plug or threaded cover
with fill plug facing up but do not install fill plugs at this time.
Mix the cement per label instructions using the enclosed shipping container. Fill the container with clean cold
water to “water line” (make sure not to exceed required amount of water). Gradually pour cement from the
plastic bag into water and stir thoroughly for proper mixture. Fill the fitting in one continuous pour to the top of
filling opening within five minutes after mixing cement. Tamp with a blunt stick to expel any air bubbles. Install
and tighten fill plug.
!Caution
DISCONTINUED

10 IQ 310A XCPD Technical/Service Manual
2.4 AC Power Wiring
Electrical connections made in an explosion proof installation are made through rigid steel conduit through
threaded openings in the back or sides of the enclosure and must comply with the National Electrical Code for
installation of equipment in hazardous areas (NEC Article 504, Intrinsically Safe Systems ).
Connect an electrically separate source of 115 VAC 60HZ to the terminals on the user wiring board marked
L1,
L2, GND.
Figure 2-3. AC Power Wiring
Do not apply power at this time.
Recheck all connections and make sure there are no hazards in the surrounding area, and turn on power. The
meter should come on and do a normal lamp test.
ZERO
GROSS/NET
TARE
UNITS PRINT
COMMON
+SEN
-SIG
+SIG
-SEN
SHIELD
+EXC -EXC
TXD
GND
DIGIN 1 DIGIN 2
-SENSE
JUMPER
JUMPER
+SENSE
TB1 TB3 TB5
TB2 TB4 TB6
WIRE TERMINATION OF
EXTERIOR SWITCHES
L1
L2
GND
TB7
TB8
Revision REV, NEW
ASSEMBY P/N 66036
L1
L2
GND
TB7
TB8
Revision REV, NEW
ASSEMBY P/N 66036
HOT
NEUTRAL
GND
DISCONTINUED

Installation and Wiring 11
2.5 Intrinsic Safety Barriers
The IQ plus 310A XPCD is designed to be used by personnel already trained and familiar with intrinsic safety
barriers. They are designed to self destruct if a dangerous condition occurs.
Note:
If you are not trained to work on this equipment, stop. Call you scale dealer for assistance.

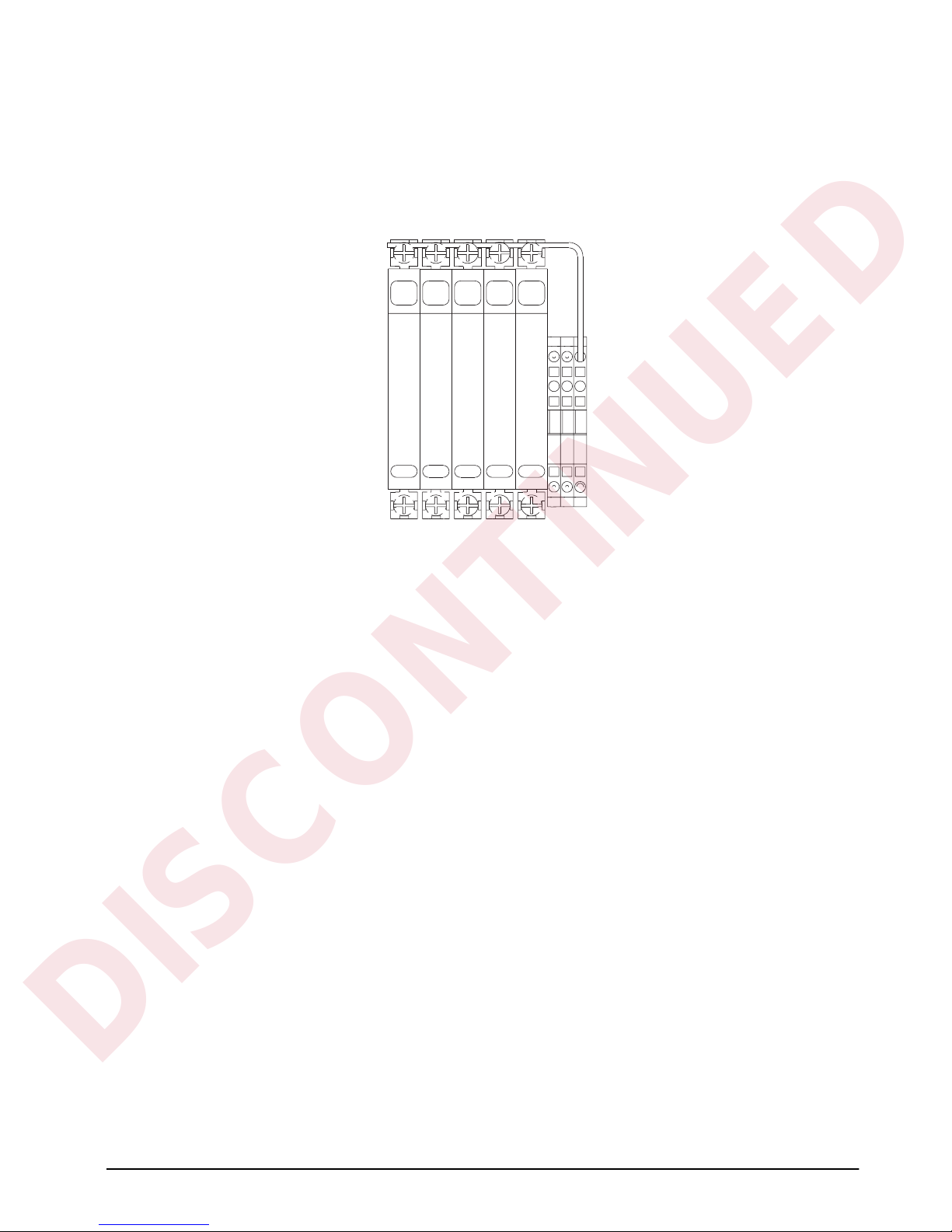

All intrinsic safety barriers have five terminals (shown below).
Figure 2-4. Intrinsic Safety Barrier
Terminals three and four are the intrinsically safe connections. Devices in the hazardous location are connected
to these terminals. Terminals one and two are the non-intrinsically safe connections for devices within the
non-hazardous location. The maximum source voltage applied to these terminals under a fault condition must not
exceed 250 V rms.
Along with the four terminals mentioned above, two additional screw terminals are provided, one on each side of
the barrier.
They are directly attached to the barrier mounting/grounding system and can be used to establish a redundant
ground system or for terminating shields. On single channel barriers they are also internally connected to
terminals two and four.
Since a common housing is shared between single, dual, and application dedicated barriers, refer to the
schematic printed on the side of each barrier to determine the designation of the floating and grounded terminals.
If an instrinsic safety barrier self destructs, do not replace it. Find out what caused the problem. Do not assume
the problem can only be in the indicator.
Only when the problem is corrected should a barrier be replaced with the exact same brand and type.
2.5.1 Intrinsic Safety Grounding
Special attention must be given to the grounding system. Without a proper earth ground system, intrinsic safety
barriers will not provide voltage protection. They must therefore be grounded to a designated grounding
electrode that references the original power source and instrumentation within the non-hazardous location. This
source of ground must be less than 1
Ω from the true earth ground.
+SENSE -SENSE -SIGNAL +SIGNAL
+EXCITATION
RS232 TXD
-EXCITATION
RS232 GND
34 34 334 4
1212 112 221
43
1
2
DISCONTINUED

12 IQ 310A XCPD Technical/Service Manual
2.6 Load Cell Wiring
The load cell wiring from the IQ plus 310A has been connected to the intrinsic safety barriers at the factory, (see
Figure 2-4). The barriers are located in the bottom of the enclosure.
Wire the load cell cable from the load cell or junction to terminal block TB4 (shown below). If using six-wire
load cell cable (with sense wires), remove jumpers JP1 and JP2. For four-wire installation, leave jumpers JP1 and
JP2 on.
Figure 2-5. Load Cell Wiring
ZERO
GROSS/NET
TARE
UNITS PRINT
COMMON
+SEN
-SIG
+SIG
-SEN
SHIELD
+EXC -EXC
TXD
GND
DIGIN 1 DIGIN 2
L1
L2
GND
-SENSE
JUMPER
JUMPER
+SENSE
TB1 TB3 TB5 TB7
TB2 TB4 TB6 TB8
Revision REV,NEW
ASSEMBY P/N 66036
JP1
JP2
+SEN
-SIG
+SIG
-SEN
SHIELD
+EXC -EXC
-SENSE
JUMPER
JUMPER
+SENSE
TB3
TB4
JP1
JP2
DISCONTINUED

Installation and Wiring 13
2.7 Serial Communications
The serial communications cable from the IQ plus 310 XPCD has been connected to the intrinsic safety barriers
at the factory,(see Figure 2-4). The barriers are located in the bottom of the enclosure.
Wire the serial communications cable to terminal block TB6 (shown below).
Figure 2-6. Serial Communications Wiring
2.8 Configuration and Setup
The IQ plus 310 XPCD configuration is the same as the normal IQ plus 310A. Please refer to the IQ plus 310A
Installation and Operation manual , PN 22979 for further details on configuring your indicator.
Enable the configuration parameters by toggling the switch at the top of the indicator mounted inside the
enclosure. Configure the indicator at this time.
ZERO
GROSS/NET
TARE
UNITS PRINT
COMMON
+SEN
-SIG
+SIG
-SEN
SHIELD
+EXC -EXC
-SENSE
JUMPER
JUMPER
+SENSE
TB1 TB3
TB2 TB4
WIRE TERMINATION OF
EXTERIOR SWITCHES
L1
L2
GND
TB7
TB8
Revision REV, NEW
ASSEMBY P/N 66036
TXD
GND
DIGIN 1 DIGIN 2
TB5
TB6
TXD
GND
DIGIN 1 DIGIN 2
TB5
TB6
-SENSE
JUMPER
JUMPER
+SENSE
DISCONTINUED

14 IQ plus 310A XPCD Technical/Service Manual
3.0 Appendix
3.1 Troubleshooting
If any of the following conditions are observed:
• Suspect water or leakage in the enclosure
•Aswitch gets broken or sheared off
• The glass becomes scratched, cracked, chipped, or pitted.
•Asealing fitting is sheared off or damaged
• The door is hit by a vehicle or object
• If you notice or suspect any damage to the unit
Do the following:
• Clear area of all personnel and notify plant safety
• Shut down all power to the unit at the source and lock out
•When the area has been cleared of the hazard and plant safety has declared the area safe for workers to
enter, call your scale dealer
•Do not attempt to restart the unit until all damaged parts have been replaced and the unit has been tested.
3.2 IQ plus 310 XPCD Schematics
The following fold out pages contain wiring diagrams and system schematics for the IQ plus 310 XPCD
indicator.
DISCONTINUED

max
III/III L n =10,000
S/N
CAP
NN
//
CO
BLACK WIRE
BROWN /
(15.00)
(10.88)
UNITS PRINT
GROSS
ZERO TARE
NET
Entry
kg
lb
Mode
(4.94)
A
A
B
B
(13.50)
VIEW B-B
SCALE: 4X
WIRE
NOTES:
1. SEE SHEETS 2, 3, AND 4 FOR INTERIOR ASSEMBLY AND WIRING DETAILS.
(10.00)
2. SEE SHEET 4 FOR WIRE COLOR/SWITCH ASSIGNMENTS.
3. SEE SHEET 2, SECTION VIEW D-D, AND SHEET 4 FOR WIRING DETAILS.
.375
REVISIONS
REV REFERENCE INIT DATE
DRAWINGTOLERANCES
UNLESSOTHERWISE SPECIFIED
UNLESS OTHERWISE SPECIFIED
DONOT SCALE
DRAWIN
RICE LAKE WEIGHING SYSTEMS
IQ+310A XPCD, ASSEMBLY
19212
1:2 14
---
---
---
---
SEE BILL OF
MATERIAL
NONE
NEWDFH 5/21/02
SCALE
TREATMENT
ANGL
3PLC
2PLC
TOL. DECIMAL
TITLE
SHEET OF
DWG NO
REVISION
ALL THREADS TO BE CLASS 2
SURFAC
FINISH
MATERIAL
THIRDANGLE PROJECTION
UNITS TO BE INCHES
FORRLWS
USEONLY
MFG.ENG.
DR.BY
APPROVED
DES.ENG.
APPROVED
CKD.
0
THIS DRAWING AND ALL INFORMATION CONTAINED HEREIN IS AND REMAINS
THE PROPERTY OF RICE LAKE WEIGHING SYSTEMS INC. AND IS CONFIDENTIAL.
IT IS SUBMITTED AND MAY BE USED ONLY IN CONNECTION WITH RICE LAKE
WEIGHING SYSTEMS' PROPOSAL AND/OR ITS CUSTOMERS' ORDERS. IT SHALL NOT
DISCLOSED TO OTHERS OR COPIED WITHOUT RICE LAKE WEIGHING SYSTEMS' SPECIFIC
WRITTEN CONSENT AND SHALL BE IMMEDIATELY RETURNED UPON REQUEST.
A
MADEIN USA
IQ plus
GROSS/NET
ZERO
PRINT
TARE
1
1
2
3
27
26
25
28
3
22
79/2X
80
(68/10X)
RED /YELLOW /ORANGE /
DISCONTINUED

+SENSE
-SENSE
-SIGNAL
+SIGNAL
+EXCITATION
RS232 TXD
-EXCITATION
RS232 GND
CAP
S/N
III/III L n =10,000
max
SETUP SWITCH,
(ITEM 33), WIRE
TERMINATION. SEE
SHEET 3 FOR
SWITCH DETAILS
ZER
GROSS/NET
TARE
UNITS PRINT
COMM
+SEN
-SIG
+SIG
-SEN
SHIELD
+EXC -EXC
TXD
GND
DIGIN 1 DIGIN 2
L1
L2
GN
-SENSE
JUMPE
JUMPE
+SENS
TB1 TB3 TB5 TB7
TB2 TB4 TB6 TB8
TB2
TB1
ZERO TARE
GROSS/NET
TB4
TB3
+EXC
SHIELD
-SEN
+SIG
-SIG
+SEN
COMM
PRINT UNITS
-EXC
+SENS
JUMPE
JUMPE
-SENSE
DIGIN 2
TB6
TB5
DIGIN 1
GND
TXD
TB8
TB7
GND
L2
L1
ASSEMBYP/N 66036
Revision REV,NEW
Revision REV,NEW
ASSEMBYP/N 66036
WIRE TERMINATION OF
EXTERIOR SWITCHES
(SECTION VIEW A-A, SHEET 1)
SEE SHEET 4 FOR WIRE
COLOR/SWITCH ASSIGNMENTS
GROSS
NET
ZERO TARE UNITS PRINT
Entry
Mode
kg
lb
120VAC 230VAC
11-3456-3Rev 2
JP1
SECTION A-A
ELECTRICSHOCK HAZARD. NEUTRAL CONDUCTOR
PROVIDEDWITH OVERCURRENT PROTECTION.
CAUTION
TESTCOMPONENTS BEFORE TOUCHING.
RISKOF FIRE. REPLACE FUSES AS MARKED.
4SEN-
SEN+
SIG+
SIG-
3
1
2
EXC-
EXC+
J3J3
J3J3
SHLD
7
6
5
5x 20mm 250V
120V0.250A SB
UL/CSA IEC127
5x 20mm 250V
230VT 125mA
420mA
GND
ED
PRINTER
3
1
RX
TX
2
INPUT
RS232
J4J4
J4J4
6
5
1
2
7
F1,F2
SECTION B-B
SECTION D-D

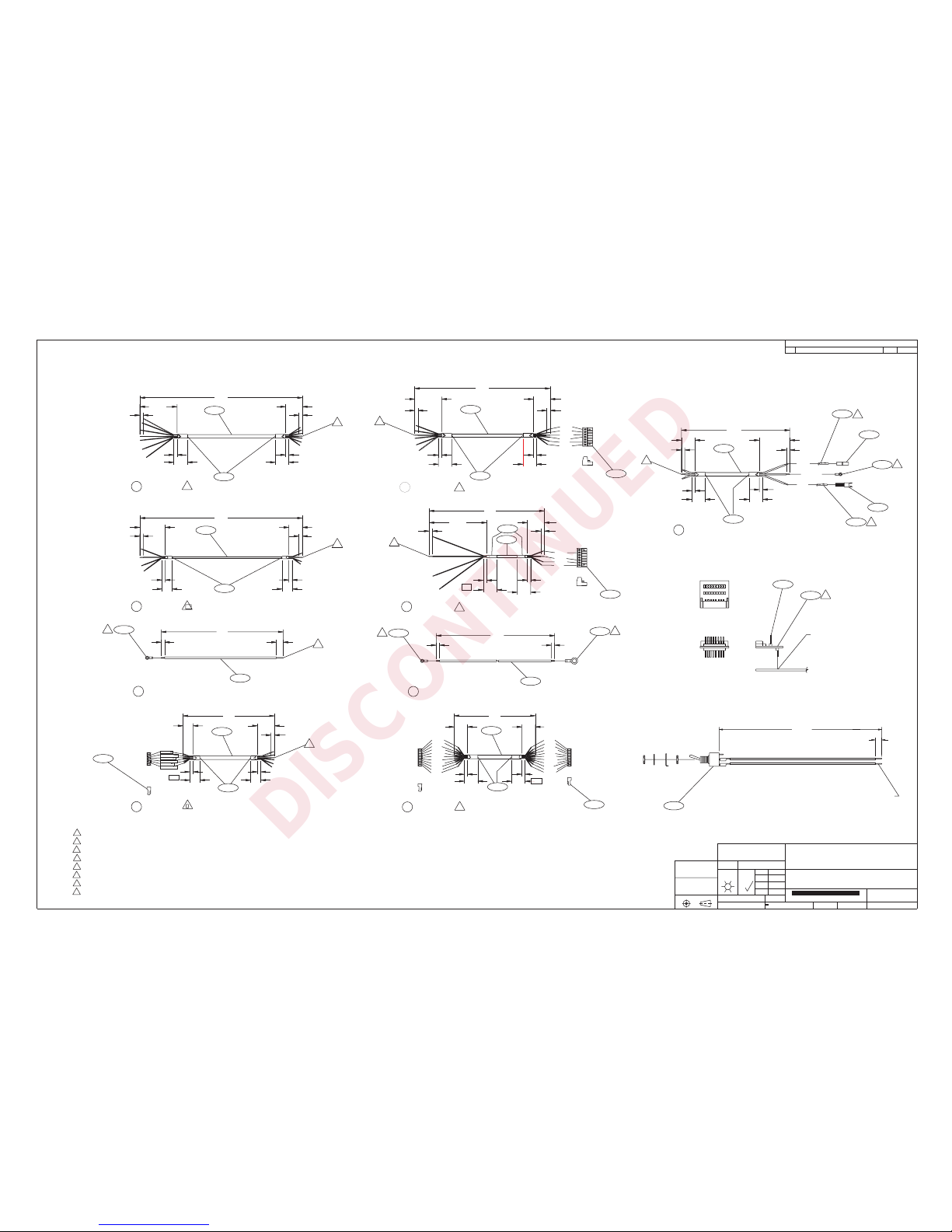

NOTES:
1. SEE SHEETS 3 AND 4 FOR CABLE ASSEMBLY AND WIRING DETAILS.
REVISIONS
REV REFERENCE INIT DATE
DRAWINGTOLERANCES
UNLESSOTHERWISE SPECIFIED
UNLESS OTHERWISE SPECIFIED
DONOT SCALE
DRAWIN
RICE LAKE WEIGHING SYSTEMS
IQ+310A XPCD, ASSEMBLY
19212
1:2 24
---
---
---
---
SEE BILL OF
MATERIAL
NONE
NEWDFH 5/20/02
SCALE
TREATMENT
ANGLE
3 PLC
2 PLC
TOL. DECIMAL
TITLE
SHEET OF
DWG NO
REVISION
ALL THREADS TO BE CLASS 2
ALL DIMENSIONS APPLICABLE AFTER TREATMENT
SURFAC
FINISH
MATERIAL
THIRDANGLE PROJECTION
UNITS TO BE INCHES
FORRLWS
USEONLY
MFG.ENG.
DR.BY
APPROVED
DES.ENG.
APPROVED
CKD.
0
THIS DRAWING AND ALL INFORMATION CONTAINED HEREIN IS AND REMAINS
THE PROPERTY OF RICE LAKE WEIGHING SYSTEMS INC. AND IS CONFIDENTIAL.
IT IS SUBMITTED AND MAY BE USED ONLY IN CONNECTION WITH RICE LAKE
WEIGHING SYSTEMS' PROPOSAL AND/OR ITS CUSTOMERS' ORDERS. IT SHALL NOT BE
DISCLOSED TO OTHERS OR COPIED WITHOUT RICE LAKE WEIGHING SYSTEMS' SPECIFIC
WRITTEN CONSENT AND SHALL BE IMMEDIATELY RETURNED UPON REQUEST.
34 34 334 4
1212 112 221
43
1
2
33
53
20/6X
73/2X
(20/2X)
8
13/4X
(13)
9
(13)
10
(13)
11
15
14
40/2X
12
17
18
19
74/4X
34/4X
5/14X
F
(68)
E
23
4
56
57
6
36/13X
(75)
(76)
(36)
(36)
76/5X
75/2X
(5)
37/14X
2/4X
59
67/2X
61
1
63/3X
64/3X
65/3X
66
62
58
A
B
C
D
G
(C)
(45)
H
J
(J)
(B)
(A)
(D)
(H)
(E)
(F)
45/5X
68/18X
16
30
(D)
(E)
(F)
(H)
77/2X
(68)
69
(68)
AA
B
B
C
C
D
D
IQ plus
MADE IN USA
A
1
1
1
1
1
1
1
1
1
DISCONTINUED

ORANGE WIRE
BROWN WIRE
BLACK WIRE
RED WIRE
BLUE WIRE
YELLOW WIRE
WHITE WIRE
BLACK WIRE
GREEN WIRE
YELLOW WIRE
BLUE WIRE
RED WIRE
GREEN WIRE
WHITE WIRE
BLACK WIRE
RED WIRE
BLACK WIRE
BROWN WIRE
RED WIRE
ORANGE WIRE
YELLOW WIRE
GREEN WIRE
BLUE WIRE
PURPLE WIRE
GREY WIRE
WHITE WIRE
PINK WIRE
GREEN/YELLOW WIRE
BLUE WIRE
BROWN WIRE
J2 OF CPU BOARD
(ITEM 58,SECTION
VIEW A-A, SHEET 2)
BLACK WIRE
BROWN
RED WIRE
ORANGE WIRE
YELLOW WIRE
GREEN WIRE
BLUE WIRE
PURPLE WIRE
GREY WIRE
WHITE WIRE
PINK WIRE
UNTINNED
SOLDER TO POWER SUPPLY BOARD AS
SHOWN ON SECTION VIEW C-C, SHEET 2
12.00
7X 2.75
6X .25
.25 1.00
6X .25
7X 1.25
.25
1.00
ACABLE ASSEMBLY
12.00
CABLE ASSEMBLY
B
4X 1.88
4X .25
.25
.75
4X 1.00
4X .25
.25
.75
9.00
WIRE ASSEMBLY
C
.25 .50
6.75
6X .75
CABLE ASSEMBLY
D
.25
.75
.25
.75
10.00
CABLE ASSEMBLY
E
6X 2.00
.25
6X .25
6X 1.25
.25
FCABLE ASSEMBLY
8.50
4X 4.25
4X .25
.25
1.00
4X 1.25
4X .25
1.00
.25
18.25
GWIRE ASSEMBLY
.25 .25
HCABLE ASSEMBLY
11X 1.00
6.00
1.00
.25
11X 1.00
1.00 .25
8.00
3X 1.00
1.00
.25
CABLE ASSEMBLY
.25
1.00
J
3X .25
3X 2.25
3X .25
BARE BOARD ASSEMBLY
SCALE: 2X
NOTES:
1. WIRE END TINNED.
2. CRIMP ON NON-TINNED WIRE END.
3. SOLDER TO CPU BOARD.
6. REMOVE SHIELD WIRES FROM BOTH ENDS.
4. REMOVE BROWN, ORANGE, PURPLE, GREY, WHITE, AND PINK WIRES FROM BOTH ENDS.
5. REMOVE BROWN, ORANGE, PURPLE, GREY, WHITE, PINK, AND SHIELD WIRES FROM BOTH ENDS.
7. REMOVE TAN, PURPLE, GREY, GREEN, WHITE, PINK, AND SHIELD WIRES FROM BOTH ENDS.
8. REMOVE TAN AND SHIELD WIRES FROM BOTH ENDS.
SETUP SWITCH ASSEMBLY
SCALE: 2X
2X 6.00
2X .25
REVISIONS
REV REFERENCE INIT DATE
DRAWING TOLERANCES
UNLESS OTHERWISE SPECIFIED
DO NOT SCALE
DRAWING
RICE LAKE WEIGHING SYSTEMS
IQ+310A XPCD, ASSEMBLY
19212
1:2 34
±.13
±.060
---
---
SEE BILL OF
MATERIAL
SEE NOTES
NEWDFH 5/22/02
SCALE
TREATMENT
ANGLE
3 PLC
2 PLC
TOL. DECIMAL
TITLE
SHEET OF
DWG NO
REVISION
SURFACE
FINISH
MATERIAL
THIRD ANGLE PROJECTION
FOR RLWS
USE ONLY
MFG.ENG.
DR.BY
APPROVED
DES.ENG.
APPROVED
CKD.
0
(30)
55
54
29
50
49
47
51
32
47
32
47
70
70
48
46
78
29
38
31/2X
32
47
46
48
29
38
47
32
52
7
(33)
1
3X
12X 1
8X 1
12X
1
8X1
1
16X
222
2
2
3
45
6
6
7
8
2
THIS DRAWING AND ALL INFORMATION CONTAINED HEREIN IS AND REMAINS
THE PROPERTY OF RICE LAKE WEIGHING SYSTEMS INC. AND IS CONFIDENTIAL.
IT IS SUBMITTED AND MAY BE USED ONLY IN CONNECTION WITH RICE LAKE
WEIGHING SYSTEMS' PROPOSAL AND/OR ITS CUSTOMERS' ORDERS. IT SHALL NOT BE
DISCLOSED TO OTHERS OR COPIED WITHOUT RICE LAKE WEIGHING SYSTEMS' SPECIFIC
WRITTEN CONSENT AND SHALL BE IMMEDIATELY RETURNED UPON REQUEST.
UNLESS OTHERWISE SPECIFIED
ALL THREADS TO BE CLASS 2
ALL DIMENSIONS APPLICABLE AFTER TREATMENT
UNITS TO BE INCHES
DISCONTINUED
